Feig Electronic ID ISC.MU02.02 User manual

INSTALLATION
final –public (B)
2018-09-19 –M91002-5e-ID-B.docx
ID ISC.MU02.02
UHF Reader Module

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 2 of 22
M91002-5e-ID-B.docx
Note
Copyright 2016-2018 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg
Tel.: [phone]
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.
FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-
ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 3 of 22
M91002-5e-ID-B.docx
General information's regarding this document
The sign "" indicates extensions or changes of this manual compared with the former issue.
If bits within one byte are filled with "-", these bit spaces are reserved for future extensions or
for internal testing- and manufacturing-functions. These bit spaces must not be changed, as this
may cause faulty operation of the reader.
The following figure formats are used:
0...9: for decimal figures
0x00...0xFF: for hexadecimal figures,
b0...1 for binary figures.
The hexadecimal value in brackets "[ ]" marks a control byte (command).

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 4 of 22
M91002-5e-ID-B.docx
Contents
1. Safety Instructions / Warning - Read before start-up ! 6
2. Performance Characteristics of the ID ISC.MU02.02 Reader Module 7
2.1. Performance Characteristics............................................................................................ 7
2.2. Available module types.....................................................................................................7
2.3. Optional available.............................................................................................................. 8
3. Installation and wiring 9
3.1. Dimensions........................................................................................................................9
3.2. Wiring –Connector X2.................................................................................................... 10
3.2.1. Supply voltage ...........................................................................................................11
3.2.2. RS232 interface.........................................................................................................11
3.2.3. Data/Clock interface...................................................................................................12
3.2.4. Shut Down.................................................................................................................13
3.3. USB interface................................................................................................................... 14
3.4. Antenna ports.................................................................................................................. 15

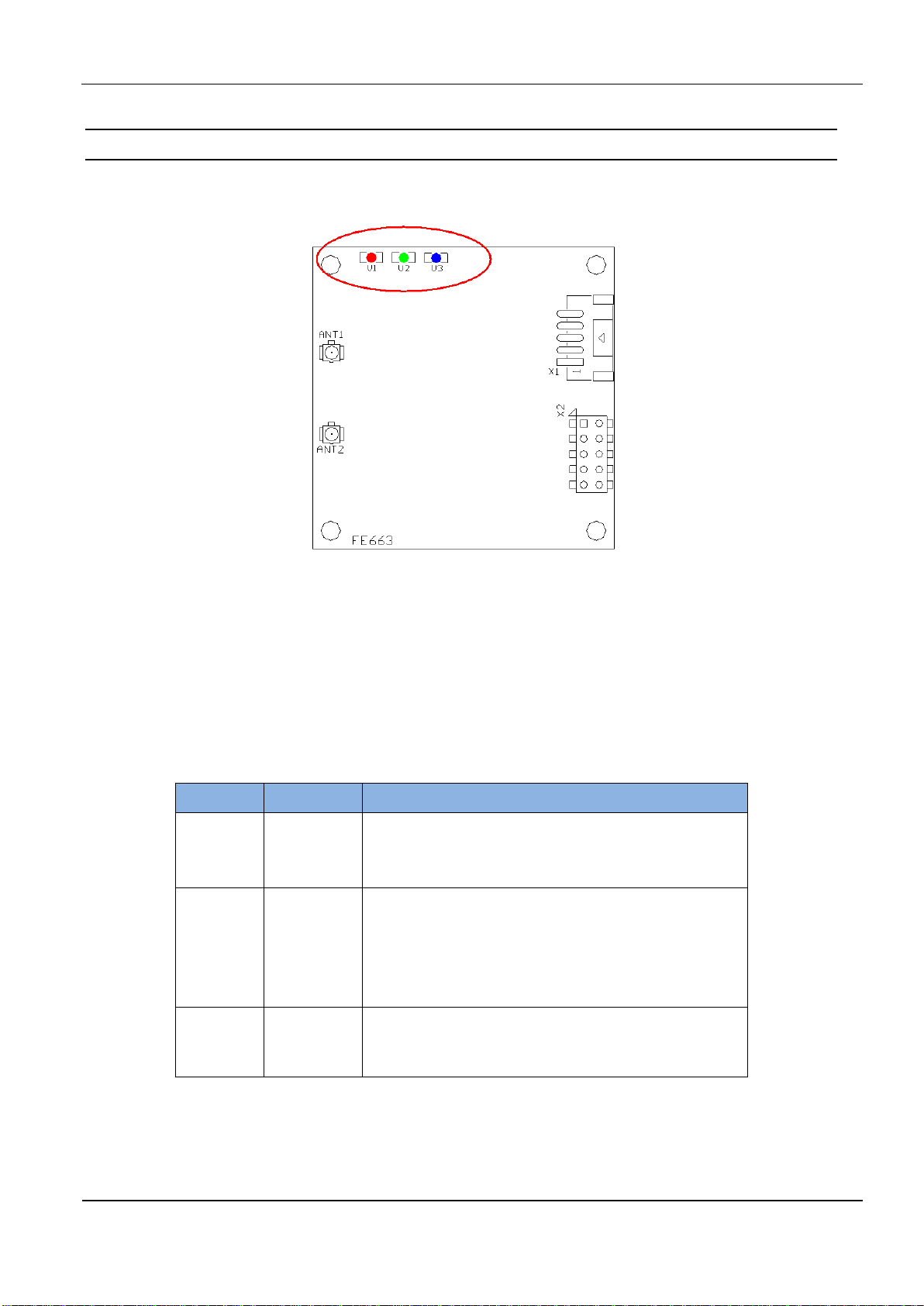

3.5. Display elements.............................................................................................................16
3.6. Installation notes.............................................................................................................17
3.6.1. Metallic surroundings.................................................................................................17
3.6.2. EMC effects on cables...............................................................................................17
4. Technical Data 18
5. Radio Approvals 20
5.1. Europe (CE)...................................................................................................................... 20
5.2. USA (FCC) and Canada (IC)............................................................................................ 21
5.2.1. USA (FCC) and Canada (IC) warning notices............................................................ 21
5.2.2. Label Information.......................................................................................................22
5.2.3. Installation with FCC / IC Approval............................................................................. 22

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 5 of 22
M91002-5e-ID-B.docx
5.2.4. USA (FCC) and Canada (IC) approved antennas ......................................................22

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 6 of 22
M91002-5e-ID-B.docx
1.
Safety Instructions / Warning - Read before start-up !
The device may only be used for the intended purpose designed by for the manufacturer.
The operation manual should be conveniently kept available at all times for each user.
Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.
The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
Repairs may only be executed by the manufacturer.
Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
When working on devices the valid safety regulations must be observed.
Special advice for carriers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you should keep
a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in
an immediate proximity of the device respective the antenna for some time.

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 7 of 22
M91002-5e-ID-B.docx
2.
Performance Characteristics of the ID ISC.MU02.02 Reader Module
2.1.
Performance Characteristics
The ID ISC.MU02.02 Reader Module is designed for reading and writing passive transponders, so-
called “Smart Labels”, with an operating frequency of 860 MHz to 960 MHz. It is suitable for any
application in which short and middle read ranges and small reader dimensions are required.
The module has 2 integrated antenna outputs for connecting 2 different 50 Ω antennas.
2.2.
Available module types
The following module types are currently available:
Table 1: Available reader types
Module type
Description
ID ISC.MU02.02-AD
Reader Module with RS232 and data/clock interface, external supply voltage of 5 V DC
ID ISC.MU02.02-CU
Reader Module with RS232-LVTTL and USB interface, external supply voltage of 5 V
DC or directly over USB

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 8 of 22
M91002-5e-ID-B.docx
2.3.
Optional available
The following components are optional available for the ID ISC.MU02.02.
Table 2: Accessories
Accessories
Order number
For COM-Port connection:
ID CAB.A-A Cable for Adaption of RS232 and Data/Clock
2259.000.00
ID CAB.RS-A Cable for RS232 and Power supply
1690.000.00
RS232-LVTTL/TTL Serial Data Converter
1962.000.00
ID Net.5V Power Supply
1689.000.00
For USB-Port connection:
ID CAB.USB-B Cable for USB
3541.000.00
Antennas and accessories:
ID ISC.ANT.U75/50-EU UHF antenna module 865 –868 MHz
3544.000.00
ID ISC.ANT.U75/50-FCC UHF antenna module 902 –928 MHz
3543.000.00
ID ISC.ANT.C05-A UHF antenna cable U.FL-U.FL 500 mm
3540.000.00
ID ISC.ANT.C02-U.FL/SMA adapter cable U.FL-SMA 200 mm
3621.000.00

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 9 of 22
M91002-5e-ID-B.docx
3.
Installation and wiring
3.1.
Dimensions
Figure 1 shows the dimensions of the ID ISC.MU02.02 Reader Module in mm.
Figure 1: Dimensions of the ID ISC.MU02.02 Reader Module in mm

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 10 of 22
M91002-5e-ID-B.docx
3.2.
Wiring –Connector X2
Figure 2 and Table 1 show the pin assignments for Terminal X2. The pin connector is designed for
flat cable connection using an IDC multipoint socket connector with 2.54 mm pin spacing.
Figure 2: Pin assignments for Terminal X2
Table 3: Pin assignments for Terminal X2
Pin
Function
Description
1
DAT
Data line for the data/clock interface
2
CLK
Clock line for the data/clock interface
3
TxD
RS232-TTL –Transmit Data
4
GND **
Ground
5
RxD
RS232-TTL –Receive Data
6
SHDN
Shut Down
7
CLS
CLS line for the data/clock interface
8
VCC *
+ 5 V DC
9
GND **
Ground
10
---
no function (use ONLY open!)
* Use only regulated DC power supplies !
** GND-Pins 4 and 9 are to be connected directly to each other
on the Reader Module

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 11 of 22
M91002-5e-ID-B.docx
3.2.1.
Supply voltage
The ID ISC.MU02.02 must be supplied only by a regulated power supply. If switching power sup-
plies are used with the module, be sure that there is adequate filtering. Noise from the power sup-
ply can result in a reduction of the read/write range of the module. The cable length from the power
supply should be as short as possible, and should in any case not exceed 3 m.
Table 4: Pin assignment for the Power Supply at terminal X2
X2
Pin no.
Function
Description
8
VCC *
+ 5 V DC 5%
4, 9
GND **
Ground
* Use only regulated power supplies !
** GND-Pins 4 and 9 are to be connected directly to each
other on the Reader Module
NOTE:
The reader has to be supplied by a limited power supply (e.g. NEC Class 2/LPS power
supply) according EN 62368-1 chapter Q.1, only.
Reversing the polarity of the supply voltage may destroy the device.
Supply voltages outside the specifications may destroy the device.
3.2.2.
RS232 interface
The length of the cable to the RS232 interface should be kept as short as possible, and must in
any case not exceed 3 m.
Table 5: Pin assignments for the RS232 interface at terminal X2
X2
Pin no.
Function
Description
3
TxD *
RS232 - Transmit Data
4, 9
GND **
Ground
5
RxD *
RS232 - Receive Data
* Signal names as seen by the Reader Module.
** GND-Pins 4 and 9 are to be connected directly to each
other on the Reader Module

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 12 of 22
M91002-5e-ID-B.docx
The transmission parameters for the interface can be software-configured. Table 6 shows the
standard parameters for the RS232 interface.
Table 6: Standard parameters of the RS232 interface
NOTE:
IF there is a RS232 to TTL converter used without external power supply it may be neces-
sary to switch on the COM Port parameter “RTS” and “DTR” manually.
3.2.3.
Data/Clock interface
The length of the cable to the data/clock interface should be kept as short as possible. It must not
exceed 3 m.
Table 7: Pin assignment for the Data/Clock interface at Terminal X2
X2
Pin no.
Function
Description
1
DAT
Data line for the data/clock interface
2
CLK
Clock line for the data/clock interface
7
CLS
CLS line for the data/clock interface
4, 9
GND *
Ground
* GND-Pins 4 and 9 are to be connected directly to each
other on the Reader Module
Figure 3: Connecting the data/clock interface
Parameter
Standard setting
Baud rate
38400
No. of data bits
8
Parity
Even
No. of stop bits
1

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 13 of 22
M91002-5e-ID-B.docx
3.2.4.
Shut Down
The ID ISC.MU02.02 can be switched off with the SHDN pin (pin no. 6 at terminal X2). Therefor the
pin has to be connected to Ground.
Table 8: Status table for the SHDN pin
X2
Pin no. 6
Operating status
not connected
on
Ground (GND)
off
NOTE:
Supply voltages outside the specifications may destroy the device.

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 14 of 22
M91002-5e-ID-B.docx
3.3.
USB interface
Figure 4 and Table 9 show the pin assignments for Terminal X1 (“JST PH” type with pitch 2.0 mm).
Figure 4: Pin assignments for Terminal X1
Table 9: Pin assignments for Terminal X1
Pin
Function
Description
1
SHIELD
Shielding
2
GND
Ground
3
D +
USB-D PLUS
4
D –
USB-D MINUS
5
VCC
5 V power supply
The power supply follows though the USB-interface (Bus powered). The USB interface must sup-
port a current of 500mA (High Powered Interface). The data rate of the reader is reduced to 12
Mbit (USB high speed). If the reader is used for the first time, it must be registered in the operating
system of the computer. For this the instruction "M70700-xde-ID-B: Installation OBID®USB driver"
can be used.
NOTE:
If the ID ISC.MU02.02 is USB powered there MUST NOT connected a power supply to termi-
nal X2.

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 15 of 22
M91002-5e-ID-B.docx
3.4.
Antenna ports
There can be 2 antennas connected to the ID ISC.MU02.02 at the antenna ports ANT1 and ANT2.
Figure 5 shows the position of the “Hirose U.FL” receptacles with an input impedance of 50 Ω. The
antennas can be switched by software.
Figure 5: Antenna ports ANT1 and ANT2

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 16 of 22
M91002-5e-ID-B.docx
3.5.
Display elements
The ID ISC.MU02.02 Reader Module has a red LED (V1) and a green LED (V2) and a blue LED
(V3) which are used as display elements (Figure 6).
Figure 6: Position of the LEDs
The functions of both LEDs V2 and V3 can be configured using software protocol. It is also possi-
ble to control all 3 LEDs directly using an additional software protocol.
Table 10 shows the standard setting for the LEDs.
Table 10: Standard setting for the LEDs
LED
Color
Standard setting
V1
Red
Flashes 5x after a reset.
Off during normal operation.
Flashing alternately with V2 during failure status.
V2
Green
Flashes 5x after a reset.
On during normal operation.
Off for 1 second after successful communication with a
transponder.
Flashing alternately with V1 during failure status.
V3
Blue
Flashes 10x after a reset.
Comes on for 1 second after successful communication
with a transponder.

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 17 of 22
M91002-5e-ID-B.docx
3.6.
Installation notes
Be aware of the following possible environmental factors when installing an ID ISC.MU02.02 into
another device :
Effects from nearby metal objects
Detuning of the antenna
Impaired propagation of the antenna’s electromagnetic field
EMC effects on cables
Impaired communication between reader and transponder
3.6.1.
Metallic surroundings
When installing an ID ISC.MU02.02 into another device, be sure that there are no metal surfaces
or objects in the direct vicinity of the connected antennas if possible. These can detune the anten-
na and impair the propagation of the electromagnetic field due to reflections. This will in turn result
in reading holes and overshoots.
The distance between the antennas and a metal surface should be at least 5 cm. Note that
even other circuit boards may act line metal objects depending on how much copper they
contain.
If a metallic surrounding cannot be avoided, stable function should at least be ensured by keeping
the distance as great as possible.
The area between the antenna and transponder as well as the area on the other side of the tran-
sponder should also be kept clear of metal parts.
3.6.2.
EMC effects on cables
In spite of the internal EMC filters inside the reader, high levels of noise on the supply voltage can
result in impairment of the communication between the reader and transponder.
When installing an ID ISC.MU02.02 into another device, be sure therefore that a clean, noise-free
power supply is used.

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 18 of 22
M91002-5e-ID-B.docx
4.
Technical Data
MECHANICAL DATA
Dimension (W x H x D)
50 mm x 50 mm x 14 mm
(1.97 inch x 1.97 inch x 0.55 inch)
Weight
10 g (0.02 lb)
Connector
10-pin connector, spacing 2.54 mm (0,1 inch)
5-pin connector, type “JST PH” pitch 2 mm
(0,079 inch)
ELECTRICAL DATA
Power Supply
5 V DC ± 5 %
Power Consumption
max. 2 W
Operating Frequency
860 MHz to 960 MHz
RF-Power
max. 170 mW, configurable
Antenna Connection
2 x “Hirose U.FL” receptacles, 50 Ω; internal
Multiplexer
Interfaces
ID ISC.MU02.02-AD
ID ISC.MU02.02-CU
RS232-V24, Data/Clock
RS232-LVTTL, USB
FUNCTIONAL PROPERTIES
Protocol Modes
FEIG ISO HOST Mode
(Advanced Protocol Frame)
Scan Mode
Supported Transponder Types
EPC Class 1 Generation 2
ISO 18000-6-C (Upgrade Code required)
Optical Indicators
3 LEDs for operating status and analysis
(red, green, blue)

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 19 of 22
M91002-5e-ID-B.docx
AMBIENT CONDITIONS
Temperature Range
Operation
Storage
-25 °C to +55 °C (-13°F to 131 °F)
-25 °C to +85 °C (-13°F to 185 °F)
Humidity
5 % to 95 % non-condensing
APPLICABLE STANDARDS
Radio Regulation
Europe
USA
Canada
EN 302 208
FCC 47 CFR Part 15
IC RSS-Gen, RSS-210
EMC
EN 301 489
Safety
EN 60950
* Caution: Overheating of the device may result in performance losses. It is recommended to activate the RF of the reader only if there is a transponder in
the detection range of an antenna.

Identification
Installation
ID ISC.MU02.02
FEIG ELECTRONIC GmbH
Page 20 of 22
M91002-5e-ID-B.docx
5.
Radio Approvals
5.1.
Europe (CE)
Hereby, FEIG ELECTRONIC GmbH declares that the radio equipment type ID CPR74 is in com-
pliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.feig.de/en/downloads-support/declarations-of-conformity.html
Performance Classification according to ETSI EN 301 489: Class 2
