Fisher-Price Smart Cycle eXtreme User manual

®
®
®
®
PHYSICAL LEARNING ARCADE SYSTEM

2
Get up.Get smart. Get going!
It’s a stationary bike, a learning center, and an arcade game
system – all rolled into one! Smart Cycle®plugs right into
your TV, ready to take kids on learning adventures like no
other. As they pedal, favorite character friends guide them
through learning discoveries, games, and even exciting races.
And now they can do it all with Rumble Action -cool vibrations
that add an extra dimension of fun!
Drive
Pedal, steer and learn at your own pace –
visit Math Mountain, Shape Lake,
Number Fields,Letter Creek and other
stops along the way.
Learn
Stop and rest, but don’t stop
learning! Use the joystick to rein-
force important learning skills with
plenty of games and activities – with
different levels for growing kids.
Race
Put the pedal to the metal as you
race with cars on-screen, against
the clock, or with another player!

Learning Adventure Game Cartridge
with Key Ring
2 Pedals
(Left and Right)
Assembly Tool
Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten screws.
#8 x 1" Screws – 6
(Use in Assembly steps 5 and 9.)
Shown Actual Size
#10 x 11/2" Screws – 4
(Use in Assembly steps 2 and 3.)
3

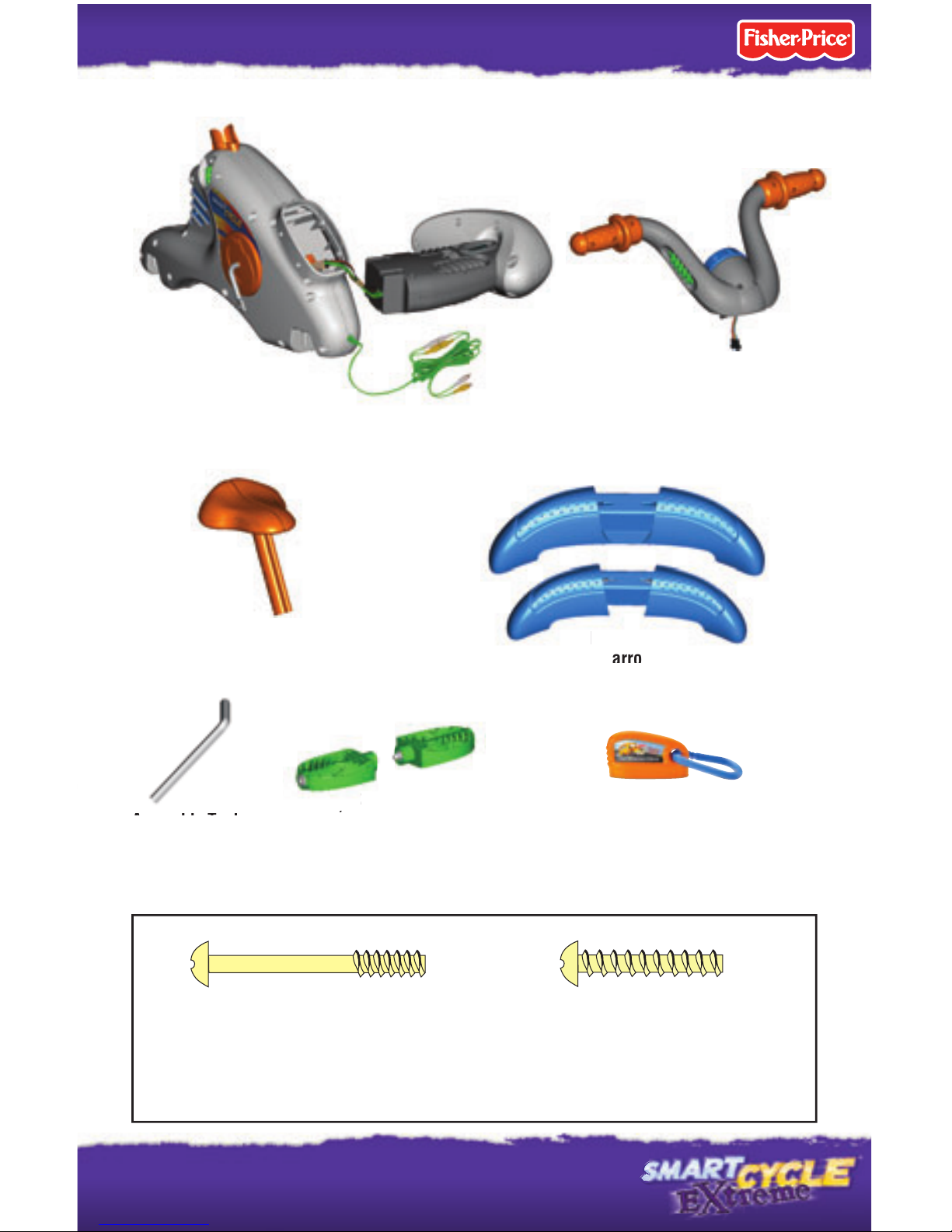

Parts
Handlebar
Frame with Console
and Plug-and-Play Cord
Adult assembly is required. Tools needed for assembly:
Phillips screwdriver (not included) and assembly tool (included).
A
b
l
T
l
Seat
2 P
ed
(
Back Base
(Narrow)
Front Base
(Wide)
B
ac
k
B
as
e
(N
ar
ro
w)
(W
id
e)

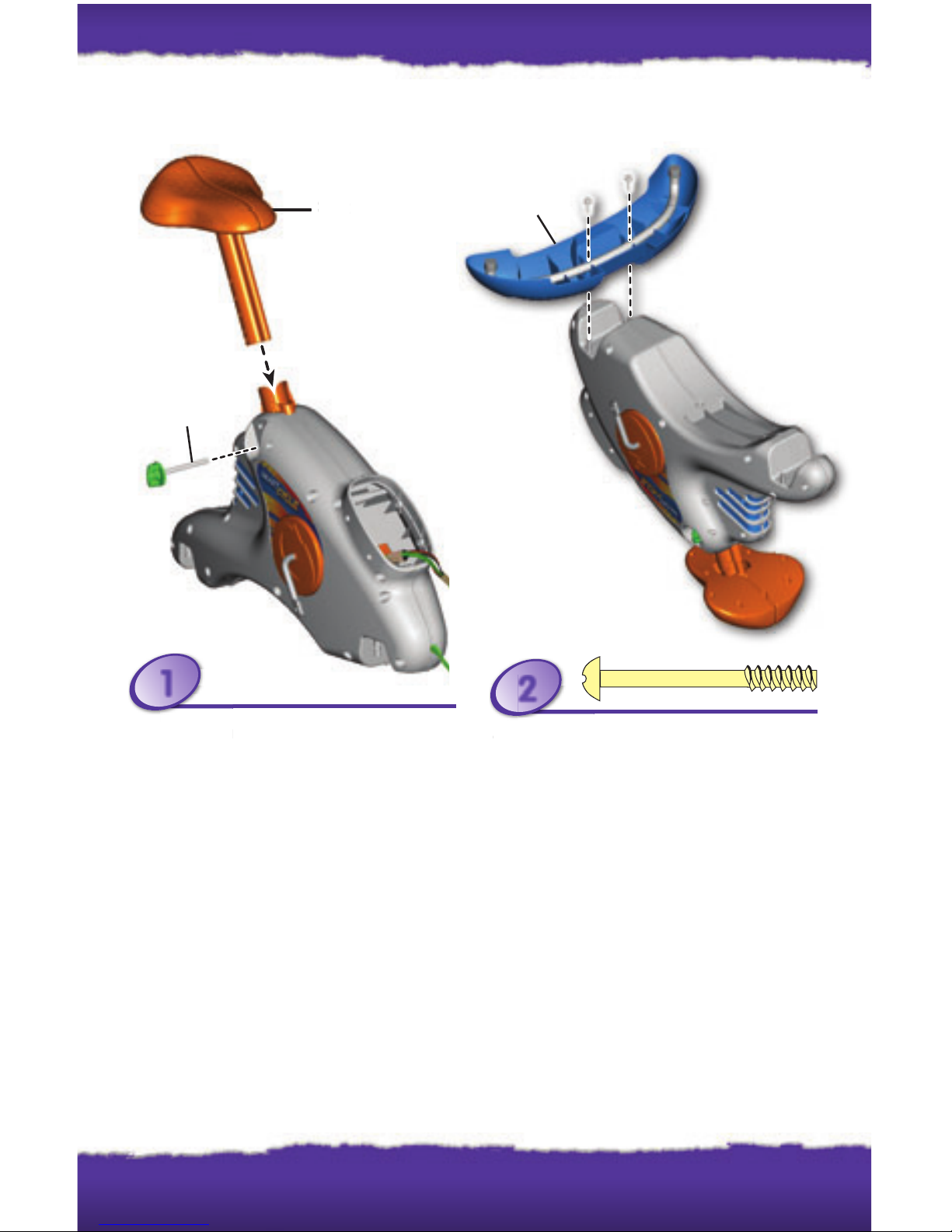

• Turn to remove the seat peg from
the frame.
• Insert the seat into the slot in the frame.
• Replace the seat peg and turn to secure.
Hint: You can adjust the seat height (higher
or lower) for your child's comfort. Simply
remove the seat peg and lift or lower the
seat. Replace the seat peg to secure the seat.
Seat
Assembly
4
• Turn the cycle upside down.
• Identify the front base (wide) and the rear
base (narrow).
• Fit the front base (wide) into the groove
in the front of the frame.
Hint: The front base is designed to fit easily
into the groove in the frame. If it does not
fit, turn the base around so that it curves
away from the seat.
• Insert two #10 x 11/2" long screws
through the tube in the front base
and tighten.
Front Base
(Wide)
S
eat
Seat Peg
•
Turn the c
yc
2
•
Turn to re
m
th
e
f
ame
1

• While tucking the wires into the frame, fit
the console into the frame.
Assembly
5
• Fit the rear base (narrow) into the groove
in the rear of the frame.
Hint: The rear base is designed to fit easily
into the groove in the frame. If it does not
fit, turn the base around so that it curves
away from the seat.
• Insert two #10 x 11/2" long screws
through the tube in the rear base
and tighten.
• Set the cycle upright.
Rear Base
(Narrow)
Console
• Fit the rear
b
in the rear
o
3
•
While tuck
in
th l
4

6
Assembly

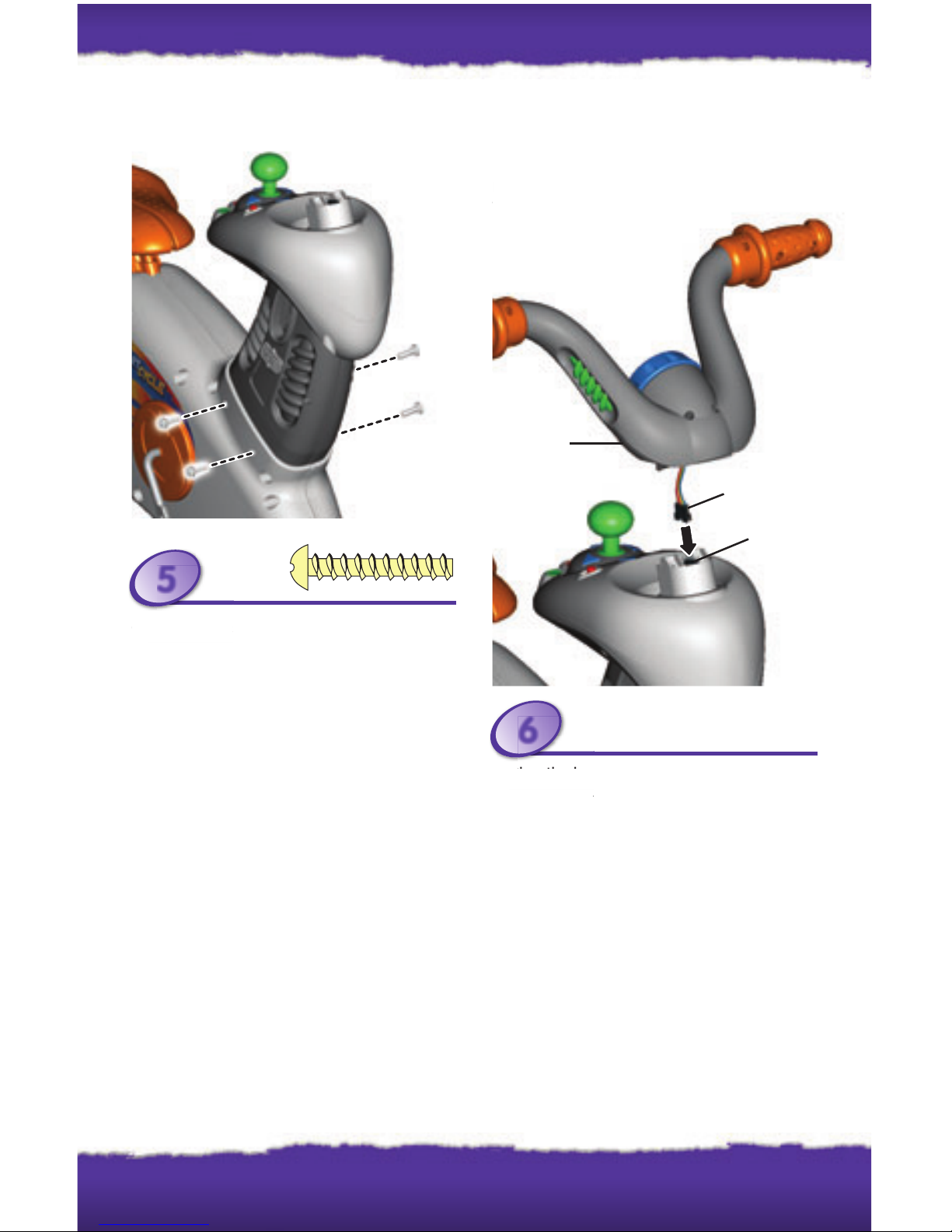

• Align the screw holes in the frame and
console. Insert four #8 x 1" screws
through the frame and into the console.
• Tighten the screws.
IMPORTANT! For proper function, you must
connect the connector on the handlebar into
the socket in the console!
connect
the
connector
on
the
handlebar
into
t
h
e soc
k
et
i
n t
h
e conso
l
e
!
• Plug the handlebar connector into the
socket in the console.
Hint: The connector will only fit one way
into the socket. If it does not seem to fit,
turn it around and try again!
Handlebar
Connector
Socket
• Plug the h
an
socket in th
e
Pl
t
h
h
6
• Align the sc
lI
5

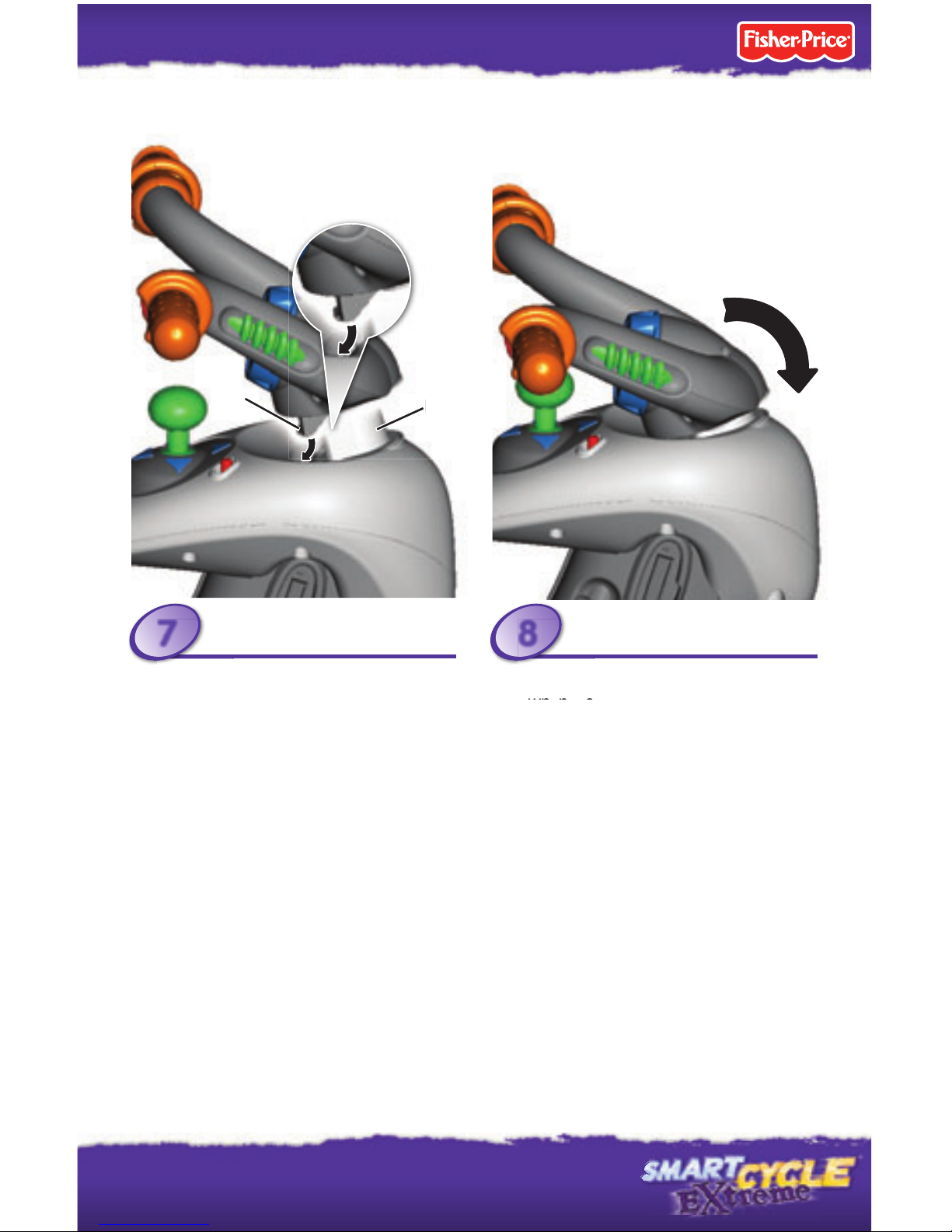

• Place the handlebar, at an angle, onto the
top of the post.
• Push to insert the tab on the back of the
handlebar into the slot in the console.
• Next, push the handlebar forward and
down in place.
7
Assembly
Tab Post
Po
s
t
•
Place the
ha
t
f
t
h
7
•
Next,
pu
sh
t
do
wn
i
n
pl
a
8

8
Assembly
• Insert two #8 x 1" screws into the handle-
bar and tighten.
Hint: If the screws cannot be tightened, you
have not assembled the handlebar properly.
Remove the handlebar and refer back to
Assembly steps 7 and 8.
• Check to be sure the handlebar is secured
on the console by pulling it up. If you can
remove it, you have not assembled it
properly. Please refer back to assembly
steps 6-9.
•
C
heck to be
th
10
•
I
nsert two
#
bdtih
9

9
Assembly

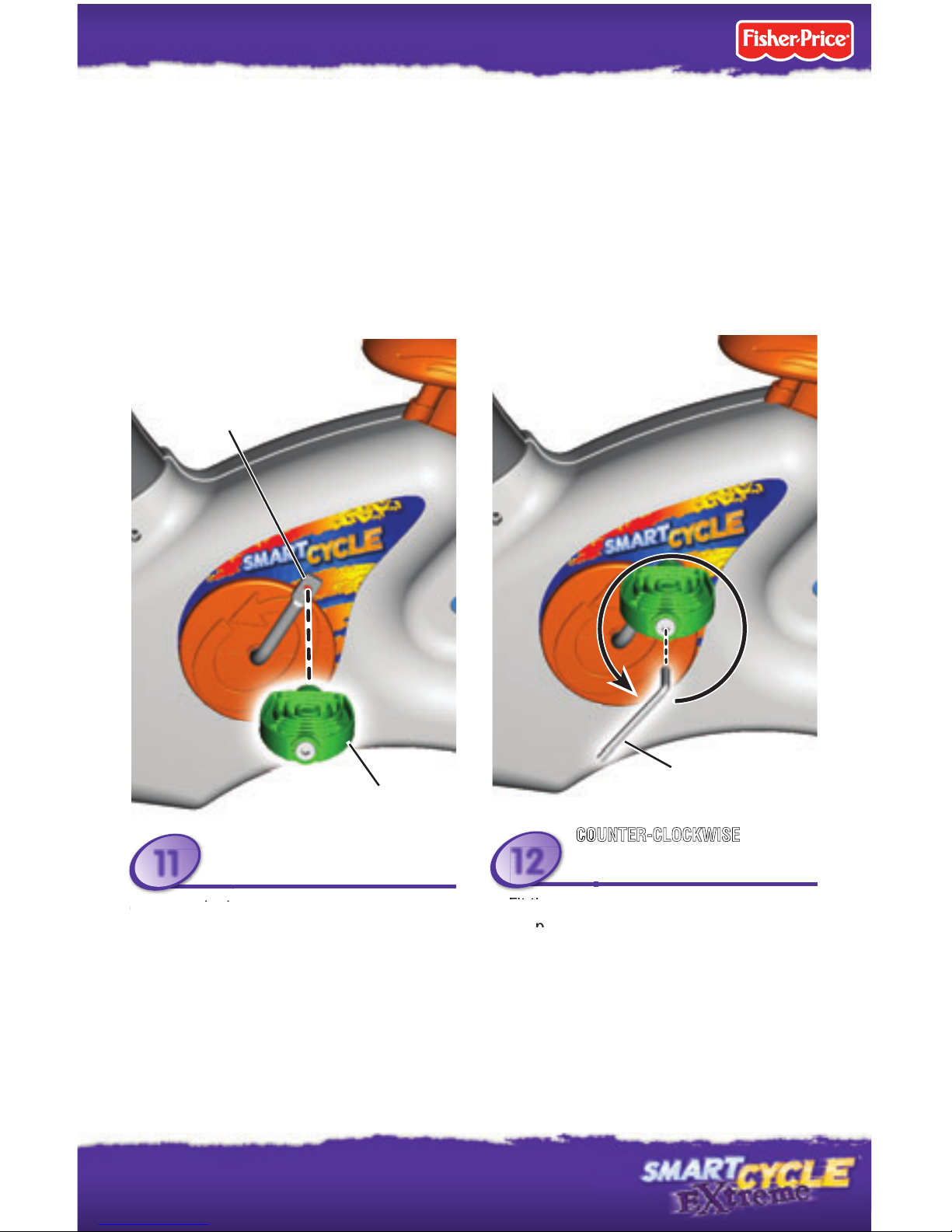

• Locate the left pedal marked with an
Lon the outside end.
• Now, find the left pedal axle marked with
an L.
• Fit the threaded end of the left pedal into
the hole in the left pedal axle.
• Hand-tighten the left pedal by turning
it counter-clockwise.
• Fit the assembly tool to the end of the
left pedal. Turn it counter-clockwise to
fully tighten.
Hint: You will not be able to tighten the
pedal if you have tried to attach the right
pedal to the left pedal axle. Remove the
pedal and be sure you are attaching the left
pedal to the left pedal axle. Be sure to match
the letter Lon each part.
Left Pedal (L)
Left Pedal
Axle (L)
TIGHTEN LEFT PEDAL
TIGHTEN LEFT PEDAL
COUNTER-CLOCKWISE
Assembly Tool
• Fit the asse
m
le
ft
p
ed
al
Tu
COCO
Fit th
12
• Locate the l
e
L
on the ou
t
L
Lhl
11
IMPORTANT! Just like a real bicycle, Smart Cycle pedals are not interchangeable (there is
a left threaded pedal and a right threaded pedal). It's important to assemble the right pedal
on the right side of your Smart Cycle, and the left pedal on the left side. To help you, we’ve
stamped and labeled each pedal and pedal axle with an "R" for the right side and an "L"
for the left side. To tighten the pedals, you'll need to turn the left pedal counter-clockwise
(which is different from how you would normally tighten) and the right pedal clockwise.
Be sure to tighten both pedals firmly with the enclosed assembly.

10

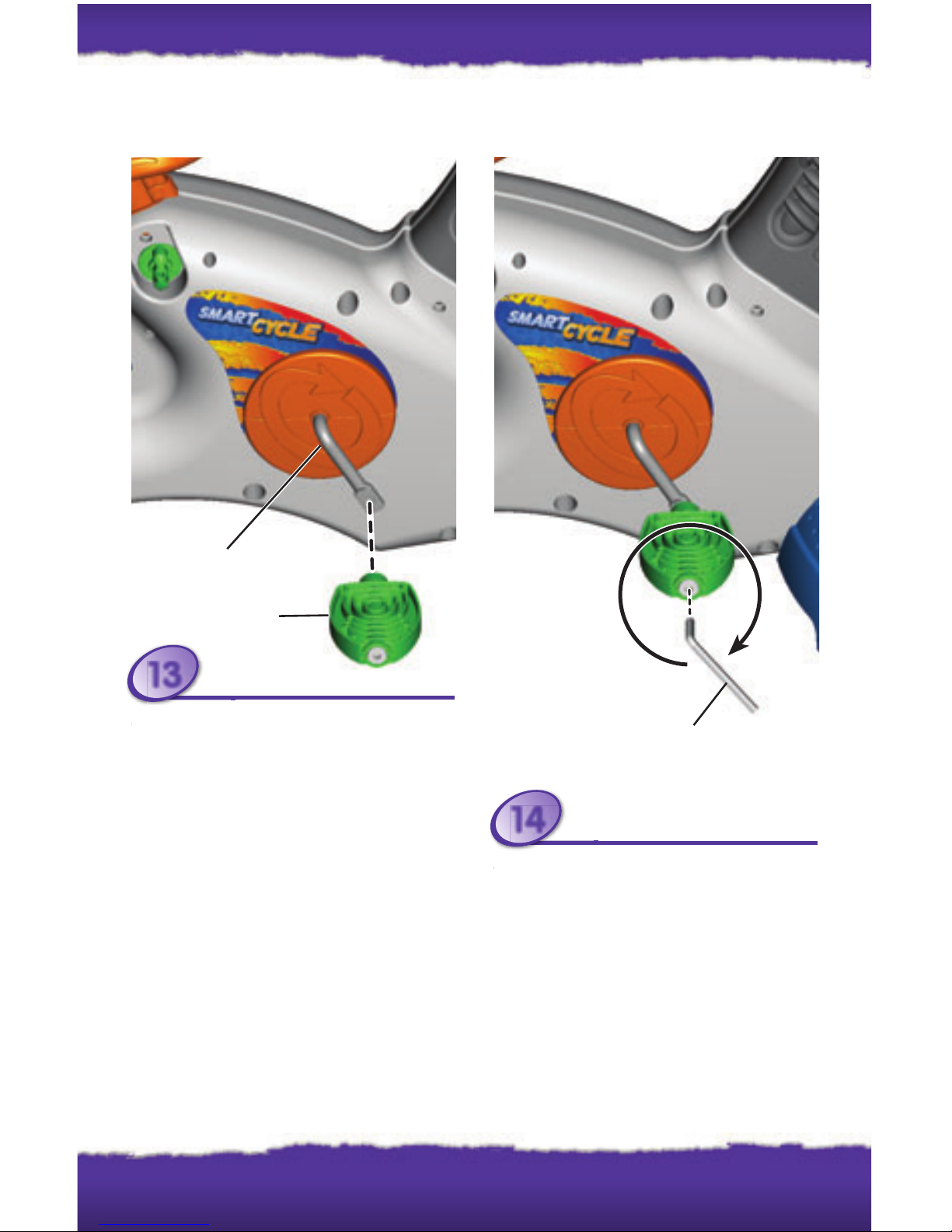

• Fit the threaded end of the right pedal
(marked with an R) into the hole in the
right pedal axle (also marked with
an R).
• Hand-tighten the right pedal by turning
it clockwise.
Right Pedal (R)
Right Pedal Axle (R)
TIGHTEN RIGHT PEDAL CLOCKWISE
TIGHTEN RIGHT PEDAL CLOCKWISE
Assembly Tool
Assembly Tool
• Fit the assembly tool to the end of the
right pedal. Turn it clockwise to
fully tighten.
Assembly
•
Fit the thr
e
(kd
13
•
Fit the as
se
iht d
l
14

11
Battery Safety Information
In exceptional circumstances, batteries
may leak fluids that can cause a chemical
burn injury or ruin your toy. To avoid
battery leakage:
• Do not mix old and new batteries or
batteries of different types: alkaline,
standard (carbon-zinc) or rechargeable
(nickel-cadmium).
• Insert batteries as indicated inside the
battery compartment.
• Remove batteries during long periods
of non-use. Always remove exhausted
batteries from the toy. Dispose of
batteries safely. Do not dispose of the
product in a fire. The batteries inside
may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or
equivalent type, as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the
toy before charging.
• If removable, rechargeable batteries are
used, they are only to be charged under
adult supervision.
B
attery Safety Informati
on
n exceptional circumstances batterie
s
1.5V x 4
“D” (LR20)

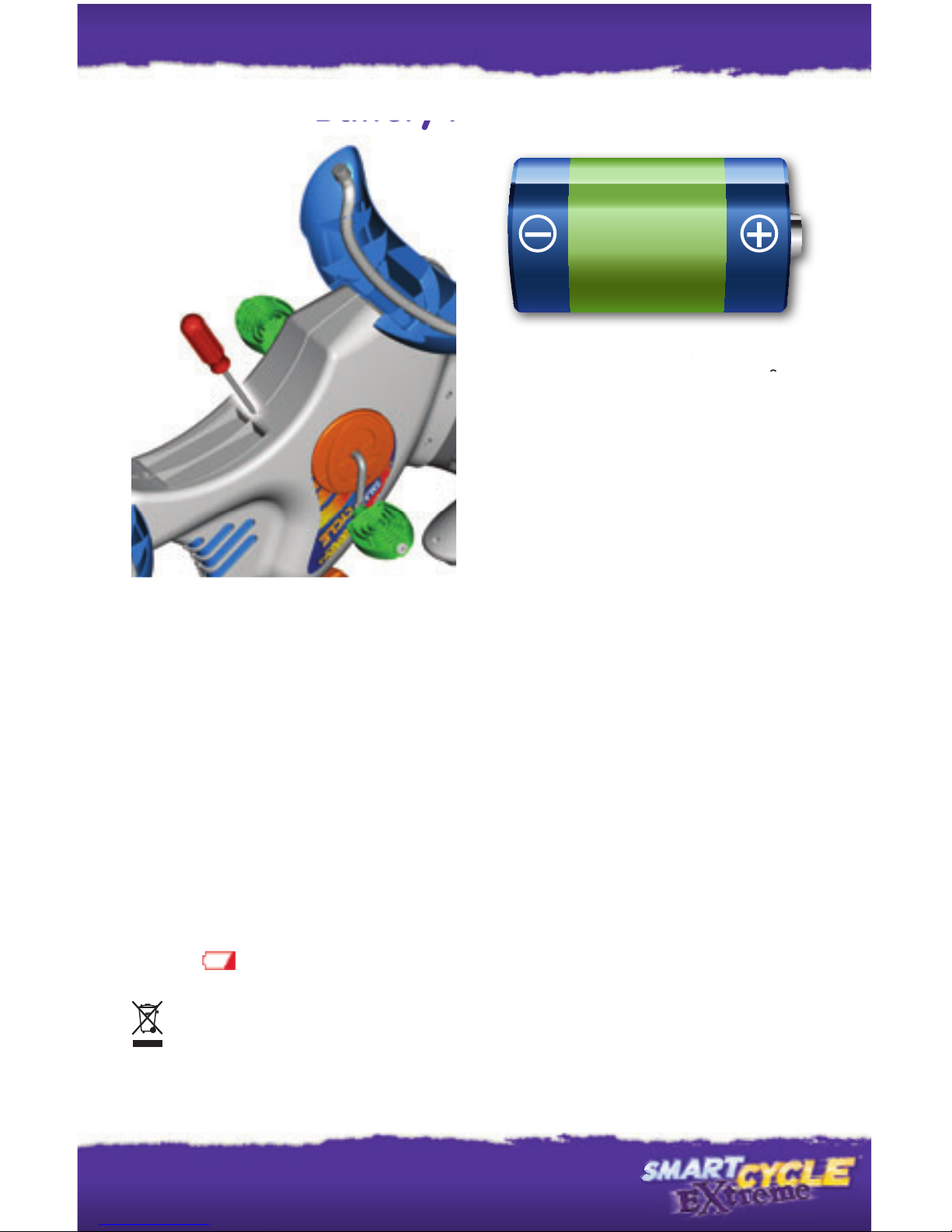

• Locate the battery compartment under
the frame.
• Loosen the screws in the battery
compartment door and remove the door.
• Insert four “D” (LR20) alkaline batteries.
Hint: We recommend using alkaline
batteries for longer battery life.
• Replace the battery compartment door
and tighten the screws.
• If this product begins to operate
erratically, you may need to reset the
electronics. Slide the power switch off
and then back on.
• When function is slow or stops, or you
see a low battery symbol on your TV
screen , it’s time for an adult to
change the batteries!
• Protect the environment by not
disposing of this product with
household waste (2002/96/EC).
Check your local authority for
recycling advice and facilities.
Battery Installation
Batter
y
I

12
Notice About Epilepsy and Seizures
PLEASE READ THIS NOTICE BEFORE YOU
OR YOUR CHILD USE ANY VIDEO GAME.
A very small portion of the population
has a condition, which may cause a
momentary loss of consciousness when
viewing certain kinds of flashing lights
or patterns that are commonly present
in our daily environment. This condition
may cause seizures while watching
some kinds of television pictures or
playing certain video games. Players
who have not had any previous seizures
may nonetheless have an undetected
epileptic condition.
If you or anyone in your family has
experienced symptoms linked to an
epileptic condition (e.g. a seizure or loss
of awareness), consult your physician
before playing video games. We recom-
mend that parents observe their children
while they play video games. If you
or your child experience any of the
following symptoms such as dizziness,
altered vision, eye or muscle twitching,
involuntary movements, loss of aware-
ness, disorientation or convulsions,
DISCONTINUE USE IMMEDIATELY and
consult your physician.
Additionally, please follow these
precautions whenever playing a
video game:
• Do not sit or stand too close to the
television screen. Play as far back
from the screen as possible.
• Do not play if you are tired or need
sleep.
• Always play in a well lit room.
• Be sure to take a 10-15 minute break
every hour while playing.

13
IMPORTANT! Your TV, VCR or DVD player
must have audio and video input jacks.
• Place the Smart Cycle®in front of your TV.
• Locate the plug-and-play cord on the front
of the cycle.
• Plug the audio-video pins into the match-
ing colored input jacks on your TV, VCR or
DVD player (Yellow for Video In, White for
Audio In).
Hint: We've included a detailed illustration to
show how to connect Smart Cycle®to a TV
or TV and VCR/DVD player. Please refer to
page 26.
IMPORTANT!
Your TV VCR or DVD player
INPUT
AUDIO IN
LEFT
VIDEO IN
White
Yellow
• Insert the game cartridge into the socket
in the side of the cycle. Push to be sure it
is fully inserted.
Hint: You can easily attach other cartridges
(sold separately and not included) to the
key ring.
Note: You can use any Smart Cycle®
software with this model, but only
cartridges marked “Extreme” will give
you the Rumble Action feature.
• Turn your TV, VCR or DVD player
power on.
• Slide the power switch on the cycle to
on .
• To find the picture on your TV screen, set
your TV's, VCR's or DVD player's mode
selector to INPUT or VIDEO IN.
Hint: The plug-and-play cord is designed
to easily disconnect if it is pulled. Simply
connect the matching connectors in the
middle of the cord.
Insert the game cartridge into the socket
Connecting Smart Cycle®
to Your TV

14
Power Switch
Slide the switch to
on or off O.
Handlebar
Use for steering on the road or in games.
Horn Button
Press to make
a selection or
hear the horn.
Snap Shot Button
Press to make a selection
or take "pictures" (see
page 16).
Joystick
Use to make selections on
the menus or in activities.
Map Button
Press to see a map of all
activities (see page 23).
Exit Button
Press to exit the activities.
Travel Journal Button
Press to see the pictures you
took along your journey.
Getting Started
on the Learning Adventure

15
• Use the joystick to choose the type of
vehicle you’d like to “drive.”
• Press either handlebar button to make
your selection.
• Repeat this process to choose the color
of your vehicle, horn sound and a hood
ornament style.
Customize
Your vehicle
• Use the joystick to choose to turn the
rumble feature on or off.
• Press either handlebar button to make
your selection.

16
Off Ramps
• Keep traveling down the road and go all
the way around the course or head onto
an off-ramp for other fun games and
activities. Simply bear to the side of the
road as you see one approaching.
Hint: If you miss a ramp, you can pedal in
reverse to back up.
Find the objects!
• Pedal the cycle to move down the road.
The faster you pedal the faster you go!
• Use the handlebars to steer.
• Find all the letters, numbers or shapes
shown in the upper left of the screen.
Simply ride over them. Don't ride over
other objects!
Learning
Adventure
Taking Snap Shots
• Press the right handlebar button to
take snap shots in any activity.
Note: This feature is only available in this
(Learning Adventure) activity.

17

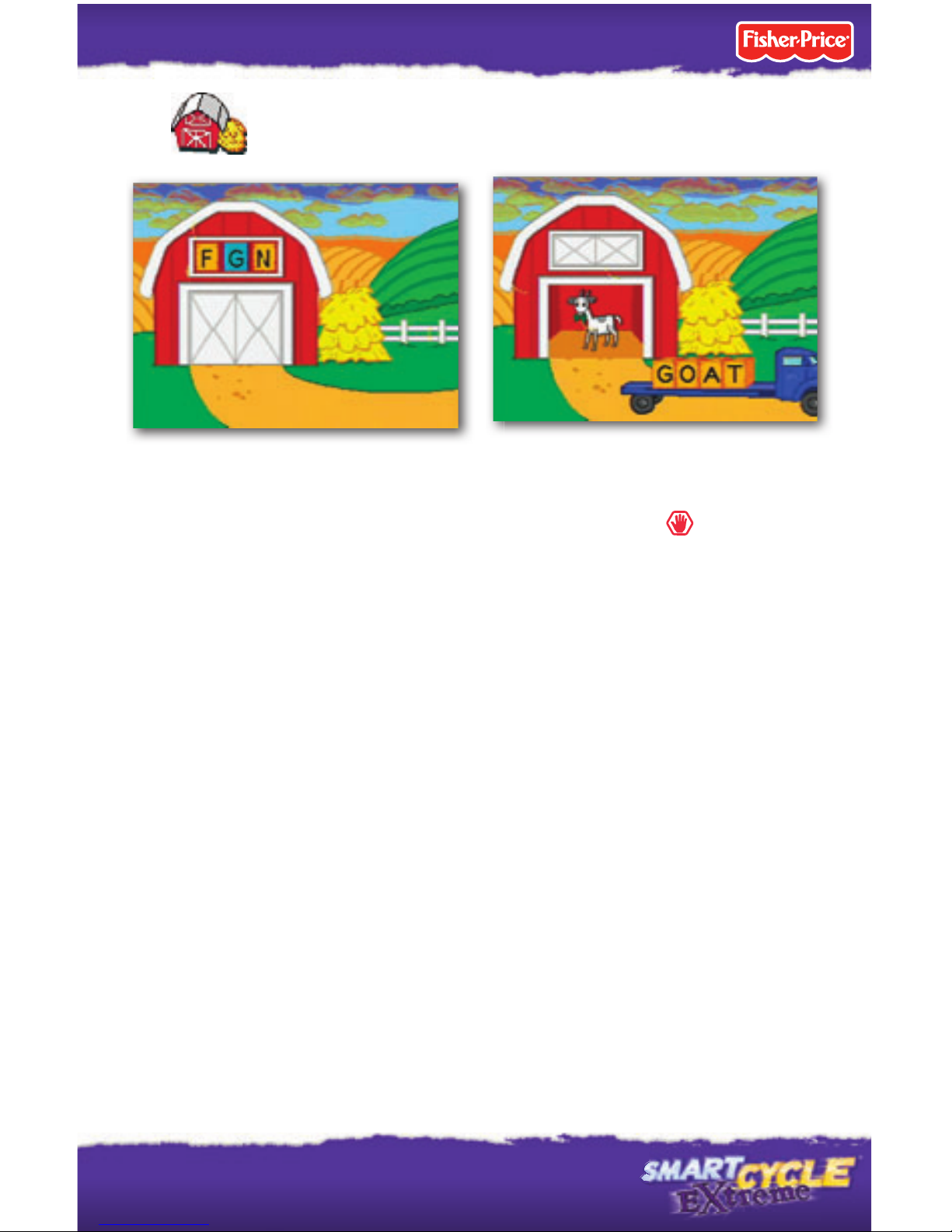

Alphabet
Barn
Find the Letters!
• Listen carefully to the letter you need to
find. "Find the upper case G".
• Move the joystick to scroll through
choices. Then press either handlebar
button to choose a letter.
• Select the correct letter and you complete
a word! “G – Goat”
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!

18

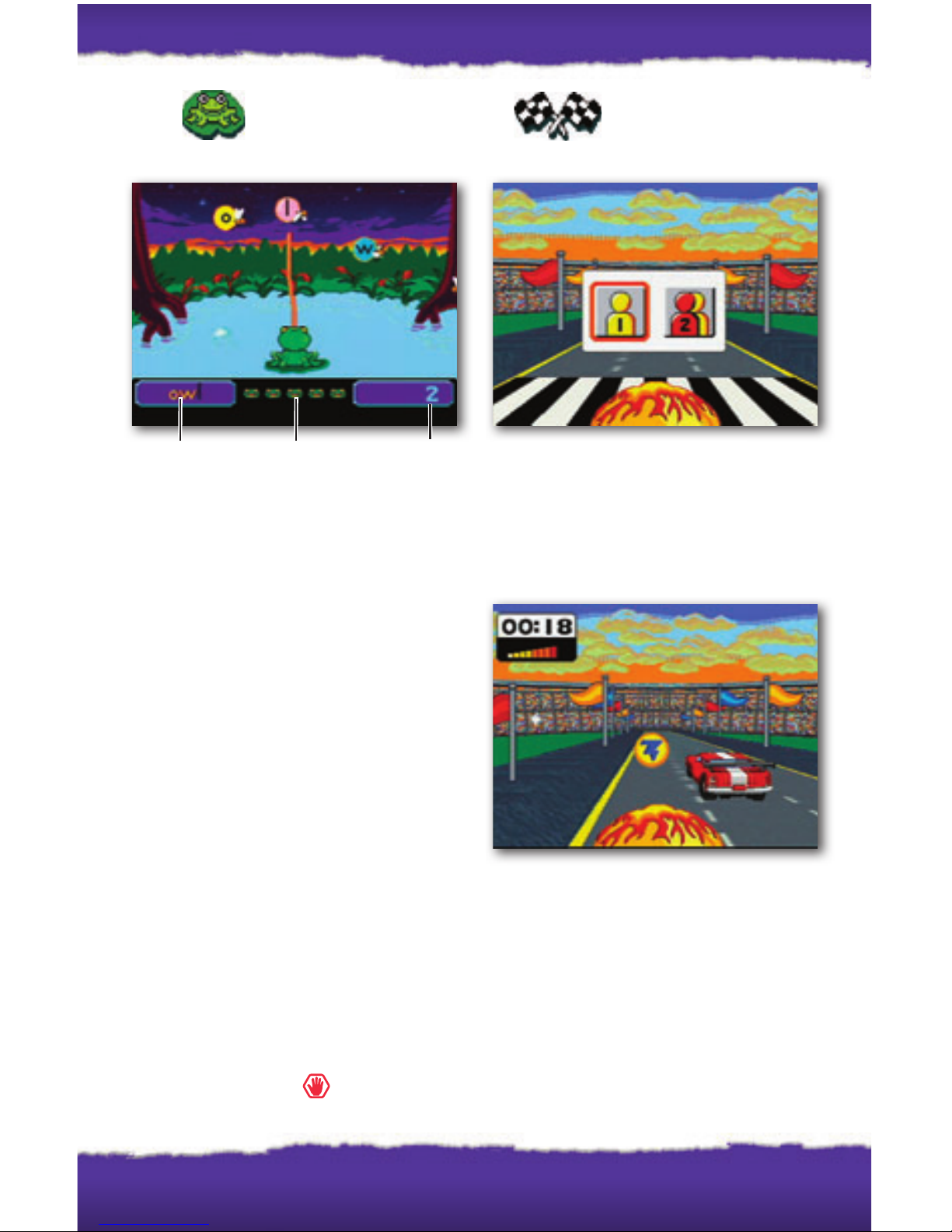

Catch the letters to spell words!
• Look at the lower left corner of the screen
for the word you need to spell. Watch the
letter bugs fly across the screen.
• Use the joystick to move the frog left
and right. Then, press either handlebar
button to catch the letter bug.
• You have 5 frog lives available in each
game. Don't choose the wrong letter or
you will lose a life.
• Score points for every word you spell!
Look at your score in the lower right
corner of the screen.
• When you spell all words correctly on one
level, move up to the next level.
Level 1 - Choose the correct letters, but
be careful not to choose a shape or you'll
lose a life.
Level 2 - Choose the correct letters, but
be careful not to choose a number or
you'll lose a life.
Level 3 - Choose the correct letters, but
be careful not to choose the wrong letter
or you'll lose a life.
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!
Word
Word
Frog Lives Score Pedal as fast as you can to the
finish line!
• Use the joystick to choose a 1 Player or
2 Player game. Press either handlebar
button to select the game.
Letter
Creek
The
Big Race
Pedal as fast as you can to the
1 Player
• Pedal down the road as fast as you can
to the finish line. Try to speed past the
other cars. Get to the finish line first and
you win!

19
2 Player
• Each player takes a turn. Pedal down the
road as fast as you can to the finish line.
Look at your time.
• Now, it's time for Player 2 to beat
your time.
• The player with the fastest time wins.
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!
Match shapes to pop the bubbles!
• Look at the shape inside the nozzle. Use
the joystick to aim the nozzle toward the
matching shape.
• Press either handlebar button to shoot the
shape and "pop" the bubble.
• Hit the matching shape to pop the
bubbles and score points! If you hit the
wrong shape, the bubble is added to the
line up.
Hint: The blowfish can be used to hit
any bubble shape.
• Try to pop all the bubbles before they
reach the bottom. Pop all the bubbles and
move on to the next level. The bubbles
move faster!
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!
Shape
Lake
Nozzle ScoreShape

20

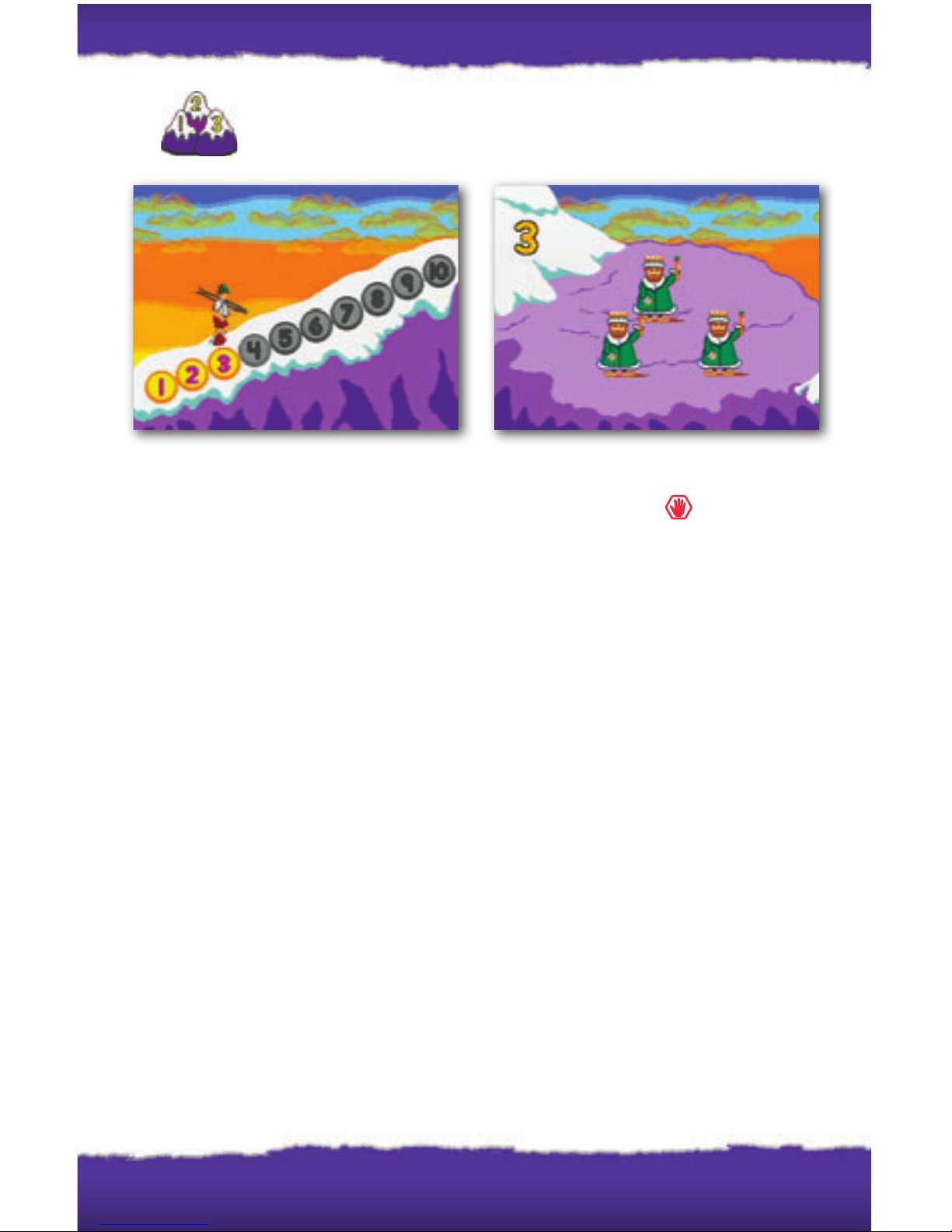

Climb Math Mountain!
• Pedal to climb the mountain.
Climb Math Mountain!
Math
Mountain
• Then, count how high you went!
• When you’re finished with this activity,
press the exit button to return to
the road. Pedal to the next activity!
