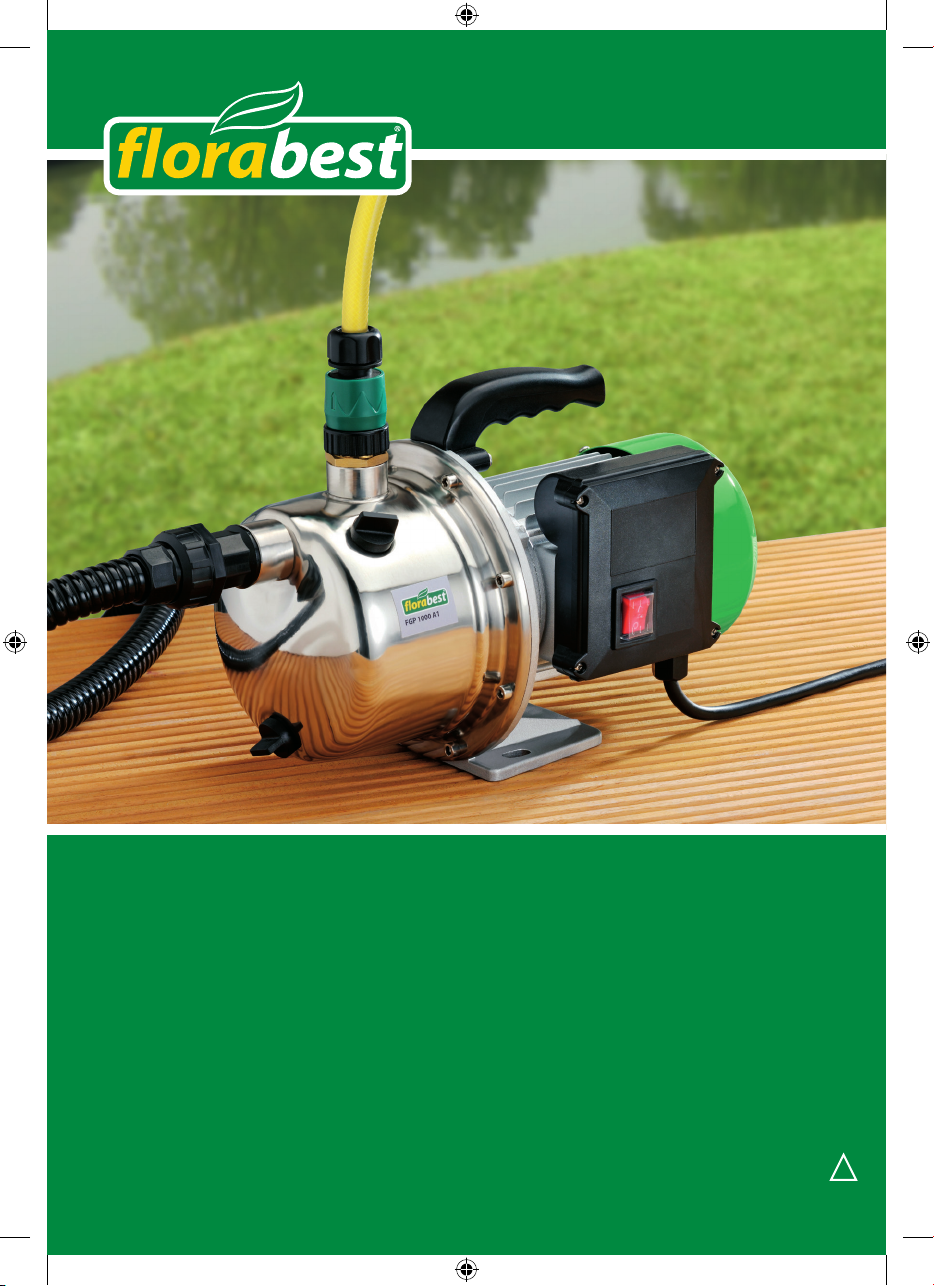

FLORABEST FGP 1000 A User manual


K

Operation and Safety Notes
Original operating instructions
V

Navodila za upravljanje in varnostna opozorila
Originalna navodila za uporabo
D

Pokyny pro obsluhu a bezpečnostní pokyny
Originální návod k obsluze
W

Pokyny pre obsluhu a bezpečnostné pokyny
Originálny návod na obsluhu
F A C

Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung

Anleitung_LB4_4171183.indb 1 16.09.11 10:06

- 2 -
K
Before reading, unfold the page containing the illustrations and familiarise yourself with all
functions of the device.
V
Pred branjem stran s slikami odprite navzven in se nato seznanite z vsemi funkcijami
naprave.
D
Před čtením si otevřete stranu s obrázky a potom se seznamte se všemi funkcemi přístroje.
W
Pred čítaním si odklopte stranu s obrázkami a potom sa oboznámte so všetkými funkciami
prístroja.
F A C
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich an-
schließend mit allen Funktionen des Gerätes vertraut.
GB Operation and Safety Notes Page 5
SI Navodila za upravljanje in varnostna opozorila Stran 14
CZ Pokyny pro obsluhu a bezpečnostní pokyny Strana 23
SK Pokyny pre obsluhu a bezpečnostné pokyny Strana 33
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 43
Anleitung_LB4_4171183.indb 2 16.09.11 10:06

- 3 -


 


 


Anleitung_LB4_4171183.indb 3 16.09.11 10:06

- 4 -
Anleitung_LB4_4171183.indb 4 16.09.11 10:06

GB
- 5 -

The reprinting or reproduction by any other means, in whole or in part, of documentation and
papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
1. Introduction ..................................................................................................................... 6
2. Safety information ...........................................................................................................6
3. Layout and items supplied ...............................................................................................7
4. Intended use ...................................................................................................................7
5. Technical data ................................................................................................................. 8
6. Operating instructions ..................................................................................................... 8
7. Fitting the carry handle .................................................................................................... 8
8. Mains connection ............................................................................................................8
9. Fitting a suction pipe .......................................................................................................8
10. Fitting a pressure pipe .....................................................................................................9
11. Starting up .......................................................................................................................9
12. Cleaning and maintenance ............................................................................................. 9
13. Replacing the mains cable .............................................................................................. 9
14. Storage ......................................................................................................................... 10
15. Ordering spare parts .....................................................................................................10
16. Disposal and recycling .................................................................................................. 10
17. Troubleshooting guide ................................................................................................... 11
18. Warranty certicate ....................................................................................................... 12
19. Declaration of conformity ..............................................................................................13
Anleitung_LB4_4171183.indb 5 16.09.11 10:06

GB
- 6 -

m 
When using equipment, a number of safety
precautions must be observed to avoid inju-
ries and damage. Please read these original
operating instructions and safety information
with due care. Keep these operating instruc-
tions in a safe place so that the information
is available at all times. If you give the equip-
ment to any other person, please hand over
these original operating instructions and the
safety information as well. We cannot accept
any liability for damage or accidents which
arise due to failure to follow these instruc-
tions and the safety information.

m 
Read all the safety information and instruc-
tions. Failure to adhere to the safety infor-
mation and instructions set out below may
result in electric shock, re and/or serious
injury.
Keep all the safety information and instruc-
tions in a safe place for future use.
Protect yourself and your environment from
risks and accidents by taking the appropria-
te precautionary measures.
• This equipment is not designed to be
used by people (including children)
with limited physical, sensory or mental
capacities or those with no experience
and/or knowledge unless they are su-
pervised by a person who is responsible
for their safety or they have received ins-
tructions from such a person in to how to
use the equipment safely. Children must
always be supervised in order to ensure
that they do not play with the equipment.
• Keep the plastic packaging out of the
reach of babies and children.
Risk of suffocation!
• The operator is responsible for the safe-
ty of other people in the work area.
• Before starting, a test must be carried
out by a specialist to ensure that the
required electrical safety measures are
in place.
• m 
In stagnant water bodies, garden ponds,
swimming ponds and their surrounding
areas the pump may only be used with
an earth-leakage circuit breaker with an
actuating rated fault current of up to 30
mA (as stipulated in VDE 0100 parts 702
and 738).
• The pump is not designed for use in
any kind of swimming pools and padd-
ling pools or in other bodies of water in
which people or animals may be present
during its operation.
• It is prohibited to operate the pump if a
person or animal is in the danger zone.
Ask your electrician!
• Always inspect the equipment visually
before using it. Do not use the equip-
ment if safety devices are damaged or
worn. Never disable any safety devices.
• Use the equipment only for the purposes
indicated in these original operating ins-
tructions.
• You are responsible for safety in the ope-
rating area.
• If the power cable for this machine is
damaged, it must be replaced by the
manufacturer or the manufacturer’s
after-sales service or by similarly trained
personnel to avoid danger.
• The voltage of 230 V alternating voltage
specified on the rating plate of the pump
must be the same as the mains voltage.
• Never use the power cable to lift, trans-
port or secure the pump.
• Ensure that the electrical plug connec-
tions are in areas that are not at risk of
flooding and protect them from moisture.
• Always pull out the power plug before
doing any work on the pump!
• Do not expose the pump to a direct jet
of water.
Anleitung_LB4_4171183.indb 6 16.09.11 10:06

GB
- 7 -
• The operator is responsible for com-
plying with local safety and installation
regulations (ask an electrician if you are
in any doubt).
• The user is required to take suitable
measures (e.g. installing an alarm sys-
tem or a reserve pump, etc.) to prevent
damage arising as a result of flooded
rooms in the event of faults with the
pump.
• In the event of a failure of the pump, re-
pair work may only be carried out by an
electrician or by ISC after-sales service
personnel.
• Use only original spare parts.
• The pump must never run dry or be used
when the intake line is fully closed. The
manufacturer’s warranty does not cover
damage caused to the pump as a result
of running it dry.
• The pump must not be used to operate
swimming pools.
• The pump must not be installed in the
drinking water pipeline.
• The maximum temperature of the fluid
must not exceed +35°C.
• Do not use this equipment to pump in-
flammable, gassing or explosive fluids.
• The pumping of aggressive liquids (acid,
alkali, silo seepage, etc.) and liquids
with abrasive (emerizing) substances
(sand) must likewise be avoided.


1. Garden pump
2. On/O switch
3. Mounting holes
4. Water drain screw
5. Suction connector
6. Water ller screw
7. Pressure connector
8. Carry handle
9. Screw (2x)

• Open the packaging and take out the
equipment with care.
• Remove the packaging material and any
packaging and/or transportation braces
(if present).
• Check to see if all the items are sup-
plied.
• Inspect the equipment and accessories
for damage in transit.
• If possible, keep the packaging until the
end of the guarantee period.






• Garden pump
• Carry handle
• Screw (2x)
• Original operating instructions


• For irrigating and watering landscaped
areas, vegetable beds and gardens.
• For operating lawn sprinklers.
• With preliminary filter for drawing water
from ponds, streams, rainwater butts,
rainwater cisterns and wells.

For the pumping of clear water (freshwater),
rainwater and mild suds/ service water.
• The maximum temperature of the fluid
must not exceed +35°C.
• Do not use this equipment to pump in-
flammable, gassing or explosive fluids.
• The pumping of aggressive liquids (acid,
alkali, silo seepage, etc.) and liquids
with abrasive (emerizing) substances
(sand) must likewise be avoided.
Anleitung_LB4_4171183.indb 7 16.09.11 10:06

GB
- 8 -

Mains connection: .................. 230V ~ 50 Hz
Power rating: ....................................1000 W
Max. delivery rate ............................4600 l/h
Max. delivery head ...............................45 m
Max. delivery pressure ... 4.5 bar (0.45 MPa)
Max. suction height ................................7 m
Pressure and suction connector: ..................
............approx. 33.3 mm (R1 female thread)
Max. water temperature .......................35°C
Sound pressure level LpA ..........72.03 dB (A)
Uncertainty KpA ...............................3 dB (A)
Peak noise level:
Measured .................................84.62 dB (A)
Uncertainty KWA ...............................3 dB (A)
Guaranteed ...................................86 dB (A)
Protection class ..........................................I
Protection type ..................................... IPX4
Weight................................................ 8.9 kg

As a basic principle, we recommend the
use of a preliminary lter and a suction set
with suction hose, intake cage and non-
return valve, in order to prevent long priming
periods and unnecessary damage to the
pump as a result of stones and solid foreign
bodies.




• The mains connection needs a 230 V ~
50 Hz shock-proof socket. Minimum 10-
amp fuse required. Please ensure that
the power socket is easily accessible.
• Switch on/off at the built-in switch (see
Fig. 1/Item 2).
• The motor is protected from overload
or blockage by a built-in temperature
monitor. In case of overheating the tem-
perature monitor automatically switches
the pump off. After the equipment has
cooled down, the pump will switch on
again automatically.

• Screw the suction pipe (min. 19 mm
(3/4“) plastic pipe with spiral reinforce-
ment) approx. 33 mm onto the intake
line connection (R1 female thread) of
the pump (Fig. 1/Item 5) either directly or
with the aid of a threaded nipple.
• The suction hose should have an intake
valve. If the intake valve cannot be used
then a non-return valve should be ins-
talled in the intake line.
• Position the intake line so that it rises
from the water withdrawal point to the
pump. Avoid positioning the intake line
higher than the pump as this would
delay the escape of air bubbles from
the intake line and impede the priming
process.
• Install the intake and discharge lines in
such a way that they do not exert any
mechanical pressure on the pump.
• The intake valve should be low enough
in the water to ensure that the pump will
not run dry if the water level falls.
• A leaking intake line will draw in air and
therefore not draw in any water.
• Take measures to prevent the intake of
foreign bodies (sand, etc.). If necessary
install a coarse filter.
Anleitung_LB4_4171183.indb 8 16.09.11 10:06

GB
- 9 -

• The discharge line (should be min. 19
mm (3/4“)) must be connected approx.
33 mm to the discharge line connection
(R1 female thread) of the pump either di-
rectly or with the aid of a threaded nipple
(Fig. 1/Item 7).
• You can also use a pressure hose of ap-
prox. 13 mm (1/2“) with the relevant cou-
plings. The pump rate is reduced when
using the smaller discharge line.
• During the priming process, the shut-off
devices present in the discharge line
(spray nozzles, valves, etc.) must be
completely open so that the air in the
intake line can escape freely.

• Place the pump on a firm and level sur-
face.
• Before starting the pump, it must be 
 on the surface using
the holes in the stand (see Fig. 1/Item 3).
• Fit intake line so that it is ready for use.
• Fill pump with water at the filler screw
(Fig. 1/Item 6) up to the full point.
• During the priming process, the shut-off
devices present in the discharge line
(spray nozzles, valves, etc.) must be
completely open so that the air in the
intake line can escape freely.
• The initial intake process can take ap-
prox. 30 seconds to 5 minutes, depen-
ding on the suction height and volume
of air in the intake line. The pump should
be topped up with water if the priming
time is longer.
• If the pump is removed after use, it is es-
sential that it is filled with water again the
next time it is connected and started.
• Establish electrical connection.

• The pump is largely maintenance-free.
In order to ensure a long service life,
however, we recommend regular checks
and product care.





• Before lengthy periods of inactivity or
winter storage rinse the pump thorough-
ly, empty it completely and store it in a
dry place.
• To drain the pump housing, undo the
water drain screw (Fig. 1/Item 4) and tilt
the pump slightly.
• The pump must be completely emptied
if there is a risk of frost.
• After relatively long periods of storage,
switch on and off briefly to check whe-
ther the rotor is turning properly.
• If the pump is clogged, connect the
discharge line to the water line and dis-
connect the intake line. Open the water
line. Switch on the pump several times
for approx. two seconds. This should
resolve the majority of clog-related pro-
blems.
• We recommend lukewarm water to clean
the motor and pump housing.





Anleitung_LB4_4171183.indb 9 16.09.11 10:06

GB
- 10 -

Store the equipment and accessories out
of reach of children in a dark and dry place
above freezing.
The ideal storage temperature is between 5
and 30 °C. Store the equipment in its origi-
nal packaging.

Please provide the following information
when ordering spare parts:
• Model/type of unit
• Article number of unit
• ID number of unit
For current prices and information please
visit www.isc-gmbh.info

The equipment is supplied in packaging to
prevent it from being damaged in transit.
The raw materials in this packaging can be
reused or recycled. The equipment and its
accessories are made of various types of
material, such as metal and plastic. Defec-
tive components must be disposed of as
special waste. Ask your dealer or your local
council.
For EU countries only
Never place electric power tools in your
household refuse!
Under European Directive 2002/96/EC
concerning old electric and electronic equip-
ment and its implementation in national
laws, old electric power tools have to be se-
parated from other waste and disposed of in
an environmentally-friendly fashion, e.g. by
taking to a recycling depot.
Recycling alternative to return request:
Instead of returning the equipment to the
manufacturer, the owner of the electrical
equipment is obliged to ensure that the
equipment is properly disposed of if relin-
quishing ownership. The old equipment can
be returned to a suitable collection point that
will dispose of the equipment in accordance
with the national recycling and waste dispo-
sal regulations. This does not apply to any
accessories or aids without electrical com-
ponents supplied with the old equipment.
Anleitung_LB4_4171183.indb 10 16.09.11 10:06

GB
- 11 -


 
- Power supply not connected
- Impeller blocked, thermostat has swit-
ched o
- Check voltage supply
- Take pump apart and clean it

 
- Intake valve not in the water
- No water in the pump chamber
- Air in the intake line
- Intake valve leaking
- Intake cage (intake valve) blocked
- Max. intake height exceeded
- Place intake valve in water
- Fill pump housing with water
- Check sealing of intake line
- Clean intake valve
- Clean intake cage
- Check intake height

 
- Intake height too high
- Intake cage soiled
- Water level falling rapidly
- Pump performance reduced by foreign
bodies (sand, stones, etc.)
- Check intake height
- Clean intake cage
- Place intake valve lower down
- Clean pump and replace wearing parts

 
- Motor overloaded, excessive friction
caused by foreign bodies
- Dismantle and clean pump, prevent in-
take of foreign bodies (lter)

Anleitung_LB4_4171183.indb 11 16.09.11 10:06

GB

Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the
unlikely event that your device develops a fault, please contact our service department at the address
shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to oer
our assistance under the service number printed below. Please note the following terms under which
guarantee claims can be made:
1. These guarantee terms cover additional guarantee rights and do not aect your statutory warranty
rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restric-
ted to the rectication of these defects or replacement of the device. Please note that our devices
have not been designed for use in commercial, trade or industrial applications. Consequently, the
guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or
for other equivalent activities. The following are also excluded from our guarantee: compensation for
transport damage, damage caused by failure to comply with the installation/assembly instructions
or damage caused by unprofessional installation, failure to comply with the operating instructions
(e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as
overloading of the device or use of non-approved tools or accessories), failure to comply with the
maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or
dust), eects of force or external inuences (e.g. damage caused by the device being dropped) and
normal wear resulting from proper operation of the device. This applies in particular to rechargeable
batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rende-
red null and void if any attempt is made to tamper with the device.
3. The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guaran-
tee claims should be submitted before the end of the guarantee period within two weeks of the de-
fect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The
original guarantee period remains applicable to the device even if repairs are carried out or parts are
replaced. In such cases, the work performed or parts tted will not result in an extension of the gua-
rantee period, and no new guarantee will become active for the work performed or parts tted. This
also applies when an on-site service is used.
4. In order to assert your guarantee claim, please send your defective device postage-free to the
address shown below. Please enclose either the original or a copy of your sales receipt or ano-
ther dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of
purchase. It would help us if you could describe the nature of the problem in as much detail as pos-
sible. If the defect is covered by our guarantee then your device will either be repaired immediately
and returned to you, or we will send you a new device.
Of course, we are also happy oer a chargeable repair service for any defects which are not covered by
the scope of this guarantee or for units which are no longer covered. To take advantage of this service,
please send the device to our service address.
- 12 -
Anleitung_LB4_4171183.indb 12 16.09.11 10:06

GB
- 13 -

Wang/Product-ManagementWeichselgartner/General-Manager
 erklärt folgende Konformität gemäß EU-Richtlinie und
Normen für Artikel
 explains the following conformity according to EU directi-
ves and norms for the following product
 déclare la conformité suivante selon la directive CE et les
normes concernant l’article
 dichiara la seguente conformità secondo la direttiva UE e
le norme per l’articolo
 verklaart de volgende overeenstemming conform EU
richtlijn en normen voor het product
 declara la siguiente conformidad a tenor de la directiva y
normas de la UE para el artículo
 declara a seguinte conformidade, de acordo com a
directiva CE e normas para o artigo
 attesterer følgende overensstemmelse i medfør af
EU-direktiv samt standarder for artikel
 förklarar följande överensstämmelse enl. EU-direktiv och
standarder för artikeln
 vakuuttaa, että tuote täyttää EU-direktiivin ja standardien
vaatimukset
 tõendab toote vastavust EL direktiivile ja standarditele
 vydává následující prohlášení o shodě podle směrnice EU
a norem pro výrobek
 potrjuje sledečo skladnost s smernico EU in standardi za
izdelek
 vydáva nasledujúce prehlásenie o zhode podľa smernice
EÚ a noriem pre výrobok
 a cikkekhez az EU-irányvonal és Normák szerint a
következő konformitást jelenti ki
 deklaruje zgodność wymienionego poniżej artykułu z
następującymi normami na podstawie dyrektywy WE.
 декларира съответното съответствие съгласно
Директива на ЕС и норми за артикул
 paskaidro šādu atbilstību ES direktīvai un standartiem
 apibūdina šį atitikimą EU reikalavimams ir prekės normoms
 declară următoarea conformitate conform directivei UE şi
normelor pentru articolul
 δηλώνει την ακόλουθη συμμόρφωση σύμφωνα με την
Οδηγία ΕΚ και τα πρότυπα για το προϊόν
 potvrđuje sljedeću usklađenost prema smjernicama EU i
normama za artikl
Izjava o sukladnosti za ovaj proizvod dostupna je na
internet stranici www.lidl.hr.
 potvrđuje sljedeću usklađenost prema smjernicama EU i
normama za artikl
 potvrđuje sledeću usklađenost prema smernicama EZ i
normama za artikal
 следующим удостоверяется, что следующие продукты
соответствуют директивам и нормам ЕС
 проголошує про зазначену нижче відповідність виробу
директивам та стандартам ЄС на виріб
 ја изјавува следната сообрзност согласно
ЕУ-директивата и нормите за артикли
 Ürünü ile ilgili AB direktieri ve normları gereğince aşağıda
açıklanan uygunluğu belirtir
 erklærer følgende samsvar i henhold til EU-direktivet og
standarder for artikkel
 Lýsir uppfyllingu EU-reglna og annarra staðla vöru















Notied Body:
Notied Body No.:
Reg. No.:



Noise measured: LWA = 84,62 dB (A); guaranteed LWA = 86 dB (A)
P = KW; L/Ø = cm
Notied Body:

Emission No.:


Landau/Isar, den 01.07.2011
  NAPR003738
 41.711.83 I.-No.: 11011  Helmut Bauer
 Wiesenweg 22, D-94405 Landau/Isar

Anleitung_LB4_4171183.indb 13 16.09.11 10:06

SI
- 14 -

Ponatis ali kakršnokoli razmnoževanje dokumentacije in spremljajočih papirjev o proizvodu,
tudi po izvlečkih, je dovoljeno samo z izrecnim soglasjem ISC GmbH.
Pridržana pravica do tehničnih sprememb
1. Uvod.............................................................................................................................. 15
2. Varnostni napotki ........................................................................................................... 15
3. Opis aparata in obseg dobave.......................................................................................16
4. Predpisana namenska uporaba ....................................................................................16
5. Tehnični podatki ............................................................................................................ 17
6. Navodila za uporabo ..................................................................................................... 17
7. Montaža nosilnega ročaja ............................................................................................. 17
8. Električni priključek .......................................................................................................17
9. Montaža sesalne napeljave ...........................................................................................17
10. Montaža tlačne napeljave .............................................................................................. 18
11. Prvi zagon .....................................................................................................................18
12. Čiščenje in vzdrževanje ................................................................................................. 18
13. Menjava omrežne napeljave .......................................................................................... 18
14. Skladiščenje ..................................................................................................................19
15. Naročanje nadomestnih delov ....................................................................................... 19
16. Odstranjevanje in ponovna uporaba ..............................................................................19
17. Načrt iskanja napak ....................................................................................................... 20
18. Garancijska listina ....................................................................................................... 21
19. Izjava o skladnosti ......................................................................................................... 22
Anleitung_LB4_4171183.indb 14 16.09.11 10:06

SI
- 15 -

m 
Pri uporabi naprav je potrebno upoštevati
nekaj varnostnih ukrepov, da bi preprečili
poškodbe in materialno škodo. Zato skrbno
preberite ta originalna navodila za uporabo
/ varnostne napotke. Le-te dobro shranite
tako, da boste imeli zmeraj pri roki potrebne
informacije. Če bi napravo izročili drugim
osebam, vas prosimo, da jim izročite tudi ta
originalna navodila za uporabo / varnostne
napotke. Ne prevzemamo nobene odgovor-
nosti za nezgode ali škodo, ki bi nastale za-
radi neupoštevanja teh navodil za uporabo
in varnostnih napotkov.

m 
Preberite vse varnostne napotke in navo-
dila. V primeru, da tega ne storite, so lahko
posledica električni udar, požar in/ali hude
poškodbe.
Shranite vse varnostne napotke in navodila
za kasnejšo uporabo.
Zaščitite sebe in Vaše okolje s primernimi
varnostnimi ukrepi pred nevarnostjo nezgod.
• Ta naprava ni namenjena za to, da bi
jo uporabljale osebe (vključno otroci)
z omejenimi fizičnimi, senzoričnimi ali
duševnimi sposobnostmi ali osebe s
pomanjkljivimi izkušnjami in/ali znanji
razen, če so za lastno varnost pod nad-
zorom odgovorne osebe ali pa so od
le-te dibile navodila za uporabo naprave.
Otroci morajo biti pod nadzorom, da bo
zagotovljeno, da naprave ne bodo upo-
rabljali kot igrače.
• Folijo, ki se uporablja za pakiranje, hra-
nite zunaj dosega dojenčkov in otrok.
Nevarnost zadušitve!
• Uporabnik je na delovnem področju na-
prave odgovoren za tretje osebe.
• Pred zagonom naj strokovnjak zagotovi,
da obstajajo vsi zahtevani električni var-
nostni ukrepi.
• m 
Uporaba črpalke na stoječi vodi, v vrtnih
ali plavalnih ribnikih in v okolici je dovol-
jena le z zaščitnim stikalom za okvarni
tok z izmerjenim okvarnim tokom do 30
mA (po VDE 0100 dela 702 in 738).
• Črpalka ni primerna za uporabo v pla-
valnih bazenih, bazenčkih za otroke
kakršnekoli vrste in drugih vodi, v kateri
se med delovanjem naprave lahko naha-
jajo ljudje ali živali.
• Delovanje črpalke ni dovoljeno, če
se v predelu nevarnosti zadržujejo
ljudje ali živali. Posvetujte se s svojim
električarjem!
• Pred vsako uporabo izvršite vizuelno
kontrolo naprave. Naprave ne uporabljaj-
te, če je zaščitna oprema poškodovana
ali izrabljena. Nikoli ne izklapljajte var-
nostne opreme.
• Napravo uporabljajte izključno za na-
mene, ki so opisani v originalnih navodi-
lih za uporabo.
• Vi ste odgovorni za varnost v delovnem
območju.
• Če se priključek za omrežje te naprave
poškoduje, ga mora zamenjati izdelo-
valec, izdelovalčev servis za stranke ali
druga ustrezno usposobljena oseba, da
ne pride do nevarnih situacij.
• Navedena napetost 230 voltov
izmeničnega toka, ki je navedena na
tipski tablici črpalke, mora ustrezati na-
petosti obstoječega omrežja.
• Črpalke nikoli ne dvigajte, transportirajte
ali pritrjujte z omrežnim kablom.
• Zagotovite, da so vtične povezave
zaščitene pred poplavljenjem ali vlago.
• Pred vsemi delu na črpalki izvlecite
omrežno stikalo!
• Preprečite izpostavljenost črpalke ne-
posrednemu vodnemu curku.
• Za upoštevanje krajevnih varnostnih in
vgradnih določil je odgovoren uporabnik
(za nasvet vprašajte električarja).
Anleitung_LB4_4171183.indb 15 16.09.11 10:06

SI
- 16 -
• Posledične škode zaradi poplavljenosti
prostorov pri motnja na črpalki mora
uporabnik izključiti z ustreznimi ukrepi
(npr. namestitev alarmne naprave, re-
zervne črpalke ali podobnega).
• Pri morebitnem črpalke naprave sme
popravila izvajati le električar ali služba
za stranke ISC.
• Uporabite samo originalne nadomestne
dele.
• Črpalka ne sme nikoli delovati na suhem
ali s povsem zaprto sesalno napeljavo.
Za škodo na črpalki, ki nastane zaradi
suhega teka, ugasne garancija proizva-
jalca.
• Črpalke ni dovoljeno uporabljati za ba-
zene.
• Črpalke ne smete vgraditi v krogotok
pitne vode.
• Najvišja temperatura črpane tekočine ne
sme presegati +35 °C.
• S to črpalko ne smete prenašati gorljivih,
eksplozivnih tekočin in tekočin, ki tvorijo
pline.
• Preprečite tudi prenos agresivnih tekočin
(kislin, lugov, tekočin, ki pronicajo iz
silosov ipd.) ter tekočin z abrazivnimi
(hrapavimi) snovmi (pesek).



1. Vrtna črpalka
2. Stikalo za vklop/izklop
3. Pritrdilne luknje
4. Vijak za izpust vode
5. Sesalni priključek
6. Vijak za dolivanje vode
7. Tlačni priključek
8. Nosilni ročaj
9. 2 vijaka

• Odprite embalažo in previdno vzemite
napravo iz embalaže.
• Odstranite embalažni material in
embalažne in transportne varovalne pri-
prave (če obstajajo).
• Preverite, če je obseg dobave popoln.
• Preverite morebitne poškodbe napra-
ve in delov pribora, do katerih bi lahko
prišlo med transportom.
• Po možnosti shranite embalažo do pote-
ka garancijskega roka.







• Vrtna črpalka
• Nosilni ročaj
• 2 vijaka
• Originalna navodila za uporabo



• Za navodnjavanje in zalivanje zelenic,
zelenjavnih gredic in vrtov.
• Za škropilnike zelenic.
• S predfiltrom za odvzem vode iz ribnikov,
potokov, sodov za deževnico, cistern za
deževnico in vodnjakov.

Za črpanje bistre vode (sladka voda),
deževnice ali blagega luga za pranje/porab-
ne vode.
• Najvišja temperatura črpane tekočine ne
sme presegati +35 °C.
• S to črpalko ne smete prenašati gorljivih,
eksplozivnih tekočin in tekočin, ki tvorijo
pline.
Anleitung_LB4_4171183.indb 16 16.09.11 10:06

SI
- 17 -
• Preprečite tudi prenos agresivnih tekočin
(kislin, lugov, tekočin, ki pronicajo iz
silosov ipd.) ter tekočin z abrazivnimi
(hrapavimi) snovmi (pesek).

Električni priključek: ............. 230 V ~ 50 Hz
Poraba energije: ...............................1000 W
Črpalka količina maks ..................... 4600 l/h
Črpalna višina maks. ............................45 m
Črpalki tlak maks. ........... 4,5 bar (0,45 MPa)
Sesalna višina maks ..............................7 m
Tlak in sesalni
priključek: ..................pribl. 33,3 mm (R1 IG)
Temperatura vode maks.......................35°C
Nivo zvočnega tlaka LpA ...........72,03 dB (A)
Negotovost KpA................................3 dB (A)
Jakost zvočnega tlaka:
Izmerjena .................................84,62 dB (A)
Negotovost KWA ...............................3 dB (A)
Zagotovljena .................................86 dB (A)
Razred zaščite ............................................I
Vrsta zaščite ........................................ IPX4
Teža .................................................. 8,9 kg

Načeloma priporočamo uporabo predltra
in sesalne garniture s sesalno cevjo, se-
salno košaro in protipovratnim ventilom. S
tem preprečite dolgo čakanje na ponovno
sesanje in nepotrebne poškodbe črpalke
zaradi kamnov in trdih tujkov.




• Omrežni priključek je na vtičnico z
zaščitnim kontaktom 230 V ~ 50 Hz.
Varovalka mora imeti vsaj 10 amperov.
Zagotovite dobro dostopnost vtičnice.
• Vklop in izklop poteka z vgrajenim stika-
lom (glejte sliko 1/poz. 2).
• Vgrajeno temperaturno stikalo ščiti mo-
tor pred preobremenitvami ali blokado.
V primeru pregretja temperaturno stikalo
samodejno izklopi črpalko in jo spet
vklopi, ko se ohladi.

• Sesalno cev (plastično cev z vsaj 19 mm
(3/4”) z ojačenimi spiralami) priključite
neposredno ali z navojnim nastavkom
na priključek sesalne napeljave pribl. 33
mm (R1 IG) črpalke (slika 1/poz. 5).
• Uporabljena sesalna cev mora imeti
sesalni ventil. Če sesalnega ventila ne
morete uporabiti, morate v sesalno na-
peljavo namestiti protipovratni ventil.
• Sesalno napeljavo položite tako, da se
od odvzema vode do črpalke vzpenja.
Sesalne napeljave nikoli ne položite
nad višino črpalke, saj zračni mehurčki
v sesalni napeljavi ovirajo in zakasnijo
postopek sesanja.
• Sesalno in tlačno napeljavo namestite
tako, da ne izvajata mehanskega pritiska
na črpalko.
• Sesalni ventil mora biti dovolj globoko v
vodi, da z nižanjem vodostaja preprečite
suhi tek črpalke.
• Netesna sesalna naprava preprečuje se-
sanje vode, saj se vsesava zrak.
• Preprečite vsesavanje tujkov (peska
ipd.); po potrebi namestite predfilter.
Anleitung_LB4_4171183.indb 17 16.09.11 10:06

SI
- 18 -

• Tlačna napeljava (naj bo vsaj 19 mm
(3/4”)) mora biti priključena neposred-
no na ali prek navojnega spojnika na
priključek tlačne napeljave ca. 33 mm
(R1 IG) črpalke (slika 1/poz. 7).
• Z ustreznimi privijačenji lahko uporabite
tudi ca. 13 mm (1/2”) tlačno cev. Zmogl-
jivost prenosa se z manjšo tlačno cevjo
zmanjša.
• Med postopkom sesanja povsem odprite
zaporne elemente (brizgalne šobe, ven-
tile ipd.) v tlačni napeljavi, da lahko zrak
prosto uhaja iz sesalne napeljave.

• Črpalko postavite samo na čvrsto in rav-
no podlago.
• Pred zagonom morate črpalko 
 na podlago s pomočjo pritrdilnih
lukenj v oporni nogi (glejte sliko 1/poz.
3).
• Namestite sesalne napeljave, pripravlje-
ne na delovanje.
• Črpalko napolnite z vodo na vijaku za
vlivanje vode (slika 1/poz. 6) do mesta
polnjenja.
• Med postopkom sesanja povsem odprite
zaporne elemente (brizgalne šobe, ven-
tile ipd.) v tlačni napeljavi, da lahko zrak
prosto uhaja iz sesalne napeljave.
• Glede na višino sesanja in količino zraka
v sesalni napeljavi lahko prvi postopek
sesanja traja pribl. 0,5 min - 5 min. Pri
daljšem času sesanja ponovno napolni-
te z vodo.
• Če črpalko po uporabi ponovno odstra-
nite, jo morate pri ponovnem priključku
in zagonu obvezno napolniti z vodo.
• Vzpostavite električni priključek.

• Črpalka je skoraj brez vzdrževanja. Za
daljšo življenjsko dobo priporočamo, da
jo redno pregledujete in negujete.





• Pred daljšo neuporabo ali prezimovan-
jem črpalko temeljito splaknite z vodo,
jo popolnoma izpraznite in shranite na
suhem.
• Za praznjenje ohišja črpalke odpustite
vijak za izpust vode (slika 1/poz. 4) in
črpalko nekoliko nagnite.
• Če obstaja nevarnost zmrzali, črpalko
povsem izpraznite.
• Po daljših obdobjih mirovanja s kratkim
vklopom/izklopom preverite, ali se rotor
brezhibno obrača.
• Pri morebitni zamašitvi črpalke priključite
tlačno napeljavo na vodno napeljavo in
snemite sesalno cev. Odprite vodno na-
peljavo. Črpalko večkrat vklopite za ca.
dve sekundi. Na tak način lahko v večini
primerov odstranite vzrok zamašitve.
• Za čiščenje ohišja motorja in črpalke
priporočamo mlačno vodo.






Anleitung_LB4_4171183.indb 18 16.09.11 10:06

SI
- 19 -

Napravo in pribor za napravo skladiščite
na temnem, suhem in pred mrazom
zaščitenem in za otroke nedostopnem
mestu.
Optimalna temperatura shranjevanja je med
5 in 30 ˚C. Napravo shranjujte v originalni
ovojnini.


Pri naročanju nadomestnih delov je potreb-
no navesti naslednje navedbe:
• Tip naprave
• Art. številko naprave
• Ident- številko naprave
Aktualne cene in informacije najdete na
spletni strani www.isc-gmbh.info


Naprava se nahaja v embalaži, da ne bi
prišlo do poškodb med transportom. Ta
embalaža je surovina in s tem ponovno upo-
rabna ali pa jo je možno reciklirati. Naprava
in njen pribor sta izdelana iz različnih mate-
rialov kot npr. kovine in plastika. Pokvarjene
sestavne dele odstranite med posebne
odpadke. V ta namen povprašajte v tehnični
trgovini ali na občinski upravi!
Samo za dežele EU
Električnega orodja ne mečite med gospo-
dinjske odpadke!
V skladu z evropsko Direktivo 2002/96/ES o
starih električnih in elektronskih napravah in
v skladu z izvajanjem nacionalne zakonoda-
je morate ločeno zbirati izrabljena električna
orodja in jih predati v okoljsko varno ponov-
no predelavo.
Reciklažna alternativa za poziv za vračanje:
Lastnik električne naprave je namesto
vračila dolžan napravo reciklirati. Staro na-
pravo se lahko v ta namen tudi prepusti na
odvzemnem mestu, ki izvaja odstranjevanje
v smislu nacionalne zakonodaje o odstran-
jevanju takšnih odpadkov. To se ne nanaša
na starim napravam priložene dele pribora
in opreme brez električnih komponent.
Anleitung_LB4_4171183.indb 19 16.09.11 10:06

SI
- 20 -


 
- Ni omrežne napetosti
- Kolo črpalke je blokirano, termo stikalo je
izklopilo
- Preverite napetost
- Razstavite in očistite črpalko

 
- Sesalni ventil ni v vodi
- Prostor črpalke nima vode
- V sesalni napeljavi je zrak
- Sesalni ventil ne tesni
- Sesalna košara (sesalni ventil) je
zamašena
- Maks. sesalna višina je prekoračena
- Sesalni ventil dajte v vodo
- Ohišje črpalke napolnite z vodo
- Preverite tesnost sesalnih napeljav
- Očistite sesalni ventil
- Očistite sesalno košaro
- Preverite sesalno višino

 
- Višina črpanja je previsoka
- Sesalna košara je umazana
- Vodni nivo naglo upada
- Zmogljivost črpalke je zmanjšana zaradi
tujkov (pesek, kamenje ipd.)
- Preverite sesalno višino
- Očistite sesalno košaro
- Sesalni ventil položite nižje
- Črpalko očistite in zamenjajte obrabne
dele

 
- Motor preobremenjen, trenje zaradi tujkov
preveliko
- Črpalko demontirajte in očistite,
preprečite vsesavanje tujkov (lter)

Anleitung_LB4_4171183.indb 20 16.09.11 10:06
