Gima OXY-200 User manual

PROFESSIONAL MEDICAL PRODUCTS
OXY-200 PULSE OXIMETER
User manual
M35101-GB-Rev.1-07.19
35101 / CMS70A
CONTEC MEDICAL SYSTEMS CO., LTD
No.112 Qinhuang West Street,
Economic & Technical Development Zone,
066004 Qinhuangdao, Hebei Province,
PEOPLE’S REPUBLIC OF CHINA
Made in China
Shanghai International Holding Corp. GmbH (Europe)
Eiestrasse 80, 20537 Hamburg, Germany
ATTENTION: The operators must carefully read and completely
understand the present manual before using the product.
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
[e-mail] - [e-mail]
www.gimaitaly.com
0123
IP21

Instructions to user
Dear users, thank you very much for purchasing the device.
This Manual is written and compiled in accordance with the council directive
MDD93/42/EEC for medical devices and harmonized standards. In case of
modications and software upgrades, the information contained in this docu-
ment is subject to change without notice.
The Manual describes, in accordance with the device’s features and require-
ments, main structure, functions, specications, correct methods for transpor-
tation, installation, usage, operation, repair, maintenance and storage, etc. As
well as the safety procedures to protect both the user and equipment. Refer to
the respective chapters for details.
Please read the User Manual carefully before using this product. The User
Manual which describes the operating procedures should be followed strictly.
Failure to follow the User Manual may cause measure abnormality, equipment
damage and human injury. The manufacturer is NOT responsible for the safety,
reliability and performance issues and any monitoring abnormality, human in-
jury and equipment damage due to users’ negligence of the operation instruc-
tions. The manufacturer’s warranty service does not cover such faults.
Owing to the forthcoming renovation, the specic products you received may
not be totally in accordance with the description of this User Manual.
We would sincerely regret for that.
This product is medical device, which can be used repeatedly.
WARNING
Uncomfortable or painful feeling may appear if using the device easelessly,
especially for the microcirculation barrier patients.
It is recommended that the device should not be applied to the same finger
for over 2 hours.
For the special patients, there should be a more prudent inspecting in the
placing process. The device can not be clipped on the edema and tender
tissue.
The light (the infrared is invisible) emitted from the device is harmful to the
eyes, so the user and the maintenance man should not stare at the light.
Testee can not use enamel or other makeup.
Testee’s fingernail can not be too long.
Please refer to the correlative literature about the clinical restrictions and
caution.
This device is not intended for treatment.
The User Manual is published by our company. All rights reserved.
2

Contents
1 Safety ................................................................................................. 4
1.1 Instructions for safe operation ............................................................ 4
1.2 Warning ............................................................................................... 4
1.3 Attention.............................................................................................. 5
1.4 EMC statement ................................................................................... 5
2 Overview ............................................................................................ 6
2.1 Features .............................................................................................. 6
2.2 Major applications and scope of application ...................................... 6
2.3 Contraindications................................................................................ 7
3 Principle ............................................................................................. 7
4 Technical specications ................................................................... 7
4.1 Main performance............................................................................... 7
4.2 Main parameters ................................................................................. 8
4.3 Environment requirements .................................................................. 8
5 Installation ......................................................................................... 9

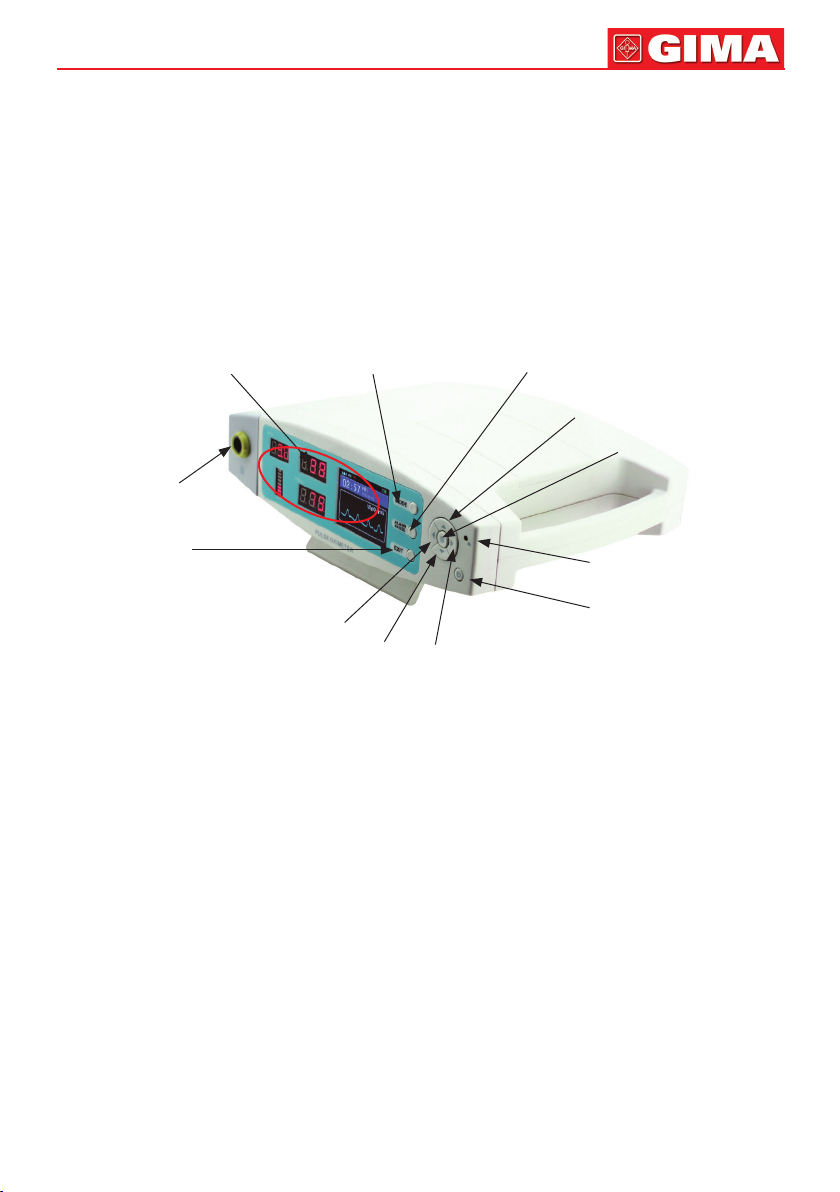

5.1 View of the front panel ........................................................................ 9
5.2 View of the back panel...................................................................... 10
5.3 Accessories....................................................................................... 10
6 Operating guide............................................................................... 11
6.1 Application method........................................................................... 11
6.2 Attention for operation ...................................................................... 18
6.3 Clinical restrictions............................................................................ 19
7 Maintenance, transportation and storage .................................... 19
7.1 Cleaning and disinfecting.................................................................. 19
7.2 Maintenance...................................................................................... 19
7.3 Transportation and storage............................................................... 20
8 Troubleshooting............................................................................... 20
9 Key of symbols ................................................................................ 21
10 Function specication .................................................................... 22
11 Factory default ................................................................................ 23
Appendix ................................................................................................... 24
3

1. SAFETY
1.1 Instructions for safe operation
• Check the main unit and all accessories periodically to make sure that there
is no visible damage that may affect patient’s safety and monitoring perfor-
mance. It is recommended that the device should be inspected weekly at
least. When there is obvious damage, stop using the device.
• Necessary maintenance must be performed by qualified service engineers
ONLY. Users are not permitted to maintain it by themselves.
• If the battery has to be replaced, the battery shall be provided by manufac-
ture and replaced only by trained service personnel. Incorrect replacement
and model of battery may cause device damage and patient injury.
• The device can’t be used together with devices not specified in User Manu-
al. Only the accessory that is appointed or recommendatory by manufacture
can be used with this device.
• This product is calibrated before leaving factory.
• Users should have basic text distinguish ability.
• The patient is also an intended operator. Patient can use the device for
measurement, storage and data upload. While device maintenance, clean
or batteries replacement is not allowed.
• During normal use please do not position this device to make it difficult to
disconnect form power supply.
• After use, please switch off and unplug the device.
1.2 Warning
Don’t open the enclosure of the device to avoid tip-and-run danger.
Necessary maintenance and upgrade must be performed by qualified ser-
vice engineers who have been trained and accredited by our company ONLY
Explosive hazard - DO NOT use the device in the environment with tinder
such as anesthetic .
DO NOT use the device while the patient is being scanned by MRI or CT.
The person who is allergic to rubber can not use this device.
The disposal of scrap instrument and its accessories and packing (including
battery, plastic bags, foams and paper boxes) should follow the local laws
and regulations, and place them in the place where the children can’t reach.
Please check the packing before use to make sure the device and acces-
sories are totally in accordance with the packing list, or else the device may
have the possibility of working abnormally.
Please choose the accessories and probe which are approved or manufac-
tured by the manufacturer, or else it may damage the device.
The device can only be matched with the compatible probe.
Please don’t measure this device with functional tester for the device’s relat-
ed information.
Parts of this device are not allowed to be serviced or maintained while in use
with the patient.
4

5
1.3 Attention
Keep the device away from dust, vibration, corrosive substances, tinder,
high temperature and moisture.
If the device gets wet, please stop operating it.
When it is carried from cold environment to warm or humid environment,
please do not use it immediately.
DO NOT operate keys on front panel with sharp materials.
High temperature or high pressure steam disinfection of the device is not
permitted. Refer to User Manual in the relative chapter (7.1) for instructions
of cleaning and disinfection.
DO NOT have the device immerged in liquid. When it needs cleaning, please
wipe its surface with medical alcohol by soft material. Do not spray any liq-
uid on the device directly.
When cleaning the device with water, the temperature should be lower than
60°C.
The fingers which are too thin or too cold may affect the measure accura-
cy, please clip the thicker finger such as thumb and middle finger deeply
enough into the probe.
The device can be used to adult and child. Whether the device is used to
adult or children, it depends on the probe selected.
The update period of data is less than 5 seconds, which is changeable ac-
cording to different individual pulse rate.
Please read the measure value when the waveform on screen is equably and
steady-going. This measure value is optimal value, and the waveform at the
moment is the standard one.
If some abnormal conditions appear on the screen during test process, pull
out the finger and reinsert to restore normal use.
The device has life for three years.
The device has alarm function, users can check on this function according
to chapter 6.1 as reference.
The device has the function of limit alarm. When the measure data is beyond
limit, the device would start to alarm automatically if the alarm function is
on.
The device has alarm function. This function can either be paused, or closed
for good. Please check the chapter 6.1 as reference.
The device may not work for all patients. If you are unable to achieve stable
readings, discontinue use.
1.4 EMC statement
Electromagnetic compatibility shall be considered during device in use, be-
cause high electromagnetic portable or mobile RF equipment will interfere the
working of the device.
Usage of other cables will affect the EMC performance of the device, please
use the standard accessories.

2. OVERVIEW
The pulse oxygen saturation is the percentage of HbO2in the total Hb in the
blood, so-called the O2concentration in the blood. It is an important bio-pa-
rameter for the respiration. A number of diseases relating to respiratory system
may cause the decrease of SpO2in the blood, furthermore, some other causes
such as the malfunction of human body’s self-adjustment, damages during
surgery, and the injuries caused by some medical checkup would also lead to
the difculty of oxygen supply in human body, and the corresponding symp-
toms would appear as a consequence, such as vertigo, impotence, vomit etc.
Serious symptoms might bring danger to human’s life. Therefore, prompt infor-
mation of patients’ SpO2is of great help for the doctor to discover the potential
danger, and is of great importance in the clinical medical eld.
The device is fashion and portable.It is only necessary for patient to put one n-
ger into probe for diagnosis, and display screen will directly show the measure
value of pulse oxygen saturation with the high veracity and repetition.
2.1 Features
AOperation is simple and convenient.
BProduct is handsome and fashion, and easy to observe
CWith two kinds of power supply mode(alternating current and internal elec-
trical power source)
2.2 Major applications and scope of application
The device can be used in measuring the pulse oxygen saturation and pulse
rate through nger. The product is suitable for being used in family, hospital,
oxygen bar, community healthcare, physical care in sports (It can be used be-
fore or after doing sports and it is not recommended to use the device during
the process of having sport) and etc.
2.3 Contraindications
The problem of overrating would emerge when the patient is suf-
fering from toxicosis which caused by carbon monoxide,and the
device is not recommended to be used under this circumstance.
The person who is allergic to rubber can not use this device.
6

7
3. PRINCIPLE
Principle of the Oximeter is as follows: An experience formula of data process
is established taking use of Lambert Beer Law according to Spectrum Absorp-
tion Characteristics of Reductive Hemoglobin (Hb) and Oxyhemoglobin (HbO2)
in glow & near-infrared zones. Operation principle of the device is: Photoelec-
tric Oxyhemoglobin Inspection Technology is adopted in accordance with Ca-
pacity Pulse Scanning & Recording Technology, so that two beams of different
wavelength of lights can be focused onto human nail tip through perspective
clamp nger-type sensor. Then measured signal can be obtained by a photo-
sensitive element, information acquired through which will be shown on screen
through treatment in electronic circuits and microprocessor.
Figure 1.
4. TECHNICAL SPECIFICATIONS
4.1 Main performance
• SpO2value display
• Pulse rate value display, bar graph display
• PI value display
• Pulse waveform display
• Battery power display
• Low-power indication: low-power indication symbol appears before work-
ing abnormity which is due to low-power.
• Review function
• Screen brightness can be adjusted
• Volume can be adjusted
• Display mode can be adjusted
• Pulse sound indication
• With alarm function, the user could set alarm limit.
• With real-time data uploading function.
• With clock function
• With two kinds of power supply mode(alternating current and internal elec-
trical power source)
Glow and Infrared-ray
Receipt Tube
Glow and Infrared-ray
Emission Tube

4.2 Main parameters
A Measure of SpO2
Measure range: 0~100%
Accuracy:
When the SpO2measure range is 70%~100%,
the permission of absolute error is ±2%;
Below 70% unspecified.
B Measure of pulse rate
Measure range: 30bpm~250bpm
Accuracy: ±2 bpm or ±2% (select larger)
C Measure of PI
Range: 0~20%
When the PI measure range is 1%~20%,
the permission of absolute error is ±1%
When the PI measure range is 0%~0.9%,
the permission of absolute error is ±0.2%;
D Resolution
SpO2: 1%
Pulse rate: 1bpm
PI: 0.1%
E Measure performance in weak filling condition:
SpO2and pulse rate value can be shown correctly when pulse-filling ratio is
0.4%. SpO2error is ±4%; pulse rate error is ±2 bpm or ±2% (select larger).
F Resistance to surrounding light:
The deviation between the value measured in the condition of man-made
light or indoor natural light and that of darkroom is less than ±1%.
G Power supply requirement:
Alternating current supply: 100~240V AC 50/60Hz
Internal electrical power source: 3.6 V DC~4.2V DC.
H Optical sensor
Red light (wavelength is 660nm, 6.65mW)
Infrared (wavelength is 880nm, 6.75mW)
I Adjustable alarm range:
SpO2: 0~100%
Pulse Rate: 0bpm~254bpm
4.3 Environment requirements
Storage Transportation Environment
a) Temperature: -40°C~60°C
b) Relative humidity: ≤95%
c) Atmospheric pressure: 500hPa~1060hPa
8

Operating Environment
a) Temperature: 0°C~40°C
b) Relative Humidity: ≤75%
c) Atmospheric pressure: 700hPa~1060hPa
5. INSTALLATION
5.1 View of the front panel
Figure 2. Front view
Alternating current indicator light: the light is green when powered on.
Probe jack: it is used to connect Oximeter probe to measure the oxygen sat-
uration, pulse rate and PI.
D isplay area: display measure information
Button Area:
1 Mode switch button: click it to switch mode (Measure interface 1 / Meas-
ure interface 2)
2 Alarm pause button: when alarm happens, press it to make alarm sound
pause. The pause time could be set by menu.
3 Return button: return to the previous menu.
4 Up button/down button/left button/right button: change the choice bar
position.
Left/right button: set part function
5 Menu button: in waveform measure interface, press the button to enter the
menu setting;in menu interface, press the button to enter the corresponding
submenu.
6 Power button: in power-off state, long press the button to turn on the de-
vice;in power-on state, long press the button to turn off the device.
9
Probe jack
Display area Mode switch button Alarm pause button
Up button
Menu button
Return button
Left button
Alternating current
indicator light
Power button
Down button Right button

10
5.2 View of the back panel
Figure 3. Back view
USB port: It is used to connect computer to transmit data by data line.
R Pinhole Restoration key: restore the device
The computer intended to be connected with this device, shall be approved
and certicated according to IEC 60950.
During data transmitting, please do not use this device with patient.
Alternating current switch: switch power supply between alternating current
and direct current.
Fuse pedestal: equipped with a high voltage fuse (T1.6AH250V, Maximum cur-
rent 1.6A, rated voltage 250V)
Power supply jack: power supply line interface
5.3 Accessories
AA User Manual
BA power supply line
CA data line
DA disk (PC software <SpO2Assistant> )
EAn Oximeter probe
Optional:
AOther Oximeter probe (refer to <Probe Application Introduction>)
USB port Fuse pedestal Alternating current Power supply
R pinhole restoration key

11
6. OPERATING GUIDE
6.1 Application method
6.1.1
Inserting the lemo probe into the lemo jack of the device (The probe is limited to
the one that is provided by our company; and can’t be replaced with the similar
one by other manufacturers), then put the nger into the probe as Figure 4.
Figure 4. Probe connecting
ALong press power button until the device is turned on.If use alternating cur-
rent, make sure that the power supply line is connected accurately and the
alternating current switch is on.
B Do not shake the finger and keep the patient in a stable state during the
process.
C The data can be read directly from the screen in the measure interface.
Fingernails and the luminescent tube should be at the same side.
If the alarm function is on, the device will provide alarm signal when
probe or nger is out.
6.1.2 Alarm pause
A Alarm including the alarm of measure data’s going beyond the limits, the
alarm of low-voltage, the alarm of finger out.
BWhen alarm is on, short press the alarm pause button to make the alarm
pause, it can renew alarm after period of time, alarm pause time can be set
by menu.
C Only alarm sound can be closed, the prompt information displayed can’t be
closed.

6.1.3 Menu operations
In the measuring interface, press menu button to enter the main menu interface
as gure 5.
Figure 5. Main menu interface
System setting
In the main menu interface, choose “System” item, then press menu button to
enter the System setting menu as gure 6:
Figure 6. System setting menu
A Volume: move the choice bar to the “Volume” item, then press left/right
button to set the volume (three levels, OFF means closing sound).
B Pulse sound: move the choice bar to the “Pulse sound” item, then press
left/right button to set pulse sound.
C Key sound: move the choice bar to the “key sound” item, then press left/
right button to set key sound.
D Version: move the choice bar to the “Version” item,then press the menu
button to see the edition information of hardware and software,and return to
the system setting menu interface after 2 seconds .
E Equipment ID: see the ID information of device. The ID of the device can be
set by the PC software. Please refer to <SpO2Assistant user manual> for
detail.
F Factory Default: move the choice bar to the “Factory Default” item, then
press the menu button to pop-up “Factory Default” window. Press up/down
button to choose whether to resume Factory Default, and press menu but-
12

613
ton to affirm setting, then press return button to return the system setting
menu interface.
Display setting
In the main menu interface, choose “Display” item, then press menu button to
enter the display setting menu as Figure 7:
Figure 7. Display setting menu
A Brightness: move the choice bar to the “Brightness” item, then press left/
right button to set (three levels)
B Mode: move the choice bar to the “Mode” item,then press left/right button
to switch display mode (two kinds of display mode) as figure 7 and figure 8.
Note: in measure interface, the user could press mode switch
button to switch display mode too.
Figure 8. Interface 1 Figure 9. Interface 2
C LCD ON: move the choice bar to the “LCD ON” item, then press left/right
button to set display time (range: 1~60min) .0 means display at all times
D Demo: move the choice bar to the “Demo” item, then press left/right button
to turn on/off demo function.
E Theme: move the choice bar to “Theme” item, then press left/right button to
set theme (Three kinds of theme are optional.)

Clock setting
In the main menu interface, move the choice bar to “Clock” item, then press the
menu button to enter the clock setting menu of Figure 10:
Figure 10. Clock setting menu
Move the choice bar to the menu item that you want to set, and press left/right
button to begin to set. After resetting time, press return button to return to the
main menu.
Alarm setting
In the main menu interface, move the choice bar to “Alarm” item, then press
menu button to enter the alarm setting menu of Figure 11.
Figure 11. Alarm setting menu
A Set the high/low limit of alarm
In alarm setting menu, you can set the high/low limit of alarm. Move the
choice bar to the menu item that you want to set, and press left/right button
to set value, then press menu button for affirming.
If the alarm function is on, the device will provide alarm sound when
the measure value is beyond the limit.
14

B Set alarm state
In alarm setting menu, move the choice bar to the “Alarm” item, press left/
right to set the alarm state. Choose “on” to turn on the alarm, and choose
“off” to turn off the alarm.
C Set alarm pause time
In alarm setting menu, move the choice bar to the “Alarm Pause” item, then
press left/right to set the alarm pause time. The range is 10~180s.
Record setting
In the main menu interface, move the choice bar to “Record” item, then press
menu button to enter record menu as Figure 12.
Figure 12. Record Menu
A Record setting
aIn the record menu interface, move the choice bar to “Record” item, then
press left/right button to choose on/off. When displaying “on”, press menu
button enter the input ID interface as Figure 13. When recording, choose
“off”, and press menu button to stop recording.
Figure 13. Input ID interface
b In “Input ID” interface, aglimmer cursor appears in the ID input box.
The pink letter is the selected letter in dummy keyboard. Press direction key
to choose the letter to input and press menu button to input. You can input
4 letters most. Choose , then press menu button to delete letter. After
inputting, choose , then press menu button to begin to record data and
15

return to measure interface.
c If the inputed ID has existed, the prompt dialog box as figure 14 will appear.
Choose “Yes” and click menu button to replace the existed ID, at the same
time begin to record and return to the measure interface; choose “No” to
return the “Input ID” interface.
Figure 14. Replace the existed
ID dialog box
d Every patient ID could save 24-hour data, the device could save 16 patient
ID.
e When the memory is full, the system will stop recording automatically.
f When the 16 groups of ID all have data, click “record” menu again, the de-
vice will appear “No Memory” dialog box. After deleting ID, the record can
be continued.
If the device is restarted in the process of recording, the device will
lose the segment of recording data.
In the process of recording, don’t allow deleting and reviewing re-
cording information.
B Memory Manager setting
In the Record menu interface, move the choice bar to the “Memory Manag-
er” item, then press menu button to enter ID Manager interface as figure 15.
Figure15. ID Manager interface
In ID Manager interface, press direction button to choose ID or “Delete ID”, and
press menu button to prompt deleting operation as gure 16. Choose “Yes”
and press menu button to delete ID. Choose “No” to return to the memory
manager interface.
16

17
Figure 16. Delete ID dialog box
C Review function setting
In record menu interface, move the choice bar to the “Review” item, then
choice frame will appear. Press the “left/right button” to choose “VAL-
UE”/“TREND”, then press menu button to enter “select ID” interface as fig-
ure 17.
Figure 17. Select ID interface
Choose the review record and press menu button to enter the review inter-
face. Choose “VALUE” to enter true value review interface as gure 18. Choose
“TREND” to enter trend review interface as gure 19.
Figure 18. VALUE review interface Figure19. TREND review interface
In value review mode, press “left button” or “right button” to page up or page
down, press “up button” or “down button” to page up or page down quickly.
The displayed time on the right top is the total recording time.
In trend review mode, the pink number on the left bottom is current recording
time point of the trend graph, the middle azury font is SpO2value, yellow font

is pulse rate value, the green front on the right bottom is PI value. Press “up
button” or “down button” to page up or page down;press “left button” or “right
button” to move the recording time which is denoted by pink triangle.
Close the device
a In the main menu interface, move the choice bar to the “Power” item, then
press menu button to close the device. If the record function has been
opened, the prompt interface of “Recording...” will appear when closing the
device.It means that the device is in the record state, can’t be closed.
b In the state of boot-strap, long press power button could close the device too.
6.1.4 PC software operation
Please connect the device to the computer by data line, then double click
“SpO2Assistant” icon to run the PC software. The functions such as
uploading real time/memory data and change device ID could be carried out
by the software. Please refer to <SpO2Assistant user manual> for detail.
If the users choose to turn on the display function on computer, it
would probably take several seconds for the data to appear on the
computer screen.(If there is no data on the computer screen, un-
plug data line, then repeat step E again .)
6.1.5 Charge
Connect the device to power supply with power line, and make the power
button on.
When the device is closed and the battery is charging up, short press
power button and the device will display dynamic charge icon, it means
that the device is charging up. When the battery status is full, the charg-
ing has been nished. When the device is open and the battery is charg-
ing up, the battery status icon on the right top will display dynamically.
It means that the device is charging up.
When the battery status is full, the charging has been nished.
6.2 Attention for operation
A lease check the device before use, and confirm that it can work normally.
B The finger should be in a proper position (see the attached illustration of
Figure 4 for reference), or else it may result in inaccurate measure.
C The ray between luminescent tube and photoelectric receiving tube must
get across subject’s arteriole.
D The device should not be used at a location or limb tied with arterial canal
or blood pressure cuff or receiving intravenous injection.
18

19
E Ensure nothing, such as a plaster, can impede the light passage, or else it
may result in inaccurate measure of SpO2, pulse rate and PI.
F Excessive ambient light may affect the measure result. It includes fluores-
cent lamp, dual ruby light, infrared heater, direct sunlight and etc.
G Exquisite action of the subject or extreme electrosurgical interference may
also affect the accuracy.
H Testee can not use enamel or other makeup.
I Please clean and disinfect the device after operating according to the User
Manual (7.1).
6.3 Clinical restrictions
A As the measure is taken on the basis of arteriole pulse, substantial pulsat-
ing blood flow of subject is required. For a subject with weak pulse due to
shock, low ambient/body temperature, major bleeding, or use of vascular
contracting drug, the SpO2waveform (PLETH) will decrease. In this case,
the measure will be more sensitive to interference.
B For those with a substantial amount of staining dilution drug (such as meth-
ylene blue, indigo green and acid indigo blue), or carbon monoxide he-
moglobin (COHb), or methionine (Me+Hb) or thiosalicylic hemoglobin, and
some with icterus problem, the SpO2determination by this device may be
inaccurate.
C The drugs like dopamine, procaine, prilocaine, lidocaine and butacaine may
also be a major factor resulted in serious error of SpO2measure.
D As the SpO2value serves as a reference value for judgment of anemic an-
oxia and toxic anoxia, some patients with serious anemia may also report
good SpO2measure.
7. MAINTENANCE, TRANSPORTATION
AND STORAGE
7.1 Cleaning and disinfecting
Using medical alcohol to disinfect the device, nature dry or clean it with clean
soft cloth.
7.2 Maintenance
A Please clean and disinfect the device before use according to the User
Manual (7.1).
B Please recharge the battery when the screen shows low power alarm infor-
mation.
C Recharge the battery soon after the over-discharge. The device should be
recharged every six months when it is not regular used. It can extend the
battery life following this guidance.

D Users are advised to calibrate the device termly (or according to the cali-
brating program of hospital). It also can be performed at the state-appointed
agent or just contact us for calibration.
7.3 Transportation and storage
A The packed device can be transported by ordinary conveyance or accord-
ing to transport contract. The device can not be transported mixed with
toxic, harmful, corrosive material.
B The packed device should be stored in room with no corrosive gases and
good ventilation. Temperature: -40°C~60°C; Relative Humidity: ≤95%
8. TROUBLESHOOTING
20
Trouble Possible Reason Solution
The SpO2 and Pulse
Rate can not be
displayed normally.
1. The nger is not
properly positioned.
2. The patient’s SpO2 is
too low to be detected.
1. Place the nger
properly and try again.
2 .Try again/Go to a
hospital for a diagnosis
if you are sure the
device works all right.
The SpO2 and Pulse
Rate are not displayed
stably.
1. The nger is not placed
inside deep enough.
2. The nger is shaking
or the patient is moving.
1. Place the nger
properly and try again.
2. Let the patient keep
calm.
The device can
not be turned on.
1. The battery is drained
away or almost drained
away.
2. The malfunction of the
device.
1. Please recharge
the battery
2. Please contact
the local service center.
The display is
off suddenly.
1. The device is dam-
aged.
2. The battery is drained
away or almost drained
away.
1. Please contact
the local service center.
2. Please recharge
the battery.
The device can not be
used for full time after
charge.
1. The battery is not full
charged.
2. The battery is broken.
1. Please recharge
the battery
2. Please contact the
local service center.
The battery can not be
full charged even after
10 hours charging time.
The battery is broken. Please contact the local
service center.
