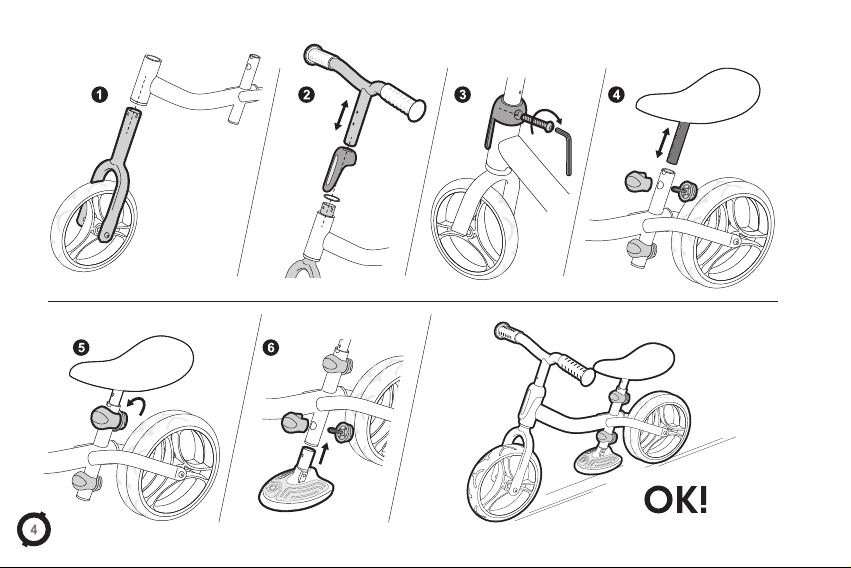

To get a low frame positioning: (Diagram A)
“A”)
2. Insert the wheel fork into the frame’s stem. Next, add the white
3. Insert the handlebars’ stem into the fork’s stem, the minimum
insertion depth for the handlebars is where “MIN” is marked on
the stem when placing the handlebars into the fork’s stem. This
is the highest height of the handlebars.
frame. The minimum insertion depth for the saddle is where
"MIN" is marked on the stem when placing it into the frame’s
saddle tube. This is the highest height of the saddle. Tighten
the saddle.
6. Insert the footrest to the bottom of the saddle tube and tighten
the knob. When the footrest is removed, insert the end cap,
which is included in the spare parts bag, to cover the hole
underneath. Once the end cap is inserted, tighten it with the
If you want to swap to 1 rear wheel for advance balancing in a low
frame positioning, you can do so by following step 10.

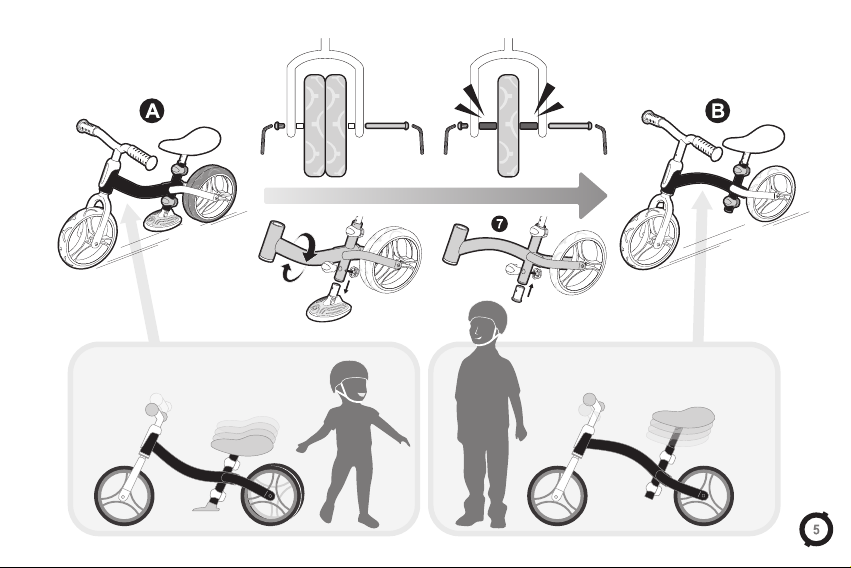

To get a high frame positioning: (Diagram B)
frame position.
9. Since the footrest is not recommended to be used in the high
frame position for older kids, you can remove it and replace it
with the end cap, which is included in the spare parts bag, to
cover the hole underneath then, tighten it with the knob.
To transform the dual-rear wheel to a single rear wheel:
(See page 5)
10. Place the GO BIKE DUO upside down. Unscrew the wheels
with 2 Allen keys, which are included in the spare part bag,
then pull out the long screw to remove both rear wheels as
well as the spacers.
11. Keep 1 wheel to install it on the rear of the balance bike.
Take the 2 longer spacers and the long screw to prepare the
installation of the wheel.
the holes inside the bearing to insert the long screw into the
bearing on the rear wheel. Next, add the second spacer on the
other side of the rear wheel.
* Careful: Make sure the spacers, the wheel and the bearing
are aligned before inserting the long screw. To align the
spacers, the wheel, and the bearing, use the Allen key, which
is included in the spare parts bag, to help to align them before
inserting the long screw inside the spacers of the rear wheel.
13. Tighten the rear wheel with the 2 Allen keys, which are
included in the spare parts bag. Make sure the screws are
securely tightened before using the GO BIKE DUO.
