Goldmedal Econo 8 2388 User manual



© 2017 Gold Medal Products Co. Part No. 69022

























Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Econo 8 Popcorn Machine
Model No.: 2388, 2388-00-002

Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 2

gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514

DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installin
g
, servicin
g
, or operatin
g
this equipment.
014_020416

WARNING
To avoid burns, DO NOT touch the kettle or any heated surface.
DO NOT place or leave objects in contact with heated surfaces.
013_092414

WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914

WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514

WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-
(
800
)
-543-0862
022_060215



Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 3

gmpopcorn.com
SAFETY PRECAUTIONS (continued)
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefull
y
read all instructions before operation.
012_010914

WARNING
This machine is NOT to be operated by minors.
007_010914

Note: ImprovementsarealwaysbeingmadetoGoldMedal’sequipment.Thisinformation
maynotbethelatestavailableforyourpurposes.ItiscriticalthatyoucallGoldMedal’s
TechnicalServiceDepartmentat1‐800‐543‐0862foranyquestionsaboutyour
machineoperations,replacementparts,oranyservicequestions.(GoldMedal
ProductsCo.doesnotassumeanyliabilityforinjuryduetocarelesshandlingand/or
recklessoperationofthisequipment.)Generalimagesmaybeusedinmanualfor
referenceonly.



Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 4

gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
Afterunpacking,checkthoroughlyforanydamagewhichmayhaveoccurredintransit.Claims
shouldbefiledimmediatelywiththetransportationcompany.Thewarrantydoesnotcover
damagethatoccursintransit,ordamagecausedbyabuse,orconsequentialdamageduetothe
operationofthismachine,sinceitisbeyondourcontrol(referencewarrantyinbackofmanual).
Manual
Readandunderstandtheoperator’smanualandallothersafetyinstructionsbeforeusingthis
equipment.Toordercopiesoftheoperator’smanualgotogmpopcorn.comorwritetoGold
MedalProductsCo.,10700MedallionDrive,Cincinnati,OH45241USA1‐(800)‐543‐0862.
Model Description
2388:Econo8oz.Popper.
2388‐00‐002:Econo8oz.PopperunitequippedwithaPowerOff
TM
Controlfeature.
Items Included with this Unit

BlackCrutchTip
(PN49123)onetip
Knob(PN47120)
TeeBolt(PN75267)
(forPopperDoors)
Knob(PN47120)
Screw(PN42227)
(forOldMaidPan)
FlavacolMeasure
6.5cc(PN47678)
A
luminumScoop
(PN2071)
Instruction
Manual
Registration
WarrantyCard
1/3CupOilMeasure
(PN47150)
1CupCornMeasure
(PN47147)

Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 5

gmpopcorn.com
Setup
Thisunithasbeentestedatthefactory.
1. Removeallpackagingandtapepriortooperation.Removeaccessoriesandcarefully
removekettlepackedincabinetinterior.
2. Placeunitonasturdy,levelbase.
3. Unithas4glidefeetpreinstalledatthefactory(seeimagebelow).InstallaBlack
CrutchTiponeachfoot.Firmlypushcrutchtipoverglideuntilitcoversglideentirely.
4. Tiltkettleandinsertintohangerarms,thenallowkettletoreturnnaturallytoan
uprightposition(seeimagebelow).
5. Plugkettleleadintoreceptaclelocatedonceilingofcabinetinterior.Alignkeyedor
hookshapedprongwiththecorrectopening,thenpushplugallthewayinandtwist
orrotatetolockinplace.Tounplug,untwistkettleplugbeforeattemptingtopullfrom
receptacle.
6. Doorknobsareshippedinaccessoriespack.Installadoorknobwithteeboltoneach
popperdoor;installknobwithscrewonoldmaidpan.
7. Aftersetup,unitshouldbecleanedpriortouse(seeCareandCleaningsection).



BlackCrutchTip
Glide(pre‐installed
atthefactory)

Generalimagesshownforreferenceonly.
Kettleshownmounted
inhangerarms.
Kettlelead
shownplugged
intokettle
receptacle.

Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 6

gmpopcorn.com
Electrical Requirements
Thefollowingpowersupplymustbeprovided:
2388,2388‐00‐002:120V~,1525W,60Hz

DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514

Acertifiedelectricianmustfurnishsufficientpowerforpropermachineoperationandinstallany
suppliedreceptacle.Werecommendthisequipmentbeonadedicatedandprotectedcircuit.
Failuretowireproperlywillvoidthewarrantyandmayresultindamagetothemachine.ItisGold
MedalProductsCo.’srecommendationthatthismachinebepluggeddirectlyintoawalloutlet.The
useofextensioncordsisnotrecommendedduetosafetyconcerns,andmaycausesacrificed
and/orreducedperformance.Makesurecordislocatedtopreventatriphazardorunitupset.
Before You Plug In Machine
1. MakesureallmachineswitchesareOFFbeforepluggingequipmentintoreceptacle.
2. Makesurewalloutletcanacceptthegroundedplugs(whereapplicable)onthepower
supplycord.
3. Thewalloutletmusthavetheproperpolarity.Ifindoubt,haveacompetent
electricianinspecttheoutletandcorrectifnecessary.
4. DONOTuseagroundedtoun‐groundedreceptacleadapter(whereapplicable).
5. Installunitinalevelposition.

CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service a
g
ent or similarl
y
qualified persons in order to avoid a hazard.
039_080614


Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 7

gmpopcorn.com
OPERATING INSTRUCTIONS

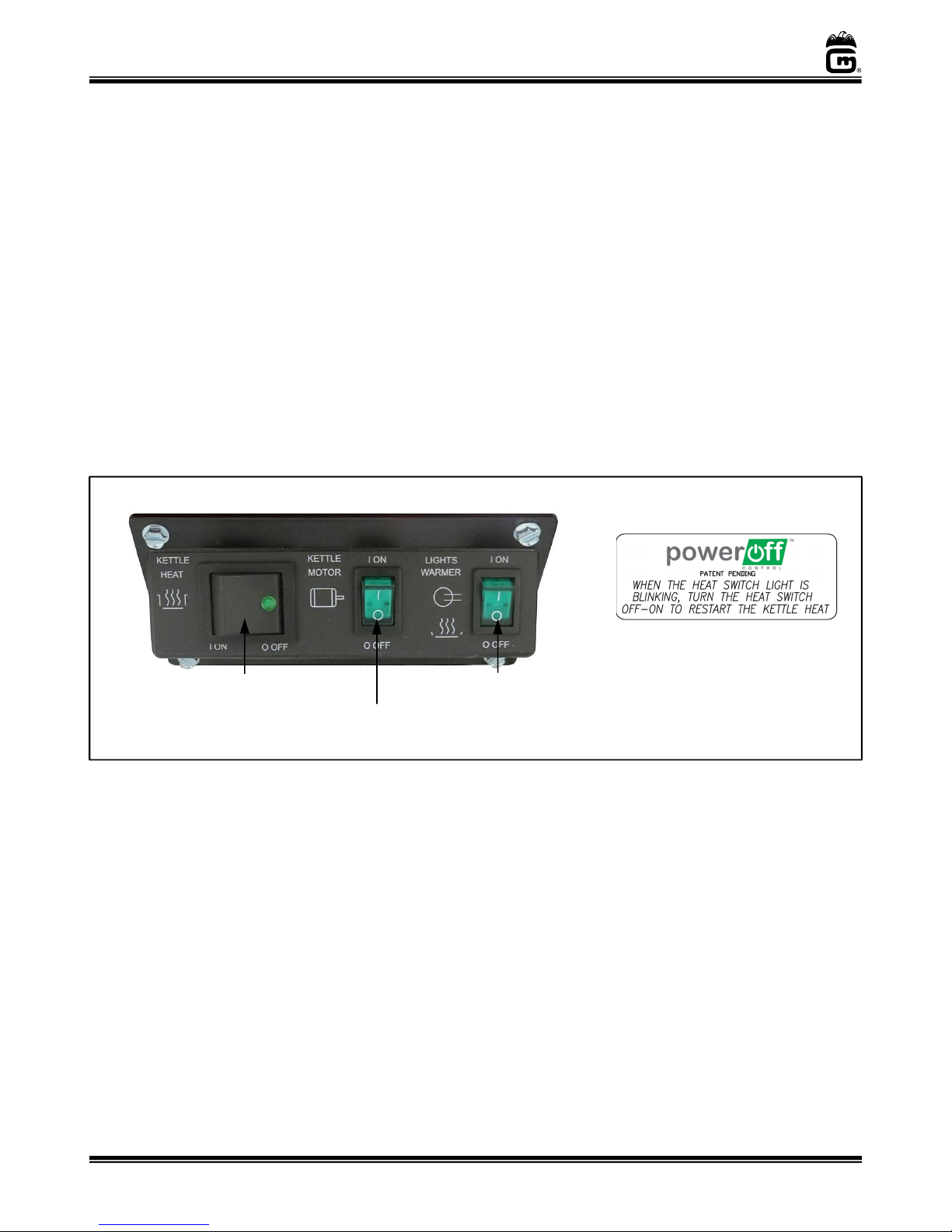

Controls and Their Functions
KETTLEHEATSWITCH
Twoposition,ON/OFFlightedrockerswitch‐suppliespowertotheheatingelementinthe
kettle.ThegreenswitchlightONindicatesthereispowertothekettleheatingelement.
KETTLEMOTORSWITCH
Twoposition,ON/OFFlightedrockerswitch‐suppliespowertothekettleagitatormotor.
TheKettleMotorSwitchMUSTbeONatalltimeswhenthereispopcorn(poppedorun‐
popped)inthekettle.
LIGHTS/WARMERSWITCH
Twoposition,ON/OFFlightedrockerswitch‐suppliespowertotheinteriorcabinetlight
andcornpanheatelement.

POWEROFFCONTROL(Model2388‐00‐002only)
ThePowerOffControlfeaturewillautomaticallyturnthekettleheatoffafter15minutes
ofidletime(nopopcornpopped).ThePowerOffControlwillpreventtheheatelementand
thermostatfromcyclingOFF‐ONiftheKettleHeatSwitchislefton.Thisfeaturesaves
electricalpowerandextendsthelifeofthekettleheatingelementandthermostat.
 WhentheKettleHeatSwitchisturnedON,andthekettlethermostatswitchesOFF,
thePowerOffControl’s15minutetimerstarts;the15minutetimerresetseach
timeabatchofpopcornispopped.
 ThesmallgreenneonlightintheKettleHeatSwitchwillblinkOFF‐ONtoindicate
thekettlehasbeenautomaticallyturnedOFF.
 Torestartthekettleheating,cycletheKettleHeatSwitchOFF‐ON.

KettleHeatSwitch
KettleMotorSwitch
LabelusedonModelswith
PowerOffControlfeature.
Lights/Warmer
Switch

Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 8

gmpopcorn.com
Popping Corn Instructions
ThissectiondescribesinstructionsforpoppingSaltedPopcorn.
Thepopperisequippedwithacorn,salt,andoilmeasure.Werecommendflavoredandcolored
coconutoil.Popcornpoppedincoconutoilstaysfreshlongeranddoesnotleaveblackdepositsin
thekettlelikeotheroils.Useonlytopquality,freshpopcornfromreputablesuppliers.
Popping Salted (Standard) Popcorn
RawPopcornCharge:Usecornmeasureprovided(ex:for6oz.Kettle,use6oz.corn)
RecommendedOilVolume:Oilvolumeisapprox.30%ofcornamount(ex:for6oz.corn,use2oz.oil)
Flavacol(Salt)Amount:UsesmallFlavacolscoopprovided
Premeasureallingredients(adjustasneededfordesiredtaste),orforbestresultsuseMega‐Pop®
premeasuredpopcornandoilpouchmadeforyourkettlesize.
1. TurnallswitchesON.
2. Todeterminewhenkettleisreadytopopcorn(about4minutes),testpopthree
kernelsofcorninoneounce(30ml)ofpoppingoil.Whenkernelspop,kettleisready.
3. Liftkettlelid,pourinpopcornandFlavacol,thenaddoil;closelid.
4. Whencornhasfinishedpopping,gentlydumpthepopcorn.
PoppingTip:Onfinalbatch,turnKettleHeatSwitchOFFjustaslidsareforcedopen
bythepoppingcorn(kettlehasplentyofheattofinishpopping).Thishelps
eliminatesmoke/odorfromanyoilresidueremaininginkettle.
5. Whenfinishedpopping,turnKETTLEHEATandKETTLEMOTORswitchesOFF.
NEVERLEAVETHEHEATONWHENYOUARENOTPOPPINGCORN!
UnitswithanautokettleheatshutofffeaturewillautomaticallyshutkettleheatOFFafter
15min.ofidletime(nopopcornpopped).Torestartheating,cycletheHeatSwitchOFF‐ON.


Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 9

gmpopcorn.com
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water. DO NOT clean appliance with a water jet.
A
lwa
y
s unplu
g
the equipment before cleanin
g
or servicin
g
.
025_111616

WARNING
To avoid serious burns, DO NOT touch the kettle while it is hot!
028
_
082715

Goodsanitationpracticedemandsthatallfoodpreparationequipmentbecleanedregularly(only
usenon‐toxic,foodgradecleaners).Acleanlooking,well‐keptmachineisoneofthebestwaysof
advertisingyourproduct.
Note: Itisextremelyimportanttofollowallofthecleaningprocedures,otherwiseparts
damageandequipmentfailurewillresult.Thewarrantydoesnotcoverpartsthat
aredamagedduetoimpropercleaning.
Daily Kettle Cleaning Instructions
CAUTION:Ahotkettlewillcauseburnsifyoutouchitwithyourhand.Allowkettletocool
atleast1hourbeforeattemptingtoclean.DONOTuseiceorwatertocool
downahotkettle!Severekettledamagewillresult!
1. Whencool,wipetheoutsideofthekettlewithaclean,softcloth.DONOTuseoven
cleanersorabrasivematerialsastheywilldamagethekettle.
2. Everynight,mixGoldMedal’sHeat’nKleensolution(ItemNo.2095),2tablespoons
pergallonofwater.Itisnotnecessarytousetheentiregallonatonce;onlyuse
enoughtofillthekettle1/2inchdeep.
3. TurnthekettleheatON.Whenthewaterstartstoboil,turnthekettleheatOFF.
4. Allowtocoolforatleast1hour,thendumpthesolutionintoabucketandwipethe
insideofthekettlewithacleancloth.Makesureallofthesolutiongoesintothe
bucket;donotspillanyintheinteriorofthemachine.
Forextradirtykettles,theprocessmayberepeated;or,afterturningthekettleheat
OFF,allowsolutiontositinthekettleovernight.Thenextmorning,dumpthesolution
intoabucketandwipetheinsideofthekettlewithacleancloth.
5. WiththeunitOFFandunplugged,wipethekettleleadcordwithacleanSLIGHTLYdamp
cloth.DONOTgetmoistureintothekettlelead‐incord,severedamagewillresult.


Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 10

gmpopcorn.com
Daily Unit Cleaning Instructions
1. WiththemachineOFF,unplugtheunitandallowittocoolbeforeattemptingtoclean.
2. Makesuretocleanallpans/accessoriesinordertosanitizethembeforeeachuse.
3. Takeaclean,SLIGHTLYdampclothandwipeexcessgreasefromtheglassandcabinet.
4. Wipethestainlesssteelpartswithacleanclothandcleanerdesignedforstainless
steel,suchasGoldMedalWatchdogStainlessCleaner(ItemNo.2088).
DONOTuseovencleanersorabrasivematerialsastheywilldamagepartsofthe
machine.
5. Cleantheglasspanelswithglasscleaner.GoldMedalWatchdogGlassCleaner(Item
No.2588)isrecommended.
Ammoniacleanerswilldamagetheplasticdoors.Useonlynon‐ammoniacleaners,
suchasGoldMedalWatchdogGlassCleaner(ItemNo.2588).


Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 11

gmpopcorn.com
Troubleshooting
IssuePossibleCauseSolution
NoPowertotheUnitA. NoPowertotheUnit A. Makesuretheunit’spowercordispluggedin.
KettleDoesNotHeatA. PowertotheKettle A. Makesurekettlelead‐incordispluggedinand
twistedtolockintothekettlereceptacle.
B. KettleHeatSwitch B. Haveaqualifiedservicepersoncheckthe
voltagetoandfromtheKettleHeatSwitch;if
switchisdefective,replaceit.
C. PowerOffControl C. UnitswiththePowerOf
f
Controlfeature,kettle
heatwillautomaticallyshutOFFafter15
minutesofidletime(nopopcornpopped).
ThesmallgreenneonlightintheKettleHeat
SwitchwillblinkOFF‐ONtoindicatethekettle
hasbeenautomaticallyturnedOFF.
Torestartkettleheating,cycletheHeatSwitch
OFF‐ON.ReferencetheControlsandTheir
Functionssectionofthismanual.
D. HeatingElement D. Heatingelementinthekettlema
y
beburned
out.Checkwithaqualifiedservicepersonfor
inspection/repair.
LongPoppingCycles
(Longerthan4minutesfor
SaltPopcorn)
A. LowVoltage A. Ifthemachineisoperatedonlowvoltage,this
couldcausethekettlenottoreachtheproper
operatingtemperature.Checkwithaqualified
electrician.
B. InadequateSupplyLines B. Inadequatelysizedelectricalsupplylines or
useofextensioncord,inadditiontobeinga
firehazard,wouldalsopreventthekettlefrom
reachingtheproperoperatingtemperature.
Checkwithaqualifiedelectrician.
C. InferiorCorn C. Inferiorqualitycornwouldresultinlonger
poppingcycles.Useonlytopqualityhybrid
popcornfromreputablesuppliers.Eventhen,
ifyouletyourcornpickupmoistureordry
out,yourpoppingcycleswillbeslow.
KettleAgitatorShaftnot
Rotating
Ifthekettleagitatorshaftis
notrotating,DONOTpop
corn.
A. KettleMotorSwitch A. MakesuretheKettleMotorSwitchisON.Ifthe
switchisON,andtheshaftisnotrotating,the
switchormotormaybefaulty,contact
qualifiedservicepersonnelfor
inspection/repair.
B. KettleAgitatorShaft/Stir
Bladenotrotating.(Unit
mustbeOFF,unplugged
andcoolpriorto
checkingoradjusting
theagitatorassembly.)
B. KettleswithaFLOATINGStirRod – liftthe
agitatorweightandchecktheclearance
betweentheshaftandthekettlebottom;it
shouldbeaminimumof1/32”(thicknessofa
dime).
Tomakeshaftadjustments,referencethe
AgitatorSetCollarAdjustmentsection.

Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 12

gmpopcorn.com
Agitator Set Collar Adjustment
Thefollowinginstructionsdescribehowtoproperlyadjustsetcollarsonanagitatorassembly
withafloatingstirrod.
Agitator Assembly with a FLOATING Stir Rod


DriveMotor
SpurGear
A
gitator’sSpurGear
(shouldsethalfwayupon
DriveMotorSpurGear)
SetCollar
w/Setscrew
SpurGearPlacement
NeedleBearing
(shouldsetatleast
halfwayintoGearBlock)
GearBloc
k
Step1:TurnmachineOFF,unplugunit,and
allowittocoolcompletelybeforeattempting
toadjusttheagitatorheight.
Step2:Loosenthesetscrewineachsetcollar
tobeadjusted.
Step3:Withthekettlemountedinthepopper,
adjusttheshaftsotheSpurGearsarehalfway
engaged,andtheNeedleBearingisatleast
halfwayengagedinthegearblock(reference
imageatright).
DONOTsetspurgearsatfullgearcontact;it
cancausebindingasthekettleisdumped.
Step4:Snugtightenonly,thesetscrewinset
collarabovethecrossbartoholdposition.Then,
lifttheagitatorweightandchecktheclearance
betweentheshaftandthekettlebottom.If
thereisadequateclearance,fullytightentheset
screwtosecuresetcollarinplace.
Step5:Adjustclearancebetweenthebottomof
thecrossbarandthelowersetcollarto1/32”
(thicknessofadime);thenre‐tightensetscrew
tosecureinplace(referenceimage).
Step6:Adjustsetcollarforagitatorweightto
bebetween3/16”to1/4”abovetheagitator
weight.Onceadjusted,
re‐tightensetscrew
tosecureinplace.
A
gitatorshownforgeneral
imagereferenceonly(lids
notshownforclarity).
Adjustclearanceto
thicknessofadime.
3/16”to1/4”max.
StepstoAdjustSetCollars
SetCollaraboveCrossbar
LowerSetCollar
(belowCrossbar)
SetCollar
(forAgitatorWeight)
A
gitatorWeight
StirRod
Crossbar
A
gitatorShaft

Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 13

gmpopcorn.com
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514

DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installin
g
, servicin
g
, or operatin
g
this equipment.
014_020416

WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514

CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027
_
010914


Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 14

gmpopcorn.com
ORDERING SPARE PARTS
1. Identifytheneededpartbycheckingitagainstthephotos,illustrations,and/or
partslist.(Generalimagesmaybeusedinmanualforreferenceonly.)
2. Useonlyapprovedreplacementpartswhenservicingthisunit.
3. Whenordering,pleaseincludepartnumber,partname,andquantityneeded.
4. Pleaseincludeyourmodelnumber,serialnumber,anddateofmanufacture(located
onthemachinenameplate/dataplate)withyourorder.
5. Addressallpartsordersto:
PartsDepartment
GoldMedalProductsCo.
10700MedallionDrive
Cincinnati,Ohio45241‐4807

Or,placeordersbyphoneoronline:

Phone: (800)543‐0862
(513)769‐7676
Fax: (800)542‐1496
(513)769‐8500
E‐mail:[email protected]
WebPage:gmpopcorn.com


Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 15

gmpopcorn.com
Replacing Broken Glass
Brokenglasspanelscanbeeasilyreplaced.GoldMedalProductsCo.doesnotshipglass.Itcanbe
obtainedfromalocalglassshop,alwayspurchasetemperedglass.
GLASSDIMENSIONS(HeightxWidthxThickness)
FrontGlass:223/8”X1615/16”X1/8”(1Piece)
SideGlass: 223/8”X1415/16”X1/8”(2Pieces)

1. TurnmachineOFF,unplugunitandallowittocoolbeforeattemptingtoreplaceglass.
2. Removeallloosepiecesofglass(popperunits:kettlemayberemovedtochangeglass).
3. Placeabungee(orlargerubberband)aroundtheunittohelpholdthecornerpostsin
place,thenremovedome.
4. Removeallrigidglasschannelsfromaroundglasstobereplaced,setchannelsaside
forreuse.
Note:Therigidchannelsmaybewedgedinthecornerpostsortopandbottomglass
extrusions,andmustberemovedbeforenewglasscanbeinstalled.
5. Carefullyremovetherestofthebrokenglass.
6. Applydecals(ifdesired)tonewglasspanel.
7. Sliderigidglasschannelsoverexposedsidesandbottomofnewglasspanel.
8. Liftmotorplatejustenoughtoallowthenewglasspaneltoslideintothecornerposts
anddownintothebottomglassextrusion.
9. Carefullylowerthemotorplateuntilthetopglassextrusionsecuresglassinplace.
10. Reinstalldome,andremovebungee(popperunits:reinstallkettleifremoved).



Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 16

gmpopcorn.com
8 oz. Kettle Assembly (49472N) – Agitator Assembly View


Item PartDescriptionPartNumber
49472N
1 ACORNNUT 47702
2 8‐32X1/2PHILPANM/S 47141
3 DUMPHANDLERH 49314
4 DUMPHANDLEKNOB 47110
5 SPACER(ForDumpHandle) 49362
6 8‐32X1”SETSCREW 77933
7 LID&AGITATORASSY(CompleteAssembly) 49906N
8 KETTLECROSSBARASSEMBLY 49907N
9 FRONTLIDW/FORMEDLIFTER 49017
10 REARKETTLELID 49016
11 AGITATORBEARINGHUB 43434
12 NEEDLEBEARING 47106
13*
SPURGEARKIT(Includes2gearswithset
screws.AlwaysreplaceAgitatorSpurGearand
KettleDriveMotorGearasaset.)
47059K
14 SETSCREW#10‐32X3/16 41742
15 6OZ.AGITATORSHAFT 69710
16 SETCOLLAR5/16ID5/8OD 46649
17 6OZ.STIRROD 69714
18 AGITATORWEIGHT 69715

15
16,14
18
17
CompleteAgitatorAssembly(IncludesLids)
11
12
13*
14
*SeeParts
Listnote.
34
8910
7
1
2
**ApplyLoctite246to
bottomofsetscrews
beforeinstalling.
5
1
8
6**
SeeKettle
Bottom
A
ssembly.
CompleteKettleAssembly 
OverallKettle5600
0
A
gitatorAssembl y5600
0

Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 17

gmpopcorn.com
8 oz. Kettle Assembly (49472N) – Kettle Bottom Assembly


Item PartDescriptionPartNumber
49472N
1 8OZ.KETTLEBOTTOMASSEMBLY(Complete
Assembly‐includespartslistedbelow) 49489N
2 KETTLESHELL 49431
3 KETTLELEADASSEMBLY 49328
4 6OZ.KETTLEGASKET 49368
5 6OZ.CLADKETTLE 49596
6 HEATELEMENT120V,1125W 49529
7 ELEMENTCLAMP 49532
8 5/16‐18SERRATEDLOCKNUT 49317
9 5/16‐18X3/4SQUAREHEADBOLT 49446
10 8‐32X1/4SLT.HWHM/S (fastensground) 49060
11 8‐32TOPLOCKNUT(alwaysreplaceifremoved) 67943
12 8‐32x1SSHEXSC(holdsThermostat) 49076
13 450°FTHERMOSTAT (includestwo6‐32Screws) 76089
14 THERMOSTATSHUNTBAR 47193
15 525°FTHERMOSTAT(includestwo6‐32Screws) 76702

LockNutView
2
3
KettleBottomAssembly
1
5
4
6
7
8,9
10
1513 14
TopLockNut‐Fastens
thermostat.InstallLock
NutwithtriangleinUP
position(asshown).
ONETIMEUSEONLY,
REPLACENUTif
removed.
Thermostat
11
12
KettleBottomAssemb ly49472N
ElementView49472N
Element
View

Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 18

gmpopcorn.com
Cabinet Exterior – Front View


Item PartDescriptionPartNumber
AllModels
1 FRONTGLASSDECAL 49158
2 8‐32”X5/8”TYPE23HXHD 49052
3 TOPPAN 49452
4 GLASSEXTRUSION(FrontGlass) 74164
5 GLASSEXTRUSION(Sideglass) 49508
6 8‐32x5/16SLOTTEDHEX 49594
7 215/8”GLASSCHANNEL(usedonsidesofglass
panels) 49509
8 15”GLASSCHANNEL(usedontopandbottomof
sideglasspanels) 49510
9 17”GLASSCHANNEL(usedontopandbottomof
frontglasspanel) 49511
10 GLIDEFOOT(2required) 47328
11 10‐24X3/4HEXHD 41314
12 BLACKCRUTCHTIP 49123

2345
1
10,11
12
6
7
ForGlassPanels,
seeReplacing
Glasssection.
8,9
SeeKettle
A
ssembly
Section
2085‐01‐000Overall
Generalimage shownforpartsreference only.

Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 19

gmpopcorn.com
Cabinet Exterior – Rear View


Item PartDescriptionPartNumber
AllModels
1 MAGNETICCATCH 47561
2** COMPLETEDOORHARDWAREKIT 61380
3 PLEXIGLASSDOOR 49395
4 DROPPANEL 49145
5 KNOBLIDLIFT 47120
6 8‐32”X3/8”PHPANW/SEMS 42227
7 OLDMAIDPAN 49100
8 #SR‐6P3‐4STRAINRELIEF 76026
9* POWERSUPPLYCORD15AMP 22038

**CompleteDoorHardwareKit
(Seenextpageforindividual
componentbreakdown).1
2**
3
4
5,678
ForLabels,see
SafetyLabel
Section.
9*
*CAUTION:Ifsupplycordisdamaged,it
mustbereplacedbyGoldMedalProducts
Co.,itsserviceagent,orsimilarlyqualified
personsinordertoavoidahazard.
2**
2085‐01‐000Shown
Generalimage shownforpartsreference onl
y
.

Econo 8 Popcorn Machine Model No.: 2388, 2388-00-002
Page 20

gmpopcorn.com
Door Hardware Kit 61380 – Individual Component Breakdown


Item PartDescriptionPartNumber
61380
1 KNOBLIDLIFT 47120
2 TEEBOLT 75267
3 8‐32X5/16SLOTTEDHEX 49594
4 8‐32X3/8PHPANW/SEMS 42227
5 ACORNNUT#8‐32 47702
6 MALEHINGESHORTLEFT 41349
7 FEMALEHINGELEFTHAND 61359
8 FEMALEHINGERIGHTHAND 61373
9 MALEHINGESHORTRIGHT 41350

CompleteDoorHardwareKit(P/N61380)
(containsallpartsshownabove)
7
6
1
4
9
8
2
3
5
