Goldmedal Econo 8 User manual

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
CHECKING SHIPMENT
Unpack all cartons and check thoroughly for any damage which might have occurred in transit. Damage
claims should be filed immediately with the transportation company.
ELECTRICAL REQUIREMENTS
2388: 120V, 60Hz, 1525W
2388EX: 230V, 50Hz 1525W
If in doubt, your electrician must furnish sufficient power for proper machine operation. We recommend
this popper be on a dedicated and protected circuit. Failure to wire properly will void the warranty and
may result in damage to the machine. It is Gold Medal® Products Company’s recommendation that this
machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to
safety concerns, and may cause sacrificed and/or reduced performance.
INSTALLATION
Your Econo 8 Popper was adjusted, inspected, and tested before it left the factory. Remove all packing
before setting up your new Econo 8. Hang the kettle on the hanger assembly attached to the celling of
your Econo 8. Finally, make sure to plug the power cord into the power receptacle located on the celling
of your popper.
CONTROLS AND THEIR FUNCTIONS
LIGHT AND WARMER SWITCH – Turns on the heat to the bottom corn pan and heat light.
KETTLE MOTOR SWITCH – Turns on the motor which drives kettle agitator shaft.
KETTLE HEAT SWITCH – Turns on the heat element
AMOUNT OF POPCORN AND OIL
Your new Econo 8 is equipped with a corn measuring cup (Part No.47147).
Corn charge – 8 oz.
Oil charge – 2.4 oz.
Flavacol – 1 1/2 teaspoon
POPPING INSTRUCTIONS
1. Turn Kettle Heat and Kettle Motor switch on.
2. Make a test pop by putting 3 kernels of corn and 1 oz. (30 ml) of oil into the kettle.
3. When the 3 kernels have popped, load the kettle with corn and oil charge.
4. When corn has popped, dump the kettle.
5. Repeat cycle starting with step number 3 above; always pop 3-5 batches for best popcorn.
Light And Warmer Switch
Part No. 42532 (2)
Kettle Motor Switch
Part No. 42532 (2)
Kettle Heat Switch
Part No. 42798 (1)

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
CHECKING SHIPMENT
Unpack all cartons and check thoroughly for any damage which might have occurred in transit. Damage
claims should be filed immediately with the transportation company.
ELECTRICAL REQUIREMENTS
2388: 120V, 60Hz, 1525W
2388EX: 230V, 50Hz 1525W
If in doubt, your electrician must furnish sufficient power for proper machine operation. We recommend
this popper be on a dedicated and protected circuit. Failure to wire properly will void the warranty and
may result in damage to the machine. It is Gold Medal® Products Company’s recommendation that this
machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to
safety concerns, and may cause sacrificed and/or reduced performance.
INSTALLATION
Your Econo 8 Popper was adjusted, inspected, and tested before it left the factory. Remove all packing
before setting up your new Econo 8. Hang the kettle on the hanger assembly attached to the celling of
your Econo 8. Finally, make sure to plug the power cord into the power receptacle located on the celling
of your popper.
CONTROLS AND THEIR FUNCTIONS
LIGHT AND WARMER SWITCH – Turns on the heat to the bottom corn pan and heat light.
KETTLE MOTOR SWITCH – Turns on the motor which drives kettle agitator shaft.
KETTLE HEAT SWITCH – Turns on the heat element
AMOUNT OF POPCORN AND OIL
Your new Econo 8 is equipped with a corn measuring cup (Part No.47147).
Corn charge – 8 oz.
Oil charge – 2.4 oz.
Flavacol – 1 1/2 teaspoon
POPPING INSTRUCTIONS
1. Turn Kettle Heat and Kettle Motor switch on.
2. Make a test pop by putting 3 kernels of corn and 1 oz. (30 ml) of oil into the kettle.
3. When the 3 kernels have popped, load the kettle with corn and oil charge.
4. When corn has popped, dump the kettle.
5. Repeat cycle starting with step number 3 above; always pop 3-5 batches for best popcorn.
Light And Warmer Switch
Part No. 42532 (2)
Kettle Motor Switch
Part No. 42532 (2)
Kettle Heat Switch
Part No. 42798 (1)

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
CHECKING SHIPMENT
Unpack all cartons and check thoroughly for any damage which might have occurred in transit. Damage
claims should be filed immediately with the transportation company.
ELECTRICAL REQUIREMENTS
2388: 120V, 60Hz, 1525W
2388EX: 230V, 50Hz 1525W
If in doubt, your electrician must furnish sufficient power for proper machine operation. We recommend
this popper be on a dedicated and protected circuit. Failure to wire properly will void the warranty and
may result in damage to the machine. It is Gold Medal® Products Company’s recommendation that this
machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to
safety concerns, and may cause sacrificed and/or reduced performance.
INSTALLATION
Your Econo 8 Popper was adjusted, inspected, and tested before it left the factory. Remove all packing
before setting up your new Econo 8. Hang the kettle on the hanger assembly attached to the celling of
your Econo 8. Finally, make sure to plug the power cord into the power receptacle located on the celling
of your popper.
CONTROLS AND THEIR FUNCTIONS
LIGHT AND WARMER SWITCH – Turns on the heat to the bottom corn pan and heat light.
KETTLE MOTOR SWITCH – Turns on the motor which drives kettle agitator shaft.
KETTLE HEAT SWITCH – Turns on the heat element
AMOUNT OF POPCORN AND OIL
Your new Econo 8 is equipped with a corn measuring cup (Part No.47147).
Corn charge – 8 oz.
Oil charge – 2.4 oz.
Flavacol – 1 1/2 teaspoon
POPPING INSTRUCTIONS
1. Turn Kettle Heat and Kettle Motor switch on.
2. Make a test pop by putting 3 kernels of corn and 1 oz. (30 ml) of oil into the kettle.
3. When the 3 kernels have popped, load the kettle with corn and oil charge.
4. When corn has popped, dump the kettle.
5. Repeat cycle starting with step number 3 above; always pop 3-5 batches for best popcorn.
Light And Warmer Switch
Part No. 42532 (2)
Kettle Motor Switch
Part No. 42532 (2)
Kettle Heat Switch
Part No. 42798 (1)

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
CHECKING SHIPMENT
Unpack all cartons and check thoroughly for any damage which might have occurred in transit. Damage
claims should be filed immediately with the transportation company.
ELECTRICAL REQUIREMENTS
2388: 120V, 60Hz, 1525W
2388EX: 230V, 50Hz 1525W
If in doubt, your electrician must furnish sufficient power for proper machine operation. We recommend
this popper be on a dedicated and protected circuit. Failure to wire properly will void the warranty and
may result in damage to the machine. It is Gold Medal® Products Company’s recommendation that this
machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to
safety concerns, and may cause sacrificed and/or reduced performance.
INSTALLATION
Your Econo 8 Popper was adjusted, inspected, and tested before it left the factory. Remove all packing
before setting up your new Econo 8. Hang the kettle on the hanger assembly attached to the celling of
your Econo 8. Finally, make sure to plug the power cord into the power receptacle located on the celling
of your popper.
CONTROLS AND THEIR FUNCTIONS
LIGHT AND WARMER SWITCH – Turns on the heat to the bottom corn pan and heat light.
KETTLE MOTOR SWITCH – Turns on the motor which drives kettle agitator shaft.
KETTLE HEAT SWITCH – Turns on the heat element
AMOUNT OF POPCORN AND OIL
Your new Econo 8 is equipped with a corn measuring cup (Part No.47147).
Corn charge – 8 oz.
Oil charge – 2.4 oz.
Flavacol – 1 1/2 teaspoon
POPPING INSTRUCTIONS
1. Turn Kettle Heat and Kettle Motor switch on.
2. Make a test pop by putting 3 kernels of corn and 1 oz. (30 ml) of oil into the kettle.
3. When the 3 kernels have popped, load the kettle with corn and oil charge.
4. When corn has popped, dump the kettle.
5. Repeat cycle starting with step number 3 above; always pop 3-5 batches for best popcorn.
Light And Warmer Switch
Part No. 42532 (2)
Kettle Motor Switch
Part No. 42532 (2)
Kettle Heat Switch
Part No. 42798 (1)

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 6
ORDERING SPARE PARTS
1. Identify the worn or broken part by checking it with the illustrations and parts list.
2. When ordering parts, include part number, part name, and quantity required.
3. Include your model name and machine serial number (found on nameplate) with your order.
4. Address orders to:
Parts Department
Gold Medal®Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
Or place orders at:
[phone]
[phone]
Fax: [phone]
E-mail: [email protected]
www.gmpopcorn.com

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 7
ITEM PART NO. MODEL(S) PART NAME QTY.
143434 All Agitator Bearing Hub 1
247106 All Needle Bearing 1
347060 All Spur Gear 1
441742 All #10-32x3/16 Set Screw 3
569710 All 8 Oz Agitator Shaft 1
646649 All 5/16 ID 5/8 OD Set Collar 2
49907N 2388 Kettle Crossbar Assy. 1
49907EXN 2388EX Kettle Crossbar Assy. 1
849017 All Front Lid With Lifter 1
949016 All Rear Kettle Lid 1
10 49362 All Spacer, Dump Handle 1
11 49314 All RH Dump Handle 1
12 47110 All Knob Dump Handle 1
49328 2388 Kettle Lead Assy. 1
49490 2388EX Export Kettle Lead Assy. 1
14 69715 All Agitator Weight 1
15 69714 All Stir Rod 1
7
13

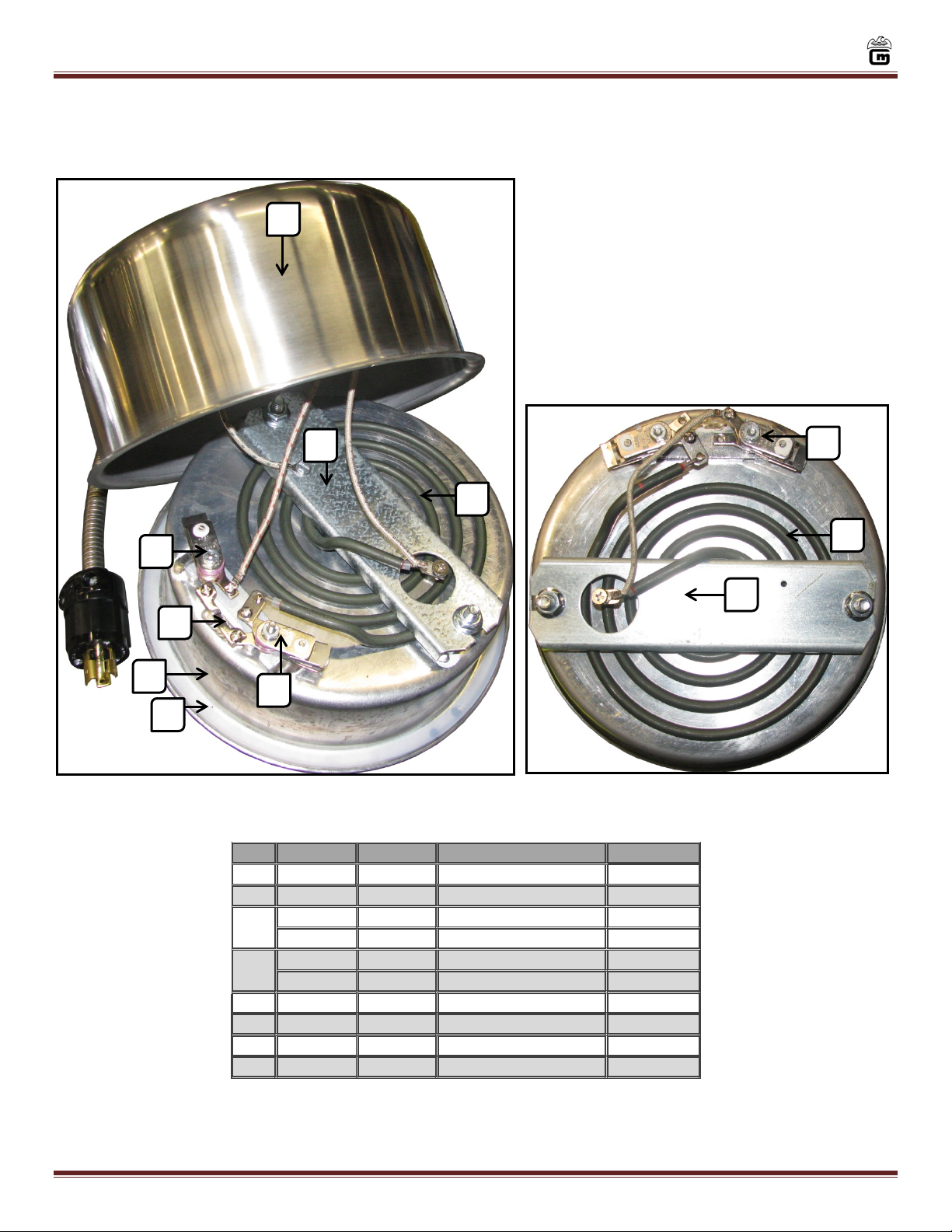

KETTLE BREAKDOWN
Part No. 49472N, 49472EXN
1
2
3
4
5
6
7
9
8
10
11
12
13
14
15

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 7
ITEM PART NO. MODEL(S) PART NAME QTY.
143434 All Agitator Bearing Hub 1
247106 All Needle Bearing 1
347060 All Spur Gear 1
441742 All #10-32x3/16 Set Screw 3
569710 All 8 Oz Agitator Shaft 1
646649 All 5/16 ID 5/8 OD Set Collar 2
49907N 2388 Kettle Crossbar Assy. 1
49907EXN 2388EX Kettle Crossbar Assy. 1
849017 All Front Lid With Lifter 1
949016 All Rear Kettle Lid 1
10 49362 All Spacer, Dump Handle 1
11 49314 All RH Dump Handle 1
12 47110 All Knob Dump Handle 1
49328 2388 Kettle Lead Assy. 1
49490 2388EX Export Kettle Lead Assy. 1
14 69715 All Agitator Weight 1
15 69714 All Stir Rod 1
7
13
KETTLE BREAKDOWN
Part No. 49472N, 49472EXN
1
2
3
4
5
6
7
9
8
10
11
12
13
14
15

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 8
ITEM PART NO. MODEL(S) PART NAME QTY.
149431 All Kettle Shell 1
249532 All Element Clamp 1
49529 2388 120V~, 1125W Heat Element 1
49578 2388EX 230V~,1125W Heat Element 1
76089 2388EX
450 ° F Thermostat 2
76089 2388 450°F Thermostat 1
576702 2388
525 ° F Thermostat 1
647193 2388 Thermostat Shunt Bar 1
749596 All Clad Kettle Weld Assy. 1
849368 All Kettle Gasket 1
3
4
KETTLE BREAKDOWN
Part No. 49472N, 49472EXN
*Domestic Model No. 49472N *Export Model No. 49472EXN
1
3
2
2
3
4
5
4
6
7
8

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 8
ITEM PART NO. MODEL(S) PART NAME QTY.
149431 All Kettle Shell 1
249532 All Element Clamp 1
49529 2388 120V~, 1125W Heat Element 1
49578 2388EX 230V~,1125W Heat Element 1
76089 2388EX
450 ° F Thermostat 2
76089 2388 450°F Thermostat 1
576702 2388
525 ° F Thermostat 1
647193 2388 Thermostat Shunt Bar 1
749596 All Clad Kettle Weld Assy. 1
849368 All Kettle Gasket 1
3
4
KETTLE BREAKDOWN
Part No. 49472N, 49472EXN
*Domestic Model No. 49472N *Export Model No. 49472EXN
1
3
2
2
3
4
5
4
6
7
8

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 8
ITEM PART NO. MODEL(S) PART NAME QTY.
149431 All Kettle Shell 1
249532 All Element Clamp 1
49529 2388 120V~, 1125W Heat Element 1
49578 2388EX 230V~,1125W Heat Element 1
76089 2388EX
450 ° F Thermostat 2
76089 2388 450°F Thermostat 1
576702 2388
525 ° F Thermostat 1
647193 2388 Thermostat Shunt Bar 1
749596 All Clad Kettle Weld Assy. 1
849368 All Kettle Gasket 1
3
4
KETTLE BREAKDOWN
Part No. 49472N, 49472EXN
*Domestic Model No. 49472N *Export Model No. 49472EXN
1
3
2
2
3
4
5
4
6
7
8

Econo 8Model No. 2388, 2388EX
http://www.gmpopcorn.com Page 8
ITEM PART NO. MODEL(S) PART NAME QTY.
149431 All Kettle Shell 1
249532 All Element Clamp 1
49529 2388 120V~, 1125W Heat Element 1
49578 2388EX 230V~,1125W Heat Element 1
76089 2388EX
450 ° F Thermostat 2
76089 2388 450°F Thermostat 1
576702 2388
525 ° F Thermostat 1
647193 2388 Thermostat Shunt Bar 1
749596 All Clad Kettle Weld Assy. 1
849368 All Kettle Gasket 1
3
4
KETTLE BREAKDOWN
Part No. 49472N, 49472EXN
*Domestic Model No. 49472N *Export Model No. 49472EXN
1
3
2
2
3
4
5
4
6
7
8
