Goldmedal EXPORT MACHO POP 2553EX User manual

Part No. 69915EX

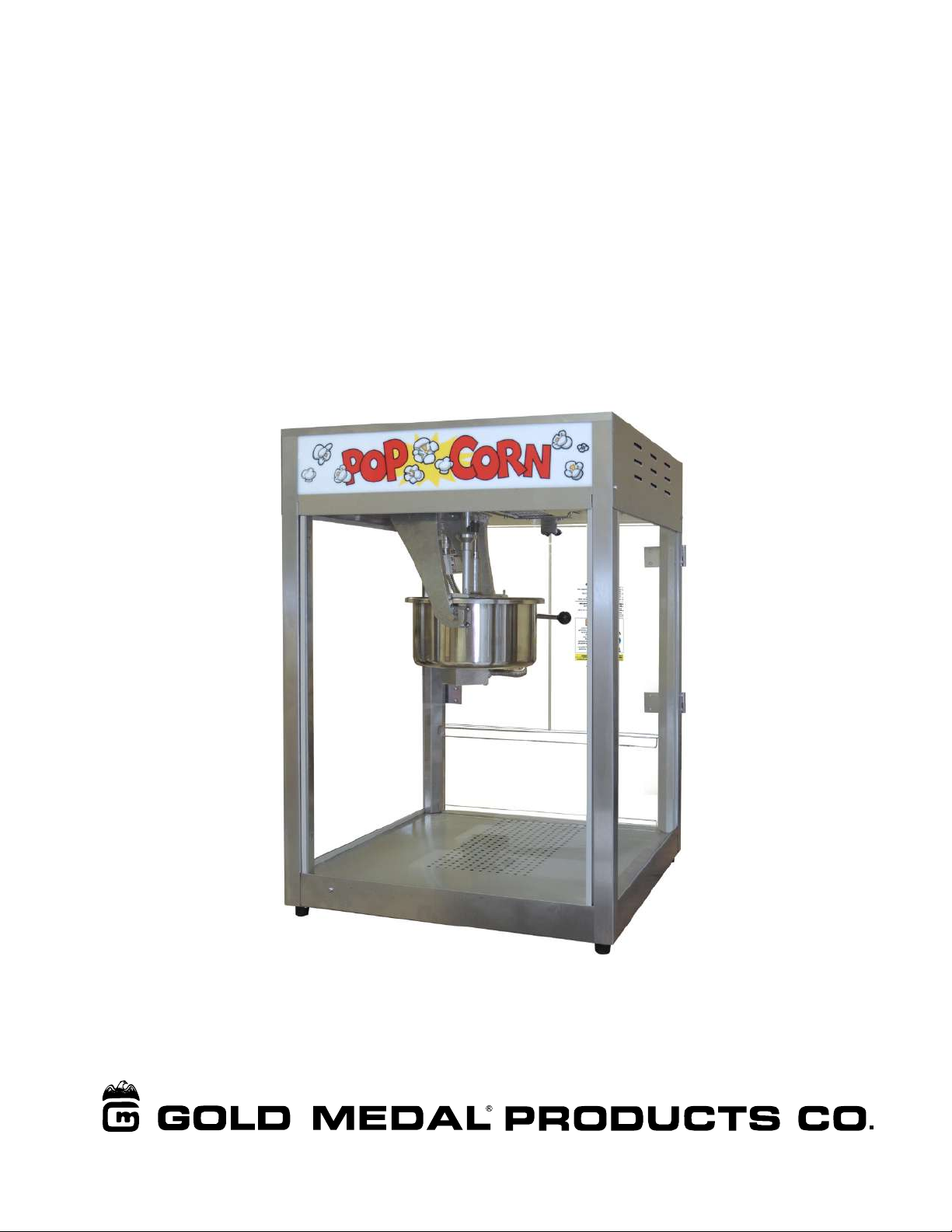

EXPORT MACHO POP
Instruction Manual
Models 2553EX & 2554EX
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA

MACHO POP
2MODELS: 2553EX & 2554EX
SAFETY PRECAUTIONS

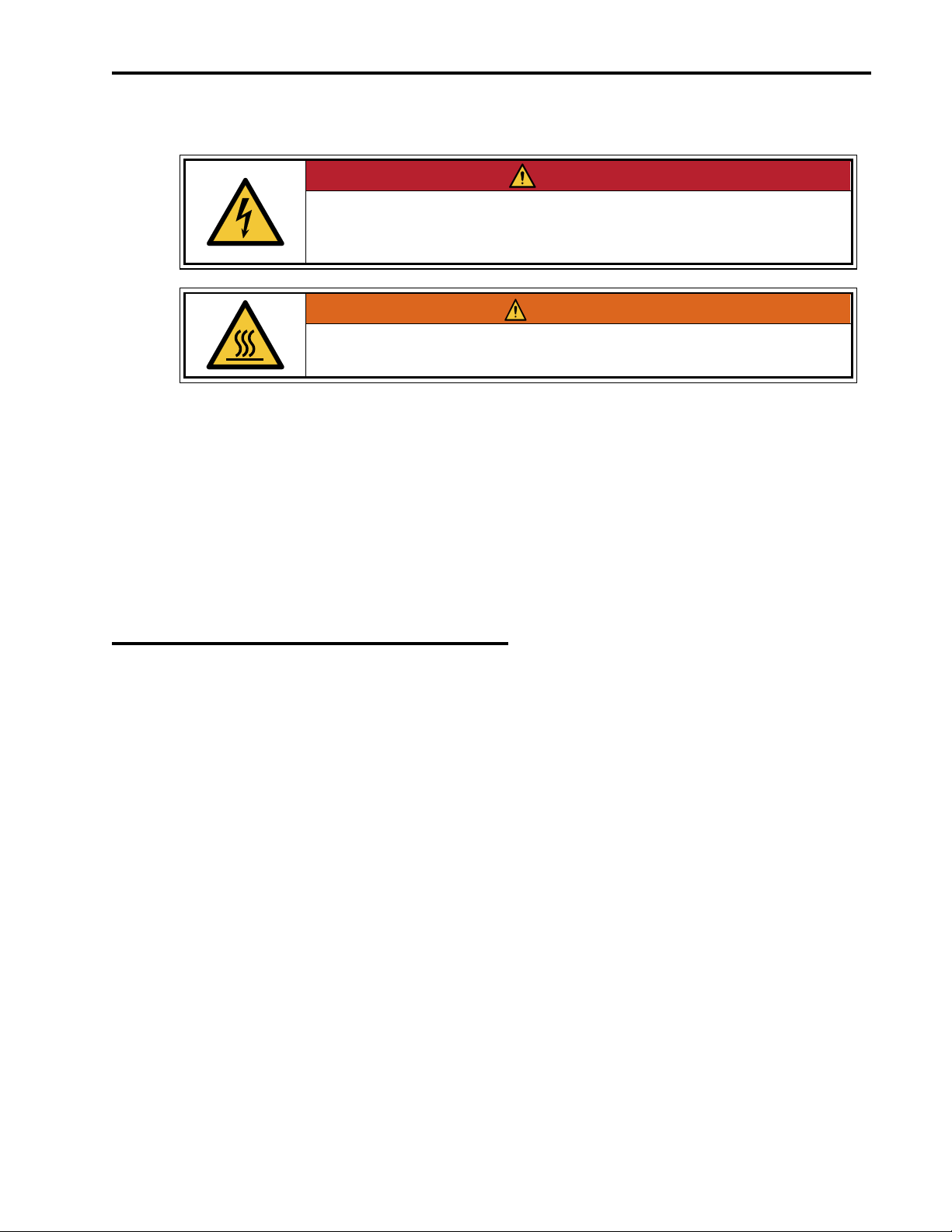

DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning.
008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
To avoid burns, DO NOT touch the kettle or any heated surface.
DO NOT place or leave objects in contact with heated surfaces.
013_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

MACHO POP
3MODELS: 2553EX & 2554EX
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
DO NOT install equipment in an area where a water jet is used.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Unit to be in a supervised location.
Install unit on a level surface. Locate machine in a protected environment.
Note: Improvements are always being made to Gold Medal’s equipment. This information
may not be the latest available for your purposes. It is critical that you call Gold Medal’s
Technical Service Department at 1-800-543-0862 for any questions about your
machine operations, replacement parts, or any service questions. (Gold Medal
Products Co. does not assume any liability for injury due to careless handling and/or
reckless operation of this equipment.) General images may be used in manual for
reference only.

MACHO POP
4MODELS: 2553EX & 2554EX
INSTALLATION INSTRUCTIONS
Inspection of Shipment:
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover damage
that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of
this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal
Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
Model Description

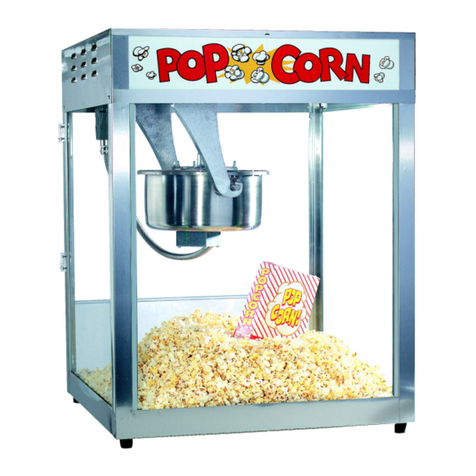

Macho Pop is a 16 oz. popcorn popper available as a front counter or back counter unit. The
2553EX series popper is oil ready (equipped with provisions for attaching an oil dispense unit, sold
separately). The 2554EX series has no oil capability.
Setup:
This unit has been tested at the factory.
1. Remove all packaging and tape prior to operation.
2. Place the unit on a sturdy, level base.
3. The popper’s blower vents out the top of unit, allow adequate clearance for airflow.
4. The door knobs are shipped facing the inside of the machine. Re-adjust knobs to face the
outside of the machine.
5. Make sure kettle lead-in cord is securely plugged into unit and twisted to lock into the
kettle receptacle.
6. Model 2553EX – to connect popper to oil dispense unit, reference the Instruction Manual
for the oil dispense unit (oil unit sold separately).
7. After setup, the unit should be cleaned prior to use (see Care and Cleaning section).
Electrical Requirements:
The following power supply must be provided (reference unit Data Plate for Wattage requirement):
220-230 V~, 50/60 Hz
Potential Electrical Variations: 220V~, 60 Hz
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning.
008_012221

MACHO POP
5MODELS: 2553EX & 2554EX
A certified electrician must furnish sufficient power for proper machine operation and install any
supplied receptacle (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage
requirements). We recommend this equipment be on a dedicated and protected circuit. Failure to
wire properly will void the warranty and may result in damage to the machine. It is Gold Medal
Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of
extension cords is not recommended due to safety concerns, and may cause sacrificed and/or
reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.
Before You Plug In Machine
1. Make sure all machine switches are OFF before plugging equipment into receptacle.
2. Make sure wall outlet can accept the grounded plugs (where applicable) on the power
supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent electrician
inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614

MACHO POP
6MODELS: 2553EX & 2554EX
OPERATING INSTRUCTIONS

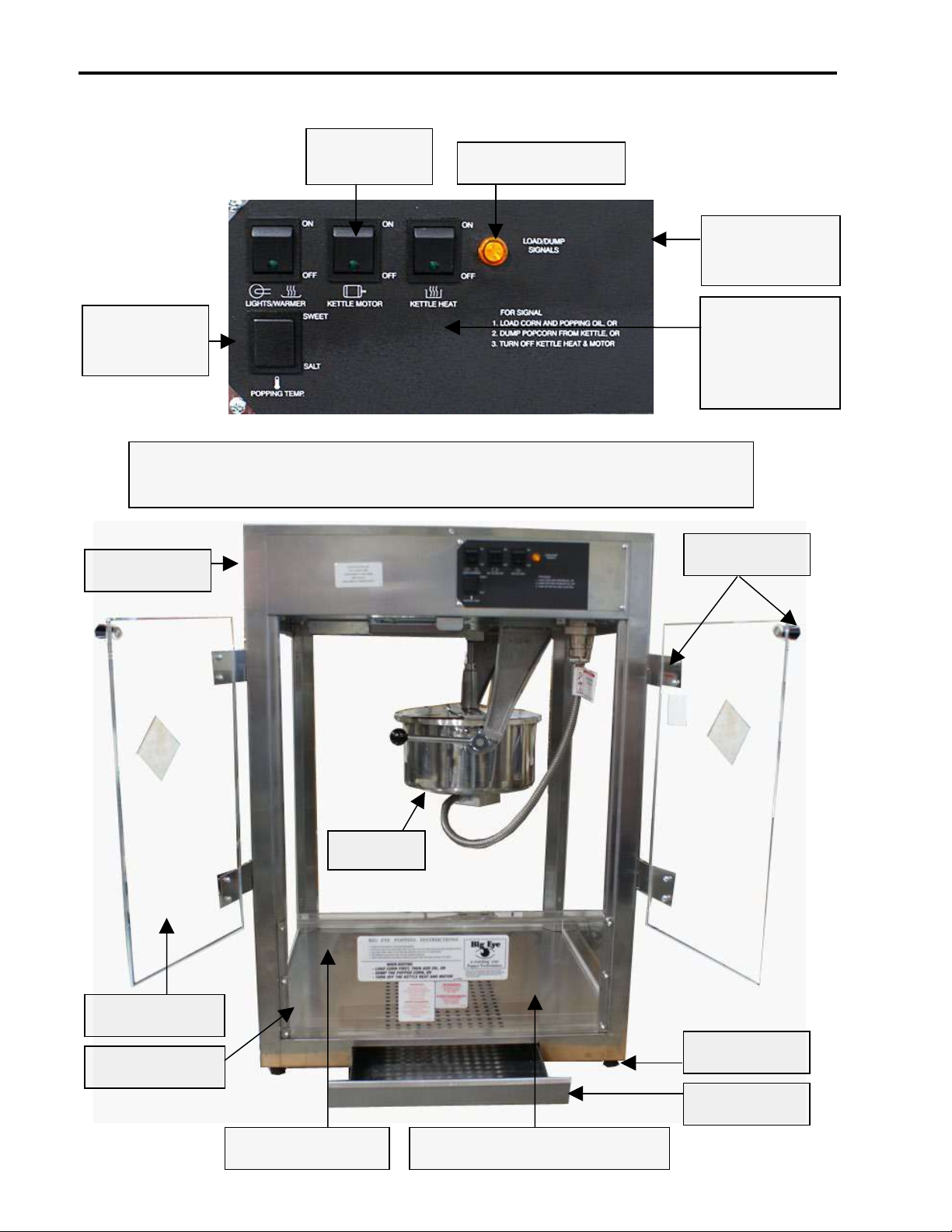

Controls and Their Functions
Oil System Master Switch (2553EX Only):
Sends power to the oil pump, either the Bucket Pump or Bag-in-a-Box models. The
warmer/blower on the oil pump is activated. The warmer/blower on the oil pump will keep
coconut popping oil liquid if the doors on the base are kept closed. It may be desirable to
keep this switch on at night, if you have problems keeping the coconut oil liquid. Coconut oil
will congeal at temperatures below approximately 76º F [24º C].
“Red” Oil Dispense Momentary Switch (2553EX Only):
“Red” Oil Dispense Push Button (PB) Switch which dispenses a predetermined amount of
oil into the kettle when pressed. The Oil System Master Switch must be in the ON position
for the Oil Dispense PB Switch to activate (reference the Instruction Manual for the oil
dispense unit).
Light & Warmer Switch:
This switch operates the interior light, the lighted sign, and the corn deck freshener
heat elements.
Kettle Motor Switch:
This switch operates the popcorn agitator shaft. This switch must be ON at all times
when popcorn (popped and un-popped) exist in the kettle. This switch also activates
the exhaust fan.
Kettle Heat Switch:
This switch turns on the heat element located in the popcorn kettle by sending power
to the “Big Eye” – electronic control system.
Yellow Light & Audible Signal (LOAD – DUMP) :

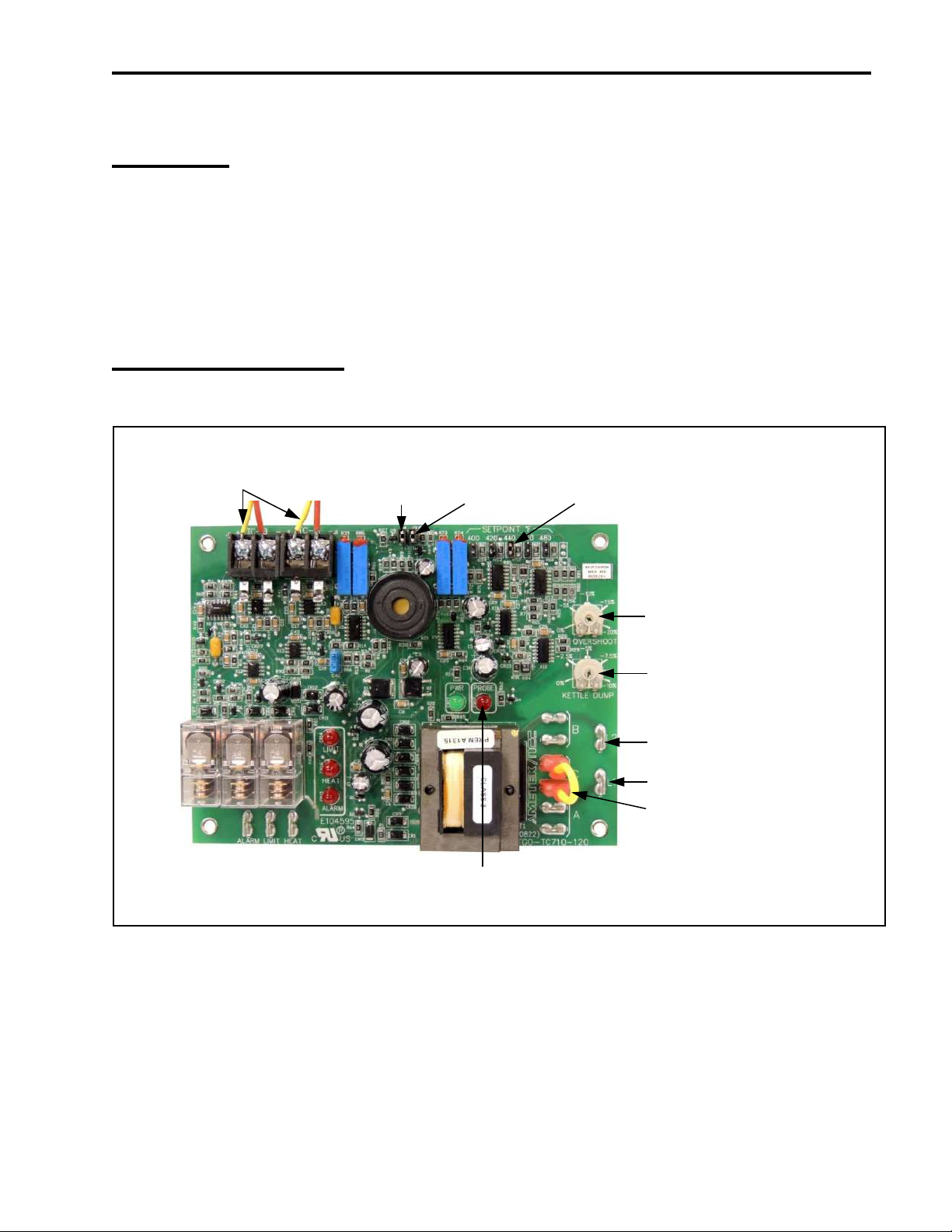

The Macho Pop is equipped with the state-of-the-art “Big Eye” electronic control that
“watches your popcorn machine” to deliver optimum popping performance.
The “Big Eye” control will signal the operator to:
1. Load the corn and oil or
2. Dump the popped corn from the kettle or
3. Turn off the kettle heat switch if they are done popping corn

MACHO POP
7MODELS: 2553EX & 2554EX
Popping Corn
This section describes popping instructions for Standard (salted) popcorn and Sweet popcorn (if
equipped with Salt-Sweet option).
Remember (for all popping modes):
When the Load/Dump Light comes ON, and Audible Signal (if enabled) is sounding, one of
the following actions should be taken:
•Load the corn and oil or
•Dump the popped corn from the kettle or
•Turn OFF the Kettle Heat if you are finished popping corn.
Amount of Popcorn and Oil – Salted Popcorn
The popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored
coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in
the kettle like other oils. Use only top quality, fresh popcorn from reputable suppliers.
Kettle Size
Popcorn Charge
Oil Charge
Flavacol (Salt)
16 oz.
16 oz. (473 ml)
5 oz. (148 ml)
1.5 Tblsp. (20cc)
For best results use Mega-Pop®16 oz. premeasured pouches (Item# 2846).
Popping Salted Popcorn
Note: When popping with coconut oil, be sure the oil is liquid. As a check, dispense oil into a
measuring cup first, then use that oil for the first popping cycle.
1. Turn all switches ON; set Salt-Sweet Switch (if equipped) to Salt mode.
2. When kettle is ready (about 4 minutes), the Load/Dump Light and Audible Signal (if
enabled) will turn ON.
3. Lift kettle lid and load Mega-Pop®premeasured popcorn and oil pouch, or pour in
popcorn and Flavacol, then add oil in premeasured amount; close lid (the Load/Dump
Light and Signal will turn OFF in approx. 20 seconds).
Note: If unit is equipped with an automatic oil delivery system, add popcorn and
Flavacol, then press the “Red” Oil Dispense PB Switch to add oil.
4. When corn has finished popping, the Load/Dump Light and Audible Signal will turn ON,
then gently dump the popcorn.
Note: The signal “To Dump” was factory set based on Gold Medal popcorn and oil. If,
after 3 consecutive batches, the signal occurs before or after popping has
stopped, then the signal timing can be adjusted. Have a qualified service person
adjust the signal to dump (reference Electronic Temperature Control section).
5. On final kettle of corn, turn Kettle Heat Switch OFF just as lids are forced open by the
popping corn. This procedure saves electricity, since kettle has plenty of heat, and helps
eliminate smoke/odor from any oil residue that remains after popping has stopped.
Note: When Kettle Heat Switch is OFF, machine will not beep on the last batch.
6. When finished popping, turn KETTLE HEAT and KETTLE MOTOR switches OFF.
NEVER LEAVE THE HEAT ON WHEN YOU ARE NOT POPPING CORN!

MACHO POP
8MODELS: 2553EX & 2554EX
Popping Sweet Popcorn (if equipped)
Gold Medal recommends white coconut oil for popping Glaze Pop (colored oil can change the
popcorn color). Glaze Pop cooks directly in the kettle. DO NOT use popcorn seasoning salt when
popping Glaze Pop.
Kettle Size
Popcorn Charge
Oil Charge
Glaze Pop/Sugar
16 oz.
16 oz. (473 ml)
5 oz. (148 ml)
8 oz.
Note: When popping with coconut oil, be sure oil is liquid. As a check, dispense oil into a
measuring cup first then use that oil for the first popping cycle.
1. Turn all switches ON; set Salt-Sweet Switch to Sweet mode.
2. When kettle is ready (about 4 minutes), the Load/Dump Light and Audible Signal (if
enabled) will turn ON.
3. Lift kettle lid and pour in pre-measured amount of corn.
4. Add oil. If equipped with oil dispense unit, press the “Red” Oil Dispense PB Switch to add
oil (the Load/Dump Light and Signal will turn OFF in approx. 20 seconds).
5. Add pre-measured amount of Glaze Pop or Sugar (when using sugar, we recommend
using Compound “S” to help keep kettle clean); close lid.
6. When corn has finished popping, the Load/Dump Light and Audible Signal will turn ON,
then gently dump the popcorn.
Note: The signal “To Dump” was factory set based on Gold Medal popcorn and oil. If,
after 3 consecutive batches, the signal occurs before or after popping has
stopped, the signal timing can be adjusted. Have a qualified service person adjust
the signal to dump (reference Electronic Temperature Control section).
7. On final kettle of corn, turn Kettle Heat Switch OFF just as lids are forced open by the
popping corn. This procedure saves electricity, since kettle has plenty of heat, and helps
eliminate smoke/odor from any oil residue that remains after popping has stopped.
Note: When Kettle Heat Switch is OFF, machine will not beep on the last batch.
8. When finished popping, turn KETTLE HEAT and KETTLE MOTOR switches OFF.
NEVER LEAVE THE HEAT ON WHEN YOU ARE NOT POPPING CORN!
9. Clean kettle when finished popping Glaze Pop or sugar corn, and prior to switching to
popping salted popcorn.

MACHO POP
9MODELS: 2553EX & 2554EX
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water. DO NOT clean appliance with a water jet.
Always unplug the equipment before cleaning or servicing.
025_111616
WARNING
To avoid serious burns, DO NOT touch the kettle while it is hot!
028_082715
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only
use non-toxic, food grade cleaners).
For surfaces needing further cleaning or degreasing, Watchdog Stainless Cleaner (Item No. 2088)
or Watchdog Concession Equipment Degreaser (Item No. 2580) is available for use accordingly. For
any cleaning products used, follow the manufacturer’s instructions on the product. DO NOT use oven
cleaners or abrasive materials as they will damage parts of machine.
Note: It is extremely important to follow all cleaning procedures, otherwise parts damage
and equipment failure will result. The warranty does not cover parts that are damaged
due to improper cleaning.
Daily Kettle Cleaning Instructions
1. Turn the power switch OFF and unplug the unit.
CAUTION: A hot kettle will cause burns if you touch it. Allow kettle to cool at least 1 hour
before attempting to clean. DO NOT use ice or water to cool down a hot kettle! Severe
kettle damage will result and steam burns may occur!
2. When cool, wipe outside of kettle clean using a clean, soft cloth and Gold Medal Watchdog
Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will
damage the kettle.
3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon (3.8 L)
of water.
4. Only pour enough of the Heat’n Kleen pre-mixed solution into the kettle to fill it 1/2 inch (12.7 mm)
deep (it is not necessary to use the entire gallon at once).
5. Plug in the unit.
6. Turn kettle heat ON. When solution starts to boil, turn kettle heat OFF.
7. Allow kettle to cool at least 1 hour, then unplug unit.
8. Dump solution into a bucket, do not spill any in the interior of machine.
9. Rinse kettle interior with clean water and a clean cloth.
10. Dump any water remaining into a bucket (do not spill any in the interior of machine), then wipe
the kettle interior clean with a clean dry cloth.
For an extra dirty kettle, the process may be repeated; or, after turning kettle heat OFF, allow
solution to sit in kettle overnight. The next morning, finish the cleaning steps.

MACHO POP
10 MODELS: 2553EX & 2554EX
11. With unit OFF and unplugged, use a clean SLIGHTLY damp cloth (wring ANY EXCESS
water from cloth before use) and wipe the kettle lead cord clean. DO NOT get moisture into
the kettle lead-in cord, severe damage will result.
12. After kettle cleaning, check to be sure the crossbar fasteners are securely tightened.
Daily Unit Cleaning Instructions
1. Turn machine OFF, unplug unit and allow it to cool before attempting to clean.
2. Remove any remaining popcorn.
3. Remove old maid pan and any accessories and take them to the sink to clean with soap
and water, then rinse and dry.
4. Wipe clean the interior and exterior cabinet surfaces using a clean, SLIGHTLY damp cloth
(cloth may be SLIGHTLY dampened with soap and water, then wipe again with clean
water to remove any remaining cleaner).
5. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No.
2588) is recommended.
Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner,
such as Gold Medal Watchdog Glass Cleaner (Item No. 2588).
6. Reinstall the old maid pan/accessories.
7. Check the kettle lead cord, make sure it is fully plugged into the kettle receptacle and the
plug (or plug collar) is fully twisted to lock it into place.
Sanitizing the Tubing and Pump
Models with oil capability, refer to the Oil Dispense Unit manual for oil system cleaning instructions.

MACHO POP
11 MODELS: 2553EX & 2554EX
Filter Cleaning Instructions
The popcorn machine is equipped with an efficient and durable filtration system. The filter should be
cleaned every 1-2 weeks to maintain maximum efficiency.

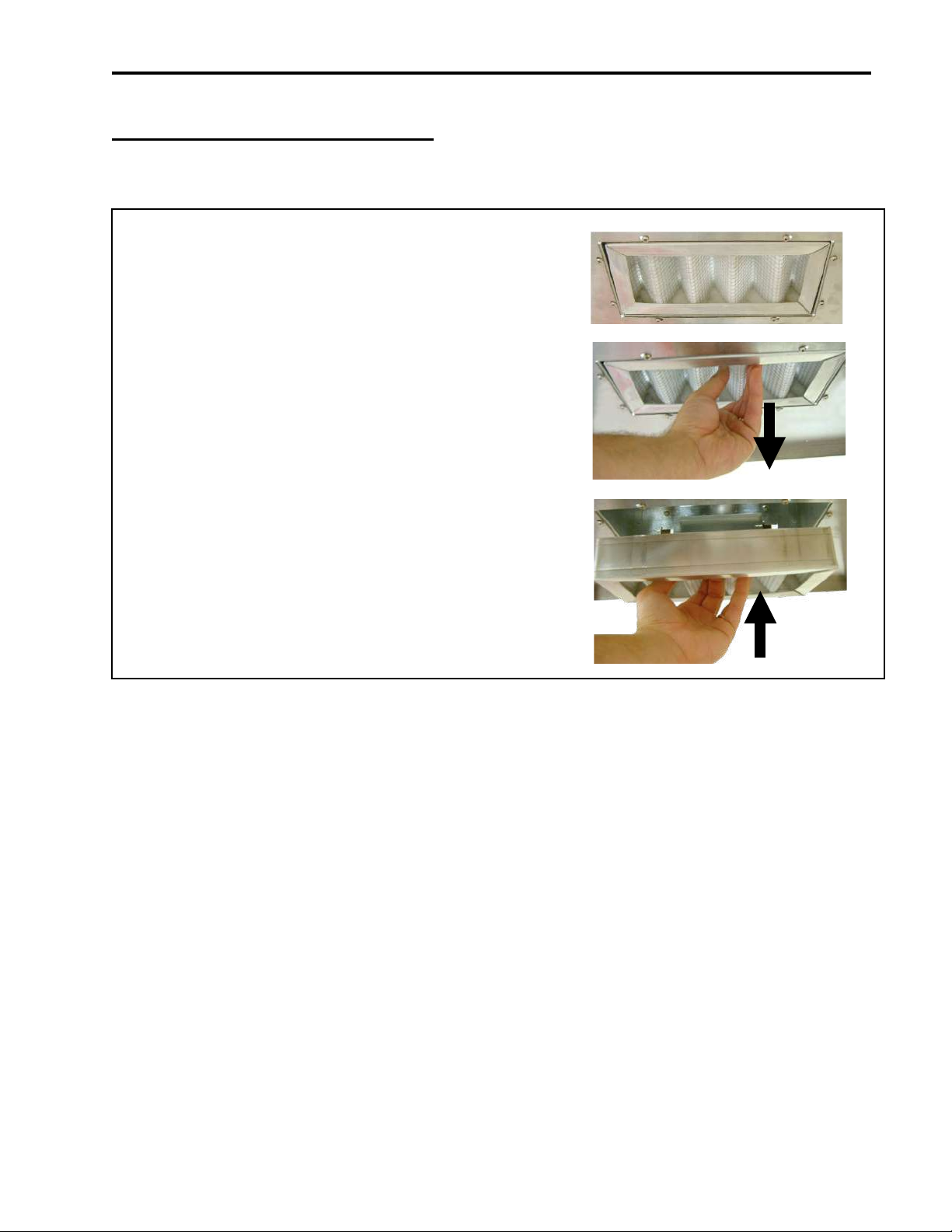

Steps to Clean Filter
1. Turn unit OFF and allow it to cool before
removing filter. Filter is located inside the
popcorn machine, above the popping kettle.
2. Remove filter by gripping the filter itself and
pulling straight down.
3. Clean filter in warm soapy water, then rinse and
allow to dry overnight. Replace filter by putting
it into the slot and pushing upward. Make sure
the filter frame is flush with the ceiling of the
popper (as shown above).

MACHO POP
12 MODELS: 2553EX & 2554EX
THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning.
008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

MACHO POP
13 MODELS: 2553EX & 2554EX
Electronic Temperature Control (Export)
Operation
The temperature control is factory set to stop the power to the kettle when the thermocouple reaches
set point. This is also the ideal point to dump the popped corn out of the kettle. On the first start-up, this
is the ideal time to load the corn and oil. Therefore, if the Kettle Heat Switch is turned ON, the yellow
light and buzzer are ON, one of the following actions should be taken:
•Load the corn and oil or
•Dump the popped corn from the kettle or
•Turn OFF the Kettle Heat Switch if you are finished popping corn.
Control Description
This unit has an electronic kettle heat control with 2 thermocouples (TC), one for set point control and one
for fixed high limit. There are no mechanical thermostats in this kettle.
There are (4) factory settings on the control (see descriptions below). If needed, adjustments may be
made to the Kettle Dump and Audible Signal to Dump. The remaining settings are factory set for the
unit, DO NOT adjust.
1. Control Set Point Temperature – This is factory set, DO NOT adjust.
2. The Overshoot circuit is tuned for the kettle at the factory, DO NOT adjust.
3. Kettle Dump – The Kettle Signal to Dump (yellow light/buzzer) is factory set. For the signal
to dump to be a little sooner or later, adjust the Kettle Dump potentiometer (reference image
shown). Turn clockwise (CW) to signal sooner, counterclockwise (CCW) to signal later.
It does not matter which TC goes
to A or B; it DOES matter that the
yellow leads go to the positive
terminals.
Remove this
jumper for
no sound.
Remove this
jumper for
lower volume.
Control Setpoint Temperature
This is factory set,
DO NOT ADJUST.
Audible Signal to Dump
Probe Fault LED – LED light ON
indicates a thermocouple issue.
Overshoot – This is factory set,
DO NOT ADJUST
.
Kettle Dump - This is factory set
to signal when kettle is ready to
dump. Turn CW to signal sooner;
CCW to signal later. ONLY m
ake
small adjustments if needed.
L2 Neutral Lead
L1 Hot Lead
Jumper Wire C for 230 VAC

MACHO POP
14 MODELS: 2553EX & 2554EX
4. Audible Signal to Dump - The buzzer has three options; full volume, half volume, or no
sound (yellow light only). Unit is preset at the factory to full volume. Adjustments are made
by jumper positions (reference image shown).
Probe LED Indicator Light – Thermocouple Error Condition
The Dump Light on the Popper will be on steady and the unit will beep (if Audio Signal engaged) when
there is a Probe issue (the kettle will not heat enough to pop corn). Check the control board, the red
Probe LED light ON will indicate one of two thermocouple error conditions.
•Reversed Probe – Indicates the thermocouple probe has been connected in reverse. (The
yellow leads must go to the positive terminals.)
If the kettle heats for a short time and then stops, and the red Probe LED light is ON, then one
(or both) Thermocouple is wired in reverse. Check TC-A and TC-B; make sure the yellow leads
go to the positive terminals.
•Open Probe – Indicates the thermocouple probe is disconnected.
If the kettle does not heat and/or the beeper sounds continuously, and the red Probe LED light
is ON, there is an issue with the Thermocouple wiring.
For removable kettles -make sure the kettle lead-in cord is plugged in completely and
the locking ring is fully screwed onto the kettle receptacle.
For hard wired kettles - A loose kettle lead-in connection can cause a thermocouple
lead issue. Check the terminal blocks for a loose connection, and check the kettle wiring
for a loose or broken thermocouple.
For more in-depth Temperature Control Board troubleshooting, for Qualified Service Personnel ONLY,
please reference Gold Medal Service Bulletin 0074.

MACHO POP
15 MODELS: 2553EX & 2554EX
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or
parts list. (General images may be used in manual for reference only.)
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate/data plate) with your order.
5. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
Or, place orders by phone or online:
Phone: [phone]
[phone]
Fax: [phone]
[phone]
E-mail: [email protected]
Web Page: gmpopcorn.com

MACHO POP
16 MODELS: 2553EX & 2554EX

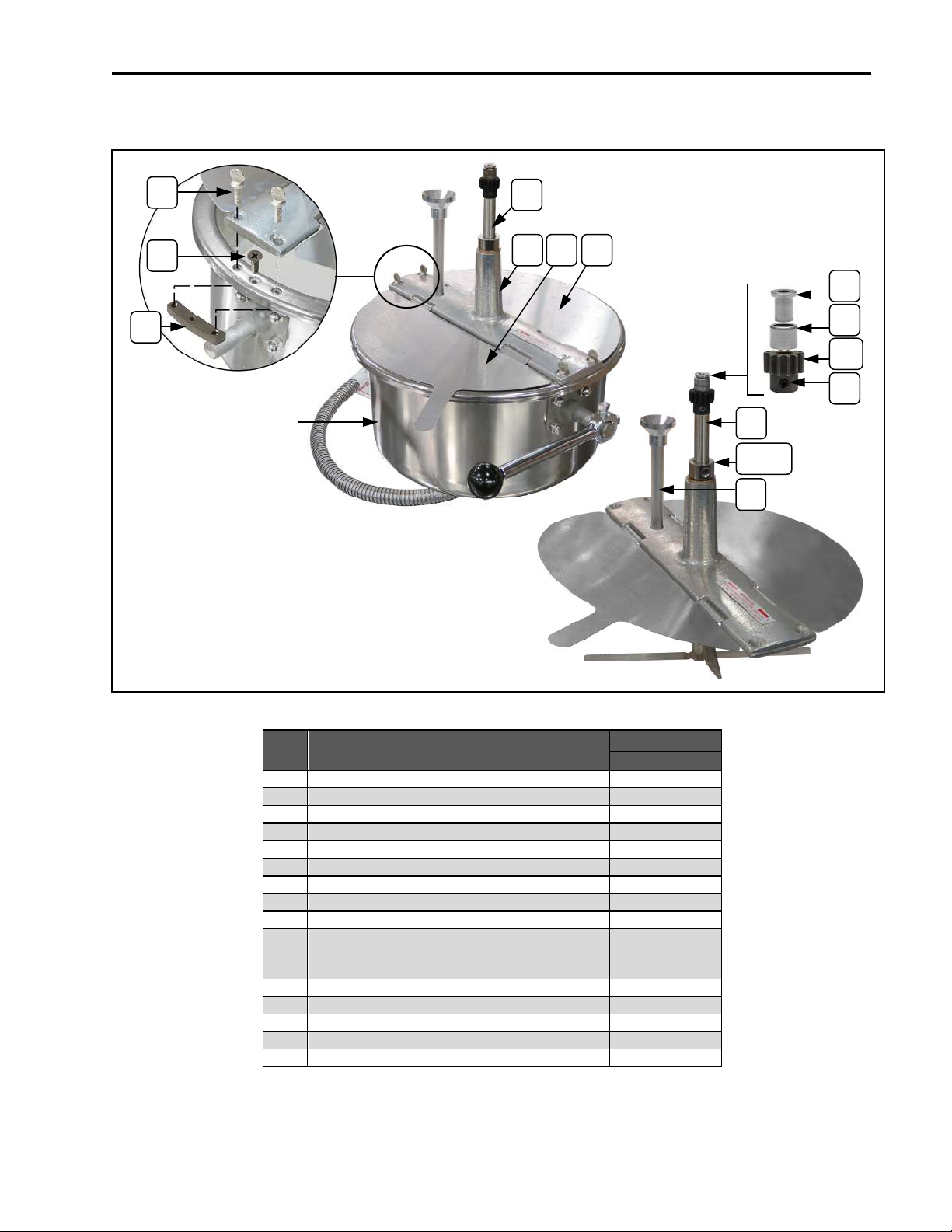

16 oz. Kettle Assembly (55199XE) – Agitator Assembly View
Item Part Description
Part Number
55199XE
1
THUMB SCREW 1/4-20 X 3/4
38379
2
10-32 X 1/2 PH FL HD MS
40717
3
THREADED BLOCK
61167
4
LID & AGITATOR ASSEMBLY (Complete Assy.)
41181
5
CROSSBAR ASSEMBLY
41180
6
FRONT LID
41123
7
REAR LID
41120
8
AGITATOR BEARING HUB
43434
9
NEEDLE BEARING
47106
10*
SPUR GEAR KIT (Includes 2 gears with set
screws. Always replace Agitator Spur Gear and
Kettle Drive Motor Gear as a set.)
47059K
11
10-32 X 3/16 SET SCREW
41742
12
AGITATOR SHAFT ASSEMBLY
41093
13
½ ID X 7/8 OD SET COLLAR
47326
14
¼-20 X 3/16 SET SCREW
47751
Complete Kettle Assembly
55199O verallKettle
55199E Ag.Assy.
55199E Exp.Views
1
2
3
Complete Agitator Assembly
(Includes Lids)
4

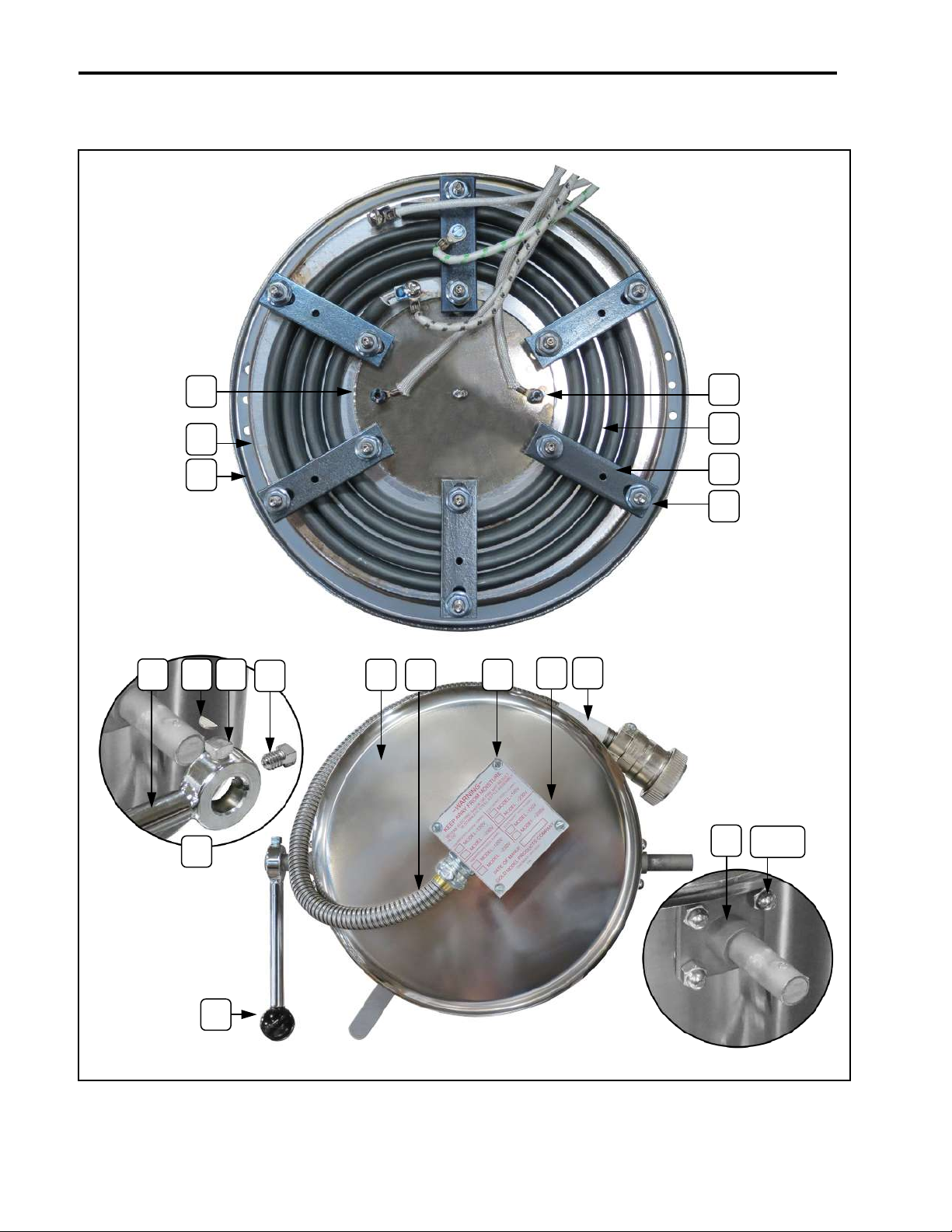

See Kettle Bottom
Assy. section for
parts breakdown
(includes Handle
Assembly and
Kettle Lead).
Complete Agitator Assy.
(Includes Lids)
*See Parts
List note.
8
9
10*
11
13, 14
12
5 6 7

MACHO POP
17 MODELS: 2553EX & 2554EX
16 oz. Kettle Assembly (55166XE) – Agitator Assembly View
Item Part Description
Part Number
55166XE
1
THUMB SCREW 1/4-20 X 3/4
38379
2
10-32 X 1/2 PH FL HD MS
40717
3
THREADED BLOCK
61167
4
LID & AGITATOR ASSEMBLY (Complete Assy.)
41066
5
CROSSBAR ASSEMBLY
41086
6
FRONT LID
41123
7
REAR LID
41120
8
AGITATOR BEARING HUB
43434
9
NEEDLE BEARING
47106
10*
SPUR GEAR KIT (Includes 2 gears with set
screws. Always replace Agitator Spur Gear and
Kettle Drive Motor Gear as a set.)
47059K
11
10-32 X 3/16 SET SCREW
41742
12
AGITATOR SHAFT ASSEMBLY
41093
13
½ ID X 7/8 OD SET COLLAR
47326
14
¼-20 X 3/16 SET SCREW
47751
15
OIL TUBE W/ FUNNEL
41239
Complete Kettle Assembly
See Kettle Bottom
Assy. section for
parts breakdown
(includes Handle
Assembly and
Kettle Lead).
55166O verallKettle
55166E Ag.Assy.
55199E Exp.Views
1
2
3
Complete Agitator Assembly
(Includes Lids)
4
Complete Agitator Assy.
(Includes Lids)
*See Parts
List note.
8
9
10*
11
15
13, 14
12
5 6 7

MACHO POP
18 MODELS: 2553EX & 2554EX
16 oz. Kettle Assembly (55199XE, 55166XE) – Kettle Bottom
Element View
55199E KettleElement
55199E KettleBottomAssy.
55199E exp.views
Kettle Bottom Assembly View
20, 21
19
17 18 16 15
14
13*
*Dump Handle
Assembly
(includes Knob)
1
2
3
7
6
5
4
8 9 10
11 12

MACHO POP
19 MODELS: 2553EX & 2554EX
16 oz. Kettle Assembly (55199XE, 55166XE) – Kettle Bottom
Parts List
Item Part Description
Part Number
55199XE,
55166XE
16OZ KETTLE BOTTOM ASSY (Complete Assy.)
55201EX
1
HEAT TRANSFER PLATE (beneath heat element)
67890
2
KETTLE GASKET
41598
3
KETTLE WELDMENT
67892
4
¼ - 20 SERRATED LOCK NUT
46311
5
ELEMENT CLAMP (6 required)
67894
6
1550 TUBULAR HEAT ELEMENT
67014EX
7
8-32 TOP LOCK NUT
67943
8
KETTLE SHELL ASSEMBLY (has Pivot Pins
attached)
41081
9
KETTLE LEAD ASSEMBLY
55176
10
8-32 x 3/8 SLT HWHW M/S (fastens Nameplate
to Jct. Box, and fastens Jct. Box to Kettle)
42044
11
JUNCTION BOX
47393
12
KETTLE CONDUIT LABEL
82840
13
DUMP HANDLE ASSEMBLY (assembly includes
Handle, Knob, 2 SQ HD Screws, and Key)
47102
14
DUMP HANDLE KNOB
47110
15
DUMP HANDLE
47707
16
3 1/8 X ½ WOODRUFF KEY
41730
17
5/16 – 18 X ½ SQ HD SCREW
47725
18
5/16 – 18 X 3/8 SQ HD SCREW (holds key)
47662
19
PIVOT PIN
41426
20
1/4-20 ACORN NUT
42229
21
1/4-20 X 3/8 BUTTON HEAD
12492

MACHO POP
20 MODELS: 2553EX & 2554EX
Cabinet Parts
Door
p/n 50179
Lexan Front Panel
p/n 50180
Old Maid Pan
p/n 40276
Rubber Foot
p/n 41282
See Kettle
section
Corn Pan Weldment
p/n 50186
See Door
Hardware section
Optional Salt-
Sweet Switch
p/n 48615
Switch Plate
p/n 50087
(2553EX uses p/n
50090)
Lighted Rocker
Switches
p/n 42798
Dome
p/n 69854
Oil Switch and
Pump Button
(2553EX only)
Rocker is p/n 42798
Red Push Button is
p/n 41031
Pilot Light, Amber 230V
p/n 55039EX
Foil Warmer Element
(2) req’d – Not Shown p/n 40557EX
Export Power Cord p/n 42369 (not shown)
CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent, or similarly qualified persons in order to avoid a hazard.
