Figure 1: GXP1610/GXP1620/GXP1625 Back View..................................................................................12
Figure 2: GXP16XX Idle Screen .................................................................................................................14
Figure 3: GXP1610/GXP1620/GXP1625 Front View..................................................................................16

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 5 of 31
DOCUMENT PURPOSE
This User Guide describes the basic concept and tasks necessary to use and configure your
GXP1610/GXP1620/GXP1625. This document covers the topics of phone installation, making basic calls
and using basic call features. To learn the advanced features and configurations, please visit
http://www.grandstream.com/support to download the latest "GXP1610/GXP1620/GXP1625
Administration Guide".

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 6 of 31
GNU GPL INFORMATION
GXP1610/GXP1620/GXP1625 firmware contains third-party software licensed under the GNU General
Public License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the
GNU General Public License (GPL) for the exact terms and conditions of the license.
Grandstream GNU GPL related source code can be downloaded from Grandstream Web site from:
http://www.grandstream.com/support/faq/gnu_gpl.

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 7 of 31
WELCOME
Thank you for purchasing Grandstream Small Business IP phone GXP1610/GXP1620/GXP1625. It is a
next generation small-to-medium business IP phone: the GXP1620/GXP1625 features 2 lines with 2 SIP
accounts, superior HD wideband audio, 132 x 48 backlit graphical LCD; the GXP1610 supports 2 lines
with 1 SIP account, 132 x 48 graphical LCD. The GXP1610/GXP1620/GXP1625 delivers rich features of
3 XML programmable context-sensitive soft keys, dual network ports with PoE (GXP1625 only), EHS
(Electronic Hook-Switch) with Plantronics headsets, and 3-way conference, superb full-duplex hands-free
speakerphone with advanced acoustic echo cancellation, advanced security protection for privacy, and
compatible with Grandstream UCM Features. It is a perfect choice for small-to-medium businesses
looking for a high quality, feature rich IP phone with affordable cost.
Caution:
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Warning:
Please do not use a different power adaptor with the GXP1610/GXP1620/GXP1625 as it may cause
damage to the products and void the manufacturer warranty.
This document is subject to change without notice. The latest electronic version of this user manual is
available for download here:
http://www.grandstream.com/support
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for
any purpose without the express written permission of Grandstream Networks, Inc. is not permitted.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 8 of 31
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 9 of 31
PRODUCT OVERVIEW
FEATURE HIGHTLIGHTS
132*48 pixel backlit graphical LCD display(GXP1610 doesn’t support backlit)
2 dual-color line keys, 3 XML programmable context-sensitive soft keys, 3-way conference
HD wideband audio(GXP1620/GXP1625 only), superb full-duplex hands-free speakerphone with
advanced acoustic echo cancellation and excellent double-talk performance
Large phonebook (up to 1000 contacts) and call history (up to 200 records)
Automated personal information service (e.g., local weather, etc), personalized music ring
tone/ring back tone, flexible customizable screen content & format using XML, and advanced
Web and enterprise applications, local weather service.
2 dual switched 10/100 Mbps ports, integrated PoE (GXP1625 only)
Automated provisioning using TR-069 or encrypted XML configuration file, SRTP and TLS for
advanced security protection, 802.1x for media access control
Perfectly compatible with Grandstream UCM Features
Innovative UI design(easy and useable multi-language support )
Use with Grandstream’s UCM6100 series IP PBX appliance for Zero-Config provisioning, 1-touch
call recording and more
GXP1610/GXP1620/GXP1625 TECHNICAL SPECIFICATIONS
Table 1: GXP1610 Technical Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP,
ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP,
STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces
Dual switched auto-sensing 10/ 100 Mbps Ethernet ports
Graphic Display
132*48 LCD display
Feature Keys
2 line keys with dual-color LED and 1 SIP account.3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 13 dedicated
function keys for PAGE/INTERCOM, PHONEBOOK, MESSAGE, HOME,
HOLD, RECORD, MUTE, HEADSET, TRANSFER, CONFERENCE,
SEND and REDIAL, SPEAKERPHONE, VOLUME
Voice Codecs
Support for G.711µ/a, G.722 (wide-band), G.723,G.726-32, G.729 A/B,
iLBC, Opus (pending) , in-band and out-of-band DTMF (In audio,
RFC2833, SIP INFO)
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), 3-way conference,
call park/pickup, downloadable phone book (XML, LDAP, up to 1000
items), call waiting, call history (up to 200 records), off-hook auto dial,
auto answer, click-to-dial,flexible dial plan, hot desking, personalized
music ringtones, server redundancy & fail-over

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 10 of 31
Headset Jack
RJ9 headset jack (allowing EHS with Plantronics headsets)
Base Stand
Yes, allow 2 angle positions available, Wall Mountable
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, simplified and traditional Chinese, Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using
TR-069 orAES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10％to 90% Non-condensing
Physical
Dimension: 209mm（L）x 184.5mm（W）x 76.2mm（H）(with handset)
Unit Weight: 0.74kg Package Weight: 1.1kg
Package Content
GXP1610 phone, handset with cord, base stand, universal power supply,
network cable, Quick Installation Guide, brochure, GPL license
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950
Table 2: GXP1620/GXP1625 Technical Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP,
ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP,
STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces
Dual switched 10/ 100 Mbps ports, integrated PoE (GXP1625 only)
Graphical Display
132*48 pixel backlit graphical LCD display
Feature Keys
2 line keys with dual-color LED and 2 SIP account. 3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 13 dedicated
function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND
and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE,
HOLD, PAGE/INTERCOM, RECORD, HOME
Voice Codecs
Support for G.711µ/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B,
iLBC, Opus (pending), in-band and out-of-band DTMF (In audio,
RFC2833, SIP INFO)
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup,
3-way conference, shared-call-appearance (SCA) / bridged-line-
appearance (BLA), downloadable phone book (XML, LDAP, up to 1000
items), call waiting, call history (up to 200 records), off-hook auto dial,
auto answer, click-to-dial,flexible dial plan, hot desking, personalized
music ringtones, server redundancy & fail-over.
Headset Jack
RJ9 headset jack (allowing EHS with Plantronics headsets)
HD Audio
Yes, HD handset and speakerphone with support for wideband audio
Base Stand
Yes, 2 angle positions available, Wall Mountable
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 11 of 31
Security
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, simplified and traditional Chinese, Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using
TR-069 orAES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
PoE IEEE802.3 af Class 2, 3.84W-6.49W(GXP1625 only)
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10％to 90% Non-condensing
Physical
Dimension: 209mm（L）x 184.5mm（W）x 76.2mm（H）(with handset)
Unit Weight: 0.73kg Package Weight: 1.1kg
Package Content
GXP1620/GXP1625 phone, handset with cord, base stand, universal
power supply, network cable, Quick Installation Guide, brochure, GPL
license
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 12 of 31
INSTALLATION
EQUIPMENT PACKAGING
Table 3: GXP1610/GXP1620/GXP1625 Equipment Packaging
Main Case
1
Handset
1
Phone Cord
1
5V DC Power Adaptor
1
Ethernet Cable
1
Phone Stand
1
Quick Installation Guide
1
CONNECTING YOUR PHONE
Figure 1: GXP1610/GXP1620/GXP1625 Back View
Table 4: GXP1610/GXP1620/GXP1625 Connectors
Slots for Phone Stand
Slots for the phone stand if placing the phone on a flat surface
PC Port
10/100M Ethernet to connect PC
LAN Port
10/100M Ethernet to connect LAN, integrated PoE（GXP1625 only）
DC 5V Power Port
5V/600mA power port to connect to power adaptor
HEADSET Port
To connect to RJ9 or EHS headphones
HANDSET Port
To connect handset RJ9
Cord Slot
To place and fix the phone cords

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 13 of 31
To set up the GXP1610/GXP1620/GXP1625, follow the steps below:
1. Attach the phone stand or wall mount to the back of the phone where there are slots;
2. Connect the handset and main phone case with the phone cord;
3. Connect the LAN port of the phone to the RJ45 socket of a hub/switch or a router (LAN side of the
router) using the Ethernet cable;
4. Connect the 5V DC output plug to the power jack on the phone; plug the power adapter into an
electrical outlet. If PoE switch is used in step 3, this step could be skipped;
5. The LCD will display provisioning or firmware upgrade information. Before continuing, please wait for
the date/time display to show up;
6. Using the keypad configuration menu or phone's embedded Web server (Web GUI) by entering the IP
address in Web browser, you can further configure the phone.
SAFETY COMPLIANCES
The GXP1610/GXP1620/GXP1625 phone complies with FCC/CE and various safety standards. The
GXP1610/GXP1620/GXP1625 power adapter is compliant with the UL standard. Use the universal power
adapter provided with the GXP1610/GXP1620/GXP1625 package only. The manufacturer’s warranty
does not cover damages to the phone caused by unsupported power adapters.
WARRANTY
If the GXP1610/GXP1620/GXP1625 phone was purchased from a reseller, please contact the company
where the phone was purchased for replacement, repair or refund. If the phone was purchased directly
from Grandstream, contact the Grandstream Support for a RMA (Return Materials Authorization) number
before the product is returned. Grandstream reserves the right to remedy warranty policy without prior
notification.
Warning:
Use the power adapter provided with the phone. Do not use a different power adapter as this may
damage the phone. This type of damage is not covered under warranty.

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 14 of 31
GETTING TO KNOW GXP1610/GXP1620/GXP1625
IDLE SCREEN
GXP1610/GXP1620/GXP1625 screen displays differently depending on whether the phone is idle or in
use (active). The following table describes the items displayed on the GXP1610/GXP1620/GXP1625 idle
screen.
Figure 2: GXP16XX Idle Screen
The following table describes the items displayed on the GXP1610/GXP1620/GXP1625 idle screen.
Table 5: LCD DISPLAY DEFINITIONS
DATE AND TIME
Displays the current date and time. It can be synchronized with Internet time
servers.
NETWORK ICON
Shows the status of network. It will indicate whether the network is down or
starting.
STATUS ICON
Shows the status of the phone for registration status, call features and etc, using
icons as shown in the next table.
LINE STATUS
INDICATOR
Displays the name of the account that is in use.
SOFTKEYS in Idle
Screen
The softkeys are context sensitive and will change depending on the status of
the phone. Typical functions assigned to softkeys are:
NextScr
Toggles between different idle screens. For example, for
GXP1610/GXP1620/GXP1625, pressing most left soft key (switch screen)
will toggle among default idle screen, weather information, IP address and
Account information.
Redial
Redial the last dialed number when there is existed dialed call log.
FwdAll
Unconditionally forwards the phone line (account 1) to another phone.
Missed

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 15 of 31
Shows up unanswered calls to this phone.
SOFTKEYS in Call
Screen
The softkeys are context sensitive and will change depending on the call
status of the phone. Here are the main softkeys in call screen.
Redial
Redials the last dialed number after off hook when there is existed call log.
Dial
Dials the call out after off hook and entering the number.
Answer
Answers the incoming call when the phone is ringing.
Reject
Rejects the incoming call when the phone is ringing.
EndCall
Ends the active call.
Transfer
Transfer softkey will show up after pressing TRAN button and entering
transfer target number. Press Transfer softkey to do blind transfer.
Split
In auto-attended transfer mode, after establishing the second call, press
Split to quit transfer and go back to normal talking status.
ConfCall
Conferences the active calls.
ReConf
Re-establish the conference among the calls on hold.
SPECIAL
SOFTKEYS
(Only for
GXP1610/GXP1620/
GXP1625 when
integrated with
UCM61xx)
Call Parking: Please refer to UCM61xx Online User Manual for more
information.
CallPark
When the phone dials out, the Call Park softkey will display on screen. To
park the call, press the "CallPark" softkey and select a green MPK to park
the call on available parking lot.
Table 6: GXP1610/GXP1620/GXP1625 LCD Icons
Registration Status.
Solid: Registered
Hollow: Unregistered

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 16 of 31
Handset Status.
OFF - handset on hook
ON - handset off hook
Speaker Status.
OFF - speaker off
ON - speaker on
Headset Status.
OFF - headset off
ON - headset on
Mute Status.
OFF - The active call is not muted
ON - The active call is muted
Call Forward Status.
OFF - Call Forward feature disabled
ON - Call Forward feature enabled
DND Status.
OFF - Do Not Disturb disabled
ON - Do Not Disturb enabled
SRTP Status.
OFF - SRTP is not used
ON - SRTP is being used
USING THE KEYPAD
Figure 3: GXP1610/GXP1620/GXP1625 Front View

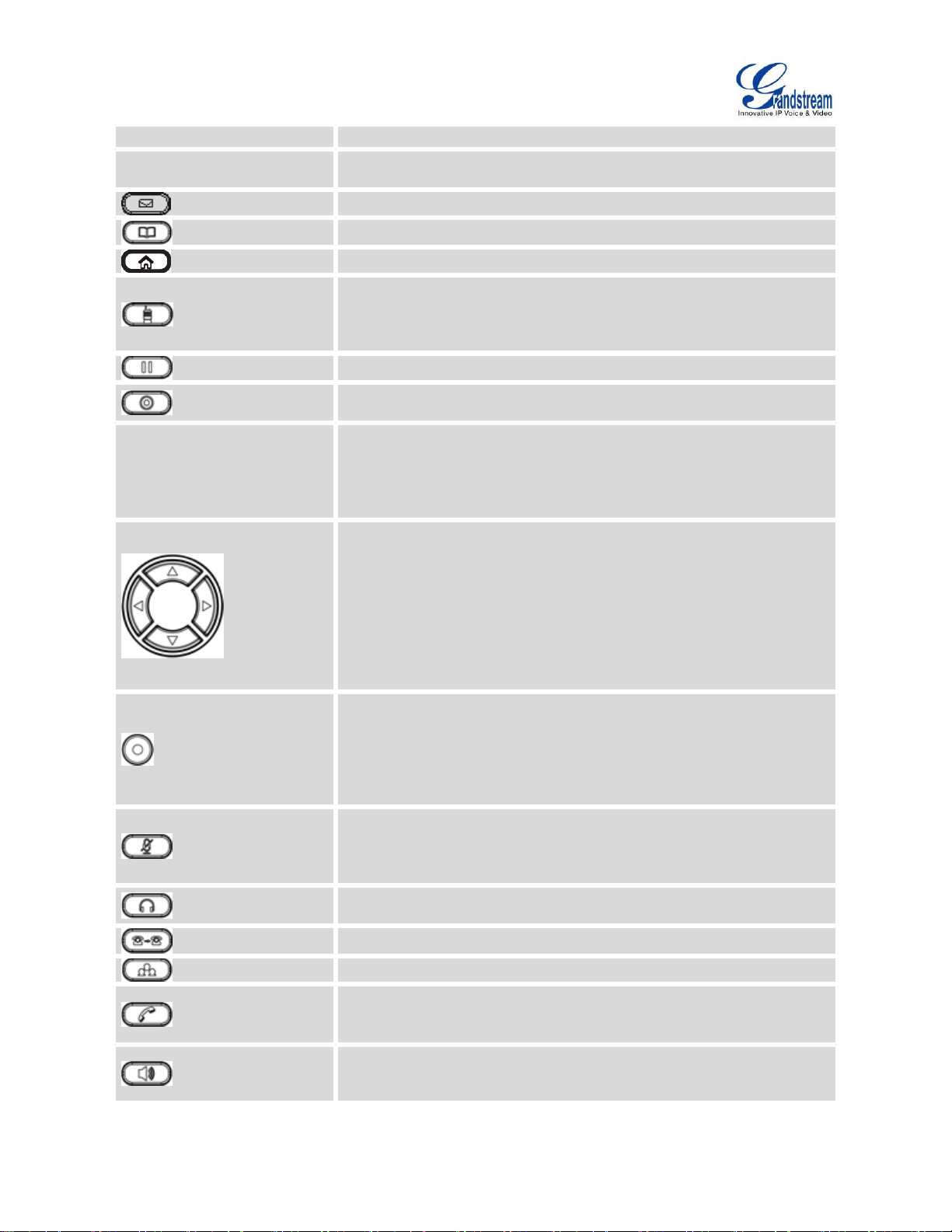

Table 7: GXP1610/GXP1620/GXP1625 Front View Definitions
LINE Key
Switch between line 1 and line 2.
Solid Green：Calling, Talking
Flash Green：Call on hold

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 17 of 31
Flash Red：Incoming call
Soft Key
The soft keys are context sensitive and will change depending on the
status of the phone
Messages. Press to view messages.
Phonebook. Press to view phonebook.
Home. Press to go to idle screen, when stay in submenu.
Page/Intercom
If the intercom number has set, call this number directly.
If the intercom number has not set, press this key will have
no effect.
Hold. Place active call on hold, or resume the call on hold.
Record. Press to enable/disable record feature in an active call or on
conference.
Standard Keypad
To dial phone numbers.
Press numeric keys "0-9" to enter phone numbers.
Press "*" to enter voice menu or input special characters, or
long press it to lock the keypad.
Press "#" to dial out numbers or input special characters.
Navigation Keys.
When entered the menu:
Press the UP/DOWN keys to scroll through menu options.
Press the LEFT key to go back to the previous menu.
The RIGHT key has no function.
In Idle:
Press the UP key to view missed calls.
Press the DOWN key to view dialed calls.
Press the RIGHT key to view answered calls.
Menu/OK Key.
In Idle:
Press to enter the main menu.
Confirm the current selection or the inputted info
Off hook:
Switch between outgoing call and paging call.
Mute. To mute/unmute an active call
When DND is on:
Enable/disable DND when the phone is in idle
Enable/disable Mute when in an active call
Headset. Press to switch between headset and handset mode in an
active call.
Transfer. Transfer an active call to another number.
Conference. Establish 3-way conference with other 2 parties.
Handset.
Send. Enter the digits and then press Send to dial out.
Redial. Redial when there is a previously dialed call.
Speaker.
Press to switch between speaker and handset mode in an active
call.

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 18 of 31
Message Waiting Indicator
Message Waiting Indicator.
Red LED Indicator to display the current phone status
Flashing Red. Missed call (s), New voice mail(s), New SIP
Message (s)
Fast Flashing Red. Upgrade
MAKING PHONE CALLS
HANDSET, SPEAKER AND HEADSET MODE
The GXP1610/GXP1620/GXP1625 allows users to switch among handset, speaker or headset when
making calls. Press the Hook Switch to switch to handset; press the Headset button to switch to headset;
or press the Speaker button to switch to speaker.
SIP ACCOUNTS AND LINES
GXP1620/GXP1625 can support up to 2 independent SIP accounts; and GXP1610 can support 1 SIP
account. Each account is capable of independent SIP server, user and NAT settings. Each of the LINE
button is "virtually" mapped to an individual SIP account. In off hook state, select an idle line and the dial
tone will be heard.
To make a call, select the line you wish to use. The corresponding LINE LED will light up in green. The
user can switch lines before dialing any number by pressing the LINE buttons.
For example: If 2 independent accounts are registered on GXP1620/GXP1625, when LINE 1 is pressed,
the LINE 1 LED will light up in green. If LINE 2 is pressed, the LINE 2 LED will light up in green and the
subsequent call will be made through SIP account 2.
Incoming calls to a specific account will attempt to use its corresponding LINE if it is not in use. When the
"virtually" mapped line is in use, the GXP1610/GXP1620/GXP1625 will flash the other available LINE in
red. A line is ACTIVE when it is in use and the corresponding LED is red.
COMPLETING CALLS
There are several ways to complete a call.
On hook dialing. Enter the number when the phone is on hook and then send out.
When the phone is in idle, enter the number to be dialed out;

Firmware Version 1.0.0.11
GXP1610/GXP1620/GXP1625 User
Guide
Page 19 of 31
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Select an available LINE key;
The call will be dialed out.
Off hook and dial. Off hook the phone, enter the number and send out.
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker;
You shall hear dial tone after off hook;
Enter the number;
Press SEND key or # to dial out.
Redial. Redial the last dialed number.
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker; or
When the phone is in idle;
Press SEND key, or the REDIAL soft key.
Via Call History. Dial the number logged in phone's call history.
Press MENU button to bring up the main menu;
Enter Call History;
Select the entry you would like to call using the navigation arrow keys;
Press SEND button to dial out.
Via Phonebook. Dial the number from the phonebook.
Press Contacts button;
Under Contacts, enter Local Phonebook/ Broadsoft Phonebook using the navigation arrow key;
Select the contact you would like to call using the navigation arrow key;
Press SEND button to dial the selected contact.
Speed Dial from Line Key. Dial the number configured as Speed Dial on Line Key.
Go to phone's Web GUI->Settings->Programmable Keys, configure the Line Key's Key Mode as
Speed Dial. Select the account to dial from, enter the Name and User ID (the number to be dialed
out) for the Line Key. Click on "Update" at the bottom of the Web GUI page;
Off hook the phone, or directly press the Speed Dial key to dial out.
Call Return. Dial the last answered call.
