GXP2110 Enterprise IP Phone
Quick Start Guide

The GXP2110 is not pre-congured to support or
carry emergency calls to any type of hospital, law
enforcement agency, medical care unit (“Emergency
Service(s)”) or any other kind of Emergency Service.
You must make additional arrangements to access
Emergency Services. It is Your responsibility to
purchase SIP-compliant Internet telephone service,
properly congure the GXP2110 to use that service,
and periodically test your conguration to conrm
that it works as You expect. If You do not do so, it is
Your responsibility to purchase traditional wireless
or landline telephone services to access Emergency
Services.
GRANDSTREAM DOES NOT PROVIDE
CONNECTIONS TO EMERGENCY SERVICES VIA
THE GXP2110. NEITHER GRANDSTREAM NOR
ITS OFFICERS, EMPLOYEES OR AFFILIATES MAY
BE HELD LIABLE FOR ANY CLAIM, DAMAGE, OR
LOSS, AND YOU HEREBY WAIVE ANY AND ALL
SUCH CLAIMS OR CAUSES OF ACTION ARISING
FROM OR RELATING TO YOUR INABILITY TO USE
THE GXP2110 TO CONTACT
EMERGENCY SERVICES, AND YOUR FAILURE
TO MAKE ADDITIONAL ARRANGEMENTS TO AC-
CESS EMERGENCY SERVICES IN ACCORDANCE
WITH THE IMMEDIATELY PRECEDING PARA-
GRAPH.
1
EN

The GXP2110 IP Phones has sleek outer design and delivers excellent call
quality and enterprise grade feature set that includes advanced XML capabilities,
multi-party conferencing, multi-language support, presence and BLF (busy lamp
eld), security protection, automated provisioning, and broad compatibility with
leading SIP platforms. The GXP2110 offers 4 lines, 18 programmable keys, 3
XML programmable soft keys.
PACKAGE CONTENTS:
OVERVIEW
2
PRECAUTIONS:
WARNING: Please DO NOT power cycle the GXP2110 when the LED
lights are ashing during system boot up or rmware upgrade. You may corrupt
rmware images and cause the unit to malfunction.
WARNING: Use only the power adapter included in the GXP2110 package.
Using an alternative non-qualied power adapter may possibly damage the unit.

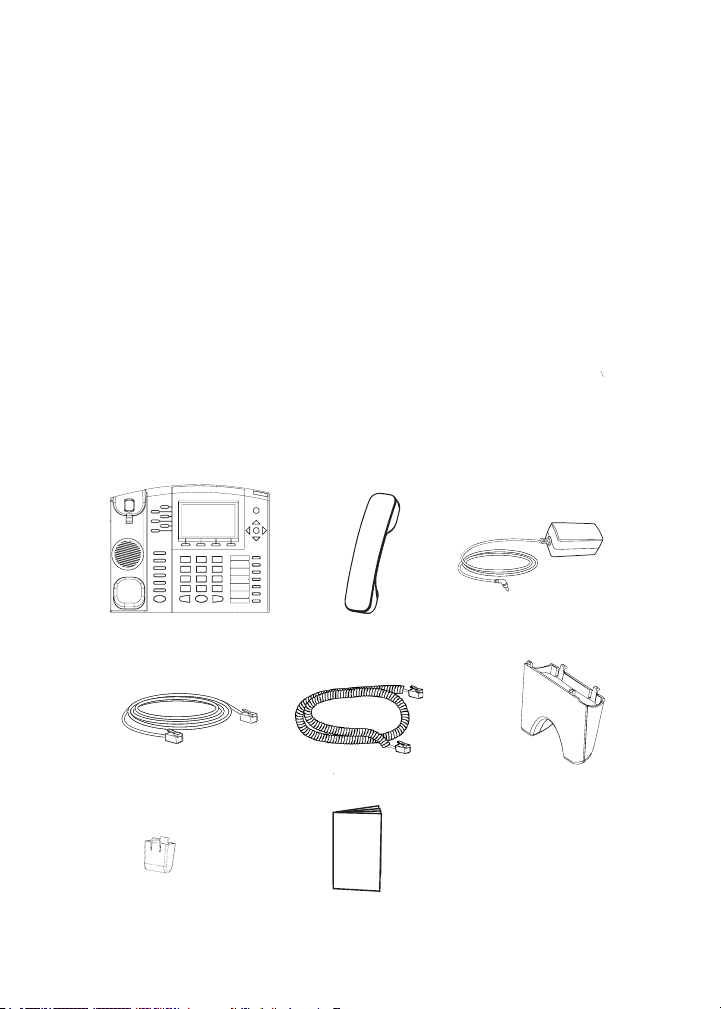

1 X Phone Main Case 1 X Handset
1 X Phone Cord
1x Ethernet Cable 1X High Stand
1 X 5V Power adapter
1 X Quick Install Guide2 X Wall Mount
Spacers

3
PHONE SETUP:
Installing the phone (Wall Mount):
1. Attach the two wall mount spacers to the slot for wall mount spacers on the
back of the phone.
2. Attach the phone to the wall via the wall mount hole
3. Pull out the tab on from the handset cradle. (See gure below)
4. Rotate the tab and plug it back into the slot with the extension up to hold the
headset while the phone is mounted on the wall. (See gure below)
Tab with extension up
Handset Rest
Tab with extension down
Wall Mount Holes
are available
Slot for the wall
mount spacers if
placing the phone
on the wall
Slot for the phone
stand if placing the
phone on the table

4
CONNECTING THE PHONE:
To setup the GXP2110, follow the steps below:
1. Connect the handset and main phone case with the phone cord.
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a
router (LAN side of the router) using the Ethernet cable.
3. Connect the 5V DC output plug to the power jack on the phone; plug the power
adapterinto an electrical outlet.
4. The LCD will display provisioning or rmware upgrade information. Before
continuing, please wait for the date/time display to show up.
5. Using the phone embedded web server or keypad conguration menu, you
can further congure the phone using either a static IP or DHCP.
PC Port LAN Port Power Headset Port
Handset Port
Extenstion
Module Port

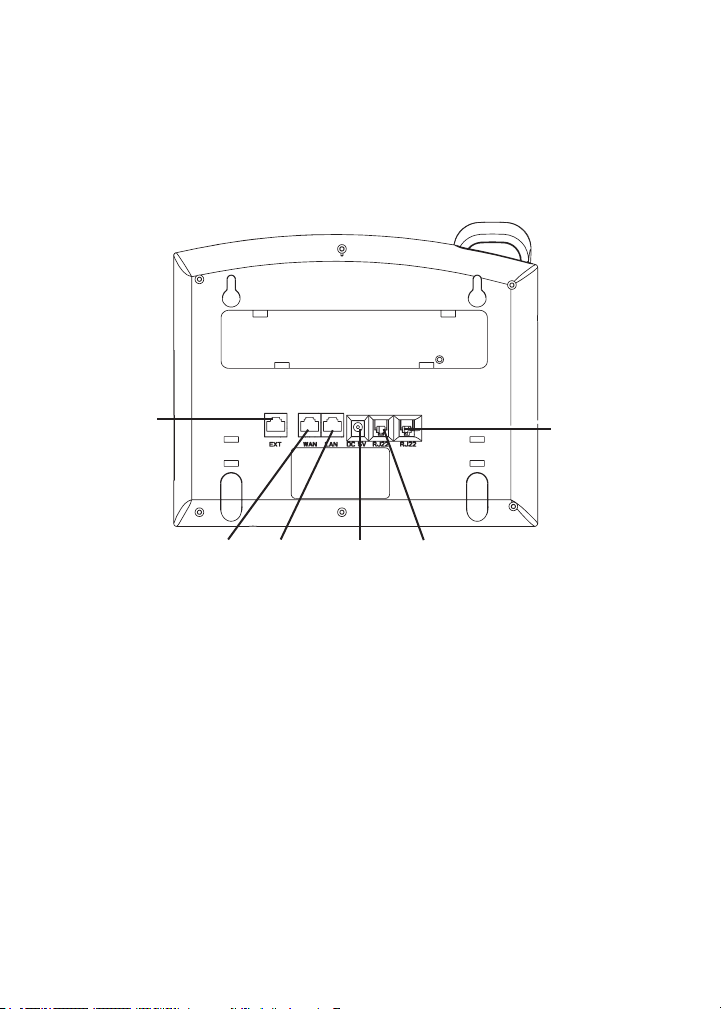

Refer to the illustration below when following the setup instructions .
For installing the phone on the table with the phone stand, attach the phone
stand to the bottom of the phone where there is a slot for the phone stand.
(Upper half, bottom part).
Installing the phone (Phone Stand) :

1. To access the MENU, press the round MENU button.
2. Navigate the menu by using the UP/DOWN and LEFT/RIGHT buttons.
3. Press the round MENU button to conrm a menu selection.
4. Delete an entry by pressing the MUTE button.
5. The phone automatically exits MENU mode with an incoming call, the phone is
off-hook or the MENU mode is left idle for 20 seconds.
GXP2110 Keypad
Tips For Using the Keypad:
PHONE CONFIGURATION:
Congure the GXP2110 using a Web Browser:
1. Ensure your phone is powered up and connected to the Internet.
2. Press MENU button to go into menu of the phone.
3. Press down arrow button to Status and press MENU button to see IP address.

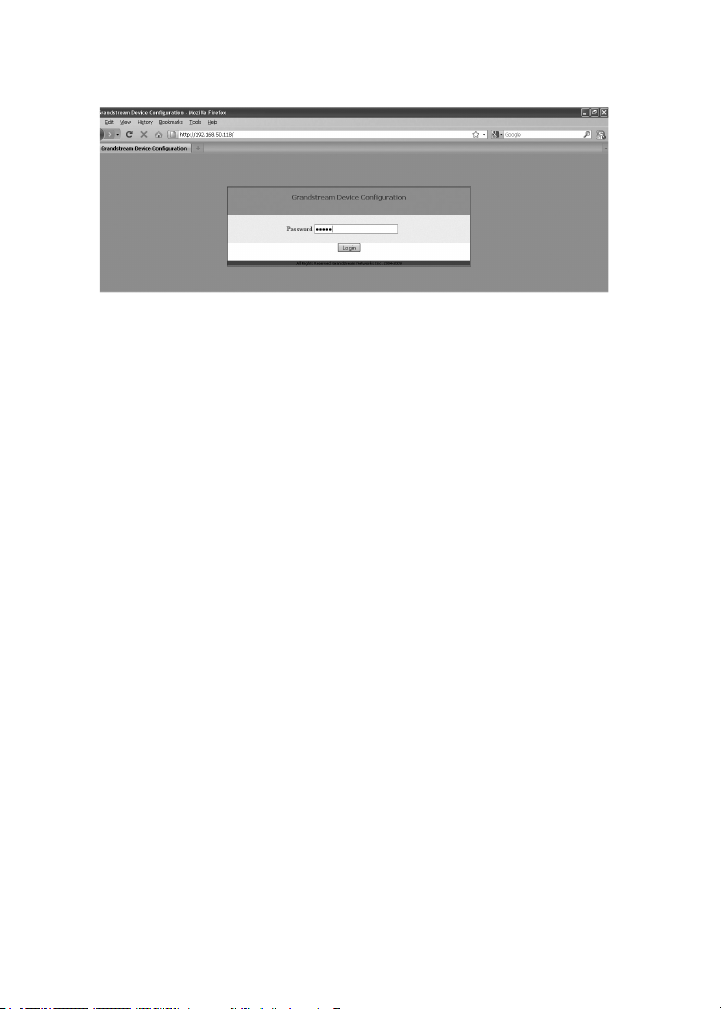

4. Type the phone’s IP address in your PC browser. (See gure below)
5. The default administrator password is “admin”; the default end-user password
is “123”.
5
Line Keys
Phonebook
Conference
Transfer
Do-Not-Disturb
Headset
Standard Keypad
Soft Keys
Message Waiting Indicator
Message
Navigation Keys
Menu/OK Keys
Mute
Intercom
Multipurpose Keys
Send
Speaker
Hold

6
Congure the GXP2110 using the Keypad:
1. Make sure the phone is idle
2. Press the “MENU” button to access the keypad MENU to congure the phone.
3. Select MENU-> Cong, to congure settings for SIP Proxy, Outbound Proxy,
SIP User ID, SIP Auth ID, SIP Password
4. Follow MENU options to congure the basic features of the phone – for ex-
ample: the IP address if using a static IP. For details, please check GXP Series
User Manual.
5. Please contact your ITSP for additional settings that may be necessary to
congure the phone.
GXP2110 EXT EXPANSION MODULE
Note: The extension module is an additional accessory for the GXP2110 and is
not included in the box
The GXP2110EXT module is an ideal solution for the busy enterprise environ-
ment looking to add the ability to receive and dispatch calls efciently.
Each expansion module has 56 programmable buttons. The GXP phone sup-
ports up to two EXT Modules, adding 112 fully programmable phone extensions
to the phone.

SETUP
1. Attach the stand to the extension module
2. Connect the extension module with the phone main body by sliding it into the
bracket on the side of the phone.
3. Connect the Extension module to the GXP main body using the cable provided.
4. Connect the extension module to an electrical power outlet using the universal
power adapter provided.
CONFIGURATION
1. Log into the GXP phone web conguration interface to congure the multipur-
pose keys on the extension module.
2. Click on “EXT1” or “EXT2” depending on which extension module you wish to
congure.
3. Congure the multipurpose keys for the purpose desired: Speed Dial, BLF,
Eventlist BLF, or Presence Watcher.

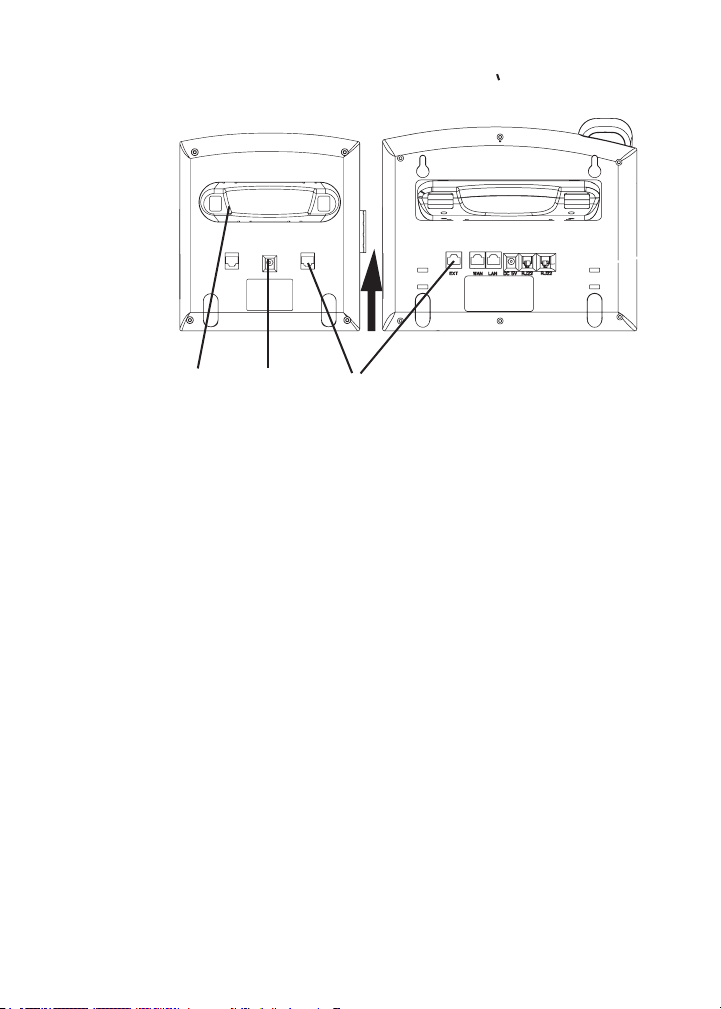

Installing the Extension Module for the GXP2110
Extension Stand Extension Connector
Port
Power
Note: For the detailed user manual, please download from:
http://www.grandstream.com/support/gxp_series/general/gxp_support.html
