GRANDVIEW CRYSTAL SCREEN CO.LTD.
Edge R3 Fixed Frame Screen
Installation User Manual
Model：PE-Lxxx(R3)
Decorative frame assembly
/a-b /c
A
B
5-7mm
A
B
Thank you for purchasing Grandview products. Please read the instructions carefully before
installation , and please keep this Manual after reading for future reference.
Reminders
Please assemble the screen on a clean site, it can help to protect the Fabric and the frame.
The edge of the screen frame is sharp, please protect yourself during assembly to prevent cuts.
a. Place the screen on the ground(face down), first take two vertical decorative frames and insert them into the corresponding inner
frame; adjust the position of the decorative frame and refer to the 45° cutting edge of the inner frame; (Note: the decorative frames
must knock into the slot of inner frame)
b. Slide the pre-assembled round nut to the end of both sides, use the fasten piece to hold the decorative frames, and the hole of
the fasten piece should align with the round nut. use M5X6 screw to fasten after inserted the plastic corner on the two end of the
decorative frame; take the remaining horizontal decorative plates into the corresponding inner frame and fasten with the fasten
piece.
/d
Lever
Lever
the hole
Align
Knock into the slot
slide in
c. Adjust the position of the four decorative frames to minimize the gap between
the four corners of the 45° trimming surface, and tighten the screws to complete
the screen installation. It is recommended that the fasten piece be installed first
in the four corners and then in the middle.
d. Note: When the gap of 45° edge of the four corners is too large to press the two
decorative plates, it can use a steel bar to stuck into the hole of the fasten piece
and give more strength hold it.
Fasten screen method
a. Slide the remaining round nut on the inner frame to make it symmetrically distributed at the 3/5 position of the total length of the
screen. Use M5*8mm screw to fasten the hanging plate. Under the screen, in the vertical direction, use the M5*8mm screw to fasten
the washer.
b. Using a suitable tool to drill the holes, horizontally install the plastic expansion anchor at a suitable upper position. The horizontal
distance A is equal to the hole distance of the hanging plate. Screw in a 5x50 tapping screw, the screw head from the wall surface is
about 5-7mm. In the corresponding lower position, the magnetic chuck is installed vertically, and the distance B is equal to the total
height of the screen minus 117 mm.
c. To lift the screen by two persons, the upper side is slightly inclined to the wall , the hanging plate hole is aligned with the Countersunk
head screw on the wall, after hanging the screen of the upper side, then put the screen lightly , and the magnetic chuck plate will attach
to the washer to complete the fixing of the screen. (Please check if the screen is secure. If necessary, adjust the position of the washer
to make it aligned)
Screen Maintenance
In order to ensure that you have a good screen viewing quality for a long time, please
cover the screen with a curtain when you are not using it, it can prevent dust and dirt
from contaminating the fabric.
Screen Clean
Please use warm water or a soft soapy water to clean the fabric lightly. Remember
that the cleaning method can not tear the fabric forcefully to avoid permanent
deformation; it is forbidden to use Diluent, organic solvent, corrosive detergent.
NO 43.S,Guomao Ave.Hualong,Panyu,Guangzhou,GuangDong.P.R.C
After sales service Tel:[phone]

Decorative frame A
32mm
12mm
WB5、WB7、WW3、GG3
GG7、UHD130 DY3
DY1
DY4
DY2
AW6
6 1 7
8
2
9
10311
5
4
12
/a
/a-b
/b
/c-d
/e-f
/c-d
/e
①
②
③

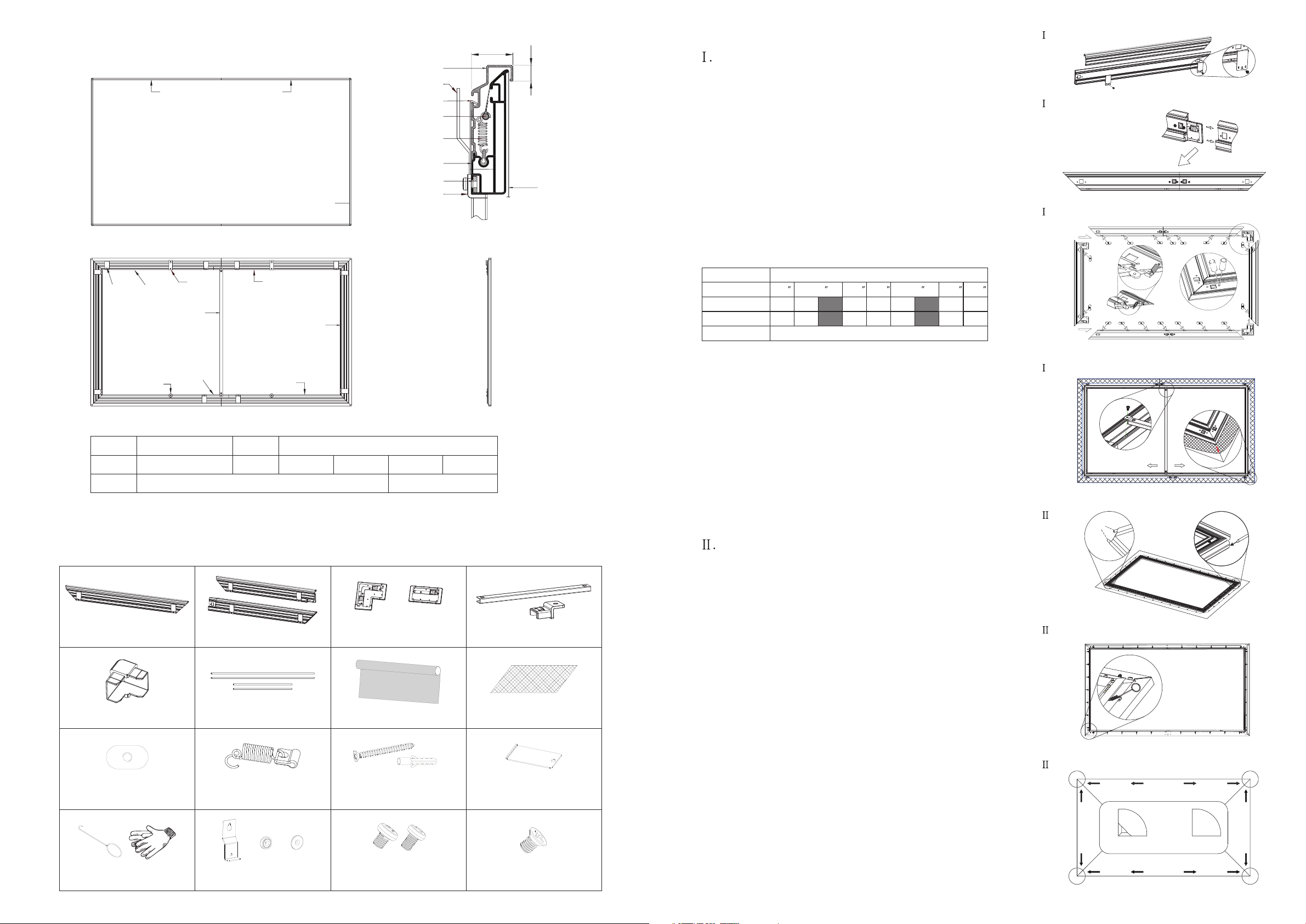

Screen structure
Decorative frame B
Front view
Vertical decorative
frame
Back View
Decorative frame
Hanging plate
Buckle plate
S1teel bar
Sliding tension
spring
Inner frame
Round nut
Support bar Fabric
Screen
front view
Structure diagram
Horizontal
inner frame B
Horizontal
inner frame A
Buckle
plate
Hanging
plate
Side
view
Support bar
Horizontal inner
frame A
Washer
Horizontal inner
frame B
Vertical inner
frame
Fabric type Ordinary Acoustic
fabric ALR
Code
Projector
type Standard throw or short throw Ultra short throw
Screen component
Please check whether the screen components are complete before assembly; some screws and accessories have a margin for replacement
during the installation process.
Vertical decorative frame(2pcs) Horizontal frame A/B(2pcs each) Corner
Horizontal frame
connection part
(Pre-installed) Support bar and connecting piece
Plastic corner(4pcs) Steel bar(long :2pcs, short :4pcs) Fabric(1pc)
Black audio mesh
(only equipped with woven
acoustic fabric)
Round nut
(18pcs Pre-installed)
Sliding tension spring
(Pre-installed,10set backup)
tapping screw(6pcs)
plastic expansion tube(6pcs) Fasten piece (12 pcs)
Hook(2pcs)
glove(2 pairs)
Hanging plate, magnetic chuck,
attached disk 2pcs each
M5X8 screw (28pcs)
M6X4 screw (4pcs)
M5X8 Countersunk
head screw (4pcs)
Screen assembly method
Inner frame connection method
a. In order to make the packaging easier, the inner frame and the
decorative frame have been fixed together at the factory. Before
assembling the inner frame, please separate the inner frame and the
decorative frame at first ,use the screwdriver, to remove the screws on
the fasten piece; separate all the inner frame and the decorative frame
and place them on the pearl cotton film.
b. Connect the horizontal inner frame: take the horizontal inner frame A with
the pre-assembled corner piece to connect the corresponding horizontal
inner frame B; Method: insert the corner piece into the corresponding
groove until the buckle pop up, lock the M5X8 screw; finish the connection
of two horizontally inner frame.
c. Check the pre-assembled parts: take the connected horizontal inner
frame and the connected vertical inner frame and put them like a rectangle.
Check the number of the springs and round nut in the inner frame is correct.
please make up enough first If you find it is missing,. (The number of screen
punches = the number of springs, the long side and the short side correspond
one by one) show as the follows chart.
16 : 9 or 16 : 10
92
10
6
106 110
12
8
133
14
9
150
16
10
100
12
7
120
14
8
14
8
12
7
16
10
Proportion
Screen size
Number of
long sides
Number of
short sides
Number of
round nut Fixed value: horizontal frame: 7pcs
and vertical frames: 2pcs
Remarks: the round nut of DY1, DY3 are more than other fabrics.(see the
chart in grey color)
d. Connect the horizontal and vertical inner frames: use the corner piece to
connect the nearby frames and move the position to make both buckles pop
up. It is recommended to connect the inner frame from steps by steps (figure
I/c-d). (Note: the edge of the cut is sharp please careful when install; when the
buckle is not in place, it can be used a small steel rod to adjust by inserting
into the hole.)
e. support bar installation: Take the support bar, Insert the plastic connection
part at both ends and fix it with the M5X8 screw on the round nut in the middle,
adjust it to the center, and complete the installation of the inner frame.
f. Note: If the screen you are purchasing is a woven acoustic screen, you must
insert a black Non woven fabric between the frame and the fabric to block the
reflective light of the aluminum frame before installing the screen.
Swipe left
and right Slide in
Screen installation
a. Place the fabric on the EPE foam(viewing area side face down) (note that
the ground must clean, and there should be no raised objects on the bottom of
the screen). The frame is placed face down on the screen, take the long steel
bar inserted into the corresponding crimping holes respectively to ensure that
The exposed ends of the steel bar are all equal in length. (The two longer steel
bar penetrate into the short side holes of the fabric)
b. Adjust the position of the frame and the fabric to make it centered; reduce the
difficulty of fabric installation.
c. Use the hook to adjust the springs position, every spring should be dragged
to the corresponding screen holes to prepare the installation screen.
d. Fold the fabric edge, pull the springs with the hook, and hang the it on the steel
bar in the hole of the fabric; it is recommended to hang the 2-3 springs in the
middle of the four sides, adjust the position of the fabric to center, and then hang
the four corners, and finally Hang up all the rest.
e. If there are creases, fluffs, etc., the reason is that the fabric is not fully
tightened, you can gently adjust it from the middle to the outside until the four
corners of the fabric completely cover the border of the frame.
Same
length
Centered
Precautions:
1. When you purchase a flexible soft fabric, due to the shrinkage of the fabric
material, the size of the fabric will be reduced after a long time, and it can be
appropriately stretched during installation.
2. If the force is too large to pull the spring, it will cause permanent deformation.
Then please replace the springs.
3. The DY1 and DY3 screens are marked with the "up" and "down" directions
when leaving the factory. Please keep in mind when installation .
Fabric Fabric
Correct Incorrect
