Gree XK60 User manual

Change for life
Wired Controller XK60
Commercial Air Conditioners
Owner's Manual
Thank you for choosing Commercial Air Conditioners, please read thisowner’s manual
carefully before operation and retain it for future reference.
GREE reserves the right to interpret this manual which will be subject to any change due
to product improvement without further notice.
GREE Electric Appliances, Inc. of Zhuhai reserves the nal right to interpret this manual.

User Notice
Please carefully read this manual before installation and use of this product
◆Thanks for choosing GREE duct type air conditioners. Please read this manual carefully
before operating this product and keep it properly for future reference. In addition, please
take notice of the symbols below.
WARNING! This mark indicates procedures which, if improperly performed, might lead to
the death or serious injury of the user.
CAUTION! This mark indicates procedures which, if improperly performed, might possibly
result in personal harm to the user, or damage to property.
CAUTION!
(1). Do not install the wired controller in the damp place or under direct sunlight.
(2). Do not beat, toss, or frequently assemble/disassemble the wired controller.
(3). Do not operate the wired controller with wed hands and never let any liquid ow into it.
(4). Do not install or remove the wired controller by yourself. If necessary, please contact the after-
sales serviceman.
(5). This wired controller is applicable to various kinds of air conditioners, while some specic functions
unavailable to the duct type air conditioners will not be covered in this manual.
(6). Before operating the air conditioner, please read this manual carefully and keep it properly for
future reference.

1 Introduction to the Wired Controller................................................................. 1
1.1 Appearance and LCD Icons ....................................................................... 1
1.2 Introduction to the LCD Icons..................................................................... 2
2 Press Buttons .................................................................................................. 4
2.1 Buttons ....................................................................................................... 4
2.2 Instruction to the Function of Press Buttons............................................... 4
3 OPERATION INSTRUCTION ......................................................................... 5
3.1 On/off.......................................................................................................... 5
3.2 Mode Setting .............................................................................................. 5
3.3 Temperature Setting ................................................................................... 6
3.4 Fan Speed Setting...................................................................................... 6
3.5 Right and Left Swing .................................................................................. 7
3.6 Up and Down Swing................................................................................... 8
3.7 Timer Setting .............................................................................................. 8
3.8 Air Exchange Setting .................................................................................. 9
3.9 Sleep Setting ............................................................................................ 11
3.10 Health Setting........................................................................................ 13
3.11 I-Demand Setting.................................................................................... 13
3.12 Vacation Setting..................................................................................... 14
3.13 Turbo Function Setting ........................................................................... 15
3.14 SAVE Function Setting ........................................................................... 16
Contents

3.15 E-HEATER Setting .................................................................................18
3.16 Blow Function Setting.............................................................................18
3.17 Filter Setting ...........................................................................................19
3.18 Quiet Function Setting .......................................................................21
3.19 Ultra-Dry Setting ....................................................................................22
3.20 Other Functions......................................................................................22
4 Installation of the Wired Controller ...............................................................24
4.1 Standard Parts .........................................................................................24
4.2 Installation Location and Installation Requirements ................................25
4.3 How to Install the Wired Controller...........................................................25
4.4 How to Remove the Wired Controller.......................................................26
5 Error Display.................................................................................................26

Wired Controller XK60
1
1 Introduction to the Wired Controller

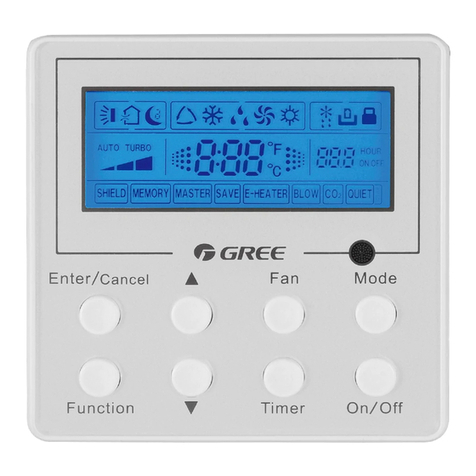

Fig.1 Appearance of the Wired Controller
1.1 Appearance and LCD Icons
Fig.2 Appearance of the LCD

Wired Controller XK60
2
1.2 Introduction to the LCD Icons
Table 1
No. Icons Introduction
1 Left and right swing function
2 Up and down swing function
3 Air exchange function
4 Sleep function
5Auto mode
6 COOL mode
7 DRY mode
8 FAN mode
9 HEAT mode
10 Health function
11 I-Demand function
12 Vacation function
13 Status display of master and slave wired controller
14
Shield function
The button operation, temperature setting, "On/Off" operation, "Mode"
setting, and "Save" setting are disabled.
15 Fan speed
16 Memory function
The unit will resume the original setting state after power recovery.
17 Turbo function
18 Energy-saving function
19 Ambient/setting temperature

Wired Controller XK60
3
20 Electric heater
21 Blow function
22 Defrosting function
23 Filter cleaning
24 Timer Setting
25 Keycard control / Detected status sensed by human body
26 Quiet function
27 Lock function

Wired Controller XK60
4
2 Press Buttons
2.1 Buttons

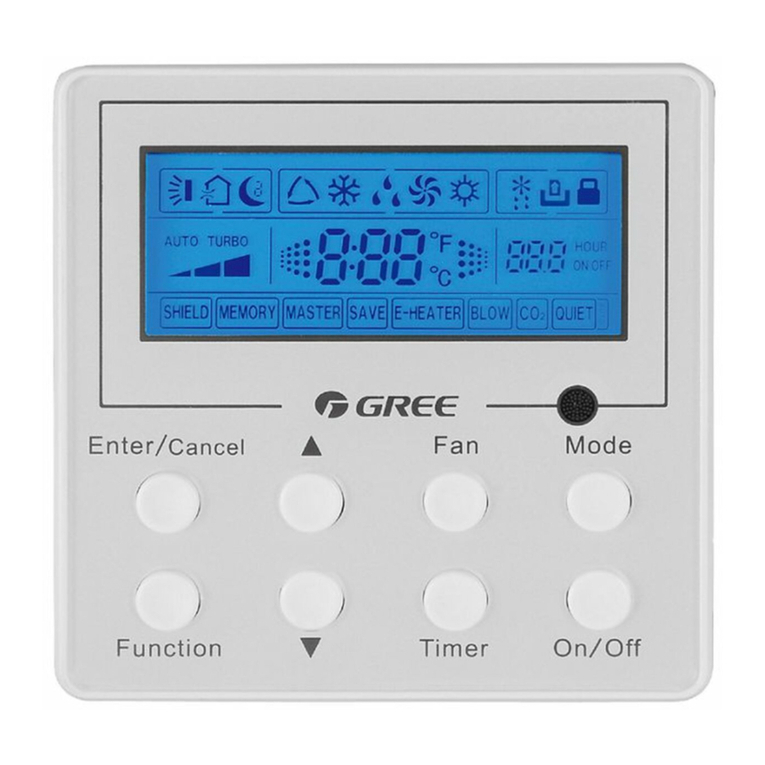

Fig.3 Press Buttons
2.2 Instruction to the Function of Press Buttons
Table 2
No. Press Buttons Function Introduction
1 Enter/Cancel ①.
Function selection and canceling;
②.
Press it for 5s to enquiry the outdoor and indoor ambient temperature.
2▲
①.
Running temperature setting of indoor unit, range :16~30°C
②.
Timer setting, range:0.5-24hr
③.
Air function setting
④.
Save setting
⑤.
Clean setting
6▼
3 Fan Select fan speed from high, mid-high, middle, mid-low, low and auto
levels.
4 Mode Selection of the COOL, HEAT, FAN or DRY mode.
5 Function Switchover among these functions of SWING/AIR/SLEEP/HEALTH/
I-DEMAND/VACATION/TURBO/SAVE/E-HEATER/BLOW/QUIET
7 Timer Timer setting
8 On/Off Turn on/off indoor unit
4 mode
and 2 ▲ Memory
Press Mode and ▲ at the same time for 5s under the OFF state of the
unit to activate/deactivate memory function (If memory is set, indoor unit
will resume original setting state after power recovery. If not, indoor unit is
defaulted to be OFF after power recovery. Memory function is defaulted to
be ON)
2 ▲
and 6 ▼ Lock
Under the ON state of the unit without any malfunction or under the OFF
state of the unit, press ▲and ▼ buttons at the same time for 5s to go to
the lock state. In this case, any other buttons won’t respond the press.
Repress ▲ and ▼ again for 5s to quit the lock state.
4 mode
and 6 ▼ °F/°C Under the OFF state of the unit, press the Mode and ▼ at the same time for 5s to switch the temperature scale between Celsius and Fahrenheit.

Wired Controller XK60
5
3 OPERATION INSTRUCTION
3.1 On/off
Press the On/Off button to turn on or off the unit.
Notes:
①.
The state shown in Fig.4 indicates the OFF state of the unit after energization.
②.
The state shown in Fig.5 indicates the ON state of the unit after energization.
Fig.4 OFF State of the Unit Fig.5 ON State of the Unit
3.2 Mode Setting
Under the ON state of the unit, press the Mode button to switch the operation modes as the
sequence shown in Fig.6:
Auto Cooling Dry Fan Heating
Fig.6

Wired Controller XK60
6
3.3 Temperature Setting
Press ▲ or ▼button to increase or decrease setting temperature under on-state of the unit. If
press either of them continuously, temperature will be increased or decreased by 1°C every 0.5s.
In Cooling, Dry, Fan and Heating mode, temperature setting range is 16°C~30°C.
In Auto mode, the setting temperature is un-adjustable.
As shown in Fig.7:
Fig.7 Temperature Setting
3.4 Fan Speed Setting
Press Fan button, fan speed of indoor unit will change as the sequence shown in Fig.8:
Low Mid-low Mid-highMiddle High Super-high Auto
Fig.8 Fan Speed Setting
