GTD GTD-330 N BSW User manual

Moving Head
(beam-spot-wash)
GTD-330 N BSW
User’s Manual
Guangzhou GTD Lighting Technology Co., Ltd.
Tel: [phone]
Fax: [phone]
http://www.gtd-lighting.com

GTD-330 N BSW User Manual
1
© 2018 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to
change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright
protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of
their respective companies and are hereby acknowledged. All non-GTD brands and product names are trademarks or
registered trademarks of their respective companies.
GTD and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical
damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any
information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent
assembly, installation, rigging, and operation of this product.
Guangzhou GTD Lighting Technology Co., Ltd. | 27 Fu Yuan Yi Road, Guangzhou 510805, P.R.China
[phone] | [phone] fax | www.gtd-lighting.com | [e-mail]

GTD-330 N BSW User Manual
2
Contents
Safety instructions...................................................................................................................................................................... 3
General guidelines...................................................................................................................................................................... 4
Packing and shipping .................................................................................................................................................................. 5
Protection lock................................................................................................................................................................................ 5
Unpacking ....................................................................................................................................................................................... 5
Packing after use............................................................................................................................................................................. 5
Accessories................................................................................................................................................................................. 6
Product introduction .................................................................................................................................................................. 6
Installation ................................................................................................................................................................................. 7
Clamps installation ......................................................................................................................................................................... 7
Device installation .......................................................................................................................................................................... 7
Lamp fitting and adjustment ...................................................................................................................................................... 8
Power / Control connection ....................................................................................................................................................... 9
Power connection........................................................................................................................................................................... 9
Control connection ......................................................................................................................................................................... 9
Testing ............................................................................................................................................................................................ 9
Control panel............................................................................................................................................................................ 10
Gobos and colors...................................................................................................................................................................... 10
Gobo specification ........................................................................................................................................................................ 10
Gobos............................................................................................................................................................................................ 11
Colors............................................................................................................................................................................................ 11
Menu structure ........................................................................................................................................................................ 12
DMX protocol........................................................................................................................................................................... 15
Technical specification ............................................................................................................................................................. 19
Cleaning and maintenance ....................................................................................................................................................... 22
Troubleshooting ....................................................................................................................................................................... 23
System wiring diagram ............................................................................................................................................................. 25
Spare parts list ......................................................................................................................................................................... 26
Appendix 1 ............................................................................................................................................................................... 26

GTD-330 N BSW User Manual
3
Safety instructions
WARNING!
Before using the fixture, read the latest version of the product user manual, paying particular attention
to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user
manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this
fixture, due to the disregard of the information printed in this user manual.
DANGER!
Hazardous voltage. Risk of lethal or severe electric shock.
WARNING!
Burn hazard. Hot surface. Do not touch.
WARNING!
Fire hazard.
INDOORS USE ONLY!
Do not expose fixture for rain and moisture.
It’s essential that the fixture is properly grounded. Only qualified personnel should perform electrical
connections.
WARNING!
Wear protective eyewear. Never look directly into the light source.
Only qualified and certified personnel should perform installation of this fixture and only the original rigging parts
(brackets) included with this fixture should be used for installation.
Before applying power to the fixture, check that the source voltage matches the fixture's requirement. Every fixture
must be earthed (grounded) and installed in accordance with local electricity regulations. Do not connect it to a
dimmer system.
Never look directly into the light source of this fixture to prevent risk of injury to your retina, which may induce
blindness.

GTD-330 N BSW User Manual
4
General guidelines
Never open this fixture while in use.
The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environments. Avoid contact
with chemical liquid.
This fixture is a professional light effect designed for INDOOR / DRY LOCATIONS ONLY on stage, in nightclubs,
theatres, etc.
Minimum distance to lighted objects must be 26.25feet (8m).
Maximum temp of the external surface 194˚F (90˚C).
Maximum ambient temperature 113˚F (45˚C).
Minimum distance of inflammable materials from the surface 1.6 feet (0.5m).
Lamp should be changed if damaged or distorted in shape due to extreme heat.
The light source of the fixture should be changed by the manufacture or its service agent or certified technicians.
WARNING! Risk of electric shock.
The basic insulation should be kept between the controllable device and the power supply.
Cover, prism or LCD Menu Function Display with visible damages such as cracks or scratches must be replaced to
ensure performance of the fixture.
Disconnect the fixture from power before changing any parts or accessories.
Make sure that the installation area can hold a minimum point load of 10 times the weight of all installed fixtures,
clamps, cables, auxiliary equipment, etc. Check that the cover, clamps and locks are undamaged. Certified safety
cables must always be used when installing the fixture.
The fixture is only intended for installation, operation and maintenance by qualified professional. Instructions
stated in the manual must be complied.
The fixture must be kept in a well-ventilated place at least 50 cm away from any wall surface. Check if the fans or
ventilation openings are unblocked.
This fixture uses discharge lamp. To avoid reducing the lamp’s life, wait at least 15 minutes after powering off to
allow the unit to cool down before handling.
Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the
manufacturer to ensure operational safety.
Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD
manufactured parts.
For questions regarding safety operation, please contact our technical personnel or call the service hotline +8620
61808296.

GTD-330 N BSW User Manual
5
Packing and shipping
Protection lock
Pan and tilt locks are equipped to ensure safe transportation.
PAN: 4 lock positions are located evenly on the Pan.
TILT: 3 lock positions are located on left and right side of the Tilt with the third one in the center.
Unpacking
Notes
All products are quality controlled and checked for any faults before they are dispatched to customers. If the fixture is
damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.
Photographic evidence of the damage must be provided.
Flight-Case
Size: 102*58*77cm, 2 units/box
Open the cover of the flight-case and remove the plastic packing bags. Hold the handles of the fixture firmly and take it
out carefully.
Cardboard box
Size: 57*47*63cm, 1 unit/box
Open the box and take out the whole set of packaging foam which contains both the fixture and its accessories. Remove
the foam from the top, put away the accessories, and then take out the fixture wrapped in the plastic bag.
Notes
Check if the pan and tilt are unlocked before connecting the fixture to power.
Packing after use
1. Switch off the fixture and wait for at least 5 minutes before disconnecting it from AC power. Cool down the fixture for
at least 15 minutes before packing.
2. Lock pan and tilt.
3. Flight case: Wrap the fixture in plastic bags. Hold it by the handles, and then carefully place it inside the flight case
along with all the accessories. Close the cover. Only 2 layers are allowed when piling up the flight cases. Do not
upside down.
Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories. Place the
other set of packaging foam on top then carefully put it inside the cardboard box.
Accessories
Item
Qty
Unit
Notes
User Manual
1
pc
-
Clamps
2
set
G-clamp with 1/4-turn fasteners, for Ø 42-52mm, Max. 200 kg
Power cable
1
pc
Notes
Accessories are subject to change without any prior written notice.

GTD-330 N BSW User Manual
6
Product introduction
1 Head assembly
2 Tilt
3 Color & gobo wheels assembly
4 Lamp source
5 Pan
6 Base
7 Display
8 Focus, prism assembly

GTD-330 N BSW User Manual
7
Installation
Clamps installation
The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting
position on the base of the fixture.
Warning
Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock. Always
remember to use the safety cable which goes through the mounting hole on the base. Do not attach the safety cable on
the handle.
Device installation
1. Make sure there is no damage on the clamps or safety cables before installation.
2. The clamp is mounted on the chassis of the fixture. Horizontally insert the clamp into the mounting holes of the
chassis. Fasten the clamp tightly by a 1/4 turn clockwise. Fix another clamp in the same way.
3. Check if pan and tilt are unlocked before connecting the unit to AC power.

GTD-330 N BSW User Manual
8

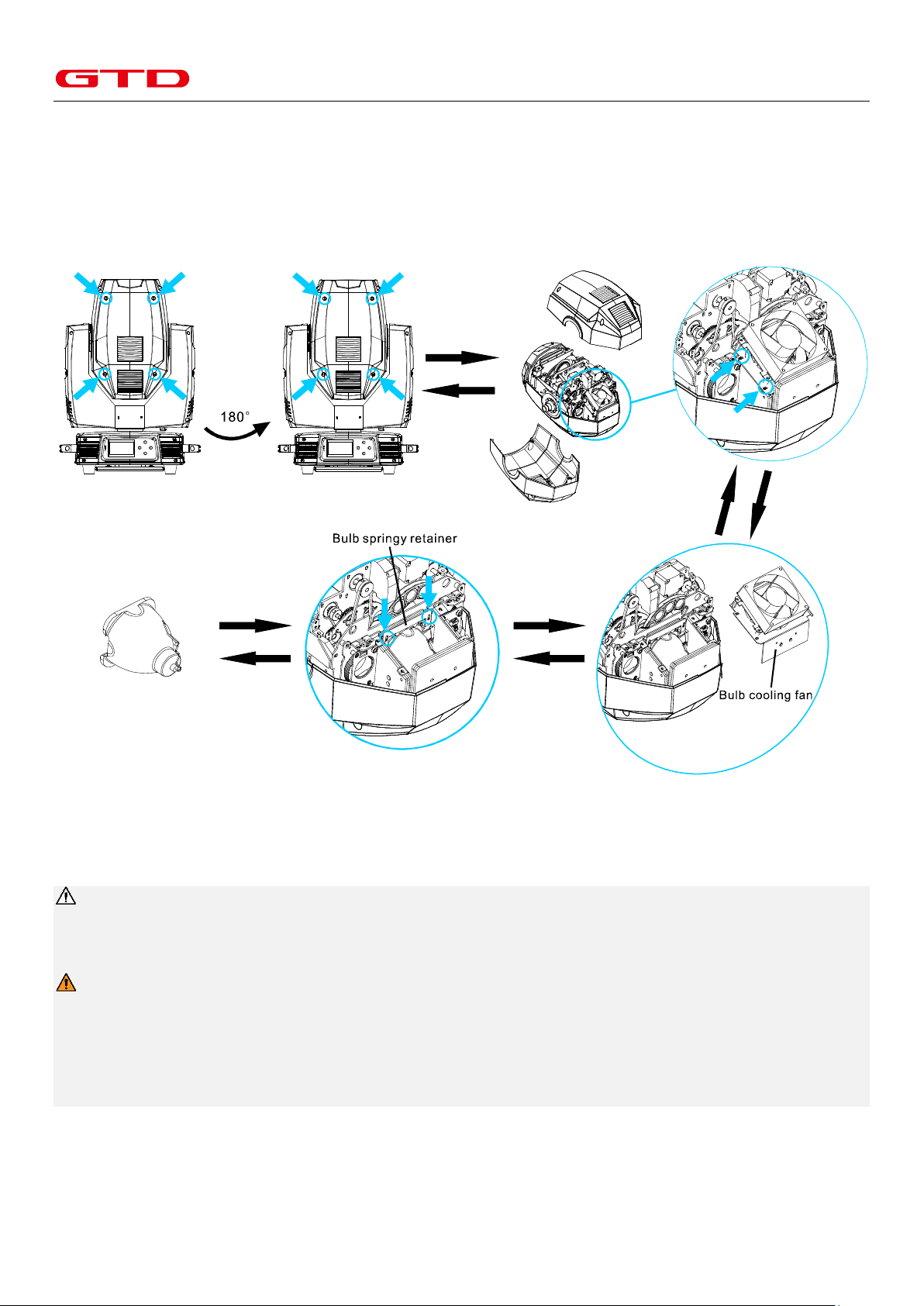

Lamp fitting and adjustment
1. Disconnect the fixture from AC power. Allow the fixture to cool down for at least 15 minutes. Put the Tilt lock-catch in
the horizontal position.
2. Dismounting the lamp (see below): remove the top cover of the shell first, and then the bulb cooling fans. Loosen the
two screws of the bulb springy retainer. Pull up the springy retainer by one hand and push the lamp by the other,
then we can slowly pull the lamp out.
3. Installing the lamp (see above): Pull up the bulb springy retainer, then carefully insert the lamp inside, fasten the two
screws of the bulb springy retainer. Install the cooling fans as well as the cover shell.
4. Make sure the new bulb is installed in the right position on the holder and the mounting holes are fixed, and the
midline of the lamp is aligned with the center point of the effect assembly (consisting of the rotating gobo wheel,
static gobo wheel, color wheel, strobe, prism, and frost), focus module, and object lens.
Notes
The fixture uses MSD Platinum 16 R, featuring low power consumption and high performance with a stable 6400K color
temperature. Its average life span is 1500 hours.
Warning
Fitting another type of lamp will cause potential damage to the fixture. Change the lamp before it reaches its lifespan.
Read the guidelines in the package carefully when fixing the lamp.
To avoid any impact on the beam, do not touch the bulb with your bare hands. The lamp must be kept clean with the use
of the clean paper contained in its package.

GTD-330 N BSW User Manual
9
Power/ Control connection
Power connection
Connection method:
L (Live) Brown wire
E (Earth) Yellow / Green bi-color wire
N (Neutral) Blue wire
The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is
strongly recommended that each fixture are to be connected to the power source separately so that they can be
switched on / off individually.
Notes
It is essential that each fixture is correctly grounded and the electrical installation conforms to all relevant Standards /
Codes of Practice for Safe Electrical Work.
Control connection

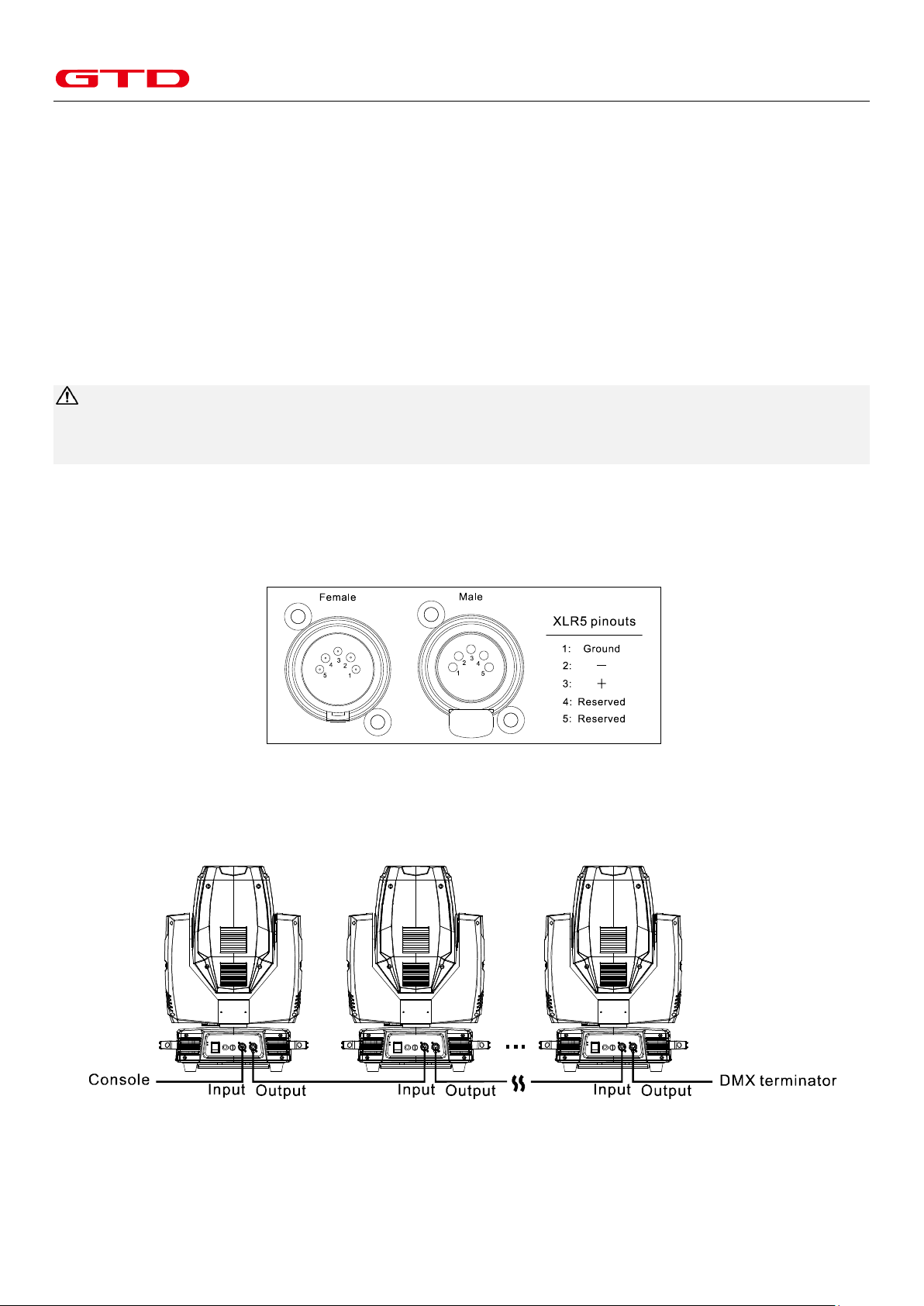

The fixture has 5-pin XLR connectors for DMX data input and output (3-pin optional) as shown below. Connection between
the console and fixture, and between fixtures must be made with 2 core screened DMX signal cable. Maximum connecting
distance of signal cable is 150 meters. Additional DMX512 signal-amplifier are recommended for longer distance.
Connect the Console’s DMX OUTPUT to the first fixture’s DMX INPUT, then the first fixture’s DMX OUTPUT to the second
fixture’s DMX INPUT and so on. It is recommended not to connect more than 32 units on a single DMX universe. On the
last fixture‘s output connect a DMX terminator. (The terminator is a XLR connector with a ¼ W and 120Ω resistor between
the pin 2 and pin 3) as shown below:
Testing
Connect the fixture to AC power. Check if the lamp is on and the fixture is independently controllable before putting into
operation.

GTD-330 N BSW User Manual
10

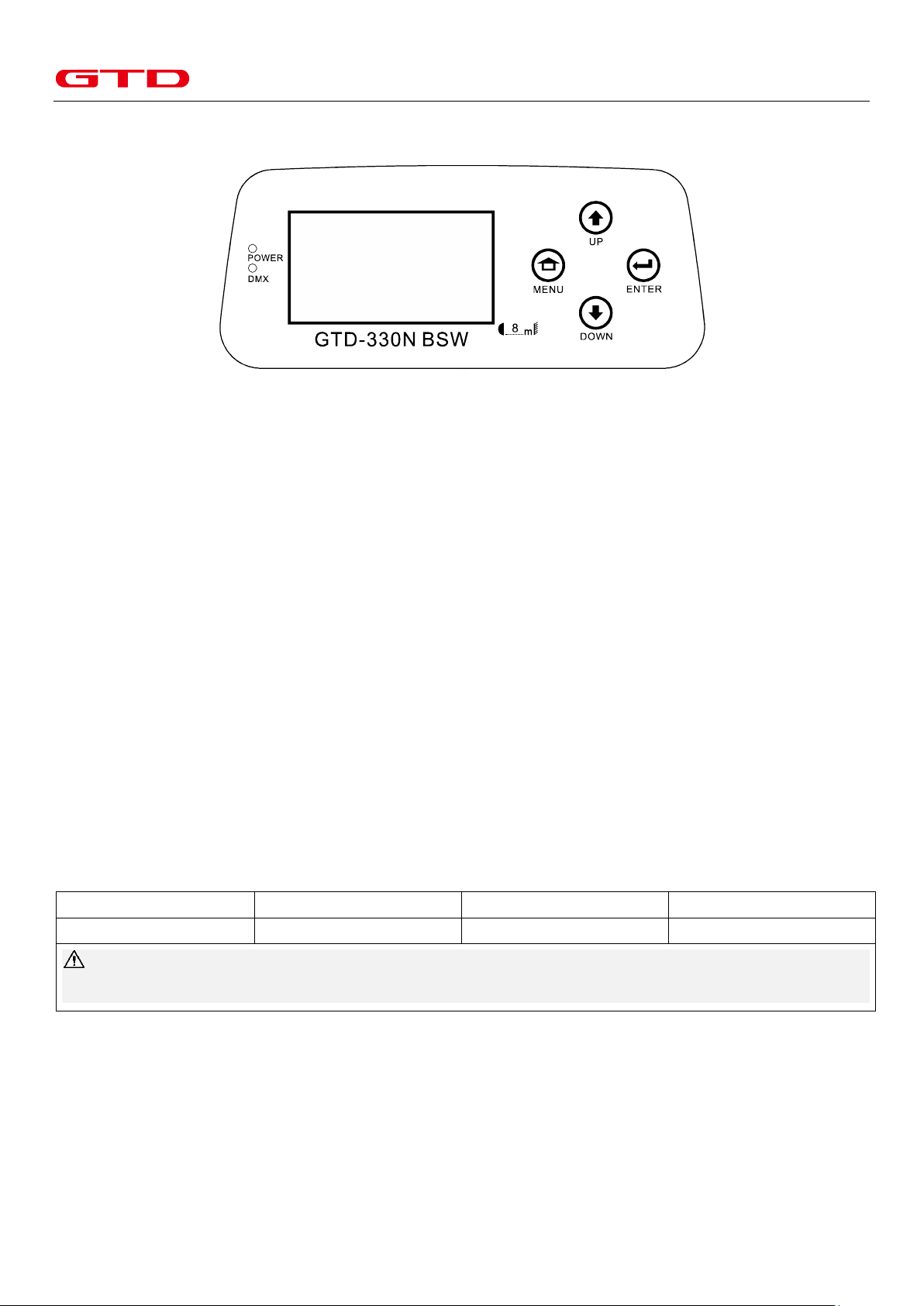

Control panel
The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code
and functions menu.
Press UP or DOWN to view or select the function menu.
Press ENTER to choose a function and enter into corresponding sub menu. Each menu represents a specific
function of the fixture.
Press ENTER to select the specific function and save the changes or enter into the submenu, then press UP or
DOWN to change the value of the selected function (increase or decrease).
Press MENU to return to the previous menu or exit.
LED indicators:
Power on: RED power LED indicator on
Signal on: Green DMX indicator on
No Signal: Green DMX indicator off
Gobos and colors
Gobo specification
All patterns are made onto the metal gobos, and can be customized according to user’s requirement. The customized size
is as below:
Gobo material
Outer dimension
Effective dimension
Thickness
Metal gobo
¢14.4mm
¢7.0mm
¢0.3mm
Notes
Metal Gobo is made of high temperature resistant aluminum alloy in laser cutting.

GTD-330 N BSW User Manual
11
Gobos
One rotating gobo wheel: 8 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
One fixed gobo wheel: 11 gobos + open, CW/CCW rotation, variable speed
Rotating gobo wheel Fixed gobo wheel
Colors
1 color wheels: 11 colors + open, split color, CW/CCW rotation, variable speed
Color 1: red
Color 2: yellow
Color 3: blue
Color 4: light green
Color 5: pink
Color 6: light yellow
Color 7: green
Color 8: orange
Color 9: magenta
Color 10: CTO
Color 11: UV

GTD-330 N BSW User Manual
12
Menu structure
330 N BSW –Menu Structure
Revision: A
Valid from firmware version: 1.0
Level 1
Level 2
Level 3
Level 4
Info
Run setting
Address Setting
Value Display
Slave Address
Auto-Program
Music Program
Address: 001~ XXX
Pan ……, All, Off
Slave 1,2,3
Master /Slave
Master/ Slave
Setting the DMX address
Display the channel value
Choose the slave address
Run auto program in master or slave
Run music program in master or slave
Device Info
Time Info
Since power on
Total Time
Last Time
Lamp On Time
Lamp Off Time
Last Time Code
Clear Last Time
Lamp Time Code
Clear Lamp Time
XXXXXX Hour
XXXXXX Hour
XXXXXX Hour
XXXXXX Hour
XXXXXX Minute
Password: XXX(88)
Yes/No
Password: XXX(111)
Yes/No
Since power on time
Product total run time
Last product run time
Lamp on time
Lamp close time
Clear last time password
Clear last time
Clear lamp time password
Clear lamp time
Temperature
Body Temperature
XXX ’C/’F
Body temperature
Software Version
X.X
The software version
Lamp Control
Lamp On/Off
Power On Lamp On
Console Lamp On
Console Lamp Off
Lamp On Temp.
Lamp Off Temp.
On/Off
Enable/Disable
Enable/Disable
Enable/Disable
20~79, 45’C /68~174 , 113’F
80~139, 130’C/176~282,266’F
Open lamp
Power on open lamp
Console open lamp
Console close lamp
Open lamp below temperature
Close lamp above temperature
Notes
Settings highlighted in light grey are default values.

GTD-330 N BSW User Manual
13
Level 1
Level 2
Level 3
Level 4
Info
System Setting
Status Setting
Console Set Addr
No Signal Status
Pan Reverse
Tilt Reverse
Pan Scan Degree
Scan Feedback
Scan Speed
Mic. Sensitivity
Standby Time
Enable/Disable
Off/Hold/Auto/Music
Enable/Disable
Enable/Disable
360/540
Enable/Disable
Quick/Middle/Low/Slow
0~99%
Disable/1~20~99 Min
Address can be changed by console
The status while no signal
Pan Reverse
Tilt Reverse
Pan Scan Degree
Scan Feedback
Change the scan speed
Microphone sensitivity
Standby time
Fan Speed
Smart Control
High Speed
Low Speed
Auto fans speed
Fans high speed
Fans low speed
Display Setting
Backlight Time
Key Lock
Language
1~80 Min/Disable
Enable/Disable
Chinese/English
Backlight off time
Press <menu> 3s to unlock
Change the language
Temperature Unit
Celsius
Fahrenheit
Temperature unit
Value Default
Pan……
Pan = XXX
The default value
Wireless Dev
Wireless Off
Wireless On
Wireless Trans.
Wireless Reset
Wireless off
Wireless on
Wireless transfer DMX data to another
Wireless reset
Restore Default
Restore/Cancel
Restore to default value
Reset
System Reset
Scan Reset
Color Reset
Gobo Reset
Strobe Reset
Others Reset
System reset
Pan an tilt motor reset
All color motor reset
All gobo motor reset
All strobe motor reset
All other motor reset
Channel Adjust
Test Mode
Pan……
Every channel test
Manual Mode
Pan
:
Pan = XXX
:
Manual control
Adjust Mode
Input Password
Pan
:
Password = XXX(99)
Pan = XXX
:
The password of adjust mode
Fixed all begin position
Notes
Settings highlighted in light grey are default values.

GTD-330 N BSW User Manual
14
Level 1
Level 2
Level 3
Level 4
Info
Channel Setting
Channel Mode
Standard Mode
Basic Mode
Extended Mode
Custom Mode 1
Custom Mode 2
Custom Mode 3
Standard channel mode
Basic channel mode
Extended channel mode
Custom channel mode 1
Custom channel mode 2
Custom channel mode 3
Set Custom Mode1
Set Custom Mode2
Set Custom Mode3
Max Channel
Pan
:
Channel = XX
Pan = CH01
:
Change the channel order
Program Edit
Select Prog.
Program Unit 1
Program Unit 2
Program Unit 3
Program 1 ~10
Program 1 ~ 10
Program 1 ~ 10
Choose build-in program for slave 1
Choose build-in program for slave 2
Choose build-in program for slave 3
Program Edit
Auto-Program1
:
Auto-Program10
Run
Step 1 = Scene xxx
Step 8 = Scene xxx
Choose the scene for program 1
:
Choose the scene for program 10
Scene Edit
Scene Edit: 001-250
Pan,……Pan = xxx
Scene Time = xxx
Input By Console
Edit the channel DMX
Edit the scene time
Get scene DMX form console
Record Scene
Scene XX->XX
Record scene form console
Notes
Settings highlighted in light grey are default values.

GTD-330 N BSW User Manual
15
DMX protocol
330 N BSW - DMX Protocol
Revision: A
Valid from firmware version: 1.0
DMX mode
Name
DMX value
DMX percentage
Function
Default
DMX
Value
Standard
(19ch)
Basic
(16ch)
Extended
(22ch)
1
1
1
Strobe/Shutter
0
31
0.0%
12.2%
Closed
0(0%)
32
63
12.5%
24.7%
Open
64
127
25.1%
49.8%
Synchronous strobe from slow to fast
128
159
50.2%
62.4%
Open
160
223
62.7%
87.5%
Random strobe from slow to fast
224
255
87.8%
100.0%
Open
2
2
2
Intensity
0
255
0.0%
100.0%
No light → Full light
0(0%)
3
0
65535
0.0%
100.0%
Intensity fade, fine (LSB)
3
3
4
Color wheel
0
17
0.0%
6.7%
Open
0(0%)
18
27
7.1%
10.6%
Color 1
28
37
11.0%
14.5%
Color 2
38
47
14.9%
18.4%
Color 3
48
57
18.8%
22.4%
Color 4
58
67
22.7%
26.3%
Color 5
68
77
26.7%
30.2%
Color 6
78
87
30.6%
34.1%
Color 7
88
97
34.5%
38.0%
Color 8
98
107
38.4%
42.0%
Color 9
108
117
42.4%
45.9%
Color 10
118
127
46.3%
49.8%
Color 11
128
187
50.2%
73.3%
Color1 continous rotation CW from
slow to fast
188
195
73.7%
76.5%
Stop
196
255
76.9%
100.0%
Color1 continous rotation CCW from
slow to fast

GTD-330 N BSW User Manual
16
DMX mode
Name
DMX value
DMX percentage
Function
Default
DMX
Value
Standard
(19ch)
Basic
(16ch)
Extended
(22ch)
4
4
5
Gobo wheel
(static)
0
7
0.0%
2.7%
Open gobo
0(0%)
8
10
3.1%
3.9%
Gobo 1
11
13
4.3%
5.1%
Gobo 2
14
16
5.5%
6.3%
Gobo 3
17
19
6.7%
7.5%
Gobo 4
20
22
7.8%
8.6%
Gobo 5
23
25
9.0%
9.8%
Gobo 6
26
28
10.2%
11.0%
Gobo 7
29
31
11.4%
12.2%
Gobo 8
32
34
12.5%
13.3%
Gobo 9
35
37
13.7%
14.5%
Gobo 10
38
40
14.9%
15.7%
Gobo 11
41
43
16.1%
16.9%
Open gobo
44
50
17.3%
19.6%
Gobo 1 shake
51
57
20.0%
22.4%
Gobo 2 shake
58
64
22.7%
25.1%
Gobo 3 shake
65
71
25.5%
27.8%
Gobo 4 shake
72
78
28.2%
30.6%
Gobo 5 shake
79
85
31.0%
33.3%
Gobo 6 shake
86
92
33.7%
36.1%
Gobo 7 shake
93
99
36.5%
38.8%
Gobo 8 shake
100
106
39.2%
41.6%
Gobo 9 shake
107
113
42.0%
44.3%
Gobo 10 shake
114
127
44.7%
49.8%
Gobo 11 shake
128
187
50.2%
73.3%
Gobo wheel continous rotation CW
from slow to fast
188
195
73.7%
76.5%
Stop
196
255
76.9%
100.0%
Gobo wheel continous rotation CCW
from slow to fast

GTD-330 N BSW User Manual
17
DMX mode
Name
DMX value
DMX percentage
Function
Default
DMX
Value
Standard
(19ch)
Basic
(16ch)
Extended
(22ch)
5
5
6
Rotating gobo
wheel
0
7
0.0%
2.7%
Open gobo
0(0%)
8
12
3.1%
4.7%
Gobo 1
13
17
5.1%
6.7%
Gobo 2
18
22
7.1%
8.6%
Gobo 3
23
27
9.0%
10.6%
Gobo 4
28
32
11.0%
12.5%
Gobo 5
33
37
12.9%
14.5%
Gobo 6
38
42
14.9%
16.5%
Gobo 7
43
47
16.9%
18.4%
Gobo 8
48
57
18.8%
22.4%
Gobo 1 shake
58
67
22.7%
26.3%
Gobo 2 shake
68
77
26.7%
30.2%
Gobo 3 shake
78
87
30.6%
34.1%
Gobo 4 shake
88
97
34.5%
38.0%
Gobo 5 shake
98
107
38.4%
42.0%
Gobo 6 shake
108
117
42.4%
45.9%
Gobo 7 shake
118
127
46.3%
49.8%
Gobo 8 shake
128
187
50.2%
73.3%
Gobo wheel continous rotation CW
from slow to fast
188
195
73.7%
76.5%
Stop
196
255
76.9%
100.0%
Gobo wheel continous rotation CCW
from slow to fast
0(0%)
6
6
7
Gobo
rotating/positio
ning gobo
wheel
0
127
0.0%
49.8%
Gobo rotation positioning
128
187
50.2%
73.3%
Gobo continous rotation CW from
slow to fast
188
195
73.7%
76.5%
Stop
196
255
76.9%
100.0%
Gobo continous rotation CCW from
slow to fast
7
8
0
65535
0.0%
100.0%
Gobo rotation/positioning, fine (LSB)
8
7
9
Focus
0
255
0.0%
100.0%
Near → Far
0(0%)
10
0
65535
0.0%
100.0%
Focus, fine (LSB)
9
8
11
Zoom
0
255
0.0%
100.0%
Wide → Narrow
0(0%)
12
0
65535
0.0%
100.0%
Zoom, fine (LSB)
10
9
13
Prism1
0
127
0.0%
49.8%
Off
0(0%)
128
255
50.2%
100.0%
On
11
10
14
Prism1 rotation
0
127
0.0%
49.8%
Prism indexed
0(0%)
128
187
50.2%
73.3%
Prism continous rotation CW from
slow to fast
188
195
73.7%
76.5%
Stop
196
255
76.9%
100.0%
Prism continous rotation CCW from
slow to fast

GTD-330 N BSW User Manual
18
DMX mode
Name
DMX value
DMX percentage
Function
Default
DMX
Value
Standard
(19ch)
Basic
(16ch)
Extended
(22ch)
12
11
15
Prism2
0
127
0.0%
49.8%
Off
0(0%)
128
255
50.2%
100.0%
On
13
12
16
Frost
0
127
0.0%
49.8%
Off
0(0%)
128
255
50.2%
100.0%
On
14
13
17
Pan
0
255
0.0%
100.0%
Pan
0(0%)
14
18
0
65535
0.0%
100.0%
Pan, fine (LSB)
16
14
19
Tilt
0
255
0.0%
100.0%
Tilt
46(18.0
%)
17
20
0
65535
0.0%
100.0%
Tilt, fine (LSB)
18
15
21
Scan speed
0
255
0.0%
100.0%
Scan speed from fast to slow
0(0%)
19
16
22
Special controls
0
9
0.0%
3.5%
No function
0(0%)
10
19
3.9%
7.5%
Open light after 5 seconds
20
29
7.8%
11.4%
Close light after 5 seconds
30
39
11.8%
15.3%
Color wheel half color switch
40
49
15.7%
19.2%
Color wheel random positioning
50
59
19.6%
23.1%
Reserved
60
69
23.5%
27.1%
Reset all motor after 5 seconds
70
79
27.5%
31.0%
Scan motor reset after 5 seconds
80
89
31.4%
34.9%
All color motor reset after 5 seconds
90
99
35.3%
38.8%
All gobo motor reset after 5 seconds
100
109
39.2%
42.7%
All strobe motor reset after 5 seconds
110
119
43.1%
46.7%
Other motor reset after 5 seconds
120
129
47.1%
50.6%
Built-in program 1
130
139
51.0%
54.5%
Built-in program 2
140
149
54.9%
58.4%
Built-in program 3
150
159
58.8%
62.4%
Built-in program 4
160
169
62.7%
66.3%
Built-in program 5
170
179
66.7%
70.2%
Built-in program 6
180
189
70.6%
74.1%
Built-in program 7
190
199
74.5%
78.0%
Built-in program 8
200
209
78.4%
82.0%
Built-in program 9
210
219
82.4%
85.9%
Built-in program 10
220
255
86.3%
100.0%
Reserved
Notes
Do not switch off the fixture within the first minute after switching on. Wait for at least 5 minutes to switch on the fixture.

GTD-330 N BSW User Manual
19
Technical specification
Optical
Light source: MSD Platinum 16 R
Expected average lifetime: 1500 hours
Beam angle (zoom): SPOT: 3°- 40°BEAM: 3°-15°WASH: 10°-60°
Focus: Variable range, linear focus
Prism: one 8-facet prism, one flat 8-facet prism, individually controllable, generating two rings of prisms rotating in
opposite directions.
Frost: variable frost system for a soft and natural field
Ballast: Electronic
Photometric
Total Output (Lumen): 10000 lumens
Color temperature: 6400K
Gobo
Rotating gobo: 8 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 11 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 14.4mm
Max. Image diameter: 7.0mm
Max. Thickness: 0.3mm(Metal)
Glass/Metal gobo: Metal
Color
Color wheel: 11 colors + open, split color, CW/CCW rotation, variable speed
Electrical
Power input, nominal: AC 100-240V, 50/60Hz
Max. Power consumption: 550W, max current: 5.5A, PF: 0.96
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/6.3A
Control and programming
Control channels (DMX): 22/19/16
Protocol: DMX-512
Display: Graphic LCD backlit
Physical / Installation
Weight: 24 kg (53 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
