GTD GTD-LM660 II Profile User manual

LED Moving Head
GTD-LM660 II Profile
User’s Manual
Guangzhou GTD Lighting Technology Co., Ltd.
Tel: [phone]
Fax: [phone]
http://www.gtd-lighting.com

GTD-LM660II Profile User Manual
1
© 2018 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change
without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law
or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their
respective companies and are hereby acknowledged. All non-GTD brands and product names are trademarks or registered
trademarks of their respective companies.
GTD and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical
damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information
contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation,
rigging, and operation of this product.
Guangzhou GTD Lighting Technology Co., Ltd. | 27 Fu Yuan Yi Road, Guangzhou 510805, P.R.China
[phone] | [phone] fax | www.gtd-lighting.com | [e-mail]

GTD-LM660II Profile User Manual
2
Contents
Safety instructions...................................................................................................................................................................... 3
General guidelines...................................................................................................................................................................... 4
Packing and shipping .................................................................................................................................................................. 5
Protection lock................................................................................................................................................................................ 5
Unpacking ....................................................................................................................................................................................... 5
Packing after use............................................................................................................................................................................. 5
Accessories................................................................................................................................................................................. 6
Product introduction .................................................................................................................................................................. 6
Installation ................................................................................................................................................................................. 7
Clamps installation ......................................................................................................................................................................... 7
Device installation .......................................................................................................................................................................... 7
Power / Control connection ....................................................................................................................................................... 7
Power connection........................................................................................................................................................................... 7
Control connection ......................................................................................................................................................................... 8
Testing ............................................................................................................................................................................................ 8
Control panel.............................................................................................................................................................................. 9
Gobos and colors...................................................................................................................................................................... 10
Gobo specification ........................................................................................................................................................................ 10
Gobos............................................................................................................................................................................................ 10
Colors............................................................................................................................................................................................ 11
Menu structure ........................................................................................................................................................................ 12
DMX protocol........................................................................................................................................................................... 14
Technical specification ............................................................................................................................................................. 19
Cleaning and maintenance ....................................................................................................................................................... 21
Troubleshooting ....................................................................................................................................................................... 12
System wiring diagram ............................................................................................................................................................. 23
Spare parts list ......................................................................................................................................................................... 24
Appendix 1 ............................................................................................................................................................................... 24

GTD-LM660II Profile User Manual
3

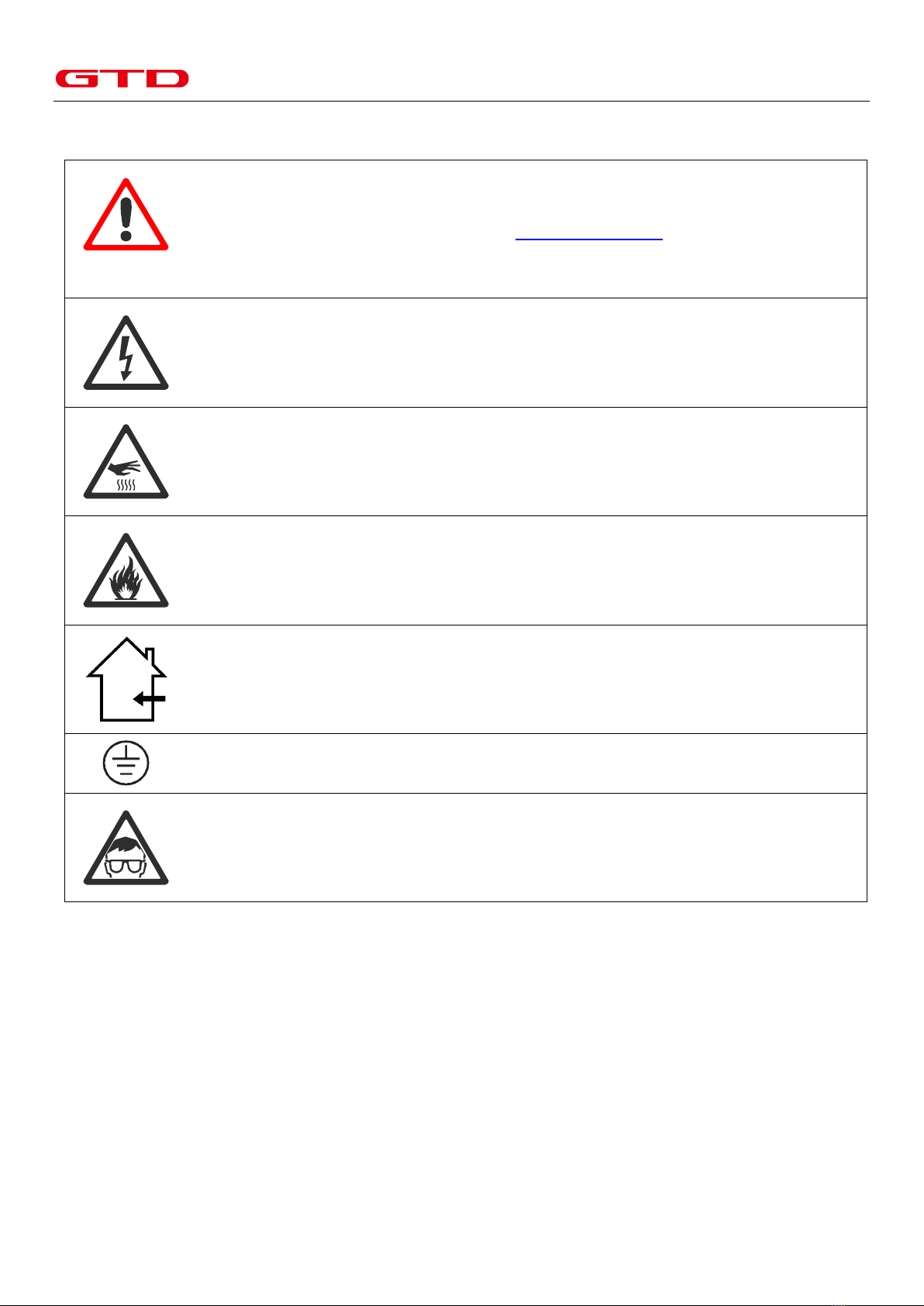

Safety instructions
WARNING!
Before using the fixture, read the latest version of the product user manual, paying particular
attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update
of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from
misuse of this fixture, due to the disregard of the information printed in this user manual.
DANGER!
Hazardous voltage. Risk of lethal or severe electric shock.
WARNING!
Burn hazard. Hot surface. Do not touch.
WARNING!
Fire hazard.
INDOORS USE ONLY!
Do not expose fixture for rain and moisture.
It’s essential that the fixture is properly grounded. Only qualified personnel should perform electrical
connections.
WARNING!
Wear protective eyewear. Never look directly into the light source.
Only qualified and certified personnel should perform installation of this fixture and only the original rigging parts
(brackets) included with this fixture should be used for installation.
Before applying power to the fixture, check that the source voltage matches the fixture's requirement. Every fixture
must be earthed (grounded) and installed in accordance with local electricity regulations. Do not connect it to a
dimmer system.
Never look directly into the light source of this fixture to prevent risk of injury to your retina, which may induce
blindness.

GTD-LM660II Profile User Manual
4
General guidelines
Never open this fixture while in use.
The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environments. Avoid contact
with chemical liquid.
This fixture is a professional light effect designed for INDOOR / DRY LOCATIONS ONLY on stage, in nightclubs,
theatres, etc.
Minimum distance to lighted objects must be 16.40feet (5m).
Maximum temp of the external surface 158˚F (70˚C).
Maximum ambient temperature 113˚F (45˚C).
Minimum distance of inflammable materials from the surface 1.6 feet (0.5m).
LED lamp should be changed if damaged or distorted in shape due to extreme heat.
The light source of the fixture should be changed by the manufacture or its service agent or certified technicians.
WARNING! Risk of electric shock.
The basic insulation should be kept between the controllable device and the power supply.
Cover, prism or LCD Menu Function Display with visible damages such as cracks or scratches must be replaced to
ensure performance of the fixture.
Disconnect the fixture from power before changing any parts or accessories.
Make sure that the installation area can hold a minimum point load of 10 times the weight of all installed fixtures,
clamps, cables, auxiliary equipment, etc. Check that the cover, clamps and locks are undamaged. Certified safety
cables must always be used when installing the fixture.
The fixture is only intended for installation, operation and maintenance by qualified professional. Instructions stated
in the manual must be complied.
The fixture must be kept in a well-ventilated place at least 50 cm away from any wall surface. Check if the fans or
ventilation openings are unblocked.
Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the
manufacturer to ensure operational safety.
Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured
parts.
For questions regarding safety operation, please contact our technical personnel or call the service hotline +8620
61808296.

GTD-LM660II Profile User Manual
5
Packing and shipping

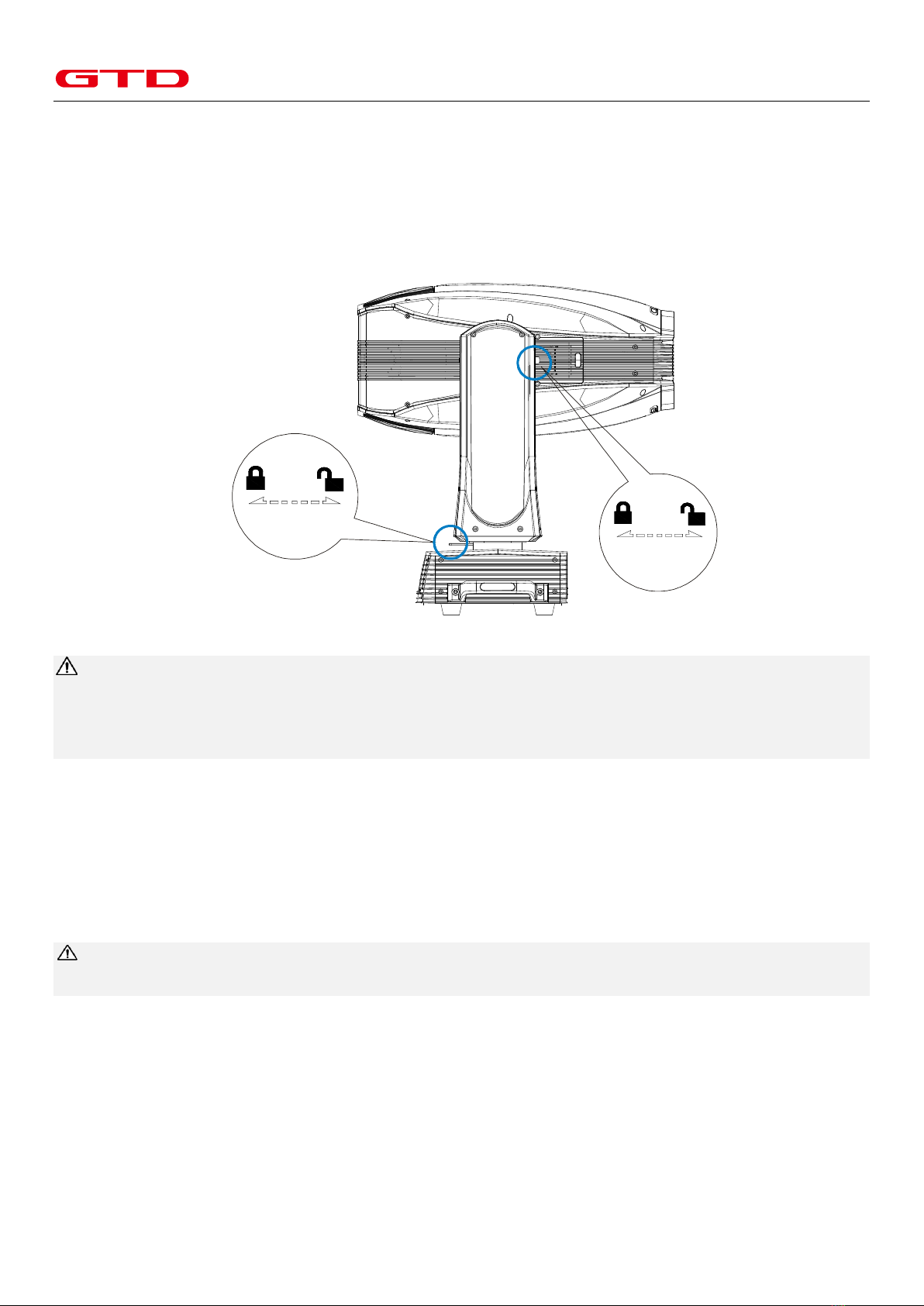

Protection lock
Pan and tilt locks are equipped to ensure safe transportation.
PAN: 4 lock positions are located evenly on the Pan.
TILT: 7 lock positions are located on left and right side of the Tilt with the third one in the center.
Unpacking
Notes
All products are quality controlled and checked for any faults before they are dispatched to customers. If the fixture is
damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.
Photographic evidence of the damage must be provided.
Flight-Case
Open the cover of the flight-case and remove the plastic packing bags. Hold the handles of the fixture firmly and take it out
carefully.
Carton box
Open the box and take out the whole set of packaging foam which contains both the fixture and its accessories. Remove the
foam from the top, put away the accessories, and then take out the fixture wrapped in the plastic bag.
Notes
Check if the pan and tilt are unlocked before connecting the fixture to power.
Packing after use
1. Switch off the fixture and wait for at least 5 minutes before disconnecting it from AC power. Cool down the fixture for
at least 15 minutes before packing.
2. Lock pan and tilt.
3. Flight case: Wrap the fixture in plastic bags. Hold it by the handles, and then carefully place it inside the flight case
along with all the accessories. Close the cover. Only 2 layers are allowed when piling up the flight cases. Do not upside
down.
Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories. Place the
other set of packaging foam on top then carefully put it inside the cardboard box.
Pan lock
Tilt lock

GTD-LM660II Profile User Manual
6
Accessories
Item
Qty
Unit
Notes
User Manual
1
pc
---
Clamps
2
set
Straight 02A+21A 42-52mm load
bearing:200KG
Safety cable
1
pc
---
Signal r cable
1
Pc
---
Power cable
1
pc
---
Notes
Accessories are subject to change without any prior written notice.

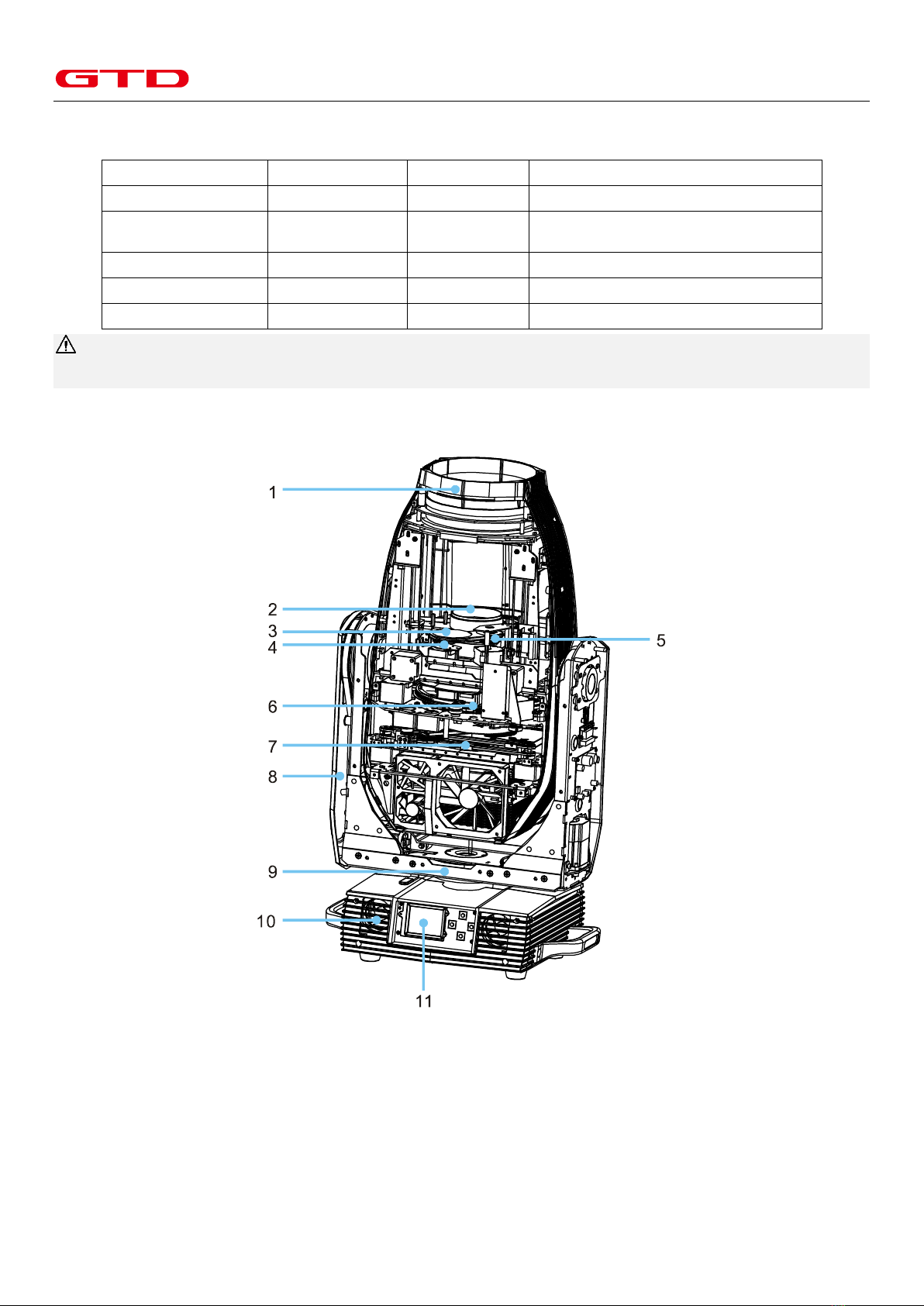

Product introduction
1 Head
2 Zoom
3 Frost
4 Prism
5 Focus
6 Color & gobo wheels module
7 CMY module
8 Tilt
9 Pan
10 Base
11 Display

GTD-LM660II Profile User Manual
7
Installation

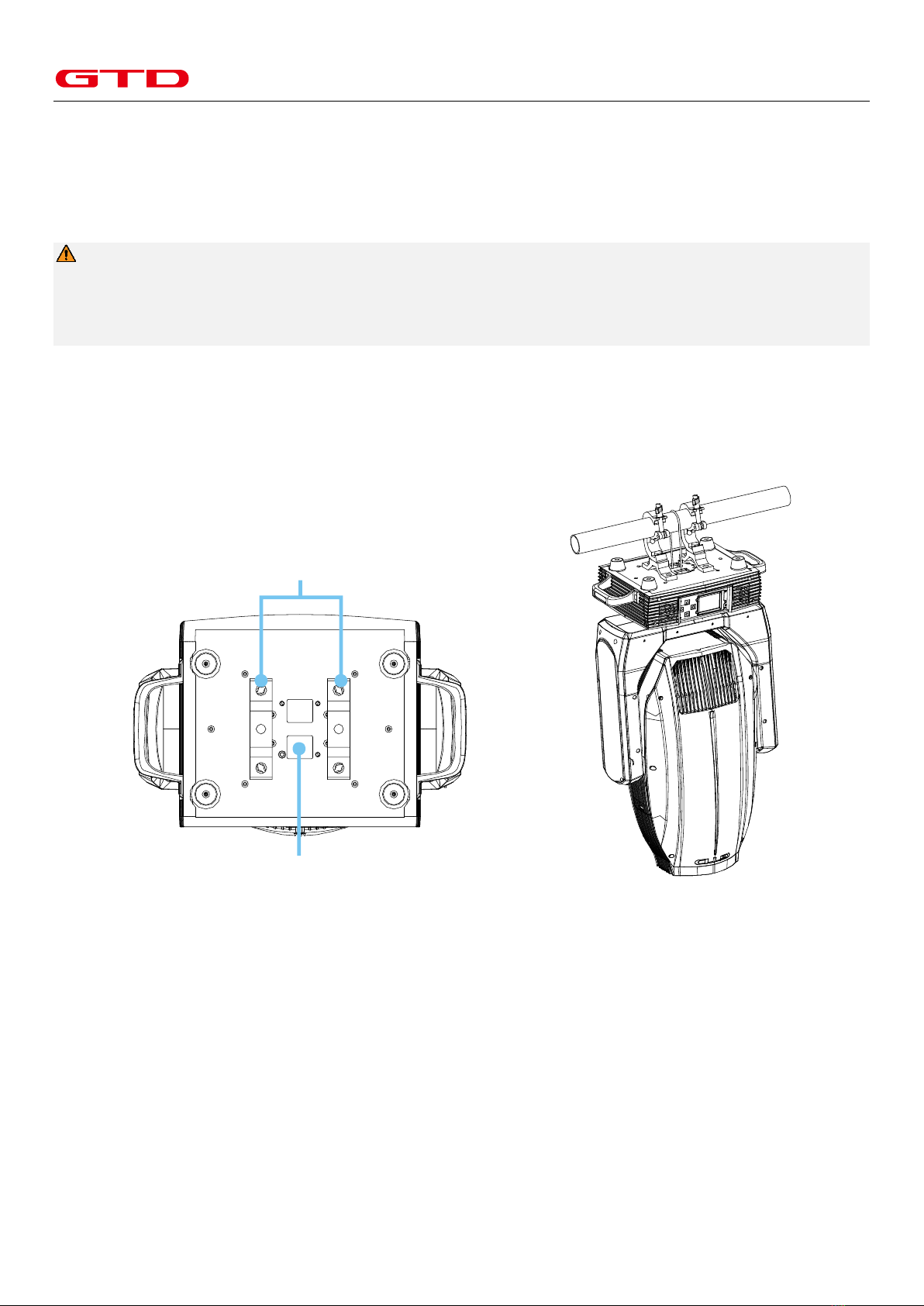

Clamps installation
The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting
position on the base of the fixture.
Warning
Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock. Always
remember to use the safety cable which goes through the mounting hole on the base. Do not attach the safety cable on the
handle.
Device installation
1. Make sure there is no damage on the clamps or safety cables before installation.
2. The clamp is mounted on the chassis of the fixture. Horizontally insert the clamp into the mounting holes of the chassis.
Fasten the clamp tightly. Fix another clamp in the same way.
3. Check if pan and tilt are unlocked before connecting the unit to AC power.
Power/ Control connection
Power connection
Connection method:
L (Live) Brown wire
E (Earth) Yellow / Green bi-color wire
N (Neutral) Blue wire
The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is
strongly recommended that each fixture are to be connected to the power source separately so that they can be
switched on / off individually.
Clamp
Installation position
for Safety cable

GTD-LM660II Profile User Manual
8
Notes
It is essential that each fixture is correctly grounded and the electrical installation conforms to all relevant Standards / Codes
of Practice for Safe Electrical Work.
Control connection
The fixture has 5-pin (3-pin optional) XLR connectors for DMX data input and output as shown below. Connection between
the console and fixture, and between fixtures must be made with 2 core screened DMX signal cable. Maximum connecting
distance of signal cable is 150 meters. Additional DMX512 signal-amplifier is recommended for longer distance.
Connect the Console’s DMX OUTPUT to the first fixture’s DMX INPUT, then the first fixture’s DMX OUTPUT to the second
fixture’s DMX INPUT and so on. It is recommended not to connect more than 32 units on a single DMX universe. On the last
fixture‘s output connect a DMX terminator. (The terminator is a XLR connector with a ¼ W and 120Ω resistor between the
pin 2 and pin 3) as shown below:
Testing
Connect the fixture to AC power. Check if the LED lamp is on and the fixture is independently controllable before putting
into operation.
1
3
2
2
3
1
DMX 512
1：Ground
2：-
3：+
3
5
4
2
1
3
1
2
4
5
DMX 512
1：Ground
2：-
3：+
4：Reserved
3：Reserved

GTD-LM660II Profile User Manual
9
Control panel
The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code
and functions menu.
Press UP or DOWN to view or select the function menu.
Press ENTER to choose a function and enter into corresponding sub menu. Each menu represents a specific function
of the fixture.
Press ENTER to select the specific function and save the changes or enter into the submenu, then press UP or DOWN
to change the value of the selected function (increase or decrease).
Press MENU to return to the previous menu or exit.
LED indicators:
Power on: RED power LED indicator on
Gobos and colors
Gobo specification
All patterns can be made onto the glass or metal gobos, and can be customized according to user’s requirement. The
customized size is as below:
Gobo material
Outer dimension
Effective dimension
Thickness
Glass gobo
¢26mm
¢18mm
1.1mm/4.1mm
Notes
Glass Gobo is made of high temperature resistant glass. Metal Gobo is made of high temperature resistant aluminum
alloy in laser cutting.
Gobos
One rotating gobo wheels: 7 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
One fixed gobo wheel: 9gobos + open, CW/CCW rotation, variable speed
