GTD GTD-F4019 WASH User manual

GTD-F4019 WASH
User Manual
Guangzhou GTD Culture & Technology Group Co.,Ltd.
Tel: [phone]
Fax: [phone]
www.gtd-lighting.com

2
GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without
notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed
includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or
hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective
companies and are hereby acknowledged. All non-GTD brands and product names are trademarks or registered trademarks
of their respective companies.
GTD and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical
damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information
contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation,
rigging, and operation of this product.
Guangzhou GTD Culture & Technology Group Co.,Ltd. | 27 Fu Yuan Yi Road, Guangzhou 510805, P.R.China
[phone] | [phone] fax | www.gtd-lighting.com | [e-mail]
P/N：1502011107A

2
Contents
1. Safety instructions.......................................................................................................................................................1
2. Product introductions.................................................................................................................................................3
2.1 Dimensions..............................................................................................................................................................3
2.2 Fixture overview......................................................................................................................................................4
2.3 Accessories..............................................................................................................................................................4
3. Packing and shipping..................................................................................................................................................5
3.1 Protection lock.........................................................................................................................................................5
3.2 Unpacking...............................................................................................................................................................5
3.3 Packing after use .....................................................................................................................................................5
4. Installation...................................................................................................................................................................6
4.1 Clamps installation..................................................................................................................................................6
4.2 Device installation...................................................................................................................................................7
5. Power / Control connection ......................................................................................................................................7
5.1 Power connection....................................................................................................................................................7
5.2 Control connection..................................................................................................................................................7
5.3 Testing.....................................................................................................................................................................7
6. Control panel...............................................................................................................................................................8
6.1 Panel instruction......................................................................................................................................................8
7. Technical specification................................................................................................................................................9
8. Menu structure..........................................................................................................................................................12
9. DMX protocol............................................................................................................................................................14
10. System wiring diagram...........................................................................................................................................23
11. Maintenance and Troubleshooting........................................................................................................................24
11.1 Cleaning and maintenance...................................................................................................................................24
11.2 Troubleshooting...................................................................................................................................................24
12. Spare parts list.........................................................................................................................................................27

1
1.Safety instructions
Before using the fixture, read the latest version of the product user manual, paying particular attention to
the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual.
Indoors use only.
m
ta
tc
The manufacture of this fixture, are not responsible for damages, resulting from misuse of this
fixture, due to the disregard of the information printed in this user manual.
DANGER!
Hazardous voltage. Risk of lethal or severe electric shock
WARNING!
Wear protective eyewear. Never look directly into the light source.
WARNING!
Burn hazard. Hot surface. Do not touch.
Only to direct mounting on non-combustible surfaces.
Minimum distance to lighted objects.
Replace all cracked glass shields.
Maximum ambient temperature.
Maximum temp of the external surface.

2
General guidelines
The protection rating of this product IP66.
Never open this fixture while it is in use.
The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environments. Avoid contact
with chemical liquid.
Minimum distance to lighted objects must be 16.4 feet (5m).
Maximum temp of the external surface 167 ˚F (70˚C).
Maximum ambient temperature 113˚F (45˚C).
Minimum distance of inflammable materials from the surface 3.28feet (1m).
Lamp should be replaced if damaged or distorted in shape due to extreme heat.
Cover, prism or LCD Menu Function Display with visible damages such as cracks or scratches must be replaced to
ensure performance of the fixture.
Disconnect the fixture from power before changing any parts or accessories.
Basic insulation should be maintained between the controllable device and the product power supply.
Make sure that the installation area can hold a minimum point load of 10 times the weight of all installed fixtures,
clamps, cables, auxiliary equipment, etc. Make sure that the cover, clamps and locks are undamaged. Certified safety
cables must always be used when installing the fixture.
The fixture is only intended for installation, operation and maintenance by qualified professional. Instructions stated in
the manual must be complied.
The fixture must be kept in a well-ventilated place at least 50 cm away from any wall surface. Check if the fans or
ventilation openings are unblocked.
This fixture uses discharge lamp. Avoiding reduce the lamp’s life, wait at least 15 minutes after powering off to allow
the unit to cool down before handling.
To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by certified
technicians, certified local distributors or the manufacturer.
Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured
parts.
For questions regarding safety operation, please contact our technical personnel or call the service hotline
[phone].

3
2. Production instructions
2.1 Dimensions
482
418(16.46")
118(4.65")
420(16.54")
473(18.62")
344(13.54")
390(15.35")
305(12")
310(12.2")
280(11")
334(13.15")
120(4.73") 227(8.94")
230°
270°
270°

4
2.2 Fixture overview
2.3 Accessories
Item Qty Unit Remark
User Manual 1 Pc --
Clamps 2 Set Hanging integrated folding lamp.
Safety cable 1 Pc Φ5*60cm 7*19 pc with hook Material：Steel
Power line 1 Set 1.5m*2.5mm²

5
3. Packing and shipping
3.1 Protection lock
Pan and tilt locks are equipped to ensure safe transportation.
The horizontal axis has 2 locking points.
3.2 Unpacking
Notes
All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery,
the customer must notify the shipper and manufacturer to file a damage insurance claim. Photographic evidence
of the damage must be provided.
Flight-Case(specification:
1148*650*555mm)：
Uncover the flight-case and remove the plastic packing bags. Hold
the handles of the fixture firmly and take it out carefully.
Cardboard box(specification：590*510*635mm)
：Open the box and take out the whole set of packaging foam
which are contained both the fixture and its accessories. Remove the foam from the top, put away the
accessories, and then take out the fixture wrapped in the plastic bag.
Notes
Check if the pan and tilt are locked before connecting the fixture to power.
3.3 Packing after use
1. Switch off the fixture and wait for at least 5 minutes before disconnecting it from AC power. Cool down the
fixture for at least 15 minutes before packing.
2. Lock pan and tilt.
3. Flight case: Wrap the fixture in plastic bags. Gripping the handle and then place it in the flight case along with
all the accessories carefully. Close the cover lid. The wrap page are not allowed over 3 layers. Do not upside
down.
4. Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories.
Place the other set of packaging foam on top then put it carefully in the cardboard box.

6
4. Installation

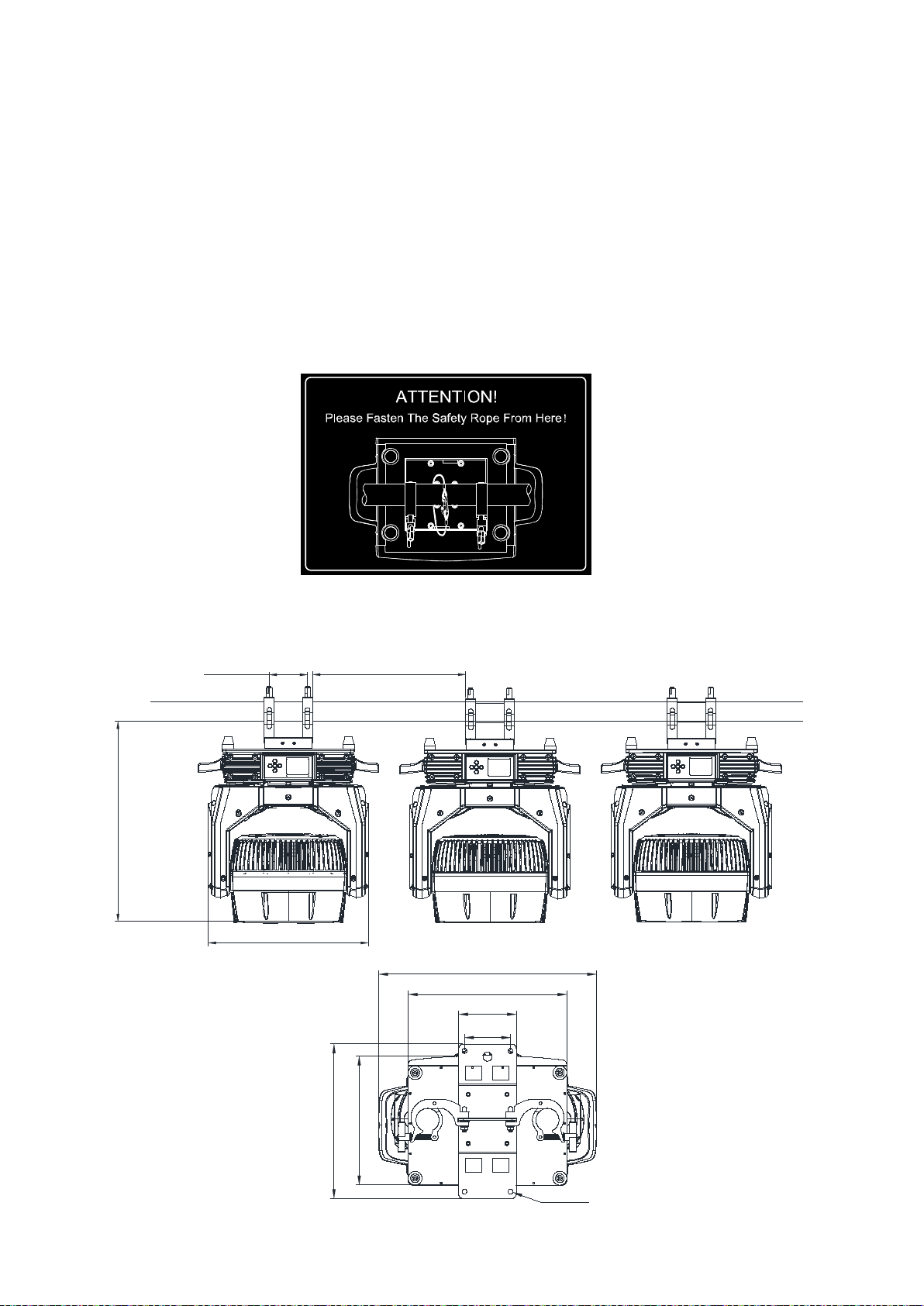

4.1 Clamps installation
The fixture can be placed on the stage or mounted on the truss which faces any direction. Attach the clamps to
the mounting position on the base of the fixture.
Warning：
Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise
to lock. Always remember to use the safety cable which goes through the mounting hole on the base. Do not attach
the safety cable on the handle.
4.2 Device installation
1. Make sure there is no damage on the clamps or safety cables before installation.
2. The clamp is mounted on the chassis of the fixture. Horizontally insert the clamp into the mounting holes of the
chassis. Fasten the clamp tightly by a 1/4 turn clockwise. Fix another clamp in the same way.
3. Check if pan is locked before connecting the unit to AC power.
523(20.6")
400(15.75")
100(3.94")
418(16.46")
100(3.98")
125(4.92")
344(13.54")
472(18.58")
279(10.98")
334(13.15")
4- ? 1/2"

7
5. Power/ Control connection
5.1 Power connection
Connection method:
L (Live) Brown wire
E (Earth) Yellow / Green bi-color wire
N (Neutral) Blue wire
The voltage and frequency of the power source must be in compliance with the ones marked on the fixture.
It is strongly recommended that each fixture are to be connected to the power source separately so that they
can be switched on / off individually.
5.2 Control connection

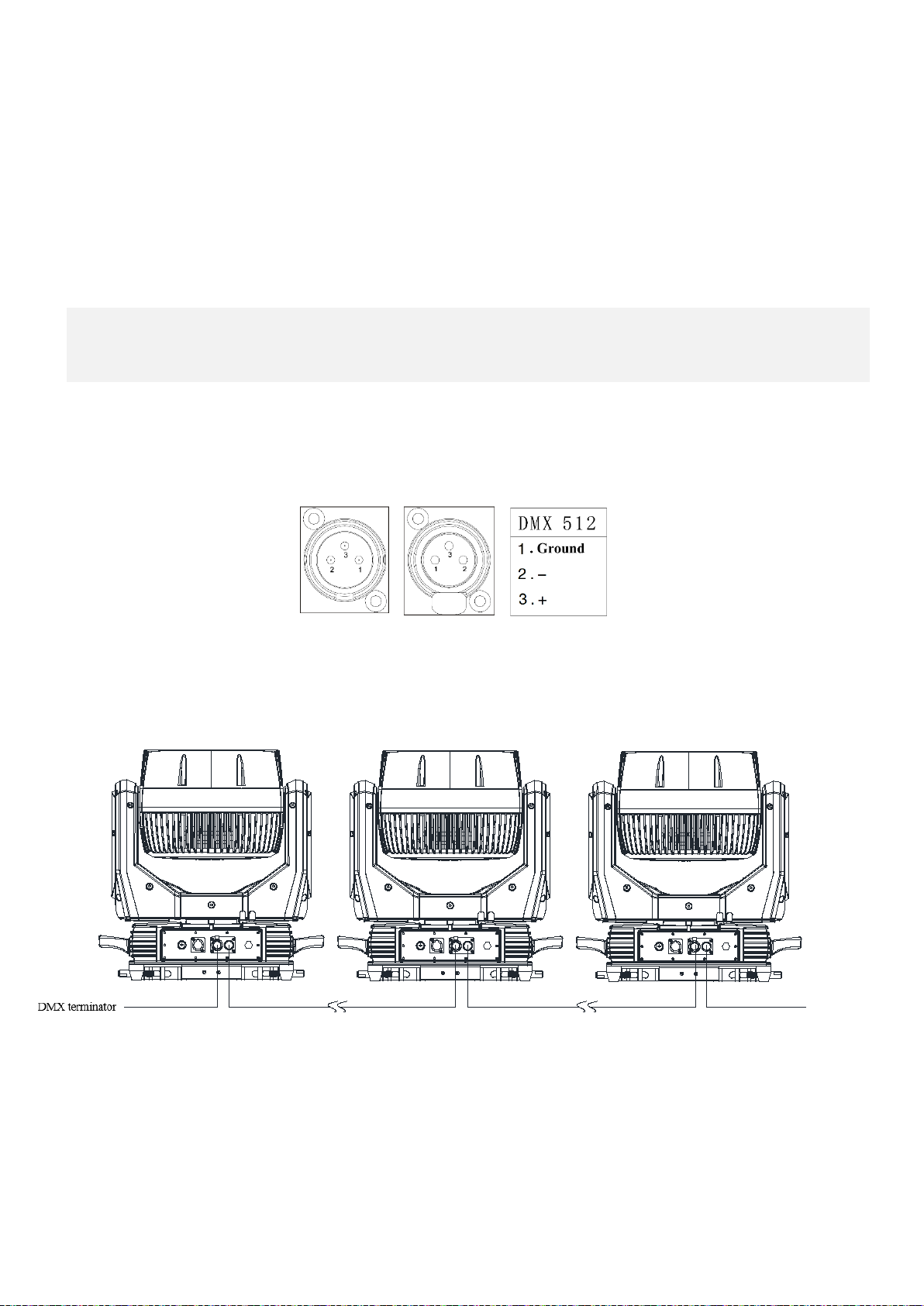

The fixture has 3-pin XLR connectors for DMX data input and output as shown below. Connection between the
console and fixture, and between fixtures must be made with 2 core screened DMX signal cable. Maximum
connecting distance of signal cable is 150 meters. Additional DMX512 signal-amplifier is recommended for
longer distance.
Connect the Console’s DMX OUTPUT to the first fixture’s DMX INPUT, then the first fixture’s DMX OUTPUT to
the second fixture’s DMX INPUT and so on. It is recommended not to connect more than 32 units on a single
DMX universe. On the last fixture’s output connect a DMX terminator. (The terminator is a 3-pin XLR connector
with a 1/2W and 120Ω resistor between the pin 2 and pin 3) as shown below:
5.3 Testing
Connect the fixture to AC power. Check if the lamp is on and the fixture is independently controllable before
putting into operation.
Input Output
Output Input
Input Output
Console
