HEAT-OUT-GAS
- Installation Instructions -
1 Introduction
DO NOT DISCARD THIS MANUAL
NOTICE
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read, understand and follow
these instructions for safe
installation and operation.
Table of Contents
1 Introduction
A. Introduction ....................................1
B. Approvals ......................................1
C. Kit Contents of HEAT-OUT-GAS ....................2
D. Installation Guidelines ............................ 3
2 Framing
A. Framing .......................................6
B. Installing Vent Cap ...............................8
C. Connecting Insulated Flex Duct ....................13
3 Electrical Information
A. Wiring the Appliance for the HEAT-OUT-GAS .........14
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
Installation of the HEAT-OUT-GAS may be done by a
qualied service technician only. Installation MUST com-
ply with local, regional, state and national codes and reg-
ulations.
IMPORTANT: Failure to read and follow these instruc-
tions may create a possible hazard and will void the re-
place warranty.
These instructions must remain with the equipment.
CAUTION! Failure to install, operate, and maintain the
power venting system in accordance with manufacturer's
instructions will result in conditions which may produce
bodily injury and/or property damage.
NOTICE: The fan motors present in the HEAT-OUT-GAS
Heat Management System will generate sound during op-
eration. The eects of the increased sound level can be
minimized with careful planning during installation of the
system.
CAUTION! Risk of Shock! Disconnect electrical power
from replace/power vent before performing any mainte-
nance, repair, or electrical wiring.
A. Introduction
The HEAT-OUT-GAS Heat Management system is de-
signed to remove unwanted heat from your home. The
HEAT-OUT-GAS operates on 120VAC, 60Hz electrical
services.
B. Approvals
The HEAT-OUT-GAS kit uses exible duct marked as meet-
ing requirements of UL-181, Class I ducting.
For use with these IntelliFire™ Touch models:
6000C-IFT 8000C-IFT
6000CL-IFT 8000CL-IFT
6000CLX-IFT 8000CLX-IFT
6000CMOD-IFT 8000CMOD-IFT
CD4236IFTR CD4842IFTR
CD4236IFTLR CD4842IFTLR
CNXT4236IFTT/H CNXT4842IFTT/H
MERID36/MERIDPLA36 MERIDPLA36/MERIDPLA42
COSMO32/42-IFT RAVE32/42-IFT
JADE32IN/JADE42IN/JADE42IL TRUE-IFT/HEIR-IFT
MARQ36IN/MARQ42IN/MARQ42STIN ESC-42ST-IFT
SL-3X/5X/7X/9X-IFT ECHEL-C
MEZZO-C CRAVE-C
COSMO32/36/42-IFT-B RAVE32/36/42-IFT-B
JADE32IN-B/JADE42IN-B/JADE42IL-B

2Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
If any parts are missing or damaged, contact your dealer
before starting installation. DO NOT install a damaged kit.
CAUTION! Do not install damaged components. DESCRIPTION SERVICE PART NO. QTY
6 in. Round Duct 659-200 1
Fan Base Assembly SRV4086-021 1
Cover Assembly 4086-022 1
Unit Collar 659-125 1
Damper Assembly 4086-316 1
Wall Switch Plate 2155-511 1
Wall Switch 2310-210 1
Vinyl Siding Shield 4086-140 1
*Fan Assembly HEAT-OUT-UPG 1
*Junction Box Assembly SRV2326-304 1
Variable Wall Rheostat BC10 1
C. Kit Contents of HEAT-OUT-GAS
659-200 6 Inch Round Duct
659-125 Unit Collar
2155-511 Wall Switch Plate
4086-316 Damper Assembly
4086-140 Vinyl Siding Shield
2310-210 Wall Switch
4086-022 Cover Assembly
SRV4086-021 Fan Base Assembly
*Included in Fan Base Assembly
Fan Assembly - Order HEAT-OUT-UPG
SRV2326-304 Junction Box Assembly

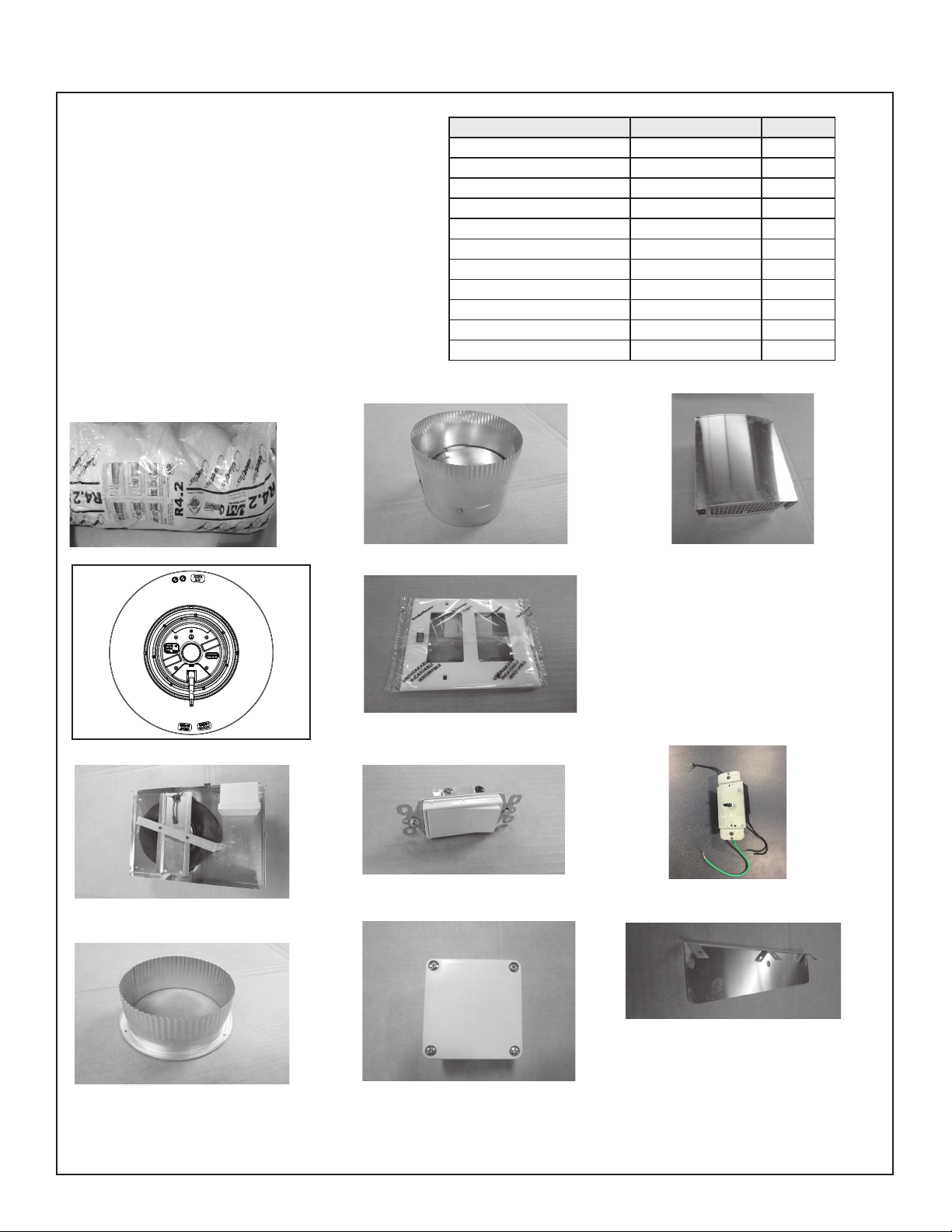

Figure 1.1 Kit Contents - HEAT-OUT-GAS
BC10 Variable Wall Rheostat
NOTICE: Install vinyl siding heat shield
only with vinyl siding.

3Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
The HEAT-OUT-GAS kit is carefully engineered and must
be installed only as specied. If you modify it or any of its
components you will void the warranty, and you may possibly
cause a re hazard. Installation must be done according to
applicable local, state, provincial, and/or national codes.
1. Installation Guidelines
a. The exit termination of mechanical draft systems shall
not be less than seven feet above grade when located
adjacent to public walkways.
b. The bottom of the exterior cap must be a minimum of
12 in. (305 mm) above nished grade.
c. The discharge outlet of the HEAT-OUT-GAS must be
directed down to prevent water inltration.
d. The damper can be installed in a horizontal or vertical
position and in any location in the system, however, the
open/close actuation is more positive when mounted
vertically.
e. If the damper would need to be accessed at some point
in the future, it's location should be taken into consid-
eration at the time of installation.
2. Other Duct Options
Metal Round And Oval Duct: A combination of 6" round
and 6" oval air duct can be used in the duct run. Metal
duct components may be purchased from an HVAC sup-
plier. A minimum of one inch clearance around uninsulat-
ed pipe must be maintained to all combustible surfaces.
Note: Support duct at intervals of no greater than 4 feet,
with no more than 1/2" sag between supports as required
by local code. Tape all seams with aluminum tape (1-1/4"
minimum width, or as specied by local codes).
D. Installation Guidelines
The HEAT-OUT-GAS accessory is tested and safe when
installed in accordance with this installation manual. It is
your responsibility to read all instructions before starting
installation and to follow these instructions carefully during
installation.
Installation of this kit MUST be performed by a qualied
service technician. After a qualied service technician
has installed the appliance and the HEAT-OUT-GAS Heat
Management System, follow the instructions supplied with
the appliance manual for operation. Contact your dealer if
you have questions.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged,
incomplete or substitute components.
See Figure 1.2, Figure 1.3, and Figure 1.4 for information.

4Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20

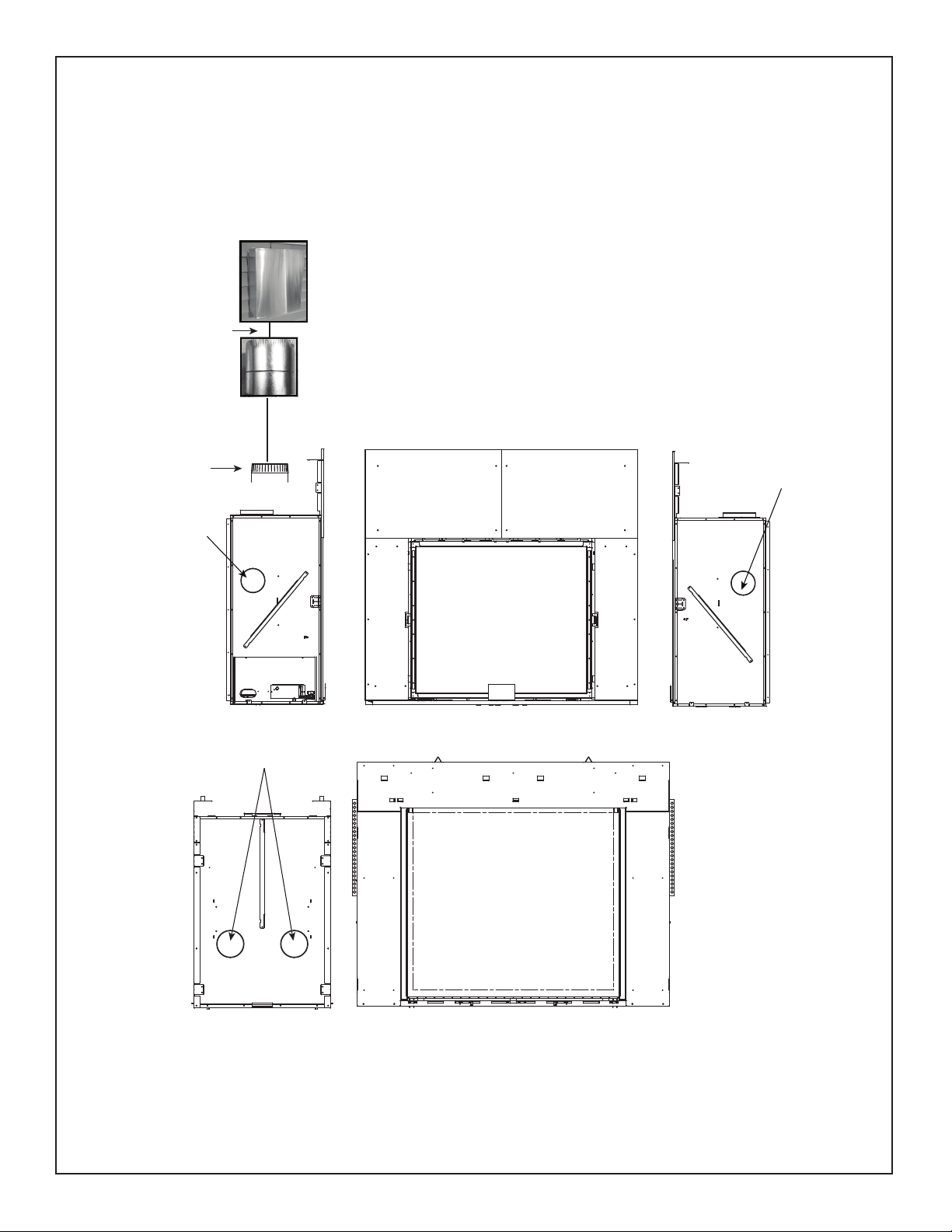

HEAT-OUT-GAS Only
***DAMPER
HEAT-OUT-GAS
COLLAR
**ATTACH WITH
ZIP TIE AT
DAMPER
*The HEAT-OUT-GAS may be installed in either position shown above.
*Note: Remove only one of the two HEAT-OUT seal plates if installing the HEAT-OUT-GAS.
The other plate must remain installed.

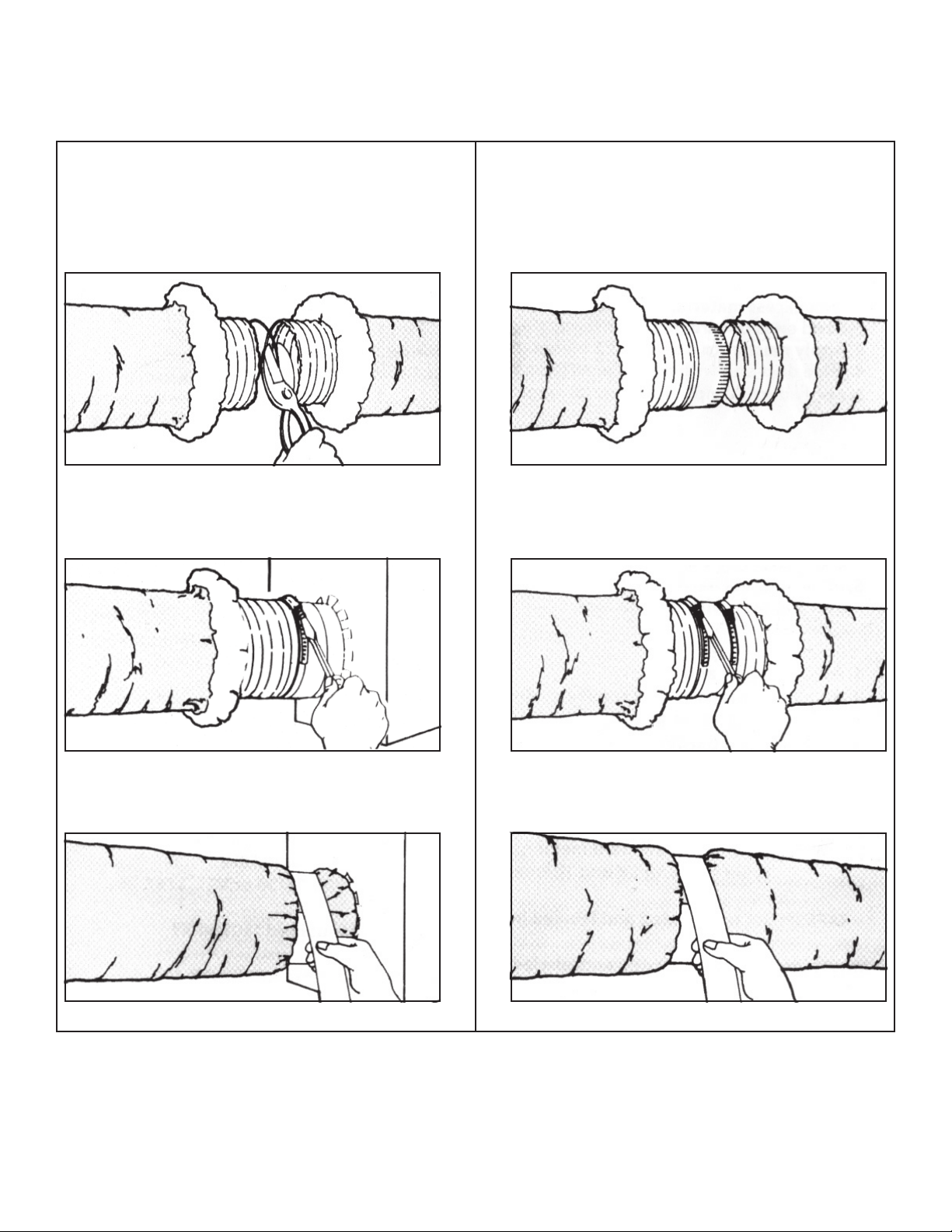

** Use included zip ties to attach the flex duct to the damper.
***Verify damper is operational and no obstructions, such as screws, are present.
*OPTIONAL
HEAT-OUT-GAS
LOCATION
*OPTIONAL
HEAT-OUT-GAS
LOCATION
TYPICAL SINGLE-SIDED APPLIANCE
*OPTIONAL HEAT-OUT-GAS LOCATIONS
Q
TYPICAL SEE-THROUGH APPLIANCE
APPLIANCE APPEARANCE WILL VARY
HEAT-OUT-GAS Configuration
NOTICE: Damper MUST be installed properly or it will not function properly.
• Vertical Mounting: Install crimped side up.
• Horizontal Mounting: Rotate so the damper closes shut when the HEAT-OUT-GAS kit is not running.
IMPORTANT: See appliance installation manual for Heat Management prep and location of approved knockout use
specic to each model unit.
Figure 1.2 HEAT-OUT-GAS Conguration

5Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
Power Vent Termination Clearances
PV
HO
HOPV
PV
HO
HO
GRADE
12 IN. MIN.
24 IN. MIN.24 IN. MIN.
6 IN. MIN.
PV = PVLP-SLP
HO = HEAT-OUT-GAS
Figure 1.4 Minimum Clearances for Termination

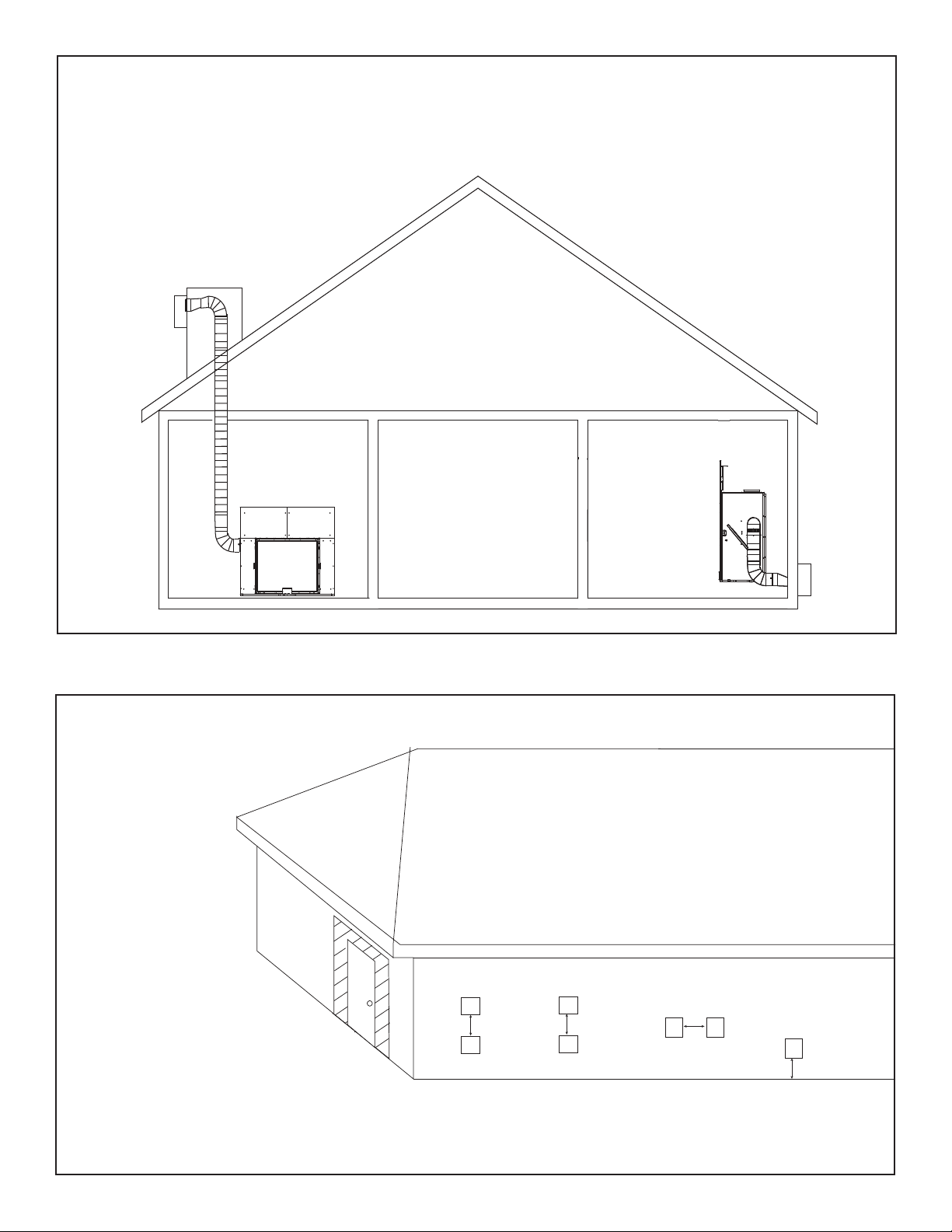

Possible Air Duct Runs/Locations
Maximum Duct Run Length: 35 FT.
Minimum Duct Run Length: 36 IN.
Clearance to exible duct = 0
Maximum Number of 90 Degree Elbows (Turns) = 6
Figure 1.3 HEAT-OUT-GAS Locations

6Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
A. Framing
Chassis Dimensions

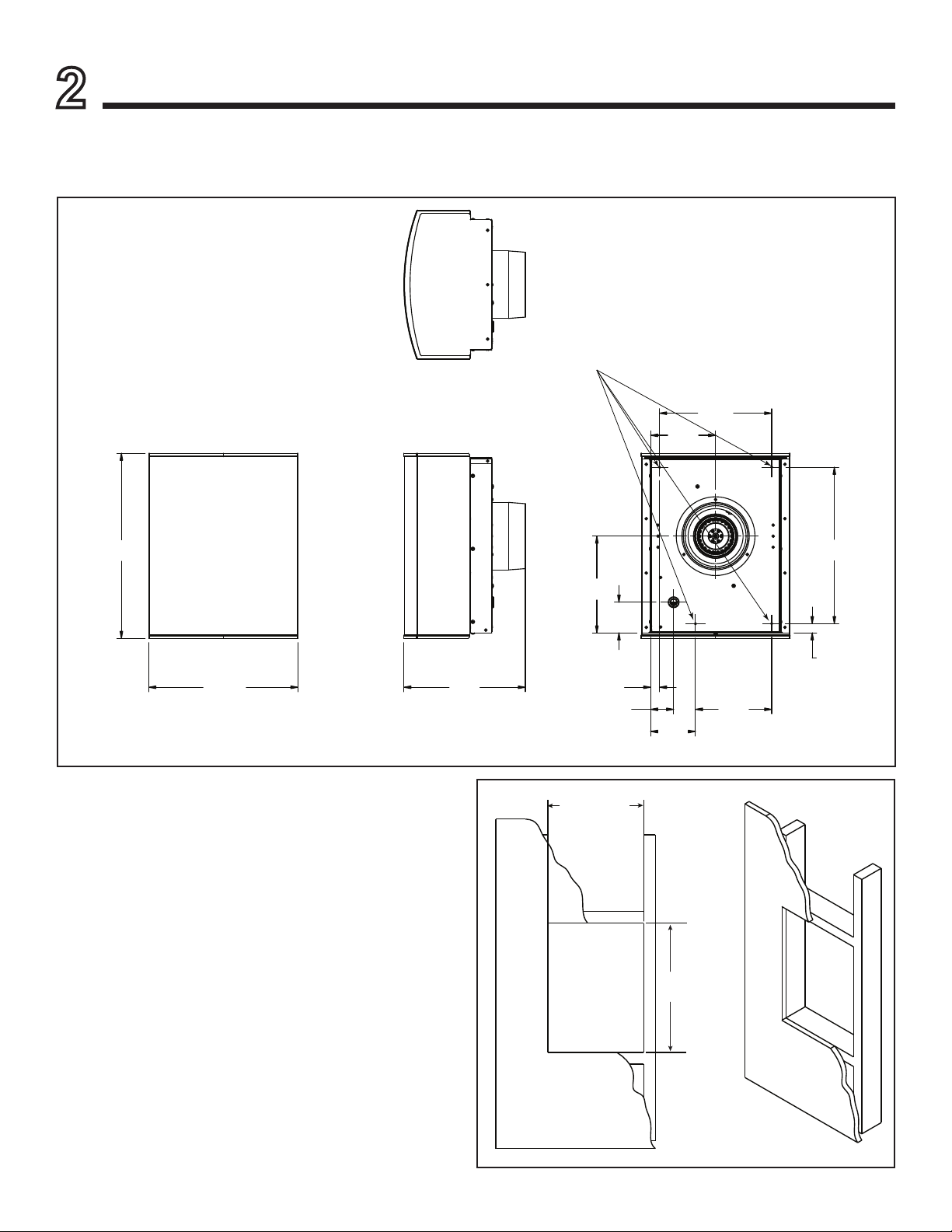

The dimensions are measured as shown in Figure 2.1.
2 Framing
Figure 2.1 Dimensions
16-3/4 in.
(425mm)
13-1/2 in.
343mm)
11 in.
(279mm)
8-3/4 in.
(222mm)
2-3/4 in.
(70mm)
3/4 in.
(20mm)
1-1/8 in.
(53mm)
5-7/8 in.
(149mm)
10-1/8 in.
(258mm)
14-1/8 in.
(360mm)
7/8 in.
(21mm)
6-7/8 in.
(175mm)
4 in.
(103mm)
Mounting Hole
Locations
12-5/8 IN.
8-5/8 IN.
Framing Dimensions
1. Construct a framework as shown in Figure 2.2.
Framework material should be the same dimensions as
the material used for the wall framing. The dimensions
of the box must be 12-5/8 inches high by 8-5/8 inches
wide.
NOTE: Framing dimensions are for mounting purposes
only and are not required for clearances.
Figure 2.2 Framing Dimensions

7Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
Roof Top Termination
1. If the HEAT-OUT-GAS is going to terminate on a at
roof, an enclosure similar to the one shown in Figure
2.3 will need to be constructed.
Figure 2.3 Flat Roof Enclosure

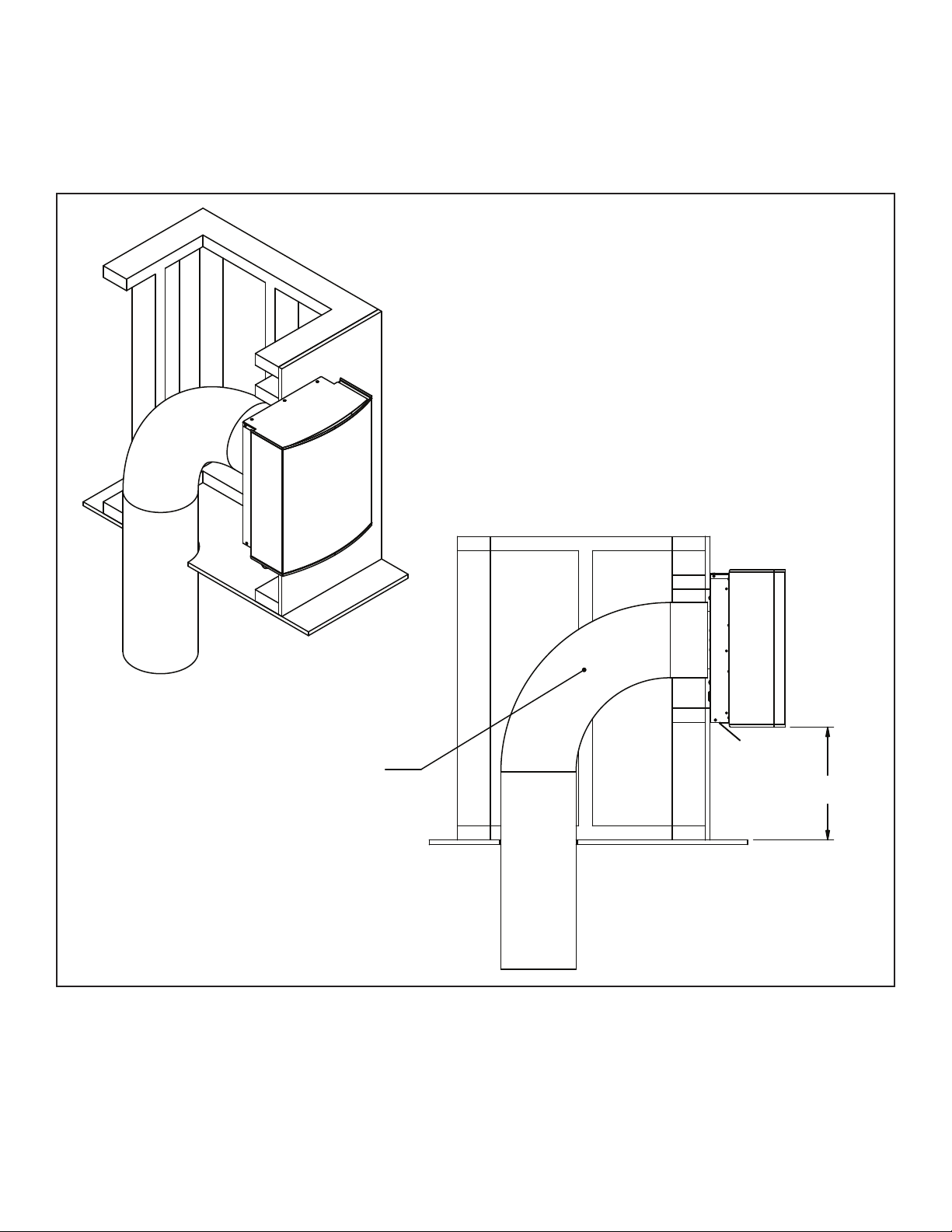

Insulated Flex Duct
12 in.
(305 mm)

8Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
Figure 2.4
B. Installing Vent Cap

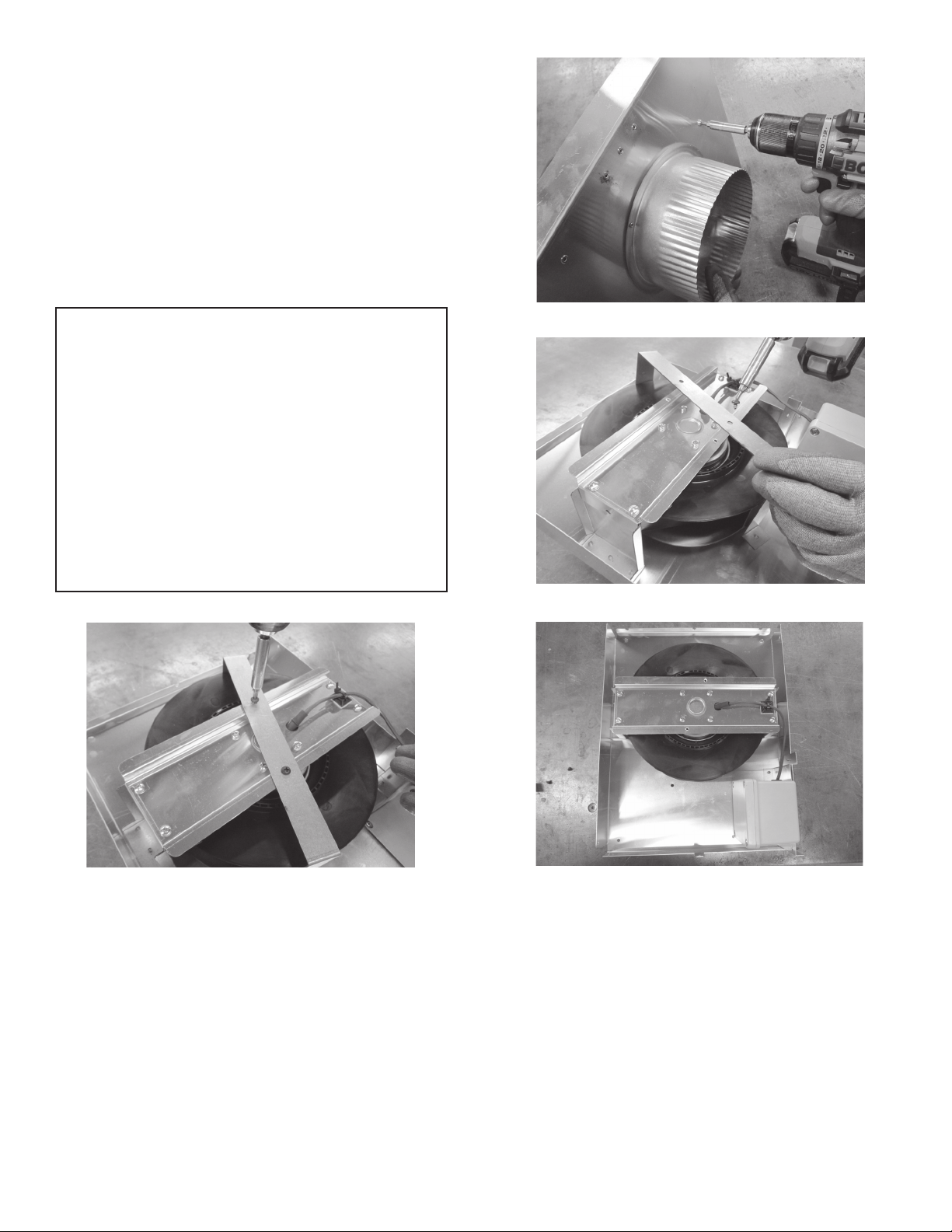

1. Remove the four screws holding the shipping bracket to
the base of the HEAT-OUT-GAS. See Figure 2.4 and
2.5.
2. Remove the shipping bracket. See Figure 2.6.
3. The HEAT-OUT-GAS base should look like the picture
in Figure 2.7.
4. Cut a 7" diameter hole in the outside of building where
the duct for the HEAT-OUT-GAS is to be located. Refer
to Figure 2.1 and Figure 2.3 for duct location on HEAT-
OUT-GAS.
Figure 2.5
Figure 2.6
Figure 2.7
NOTE:
• The HEAT-OUT-GAS may be painted to a desired
color, as long as the paint selected has su󰀩cient
temperature and environmental ratings.
• Thoroughly sand the existing coating prior to
painting with sand paper or steel wool.
• The front of the cap cover may be eld-painted
and cured up to 400 degrees Fahrenheit (204°
C).
• Certain areas of the cap surface may reach up to
250 degrees Fahrenheit (121° C). Paints selected
should have su󰀩cient temperature ratings.

9Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20

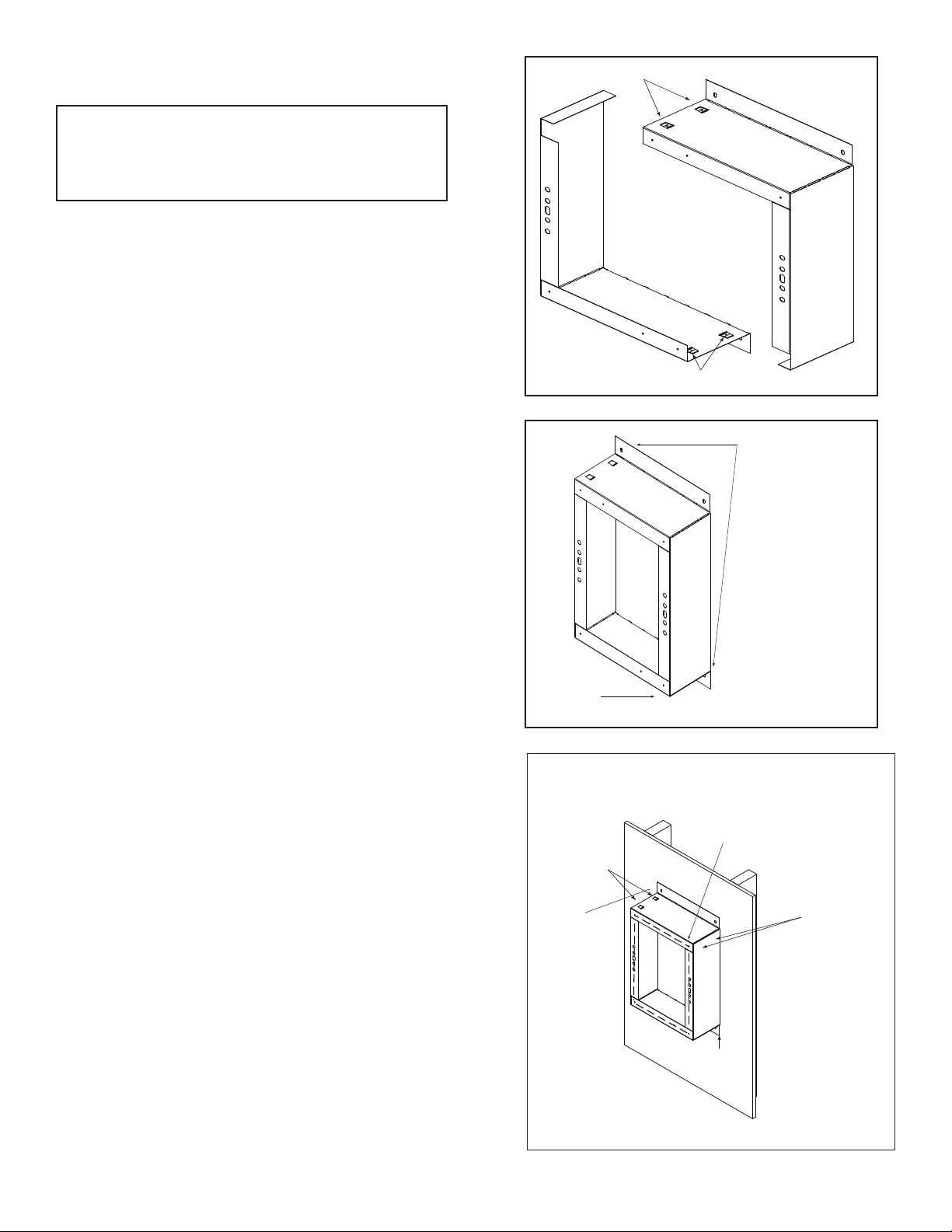

NOTICE: It is imperative that the HEAT-OUT-BEK kit be
installed squarely or the HEAT-OUT-GAS may not t into
opening left once nishing has occurred. Also care should
be taken to ensure that HEAT-OUT-BEK is secured at to
wall.

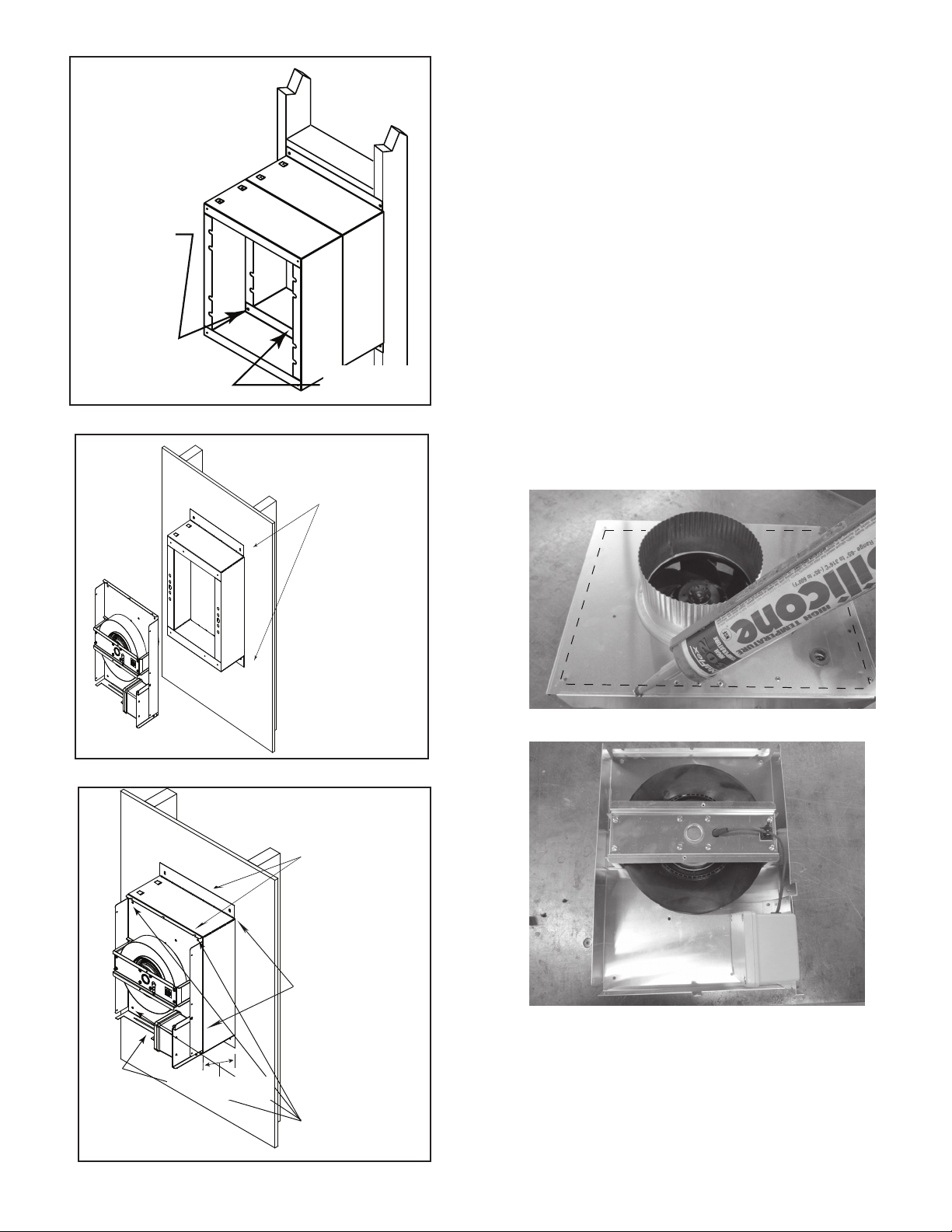

11. The wall is now ready to be finished. Finishing
materials such as stone, marble or brick can then be
applied up to the anges of the HEAT-OUT-BEK that
protrude perpendicular to the wall. This will ensure that
the cap will t into the opening after nishing has been
completed.
NOTICEOutside anges of the HEAT-OUT-BEK must not
have any pressure on them from the nishing materials.
This could cause the opening left after nishing to be too
small.
12. After HEAT-OUT-BEK has been installed and the
nishing of the wall has taken place, apply a bead
of silicone (with a minimum of 300° F continuous
exposure rating) to the HEAT-OUT-BEK around the
entire metal ange, as shown in Figure 2.10 with the
dotted line.

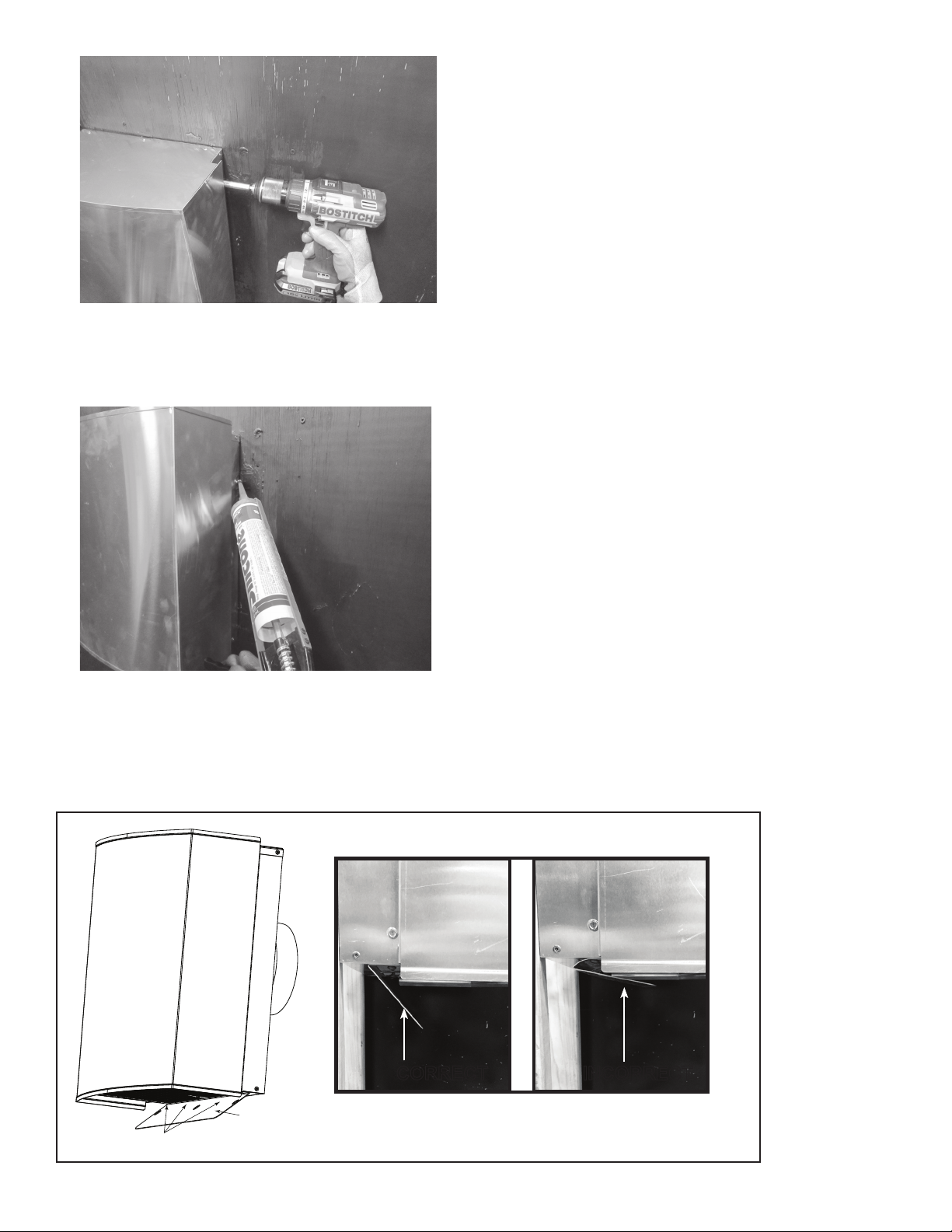

APPLY SILICONE (with a
minimum of 300°F continu-
ous exposure rating) TO
FLANGE
APPLY SILICONE (with a
minimum of 300°F continuous
exposure rating) TO PERFO-
RATED HOLES.
OUTSIDE
FLANGE
(SECURE FIRST)
OUTSIDE
FLANGE
(SECURE FIRST)
APPLY SILICONE (with a
minimum of 300°F continuous
exposure rating) TO TOP
CORNERS
Figure 2.10 HEAT-OUT-BEK Attached to Wall
Formed Tabs
Formed Tabs
Figure 2.8 Bend BEK Sections
SECTION A
SECTION B
SECURE TO BUILDING
EXTERIOR USING TOP (2) AND
BOTTOM (2) MOUNTING HOLES
(#8 X 3 INCH SCREWS)
RETURN BEND ON
SECTION A LOCATED
ON OUTSIDE OF
SECTION B.
Figure 2.9 BEK Assembled
5. Assemble the HEAT-OUT-BEK kit. Bend the two sections
of the HEAT-OUT-BEK kit as shown in Figure 2.8.
6. Use the formed tabs, shown in Figure 2.8, to assemble
the box as shown in Figure 2.9. The return bend on
section A should be located on the outside of section B.
7. Place assembled box over the framed opening in the
wall with outside anges oriented vertically and held
tight to the building exterior. See Figure 2.10.
8. Drive two of the supplied #8 X 3 inch screws through
opposite ends of the two outer anges. This will secure
the HEAT-OUT-BEK extension box to the building and
allow for squaring of the HEAT-OUT-BEK. See Figure
2.10.
9. Seal all corners, joints and bend lines with silicone
(with a minimum of 300° F continuous exposure rating)
caulk. Ensure all gaps and holes are lled so a sealed
envelope is formed.
10. If nishing material extends past the cap extension
box (BEK) more than one inch, an additional BEK is
required. Cap extension boxes may be stacked for
thicker wall applications:
• Attach rst box to the wall.
• Assemble second box.
• Bend the two outside anges of the second box
around to the inside of the box. See Figure 2.11.
• Secure the second box to the rst using four #8 x 1/2
sheet metal screws included in the HEAT-OUT-BEK
kit. See Figure 2.11.
Note: A HEAT-OUT-BEK kit will be needed for installations
with exterior nishing materials greater than 1 in. thick. Order
with the appliance and venting system. It will be used to
ensure that the nishing is done to the appropriate size for
the HEAT-OUT-GAS to be installed properly.
If installing with nishing material less than
1 inch thick go to step 15.

10 Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
SECURE TO BUILDING EXTERIOR
USING TOP (2) AND BOTTOM (2)
MOUNTING HOLES
BEK
Figure 2.12 HEAT-OUT-GAS Attached to HEAT-OUT-BEK
Figure 2.14
SILICONE (with a minimum
of 300°F continuous expo-
sure rating)
(ALL 4 SIDES)
SILICONE (with a
minimum of 300°F
continuous exposure
rating)
(ALL 4 SIDES)
Attach four 10 x 1/2
screws to
HEAT-OUT-GAS to
HEAT-OUT-BEK
FINISHING MATERIAL
5 IN. MAXIMUM
Figure 2.13 Silicone Weather Sealing
14. After the HEAT-OUT-GAS has been secured to the
HEAT-OUT-BEK, silicone (with a minimum of 300° F
continuous exposure rating) should be applied around
outer edge of HEAT-OUT-BEK where it meets the
building exterior. Silicone (with a minimum of 300° F
continuous exposure rating) should also be applied
where HEAT-OUT-GAS and HEAT-OUT-BEK meet, as
shown in Figure 2.13. If installing with HEAT-OUT-BEK
skip to step 17.
15. Place a bead of silicone (with a minimum of 300° F
continuous exposure rating) on the back side of the
mounting ange for the heat-out. See Figure 2.14.
16. Install the heat-out into the wall and attach the cap
to the wall using the four self-piercing #10 x 1/2 inch
screws provided. See Figure 2.15.
13. Apply a bead of silicone (with a minimum of 300° F
continuous exposure rating) around the entire metal
ange of the HEAT-OUT-GAS. See Figure 2.14. Align
with HEAT-OUT-BEK as shown in Figure 2.12. Ensure
cap is level and square, then secure HEAT-OUT-GAS
to HEAT-OUT-BEK as shown in Figure 2.13.
Flange bent
to the inside
4 #8 x 1/2 sheetmetal
screws through
the flange into
the next BEK
(Included in the
HEAT-OUT-BEK
kit)
Figure 2.11 Stacking Boxes
Figure 2.15
CAUTION! Risk of shock! Disconnect electrical
power from replace/Heat-Out before performing any
maintenance, repair, or electrical wiring.

11 Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
Figure 2.16
Figure 2.17
20. Reinstall the junction box cover. See Figure 2.16.
21. Install the decorative front cover onto the Heat-Out
base using the seven #8 x 1/2 Phillips head screws
provided in the kit. See Figure 2.18 and 2.19.
Figure 2.18
Note: With this installation method the Heat-Out fan is
controlled by the IFT-RC400 remote.

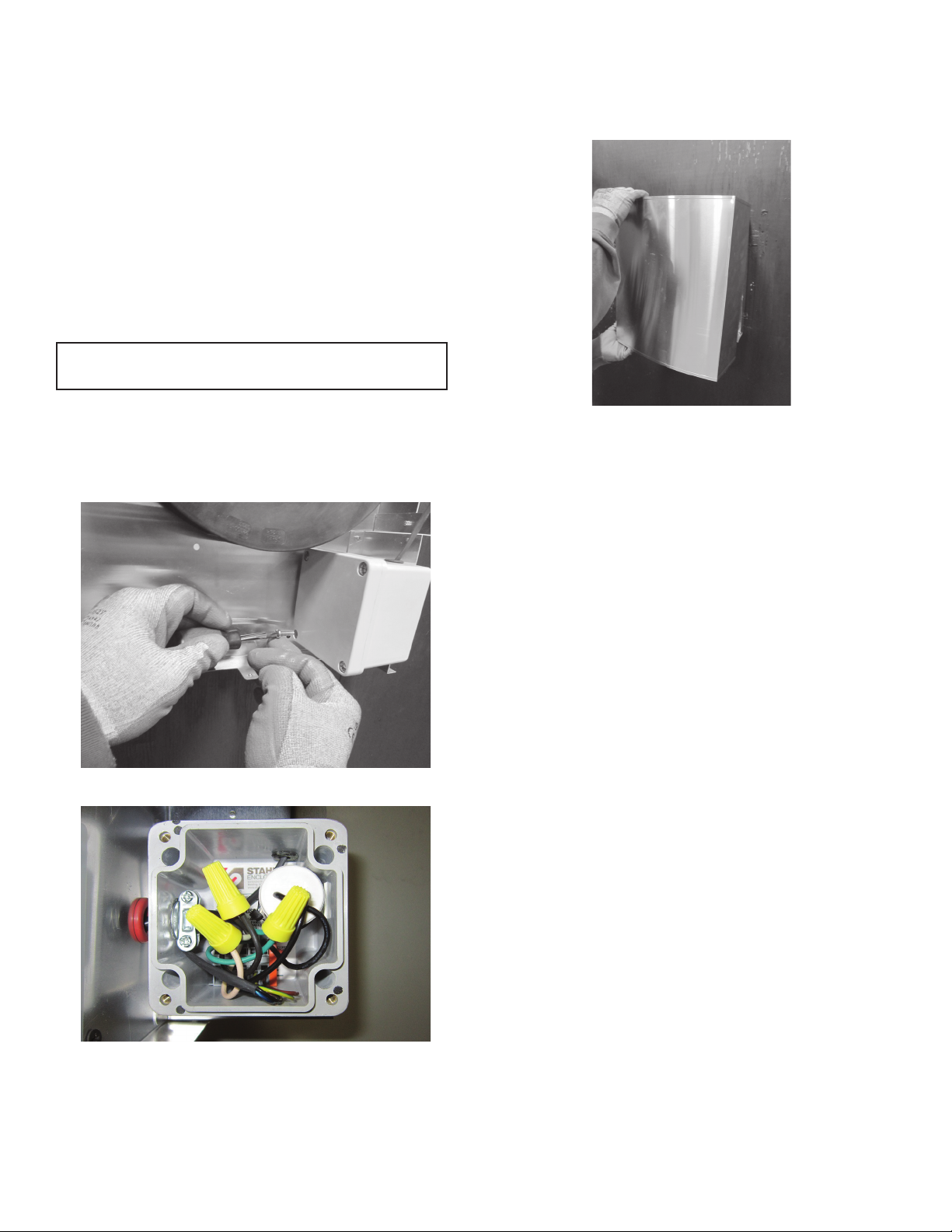

17. Once the cap is fastened to the wall, remove the junc-
tion box cover to wire the Heat-Out. See Figure 2.16.
18. Attach the appropriate incoming wires to the hot, neu-
tral and ground leads from the terminal block. If using
the wire plug provided in the kit, it may be necesary to
cut the spade connectors o󰀨 if making the connection
using wire nuts (wire nuts not provided). See Figure
2.17.
19. APPLIANCES NOT EQUIPPED WITH CONVECTION
FAN
If installing on an appliance that is not equipped with
a convection fan, and the fan outlet on the ACM is
available, the Heat-Out fan may be wired to a plug
and connected to the ACM fan outlet. See Figure 3.2.
APPLIANCES EQUIPPED WITH CONVECTION FAN
For installations where the ACM fan outlet is already

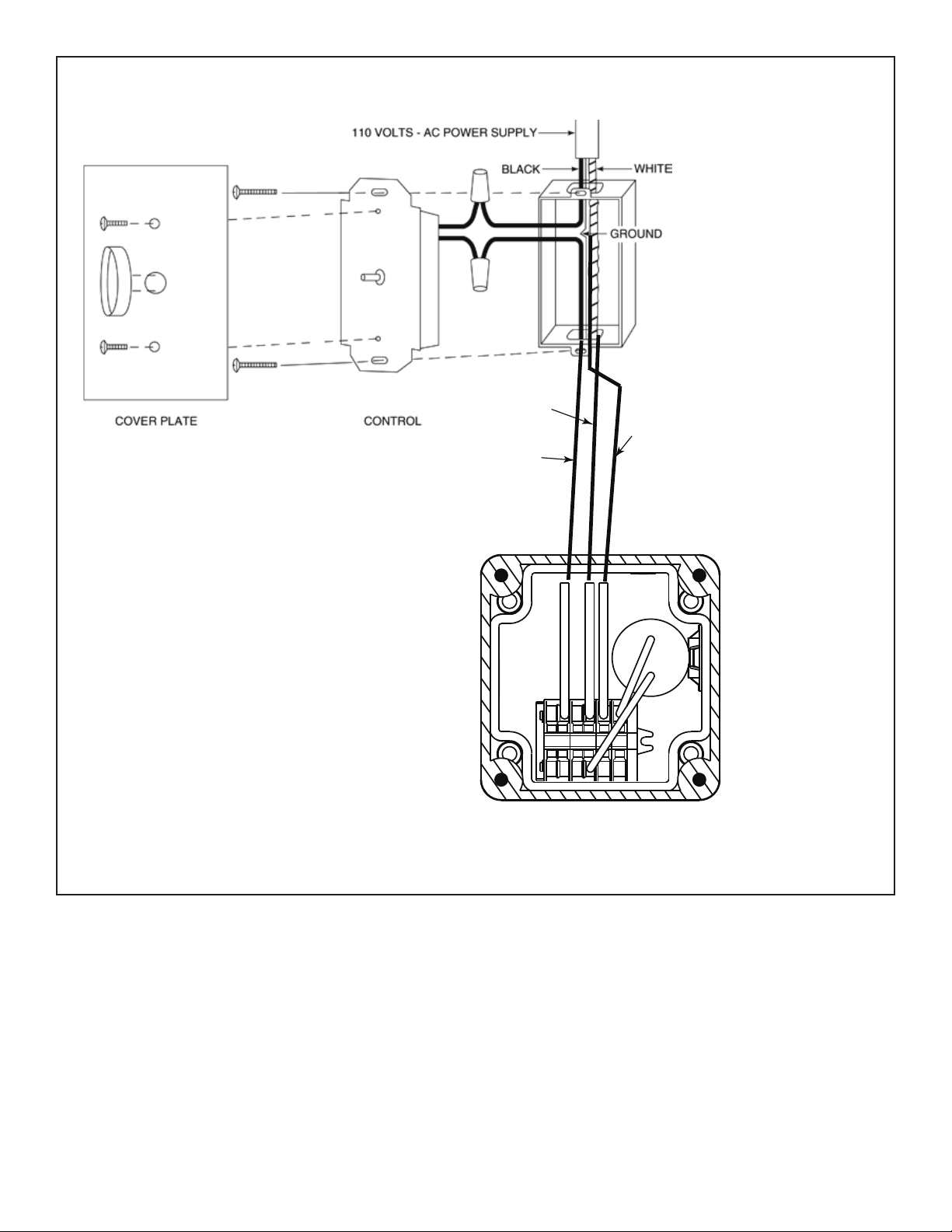

used, the fan must be wired to and controlled by using
the provided variable wall Rheostat. Follow the wiring
diagram shown in Figure 3.3.

12 Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
Figure 2.19
22. Once the decorative front cover is installed, apply a
bead of silicone (with a minimum of 300°F continuous
exposure rating) between the decorative cover and the
nishing material around the cap. See Figure 2.20.
Figure 2.20
23. If the HEAT-OUT-GAS is being installed on a building
with vinyl siding, the vinyl siding shield needs to be
installed using three #8 x 1/2 Phillips screws. Remove
the bottom screw installed in Step 21 and reattach it
with the vinyl siding shield in place and two new screws
provided in the kit. See Figure 2.21.
Vinyl Shield
Screw Locations
Figure 2.21
NOTICE: Install vinyl siding heat shield only with vinyl siding.
CORRECT INCORRECT

13 Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
1. After desired length is determined, cut completely
around or through duct with knife or scissors. Cut
wire with wire cutters. Fold back jacket and insulation.
1. Fold back jacket and insulation from core. Butt 2 cores
together on a standard 4" [100 mm] length metal sleeve.
2. Slide at least 1" [25 mm]of core over tting and past the
bead.Seal core to collar with at least 2 wraps of duct
tape.Secure connection with clamp placed over the
core and tape and past the bead.
2. Tape cores together with at least 2 wraps of duct
tape.Secure connection with 2 clamps placed over
the taped core ends and past the beads.
3. Pull jacket and insulation back over core. Tape jacket
with at least 2 wraps of duct tape. A clamp may be
used in place of or in combination with the duct tape.
3. Pull jacket and insulation back over cores. Tape jack-
ets together with at least 2 wraps of duct tape.
Connections Splices
C. Connecting Insulated Flex Duct
Figure 2.22

14 Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
A. Wiring the Appliance for the HEAT-OUT-
GAS
NOTICE: Electrical wiring must be done in accordance
with national, provincial, and/or local electric codes.
CAUTION! Risk of shock! Disconnect electrical power
from replace/Heat-Out before performing any mainte-
nance, repair, or electrical wiring.
3 Electrical Information

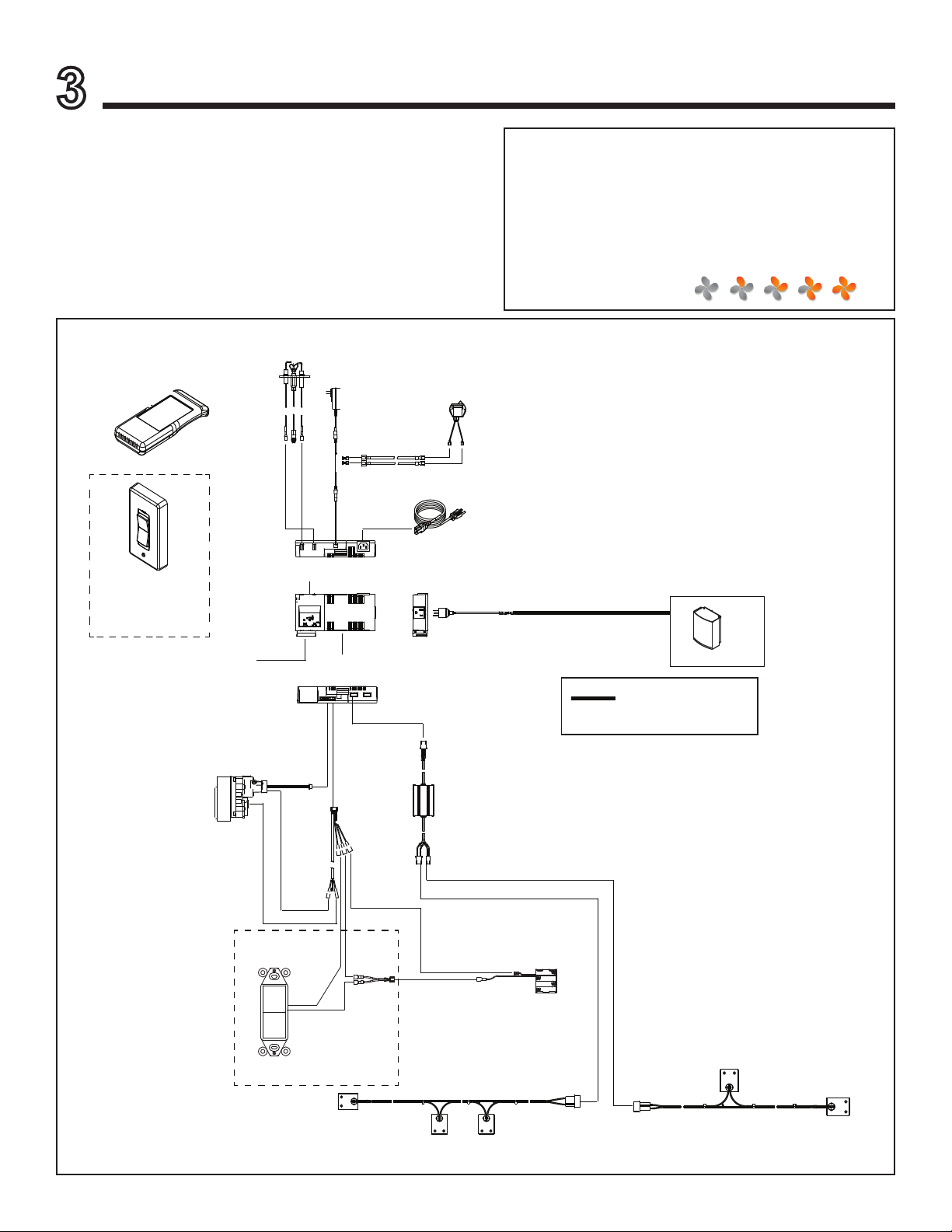

Figure 3.1 Wiring Diagram for Appliances Not Equipped with Convection Fan
Note: The process of pairing the IntelliFire™ Touch
remote control with the appliance will need to be
performed at this time in order for the HEAT-OUT-
GAS to be recognized by the appliance. Refer to the
IntelliFire™ Touch remote control instructions included
with the appliance. The HEAT-OUT-GAS kit will be
controlled by the "FAN" icon on the IntelliFire™ Touch
remote, as seen here:
FLAME
SENSE IGNITER
TO JUNCTION
BOX 110-120
VAC
LED
CONTROL
(IF APPLICABLE)
RF MODULE
ORANGE
(PILOT)
IFT-RC400
REMOTE
CONTROL
IFT-RC150
WIRELESS
WALL SWITCH
(OPTIONAL)
WIRE ASSEMBLY
MODULE
RESET
SWITCH
RED
FRONT EMBER LIGHTING (X 3)
BLACK/RED
REAR ACCENT LIGHTING (X 2)
BLACK/RED
6V DC
BATTERY PACK
BLK
RED
(OPTIONAL)
JUMPER
WIRE
APPLIANCE
ON/OFF
CONTROL BRN
BLK
Thick line denotes wiring
supplied by electrician.
HEAT-OUT-GAS
26D0619
WIRE PLUG ASSEMBLY
ACM MODULE
ECM MODULE

15 Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
BLACK
GREEN
WHITE
To heat-out junction box assembly
WALL BOX
Figure 3.2 Wiring Diagram for Appliances Equipped with Convection Fan

16 Hearth & Home Technologies • HEAT-OUT-GAS Instructions • 2310-939 Rev. I • 9/20
From fan outlet on ACM or
variable wall Rheostat
depending on installation
Black (hot)
Terminal Block
Blue
Black
White (neutral)
Ground
Capacitor
Brown
Green/Yellow
Blower

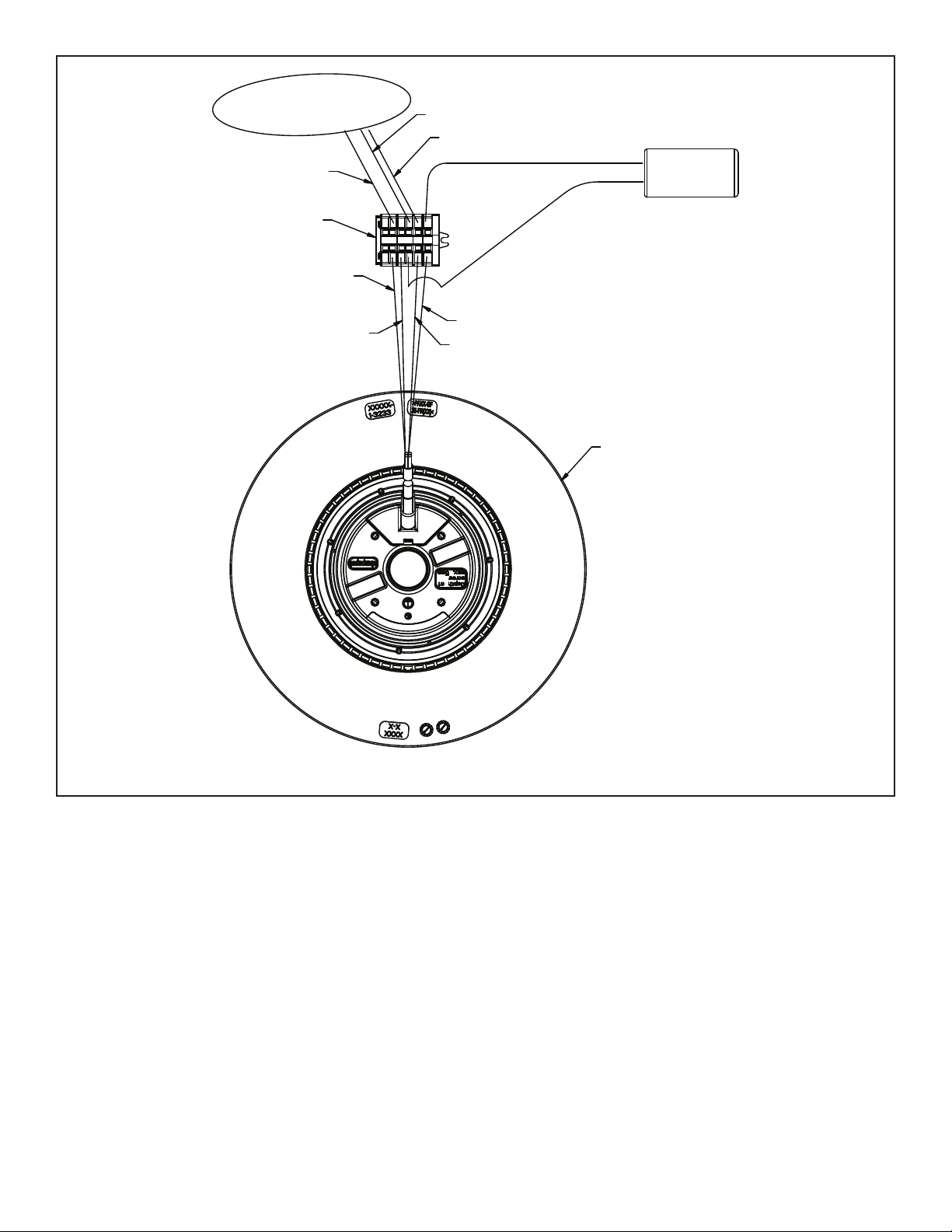

Figure 3.3 Wiring Diagram (HEAT-OUT-GAS)
Please contact your Hearth & Home Technologies dealer
with any questions or concerns.
For the location of your nearest Hearth & Home
Technologies dealer,
please visit www.hearthnhome.com.
Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.hearthnhome.com
