1Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
PVV-SLP
Power Vent Vertical
- Installation Instructions -
1 Introduction
DO NOT DISCARD THIS MANUAL
NOTICE
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read, understand and follow
these instructions for safe
installation and operation.
IMPORTANT: Failure to read and follow these instruc-
tions may create a possible hazard and will void the re-
place warranty.
These instructions must remain with the equipment.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
Installation of the PVV-SLP may be done by a qualied
service technician only. Installation MUST comply with
local, regional, state and national codes and regulations.
KIT COMPONENTS
• Vertical Power Vent
• Storm Collar
• Flue Restrictor
A minimum of one PVV-SLEEVE is required. Additional
sleeves may be needed based on installation. Order
separately.
Table of Contents
1 Introduction
A. Installation of PVV-SLP ...........................2
2 Vent Information and Diagrams
A. Installation of Vent Pipe ...........................3
B. Vent/Pipe Regulations ............................ 3
C. Venting Length - Model Categories and Length
Requirements by Termination Type ..................5
D. Setting the PVV-SLP Flue Restictor ..................6
3 Framing and Clearances
A. Framing and Clearances ..........................7
B. Vent Termination Minimum Clearances ............... 7
C. Vent Cap Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
D. PVV-SLEEVE Preparation ........................12
E. PVV-SLEEVE Installation......................... 13
4 Electrical Information
A. Wiring the Appliance for the PVV-SLP with IntelliFire™
Touch (IFT) Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
B. Wiring the Appliance for the PVV-SLP with IntelliFire™
and IntelliFire™ Plus (IPI) Controls .................19
C. Pairing or Re-pairing the IFT-RC400 to the Electronic
Control Module (IFT-ECM) ........................24
5 Operating Instructions
A. Installation Inspection ............................25
B. Power Vent Operating Instructions. . . . . . . . . . . . . . . . . . 25
C. Maintenance ..................................26
D. Replace Blower/Pressure Switch...................26
6 Reference Materials
A. Components and Service Parts List................. 29
B. IFT-Controls and PVV-SLP Power Vent Troubleshooting 30
C. IntelliFire™ Plus Controls and PVV-SLP Power
Vent Troubleshooting ............................31

2Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19

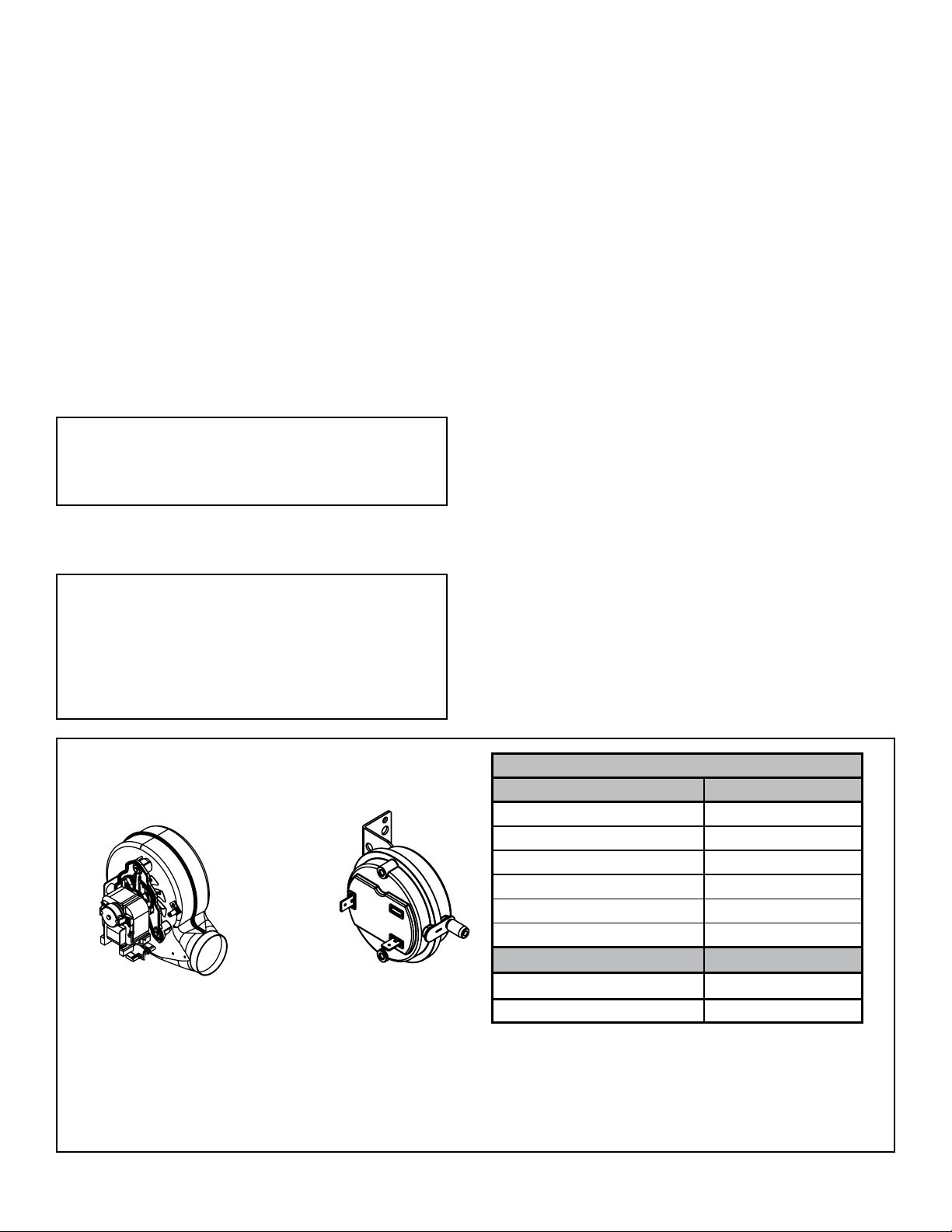

BLOWER ASSEMBLY
4052-796
PRESSURE SWITCH
4052-840
NOTE: Wire Harness connecting PVI to appliance sold separately.
The length of wire harness needed varies by installation.
For all appliances other than the premium linear models a PVLP-CK
conversion kit is required. This kit includes all components to install
the PVLP-SLP.
Figure 1.1 Service Parts
Required Wire Harness and PVV-SLEEVE
Lengths Available Part Number
10 ft. PV Wire Harness PVI-WH10
20 ft. PV Wire Harness PVI-WH20
40 ft. PV Wire Harness PVI-WH40
60 ft. PV Wire Harness PVI-WH60
80 ft. PV Wire Harness PVI-WH80
100 ft. PV Wire Harness PVI-WH100
Description Part Number
12 in. Wire Harness Sleeve PVV-SLEEVE-12
48 in. Wire Harness Sleeve PVV-SLEEVE-48
NOTICE: The blower motor present in this power vent
will generate sound during operation. The effects of the
increased sound level can be minimized with careful plan-
ning during installation of the system.
IMPORTANT OPERATIONAL NOTE: When the control
being used to run the replace is activated, a 120 seconds
delay will occur before pilot ignition will begin. This is to allow
a pre-purge by the PVV-SLP. If, after 135 seconds, the pilot
and burner do not light, refer to the Troubleshooting section
of this instruction for further direction. There will also be a
20-minute post-purge in which the PVV-SLP will continue to
run after appliance is turned off.
NOTE: Wire Harness connecting PVV-SLP to appliance sold separately. The length of wire harness needed varies by in-
stallation. For all appliances equipped with IntelliFire™ or IntelliFire™ Plus ignition, other than the PRIMO, PV-IPI-CK con-
version kit and one of the following; RC100, RC200 or RC300 are required. This kit includes all components to install the
PVV-SLP to IntelliFire™ or IntelliFire™ Plus appliances. For appliances equipped with IntelliFire™ Touch (IFT) controls, an
RC400 remote and an IFT-ACM are required on the appliance.
NOTE: The battery back-up and wired wall switch fea-
ture of any IPI system are removed when the PVV-SLP
power vent is installed. The replace may no longer be
operated with battery back-up and/or a wired wall switch.
The PVV-SLP operates on 120VAC, 60Hz electrical
service which is supplied at the replace junction box.
NOTE: PVV-SLP requires special control system
congurations:
• For IntelliFire™and IntelliFire™Plus models, a
RC100, RC200 or RC300 and PV-IPI-CK control
system is required for installation (except on PRIMO
models). The PV-IPI-CK is sold separately.
• For IntelliFire™Touch models, an IFT-ACM and
IFT-RC400 are required for installation. The IFT-
ACM and IFT-RC400 may need to be purchased
separately if the appliance is not already equipped
with IFT. IFT-RC400 comes with the needed ACM.
A. Installation of PVV-SLP
1. INSTALLATION PRECAUTIONS
a. This device must be installed by a qualied installer
in accordance with these instructions.
b. Safety inspection of the venting system should
be performed before and after installation
of this power vent. Consult local code
ofcials and follow applicable installation codes.
c. DO NOT INSTALL DAMAGED EQUIPMENT OR
VENT COMPONENTS.
d. Disconnect electrical power supply before making
wiring connections.
e. Venting of more than one appliance in a common vent
system is prohibited.
f. A protective sleeve (PVV-SLEEVE-12 or PVV-
SLEEVE-48) is required to install the PVV-SLP. The
sleeve will protect the electrical wire harness from the
elements. The PVV-SLEEVE will penetrate the roof/
chase top and is the same diameter as DVP pipe (8
inches).
CAUTION! Failure to install, operate, and maintain the
power venting system in accordance with manufacturer's
instructions will result in conditions which may produce
bodily injury and/or property damage.
INTRODUCTION
The Power Vent Vertical (PVV-SLP) is certied for use as
a vertical termination cap only on replaces manufactured
by Hearth & Home Technologies with IPI (intermittent pilot
ignition) gas controls. Fireplaces equipped with millivolt
type gas controls CANNOT use this product.

3Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
2 Vent Information and Diagrams
A. Installation of Vent Pipe
For information on standard procedures for venting the
appliance, refer to the "Vent Information and Diagrams"
section of the appliance installation manual.
The allowable pipe lengths and elbow combinations for an
appliance utilizing the PVV-SLP are discussed in the fol-
lowing sections of this instruction manual. The PVV-SLP
uses SLP pipe (6-5/8 inch) connections.
In certain cases, a pipe adapter may be used in the vent
run. The DVP-2SL adapts from 5 in. / 8 in. DVP series
starting collars to 4 in. / 6-5/8 in. SLP series vent pipe. A
DVP-SLP24 may also be used to transition from a DVP to
SLP pipe when using the PVV-SLP.
Either SLP or DVP venting may be used throughout the
vent run except on certain models that require DVP pipe.
See Table 2.1. Refer to Section 2.B for more information
regarding venting regulations.
B. Vent/Pipe Regulations
WARNING! Risk of Fire!
Maintain minimum pipe length requirement between
appliance and PVV-SLP on all models. Combustible
materials surrounding pipe may overheat.
1. A minimum length of venting is required between the
appliance and the PVV-SLP. This minimum length re-
quirement varies for the specic appliance. Refer to
Table 2.1. for requirements for specic models.
2. Clearances between the vent pipe and combustible
materials must be maintained at 1-1/2 inches top and
one inch on the sides and bottom.
3. A mechanical drafting venting system shall terminate at
least three feet above any forced air inlet located within
10 feet.
Figure 2.1 Silicone Sealant
All outer pipe joints must be sealed.
• Apply a bead of silicone sealant (with a minimum of 300
ºF continuous exposure rating) inside the female outer
pipe joint prior to joining sections. See Figure 2.1.
OR
• Apply aluminum foil tape (300 °F minimum continuous
exposure rating) to the outside of connecting joint after
joining sections. On horizontal pipe runs, it is recom-
mended that the tape seam is positioned on the bottom
side of the vent pipe.
• Only outer pipes need to be sealed. All unit collar, pipe,
slip section, elbow and cap outer ues shall be sealed
in this manner, unless otherwise stated.

4Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
Table 2.1
WARNING! Risk of Fire!
• A minimum length run of initial vent pipe is required between the appliance and the inlet of the PVV-SLP on some appliance
models.
• Some models require DVP Series pipe for the initial minimum vent section directly off the appliance.
B. Vent/Pipe Regulations (continued)
MODEL MINIMUM VENTING BETWEEN APPLIANCE AND PVV-SLP
ALL 6000C, ALL 6000CL, ALL 6000CLX
ALL 8000C, ALL 8000CL, ALL 8000CLX
Six feet minimum venting required for all appliances. Must have a
90 degree elbow for rear vent appliances.
ALL 6000CMOD, ALL 8000CMOD
ALL CD4236, ALL CD4842
ALL CNXT4236, ALL CNXT4842
MERID36, MERID42, MERIDPLA36, MERIDPLA42
GDST3831, GDST4336, GDCR4136, GDCL4136
RCOR-DV36IN, LCOR-DV36IN
ALL NDV3630, ALL NDV3933, ALL NDV4236, ALL NDV4842
PEARL36PRIN, PEARL36STIN
ALL NNXT3933, ALL NNXT4236
ST-36TR, ST-36TRB, PIER-36TR, PIER-36TRB,
LCOR-36TRB, RCOR-36TRB
PRIMO48, PRIMO60, PRIMO72, PRIMO48ST, PRIMO60ST, PRIMO72ST
QUARTZ32I, QUARTZ36I, QUARTZ42I
ALL RAVE3012I, ALL RAVE4013I, ALL RAVE32, ALL RAVE 36, ALL RAVE42
ALL COSMO42-IFT, ALL COSMO36-IFT, ALL COSMO32-IFT, ALL JADE32IN,
ALL JADE42IN(L)
SL-550METRO
SL-550F, SL-750F, SL-5F, SL-7F
SL-5, SL-7, SL-9
ALL SL-3X, ALL SL-5X, ALL SL-7X, ALL SL-9X
ODMEZG-36
MODEL MINIMUM VENTING BETWEEN APPLIANCE AND PVV-SLP
ALL ESC-42ST
Minimum of one DVP-2SL or DVP-SLP24 adapter followed by six
feet of vertical SLP pipe.
ALL HEIR36, ALL HEIR42, ALL HEIR50
ALL TRUE-36, ALL TRUE-42, ALL TRUE-50
CERONA-36, CERONA-42
ALL MEZZO36, ALL MEZZO36ST, ALL MEZZO48, ALL MEZZO48ST
ALL MEZZO60, ALL MEZZO60ST, ALL MEZZO72, ALL MEZZO72ST
ALL CRAVE4836, ALL CRAVE4836ST, ALL CRAVE6048, ALL CRAVE6048ST,
ALL CRAVE7260, ALL CRAVE7260ST, ALL CRAVE8472, ALL CRAVE8472ST
ALL ECHEL36IN, ALL ECHEL36STIN, ALL ECHEL48IN, ALL ECHEL48STIN,
ALL ECHEL60IN, ALL ECHEL72IN
ALL MARQ36IN, ALL MARQ42IN, ALL MARQ42STIN
ODFORTG-36
ADAPTER KITS
PART NUMBER PART DESCRIPTION
DVP-SLP24 24 inch section that adapts from 5 in./ 8 in. DVP-series starting collars to 4 in./ 6-5/8 SLP-series vent
pipe.
DVP-2SL Adapts from 5 in./ 8 in. DVP-series starting collars to 4 in./ 6-5/8 SLP-series vent pipe.

5Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
C. Venting Length - Model Categories and Length Requirements by Termination Type
The Model Category (0,1, 2 or 3) in Table 2.2 corresponds with the number in the shaded area of the Allowable Vent Length Chart In
Table 2.3.
Table 2.2 Models
NOTE: See the PRIMO install manual (2310-970) for allowed vent congurations for the following SKUs: PRIMO48, PRIMO60,
PRIMO72, PRIMO48ST, PRIMO60ST, PRIMO72ST.
MAJESTIC HHT
Category 0
& 1
Category 0,
1 & 2
Category 0,
1, 2 & 3
Category 0,1
& 2 Category 0, 1, 2& 3
ALL JADE32IN
MERID36
MERID42
MERIDPLA36
MERIDPLA42
ALL MARQ36IN
ALL MARQ42IN
ALL MARQ42STIN
RCOR-DV36IN
LCOR-DV36IN ODFORTG-36
QUARTZ32I
QUARTZ36I
QUARTZ42I
ALL JADE42IN
ALL JADE 42IL ODMEZG-36
PEARL36PRIN
PEARL36STIN
ALL ECHEL36IN
ALL ECHEL36STIN
ALL ECHEL48IN
ALL ECHEL48STIN
ALL ECHEL60IN
ALL ECHEL72IN
Category
0 &1
Category
0, 1 & 2
Category
0,1, 2 & 3
Category
0 & 1
Category
0, 1 & 2
Category
0, 1, 2 & 3
ALL 6000C
ALL 6000CL
ALL 6000CLX
ALL COSMO42-IFT ALL RAVE32-IFT
ALL RAVE36-IFT
ALL NDV3630
ALL NDV3933
ALL NDV4236
ALL NDV4842
ALL RAVE4013i
ALL 8000C
ALL 8000CL
ALL 8000CLX
ALL ESC-42ST ALL CD4236
ALL CD4842
ALL HEIR36
ALL HEIR42
ALL HEIR50
ALL 6000CMOD
ALL 8000CMOD
ALL TRUE-36
ALL TRUE-42
ALL TRUE-50
ALL CNXT4236
ALL CNXT4842
ALL COSMO32-IFT
ALL COSMO32-IFT SL-550METRO CERONA-36 CERONA-42
ALL DV3732
ALL DV4236
ST-36TR
ST-36TRB
PIER-36TR
PIER-36TRB
LCOR-36TRB
RCOR-36TRB
GDST3831
GDST4336
GDFL4136
GDCR4136
GDCL4136
ALL MEZZO60
ALL MEZZO60ST
ALL MEZZO72
ALL MEZZO72ST
ALLCRAVE4836
ALL CRAVE4836ST
ALL CRAVE6048
ALL CRAVE6048ST
ALL MEZZO36
ALL MEZZO36ST
ALL MEZZO48
ALL MEZZO48ST
SL-550F, SL-5F
SL-750F, SL-7F
ALL CRAVE7260
ALL CRAVE7260ST
ALL CRAVE8472
ALL CRAVE8472ST
SL-5, SL-7, SL-9 NNXT3933
NNXT4236
ALL SL-3X
ALL SL-5X
ALL SL-7X
ALL SL-9X

6Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
Vertical Termination
Total Venting Length (Feet) Includes both horizontal and vertical section of pipe
# of Elbows 10 20 30 40 50 60 70 80 90 100 110 120 130 140
10000111123
2000011123
300001112
400011123
50001112
60011123 These congurations
are not allowed.
70011123
8011112
9011112
10 111123
11 11112
12 11112
Note: Maximum number of 90 degree elbows allowed = 6.
Maximum number of 45 degree elbows = 12.
Table 2.3 Allowable Vent Runs - Vertical Termination
Distance from PVV-SLP to
Appliance
Maximum Allowable
Flue Restrictor Setting
6-15 ft. 4-4
16-39 ft. 3-3
Greater than 40 ft. 1-1
Table 2.4
D. Setting the PVV-SLP Flue Restictor
CAUTION! Risk of Burns! DO NOT install ue restric-
tor when using PVV-SLP with PRIMO models. Hot glass
could cause burns.
• If the burner ames are short, active and jumping, install
the ue restrictor. Check the ames and adjust the
restrictor again as necessary until ames are stable,
strong, and steady.
• If the burner ames are tall, lifting, oating and ghost-like,
the restrictor is closed too far and MUST be opened.
• If the pilot continuously sparks and does not become
steady, the ue restrictor may need to be closed. The
requirements in Table 2.4 must still be met.
1 2 3 4 5
5 4 3 2 1
ALWAYS USED WITH THE
HOLES TO THE LEFT
ALWAYS USED WITH THE
HOLES TO THE RIGHT
FLUE RESTRICTOR SET TO 4-4
4 5
5 4 3 2 1
Figure 2.2

7Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
B. Vent Termination Minimum Clearances
Roof Pitch H (Min.) IN.
Flat to 6/12.........................................................33.5*
Over 6/12 to 7/12...............................................35*
Over 7/12 to 8/12...............................................36*
Over 8/12 to 9/12...............................................37.5*
Over 9/12 to 10/12.............................................39*
Over 10/12 to 11/12 ...........................................40.5
Over 11/12 to 12/12 ...........................................42.5
Over 12/12 to 14/12...........................................46
Over 14/12 to 16/12...........................................50
Over 16/12 to 18/12...........................................54
Over 18/12 to 20/12...........................................58
Over 20/12 to 21/12...........................................60
Figure 3.2 Minimum Height From Roof To Lowest Discharge
Opening Against Pitch
HORIZONTAL
OVERHANG
VERTICAL
WALL
GAS DIRECT VENT
TERMINATION CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
2 FT.
MIN.
20 INCHES
MIN.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
Fire Risk.
Maintain vent clearance to combustibles as
specied.
• DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe may cause overheating and re.
WARNING
Refer to the appliance installation manual for information
on minimum clearances for vent termination.
* H minimum may vary depending on regional snowfall.
Refer to local codes.
A. Framing and Clearances
Chassis Dimensions
The dimensions are measured as shown in Figure 3.1.
3 Framing and Clearances
Figure 3.1 Dimensions
13-5/8 IN.
13-11/16 IN.
1-3/4 IN.
4 IN.
5-7/8 IN.
3-11/16 IN.
12-1/8 IN.
TOP VIEW
SIDE VIEW

8Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
Figure 3.5 Staggered Termination Caps
Gas, Wood or Fuel Oil
Termination Cap
B
Gas
Termination
Cap **
A *
*If using decorative cap cover(s), this distance may need to be
increased. Refer to the installation instructions supplied with the
decorative cap cover.
**
A B
6 in. (minimum) up to 20 in.
152 mm/508 mm
18 in. minimum
457 mm
20 in. and over 0 in. minimum
In a staggered installation with both gas and wood or fuel oil
terminations, the wood or fuel oil termination cap must be
higher than the gas termination cap.
Gas
Termination
Cap
25 IN. MIN.
Figure 3.4 Minimum Dimensions Through Chase Top
PVV-SLP
TERMINATION CAP
H MIN. 12
X
ROOF PITCH
IS X/ 12
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
Figure 3.3 Minimum Height From Roof To Lowest Discharge
Opening With Pitch
Roof Pitch H (Min.) IN.
Flat to 6/12.........................................................25*
Over 6/12 to 7/12...............................................23*
Over 7/12 to 8/12...............................................21*
Over 8/12 to 9/12...............................................19*
Over 9/12 to 10/12.............................................17*
Over 10/12 to 11/12 ...........................................16
Over 11/12 to 12/12 ...........................................15
Over 12/12 to 14/12...........................................15
Over 14/12 to 16/12...........................................15
Over 16/12 to 18/12...........................................15
Over 18/12 to 20/12...........................................15
Over 20/12 to 21/12...........................................15
* H minimum may vary depending on regional snowfall.
Refer to local codes.

9Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
C. Vent Cap Preparation
1. Remove 4 screws from top cap and lift off the housing
assembly. See Figure 3.6.
Figure 3.6 Remove Top Cap Screws
Figure 3.8 Remove Screws from PVV-SLEEVE Starting Collar
Figure 3.7 Remove Shipping Support Foam
2. Remove the foam shipping support from the PVV-SLP.
See Figure 3.7.
Figure 3.9 Sufcient Wire Extending Through Bracket
3. Place the PVV-SLP upside down on a at surface and
remove the 4 screws from the PVV-SLEEVE starting
collar. Remove the starting collar and set aside. See
Figure 3.8.
4. Ensure there are 8-9 inches of wire extending out of
the 90° PVI wire harness tting. See Figure 3.9.

10 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
Figure 3.10 Route PVI Wiring Harness
6. Position the cap right side up and attach the PVI wir-
ing harness to the wire harness bracket that came in
the manual bag. The orientation of the harness and
bracket is shown in Figure 3.12.
Figure 3.11 Attach Starting Collar
Figure 3.12 Attach PVI Wiring Harness to Bracket
Figure 3.13 Attach Wire Harness Bracket to Bottom Dish
5. Route the PVI wiring harness through the PVV-
SLEEVE starting collar and into the cap as shown in
Figure 3.10. Reattach the starting collar to the cap as
shown in Figure 3.11.
7. Attach wire harness bracket to the bottom dish of the
cap. See Figure 3.13.
SEAL HERE

11 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
10. Attach the white and black wires from the PVI harness
to the two black wires coming from the blower. Attach
the green wire from the PVI harness to the green/yellow
wire coming from the blower. See Figure 3.15.
Figure 3.14
RED & BROWN WIRES
ATTACHED TO PRESSURE SWITCH
Figure 3.15
8. Use silicone sealant (300° F minimum continuous
exposure rating) to seal around the wire harness
where it penetrates the bottom dish from either the
inside or the outside of the power vent. See Figure
3.13.
9. Attach the red and brown wires to the pressure switch.
See Figure 3.14. Red or brown may be attached to
either connector.
BLACK
WHITE
GREEN
BLACK
BLACK
GREEN& YELLOW

12 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
D. PVV-SLEEVE Preparation
NOTE: The PVV-SLEEVE must be long enough to pen-
etrate through the roof ashing a minimum of two inches.
The PVV-SLEEVE can be cut to size if the vent run does not
allow the excess to extend down into the home or chase.
1. Slide the storm collar over the PVV-SLEEVE and use
the included bolt and nut to secure it into the formed
groove on the PVV-SLEEVE. This will prevent the PVV-
SLEEVE from sliding down through the ashing and into
the home/chase during installation. See Figure 3.18.
NOTE: If more than one PVV-SLEEVE will be used, attach
the storm collar to the lowest section of PVV-SLEEVE. Se-
cure all sections of PVV-SLEEVE with self tapping screws.
Figure 3.18 Bolt and Nut Installed
NUT AND BOLT
Figure 3.17
12. Reinstall the top cap using the four screws that were
removed earlier. The PVV-SLP is now ready to install
onto the SLP pipe. See Figure 3.17.
11. Use the included zip tie to secure the black, white, and
green wires to the PVV-SLP housing. See Figure 3.16.
Figure 3.16
FORMED GROOVE
ZIP TIE

13 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
Figure 3.21 Attach PVV-SLP to SLP Pipe
PVV-SLP
EXHAUST
Figure 3.22 Attach PVV-SLEEVE to PVV-SLP Collar
E. PVV-SLEEVE Installation
1. Route the PVI harness through the sections of PVV-
SLEEVE that will be installed. Then route the harness
into the ashing opening. See Figure 3.19.
Figure 3.19 Route PVI Harness Through Flashing
Figure 3.20 Storm Collar Resting on Flashing
2. Slide the PVV-SLEEVE over the SLP pipe and into the
opening. Lower the PVV-SLEEVE down to allow the
storm collar to rest on the ashing. See Figure 3.20.
4. Lift the PVV-SLEEVE up to the PVV-SLP and attach to
the collar on the PVV-SLP using 3 self tapping screws.
Figure 3.22.
3. Feed the PVI harness into the PVV-SLEEVE and install
the PVV-SLP onto the SLP pipe. Rotate the PVV-SLP to
preferred direction of exhaust ow based on the required
clearances. Refer to Section 3.B for more information
regarding the positioning of the exhaust. Attach using
3 self tapping screws. See Figure 3.21.

14 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
Figure 3.24
Figure 3.23 Secure Storm Collar in Position on Flashing
5. Loosen the storm collar and slide it down to the ashing.
Secure the storm collar. See Figure 3.23.
6. Using silicone sealant (300 °F minimum continuous
exposure rating) seal the seams shown in Figure 3.24
SEAL HERE

15 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
4 Electrical Information
A. Wiring the Appliance for the PVV-SLP
with IntelliFire™ Touch (IFT) Controls
NOTICE: When integrating the PVV-SLP onto an appliance
with IntelliFire™Touch (IFT) controls, the RC400 remote
control and the Auxiliary Control Module (IFT-ACM) must
be equipped on the appliance. The IFT-RC400 kit includes
the RC400 and the IFT-ACM.
NOTICE: Electrical wiring must be done in accordance
with national, provincial, and/or local electric codes.
CAUTION! Risk of shock! Disconnect electrical power
from replace/power vent before performing any mainte-
nance, repair, or electrical wiring.
NOTICE: Electrical service of 120 VAC-60Hz must be
supplied to the junction box of the replace in order for the
power vent to operate correctly.
REMOVAL OF UNNECESSARY PARTS
Refer to Figure 4.1 for steps 1 through 4. Some features
may or may not exist on appliance. The shaded portion
corresponding to the numbered step is the task to be
performed.
1. Unplug control module power.
2. Remove and discard battery pack (if present).
3. Detach wires from 6 pin harness that connect an op-
tional appliance on/off control (if present) and discard.
4. Remove jumper/splitter wire (if present) and discard.
WARNING
Risk of Fire! Explosion
Hazard!
Failure to follow instructions could result
in a re or explosion.
• Power Vent must be paired to IFT-ACM before
installation is complete.
• If you have 120 VAC Power & Gas to applance:
- Immediately after connecting the PVI-WH
connector to the IFT-ACM, the IFT control
must be paired to recognize the Power Vent
as part of the control conguration.
- Appliance and Power Vent function must be
veried before installation is complete.
- Consult installation manuals for details.
• If you DO NOT have 120 VAC Power & Gas:
- DO NOT connect PVI-WH connector to IFT-
ACM.
- Disconnect 6V power to lock-out appliance.

16 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
FLAME
SENSE IGNITER
TO JUNCTION
BOX 110-120
VAC
FAN 110-120 VAC
LED
CONTROL
RF MODULE
I
S
BRN
ORANGE
(PILOT)
IFT-RC400
REMOTE
CONTROL
GRN/WHT/BLK
RED/BLK
IFT-RC150
WIRELESS
WALL SWITCH
(OPTIONAL)
(OPTIONAL)
SPLITTER
BLK
RED
ADAPTER
6V DC
BATTERY PACK
BLK
RED
6 PIN
BLK
RED
GREEN
(MAIN)
RED/BLK
(OPTIONAL)
APPLIANCE
ON/OFF
CONTROL
BRN
BLK
STEP 1
STEP 2
STEP 4
STEP 3
Figure 4.1 IFT-RC400 Wiring Diagram without Power Vent

17 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
Installation Steps:
If the appliance is equipped with an IFT-ACM, proceed to
step 10. If not, proceed to next step.
5. Locate the IntelliFire™ Touch electronic control module
(IFT-ECM) in the control cavity of the appliance and
move the three-position switch to the OFF position.
See Figure 4.2.
6. Remove protective rubber cap from connector on the
top of the IFT-ECM. See Figure 4.2.
Figure 4.2 IFT-ECM
8. Connect the IFT-ACM to the IFT-ECM by aligning the
pins and tabs and pushing the IFT-ACM into the IFT-
ECM until both tabs latch in place. Ensure the IFT-
ECM and IFT-ACM are aligned with each other and
fastened securely. See Figure 4.3.
Figure 4.3 Connecting IFT-ACM and IFT-ECM
WARNING! Risk of Shock! DO NOT touch male pins.
Leave rubber cap on all ports unless port is being con-
nected to a load.
9. The IFT-ACM can provide power to HHT approved
options including fan, lights and power vent.
• To connect a fan kit to the IFT-ACM, insert the
three prong male plug from the fan into the re-
ceptacle located on the right side of the IFT-ACM.
See Figure 4.4.
• To connect a light kit to the IFT-ACM, remove pro-
tective rubber cap labeled ‘LIGHTS’ and connect
to the female cord that was supplied in your lights
kit into the three male pins on the IFT-ACM. See
Figure 4.4.
• To connect a power vent kit to the IFT-ACM, re-
move protective rubber cap labeled ‘AUX’ and
connect to the female cord of the PVI-WH wire
harness into the three male pins on the IFT-ACM.
See Figure 4.4.
Figure 4.4 Fan, Lights and Power Vent Connection
WARNING! Risk of Shock! DO NOT touch male pins.
Leave rubber cap on all ports unless port is being con-
nected to a lead.
POWER CORD
FAN
POWER
VENT
LIGHTS
10.Refer to wiring diagram with Power Vent to make re-
maining connections. See Figure 4.5.
7. Attach velcro included with the IFT-ACM to the bottom
of the ACM. See Figure 4.3.
ATTACH VELCRO
NOTE: It will be necessary to re-pair the remote
after installing HHT approved options to the appliance.
Refer to Section 4C for pairing the remote.

18 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
STEP 13
STEP 11
STEP 12
STEP 14
BRN
FLAME
SENSE IGNITER
TO JUNCTION
BOX 110-120
VAC
FAN 110-120 VAC
LED
CONTROL
RF MODULE
ADAPTER
I
S
6 PIN
RED
BLK
ORANGE
(PILOT)
GREEN
(MAIN)
GRN/WHT/BLK
RED/
BLK
RED/
BLK
(OPTIONAL)
(OPTIONAL)
IFT-RC400
REMOTE
CONTROL
RED
BLK
BRN BRN
JUMPER WIRE
AC MODULE CABLE
VALVE
WIRE ASSEMBLY
MODULE RESET
SWITCH
(OPTIONAL ON SOME
MODELS ONLY)
ACCESSORY CABLE
PVV-SLP
POWER VENT
PILOT
Figure 4.5 IFT-RC400 Wiring Diagram with Power Vent
11. Attach jumper wire included in manual bag of Power
Vent between black wire on 6 pin harness and red wire
on accessory cable. See Figure 4.5.
12. Attach brown wire from 6 pin harness to brown wire on
accessory cable. See Figure 4.5.
13. Plug connector plug on accessory cable into AUX port
on IFT-ACM. See Figure 4.5.
14. Plug power cord from IFT-ACM to junction box. This
will already be plugged in if equipped on appliance, or
it is included in the IFT-ACM kit if the appliance is not
equipped with an IFT-ACM
15. Restore Power to the control module.
• Power Vent must be paired to IFT-ACM before
installation is complete.
• If you have 120 VAC Power & Gas to applance:
- Immediately after connecting the PVI-WH
connector to the IFT-ACM, the IFT control
must be paired to recognize the Power Vent
as part of the control conguration.
- Appliance and Power Vent function must be
veried before installation is complete.
- Consult installation manuals for details.
• If you DO NOT have 120 VAC Power & Gas:
- DO NOT connect PVI-WH connector to IFT-
ACM.
- Disconnect 6V power to lock-out appliance.
Failure to follow instructions could result in a re or explosion.
WARNING!

19 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
TO JUNCTION
BOX (110V)
MODULE
FLAME
SENSE IGNITER
GROUND
ORANGE
(PILOT)
GREEN
(MAIN)
BROWN
BLACK
RED
BATTERY PACK
6V DC (AA X 4)
THERMOSTAT WIRE
ASSEMBLY / WALL
SWITCH WIRE
STEP 2
STEP 1
STEP 4
STEP 5
STEP 3
STEP 7
STEP 6
B. Wiring the Appliance for the PVV-SLP with
IntelliFire™ and IntelliFire™ Plus (IPI)
Controls
NOTICE: The 8K1-PVI control module must be used to
integrate the PVV-SLP to the replace. (The 8K1-PVI is
included with the PV-IPI-CK which is sold separately. When
installing the PVV-SLP on PRIMO models the 8K1-PVI is
included with the replace.)
NOTICE: Electrical wiring must be done in accordance
with national, provincial, and/or local electric codes.
CAUTION! Risk of shock! Disconnect electrical power
from replace/power vent before performing any mainte-
nance, repair, or electrical wiring.
NOTICE: Electrical service of 120 VAC-60Hz must be
supplied to the junction box of the replace in order for the
power vent to operate correctly.
Figure 4.6 IntelliFire Plus™ (Black) IPI Module Wiring as Shipped from Factory
REMOVAL OF UNNECESSARY PARTS
Refer to the appropriate directions depending on the color
of the IPI module (Black or Green.)
IntelliFire Plus™ IPI Module (Black)
Refer to Figure 4.6 for steps 1 through 7. The shaded
portion corresponding to the numbered step is the task to
be performed.
1. Unplug control module power.
2. Detach the white and orange wires from the control
module.
3. Detach the remaining harnesses from the control mod-
ule.
4. Remove the black control module. This will no longer
be needed.
5. Remove and discard battery pack (if present).
6. Unplug wall switch wires (if present).
7. Remove and discard IPI wire harness.
NOTICE: When installing the power vent with
the MEZZO, ECHELON and CRAVE models,
the LED will need to be disconnected from the
AUX2 (factory setting) and moved to AUX1.
Plug the power vent system into AUX2. The
LED function will only be operational on the
HIGH setting.

20 Hearth & Home Technologies • Vertical Power Vent (PVV-SLP) Instructions • 4071-900 Rev. C • 11/19
INSTALLATION
The type of control used to power the appliance is the
determining factor in making the appliance compatible
with the PVV-SLP.
• A 7/8 in. diameter hole must be bored in the side of
the replace outer wrap in which the 5 wires from the
power vent will be routed. The hole should be located
2 inches to the side of the junction box and 4-inches
up from the base of the replace.
IntelliFire™ Plus IPI Module (Black)
1. Attach the new 8K1-PVI module to the 6V transformer.
2. Connect the pilot wires (white to S and orange to I) to
the 8K1-PVI module.
3. Connect the new Aux RC300 to the 8K1-PVI module.
4. Plug the Aux RC300 into the Junction Box.
5. Attach the 8K1-PVI wire harness to the 8K1-PVI
module. Connect green and orange valve wires and
reconnect ground wire to chassis.
6. Connect the accessory cable coming from the
PVV-SLP to the AUX RC300 (AUX 2 port) and the
corresponding colored wire on the wire harness.
7. Connect the stepper motor wires to the 8K1-PVI
module.
STEP 4
ORANGE
(PILOT)
GREEN
(MAIN)
GROUND
WHT
AUX 1 AUX 2
TO JUNCTION BOX 110VAC
ORG
TO JUNCTION BOX
110VAC
BROWN
RED
STEP 1
STEP 2
STEP 3
STEP 5
STEP 6
STEP 7
PILOT
8K1-PVI
AUX RC300
MODULE
8K1-PVI
WIRE HARNESS
VALVE
ACCESSORY CABLE
PVI WIRE HARNESS
PVV-SLP
Figure 4.7 PVV-SLP Wiring for IntelliFire™ Plus RC100, RC200, RC300 Controls
