Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
PH-FRT, PH-SIDE
Models: MEZZO-C Series, CRAVE-C Series, ECHELON-C Series
Passive Heat Kit Installation Instructions
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
CAUTION! Do not install damaged components.
If any parts are missing or damaged, contact your dealer before
starting installation. DO NOT install a damaged kit.
Introduction
The Passive Heat (PH-FRT, PH-SIDE) Heat Manage-
ment System conveys warm air from the replace into the
same room through either a front discharge slot or two
side discharge heat registers. Installation of the Passive
Heat kit must be done in conjunction with the appliance
installation. Installation of this kit MUST be performed by
a qualied service technician.
WARNING! Risk of Fire! DO NOT install the Passive
Heat (PH-FRT or PH-SIDE) Heat Management System
with models that are not approved. Overheating will oc-
cur.
The Passive Heat Trim Kit (PHTRIM-XX) is also available
for installation with the Front Discharge Passive Heat
systems and must be purchased separately. Follow in-
structions included with the trim kit to complete installation
of the Passive Heat system.
The Passive Heat kit is tested and safe when installed in
accordance with this installation manual. It is your respon-
sibility to read all instructions before starting installation
and to follow these instructions carefully during installation.
The Passive Heat kit is carefully engineered and must
be installed only as specied. If you modify it or any of
its components you will void the warranty, and you may
possibly cause a re hazard. Installation must be done
according to applicable local, state, provincial, and/or
national codes.
Table of Contents
Introduction .......................................1
Preparation .......................................1
Kit Contents.......................................2
Clearances .......................................3
Mantel Projections..................................4
Framing ..........................................4
Good Faith TV Guidelines ............................5
Framing Dimensions - Passive Heat Front Discharge (PH-FRT)
Single-Sided or See-Through.......................6
Framing Dimensions - Passive Heat Side Discharge (PH-SIDE)
Single-Sided or See-Through.......................7
Framing Dimensions - Passive Heat Open Top Discharge
Single-Sided or See-Through.......................8

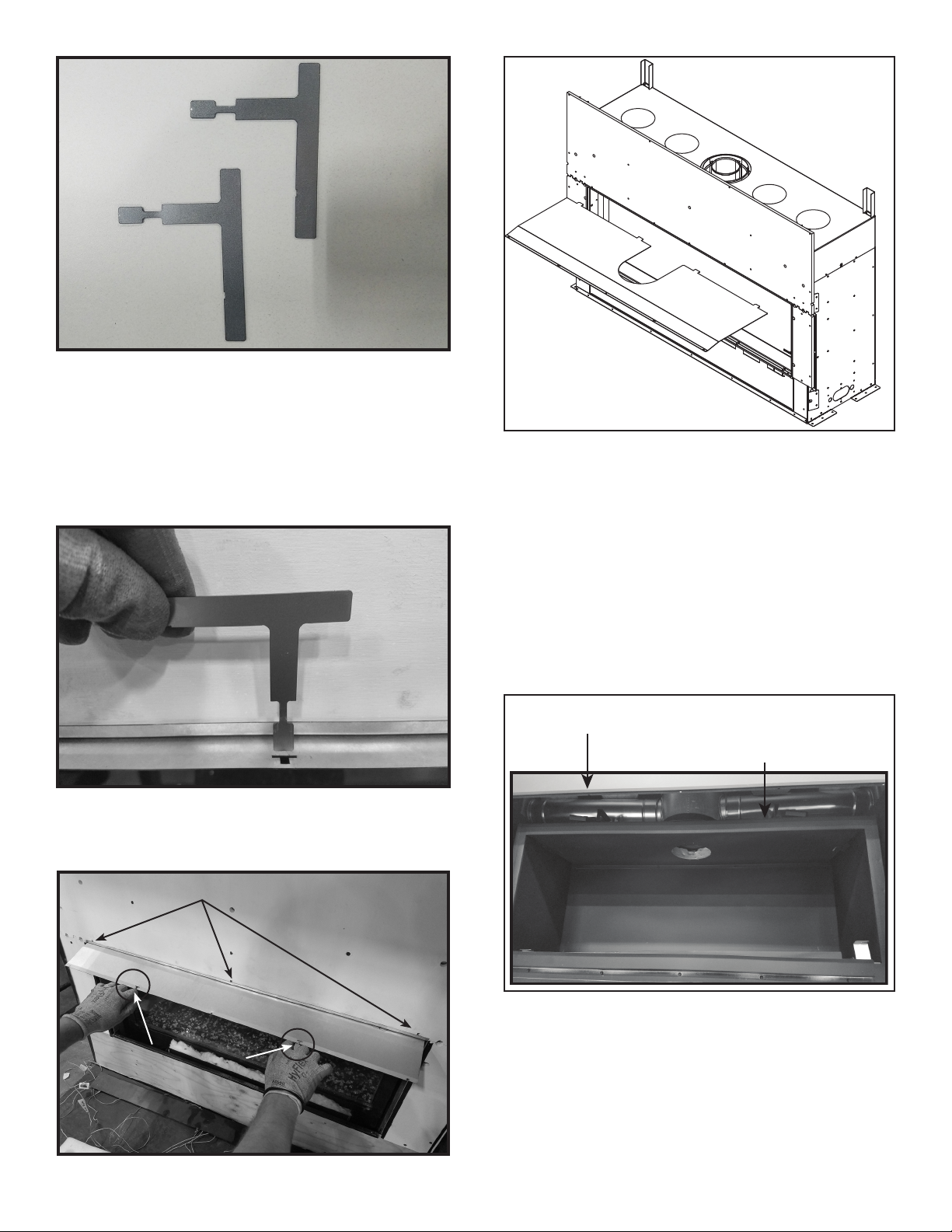

Installation Instructions ..............................9
(Front, Side or Open Top Discharge)....................9

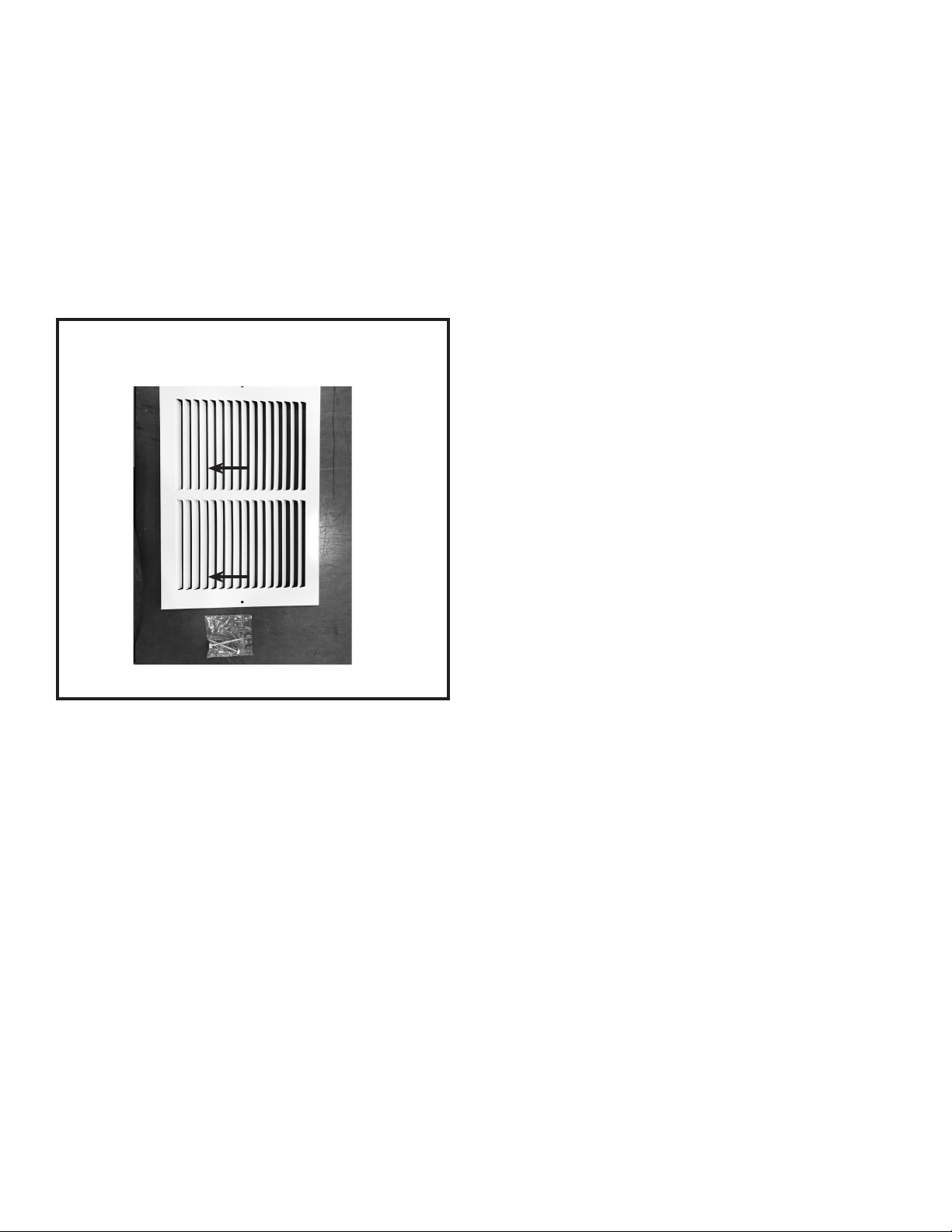

Install Register Cover - Side Discharge Only ............ 11
Installation of Passive Heat with Other Optional Heat
Management Systems ........................... 11
Maintenance ..................................... 11
Power Vent Option
If an optional power vent will be installed in conjunction
with the Passive Heat Kit (PH-FRT or PH-SIDE), Hearth &
Home Technologies recommends the PVLP-SLP power vent
option. If the application does not allow for the PVLP-SLP
to be used, the PVI-SLP-B may be used. The PVI-SLP-B
must be mounted outside the chase due to the higher
noise level created.
CAUTION! Risk of Burns!
• Appliance MUST be turned o and cooled before kit is
installed.
• Shut o gas supply.
Preparation
Plan the location of the appliance.
Determine whether front or side discharge is to be installed
and follow instructions for the appropriate application.

2Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20

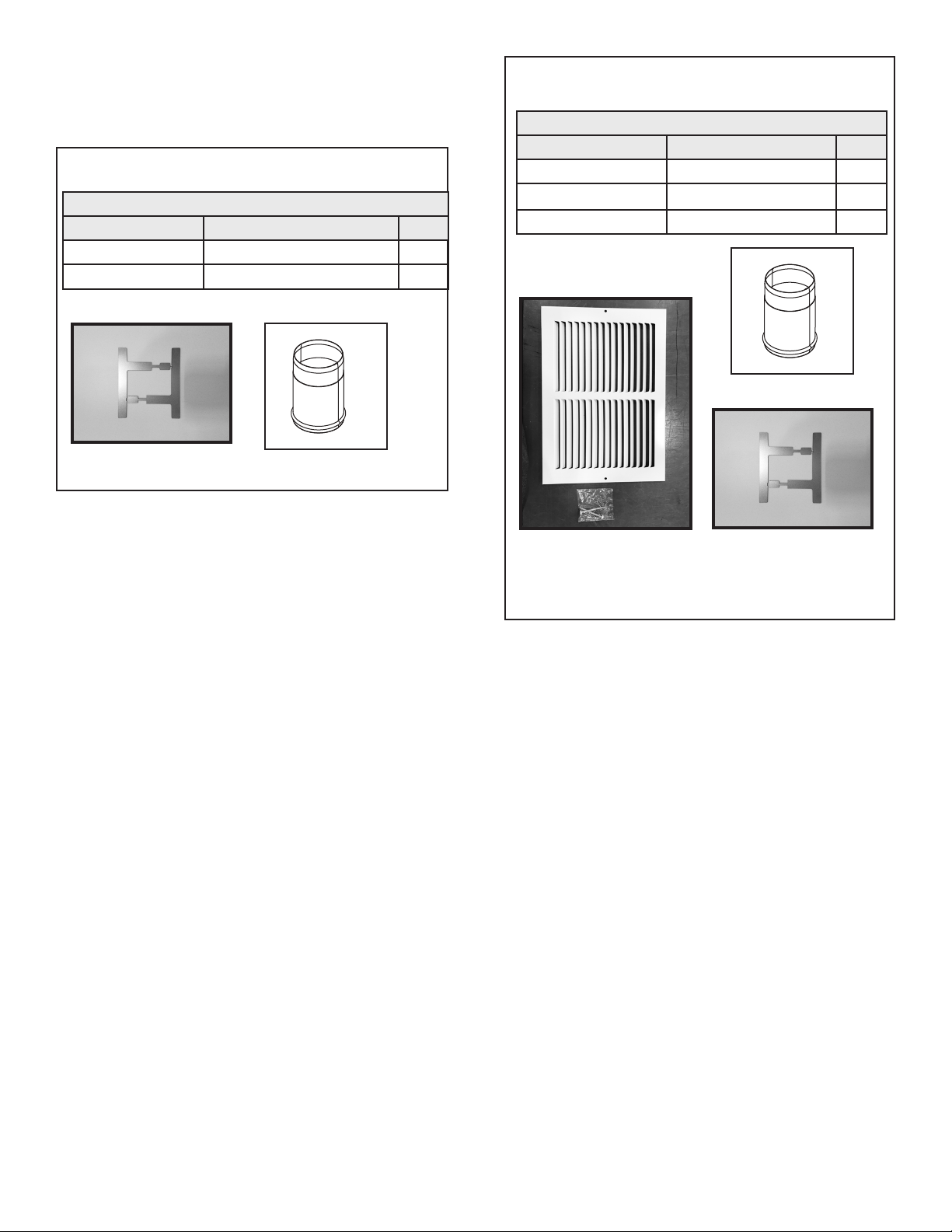

Figure 1 Front Discharge Passive Heat Kit Components
FRONT DISCHARGE KIT (PH-FRT)
DESCRIPTION SERVICE PART NO. QTY
Inner Flue, Top Service part not available 4
Pull Tool 2600-200 1
SIDE DISCHARGE KIT (PH-SIDE)
DESCRIPTION SERVICE PART NO. QTY
Register Cover 2560-120 2
Inner Flue, Top Service part not available 4
Pull Tool 2600-200 1
Figure 2 Side Discharge Passive Heat Kit Components
2560-120
12 in. x 8 in. Register Cover
(Quantity 2, Includes Screws)
Contents of Front Discharge Kit PH-FRT
Contents of Side Discharge Kit PH-SIDE
Kit Contents
Verify and remove contents from packaging before
beginning installation. See Figure 1 (Front Discharge) or
Figure 2 (Side Discharge).
Inner Flue, Top
Inner Flue, Top
Pull Tool
Pull Tool

3
Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
Clearances
Ensure all clearances are maintained.
• Maintain minimum distance from top of appliance
opening to the room ceiling. Refer to the gures in the
Framing section of this instruction.
• A chase ceiling is required at the top of the passive heat
discharge opening for all installations. An open space, or
“cavity,” is not allowed above the passive heat discharge
opening. Construct the false ceiling from material such
as metal, drywall or plywood.
WARNING! Risk of Fire! Maintain clearances to com-
bustibles as specied.
NOTICE: (See Through models ONLY) If Passive Heat-
Front Discharge or Open Top Chase is the selected heat
management option, consider these recommendations:
• Locate the Passive Heat discharge opening in the larger of
the two rooms served by the See-Through model installed for
optimal comfort.
• Locate the control side of the appliance and the Passive Heat
discharge opening in the same room.
DRAFTDRAFT
INTERIOR WALL
FLOOR
CEILING
36 IN.
36 IN.
6 IN.
18 IN.
18 IN.
PASSIVE HEAT FRONT DISCHARGE OPENING
(Clearances for front and side discharge installations)
FIREPLACE
*CEILING
INTERIOR WALL
6 IN.
36 IN.
= SPRINKLER HEAD
PASSIVE HEAT OPEN TOP DISCHARGE OPENING
Clearance - Sprinkler to Passive Heat
Figure 3 references the clearances that must be adhered
to when installing a sprinkler head near a passive heat
discharge opening.
* If the distance from the top of the passive heat
front discharge opening to the ceiling is 36 inches
or greater, then there is no 36 inch clearance
requirement. This is for a ceiling sprinkler head
installation only.
Note: When installing a sprinkler head near a heat
discharge opening, it is recommended to use
a sprinkler head with an Extra High sprinkler
activation temperature rating.
• When installing a sprinkler head exterior of the chase,
maintain the following clearances to discharge openings
(convection slots, passive heat registers, heat zone
registers, etc.): 36 inches top, 18 inches sides and 6
inches bottom.
• DO NOT install a sprinkler head inside a chase that is
set up for passive heat.
Figure 3

4Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
Framing
1. Dimensions for framing using front discharge are
shown in Figure 5 using either the trim kit or using the
clean face nishing method.
2. Figure 6 shows the framing requirements for the
PH-SIDE kit using a side discharge. Do not place
combustible objects or combustible materials on the
nished wall adjacent to the non-combustible zone
(E) on either side of the appliance.
3. Dimensions for framing using the Open Top Discharge
method of installation are shown in Figure 7 using the
clean face nishing method.
4. If discharge opening (Dimension A in Figure 7) is
three inches or greater, a piece of wire mesh with 1/2
inch x 1/2 inch opening is required to be installed on
the top of the framing above the appliance.
The wire mesh will prevent objects from falling through
the opening and onto the top of the appliance. The
wire mesh may be available at a hardware or home
improvement retailer.
The wire mesh must be fastened to the top of the
framing on the bottom side of the discharge opening.
WARNING! Risk of Fire! Wire mesh required on dis-
charge opening bottom at top of framing when discharge
opening is greater than 3 inches.
NOTICE: The location of the Passive Heat discharge
opening could allow for venting and other construction
materials to be visible. It is acceptable to paint the vent pipe
and other construction materials using a high temperature
paint with a minimum of 300 °F continuous exposure rating.
Hearth & Home Technologies recommends using black
touch up paint (part number TUP-GBK-12) available from
your Hearth & Home Technologies dealer.
Mantel Projections
Refer to the appliance Installation Manual.

5
Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
Figure 4 Good Faith TV Guidelines
WARNING! Risk of Fire! Wire mesh required on bottom of discharge opening when discharge
opening is greater than 3 inches. Secure wire mesh to top of framing.
Good Faith TV Guidelines
Measurement from top edge
of opening to bottom of
appliance = 24-1/2 IN.
ROOM CEILING
TV
12 IN. MIN.
4 IN. MIN. 1/2 IN. X 1/2 IN.
WIRE MESH*
* Wire mesh required for front discharge or open top discharge passive heat installations with discharge
opening of 3 inches or greater.
Good Faith Guidelines for TV Installations
Above a MEZZO-C/CRAVE-C/ECHELON-C Fireplace with Passive Heat Option
(Single-Sided Appliance Shown)
FIREPLACE
OPENING
2 X 4 FRAMING
2 X 4 OR 2 X 6
FRAMING
WIRE MESH*
= PASSIVE HEAT
DISCHARGE OPENING
2 IN. MIN.
1-1/2 IN. (2 X 4 FRAMING)
CHASE CEILING - SEE FIGURES 5 AND 6
(FRONT AND SIDE DISCHARGE ONLY)

6Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
Figure 5 Passive Heat Front Discharge Framing Dimensions with Clean Face Finish or Trim Kit
* Measurement for Trim Kit = 3-1/2 in. + additional nishing material thickness
** Measurement for without trim kit = 2 in. + additional nishing material thickness. If discharge opening is greater than
3 inches wire mesh is required. See details in the Framing Section.

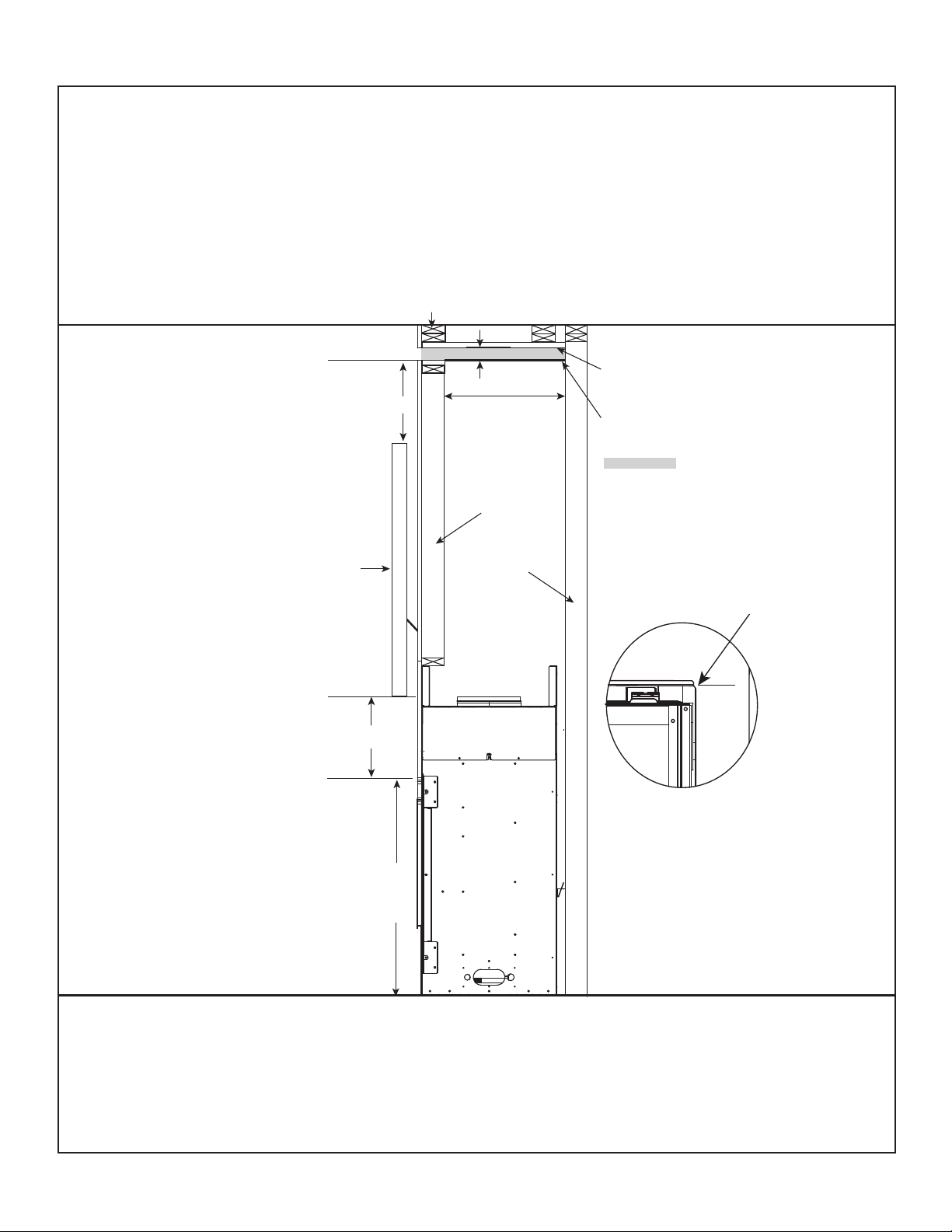

Framing Dimensions - Passive Heat Front Discharge (PH-FRT) Single-Sided or See-Through
WARNING! Risk of Fire! Wire mesh required
on bottom of discharge opening when discharge
opening is greater than 3 inches. Secure mesh to
top of framing.
A
E
D
C
B
APPLIANCE MAY BE INSTALLED
OFF OF FLOOR
F
Front Discharge: Air conveyed into the room through one front discharge slot.
ROOM CEILING
1-1/2 IN. (2 X 4 FRAMING)
2 IN. MIN.
TV
1/2 IN. X 1/2 IN.
WIRE MESH**
CHASE CEILING (REQUIRED)
WIRE MESH**
= PASSIVE HEAT
DISCHARGE OPENING
CHASE DETAIL
FRONT DISCHARGE FRAMING DIMENSIONS
A
B C D E F
TRIM KIT*
(PH-TRIM)
NO TRIM
KIT**
Height of
Discharge
Opening
Minimum
Height of
Discharge
Opening
Minimum
Clearance
to
Framing
Width of
Discharge
Opening
Clearance
to Top of
Discharge
Opening
from Bottom
of Appliance
Clearance
from Bottom
of Appliance
to Bottom of
Discharge
Opening
Minimum
Clearance
Discharge
Opening to
Ceiling
MEZZO36-C/ST-C
CRAVE4836-C/ST-C
ECHEL36IN-C/STIN-C
Inches 3-1/2 2 48 36-1/2 74-1/2 72-1/2 51-1/2
millimeters 89 51 1219 927 1892 1842 1308
MEZZO48-C/ST-C
CRAVE6048-C/ST-C
ECHEL48IN-C/STIN-C
Inches 3-1/2 2 48 48-1/2 74-1/2 72-1/2 51-1/2
millimeters 89 51 1219 1232 1892 1842 1308
MEZZO60-C/ST-C
CRAVE7260-C/ST-C
ECHEL60IN-C
Inches 3-1/2 2 48 60-1/2 74-1/2 72-1/2 51-1/2
millimeters 89 51 1219 1537 1892 1842 1308
MEZZO72-C/ST-C
CRAVE8472-C/ST-C
ECHEL72IN-C
Inches 3-1/2 2 67-1/2 72-1/2 94 92 71
millimeters 89 51 1715 1842 2388 2337 1803

7
Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
Figure 6 Passive Heat Side Discharge Framing Dimensions
Framing Dimensions - Passive Heat Side Discharge (PH-SIDE) Single-Sided or See-Through
WARNING! Risk of Fire! DO NOT place combustible
objects or combustible materials in non-combustible
zone. Appliance and combustible materials will
overheat.
SIDE DISCHARGE FRAMING DIMENSIONS
AB C D E F
Height of
Discharge
Opening
Width of
Discharge
Opening
Minimum
Clearance to
Discharge
Opening from
Bottom of
Appliance
Minimum
Clearance
Bottom of
Appliance
to Ceiling
Minimum
Clearance to
Combustible
Materials
Minimum
Clearance
Discharge
Opening to
Ceiling
MEZZO36-C/ST-C
CRAVE4836-C/ST-C
ECHEL36IN-C/STIN-C
Inches 12-1/4 8-3/4 62-3/4 76-1/2 18 52
millimeters 311 222 1594 1943 457 1321
MEZZO48-C/ST-C
CRAVE6048-C/ST-C
ECHEL48IN-C/STIN-C
Inches 12-1/4 8-3/4 62-3/4 76-1/2 18 52
millimeters 311 222 1594 1943 457 1321
MEZZO60-C/ST-C
CRAVE7260-C/ST-C
ECHEL60IN-C
Inches 12-1/4 8-3/4 62-3/4 76-1/2 18 52
millimeters 311 222 1594 1943 457 1321
MEZZO72-C/ST-C
CRAVE8472-C/ST-C
ECHEL72IN-C
Inches 12-1/4 8-3/4 81-1/4 95 18 70-1/2
millimeters 311 222 2064 2413 457 1791
Side Discharge: Air conveyed into the room through two discharge registers,
one on each side of appliance.
ROOM CEILING
1-1/2 IN. (2 X 4 FRAMING)
= PASSIVE HEAT
DISCHARGE OPENING
DISCHARGE OPENING
CHASE CEILING ZONE
CHASE CEILING (REQUIRED)
CHASE DETAIL
E
B
A
C
D
E = NON-COMBUSTIBLE ZONE
(BOTH SIDES)
APPLIANCE MAY BE INSTALLED
OFF OF FLOOR
F

8Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
C
A
B
D
Figure 7 Passive Heat Minimum Framing Dimensions Open Top Discharge
OPEN TOP DISCHARGE MINIMUM FRAMING DIMENSIONS
A* B C D
Minimum Height of
Discharge Opening
Clearance
to Framing
Width of Discharge
Opening
Minimum Clearance
Discharge Opening
to Ceiling
MEZZO36-C/ST-C
CRAVE4836-C/ST-C
ECHEL36IN-C/STIN-C
Inches 2 48 36-1/2 50
millimeters 51 1219 927 1270
MEZZO48-C/ST-C
CRAVE6048-C/ST-C
ECHEL48IN-C/STIN-C
Inches 2 48 48-1/2 50
millimeters 51 1219 1232 1270
MEZZO60-C/ST-C
CRAVE7260-C/ST-C
ECHEL60IN-C
Inches 2 48 60-1/2 50
millimeters 51 1219 1537 1270
MEZZO72-C/ST-C
CRAVE8472-C/ST-C
ECHEL72IN-C
Inches 2 67-1/2 72-1/2 69-1/2
millimeters 51 1715 1842 1765
*Wire mesh required for front discharge or open top discharge passive heat installations with discharge
opening of 3 inches or greater.
Framing Dimensions - Passive Heat Open Top Discharge Single-Sided or See-Through
WARNING! Risk of Fire! Wire mesh required on bottom of discharge opening when discharge
opening is greater than 3 inches. Secure mesh to top of framing.
Open Top Discharge: Both sides and the top are open allowing air to be conveyed into the room.

9
Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
Framing Dimensions - Passive Heat Open Top Discharge Single-Sided or See-Through Installation Instructions
(Front, Side or Open Top Discharge)
1. Remove the four knockouts on the top of the appliance
by dislodging them with a hammer and then using a
screwdriver to remove from the holes. See Figure 8.
REMOVE 4 KNOCKOUTS
REMOVE INSULATION PLUGS
2. Remove the insulation plug from each knockout.
Discard. See Figure 9.
3. Set a collar in each of the holes where the knockouts
were removed. See Figure 10.
4. Remove the screws from the heat shield as shown in
Figure 14. Quantity and location of screws will vary
between models.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves. Sheet metal edges are sharp.
Figure 8 Remove Knockouts
Figure 9 Remove Insulation Plugs
Figure 10 Install Collars
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation. Sheet metal edges are sharp.
5. Bend pull tools and break apart as shown in Figure 11
and Figure 12.
BREAK HEREBREAK HERE
Figure 11 Bend and Break Pull Tools Apart
WARNING! Risk of Fire! All four knockouts MUST be
removed. Appliance and combustible materials will
overheat.

10 Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
6. Insert pull tool into slots on left and right sides of
appliance. See Figure 13.
7. Carefully pull the heat shield out of the appliance as
shown in Figure 14 and Figure 15. Discard heat
shield. Repeat procedure on other side if application
is on a see-through appliance.
Figure 14 Use Pull Tools to Remove Heat Shield
Figure 12 Pull Tools Separated
Figure 13 Pull Tool Inserted Into Slot
REMOVE SCREWSREMOVE SCREWS
PULL TOOLSPULL TOOLS
Figure 15 Remove Heat Shield
9. Side Discharge Only: Instructions continue on the
following page.
WARNING! Risk of Fire! Remove all debris and objects
from rebox top and appliance top before operating the
appliance.
8. Inspect for and remove all debris that may have
accumulated or objects that may have been placed on
the rebox top and appliance top during the installation
process. All debris and objects must be removed
prior to operation of the appliance. Firebox top and
appliance top are shown in Figure 16.
Figure 16
APPLIANCE TOP
FIREBOX TOP

11
Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
Install Register Cover - Side Discharge Only
WARNING! Risk of Overheating! Both passive heat
side discharge assemblies included with kit MUST be
installed and operational. Overheating will occur.
LOUVERS FACING THE FRONT OF THE APPLIANCE
(CONTROL SIDE)
Figure 17 Correct Register Orientation
WARNING! Risk of Fire! DO NOT block passive heat
registers! Overheating will occur.
1. Install register cover with louvers facing the front of
the replace (control side) using provided screws See
Figure 17.
Passive Heat Kit Installed with Optional Heat-Zone® Gas
• Only one Heat-Zone® Gas kit may be installed and
used in conjunction with the Passive Heat kit.
• The HZLIN-ADP adapter kit is required and MUST be
ordered separately.
• Refer to the instructions included with the Heat-Zone®
Gas kit for more information.
Passive Heat Kit Installed with Optional Heat-Out-Gas
• One Heat-Out-Gas kit may be installed and used in
conjunction with the Passive Heat kit. Refer to the
instructions included with the HEAT-OUT-GAS kit for
more information.
There are other heat management options available for
use with the MEZZO-C, CRAVE-C and ECHELON-C
models. Consult the appliance manual for compatible op-
tions. Only one Passive Heat knockout may be used for
additional heat management systems.
Installation of Passive Heat with Other
Optional Heat Management Systems
Please contact your Hearth & Home Technologies dealer
with any questions or concerns.
For the location of your nearest Hearth & Home
Technologies dealer,
please visit www.hearthnhome.com.
Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.hearthnhome.com
Maintenance
Service and maintain the gas replace per instructions.
Keep the air register(s) clean and free of any blockage.
WARNING! Risk of Fire! DO NOT cover a knockout un-
less a heat management system will be installed in its
place. Only one Passive Heat knockout may be used for
an additional heat management systtem. Appliance and
combustible materials will overheat.
Painting
If desired nishing includes a painted register cover,
Hearth & Home Technologies recommends using high
temperature paint with a minimum of 300 °F continuous
exposure rating.
Note: The optional Heat-Zone® Gas and Heat-Out-Gas
kits contain two collars. One collar will remain unused
when installing either kit in addition to the Passive Heat
kit.
