Hearth & Home SMART WALL B Installation instructions

1
Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/20
The purpose of this kit is to keep the area above the appli-
ance at a temperature that is within the at screen style TV
manufacturer’s specied maximum operating temperature.
The ability of the SMART-WALL-B TV Kit to accomplish
this purpose is expressly dependent upon the following
conditions.
• The manufacturer’s specied maximum operating tem-
perature (for the TV unit being used in this application)
being no less than 100 degrees Fahrenheit (consult
your manufacturer to determine the maximum operating
temperature for your TV unit);
If the specied maximum operating temperature
for your TV unit is less than 100 degrees Fahren-
heit, do not use that particular TV in this application.
• The back of the TV unit (after installation on a wall
mounted bracket) having and maintaining not less than
a 3-inch gap between the back of the TV unit and the
wall. This is the gap between the back of the TV and
the wall which is vital for proper air and temperature
circulation.
• The ambient temperature of the room is maintained at
75 degrees Fahrenheit or less.
• The SMART-WALL-B TV Kit and the TV must be installed
and operated in strict compliance with all other appli-
cable installation and operation instructions for this kit.
SMART-WALL-B TV Kit
- Installation & Operation Instructions -
DESCRIPTION SERVICE PART NO.
20 ft. Length of 6 in. Insulated
Round Duct 659-200
Fan Housing Assembly 659-001A
Junction Box 659-122
SMART-WALL-B Control Module 2326-180
Air Register 659-150
Register Adaptor Frame-Thick SRV695-125
Appliance Duct Collar SRV659-125
Duct Adaptor (Round to Oval) 659-129
Accessory Cable (20 ft.) 4086-349
Power Harness 2326-136
IFT-RC400 Remote Control SRV2326-110
IFT-RF Module 2326-120
IFT-ACM Module 2326-150
IFT-ACM Cable SRV2326-152
If any parts are missing or damaged, contact your Dealer before
starting installation. DO NOT install a damaged kit. Be sure to
also reference the appliance Installers Guide.
Preliminary Preparation
Contents of kit:
Please note, while the SMART-WALL-B TV Kit, when in-
stalled and used properly will allow most TVs to operate
above the replace appliance without damaging the TV,
operating a TV at the higher end of the manufacturer’s
maximum operating temperature range, may and likely
will have some impact on the life span of the TV appliance
compared to operating it at normal ambient temperatures.
The SMART-WALL-B uses a control module that must
be used with the IntelliFire™ Touch control system. The
SMART-WALL-B blower turns on and operates for two
minutes before the ignition sequence begins. The SMART-
WALL-B blower remains on for 20 minutes after the appli-
ance is turned o󰀨 to remove residual heat so the TV does
not overheat.
NOTICE: DO NOT install a GFK-160A fan kit in a
replace equipped with the SMART-WALL-B TV kit. The
GFK-160A fan could cause the TV to overheat.
Approvals
The exible duct in this Smart-Wall™ (SMART-WALL-B)
TV kit is manufactured and marked to the requirements of
UL-181, Class I air duct.
Introduction
The SMART-WALL-B TV kit conveys warm air from the
appliance through an air duct to remote locations in the
same room or other rooms of the building. See Figure 1.
This kit is only approved for use with the following models:
Hearth & Home Technologies does not guarantee that a
user’s TV will safely operate long-term in conditions not
strictly in compliance with those described in the previous
paragraph.
COSMO32-IFT RAVE3012-IFT JADE32IN
COSMO42-IFT RAVE4013-IFT JADE42IN
COSMO32-IFT-B RAVE32-IFT-B JADE42IL
COSMO36-IFT-B RAVE36-IFT-B JADE32IN-B
COSMO42-IFT-B RAVE42-IFT-B JADE42IN-B
JADE42IL-B
TV installation must follow the guidelines in Figure 14 for
the SMART-WALL-B to function properly.
NOTICE: The Cold Climate feature of the IntelliFireTouch
control system is not functional when the SMART-WALL-B
kit is installed.

Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/202

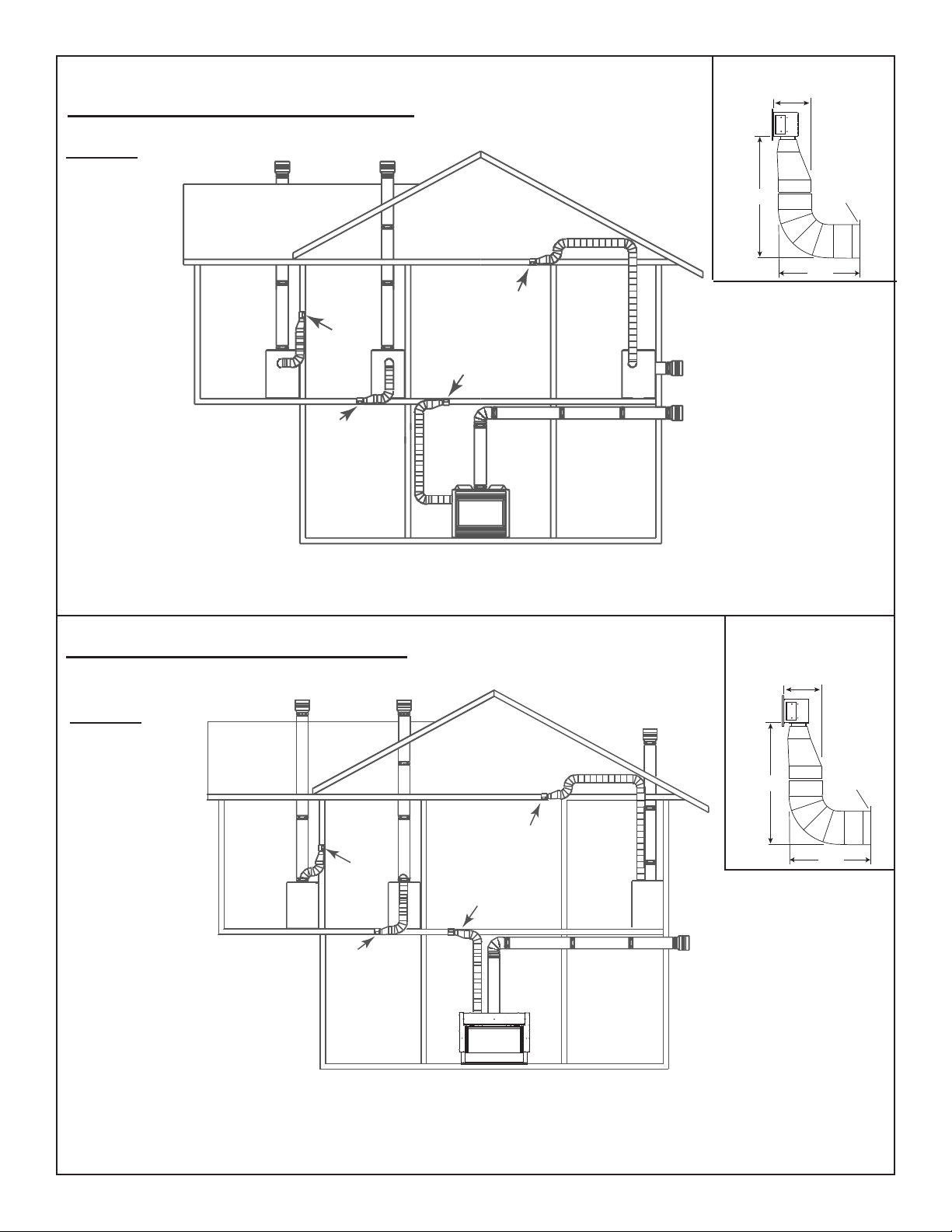

Possible Air Duct Runs/Locations
Figure 1
18 IN.
6-3/4 in.
MINIMUM SPACE REQUIRED FOR
90 DEGREE BEND
12 IN.
SIDE OF
APPLIANCE
Ceiling Register
Ceiling Register
Wall Register
Floor Register
Register must be located a minimum of two feet horizontally from TV
unless register is mounted at least 12 inches above the TV.
*
*
*
*
Clearance from insulated
exible duct to combustibles =
0 inches.
APPLIANCES WITH SIDE KNOCKOUTS
APPLIANCES WITH TOP KNOCKOUTS
Ceiling Register
Ceiling Register
Wall Register
Floor Register
Register must be located a minimum of two feet horizontally from TV
unless register is mounted at least 12 inches above the TV.
*
*
*
*
Clearance from insulated
exible duct to
combustibles = 0 inches.
MODELS:
COSMO32-IFT
COSMO42-IFT
RAVE3012-IFT
RAVE4013-IFT
JADE32IN
JADE42IN
JADE42IL
MODELS:
COSMO32-IFT-B
COSMO36-IFT-B
COSMO42-IFT-B
RAVE32-IFT-B
RAVE36-IFT-B
RAVE42-IFT-B
JADE32IN-B
JADE42IN-B
JADE42IL-B
18 IN.
6-3/4 in.
MINIMUM SPACE REQUIRED FOR
90 DEGREE BEND
12 IN.
SIDE OF
APPLIANCE
*MUST maintain a
minimum clearance
of 18 inches from the
fan air outlet housing
to any combustible
surfaces or
combustible materials,
such as room
furnishings, furniture,
curtains, etc.
*MUST maintain a
minimum clearance
of 18 inches from the
fan air outlet housing
to any combustible
surfaces or
combustible materials,
such as room
furnishings, furniture,
curtains, etc.

3
Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/20
This kit is tested and safe when installed in accordance with
this installation manual. It is your responsibility to read all
instructions before starting installation and to follow these
instructions carefully during installation.
Installation of this kit MUST be performed by a qualied
service technician.
The SMART-WALL-B kit is carefully engineered and must
be installed only as specied. If you modify it or any of its
components you will void the warranty, and you may possibly
cause a re hazard. Installation must be done according to
applicable local, state, provincial, and/or national codes.
CAUTION! All wiring should be done by a qualied electri-
cian and shall be in compliance with local codes and with
the National Electric Code ANSI/NFPA No. 70-current (In
the United States), or with the current CSC22.1 Canadian
Electric Code (in Canada).
Pre-Installation
1. Plan the location of the appliance and the warm air duct
run. See Figure 1 for potential installation options.
Venting Guidelines
MAXIMUM Duct Run = 20 ft. (6.1 m)
MINIMUM Duct Run = None: For runs out from the appli-
ance to adjacent room OR down to the room below.
MINIMUM Duct Run = 31 in. (787 mm) top of appliance
to room above.
• Maintain smooth turns in duct to minimize restriction.
Installation
KNOCKOUT
DUCT COLLAR
Figure 2.
1. Remove the knockout from the side or top (-B models)
of the appliance and discard it. See Figure 2.
Note: A minimum clearance of 18 inches to any com-
bustible materials or combustible surfaces such as room
furnishings, furniture, curtains, etc., is required from the fan
housing air outlet. Plan for this clearance prior to installa-
tion of the SMART-WALL-B kit.
2. Center the duct collar around the exposed hole and
attach it to the appliance with three screws.
Note: Do this before nal positioning of the appliance.
3. Determine the location for the air register/fan housing
assembly. Cut a 5 in. x 13-5/8 in. (127 mm x 346 mm)
hole between framing members (wall studs or oor
joists). The fan and electrical connections must be
accessible for servicing per local code requirements.
4. Mount and secure the fan housing assembly to framing
members so the front surface is 1/4 in. (6 mm) below
the nished wall or oor surface. Use the adjustable
mounting brackets and screws provided in the kit. See
Figure 3 and Figure 4.
Note: The brackets can be rotated 180º and mounted to
the back side of the 2 x 4 if necessary.
5. Install the air duct run to the appliance duct collar. Note:
Fold outer poly layer of exible duct back to maintain
clearance to combustibles on the appliance. Secure
exible duct to the collar with clamp provided.
KNOCKOUTS
DUCT COLLAR
ADJUSTABLE
MOUNTING
BRACKETS
FINISHED SURFACE
FRONT OF FAN
HOUSING
1/4 IN.
(6 MM)
2 IN. X 6 IN. WALL
FAN HOUSING
13-5/8 IN.
(346 MM)
4-1/2 IN.
(114 MM)
4-3/8 IN.
(111 MM)
18 IN. MIN.
(457 MM) CLEARANCE
TO COMBUSTIBLE
ROOM FURNISHINGS
SUCH AS CURTAINS OR
FURNITURE

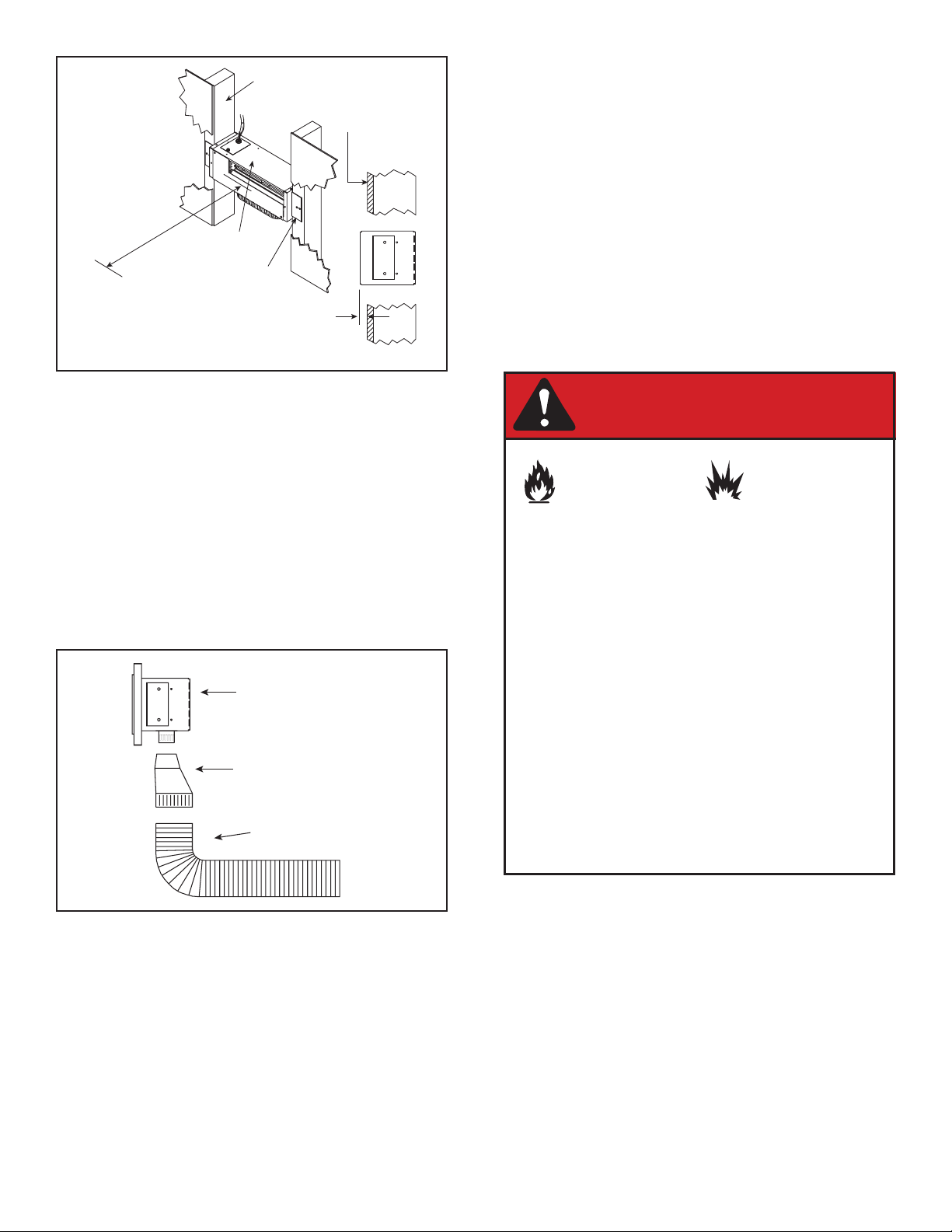

Note: If the fan housing is installed in a 2 x 4 wall, the front
of the housing will protrude approximately 1/2 in. (13 mm)
out of the wall. See Figure 4.
Figure 3

Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/204
Fan Housing
Round to Oval Adapter
6 in. Insulated
Round Air Duct
Figure 5
6. Insulated Round Air Duct: Run the exible duct to
the fan housing. Attach the round-to-oval adapter to
the fan housing with 2 self-tapping sheet metal screws
and the air duct to the adapter with the clamp provided.
See Figure 5.
7. Support duct at intervals of no greater than four feet, with
no more than 1/2 in. (12 mm) sag between supports as
required by local code. Note: Secure the duct so that
clearance to the appliance outer wrap is maintained.
Tape all seams with aluminum tape (1-1/4 in. (30 mm)
minimum width, or as specied by local codes).
8. Connect the strain relief from accessory cable (4086-
349) to the SMART-WALL-B junction box.
9. Connect the white (neutral) and black (hot) wires from
the accessory cable to the corresponding wires on
the SMART-WALL-B blower assembly. Connect the
ground wire eyelet to the SMART-WALL-B housing
using the green screw provided. See Figure 10.
10. Screw the SMART-WALL-B fan junction box to the
SMART-WALL-B fan housing.
11. Screw the register adapter frame and the air register
to the fan housing.
Wiring the Appliance for the SMART-WALL-B
with IntelliFire®Touch (IFT) Controls
NOTICE: When integrating the SMART-WALL-B onto an
appliance with IntelliFire Touch (IFT) controls, the RC400
remote control and the Auxiliary Control Module (IFT-ACM)
must be equipped on the appliance.
NOTICE: Electrical wiring must be done in accordance
with national, provincial, and/or local electric codes.
CAUTION! Risk of shock! Disconnect electrical power
from replace/power vent before performing any mainte-
nance, repair, or electrical wiring.
NOTICE: Electrical service of 120 VAC-60Hz must be
supplied to the junction box of the replace in order for the
SMART-WALL-B to operate correctly.
REMOVAL OF UNNECESSARY PARTS

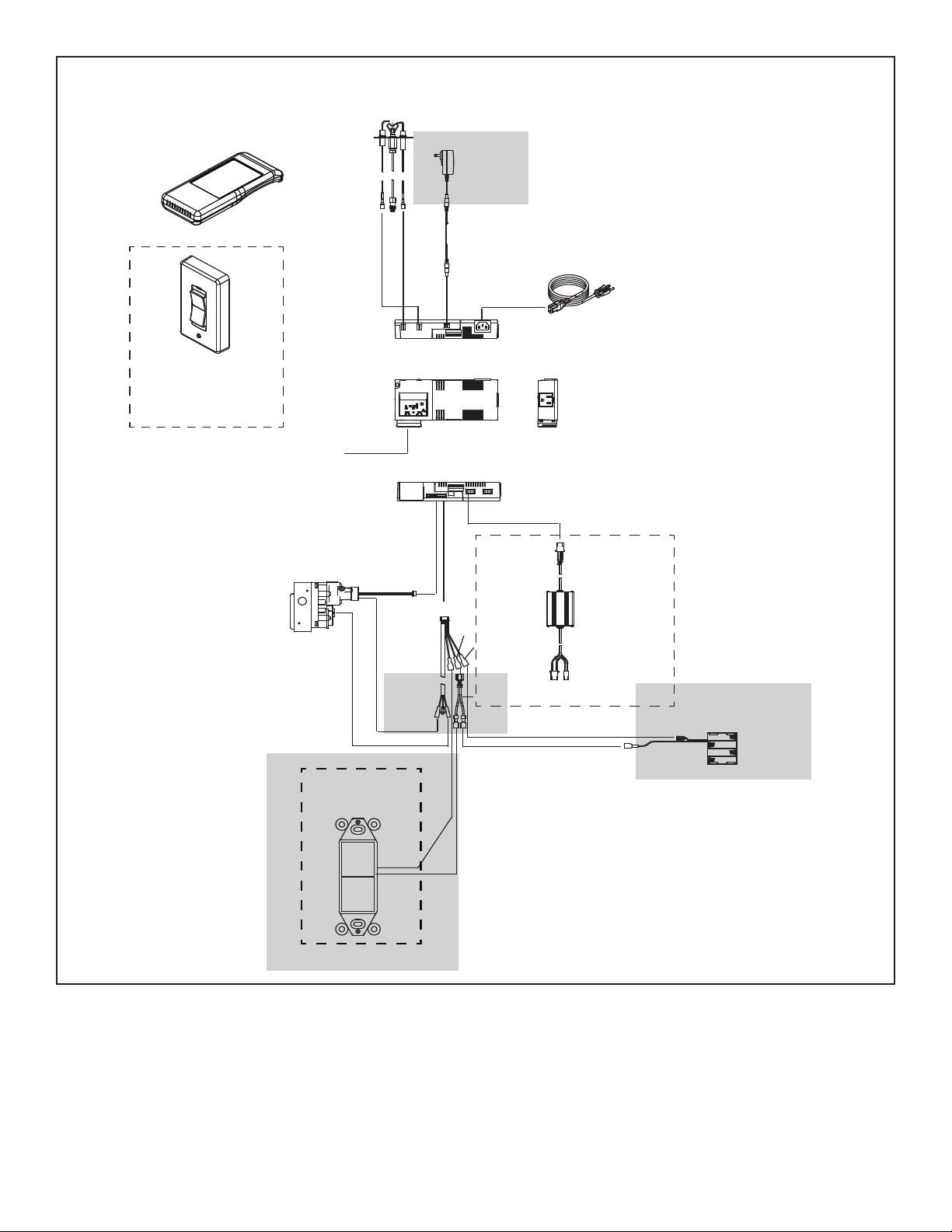

Refer to Figure 6 for steps 1 through 4. Some features may
or may not exist on appliance. The shaded portion corre-
sponding to the numbered step is the task to be performed.
1. Unplug control module power.
2. Remove and discard battery pack (if present).
3. Detach wires from 6 pin harness that connect an op-
tional appliance on/o󰀨 control (if present) and discard.
4. Remove jumper/splitter wire (if present) and discard.
1/2 IN.
(13 MM)
FAN HOUSING
2 IN. X 4 IN. WALL
FINISHED SURFACE
ADJUSTABLE
MOUNTING
BRACKETS
18 IN. MIN.
(457 MM) CLEARANCE TO
COMBUSTIBLE ROOM
FURNISHINGS SUCH AS
CURTAINS OR FURNITURE
Figure 4
WARNING
Risk of Fire! Explosion
Hazard!
Failure to follow instructions could result
in a re or explosion.
• SMART-WALL-B must be paired to IFT-ACM
before installation is complete.
• If you have 120 VAC Power & Gas to appliance:
- Immediately after connecting the SMART-
WALL-B connector to the IFT-ACM, the IFT
control must be paired to recognize the SMART-
WALL-B as part of the control conguration.
- Appliance and SMART-WALL-B function must
be veried before installation is complete.
- Consult installation manuals for details.
• If you DO NOT have 120 VAC Power & Gas:
- Disconnect 6V power to lock-out appliance.
Note: If the appliance is already equipped with an IFT-
ACM, that IFT-ACM must be removed before installing
the SMART-WALL-B kit. The IFT-ACM included in the
SMART-WALL-B kit must be used for this installation.

5
Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/20
FLAME
SENSE IGNITER
TO JUNCTION
BOX 110-120
VAC
LED
CONTROL
RF MODULE
I
S
BRN
ORANGE
(PILOT)
IFT-RC400
REMOTE
CONTROL
GRN/WHT/BLK
RED/BLK
IFT-RC150
WIRELESS
WALL SWITCH
(OPTIONAL)
SPLITTER
BLK
RED
ADAPTER
6V DC
BATTERY PACK
BLK
RED
6 PIN
BLK
RED
GREEN
(MAIN)
RED/BLK
(OPTIONAL)
APPLIANCE
ON/OFF
CONTROL
BRN
BLK
STEP 1
STEP 2
STEP 4
STEP 3
Figure 6 IFT-RC400 Wiring Diagram without SMART-WALL-B

Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/206
Installation Steps:
Note: If the appliance is already equipped with an IFT-
ACM, that IFT-ACM must be removed before installing
the SMART-WALL-B kit. The IFT-ACM included in the
SMART-WALL-B kit must be used for this installation.
1. Locate the IntelliFire™ Touch electronic control module
(IFT-ECM) in the control cavity of the appliance and
move the three-position switch to the OFF position.
See Figure 7.
2. Remove protective rubber cap from connector on the
top of the IFT-ECM. See Figure 7.

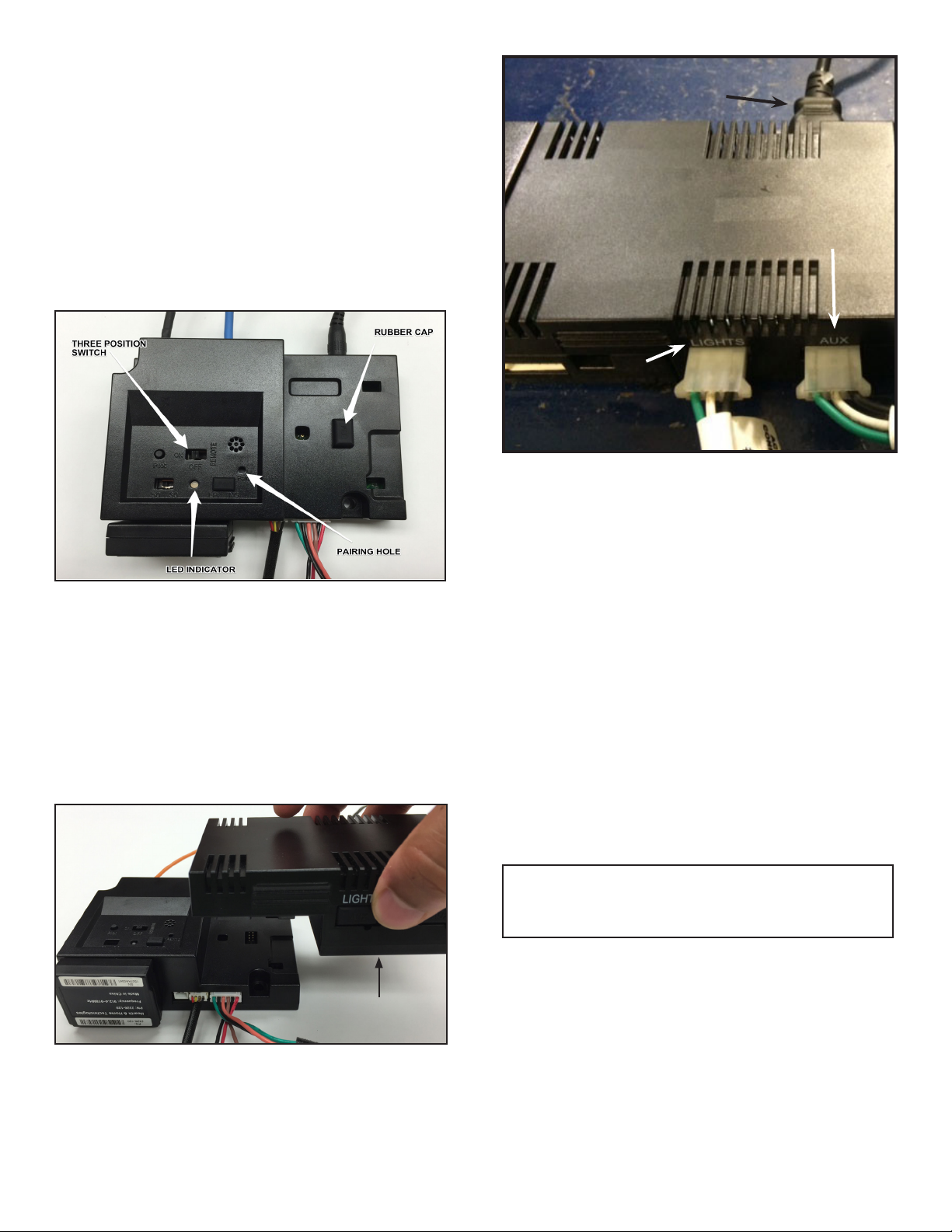

Figure 7. IFT-ECM
4. Connect the IFT-ACM to the IFT-ECM by aligning the
pins and tabs and pushing the IFT-ACM into the IFT-
ECM until both tabs latch in place. Ensure the IFT-
ECM and IFT-ACM are aligned with each other and
fastened securely. See Figure 8.
Figure 8. Connecting IFT-ACM and IFT-ECM
WARNING! Risk of Shock! DO NOT touch male pins.
Leave rubber cap on all ports unless port is being con-
nected to a load.
5. The IFT-ACM can provide power to HHT approved
options including lights and SMART-WALL-B.
• To connect a light kit to the IFT-ACM, remove pro-
tective rubber cap labeled ‘LIGHTS’ and connect
to the female cord that was supplied in your lights
kit into the three male pins on the IFT-ACM. See
Figure 9.
• To connect a SMART-WALL-B kit to the IFT-ACM,
remove protective rubber cap labeled ‘AUX’ and
connect the female end connector of the SMART-
WALL-B control module leads to the three male
pins on the IFT-ACM. See Figure 9.
Figure 9. Fan, Lights and SMART-WALL-B Connection
WARNING! Risk of Shock! DO NOT touch male pins.
Leave rubber cap on all ports unless port is being con-
nected to a lead.
POWER CORDPOWER CORD
SMART-WALL-BSMART-WALL-B
LIGHTSLIGHTS
6. Refer to wiring diagram with the SMART-WALL-B to
make remaining connections. See Figure 10.
7. Ensure the selector switch on the SMART-WALL-B
module is set to A.
8. Attach the SMART-WALL-B control module to the bot-
tom of the appliance using the velcro provided in the
kit.
3. Attach velcro included with the IFT-ACM to the bottom
of the ACM. See Figure 8.
ATTACH VELCRO
Note: It will be necessary to re-pair the remote
after installing HHT approved options to the appliance.
Refer to Page 10 for pairing the remote.

7
Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/20
9. A hole measuring 7/8 inch in diameter must be bored
in the side of the appliance outer wrap in which the
three wires from the SMART-WALL-B will be routed.
The hole should be located 2 inches (48 mm) to the
side of the junction box and 3 inches (76 mm) up from
the base of the appliance.
10. Connect the accessory cable coming from the SMART-
WALL-B blower to the 3 pin male connector on the
SMART-WALL-B control module.
11. Connect the 3 pin female connector on the SMART-
WALL-B control leads to the Aux port on the IFT-ACM.
12. Connect the brown wire from the IFT-ECM wire harness
to the white wire coming from the SMART-WALL-B
control module.
13. Connect the male DC jack connector from the power
harness (2326-136) to the female DC jack connector
on the IFT-ECM.
14. Connect the 6 volt adapter from the junction box to
the female DC jack connector on the power harness
(2326-136).
15. Connect the 1/4" insulated connectors from the power
harness (2326-136) to the corresponding male/fe-
male connectors on the red and black wires from the
SMART-WALL-B control module.
16. Plug the IFT-ACM 120VAC power cord into the junc-
tion box. This will already be plugged in if equipped
on the appliance, or it is included in the IFT-ACM kit if
the appliance is not equipped with an IFT-ACM.
17. Plug the 6Vdc adapter back into the junction box to
restore power to the control module.

Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/208
Figure 10. IFT-RC400 Wiring Diagram with SMART-WALL-B
• SMART-WALL-B must be paired to IFT-ACM before
installation is complete.
• If you have 120 VAC Power & Gas to appliance:
- Immediately after connecting the SMART-WALL-B
module connector to the IFT-ACM, the IFT control must be
paired to recognize the SMART-WALL-B as part of the
control conguration.
- Appliance and SMART-WALL-B function must be
veried before installation is complete.
- Consult installation manuals for details.
• If you DO NOT have 120 VAC Power & Gas:
- DO NOT connect SMART-WALL-B module to IFT-
ACM.
- Disconnect 6V power to lock-out appliance.
Failure to follow instructions could result in damage to the TV.
WARNING!
BRN
FLAME
SENSE IGNITER
TO JUNCTION
BOX 110-120
VAC
LED
CONTROL
RF MODULE
ADAPTER
I
S
6 PIN
RED
BLK
ORANGE
(PILOT)
GREEN
(MAIN)
GRN/WHT/BLK
RED/
BLK
RED/
BLK
(OPTIONAL)
IFT-RC400
REMOTE
CONTROL
BLK
RED
2326-136
POWER
HARNESS
SMART-WALL
CONTROL MODULE
SMART-WALL
CONTROL
MODULE
WHT
WHT
WHT
Connect white wire from
SMART-WALL Control Module
to IFT-ECM wire harness
(brown wire).
3-PIN FEMALE CONNECTOR
Connect 3-Pin Female Connector
from SMART-WALL
TM
Control
Module to IFT-ACM (AUX port).
BLK
WHT GRN
See control module detail in Figure 11.
ACCESSORY CABLE
SMART-WALL
JUNCTION BOX
GROUND SCREW HOLE
CONNECT END OF
GREEN WIRE TO
GROUND SCREW HOLE

9
Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/20
Figure 11. SMART-WALL-B Control Module Detail
BLK
RED
2326-180
SMART-WALL
CONTROL MODULE
WHT
BLK
WHT
GRN
2326-136
POWER
HARNESS
TO WIRED
WALL SWITCH
TO PILOT
TO VALVE
TO JUNCTION
BOX 110-120
VAC
WHT
Connect white wire from
SMART-WALLTM Control
Module to IFT-ECM wire
harness (brown wire).
3-PIN FEMALE CONNECTOR
Connect 3-Pin Female Connector
from SMART-WALLTM Control
Module to IFT-ACM (AUX port).
ACCESSORY CABLE
BRN
BLK
GREEN
(MAIN)
WHT
RED
I
S
SMART-WALL
JUNCTION BOX
RESET SWITCH
2206-298
RESET SWITCH WIRE
2550-135
NOTE: INSTALL RESET SWITCH AND RESET SWITCH WIRE AS SHOWN
IF FACTORY-INSTALLED RESET SWITCH IS PRESENT IN APPLIANCE.
Note: SMART-WALL-B installation
requires installation of the IFT-ACM that
is included in the SMART-WALL-B kit.

Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/2010
Pairing or Re-Pairing the IFT-RC400 to the
Electronic Control Module (IFT-ECM)
WARNING! After installation of SMART-WALL-B compo-
nents, the RC400 and IFT-ECM MUST BE re-paired to
detect the SMART-WALL-B accessories.
CAUTION! Risk of Burns! DO NOT program the IFT
Remote Controls to the IFT-ECM when ame or cold
climate function is on or when appliance is hot.
1. On the IFT-ECM, move the ON/OFF/REMOTE switch to
the REMOTE position. The green LED will blink three
times. A few seconds later, an audible “beep” will occur
to indicate that the system is ready.
Note: If the green LED continues to blink slowly (system
is searching for a clear channel), wait until it stops before
proceeding to step 2.
2. Locate the pairing hole on the IFT-ECM. See Figure 12.
Using a paper clip or similar item, press and release
the pairing button. The IFT-ECM will “beep” once
and the green LED will blink for 14 seconds. During
the 14 seconds, it is normal for installed accessories
such as lights, fan, and SMART-WALL-B to energize
momentarily.
While the green LED on the IFT-ECM is blinking, tap
anywhere on the gray indicator bar located at the top of the
IFT-RC400 screen. Tap on the pairing function as shown in
Figure 13. If the IFT-RC400 has been paired successfully
to the IFT-ECM, a double audible ‘beep” will be heard from
the IFT-ECM.
Note: If the RC400 displays the 'Now pairing remote to
product' display as shown below before able to reach the
diagnostic menu on remote, you must repeat the process
as follows;
A. Remove one battery from the RC400.
B. Press the pairing button on the IFT-ECM.
C. Quickly install the battery into the RC400.
D. As soon as the main screen appears, tap on the
RC400 gray indicator bar. Then immediately tap the
pairing icon. Successful pairing will be indicated by a
double beep from the IFT-ECM.
3. If the pairing is unsuccessful, repeat steps 1 & 2.
Figure 12. Pairing IFT-ECM
REMOTE POSITIONREMOTE POSITION
PAIRING HOLEPAIRING HOLE
GREEN LEDGREEN LED

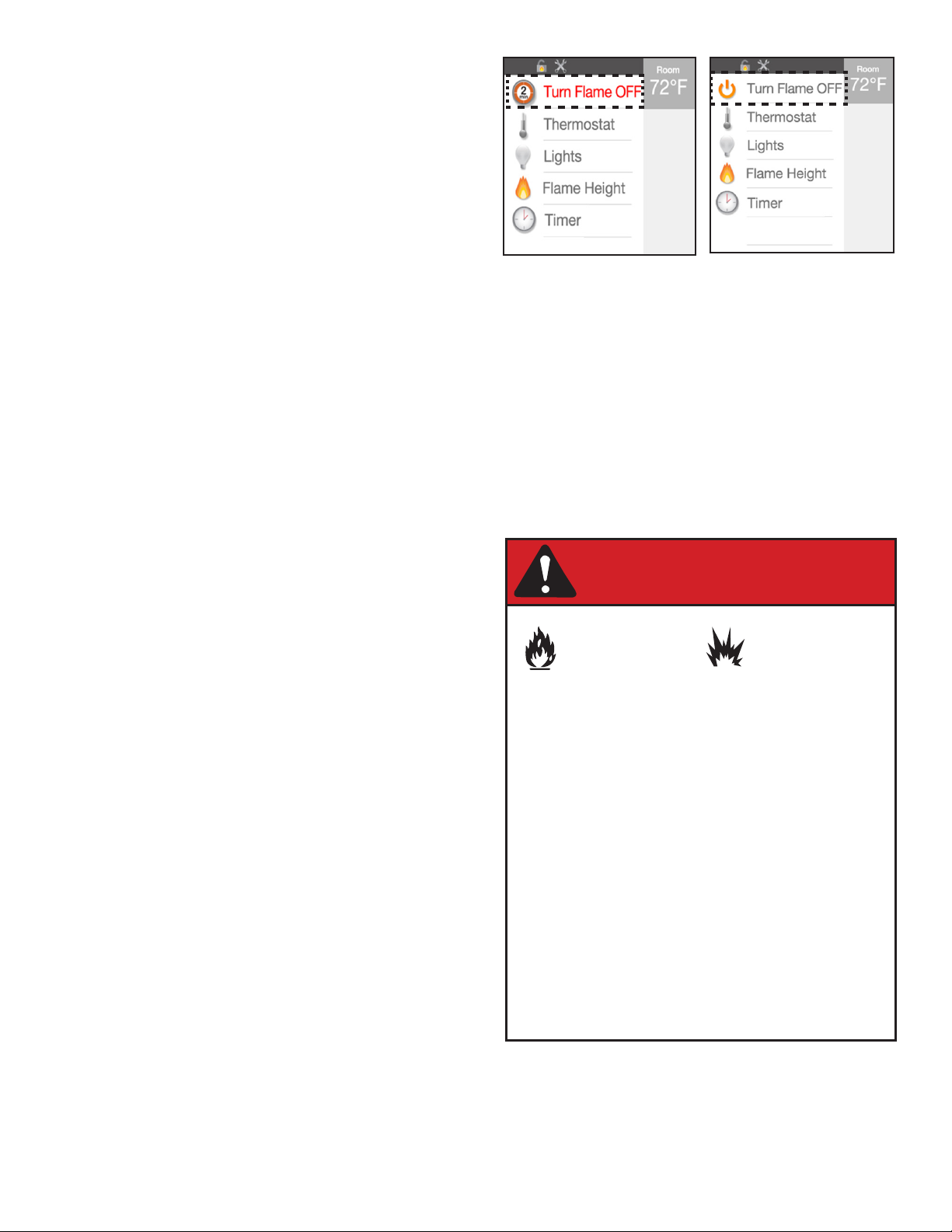

Figure 13. IFT-RC400 Wall Mount / Pairing Screen
NOTE: Refer to Operating Guide and Troubleshoot-
ing Section of IFT-RC400 Installation Manual for
Operation and Maintenance Sections of Remote
Control.
Note: If additional components are added such
as lights or SMART-WALL-B after initial
pairing, the pairing process must be repeated
again to detect additional components.

11
Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/20
Installation Inspection
1. Follow safety inspection procedures recommended by
national, provincial, and/or local codes.
2. Be certain all electrical connections are properly made
and secure.
3. Visually inspect the vent system and determine that
there is no ue gas spillage, blockage or restriction,
leakage, corrosion or other unsafe deciencies.
4. Make sure the blower is running after installation of the
SMART-WALL-B module.
5. Inspect the duct to make sure there are no kinks in the
duct work.
6. Inspect the air register to ensure there is nothing block-
ing its airow.
7. If another type of air register is installed, it must have the
same square inch opening as the air register supplied
with the SMART-WALL-B kit.
8. An operable air register that can be closed or reduce
airow is not allowed to be used with the SMART-
WALL-B kit.
9. Do not install a speed control on the blower for the
SMART-WALL-B kit.
10. Verify that 18 inch minimum clearance to any combus-
tible surfaces or materials such as room furnishings,
furniture, curtains, etc., outside of fan air outlet housing
has been maintained.
CAUTION! Risk of electrical shock! DO NOT allow
120VAC wires to contact hot metal surfaces. Use wire
ties to bundle wires away from ue pipe, fan housing and
other metal surfaces.
SMART-WALL-B Operating Instructions
After installation of the SMART-WALL-B, follow the opera-
tion instructions below for the IFT/RC400.
IFT/RC400
1. Touch screen on RC400 to wake up.
2. Touch 'Turn Flame On'.
3. Observe touch screen - if system is congured properly
for SMART-WALL-B Operation, a 2-minute countdown
timer will be displayed next to 'Turn Flame OFF'. See
Figure below.
CORRECT
SMART-WALL-B DISPLAY
INCORRECT
SMART-WALL-B DISPLAY
4. If the RC400 display is correct, the SMART-WALL-B
will be running and the 2-minute countdown timer will
run, after which the pilot will ignite followed by the main
burner.
5. Touch 'Turn Flame OFF' on the RC400. The pilot and
main will extinguish. The SMART-WALL-B will continue
to run for 20 min.
If RC400 display is incorrect, touch 'Turn Flame OFF'
and refer to troubleshooting section.
NOTICE: The Cold Climate feature of the IntelliFire Touch
®control system is not functional when the SMART-WALL-
B kit is installed.
WARNING
Risk of Fire! Explosion
Hazard!
Failure to follow instructions could result
in a re or explosion.
• SMART-WALL-B must be paired to IFT-ACM
before installation is complete.
• If you have 120 VAC Power & Gas to appliance:
- Immediately after connecting the SMART-
WALL-B connector to the IFT-ACM, the IFT
control must be paired to recognize the SMART-
WALL-B as part of the control conguration.
- Appliance and SMART-WALL-B function must
be veried before installation is complete.
- Consult installation manuals for details.
• If you DO NOT have 120 VAC Power & Gas:
- Disconnect 6V power to lock-out appliance.
Troubleshooting
• If the two-minute countdown timer does not show in the
screen display, repeat the pairing process on page 10.
• If the IFT-ECM shows a 5 RED LED ERROR code, verify
that all wiring connections have been made per Figure
10 and Figure 11.

Hearth & Home Technologies • SMART-WALL-B Air Duct Kit • 4086-348 Rev. D • 3/2012
Please contact your Hearth & Home Technologies
dealer with any questions or concerns.
For the location of your nearest Hearth & Home Technologies
dealer, please visit www.hearthnhome.com.
Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.hearthnhome.com
Operation
The SMART-WALL-B uses a control module that must be used with the IntelliFire™ Touch control system. The SMART-
WALL-B blower turns on and operates for two minutes before the ignition sequence begins. The SMART-WALL-B blower will
remain on for 20 minutes after the appliance is turned o󰀨 to remove residual heat so the TV does not overheat.
Figure 14. Good Faith Guidelines for TV Installation
Maintenance
Service and maintain the gas appliance per instructions.
Keep the air register clean and free of any blockage.
60 inches
1. Each of the clearances described above are the minimum required in order to maintain your TV’s operating temperature
within the manufacturer’s specied maximum operating temperature when operating the replace appliance, Smart-Wall Air
Duct Kit and your TV within a room with an ambient temperature of not more than 75 degrees Fahrenheit.
2. Since every home has unique air ow characteristics and maximum allowable operating temperatures can vary from
manufacturer to manufaturer and from model to model, actual TV temperatures should be validated at the time of each
installation. TVs should not be used in stituations where the actual TV temperature exceeds the manufacturers’maximum
allowable operating temperatures identied in the TV’s technical specications. If the maximum allowable operating
temperature for TV is less than 100 degrees Fahrenheit you should not use your TV with this application as damage to your TV
may occur. Contact the TV’s manufacturer directly if you cannot locate this information or have questions regarding this
information.
3. “A” dimension taken from the top of the appliance opening to the bottom of the TV.
4. “B” dimension taken from back of the TV to the wall behind the TV. This 3” minimum air gap must be maintained and not
blocked with any object.
5. “C” dimension taken from top of appliance opening to ceiling.
Good Faith Guidelines for TV Installation above an approved appliance with a Smart-Wall
installed. See page 1 for list of approved appliances.
TV mounted at TV mounted at angle
TV Wall Bracket
Appliance Appliance
Minimum
clearance from
replace
opening to
sidewall - 24 in.
C
C
C
3
