Hendi 210031 User manual

Item: 210000
210017
210031
210048
SLICER PROFI LINE
You should read this user manual carefully before
using the appliance.
Bevor Sie das Gerät in Betrieb nehmen, sollten
Sie diese Gebrauchsanweisung aufmerksam lesen.
Alvorens de apparatuur in gebruik te nemen dient
u deze gebruiksaanwijzing aandachtig te lezen.
Przed uruchomieniem urządzenia należy koniecznie
dokładnie przeczytać niniejszą instrukcję obsługi.
Lisez attentivement ce mode d’emploi avant d’utiliser
l’appareil .
Prima di utilizzare l’apparecchio in funzione leggere
attentamente le istruzioni per l’uso.
Citiţi cu atenţie prezentul manual de utilizare înainte
de folosirea aparatului.
Внимательно прочитайте руководство пользователя
перед использованием прибора.
Πρέπει να διαβάσετε αυτές τις οδηγίες χρήσης
προσεκτικά πριν χρησιμοποιήσετε τη συσκευή.
User manual
Gebrauchsanweisung
Gebruiksaanwijzing
Instrukcja obsługi
Mode d’emploi
Istruzioni per l’utente
Instrucţiunile utilizatorului
Руководство по эксплуатации
Οδηγίες χρήσης

2
Technical specifications / Technische daten / Technische gegevens / Parametry techniczne /
Données techniques / Dati technici / Specificaţii tehnice / Технические данные / Τεχνικές προδιαγραφές
Article number / Artikelnummer / Artikel num-
mer / Numer artykułu / Numéro d’article / Co-
dice / Numarul articolului / Номер артикула /
Αριθμός προϊόντος
210031 210048 210000 210017
AC power supply / Versorgungsspannung / Vo-
edingsspanning / Zasilanie AC / Consommation
/ Alimentazione / AC de alimentare / Питание
AC / Παροχή εναλλασσόμενου ρεύματος AC
220-240V~ / 50 Hz
220-240В~ / 50 Гц
Power / Leistung / Opgenomen vermogen /
Moc wejściowa / Puissance / Potenza / Putere
/ Мощность / Ισχύς εισόδου 200W 280W 320W 420W
Blade diameter / Messerdurchmesser /
Diameter mes / Średnica ostrza / Diamètre /
Diametro lama / Diametrul lamei / Диаметр
лезвия / Διάμετρος λεπίδας
195 mm / мм 220 mm / мм 250 mm / мм 300 mm / мм
Waterproof protection class / Wasserbestän-
digkeitsklasse / Beschermingsklasse water-
dichtheid / Klasa wodoodporności / Résistance
à l’eau / Classe di resistenza all’acqua / Clasa
de protecție contra apei / Класс влагозащиты /
Κλάση προστασίας νερού
IP33
Protecion class / Sichterheitsklasse / Bescher-
mingsklasse / Stopień ochrony / Classe de pro-
tection / Classe di sicurezza / Clasă protecţie /
Степень защиты / Βαθμός προστασίας
Class I / Klasse I / Klasse I / Klasa I / Classe I / Classe I / Clasa I / Класс I / Κατηγορία Ι
Noise level / Geräuschpegel / Geluidsproductie
/ Poziom hałasu / Niveau sonore / Livello
di rumore / Nivel zgomot / Уровень шума /
Επίπεδο θορύβου
< 70 dB (A) / дБ (А)
Keep these instructions with the appliance.
Diese Gebrauchsanweisung bitte beim Gerät aufbewahren.
Bewaar deze handleiding bij het apparaat.
Zachowaj instrukcję urządzenia
Gardez ces instructions avec cet appareil.
Conservate le istruzioni insieme all’apparecchio.
Păstraţi maualul de utilizare alături de aparat.
Хранить руководство вместе с устройством.
Φυλάξτε αυτές τις οδηγίες μαζί με τη συσκευή.
For indoor use only.
Nur zur Verwendung im Innenbereich.
Alleen voor gebruik binnenshuis.
Do użytku wewnątrz pomieszczeń.
Pour l’usage à l’intérieur seulement.
Destinato solo all’uso domestico.
Doar pentru uz la interior.
Использовать только в помещениях.
Για χρήση μόνο σε εσωτερικό χώρο.
For item 210017 only.
Nur für Artikel 210017.
Alleen voor artikel 210017.
Dla pozycji numer 210017 tylko.
Pour l’article 210017 seulement.
Solo per articolo 210017.
Numai pentru articolul 210017.
Только для элемента 210017.
Για το στοιχείο 210017 μόνο.

3
Dear Customer,
Thank you for purchasing this Hendi appliance. Before using the appliance for the first time, please read
this manual carefully, paying particular attention to the safety regulations outlined below.
Safety regulations
• This appliance is intended for commercial use only and must not be used for household
use.
• The appliance must only be used for the purpose for which it was intended and designed.
The manufacturer is not liable for any damage caused by incorrect operation and
improper use.
• Keep the appliance and electrical plug away from water and any other liquids. In the
event that the appliance should fall into water, immediately remove plug from the socket
and do not use until the appliance has been checked by a certified technician. Failure to
follow these instructions could cause a risk to lives.
• Never attempt to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not touch the plug with wet or damp hands.
• Danger of electric shock! Do not attempt to repair the appliance yourself. In case of
malfunctions, repairs are to be conducted by qualified personnel only.
• Never use a damaged appliance! Disconnect the appliance from the electrical outlet and
contact the retailer if it is damaged.
• Warning! Do not immerse the electrical parts of the appliance in water or other liquids.
Never hold the appliance under running water.
•Regularly check the power plug and cord for any damage. If the power plug or power cord
is damaged, it must be replaced by a service agent or similarly qualified persons in order
to avoid danger or injury.
•Make sure the cord does not come in contact with sharp or hot objects and keep it away
from open fire. To pull the plug out of the socket, always pull on the plug and not on the
cord.
•
Ensure that the cord (or extension cord) is positioned so that it will not cause a trip hazard.
• Always keep an eye on the appliance when in use.
•
Warning! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before pulling the plug out of the socket.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied along with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency
mentioned on the appliance label.
• Connect the power plug to an easily accessible electrical outlet so that in case of
emergency the appliance can be unplugged immediately. To completely switch off the
appliance pull the power plug out of the electrical outlet.
• Always turn the appliance off before disconnecting the plug.
EN

4
NL
• Never use accessories other than those recommended by the manufacturer. Failure to do
so could pose a safety risk to the user and could damage the appliance. Only use original
parts and accessories.
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge.
• This appliance must not be used by children under any circumstances.
• Keep the appliance and its cord out of reach of children.
• Always disconnect the appliance from the mains if it is left unattended or is not in use,
and before assembly, disassembly or cleaning.
• Never leave the appliance unattended during use.
Special safety regulations
• This appliance is a commercial food processing machine and intended only for slicing
foodstuff, e.g. meat, cheese, sausage, bread, etc. The food to be sliced must be thawed,
unpacked and free from bones before it can be sliced with the appliance. Any other use
may lead to damage of the appliance or personal injury.
• This appliance should not be used for cutting or slicing frozen food, bone-in meat, fish or
any non-food product, etc.
• Use the appliance only as described in this manual.
• This appliance should be operated by trained personnel in kitchen of the restaurant,
canteens or bar staff, etc.
• Do not place the appliance on a heating object. (gasoline, electric, charcoal cooker, etc.)
Keep the appliance away from any hot surfaces and open flames. Always operate the
appliance on a level, stable, clean, heat-resistant and dry surface.
• This appliance is not intended to be operated by means of an external timer or separate
remote-control system.
• An equipotential bonding terminal is provided to allow cross bonding with other
equipment.
• Never bypass any safety interlocks on the appliance.
• WARNING: Keep all ventilation openings in the appliance clear of obstruction.
• WARNING: ALWAYS switch off the appliance and unplug from electrical power supply
before cleaning, maintenance or storage.
• WARNING: ALWAYS keep hands, long hair and clothing away from the moving parts.
• WARNING: Take great care when handling the cutting blade. Wear protective gloves (not
supplied) if necessary.
• Allow at least 15 cm spacing around the appliance for ventilation purpose during use.
• Caution! Securely route the power cord if necessary in order to prevent unintentional
pulling or contact with the heating surface.
• Do not wash the appliance with water or waterjet. Washing with water can cause leakage
and increase the risk of electric shock. No parts are dishwasher safe.
• Do not clean or store the appliance unless it is completely cooled down.
EN

5
NL
• Do not move the appliance while it is under operation. Unplug the appliance when moving
and hold it at the bottom.
• Special care should be taken when moving or transporting the appliance due to heavy
weight. With at least 2 people or using a trolley for assistance. Move the machine slowly,
carefully and never be inclined over 45°.
Intended use
• The appliance is intended for professional use
and can be operated only by qualified personnel.
• The appliance is designed only for slicing foodstuff,
e. g. meats, cheese, breads, etc. Any other use may
lead to damage to the appliance or personal injury.
• Operating the appliance for any other purpose
shall be deemed a misuse of the device. The user
shall be solely liable for improper use of the de-
vice.
Grounding installation
This appliance is classified as protection class I
and must be connected to a protective ground.
Grounding reduces the risk of electric shock by
providing an escape wire for the electric current.
This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly in-
stalled and grounded.

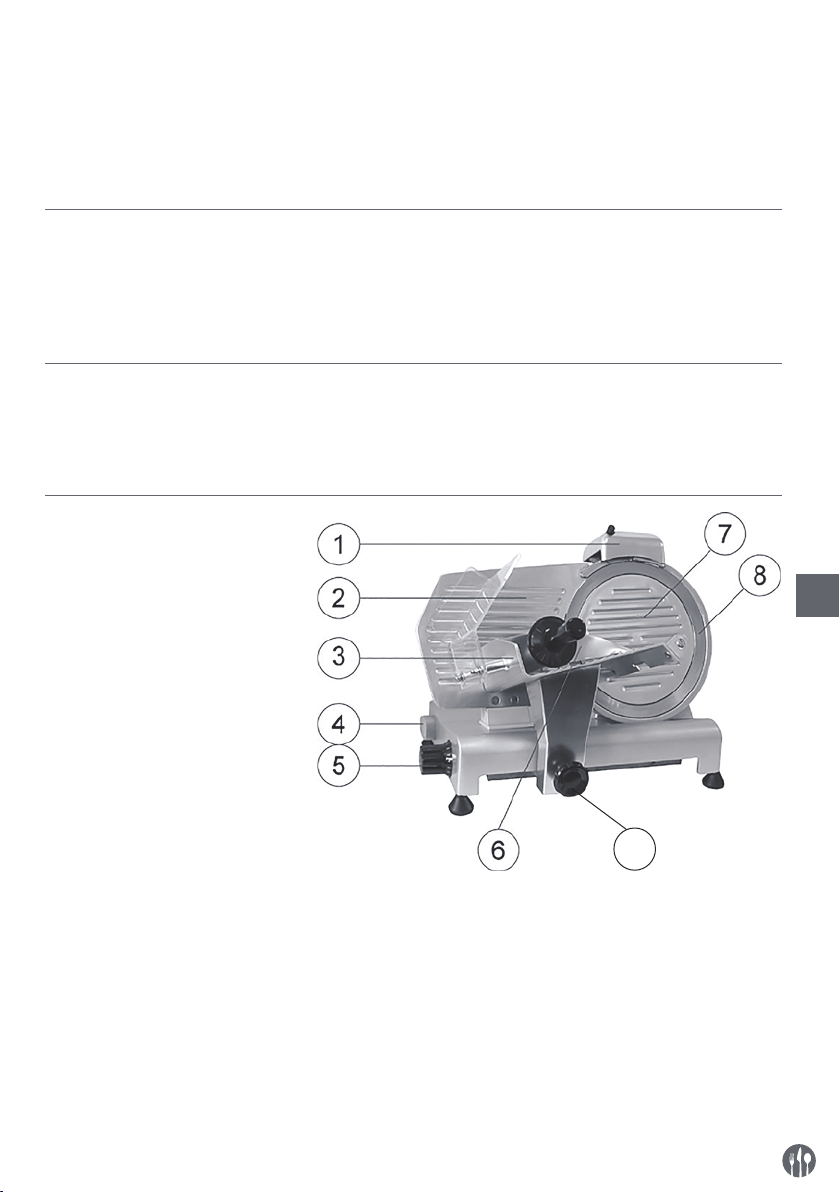

Main parts of the appliance
1 Blade sharpener
2 Stop plate
3 Carriage
4 On/off switch
[White (I): ON; Black (O): OFF]
5 Slice thickness dial
6 Product clamp
7 Blade guard
8 Blade
9 Carriage lock
10Blade guard bolt (not displayed)
9
EN

6
NL
Preparations before using for the first time
• Check to make sure no parts are missing. If any
parts are missing, contact your supplier.
• Remove all the packing material.
• Check the appliance for completeness and trans-
port damages. In case of incomplete delivery or
damage, contact supplier immediately. DO NOT
use the appliance. (See ==> Warranty).
• Clean the blade. Be careful: the blade is very
sharp. (Use gloves if necessary, not included)
• Keep open a space of at least 10 cm around the
appliance to allow for adequate ventilation.
• Position the appliance in such a way that the plug
is always accessible.
• If the sharpening device is not attached, proceed
as follows:
1. Top view of the appliance 2. Attach the sharpening module
in such a way that the blade
does not move between the
wheels.
3. Secure the sharpening device
to the machine by tightening
the holder. Check to make
sure that the sharpening de-
vice is well secured before us-
ing the machine.
NOTE! The sharpening device is equipped with a safety switch. If the sharpening device is not properly at-
tached, you will not be able to use the appliance.

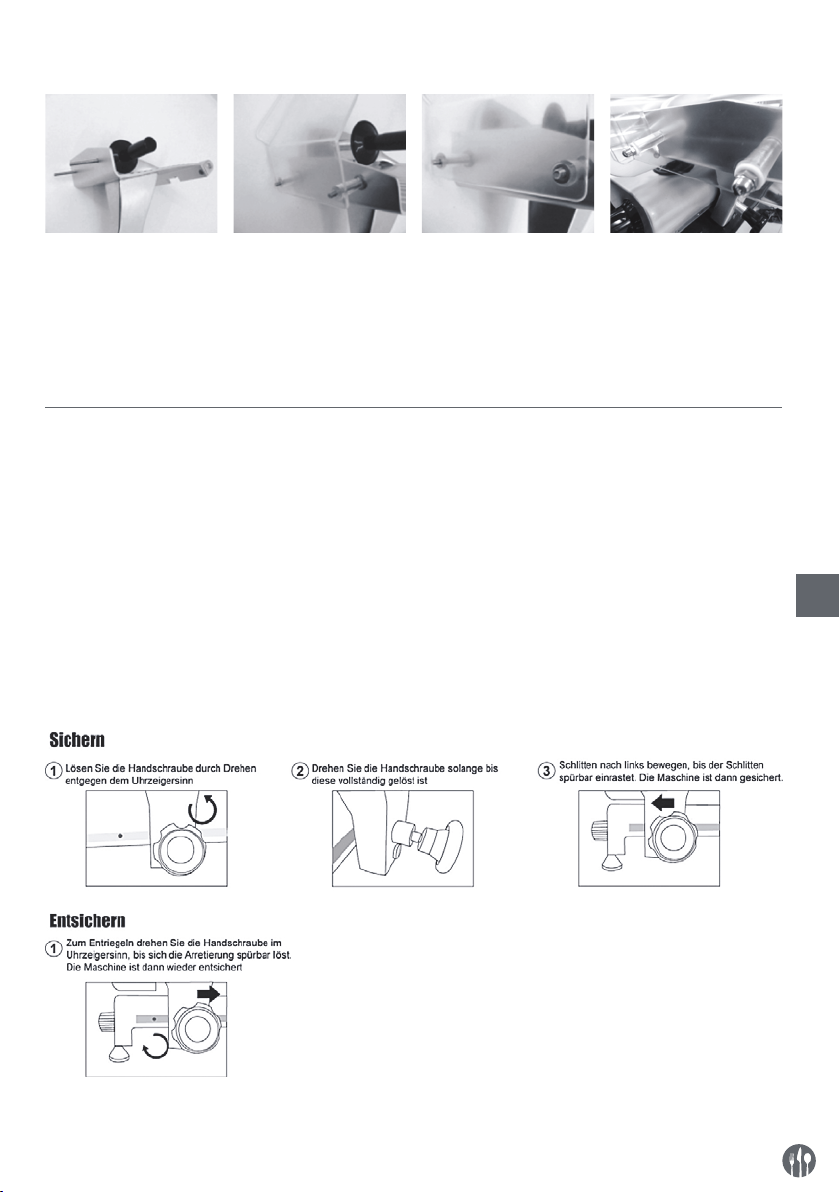

• Attach the hand guard.
1. Place both screws in
the carriage.
2. Attach the hand
guard.
3. Place the two wash-
ers over the white
bolts.
4. Screw on the two
dome nuts.
NOTE! You are advised not to use the appliance if the hand guard is not attached as instructed! These are
safety features that will prevent possible injury. If you do not attach these features, there will be a risk of
injury.
EN

7
NL
Instructions for use
• Position the appliance so that the on/off switch is
facing the user.
• If the blade sharpener has not been installed,
proceed as follows:
- Position the blade sharpener in its support so
that the blade does not extend between the
gears.
- Tighten the safety screw on the blade sharpen-
er.
- Note! The appliance is equipped with a safe-
ty switch and will turn off automatically if the
sharpening device is removed)
• Push the plug in the wall socket.
• Turn the dial with the graduated scale to the de-
sired slice thickness.
• Switch ON the appliance by pressing the “WHITE
(I)” button of the ON/OFF switch.
• Put the food product on the carriage and adjust
the clamp to hold the product firmly in place.
Make sure the product is positioned against the
stop plate.
• Once the product has been sliced, switch OFF the
appliance by pressing the “BLACK (O)” button of
the ON/OFF switch.
• Turn the thickness dial back to “0”.
EN

8
NL
Sharpening the blade
Sharpen the blade when it becomes blunt. The
blade is extremely resistant to wear. If used regu-
larly and properly, it should only need to be sharp-
ened once a year.
• Pull the plug from the wall socket.
• Turn the thickness dial to “0”.
• Clean the blade.
• Unscrew the sharpener’s locking knob.
• Lift the sharpener from the locking device and
turn it 180°.
• Both sides of the blade should have 1 sharpening
stone.
• Lower the sharpener until it slips back into the
locking device.
• Fix the sharpener in place by tightening the lock-
ing knob.
• Switch on the appliance. The blade will start to
turn.
• Use the button to press the tilted sharpening
stone against the blade and keep it there for 2
minutes. The sharpening stone should turn along
with the blade.
• Use the button to press the vertical sharpening
stone briefly against the blade to remove burrs.
The sharpening stone should turn along with the
blade.
• Switch off the appliance and pull the plug from
the wall socket.
• Unscrew the sharpener’s locking knob and clean
the sharpening stones with alcohol.
• Replace the sharpener in its original position on
the appliance and tighten the locking knob to fix it
in place. The blade must not extend between the
sharpening stones.
• Immerse in warm, mild soapy water for several
minutes. Rinse and dry thoroughly.
• Push the plug in the wall socket. Handle with
great care.
• The appliance is ready for use.
Cleaning and maintenance
• Attention: Always unplug the appliance from the
electrical power outlet and let it cool down com-
pletely before cleaning and storage and set the
slice thickness knob to “0” position.
• Clean the appliance after each use.
• Warning: Never submerge the appliance in water
or other liquids!
• Use a damp cloth to clean surfaces (solution of
water and a mild cleaning agent).
• Never use corrosive or abrasive cleaning agents.
Do not use sharp or pointed objects for cleaning.
Do not use benzene or solvents! Clean with a
damp cloth. Use washing-up liquid if needed, but
never abrasive cleaning agents.
• Immerse in warm, mild soapy water for several
minutes. Rinse and dry thoroughly.
• Handle with great care.
• If the food carriage stops sliding smoothly, lay the
machine on its side. Clean the slide bar carefully
and lubricate it with Vaseline
Storage
• Before storage, always make sure the appliance
has already been disconnected from the electri-
cal outlet and cooled down completely.
• Store the appliance in a cool, clean and dry place.
EN

9
NL
Troubleshooting
If the appliance does not function properly, please check the below table for the solution. If you are still
unable to solve the problem, please contact the supplier/service provider.
Problem Possible cause Solution
Appliance does not
slice evenly
Blunt blade Sharpen blade
Dirty appliance Clean the appliance
Appliance stops
slicing
Overheated motor Let the machine cool off for an extended period. The
motor’s safety thermostat will reset itself automatically.
Carriage does not
slide
Dirty slide bar Clean the slide bar and lubricate with Vaseline
Some food stick to the
blade.
Switch off the appliance & unplug it. Let it come to a
complete stop. Remove any blockage. Wipe the blade
with a damp cloth.
Blade stops when
product is being cut
v-belt worn out or dirty Contact the supplier.
When in doubt, always contact your supplier!

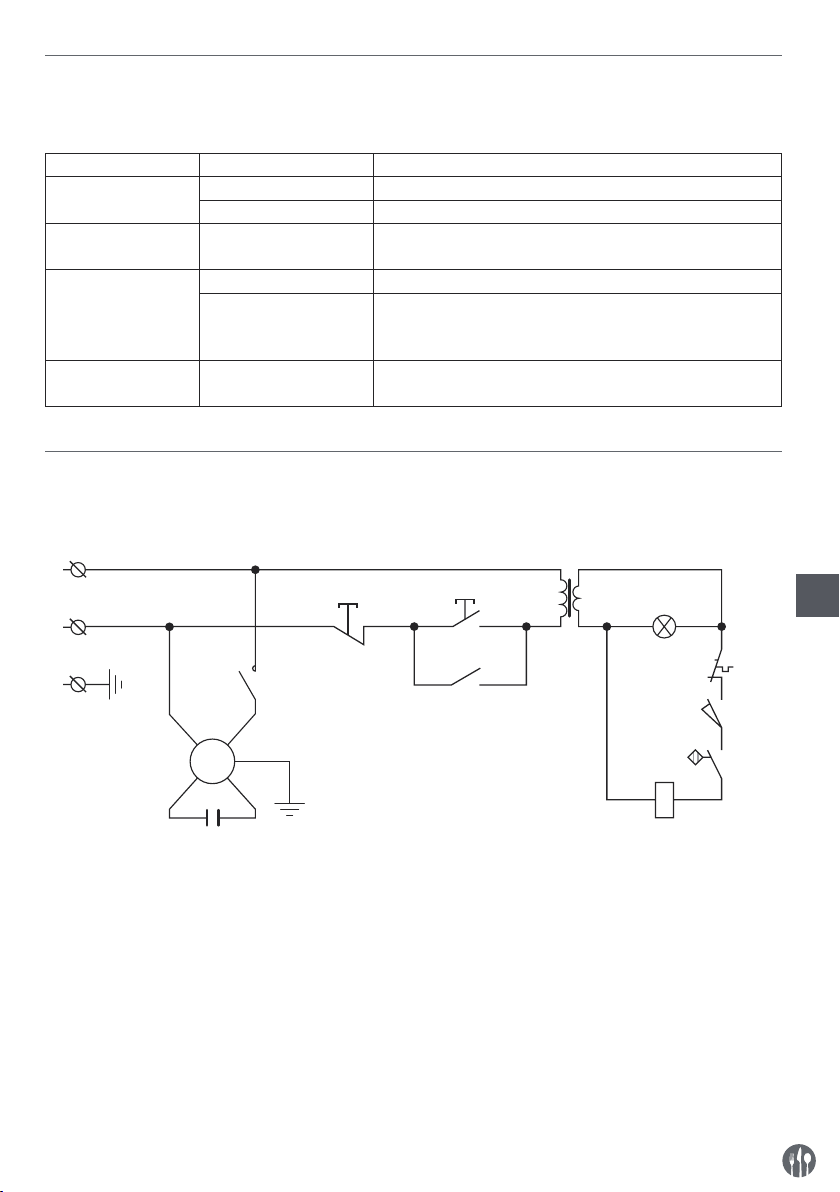

Circuit diagram for 210000, 210017, 210031, 210048
AC voltage input: AC220-240V 50Hz
N
L
PE KC
KC HL
KM
ST
SQ1
SQ2
T
SB1 SB2
PE
C
M
M : Motor
T : Transformer
C : Capacitor
PE : Protective earthing (Grounding)
L : Live
N : Neutral
SB1, SB2 : Switch
KC : Relay
HL : Indicator lamp
ST : Thermal cut-out
SQ1, SQ2 : Micro switch
EN

10
EN

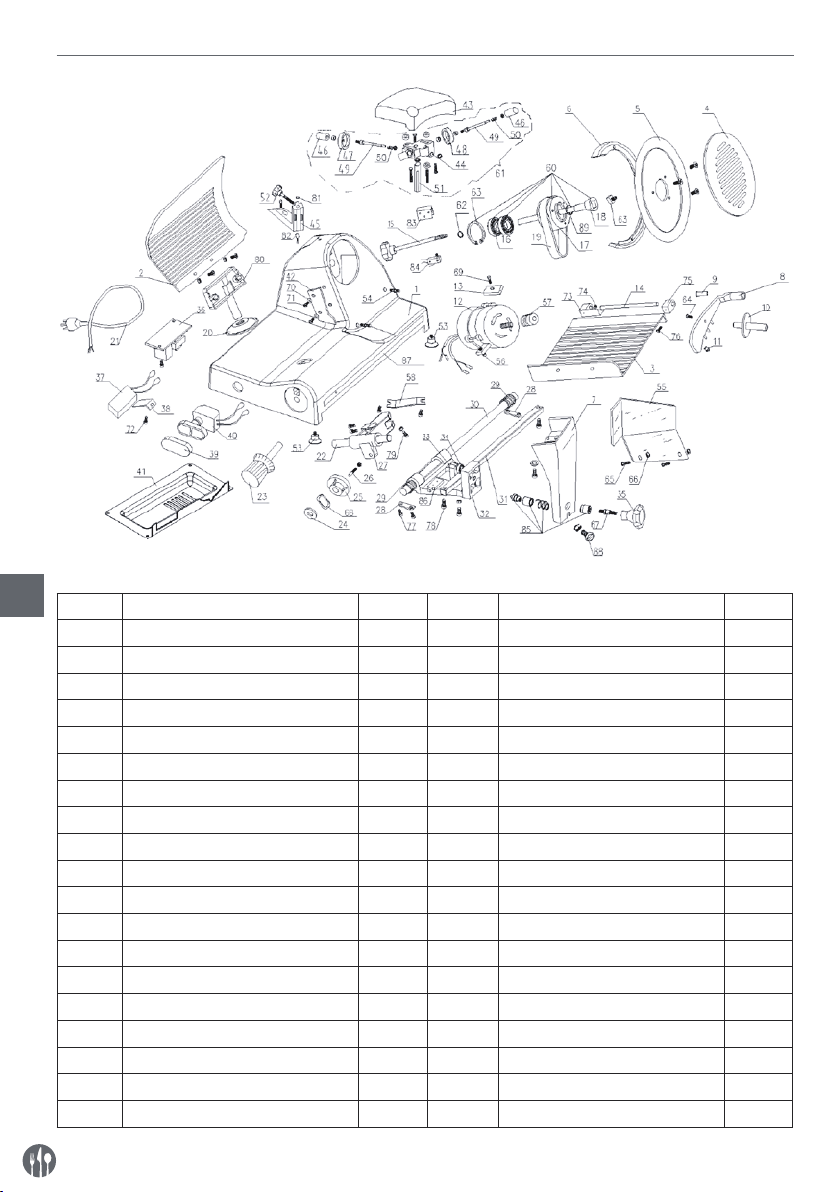

Part list (Item no: 210000, 210031, 210048)
Part no. Part name Quantity Part no. Part name Quantity
1 Encloser 1 20 Slide mulch 1
2 Active clapboard 1 21 Power line 1
3 Food salver 1 22 Slide axle 1
4 Blade guard disc 1 23 Knob with scale 1
5 Blade 1 24 Spring gasket 1
6 Blade guarding ring 1 25 Cam 1
7 Tray bracket 1 26 Cam osculant staff 1
8 Food and fixed-arm 1 27 Slider 1
9 Fixed-arm bushing 1 28 Slide axle briquetting 2
10 Fixed-arm handle 1 29 Spring of towing bracket axle 2
11 Plastic granule 1 30 Towing bracket axle 1
12 Motor 1 31 Quadrate axis 1
13 Motor briquetting 1 32 Towing bracket 1
14 Fixed-arm pin Ø12×185 1 33 M8×35Hexagonal screw 1
15 Blade guard bolts 1 34 Ball bearing607 1
16 Ball bearing 6202 2 35 Towing bracket cover knob 1
17 Blade belt wheel Ø66 1 36 Relay 1
18 Pin of belt wheel 1 37 Capacitor 1
19 BeltSV.330 2 38 Capacitor retainer 1
