TREADMILL USER’S GUIDE
FOR MODEL :
CT61

INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
2
CONGRATULATIONS and THANK YOU for your purchase of this CardioCORE Treadmill™!
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a CardioCORE
Treadmill™ can help you attain it – adding club-quality performance to your at-home
workouts, with the ergonomics and innovative features you need to get stronger and healthier,
faster. Because we're committed to designing fitness equipment from the inside out, we use
only the highest quality components. It's a commitment we back with one of the strongest
frame-to-motor warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest
quality in its class.
The CardioCORE Treadmill ™ delivers.
INTRODUCTION
Important Precautions
Assembly
Before You Begin
Treadmill Operation
Conditioning Guidelines
Troubleshooting & Maintenance
Limited Warranty
CONTACT INFORMATION
3
5
11
14
21
27
30
Back Panel
TABLE OF CONTENTS

INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
3
SAVE THESE INSTRUCTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It is the
responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.
Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug
illustrated below. A temporary adapter such as the one illustrated below may be used to connect this plug to
a 2-pole receptacle as shown, if a properly grounded outlet is not available. The temporary adapter should
be used only until a properly grounded outlet can be installed by a qualified electrician. The green colored
rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as
a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal
screw.
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
IMPORTANT PRECAUTIONS
WARNING
WARNING
3-Pole Grounded Outlet 2-Pole Outlet in Grounded Box
METAL GROUNDING SCREW
ADAPTER
GROUNDED
TREADMILL
POWER CORD
GROUNDED
TREADMILL
POWER CORD

At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
4
To reduce the risk of burns, fire, electrical shock or injury to persons:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and
consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Keep power cord away from heated surfaces.
• Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• At no time should more than one person be on treadmill while in operation.
• The treadmill should not be used by persons weighing more than 275 pounds. Failure to comply will void
the warranty.
• The treadmills are intended for in-home use only. Do not use this treadmill in any commercial, rental,
school or institutional setting. Failure to comply will void the warranty.
• Do not use treadmill in any location that is not temperature controlled, such as garages, porches, pool
rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• Use the treadmill only as described in this manual.
OTHER SAFETY TIPS FOR YOUR TREADMILL
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly
recommended that your treadmill is plugged into a dedicated 20 amp outlet, without
the use of an additional extension cord and/or power strip.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
WARNING

INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
5
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
During the assembly process of the treadmill there are several areas that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that
are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play
in the console masts or any forward and back play in the console assembly or handlebars. If there is any
play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.

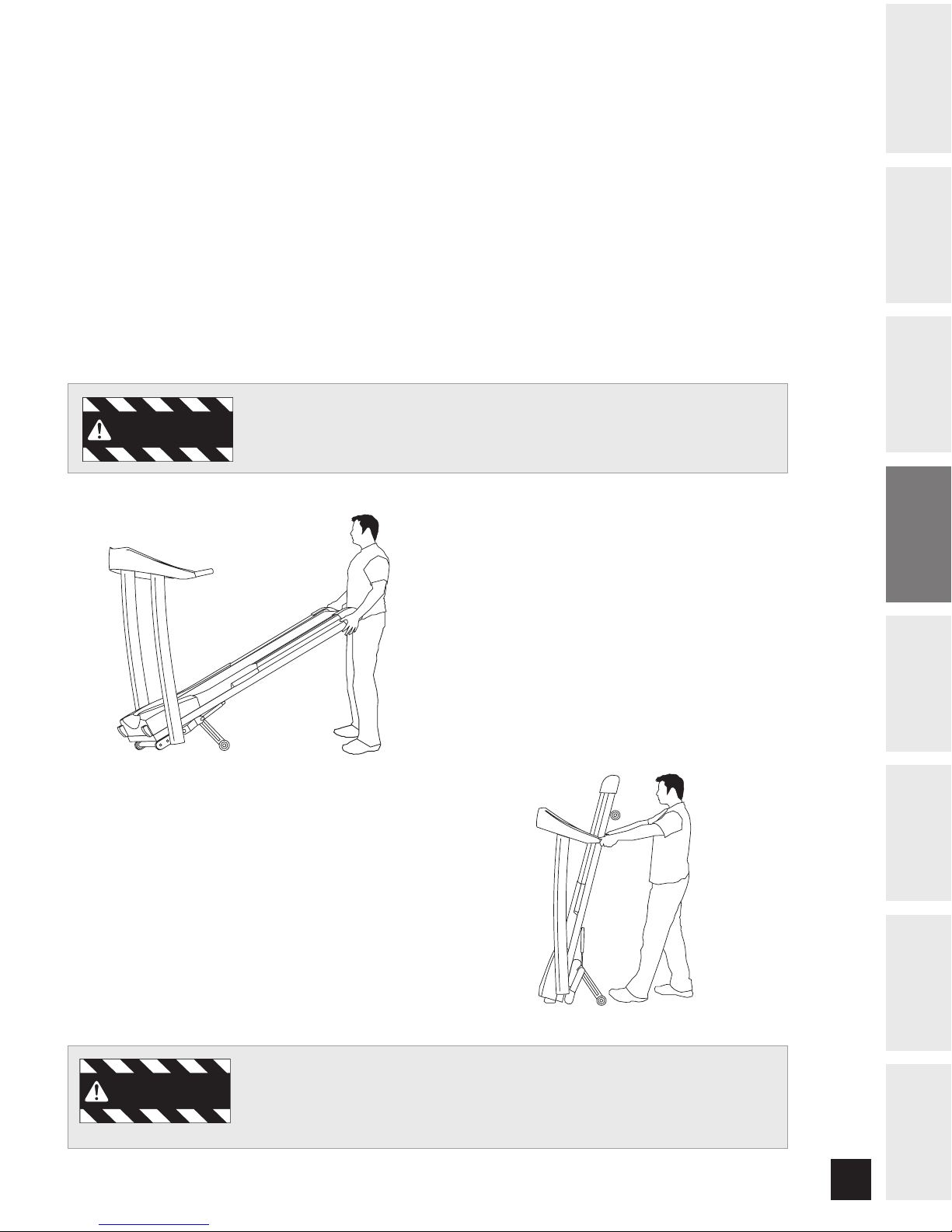

UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side.
Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled
and in the upright folded position, with the lock latch secure. FAILURE TO DO SO MAY RESULT IN SERIOUS
INJURY! Unpack the unit where it will be used. The enclosed treadmill is equipped with high-pressure
shocks and may spring open if mishandled. Never grab hold of any portion of the incline frame and attempt
to lift or move the treadmill. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!

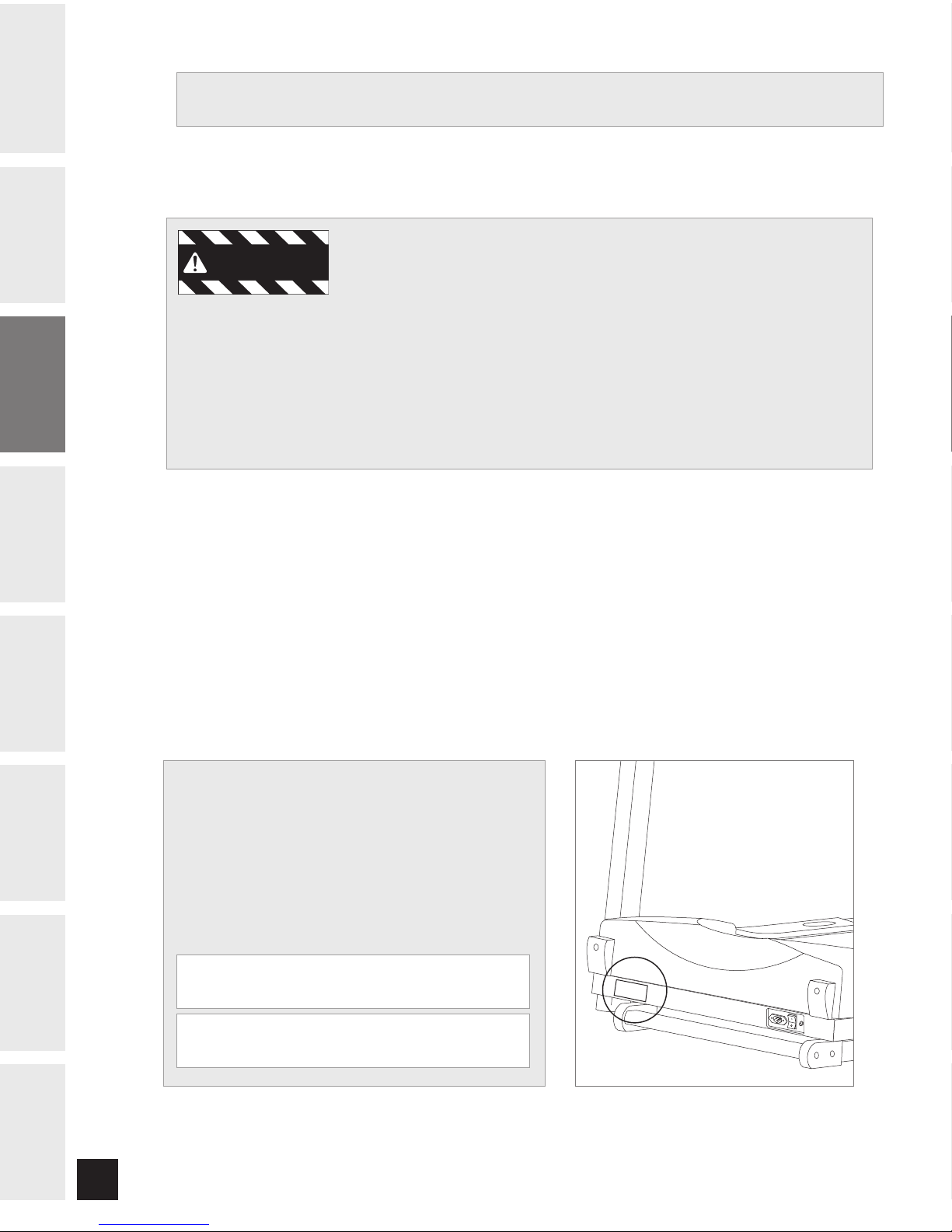

Before proceeding, find your treadmill’s serial number
and model name located to the left of the on/off
power switch and power cord and enter it in the space
provided below.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOXES BELOW:
SERIAL NUMBER :
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.
WARNING

INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
6

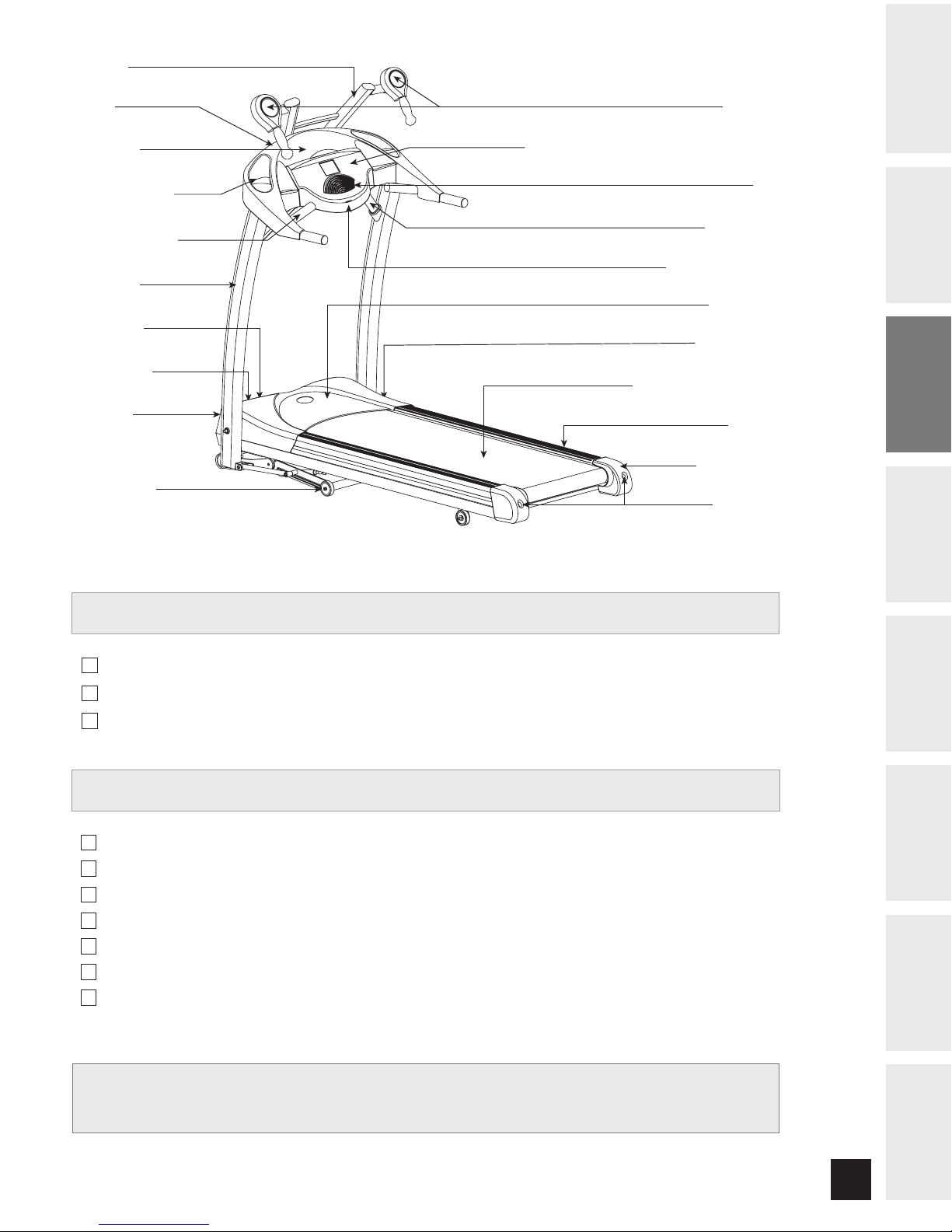

TOOLS INCLUDED
4 mm Allen Wrench
5 mm Allen Wrench
6 mm T-wrench
READING RACK
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
ON/OFF SWITCH
CIRCUIT BREAKER
TRANSPORT WHEEL
POWER CORD
CONSOLE
TOUCH PAD PANEL WITH BLUE/GREEN BACK-LIT DISPLAY
CORE PODS
FAN
SUPPORT BARS
MOTOR COVER
SAFETY KEY PLACEMENT
RUNNING BELT / RUNNING DECK
SIDE RAIL
ROLLER END CAP
CONSOLE MAST
REAR ROLLER
ADJUSTMENT BOLTS
FOOT LOCK LATCH
V-BRACKET
NOTE : If you have questions or if there are any missing parts, we will guarantee complete satisfaction.
Customer Tech Support contact information is located on the back panel of this manual.
PARTS INCLUDED
1 Safety Key
1 Console Assembly (located under treadmill deck)
1 Power Cord
1 V-Bracket
2 Core Pods
2 Support Bars/Boots
4 Hardware Bags

DO NOT CUT STRAPS UNTIL STEP 1-E!* Disassemble box and remove the
cardboard packaging that is not beneath the treadmill. Do not attempt to lift the
treadmill at this time. Remove plastic wrap from console masts.
NOTE: It is recommended that you apply grease to the threads of each bolt as you assemble your treadmill, to
prevent loosening and noise. Also, during each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
7
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
PRE-ASSEMBLY
WARNING
ASSEMBLY STEP 1
1
3
2



HARDWARE BAG FOR STEP 1 CONTENTS :
LEFT CONSOLE MAST
LEFT SIDE LINKAGE ARM
BOLT A
* NOTE: If the straps have been removed before completing step 1-D and the linkage arms can not be aligned,
refer to the TROUBLESHOOTING section (page 26) in order to restore the treadmill to its proper position.

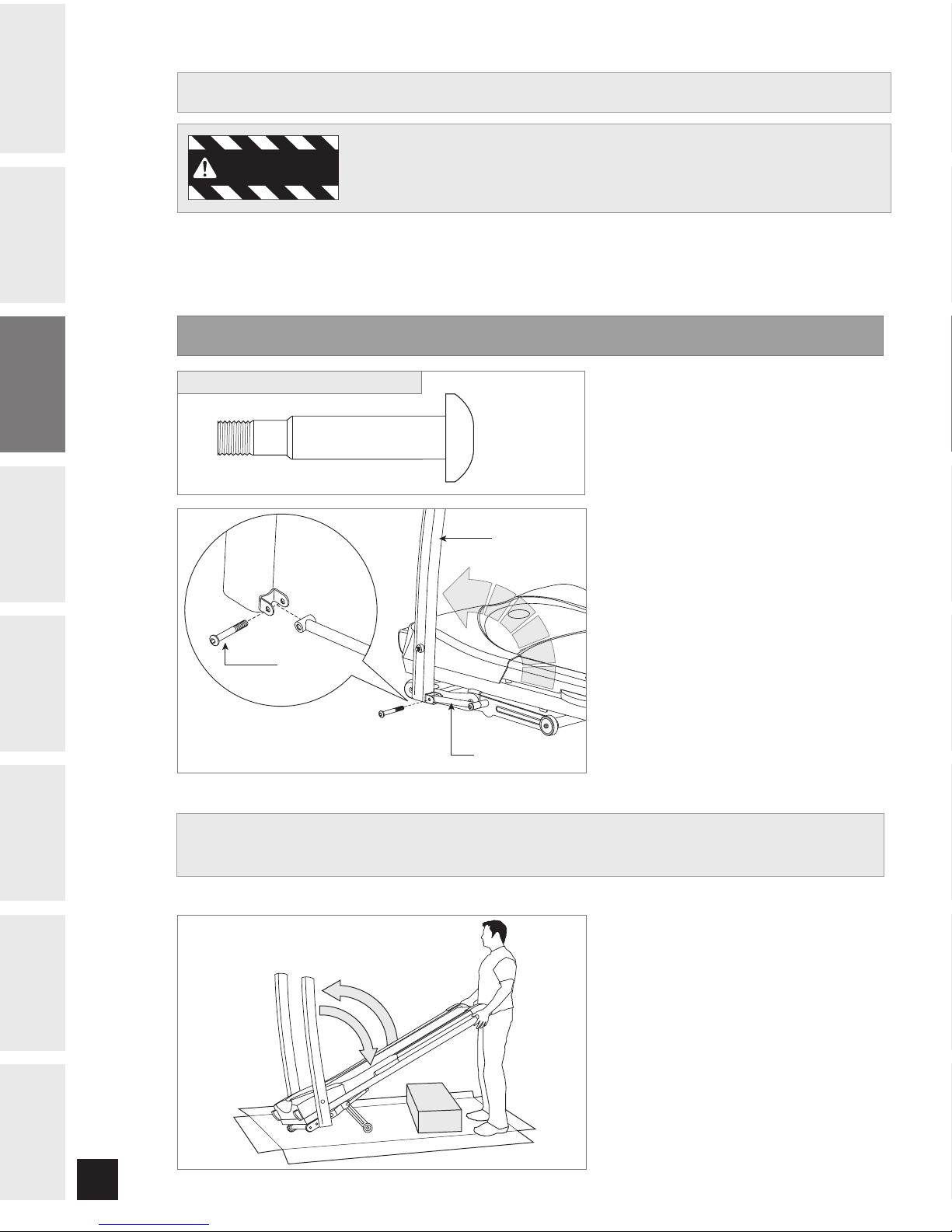

A Open HARDWARE BAG FOR STEP 1.
B Lift LEFT CONSOLE MAST into
upright position. Be sure to hold
the console mast firmly, as it will
not stay in the upright
position on it’s own.
C Move LEFT SIDE LINKAGE ARM
into position. Insert BOLT (A) and
tighten.
D Repeat on the right side.
E Now cut the banding straps and
remove remaining packaging
material.*
F Lift the RUNNING DECK until lock
latch on side of treadmill is fully
engaged.
G Remove CONSOLE from box
and place out of the way.
H Lower the treadmill RUNNING
DECK from the folded position by
stepping on LOCK LATCH on lower
right side.

INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
8
ASSEMBLY STEP 2
* Be sure to tighten bolts after all are lined up.
BOLT (B)
LOCK
WASHER (C)
ARC WASHER (D)
ARC WASHER (D)
CONSOLE CABLE
DO NOT ATTACH
THIS SIDE UNTIL STEP 2-F
ASSEMBLED IN STEP 2-D









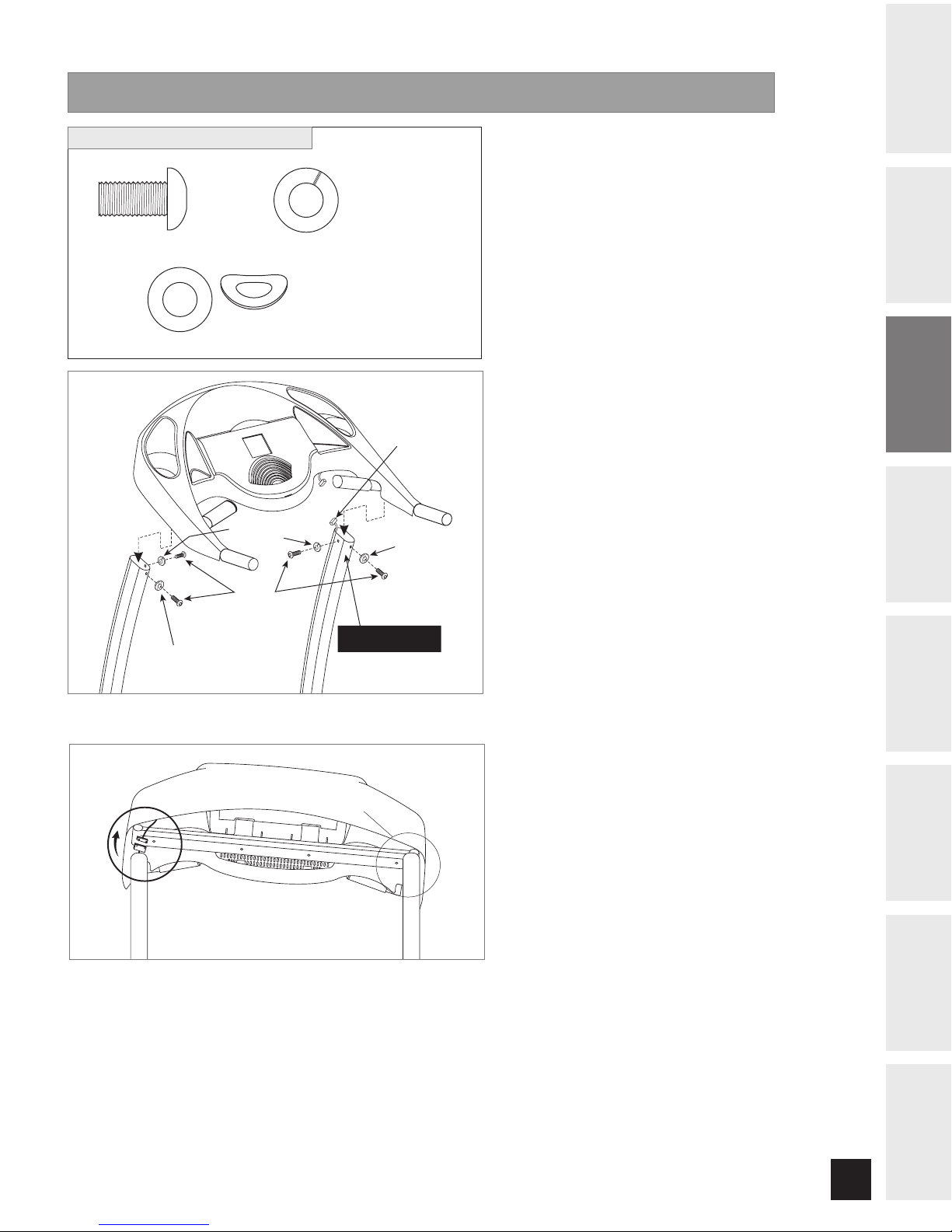

HARDWARE BAG FOR STEP 2 CONTENTS : A Open HARDWARE BAG FOR
STEP 2.
B With running deck in lowered
position, place CONSOLE
on upright masts. Slide the
brackets that are underneath
the console into the top holes of
the upright masts.
C Place LOCK WASHER (C) and
BOLT (B) into flat side of
LEFT upright MAST and lightly
tighten.
D Place ARC WASHER (D) and
BOLT (B) into curved side of
LEFT upright MAST and lightly
tighten.
E Gently lift RIGHT side of
the console to connect the
CONSOLE CABLE. Carefully tuck
wires in mast to avoid damage.
NOTE: Do not pinch console
cable or grip pulse wires.
F Repeat steps C-D above to
assemble the right side upright
mast and console.
G Tighten all bolts completely.

INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
9
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY STEP 3
SUPPORT BAR BOOTS
SUPPORT BARS
MOUNTING BRACKET
BOLT (E)
(8 TOTAL)



HARDWARE BAG FOR STEP 3 CONTENTS : A Open HARDWARE BAG FOR
STEP 3.
B Slide SUPPORT BARS into side
MOUNTING BRACKETS and
line up with top MOUNTING
BRACKETS.
C Insert 2 BOLTS (E) into the
tops and 2 BOLTS (E) into the
bottoms of each SUPPORT BAR.
D Slide SUPPORT BAR BOOTS
down to cover BOLTS (E).

INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
10
A Open HARDWARE BAG FOR STEP 4.
B Attach V BRACKET to CONSOLE
BRACKET using 2 BOLTS (F) and 2
SCREWS (G).
C Attach V BRACKET COVER to V
BRACKET using 2 BOLTS (H).
D Attach CORE PODS to V BRACKET
using 8 PRE-ATTACHED SCREWS.
ASSEMBLY STEP 4
YOU’RE FINISHED!
POWER SWITCH CIRCUIT BREAKER














ASSEMBLY STEP 5









HARDWARE BAG FOR STEP 4 CONTENTS :
Connect power plug to the
treadmill and connect the cord to
a power outlet. The on/off switch
is located next to the power
cord. Flip this switch to the 'on'
position, so that the switch is
lit. You will hear a beep and the
console will light up.

INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
11
BEFORE YOU BEGIN
CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing and
sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate
obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your
workout when you use your treadmill in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.
LOCATION OF THE TREADMILL

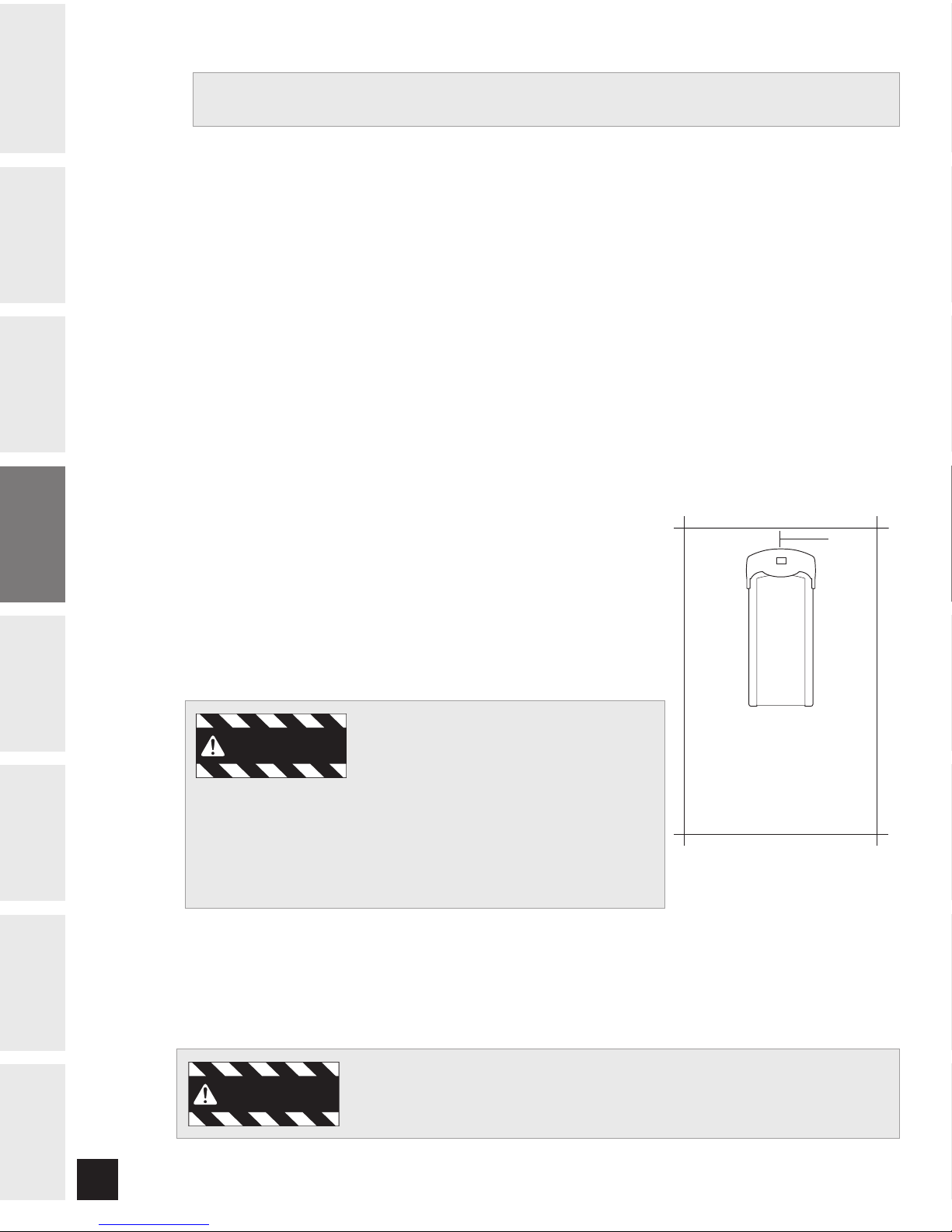

Place the treadmill on a level surface. There should be 6 feet of clearance
behind the treadmill, 3 feet on each side and one foot in front for folding
and the power cord. Do not place the treadmill in any area that will block
any vent or air openings. The treadmill should not be located in a garage,
covered patio, near water or outdoors.
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt.
Place your feet on the side rails before starting the treadmill. Start
walking on the belt only after the belt has begun to move. Never start the
treadmill at a fast running speed and attempt to jump on!
SAFETY KEY
Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your
clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation
of the safety key every 2 weeks.
NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR
CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT
COME OFF YOUR CLOTHING.
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
WARNING
3 feet
6 feet
3 feet
1 foot
WARNING

INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
12
PROPER USAGE
Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in
small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When
not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow the
MAINTENANCE schedule located on page 29 in this manual. Never step onto the treadmill when it is moving more
than 0.5 mph. Keep your body and head facing forward. Do not attempt to turn around or look backwards while
the treadmill is running. Stop your workout immediately if you feel pain, faint, dizzy or are short of breath.
Do not operate the treadmill if the power cord or plug is damaged.
If the treadmill appears to not be working properly, do not use the treadmill.

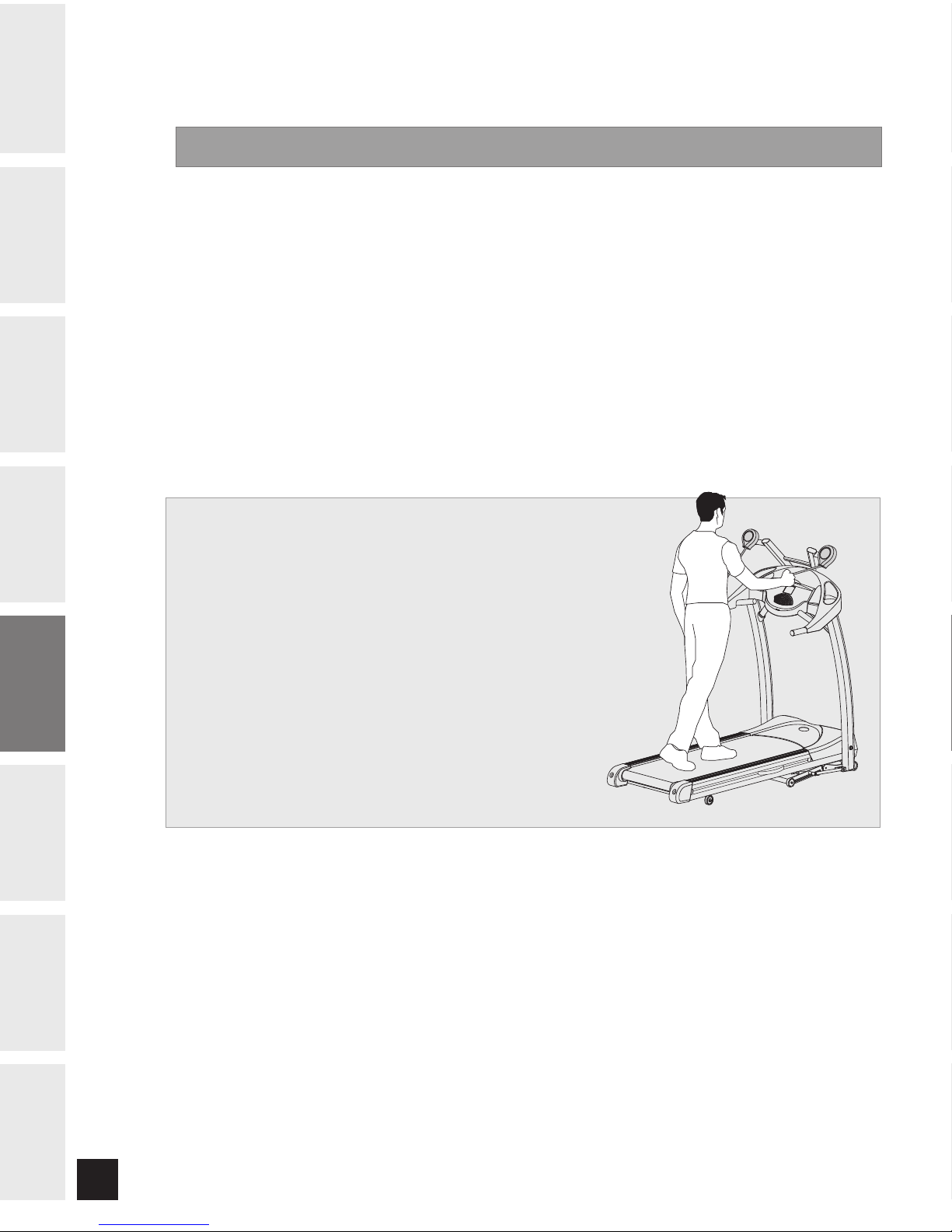

FOLDING
Firmly grasp the back end of the treadmill. Carefully
lift the end of the treadmill deck into the upright
position until the foot lock latch engages and
securely locks the deck into position. Make sure the
deck is securely latched before letting go. To unfold,
firmly grasp the back end of the treadmill. Gently
press down on the foot lock latch with your foot until
the lock latch disengages. Carefully lower the deck
to the ground.
MOVING
Your treadmill has a pair of transport wheels built
into the frame. To move, make sure the treadmill is
folded and securely latched. Then firmly grasp the
handlebars, tilt the treadmill back and roll.
Our Treadmills are heavy, use care and additional help if necessary when moving.
Do not attempt to move or transport treadmill unless it is in the upright, folded
position with the lock latch secured. Failure to follow these instructions could
result in injury.
WARNING
WARNING

INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
13
CENTERING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment. Before operating the
treadmill, make sure the belt is centered and remains
centered to maintain smooth operation.
CAUTION: Do not run belt faster than 1/2 mph while
centering. Keep fingers, hair and clothing away from
belt at all times.
If the running belt is too far to the right side:
With the treadmill running at 1/2 mph, turn the right
adjustment bolt clockwise 1/4 TURN at a time (using
the supplied Allen wrench). Check the belt alignment.
Allow belt to run a full cycle to gauge if more adjustment
is needed. Repeat if necessary, until the belt remains
centered during use.
If the running belt is too far to the left side:
With the treadmill running at 1/2 mph, turn the right
adjustment bolt counter-clockwise 1/4 TURN at a time
(using the supplied Allen wrench). Check the belt
alignment. Allow belt to run a full cycle to gauge if more
adjustment is needed. Repeat if necessary, until the
belt remains centered during use.
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
Belt is too far to the right side
Belt is too far to the left side
TENSIONING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment.
CAUTION: Running belt should NOT be moving during
tensioning. Over-tightening the running belt can
cause excessive wear on the treadmill as well as its
components. Never over-tighten the belt.
If you can feel a slipping sensation when running on the
treadmill, the running belt must be tightened. In most
cases, the belt has stretched from use, causing the belt
to slip. This is a normal and common adjustment. To
eliminate this slipping, turn the treadmill off and tension
BOTH THE REAR ROLLER BOLTS using the supplied Allen
wrench, turning them 1/4 TURN to the right as shown.
Turn the treadmill on and check for slipping. Repeat if
necessary, but NEVER TURN the roller bolts more than
1/4 turn at a time. Belt is properly tensioned when the
slipping sensation is gone.

INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
14
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.

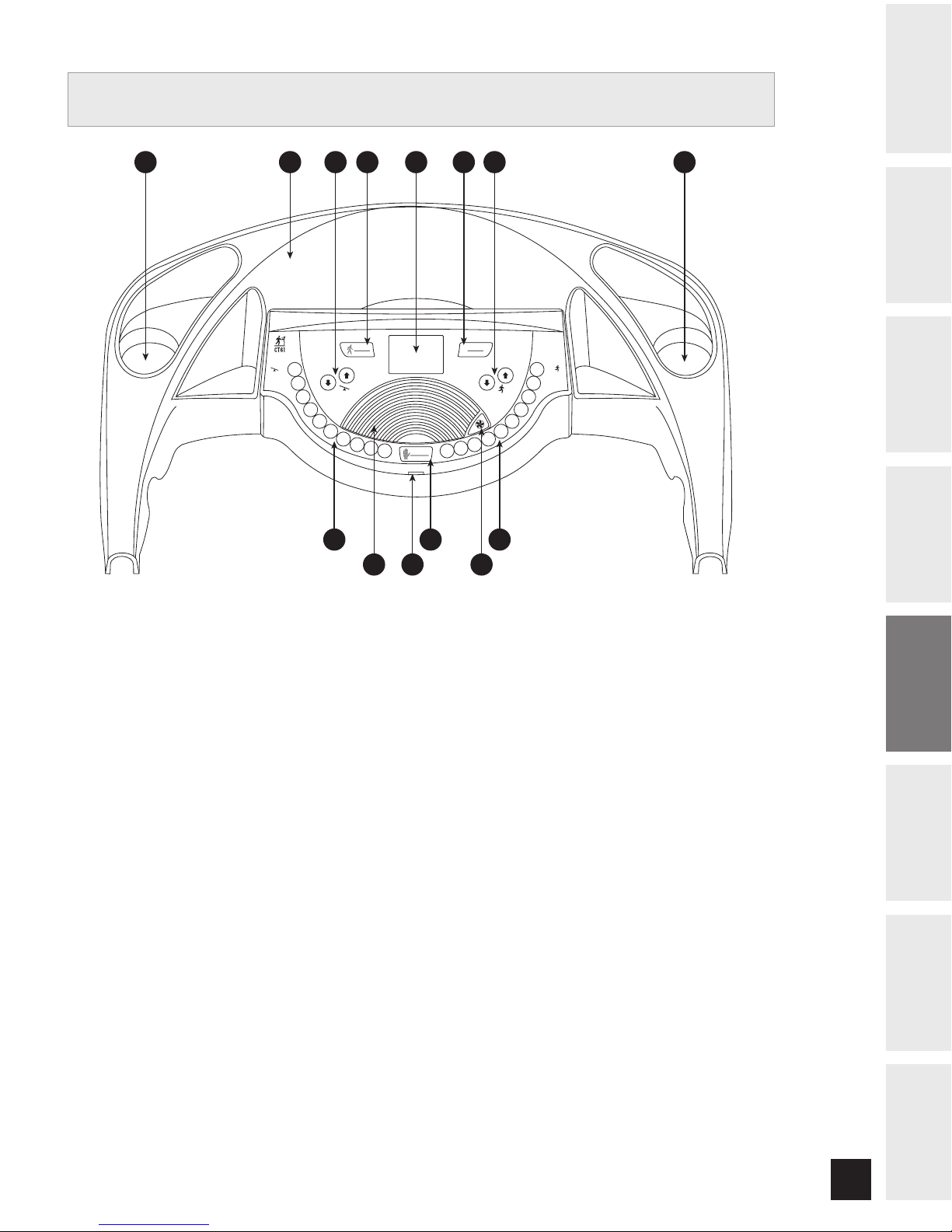

A) COLOR-CHANGING MONITOR DISPLAY: Speed, Time, Pulse, Distance, Incline, Calories and Program Profiles.
B) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
C) START: Simply press to begin exercising or starts your program.
D) ENTER: Used to select Program, Level and Time. Press to change display feedback during workout, Hold to scan.
E) ONE-TOUCH INCLINE KEYS: Used to reach desired incline more quickly.
F) ONE-TOUCH SPEED KEYS: Used to reach desired speed more quickly.
G) INCLINE ARROW KEYS: Used to adjust incline in small increments (0.5% increments).
H) SPEED ARROW KEYS: Used to adjust speed in small increments (0.1 mph increments).
I) SAFETY KEY POSITION: Enables treadmill when safety key is inserted.
J) FAN: Personal workout fan.
K) FAN BUTTON: Press the fan button ON / OFF.
L) WATER BOTTLE / CD / MP3 HOLDERS: Holds personal workout equipment.
M) READING RACK: Holds reading material. (Remove sales sticker before use)
TREADMILL OPERATION
AG H LL M C
I KJ
BFE
STOP
HOLD TO RESET
ENTER
CHANGE DISPLAY
S TA R T
QUICK START
ONE
TOUCH™
INCLINE
ONE
TOUCH
SPEED
1MPH
MPH
234
5
6
7
8
9
10
MPH
MPH
MPH
MPH
MPH
MPH
MPH
MPH
1%
2%
3%
4%
5%
6%
7%
8%
9%
10
%
™
INCLINE ADJUST SPEED ADJUST
D

INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
15
SPEED • Shown as MPH. Indicates how fast your
walking or running surface is moving.
TIME • Shown as Minutes:Seconds. View the time
remaining or the time elapsed in your workout.
PULSE • Shown as Beats Per Minute. Used to
monitor your heart rate (displayed when contact is
made with both pulse grips).
DISTANCE • Shown as Miles. Indicates distance
traveled during your workout.
INCLINE • Shown as Percent. Indicates the incline of your walking or running surface.
CALORIES • Total Calories burned during your workout.
PROGRAM PROFILES • Represents the profile of the program being used (speed during speed based
programs and incline during incline based programs).
HANDLEBARS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart
rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping
the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose,
cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars. Make
sure to clean the pulse sensors to ensure proper contact can be maintained. (See page 28).
MONITOR DISPLAY
HEART RATE
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES

INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
16
Check to make sure nothing is on or will hinder the movement of the treadmill.
Plug in the power cord and turn the treadmill ON.
Stand on the side rails of the treadmill.
Attach the safety key clip to part of your clothing.
Insert the safety key into the safety keyhole in the console.
You have two options to start your workout:
QUICK START UP
Simply press the START key to begin working out. OR...
SELECT A PROGRAM
Select a PROGRAM using the SPEED ARROW keys.
Once a PROGRAM has been chosen, press ENTER.
SELECT A LEVEL
Select a PROGRAM LEVEL using the ARROW keys.
Once a PROGRAM LEVEL has been chosen, press ENTER.
SELECT A TIME
Select a Time using the ARROW keys or use the default time.
Once a TIME has been chosen, press START.
FINISHING YOUR WORKOUT
When your workout is complete, the MONITOR DISPLAY will flash and beep. Your workout information will
stay displayed on the console for 30 seconds and then reset.
CLEAR CURRENT SELECTION
To clear the current program selection or screen, hold the STOP button for 4-5 seconds.
SCAN VIEWING SCREENS
To have the display screen rotate continuously (Speed and Time, Pulse and Distance, Incline and Calories),
hold the ENTER button for 4-5 seconds.
GETTING STARTED / SELECTING A PROGRAM
1)
2)
3)
4)
5)
6)
A)
B)

INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
17
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
1) After you have selected a program, a level, time and speed press START and begin walking.
2) After several minutes, the CORE POD ICON will start to flash in the middle of the screen
and ‘GET READY!’ will scroll across.
NOTE: Time increments vary depending on program and level chosen.
3) Grab the HANDLES attached to each pod above the console.
4) The screen will change from blue to green.
While the screen is GREEN, use the core pods.
5) While holding the core pod handles, continue to
walk as if the handles were not there. Slowly begin
to exaggerate your arm swing.
With each stride, the hand of your forward-most
arm should reach shoulder height, with only a
slight bend in your elbow. Your back arm should
also be slightly bent and should travel just past
the trunk of your body. Concentrate on keeping your
core firm and maintaining proper form. After two
to three minutes of use, the motion will begin to
feel natural and fluid.
6) After several minutes, the screen will turn BLUE again and ‘RELEASE’ will scroll across.
NOTE: Time increments vary depending on program and level chosen.
7) Gently place the handles back and continue to walk until the treadmill prompts you to use
the core pods again.
8) Steps 2 through 7 will repeat until the duration of the program is complete.
USING THE CORE POD PROGRAMS

INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
18
User defines SPEED and INCLINE changes. Time-based goal. 4 minute warm-up and 4 minute cool-down.
Allows ‘On The Fly’ manual SPEED and INCLINE changes. Time-based goal. Screen will cycle between green
and blue every 60 seconds. User is advised to use core pods while the screen is green. 4 minute warm-up
and 4 minute cool-down.
TIMED INTERVALS with INCLINE changes. Screen will cycle between green and blue at various intervals
depending on level chosen by user. User is advised to use core pods while the screen is green. 4 minute
warm-up and 4 minute cool-down.
CORE ADVANCED 1 PROGRAM SEGMENTS
WITH TIME INTERVALS (all segments last 60 seconds)
WARM-UP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 COOL-DOWN
Level 1 0.0 0.5 0.0 0.5 1.0 3.0 1.0 3.0 2.0 3.0 2.0 3.5 2.0 3.0 2.0 3.0 1.0 3.0 0.5 0.0 0.5 0.0
Level 2 0.0 0.5 0.0 0.5 1.0 3.0 2.0 3.0 2.0 3.0 2.5 3.5 2.5 3.0 2.0 3.0 2.0 3.0 0.5 0.0 0.5 0.0
Level 3 0.5 1.0 0.5 1.0 1.5 3.5 1.5 3.5 2.5 3.5 2.5 4.0 2.5 3.5 2.5 3.5 1.5 3.5 1.0 0.5 1.0 0.5
Level 4 0.5 1.0 0.5 1.0 1.5 3.5 2.5 3.5 2.5 3.5 3.0 4.0 3.0 3.5 2.5 3.5 2.5 3.5 1.0 0.5 1.0 0.5
Level 5 1.0 1.5 1.0 1.5 2.0 4.0 2.0 4.0 3.0 4.0 3.0 4.5 3.0 4.0 3.0 4.0 2.0 4.0 1.5 1.0 1.5 1.0
Level 6 1.0 1.5 1.0 1.5 2.0 4.0 3.0 4.0 3.0 4.0 3.5 4.5 3.5 4.0 3.0 4.0 3.0 4.0 1.5 1.0 1.5 1.0
Level 7 1.5 2.0 1.5 2.0 2.5 4.5 2.5 4.5 3.5 4.5 3.5 5.0 3.5 4.5 3.5 4.5 2.5 4.5 2.0 1.5 2.0 1.5
Level 8 1.5 2.0 1.5 2.0 2.5 4.5 3.5 4.5 3.5 4.5 4.0 5.0 4.0 4.5 3.5 4.5 3.5 4.5 2.0 1.5 2.0 1.5
Level 9 2.0 2.5 2.0 2.5 3.0 5.0 3.0 5.0 4.0 5.0 4.0 5.5 4.0 5.0 4.0 5.0 3.0 5.0 2.5 2.0 2.5 2.0
Level 10 2.0 2.5 2.0 2.5 3.0 5.0 4.0 5.0 4.0 5.0 4.5 5.5 4.5 5.0 4.0 5.0 4.0 5.0 2.5 2.0 2.5 2.0
Segments 1-14 repeated untile selected TIME is reached.
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)
PROGRAM 2: CORE BASIC
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
CORE
PROGRAM INFORMATION
PROGRAM 1: MANUAL
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
CORE
PROGRAM 3: CORE ADVANCED 1
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
CORE

DISTANCE BASED with INCLINE changes. Screen will cycle between green and blue at various intervals depending
on level chosen by user. User is advised to use core pods while the screen is green. 4 minute warm-up and 4
minute cool-down.
CORE ADVANCED 2 PROGRAM SEGMENTS
WITH DISTANCE INTERVALS (Segments equal 0.1 miles)
WARM-UP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 COOL-DOWN
Level 1 0.0 0.5 1.0 3.0 1.0 3.0 2.0 3.0 2.0 3.5 2.0 3.0 2.0 3.0 1.0 3.0 0.5 0.0
Level 2 0.0 0.5 1.0 3.0 2.0 3.0 2.0 3.0 2.5 3.5 2.5 3.0 2.0 3.0 2.0 3.0 0.5 0.0
Level 3 0.5 1.0 1.5 3.5 1.5 3.5 2.5 3.5 2.5 4.0 2.5 3.5 2.5 3.5 1.5 3.5 1.0 0.5
Level 4 0.5 1.0 1.5 3.5 2.5 3.5 2.5 3.5 3.0 4.0 3.0 3.5 2.5 3.5 2.5 3.5 1.0 0.5
Level 5 1.0 1.5 2.0 4.0 2.0 4.0 3.0 4.0 3.0 4.5 3.0 4.0 3.0 4.0 2.0 4.0 1.5 1.0
Level 6 1.0 1.5 2.0 4.0 3.0 4.0 3.0 4.0 3.5 4.5 3.5 4.0 3.0 4.0 3.0 4.0 1.5 1.0
Level 7 1.5 2.0 2.5 4.5 2.5 4.5 3.5 4.5 3.5 5.0 3.5 4.5 3.5 4.5 2.5 4.5 2.0 1.5
Level 8 1.5 2.0 2.5 4.5 3.5 4.5 3.5 4.5 4.0 5.0 4.0 4.5 3.5 4.5 3.5 4.5 2.0 1.5
Level 9 2.0 2.5 3.0 5.0 3.0 5.0 4.0 5.0 4.0 5.5 4.0 5.0 4.0 5.0 3.0 5.0 2.5 2.0
Level 10 2.0 2.5 3.0 5.0 4.0 5.0 4.0 5.0 4.5 5.5 4.5 5.0 4.0 5.0 4.0 5.0 2.5 2.0
Segments 1-14 repeated untile selected DISTANCE is reached.
(WARM-UP and COOL-DOWN last 0.1 miles each and are included in program distance)
User defines maximum and minimum SPEED. Program cycles between maximum and minimum SPEED during
workouts. Time-based goal. 4 minute warm-up and 4 minute cool-down.
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
19
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
PROGRAM 4: CORE ADVANCED 2
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
CORE
PROGRAM 5: INTERVALS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
CORE
