iDataLink ADS-ALCA User manual

NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
reviewtheInstallation Guide carefullybefore beginning any work.
!
The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2016
U.S. PATENT NO. 8,856,780
PLEASE VISIT WWW.IDATALINK.COM FOR COMPLETE PRODUCT DETAILS
Automotive Data Solutions Inc.
INSTALL GUIDE
ADS-AL(DL)-TL9-EN
AVAILABLE FOR: ADS-AL CA
TL9
Rev. Date: November 28, 2016
Doc. No.: ##32052##
20161128

U.S. Patent No. 8,856,780
INSTALL TYPE SELECTION
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS PARKING LIGHT CTRL ARM OEM ALARM DISARM OEM ALARM DOOR LOCK DOOR UNLOCK POWER SLIDING DOOR (L)* POWER SLIDING DOOR (R)* TRUNK/HATCH RELEASE* DOOR STATUS OUTPUT TRUNK STATUS OUTPUT HOOD STATUS OUTPUT** TACHOMETER OUTPUT BRAKE PEDAL STATUS OUTPUT E-BRAKE OUTPUT A/M ALARM CTRL FROM OEM REMOTES A/M RS CTRL FROM OEM REMOTES
SCION
iM STD key (H) 16 4 • • • • • • • • • • • • • • •
TOYOTA
Camry STD key (H) 15-17 1 • • • • • • • • • • • • • • •
Corolla iM STD key (H) 17 12 • • • • • • • • • • • • • • •
Corolla STD key (H) 14-16 4 • • • • • • • • • • • • • • •
Corolla STD key (H) 17 12 • • • • • • • • • • • • • • •
Highlander STD key (H) 14-16 2 • • • • • • • • • • • • • • •
Prius C STD key (H) 15-16 3 • • • • • • • • • • • • • • •
Prius C STD key (H) 17 11 • • • • • • • • • • • • • • •
Rav4 STD key (H) 13-15 7 • • • • • • • • • • • • • • •
Rav4 STD key (H) 16-17 6 • • • • • • • • • • • • • • •
Sequoia STD key (H) 15-17 9 • • • • • • • • • • • • • • •
Sienna STD key (H) 15-17 10 • • • • • • • • • • • • • • • • •
Tacoma STD key (H) 16-17 8 • • • • • • • • • • • • •
Yaris Hatchback STD key (H) 15-16 5 • • • • • • • • • • • • • • •
Yaris Hatchback STD key (H) 17 13 • • • • • • • • • • • • • • •
* Available only when ignition is off.
** Available only if vehicle is equipped with factory hood switch.
Page 2 of 30 ADS-AL(DL)-TL9-EN 20161128
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2016
ALL IN ONE
ToyoTa
Doc. No.: ##32052##

U.S. Patent No. 8,856,780
TYPE 1 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
TOYOTA
Camry
STD key (H) 15-17
CanH E13 White 16 pin 06 Blue (DATA) OBDII ~
CanL E13 White 16 pin 14 White (DATA) OBDII ~
SIL E13 White 16 pin 07 Gray (DATA) OBDII ~
RDA I13 White 30 pin 16 Blue (DATA) Body ECU next to dash fuse box ~
TPMS ignition* IO1 White 18 pin 03 Yellow (+) Passenger kick panel, junction block ~
Autolights I13 White 30 pin 28 Green (-) Body ECU next to dash fuse box ~
12V I36 White 08 pin 05 Green (+) Ignition switch ~
Ignition I36 White 08 pin 06 Black (+) Ignition switch ~
Ignition 2 I36 White 08 pin 01 Pink (+) Ignition switch ~
Starter I36 White 08 pin 07 Blue (+) Ignition switch ~
Starter 2 I36 White 08 pin 03 LtGreen (+) Ignition switch ~
* Connection is only required if remote start control from oem remotes is desired and vehicle is equipped with tire pressure monitoring system (TPMS).
Page 3 of 30 ADS-AL(DL)-TL9-EN 20161128
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2016
ALL IN ONE
ToyoTa
Doc. No.: ##32052##

U.S. Patent No. 8,856,780

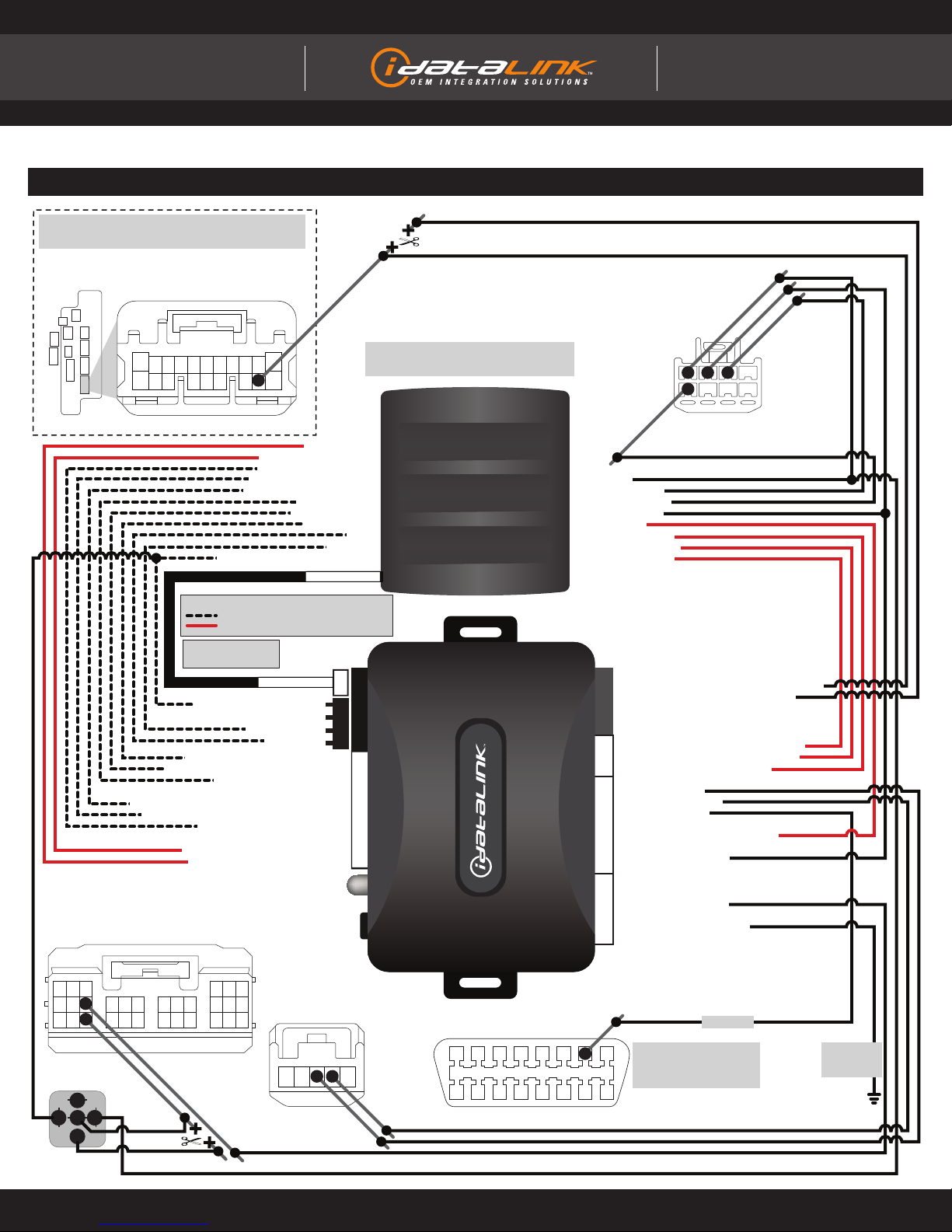

TYPE 1 - WIRING DIAGRAM - 1 OF 1
Page 4 of 30 ADS-AL(DL)-TL9-EN 20161128
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2016
ALL IN ONE
ToyoTa
1234
5678
101112131415161718
1920212223242526272829
30
123456
7
89
161514131211109
87654321 6 7
14
16
28
18 17 16 15 14 13 12
11 10 9876543 2 1
13
567
87A
87
85 86
30
3
IGNITION 2 (+)
STARTER 2 (+)
MAIN BODY ECU
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
OPTIONAL ->
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
LOCK/ARM (-) INPUT - GREEN/BLACKLOCK/ARM (-) INPUT - GREEN/BLACK
BRAKE (+) INPUT
BRAKE (+) INPUT
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
LOCK (-) OUTPUT
LOCK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
(NC) WHITE
(NC) WHITE
GROUND - BLACKGROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACKUNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITETRUNK (-) INPUT - RED/WHITE
(NC) BROWN(NC) BROWN
PARKING LIGHT (+) INPUT - WHITE
(NC) BLACK/WHITE
(NC) BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
ORANGE/WHITE (NC)
RDA
AUTOLIGHT (-)
WHITE CONNECTOR
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
CANL
CANH SIL
YELLOW/BLACK - DOOR STATUS (-) OUTPUTYELLOW/BLACK - DOOR STATUS (-) OUTPUT
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED (NC)
WHITE (NC)
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - SIL
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
BLUE/YELLOW (NC)
- RDA (DATA)
GREEN/RED - RDA (DATA)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED - GROUND (-) INPUTGRAY/RED - GROUND (-) INPUT
GRAY/YELLOW (NC)GRAY/YELLOW (NC)
WITHOUT
OEM HOOD
STATUS ONLY
SEE NOTE 1
WHITE/BLACK - TPMS IGNITION (+) CONNECTOR
WHITE/RED - TPMS IGNITION (+) VEHICLE
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
12V (+) INPUT
12V (+) INPUT
IGNITION 2 (+) OUTPUT
IGNITION 2 (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
STARTER 2 (+) OUTPUT
STARTER 2 (+) OUTPUT
IGNITION CONNECTOR
WHITE
WHITE
PASSENGER KICK PANEL
NOTE 1:
CONNECT TO GROUND
IF VEHICLE IS NOT EQUIPPED
WITH IMMOBILIZER
STARTER (+)
IGNITION (+)
12V (+)
TPMS IGNITION (+)
CONNECTION IS ONLY REQUIRED IF REMOTE START CONTROL
FROM OEM REMOTES IS DESIRED AND VEHICLE IS EQUIPPED
WITH TIRE PRESSURE MONITORING SYSTEM (TPMS).
THE SECURITY AND TPMS LIGHT WILL FLASH
DURING THE REMOTE START SEQUENCE
AND WILL TURN OFF UPON VEHICLE TAKEOVER.
