iDataLink Maestro RR User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

ELECTRONICS
Click here for:
Radar Installation Guides
2006-2007
Audi A3
With AMP
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, OEM AMPLIFIER AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro AU1 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-AUD1-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2006-2007
Automotive Data Solutions Inc. © 2022 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Module Diagnostics 6
Troubleshooting Table 7
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2006-2007
Automotive Data Solutions Inc. © 2022 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Cut and remove the BLACK 20 pin connector from the
AU1 T-harness and connect the wires, shown in the wiring
diagram, from aftermarket radio main harness to the AU1
T-harness and match the wire functions.
• Remove the factory radio.
STEP 2
• Determine which style of radio harness is present in your
vehicle.
• Assemble the AU1 T-harness as shown in the wiring
diagram (style1 OR style2).
• Connect the factory harness(es) to the AU1 T-harness.
STEP 3
• Connect the 2-pin BLACK connector to the OBDII extension
harness.
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 4
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the RCA cables into the aftermarket radio outputs.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio (If there is no iDatalink audio input,
connect to AUX).
Notes
On Pioneer radio, ensure that there is nothing plugged into
the W/R port.
STEP 5
• Connect all the harnesses to the Maestro module (as
shown in the diagram) then test your installation.
6

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2006-2007
Automotive Data Solutions Inc. © 2022 4
6
NC
NC
STEP 5
MAESTRO RR MODULE
WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
AU1 T-HARNESS
OBDII CONNECTOR
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE COLORS
CUT AND DISCARD CONNECTOR
FACTORY RADIO
HARNESS STYLE 1
FACTORY RADIO
HARNESS STYLE 2
OR
3 PIN
WHITE
4 PIN - WHITE 4 PIN - BLACK
4 PIN
WHITE
4 PIN
BLACK
8 PIN
WHITE
2 PIN
BLACK
3 PIN - WHITE 8 PIN - WHITE 2 PIN - BLACK 3 PIN - WHITE 8 PIN - WHITE 2 PIN - BLACK 4 PIN - WHITE 4 PIN - BLACK
LF OUT
RF OUT
LR OUT
RR OUT
RCA CABLES

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2006-2007
Automotive Data Solutions Inc. © 2022 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood
cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2006-2007
Automotive Data Solutions Inc. © 2022 6

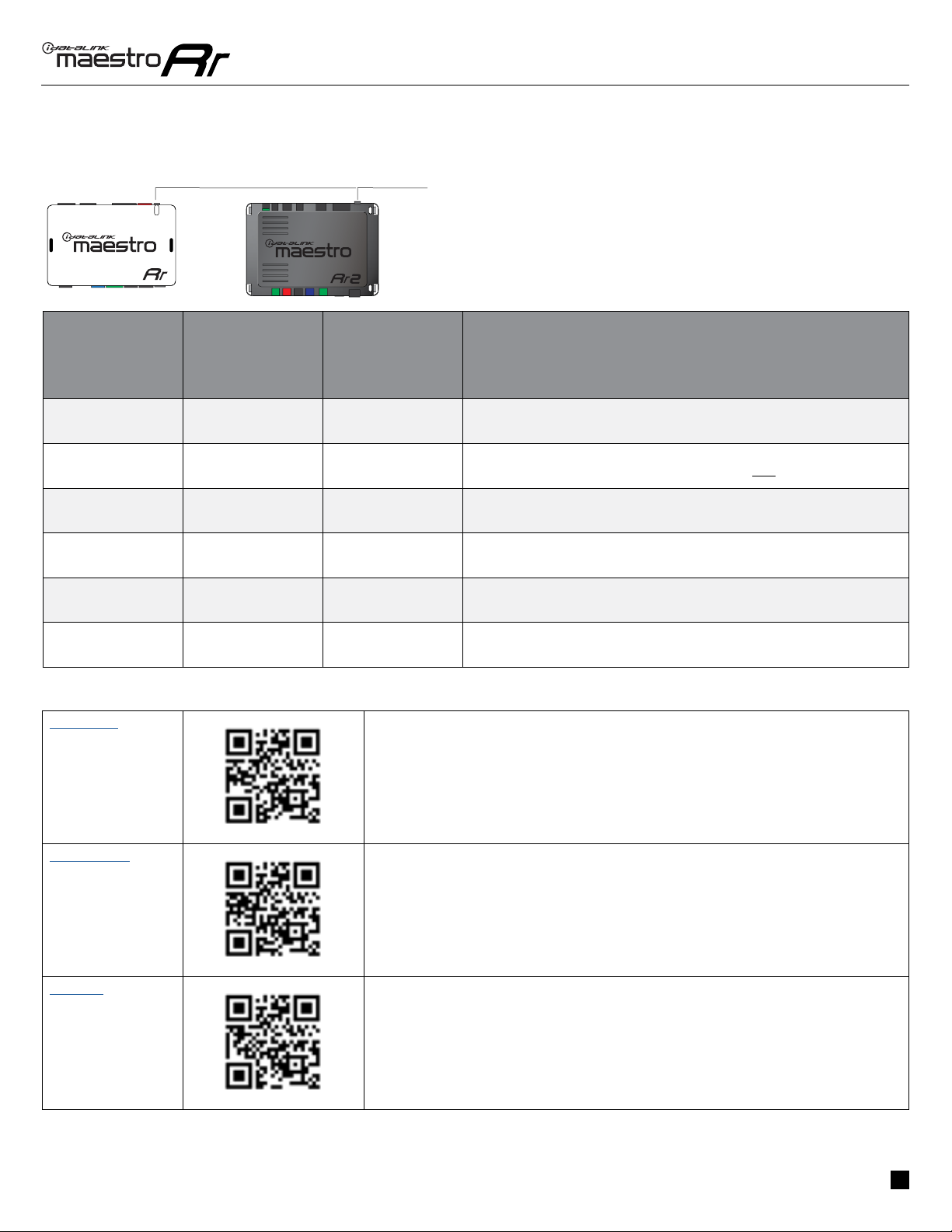

MODULE DIAGNOSTICS
VIDEO HELP Installation, product information, vehicle specific videos.
VERIFY FLASH Last flash information, steering control configuration, vehicle information.
WEBLINK Software to program module.
LED 1 LED 2
LED 1
PROGRAMMING BUTTON
LED 1
Module/Firmware
status
LED 2 (RR2)
Bluetooth activity
LED STATUS DIAGNOSTIC
• or •RED or GREEN
flashing
LED flashes 1 or more times, either red or green, when a steering wheel
button is pressed : normal operation.
•1 RED flash Module has no firmware.
Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE.
•2 RED flashes Problem detected. Consult troubleshooting table.
•1 GREEN flash After radio boots up : Normal operation.
•3 GREEN flashes Bluetooth is activated.
Turns off after one minute: Normal operation.
• • OFF Normal operation (inactive).

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2006-2007
Automotive Data Solutions Inc. © 2022 7
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
If anything else is connected to the OBD2 or CAN wires of vehicle
(programmer, throttle controller, insurance tracker, etc.) try unplugging it to
see if gauges work. If gauges work without it installed, call tech support for
options.
Reset the RR.
The light on the Maestro is blinking RED TWICE and the radio IS turning on. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is blinking RED TWICE but radio is NOT turning on. If installing a floating screen type radio and it is not turning on, ensure the
screen is secured and any trim pieces on the radio have been installed fully.
Not installing these fully will prevent radio from powering up and show a 2x
red error as well.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.
TROUBLESHOOTING TABLE

ELECTRONICS
Click here for:
Radar Installation Guides
2008-2013
Audi A3
With AMP
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, OEM AMPLIFIER AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro AU1 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-AUD1-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2008-2013
Automotive Data Solutions Inc. © 2022 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Module Diagnostics 6
Troubleshooting Table 7
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2008-2013
Automotive Data Solutions Inc. © 2022 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Cut and remove the BLACK 20 pin connector from the
AU1 T-harness and connect the wires, shown in the wiring
diagram, from aftermarket radio main harness to the AU1
T-harness and match the wire functions.
• Remove the factory radio.
STEP 2
• Assemble the AU1 T-harness as shown in the wiring
diagram.
• Connect the factory harness to the AU1 T-harness.
STEP 3
• Connect the 2-pin BLACK connector to the OBDII extension
harness.
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 4
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the RCA cables into the aftermarket radio outputs.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio (If there is no iDatalink audio input,
connect to AUX).
Notes
On Pioneer radio, ensure that there is nothing plugged into
the W/R port.
STEP 5
• Connect all the harnesses to the Maestro module (as
shown in the diagram) then test your installation.
2

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2008-2013
Automotive Data Solutions Inc. © 2022 4
2
NC
STEP 5
MAESTRO RR MODULE
WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
STEP 4
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
AU1 T-HARNESS
FACTORY RADIO
HARNESS
OBDII CONNECTOR
WIRES FROM
VEHICLE
PINK - VEHICLE SPEED
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE COLORS
WITHOUT INTELLIGENT RADIO
ADAPTER HARNESS : CUT AND
DISCARD CONNECTOR
3 PIN - WHITE
4 PIN - WHITE
4 PIN - BLACK
LF OUT
RF OUT
LR OUT
RR OUT
8 PIN - WHITE
2 PIN - BLACK
RCA CABLES

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2008-2013
Automotive Data Solutions Inc. © 2022 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood
cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2008-2013
Automotive Data Solutions Inc. © 2022 6
MODULE DIAGNOSTICS
VIDEO HELP Installation, product information, vehicle specific videos.
VERIFY FLASH Last flash information, steering control configuration, vehicle information.
WEBLINK Software to program module.
LED 1 LED 2
LED 1
PROGRAMMING BUTTON
LED 1
Module/Firmware
status
LED 2 (RR2)
Bluetooth activity
LED STATUS DIAGNOSTIC
• or •RED or GREEN
flashing
LED flashes 1 or more times, either red or green, when a steering wheel
button is pressed : normal operation.
•1 RED flash Module has no firmware.
Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE.
•2 RED flashes Problem detected. Consult troubleshooting table.
•1 GREEN flash After radio boots up : Normal operation.
•3 GREEN flashes Bluetooth is activated.
Turns off after one minute: Normal operation.
• • OFF Normal operation (inactive).

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 With AMP 2008-2013
Automotive Data Solutions Inc. © 2022 7
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
If anything else is connected to the OBD2 or CAN wires of vehicle
(programmer, throttle controller, insurance tracker, etc.) try unplugging it to
see if gauges work. If gauges work without it installed, call tech support for
options.
Reset the RR.
The light on the Maestro is blinking RED TWICE and the radio IS turning on. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is blinking RED TWICE but radio is NOT turning on. If installing a floating screen type radio and it is not turning on, ensure the
screen is secured and any trim pieces on the radio have been installed fully.
Not installing these fully will prevent radio from powering up and show a 2x
red error as well.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.
TROUBLESHOOTING TABLE

ELECTRONICS
Click here for:
Radar Installation Guides
2006-2007
Audi A3
Without AMP
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, OEM AMPLIFIER AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro AU1 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-AUD1-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 Without AMP 2006-2007
Automotive Data Solutions Inc. © 2022 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Module Diagnostics 6
Troubleshooting Table 7
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 Without AMP 2006-2007
Automotive Data Solutions Inc. © 2022 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Cut and remove the BLACK 20 pin connector from the
AU1 T-harness and connect the wires, shown in the wiring
diagram, from aftermarket radio main harness to the AU1
T-harness and match the wire functions.
• Remove the factory radio.
STEP 2
• Determine which style of radio harness is present in your
vehicle.
• Assemble the AU1 T-harness as shown in the wiring
diagram (style1 OR style2).
• Connect the factory radio harness(es) to the AU1
T-harness.
STEP 3
• Connect the 2-pin BLACK connector to the OBDII extension
harness.
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 4
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio (If there is no iDatalink audio input,
connect to AUX).
Notes
On Pioneer radio, ensure that there is nothing plugged into
the W/R port.
STEP 5
• Connect all the harnesses to the Maestro module (as
shown in the diagram) then test your installation.
5

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 Without AMP 2006-2007
Automotive Data Solutions Inc. © 2022 4
5
NC
NC
NC NC NC NC
STEP 5
MAESTRO RR MODULE
WIRING DIAGRAM
STEP 3
STEP 4
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
AU1 T-HARNESS
OBDII CONNECTOR
PINK - VEHICLE SPEED
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE COLORS
STEP 2
WIRES FROM
VEHICLE
CUT AND DISCARD CONNECTOR
FACTORY RADIO
HARNESS STYLE 1
FACTORY RADIO
HARNESS STYLE 2
OR
3 PIN
WHITE
4 PIN - WHITE 4 PIN - BLACK
8 PIN
WHITE
2 PIN
BLACK
3 PIN - WHITE 8 PIN - WHITE 2 PIN - BLACK 3 PIN - WHITE 8 PIN - WHITE 2 PIN - BLACK 4 PIN - WHITE 4 PIN - BLACK
STEP 1

ADS-RR(SR)-AU01-DS-IG-EN maestro.idatalink.com
Audi A3 Without AMP 2006-2007
Automotive Data Solutions Inc. © 2022 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood
cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A
