iDataLink ADS-ALCA User manual

REVISION DATE
20151112
DOCUMENT NUMBER
NOTICE The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
U.S. Patent No. 8,856,780
INSTALL GUIDE
OEMALRSCH4ADSALCAEN
HARDWARE
ADSALCA
ACCESSORIES
ADSUSB REQUIRED
ADSHRNCH4 REQUIRED
FIRMWARE
OEMALRSCH4ADSALCA
www.idatalink.comAutomotive Data Solutions Inc. © 2015
24257

U.S. Patent No. 8,856,780
VEHICLE LIST - 1 OF 1
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS 3X LOCK START/STANDALONE MOD. PRIORITY UNLOCK DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM TRUNK/HATCH RELEASE POWER LIFTGATE POWER SLIDING DOOR (L) POWER SLIDING DOOR (R) DATA/MUX IGNITION CTRL SECURE TAKEOVER PARKING LIGHT CTRL
CHRYSLER
300 AT 08-10 1 • • • • • • • • • • •
300 Limited AT 08-10 1 • • • • • • • • • • •
300c AT 08-10 1 • • • • • • • • • • •
300c SRT8 AT 08-10 1 • • • • • • • • • • •
Town & Country AT 08-14 1 • • • • • • • • • • • • •
DODGE
Caravan AT 08-10 1 • • • • • • • • • • • • •
Challenger SXT AT 08-14 1 • • • • • • • • • • •
Challenger R/T AT 08-14 1 • • • • • • • • • • •
Challenger SRT8 AT 08-14 1 • • • • • • • • • • •
Charger SE AT 08-10 1 • • • • • • • • • • •
Charger R/T AT 08-10 1 • • • • • • • • • • •
Charger SRT8 AT 08-10 1 • • • • • • • • • • •
Durango AT 11-13 1 • • • • • • • • •
Grand Caravan AT 08-16 1 • • • • • • • • • • • • •
Journey AT 09-10 1 • • • • • • • • • •
Magnum AT 08 1 • • • • • • • • • • •
JEEP
Commander AT 08-10 1 • • • • • • • • • •
Grand Cherokee AT 08-13 1 • • • • • • • • • •
RAM
C/V AT 10-13 1 • • • • • • • • • • • • •
1500 AT 10-12 1 • • • • • • • • •
2500 AT 10-12 1 • • • • • • • • •
3500 AT 10-12 1 • • • • • • • • •
4500 AT 11-12 1 • • • • • • • • •
5500 AT 11-12 1 • • • • • • • • •
VW
Routan AT 09-12 1 • • • • • • • • • • • • •
NOTE
I Install type 1 requires a T-Harness to
complete the installation. T-Harness
sold separately.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 2 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 3 OF 16
• 20151112
BOX CONTENTS - 1 OF 1
2
1
3
2
1
3
3
4
2
1
7
6
9
5
4
3
2
1
10
8
4
5
2
6
7
1
3
4
5
2
6
1
3
D
C
B
A
F
E
PROGRAMMING
BUTTON
LED 1
BLACK
DATA PORT
(WEBLINK, RF, TELEMATIC)
BLUE
WHITE
WHITE
WHITE
BLACK
6 PIN WHITE CONNECTOR
7 PIN WHITE CONNECTOR
MODULE 4 PIN BLACK CONNECTOR
10 PIN BLACK CONNECTOR
DATA CABLE 1
DATA CABLE 2
3 PIN WHITE CONNECTOR
3 PIN BLUE CONNECTOR
BOX CONTENTS
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
CH4 T-HARNESS (required accessory sold separately)
MODULE
DATA PORT
CH4 T-HARNESS
DOC.: #24257

U.S. Patent No. 8,856,780
TYPE 1 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
CHRYSLER
300 08-10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
300 Limited 08-10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
300C 08-10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
300 SRT8 08-10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
Town & Country 08-10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
Town & Country 11-14 Parking Light D2242 Black 6 pin 3 White/Green (MUX) Switch ~
DODGE
Caravan 08-10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
Challenger R/T 08-14 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
Challenger SXT 08-14 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
Challenger SRT8 08-14 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
Charger SE 08-10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
Charger R/T 08-10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
Charger SRT8 08-10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
Durango 11-13 Parking Light D2242 Black 6 pin 1 White/Green (MUX) Switch ~
Grand Caravan 08-10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
Grand Caravan 11-16 Parking Light D2242 Black 6 pin 3 White/Green (MUX) Switch ~
Journey 09-10 Parking Light ~ ~ ~ ~ ~ (+) ~ ~
Magnum 08 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
JEEP
Commander 08-10 Parking Light ~ ~ ~ ~ ~ (-) ~ ~
Grand Cherokee 08-10 Parking Light ~ ~ ~ ~ ~ (-) ~ ~
Grand Cherokee 11-13 Parking Light ~ Black 10 pin 1 White/LtGreen (MUX) Switch ~
RAM
C/V 10 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
C/V 11-13 Parking Light D2242 Black 6 pin 1 White/Green (MUX) Switch ~
1500 10-12 Parking Light D2242 Black 10 pin 1 White (MUX) Switch ~
2500 10-12 Parking Light D2242 Black 10 pin 1 White (MUX) Switch ~
3500 10-12 Parking Light D2242 Black 10 pin 1 White (MUX) Switch ~
4500 11-12 Parking Light D2242 Black 10 pin 1 White (MUX) Switch ~
5500 11-12 Parking Light D2242 Black 10 pin 1 White (MUX) Switch ~
VW
Routan 09-12 Parking Light D2242 Black 10 pin 1 White/Brown (MUX) Switch ~
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 4 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
A1
A2
A1
A
B
C
D
F
E
2
1
3
4
2
1
3
2
1
3
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
2
1
3
4
5
6
F
A
B
C
DE DATA
IGNITION CONNECTOR
VEHICLE IGNITION SWITCH
VEHICLE
IGNITION HARNESS
DRIVER DOOR PIN (-)
TYPE 1 - WIRING DIAGRAM - 1 OF 1
AFTERMARKET HOOD SWITCH (-)
01 GREEN/BLACK- HOOD STATUS (-) INPUT
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
03 RED/WHITE (NC)
02 BLUE/BLACK (NC)
04 BROWN (NC)
06 PURPLE/BLACK (NC)
05 PURPLE/YELLOW (NC)
WHITE
07 WHITE (NC)
08 BLACK/WHITE (NC)
10 PURPLE/WHITE (NC)
02 YELLOW/RED (NC)
03 YELLOW/BLACK (NC)
01 YELLOW - PARKING LIGHT (MUX) OUTPUT
GREEN
09 GREEN - RAP SHUTDOWN (-) OUTPUT
MODULE
PARKING LIGHT (MUX)
CONNECT IF VEHICLE
IS EQUIPPED WITH
PARKING LIGHT (MUX)
IF VEHICLE IS EQUIPPED WITH
PARKING LIGHT (-) OR PARKING LIGHT (+)
THE FEATURE IS NOT SUPPORTED
IMPORTANT: SEE THE
COMPATIBLE ACCESSORIES
PAGE FOR DETAILS.
COMPATIBLE
ACCESSORY
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 5 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
01
02
03
OFF
ACC ON
START
04
OFF
ACC ON
START
05
06
07
OFF
ACC ON
START
08
OFF
ACC ON
START
09
10
11

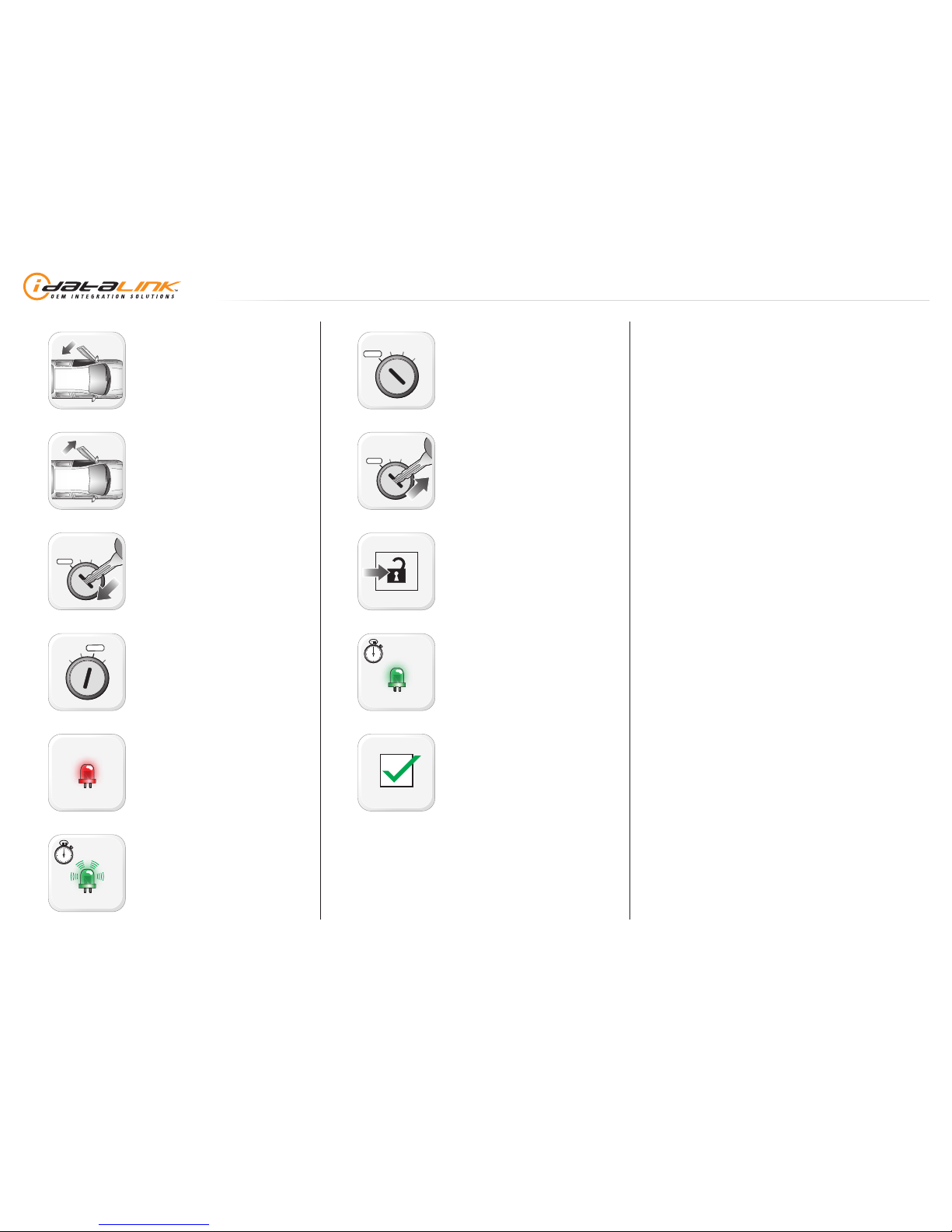

MODULE PROGRAMMING PROCEDURE - STD KEY - 1 OF 1
Close driver door.
Re-open driver door to wake up data bus.
Insert key into ignition.
Turn key to ON position.
LED will turn solid RED.
Within 5 seconds, LED will flash GREEN
rapidly.
Turn key to OFF position.
Remove key.
Press UNLOCK on the OEM remote. If vehicle
is not equipped with OEM remote, press
module programming button.
Wait, LED will turn solid GREEN for 2 seconds.
Module Programming Procedure completed.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 6 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
01
02
03
ENGINE
START
STOP
STOP ACC ON START
ON
04
05
06
ENGINE
START
STOP
STOP ACC ON START
STOP
07
08
09
MODULE PROGRAMMING PROCEDURE - PTS - 1 OF 1
Close driver door.
Re-open driver door to wake up data bus.
DO NOT PRESS BRAKE PEDAL. Push start
button twice [2x] to ON position.
LED will turn solid RED.
Within 5 seconds, LED will flash GREEN
rapidly.
DO NOT PRESS BRAKE PEDAL. Push start
button once [1x] to OFF position.
Press UNLOCK on the OEM remote.
Wait, LED will turn solid GREEN for 2 seconds.
Module Programming Procedure completed.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 7 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
>>
01
02
ENGINE
START
STOP
OFF ACC ON START
ON
03
04
ENGINE
START
STOP
OFF ACC ON STARTOFF
05
>>

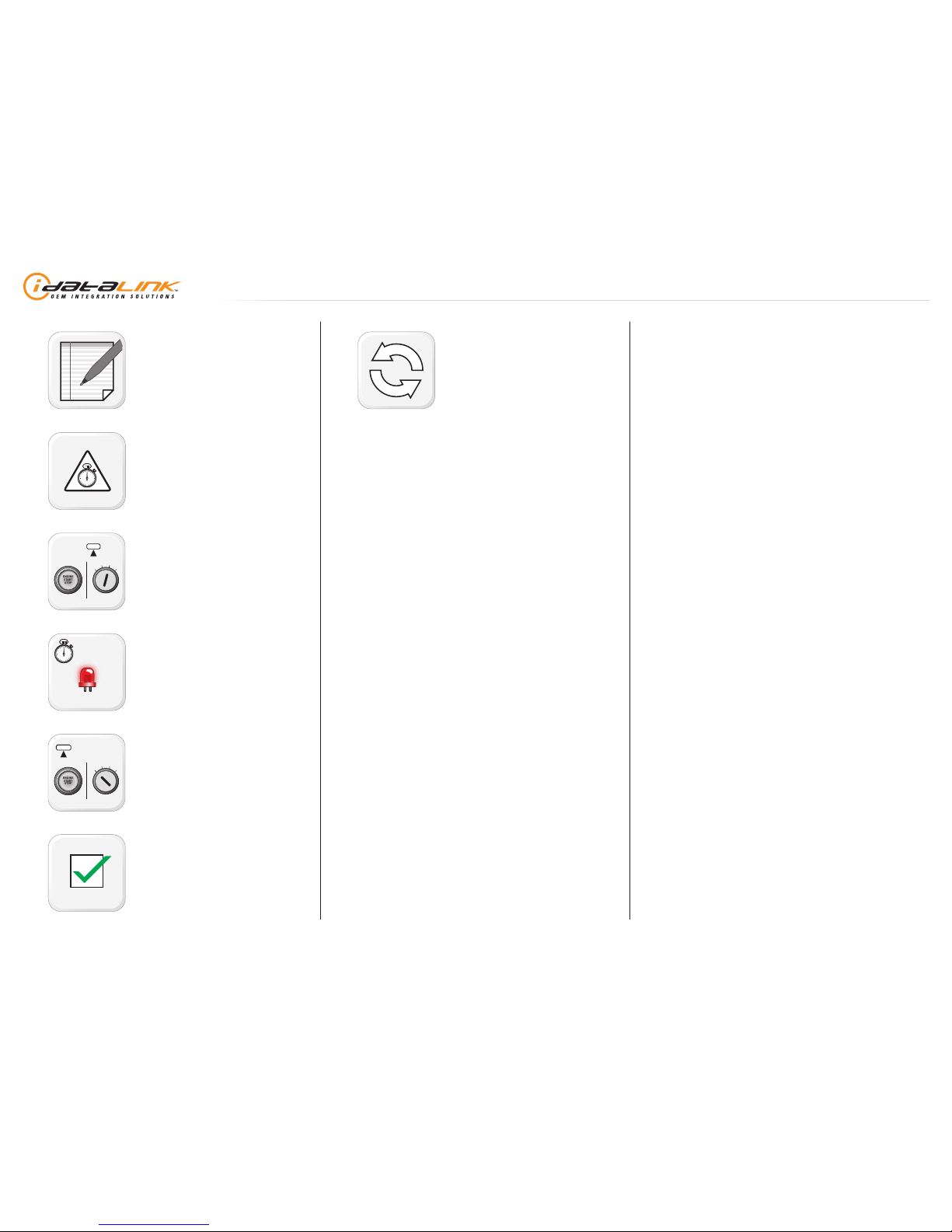

VALET MODE PROGRAMMING PROCEDURE - 1 OF 1
NOTE: In Valet Mode, the Remote starter is not
functional. Keyless entry, Lock and Unlock will
remain functional. See RF kit user manual for
alternate valet mode programming.
Time restriction. Complete next step within 7
seconds.
Cycle ignition ON five times [5x OFF/ON]
rapidly.
Wait, LED 1 will turn solid RED for 2 seconds.
Set ignition to OFF position.
Valet Mode Programming Procedure
completed.
To exit valet mode: repeat steps 1 to 5.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 8 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
>>
>>
>>
01
ENGINE
START
STOP
OFF ACC ON STARTOFF
02
03 [X]
04
05 [Y]
06
07 [Z]
08 [Z]
09
10
11 [Y]
12
13
14
>>

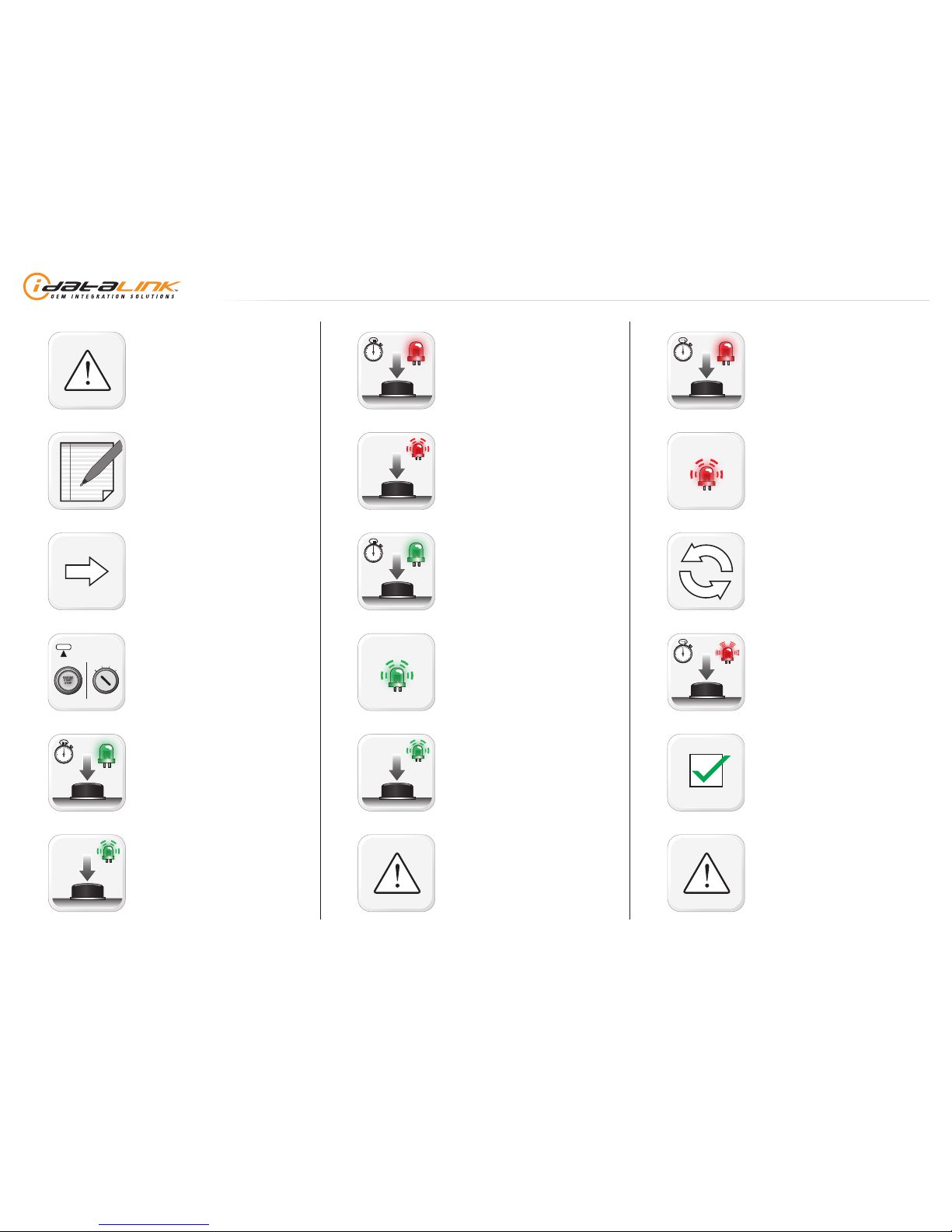

MODULE NAVIGATION PROCEDURE - 1 OF 1
It is mandatory to exit the Module Navigation
at the end of this procedure. Failure to exit the
Module Navigation will drain vehicle battery.
To exit the Module Navigation at any time:
Follow STEP 13.
Module must be programmed to the vehicle.
Use the Module Navigation Chart on the next
page.
Set ignition to OFF position.
TO ACCESS THE MENUS: Press and hold
programming button until LED 1 turns solid
GREEN.
IN THE MENUS: Press the programming
button as many times as the menu number
indicates. LED 1 will flash GREEN an equal
amount of times continuously.
TO ACCESS THE OPTIONS: Press and hold
programming button until LED 1 turns solid
RED.
IN THE OPTIONS: Press the programming
button as many times as the option number
indicates. LED 1 will flash RED an equal
amount of times continuously.
TO ACCESS THE SETTINGS: Press and hold
programming button until LED 1 turns solid
GREEN.
LED 1 will flash GREEN as many times as
the current (or default) setting number,
continuously.
IN THE SETTINGS: Press the programming
button as many times as necessary to access
your setting. LED 1 will flash GREEN an equal
amount of times continuously.
To return to the MENUS: exit the Module
Navigation and redo the Module Navigation
Procedure.
To save and return to the OPTIONS: Press and
hold programming button until LED 1 turns
solid RED.
LED 1 will flash RED as many times as the
current option number continuously.
Configure every other setting and proceed to
step 13.
MANDATORY: EXIT MODULE NAVIGATION.
Press and hold programming button for 7
seconds. LED 1 will flash RED rapidly. Release
programming button. LED 1 will turn OFF.
Module navigation completed.
Failure to exit the Module Navigation will drain
vehicle battery.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 9 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
MODULE NAVIGATION CHART - 1 OF 1
MODULE NAVIGATION CHART:
NOTES
[X] MENUS [Y] OPTIONS [Z] SETTINGS
I Default settings are listed in bold.
01 CONFIGURATION
01 DISARM/UNLOCK BEFORE START 01 OFF
II Make sure the option is covered on the vehicle before
attempting to change the setting.
02 ON
02 RELOCK AFTER START 01 OFF
02 ON
03 RELOCK AFTER SHUTDOWN 01 OFF
02 ON
04 FORCE UNLOCK ALL ON FIRST PRESS 01 OFF
02 ON
05 TAKEOVER 01 ENABLE
02 DISABLE*
06 SECURE TAKEOVER DELAY
01 45 SEC
02 90 SEC
03 03 MIN
04 04 MIN
07 FACTORY KEYLESS RS SEQUENCE
01 DISABLE
02 N/A
03 LOCK + UNLOCK + LOCK
04 LOCK + LOCK + LOCK
08 MODULE RUN TIME
01 03 MIN
02 05 MIN
03 10 MIN
04 15 MIN
05 25 MIN
06 30 MIN
07 35 MIN
08 15 MIN
09 WAIT TO START DELAY
01 02 SEC
02 05 SEC
03 08 SEC
04 10 SEC
05 15 SEC
06 20 SEC
07 25 SEC
08 30 SEC
10-12 N/A 01 N/A
02-07 Technical Support only 01 N/A 01 N/A
*Vehicle will shutdown when a door is opened.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 10 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
REMOTE STARTER ERROR CODES - 1 OF 1
REMOTE STARTER ERROR CODES:
NOTES
[X] NUMBER OF PARKING LIGHT FLASHES DIAGNOSTIC
I WARNING: The following applies only when the parking
lights are connected and supported by the system.
03 Foot brake is ON.
04 Hood is open.
II After a remote starter failure, the parking lights will fl ash
[X] number times to indicate an error code. See table.
05 Engine tach signal is lost.
06 System is in Valet Mode.
07 Vehicle is moving (VSS).
08 Glow plug timeout error.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 11 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
MODULE DIAGNOSTICS - 1 OF 1
TEST MODULE
LED 1 STATUS DIAGNOSTIC
I DURING PROGRAMMING
Flashing RED Missing/wrong information from firmware or vehicle.
Solid RED Module waiting for more vehicle information.
Flashing GREEN Additional steps required to complete module programming.
Solid GREEN then OFF Module correctly programmed.
OFF No activity or module already programmed.
II DURING REMOTE START
Flashing RED Module incorrectly programmed.
Solid RED Module incorrectly programmed.
Flashing GREEN Module correctly programmed and operational.
Solid GREEN then OFF Reset in progress.
OFF Invalid ground when running status from remote starter.
III WITH IGNITION OFF
Flashing RED Module incorrectly programmed or connected.
Solid RED Module not programmed. Waiting for more vehicle information.
Flashing GREEN False ground when running status from remote starter.
Solid GREEN then OFF Reset in progress.
OFF Module at rest and ready for a remote start sequence.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 12 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
01
02
03
04
05
06
07
08
>>
MODULE RESET PROCEDURE - 1 OF 1
Disconnect all connectors from module except
the BLACK 4-PIN connector.
Disconnect the BLACK 4-PIN connector.
PRESS AND HOLD programming button while
connecting the BLACK 4-PIN connector.
Wait, LED 1 will flash RED. RELEASE
programming button.
LED 1 will turn RED for 2 seconds.
Module RESET completed.
Reconnect all connectors.
Repeat programming procedure.
Failure to follow procedure may result with a
DTC or a CHECK ENGINE error message.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 13 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
>>
01
02
OFF
ACC ON
START
03
OFF
ACC ON
START
04
05
>>
TAKEOVER PROCEDURE - STD KEY - 1 OF 1
All vehicle doors must be closed and locked
prior to remote start sequence.
Press unlock on OEM or aftermarket remote.
Insert key into ignition.
Turn key to ON position.
Press and release BRAKE pedal.
Take over procedure completed.
Failure to follow procedure will result in
vehicle engine shutdown.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 14 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
>>
01
02
ENGINE
START
STOP
STOP ACC ON START
ON
03
04
>>
TAKEOVER PROCEDURE - PTS - 1 OF 1
All vehicle doors must be closed and locked
prior to remote start sequence.
Press unlock on OEM or aftermarket remote
or request switch.
DO NOT PRESS BRAKE PEDAL. Push start
button twice [2x] to ON position. Wait 2
seconds for key validation.
Press and release BRAKE pedal.
Take over procedure completed.
Failure to follow procedure will result in
vehicle engine shutdown.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 15 OF 16
• 20151112
DOC.: #24257

U.S. Patent No. 8,856,780
INSTALLATION CHECKLIST - 1 OF 1
CHECKLIST
1 WARNING: Vehicle engine will start many times. Test in a well ventilated area.
2 Close all vehicle doors, hood and trunk.
3 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.
¨
Question 1: Does the vehicle remote start?
YES: Go to next step.
¨NO: The module doesn't detect OEM remote lock button from the vehicle communication network. Check all connections, repeat the test and call technical support, if the problem persists.
4 Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down vehicle.
¨
Question 2: Does the vehicle shut down?
YES: Go to next step.
¨NO: Repeat step. If the problem persists, press on the brake pedal once [1x] to shut down the vehicle and call technical support.
5 RAP Shutdown test
¨
Question 3: Did the radio, interior controls, and headlights turn off within 60 seconds after remote start shutdown?
YES: Go to next step.
¨NO: Verify the RAP SHUTDOWN connections as illustrated in the wiring diagram. Repeat the test and call technical support, if the problem persists.
6 Open hood.
7 If not already installed, affi x the mandatory orange warning sticker under the hood and proceed to next step.
8 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.
¨
Question 4: Does the vehicle remote start?
YES: The vehicle is not equipped with a factory hood pin. Install a mandatory aftermarket hood switch, then repeat the test.
¨NO: Go to next step.
9 Close hood.
10 Enter vehicle and close the doors.
11 Press LOCK button three times [3x] rapidly on the OEM keyfob to remote start vehicle.
12 Wait for the vehicle to start.
13 Press brake pedal.
¨
¨
Question 5: Does the vehicle shut down?
YES: Go to next step.
NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if
applicable, and call technical support.
14 Exit vehicle.
15 Installation checklist completed.
www.idatalink.comAutomotive Data Solutions Inc. © 2015 OEMALRSCH4ADSALCAEN
PAGE 16 OF 16
• 20151112
DOC.: #24257
