iDataLink maestro Rr User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

ELECTRONICS
Click here for:
Radar Installation Guides
2016-2018
Fiat 500
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, VEHICLE SETTINGS, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro CH3 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-CHR03E-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OPTIONAL ACCESSORIES
OR

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 2
Fiat 500 2016-2018
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Troubleshooting Table 6
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 3
Fiat 500 2016-2018
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the CH3 T-harness and
match the wire functions.
STEP 2
• Unplug the female WHITE 2 pin connector and plug it to
the male RED connector of your CH3 T-harness. The male
WHITE 2 pin connector will remain disconnected.
• Unplug the BLACK 2 pin connector of your CH3
T-harness. The female BLACK 2 pin connector will remain
disconnected.
• Remove the factory radio.
STEP 3
• Plug the male BLACK 2 pin connector of your CH3
T-harness into the OBDII connector.
• Plug the OBDII connector into the OBDII of the vehicle.
STEP 4
• Connect the factory harness to the CH3 T-harness.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio (if there is no iDatalink audio input,
connect to AUX).
Note: On Pioneer radio, ensure that there is nothing
plugged into the W/R port.
STEP 6
• Connect all the harnesses to the Maestro RR module then
test your installation.
1

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 4
Fiat 500 2016-2018
1
BACKUP CAMBACKUP CAM

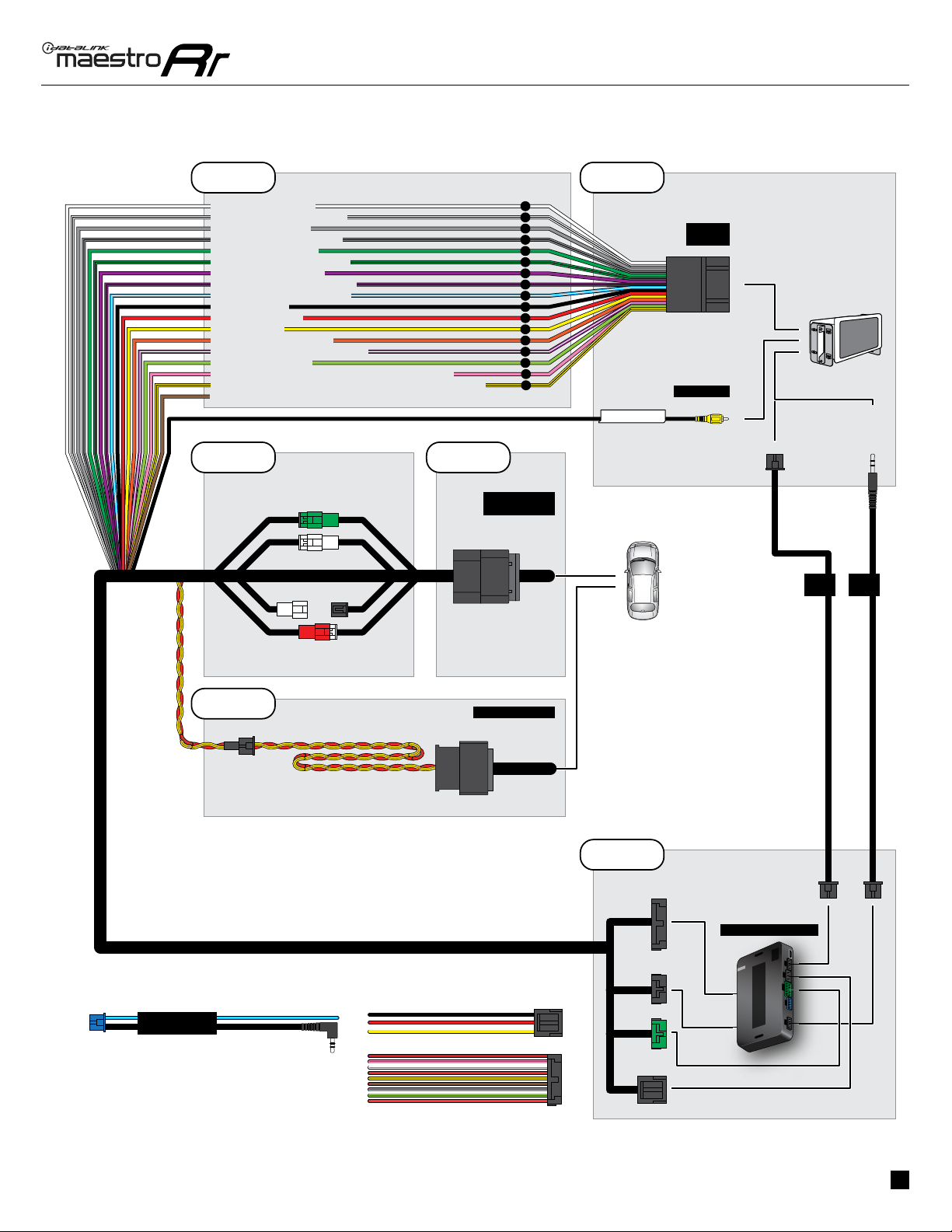

WIRING DIAGRAM
STEP 1
STEP 2 STEP 3
STEP 5
STEP 6
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH3 T-HARNESS
FACTORY RADIO
HARNESS WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
YELLOW/BLACK - FOOT BRAKE (CONNECT IF THERE IS A MATCH)
GREEN GREEN
WHITE
WHITE
WHITE
N.C.
RCA CABLES
BROWN (NOT CONNECTED)
READ NOTE IN
INSTALLATION
INSTRUCTIONS
SECTION
STEP 4 OBDII CONNECTOR
RED
STEERING WHEEL
CONTROL CABLE
NOT REQUIRED
PIONEER RADIO: ENSURE THAT NOTHING
IS PLUGGED IN W/R PORT.

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 5
Fiat 500 2016-2018
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood
cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
Foot Brake (+) Yellow/Black Yellow/Black N⁄A N⁄A N/A
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 6
Fiat 500 2016-2018
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
Reset the RR.
When making a phone call you cannot hear the callers but they can hear you. Make sure that the 4-pin green and white connectors in the harness are
plugged in correctly as stated in step 2.
The radio stays ON or the radio doesn’t come ON at all. Make sure the 2-pin colored connectors in the harness are connected
correctly as stated in step 2.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

ELECTRONICS
Click here for:
Radar Installation Guides
2014-2020
Fiat 500L
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, VEHICLE SETTINGS, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro CH3 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-CHR03E-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OPTIONAL ACCESSORIES
OR

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 2
Fiat 500L 2014-2020
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Troubleshooting Table 6
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 3
Fiat 500L 2014-2020
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the CH3 T-harness and
match the wire functions.
STEP 2
• Unplug the female WHITE 2 pin connector and plug it to
the male RED connector of your CH3 T-harness. The male
WHITE 2 pin connector will remain disconnected.
• Unplug the BLACK 2 pin connector of your CH3
T-harness. The female BLACK 2 pin connector will remain
disconnected.
• Remove the factory radio.
STEP 3
• Plug the male BLACK 2 pin connector of your CH3
T-harness into the OBDII connector.
• Plug the OBDII connector into the OBDII of the vehicle.
STEP 4
• Connect the factory harness to the CH3 T-harness.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio (if there is no iDatalink audio input,
connect to AUX).
Note: On Pioneer radio, ensure that there is nothing
plugged into the W/R port.
STEP 6
• Connect all the harnesses to the Maestro RR module then
test your installation.
1

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 4
Fiat 500L 2014-2020
1
BACKUP CAMBACKUP CAM
WIRING DIAGRAM
STEP 1
STEP 2 STEP 3
STEP 5
STEP 6
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH3 T-HARNESS
FACTORY RADIO
HARNESS WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
YELLOW/BLACK - FOOT BRAKE (CONNECT IF THERE IS A MATCH)
GREEN GREEN
WHITE
WHITE
WHITE
N.C.
RCA CABLES
BROWN (NOT CONNECTED)
READ NOTE IN
INSTALLATION
INSTRUCTIONS
SECTION
STEP 4 OBDII CONNECTOR
RED
STEERING WHEEL
CONTROL CABLE
NOT REQUIRED
PIONEER RADIO: ENSURE THAT NOTHING
IS PLUGGED IN W/R PORT.

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 5
Fiat 500L 2014-2020
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood
cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
Foot Brake (+) Yellow/Black Yellow/Black N⁄A N⁄A N/A
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 6
Fiat 500L 2014-2020
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
Reset the RR.
When making a phone call you cannot hear the callers but they can hear you. Make sure that the 4-pin green and white connectors in the harness are
plugged in correctly as stated in step 2.
The radio stays ON or the radio doesn’t come ON at all. Make sure the 2-pin colored connectors in the harness are connected
correctly as stated in step 2.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

ELECTRONICS
Click here for:
Radar Installation Guides
2014-2020
Ram PRomasteR
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, VEHICLE SETTINGS, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro CH3 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-CHR03E-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OPTIONAL ACCESSORIES
OR

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 2
Ram PRomasteR 2014-2020
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Troubleshooting Table 6
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 3
Ram PRomasteR 2014-2020
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the CH3 T-harness and
match the wire functions.
STEP 2
• Unplug the female WHITE 2 pin connector and plug it to
the male RED connector of your CH3 T-harness. The male
WHITE 2 pin connector will remain disconnected.
• Unplug the BLACK 2 pin connector of your CH3
T-harness. The female BLACK 2 pin connector will remain
disconnected.
• Remove the factory radio.
STEP 3
• Plug the male BLACK 2 pin connector of your CH3
T-harness into the OBDII connector.
• Plug the OBDII connector into the OBDII of the vehicle.
STEP 4
• Connect the factory harness to the CH3 T-harness.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio (if there is no iDatalink audio input,
connect to AUX).
Note: On Pioneer radio, ensure that there is nothing
plugged into the W/R port.
STEP 6
• Connect all the harnesses to the Maestro RR module then
test your installation.
1

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 4
Ram PRomasteR 2014-2020
1
BACKUP CAMBACKUP CAM
WIRING DIAGRAM
STEP 1
STEP 2 STEP 3
STEP 5
STEP 6
MAESTRO RR MODULE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
MAIN
HARNESS
DATA
CABLE
AUDIO
CABLE
PURPLE - RR SPEAKER (+)
CONNECT TO
AFTERMARKET RADIO
CH3 T-HARNESS
FACTORY RADIO
HARNESS WIRES FROM
VEHICLE
PINK - VEHICLE SPEED (CONNECT IF THERE IS A MATCH)
YELLOW/BLACK - FOOT BRAKE (CONNECT IF THERE IS A MATCH)
GREEN GREEN
WHITE
WHITE
WHITE
N.C.
RCA CABLES
BROWN (NOT CONNECTED)
READ NOTE IN
INSTALLATION
INSTRUCTIONS
SECTION
STEP 4 OBDII CONNECTOR
RED
STEERING WHEEL
CONTROL CABLE
NOT REQUIRED
PIONEER RADIO: ENSURE THAT NOTHING
IS PLUGGED IN W/R PORT.

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 5
Ram PRomasteR 2014-2020
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood
cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
Foot Brake (+) Yellow/Black Yellow/Black N⁄A N⁄A N/A
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A

ADS-RR(SR)-CHR03E-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2020 6
Ram PRomasteR 2014-2020
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
Reset the RR.
When making a phone call you cannot hear the callers but they can hear you. Make sure that the 4-pin green and white connectors in the harness are
plugged in correctly as stated in step 2.
The radio stays ON or the radio doesn’t come ON at all. Make sure the 2-pin colored connectors in the harness are connected
correctly as stated in step 2.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

ELECTRONICS
Click here for:
Radar Installation Guides
2015-2020
Ram PRomasteR City
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, VEHICLE SETTINGS, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro CH3 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-CHR03E-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OPTIONAL ACCESSORIES
OR
