iDataLink maestro SW User manual

QSGRRSW201310E
QUICK START GUIDE
THESE PRODUCTS REQUIRE ONLINE PROGRAMMING
BEFORE INSTALLATION. DETAILS INSIDE.

1
2
3
877.212.6169
4
5
6

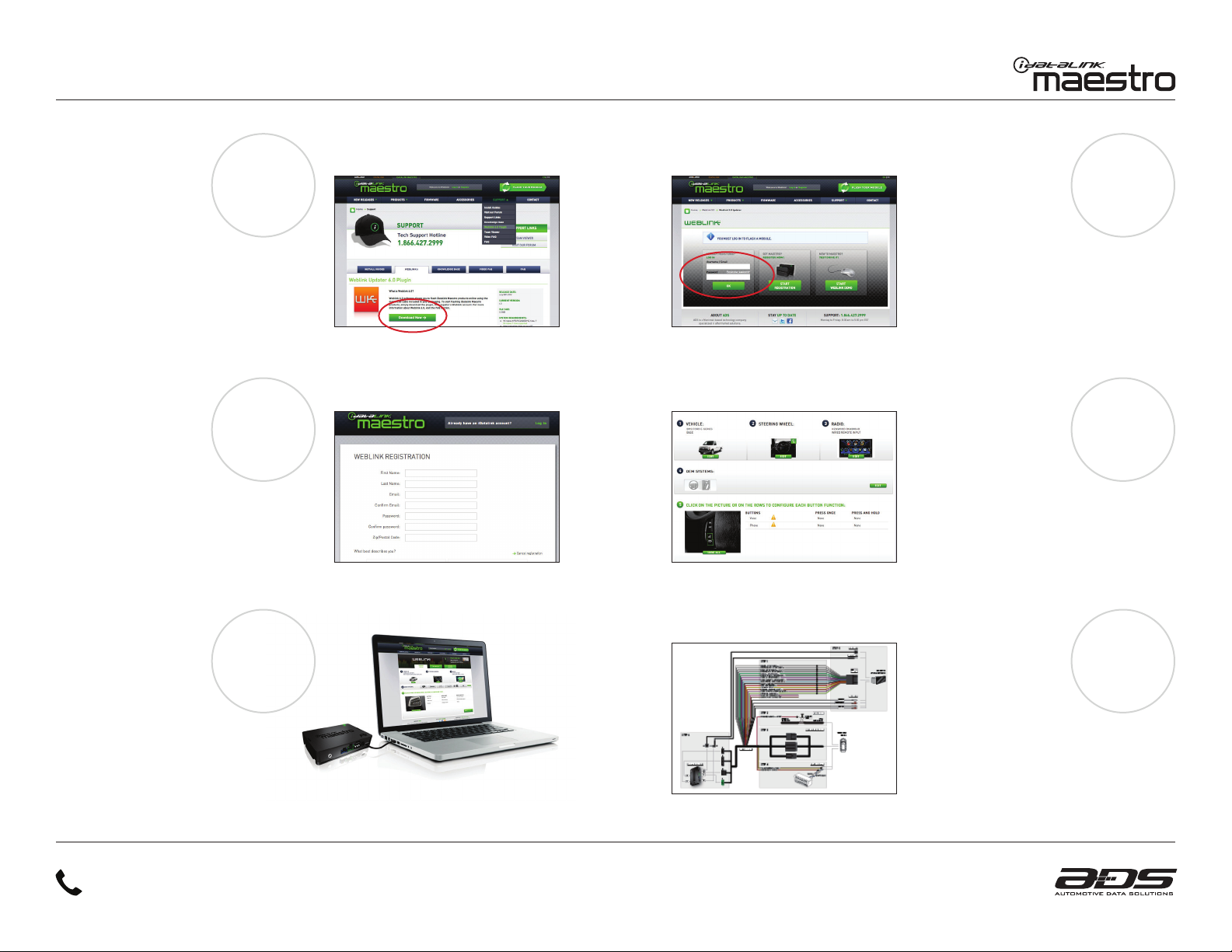

6 STEPS TO GET STARTED
INSTALL THE WEBLINK
PLUG-IN
Go to:
idatalinkmaestro.com/plugin and
follow the installation steps.
Review the System Requirements
before installing.
REGISTER A WEBLINK
ACCOUNT
Go to:
idatalinkmaestro.com/register and
complete the registration process.
A confirmation email will be sent to you
requiring validation.
CONNECT YOUR MAESTRO MODULE
Use the included USB cable to connect
your Maestro module to your PC.
NEED HELP?
LOG INTO WEBLINK
Go to:
idatalinkmaestro.com/login.
Enter your username and
password, then click OK.
PROGRAM YOUR MODULE
Follow the installation steps
until your module is flashed and
download your install guide from
the Web.
Steps shown may vary by product.
COMPLETE INSTALLATION
Follow the steps in your
install guide and complete
the installation.
ADS recommends having Maestro products
installed by a certified technician.

NOTICE
The manufacturer will accept no responsability for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the
installed device. This device must be installed by a certified technician. This guide has been
written for properly trained technicians; a certain level of skill & knowledge is therefore
assumed. Please review the Installation Guide carefully before beginning any work.
REvIsION DaTE
20120913
DOCumENT NumbER
INsTall guIDE
ADS-SW(SI)-ALL01-AS-IG-EN
haRDwaRE
ADS-MSW
fIRmwaRE
ADS-SW(SI)-ALL01-AS-EN
www.maestro.idatalink.comAutomotive Data Solutions Inc. © 2012
9729

01
RANGEHOLD
OFF
V Hz
Hz
Hz
Hz
~~
~
V
mV Ω
Ω
)))))
mA
A
MINMAX
400
mA
10A COM
FUSED
V
!600VCAT IV
1000VCAT III
V
DC
02
03
04
05
06
12+ 12+ LR+ LR+ SWI-3 SWI-3
G- G- LR- LR- SWI-4 SWI-4
Acc+ Acc+ RR+ RR+ SWI F SWI F
Illum+ Illum+ RR- RR- SWI F SWI F
LF+ LF+ AMP+ AMP+ SWI F SWI F
LF- LF- ANT+ ANT+ SWI F SWI F
RF+ RF+ SWI-1 SWI-1 SWI F SWI F
RF- RF- SWI-2 SWI-2 SWI F SWI F
Multimeter
Soldering iron and solder
Wire cutter
Wire stripper
Electrical tape
Wire labels
suggEsTED TOOls - 1 Of 1
www.maestro.idatalink.comAutomotive Data Solutions Inc. © 2012
ADS-SW(SI)-ALL01-AS-IG-EN
PagE 2 Of 8
• 20120913
DOC.: #9729

4
5
2
6
7
1
3
A
USB
C1
2
3
4
B
VEHICLE
WEB
01 PURPLE/RED - SWI CIRCUIT 1 INPUT
02 PURPLE/YELLOW - SWI CIRCUIT 1 OUTPUT/ANALOG 1 INPUT
03 PINK/RED - SWI CIRCUIT 2 INPUT
04 PINK/YELLOW - SWI CIRCUIT 2 OUTPUT/ANALOG 2 INPUT
05 BLACK/WHITE - SWI GROUND FEED (-) OUTPUT
06 RED - ACCESSORY POWER +12V INPUT
07 BLACK - GROUND
C
LED
PROGRAMMING
BUTTON USB
A
B
MODULE
BACK VIEW
01 BLUE/YELLOW - RADIO CONTROL 1 OUTPUT
02 RED
04 WHITE
03 BLACK
AFTERMARKET RADIO
RADIO CONTROL 2 OUTPUT
WEBLINK UPDATER CABLE (NOT INCLUDED)

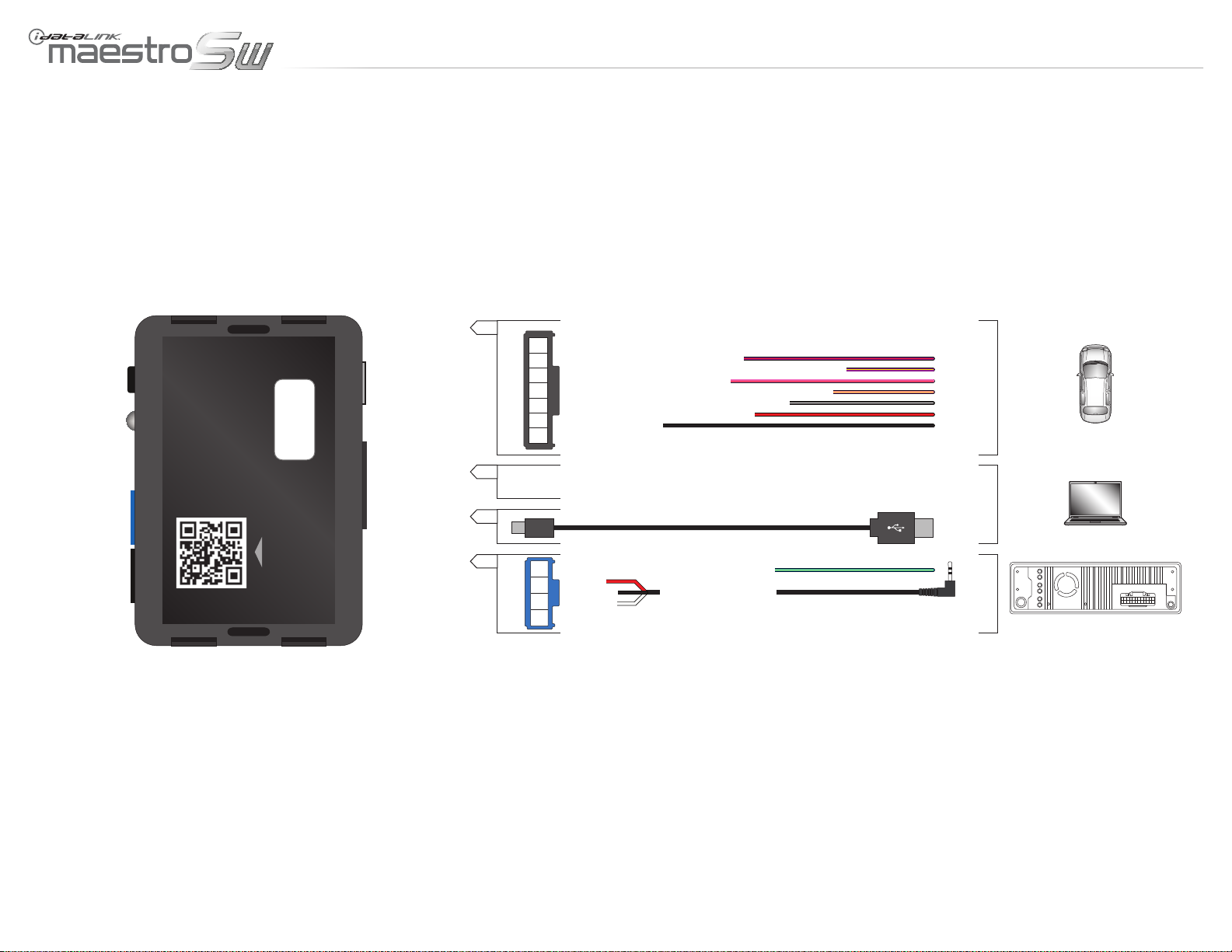

INSTALLATION OVERVIEW - 1 OF 1
www.maestro.idatalink.comAutomotive Data Solutions Inc. © 2012
ADS-SW(SI)-ALL01-AS-IG-EN
PagE 3 Of 8
• 20120913
DOC.: #9729

01
>>
02
6
5
4
3
2
1
7
12V
6
03
6
5
4
3
2
1
7
7
04
6
5
4
3
2
1
7
SWI-1
1
05
6
5
4
3
2
1
7
SWI-F
5
06
6
5
4
3
2
1
7
SWI-2
3
07
6
5
4
3
2
1
7
SWI-F
5
>>
>>
08
mODulE INsTallaTION PROCEDuRE - 1 Of 1

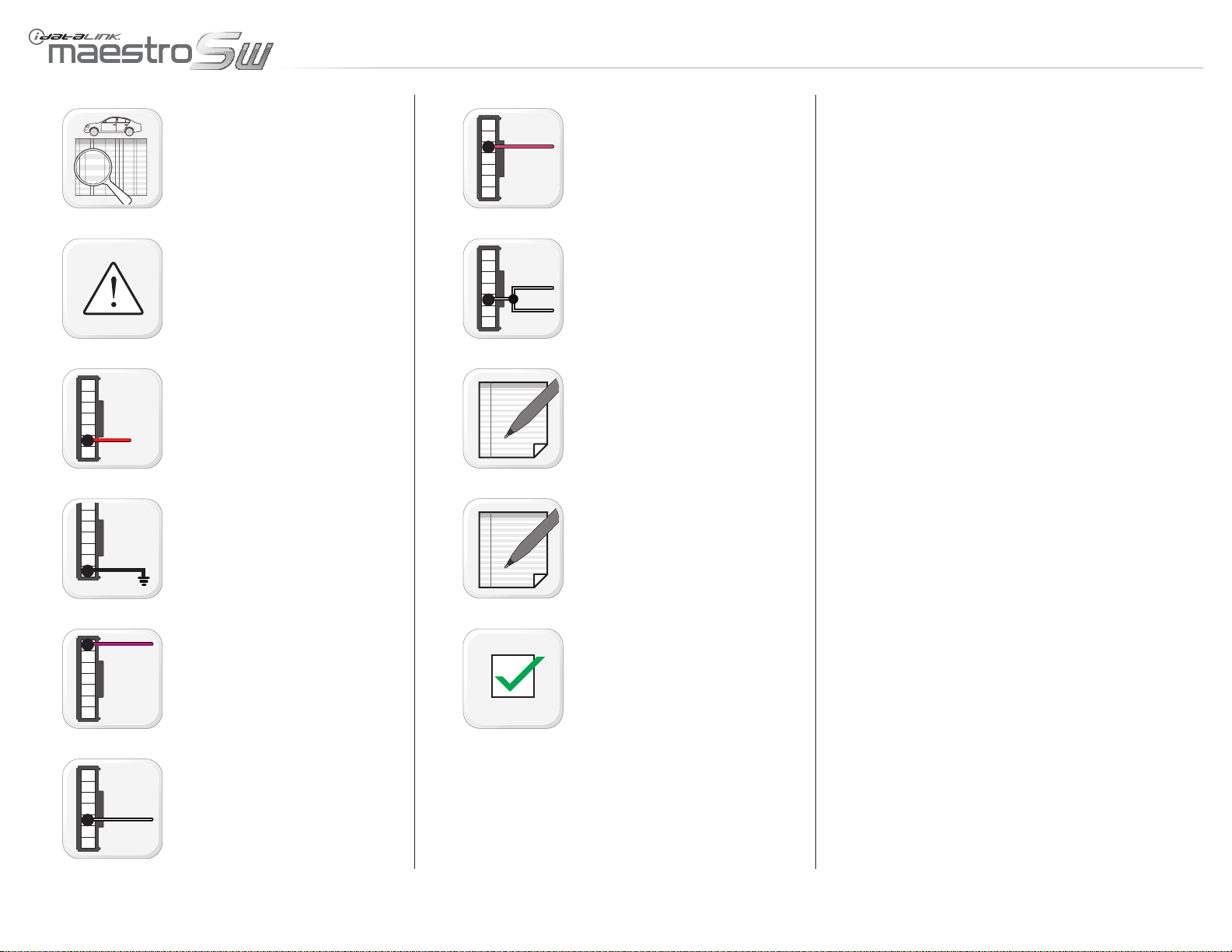

Refer to WIRE CHART and locate wires.
WARNING: Do not connect module PURPLE/
YELLOW wire (Connector A, Pin 2) nor PINK/
YELLOW wire (Connector A, Pin 4).
Connect module RED wire (Connector A, Pin 6)
to 12V accessory.
Connect module BLACK wire (Connector A,
Pin 7) to ground.
Connect module PURPLE/RED wire (Connec-
tor A, Pin 1) to SWI-1 wire.
Connect module BLACK/WHITE wire (Connec-
tor A, Pin 5) to SWI-F wire. (Disregard this step
if no SWI-F wire is found).
If SWI-2 wire exists, connect module PINK/
RED wire (Connector A, Pin 3) to SWI-2 wire.
If another SWI-F wire exists, connect module
BLACK/WHITE wire (Connector A, Pin 5) to
SWI-F wire.
NOTE: If installing a Kenwood radio, connect
module BLUE/YELLOW wire (Connector C, Pin
1) to remote input (radio BLUE/YELLOW wire).
NOTE: If installing an Aftermarket radio, con-
nect module 3.5mm (1/8”) audio jack (Connec-
tor C, Pin 2, 3 & 4) to auxiliary input.
Module installation procedure completed.
www.maestro.idatalink.comAutomotive Data Solutions Inc. © 2012
ADS-SW(SI)-ALL01-AS-IG-EN
PagE 4 Of 8
• 20120913
DOC.: #9729

SELECT
RaDIO bRaND [Y]
Alpine [4]
Blaupunkt [7]
Clarion [6]
JVC 2000-2009 [8]
JVC 2010-2013 [3]
JVC w/o preset [9]
Kenwood [1]
Pioneer [2]
Pioneer w/o preset [10]
Sony [5]
ALPINE
RaDIO fuNCTION [Z]
Power [1]
Volume Up [2]
Volume Down [3]
Track Up [4]
Track Down [5]
Source [6]
Mute [7]
Play/Pause [8]
Band [9]
Preset Up [10]
Preset Down [11]
Enter [12]
Display Info [13]
Answer Call [14]
Hang Up [15]
Menu [16]
Sound [17]
KENWOOD
RaDIO fuNCTION [Z]
Volume Up [1]
Volume Down [2]
Track Up [3]
Track Down [4]
Source [5]
Mute [6]
Play/Pause [7]
Folder Up/AM [8]
Folder Down/FM [9]
Up/Disk Up [10]
Down/Disk Down [11]
Direct [12]
Phone [13]
Repeat [14]
Sound [15]
CLARION
RaDIO fuNCTION [Z]
Volume Up [1]
Volume Down [2]
Preset Up [3]
Preset Down [4]
Source Power [5]
Mute [6]
Play/Pause [7]
Band [8]
Phone [9]
Menu [10]
Sound [11]
Answer [12]
Hang Up [13]
JVC 2010-2013
RaDIO fuNCTION [Z]
Volume Up [1]
Volume Down [2]
Power [3]
Seek Up [4]
Seek Down [5]
Source [6]
Mute [7]
Preset Up [8]
Preset down [9]
Enter [10]
Answer [11]
Hang Up [12]
Voice [13]
PIONEER W/O PRESET
RaDIO fuNCTION [Z]
Volume Up [1]
Volume Down [2]
Seek Up [3]
Seek Down [4]
Source [5]
Mute [6]
Band [7]
Display Info [8]
Phone Menu [9]
Answer Call [10]
Hang Up [11]
BLAUPUNKT
RaDIO fuNCTION [Z]
Power [1]
Volume Up [2]
Volume Down [3]
Seek Up [4]
Seek Down [5]
Track Up [6]
Track Down [7]
Source [8]
Mute [9]
Play/Pause [10]
Display Info [11]
Answer [12]
Hang Up [13]
Menu [14]
Random [15]
Repeat [16]
PIONEER
RaDIO fuNCTION [Z]
Volume Up [1]
Volume Down [2]
Seek Up [3]
Seek Down [4]
Source [5]
Mute [6]
Band [7]
Preset Up [8]
Preset Down [9]
Display Info [10]
Phone Menu [11]
Answer Call [12]
Hang Up [13]
Voice Recognition [14]
JVC 2000-2009
RaDIO fuNCTION [Z]
Volume Up [1]
Volume Down [2]
Power [3]
Seek Up [4]
Seek Down [5]
Source [6]
Mute [7]
Preset Up [8]
Preset Down [9]
Enter [10]
Answer [11]
Hang Up [12]
Voice Dial [13]
SONY
RaDIO fuNCTION [Z]
Power [1]
Volume Up [2]
Volume Down [3]
Seek Up [4]
Seek Down [5]
Source [6]
Display Info [7]
Mute [8]
Band [9]
Sound [10]
JVC W/O PRESET
RaDIO fuNCTION [Z]
Volume Up [1]
Volume Down [2]
Power [3]
Seek Up [4]
Seek Down [5]
Source [6]
Mute [7]
Enter [8]
Answer [9]
Hang Up [10]
Voice Dial [11]
SELECT
vEhIClE bRaND [X]
Acura [1]
Ford [1]
GM* At Bcm [4]
GM* Import [3]
GM* Wire At Radio [2]
Honda [1]
Hyundai [2]
Infi niti [1]
Kia [2]
Lexus [1]
Lincoln [1]
Mazda [1]
Mercury [1]
Mitsubishi [2]
Nissan [1]
Scion [1]
Subaru [1]
Suzuki [1]
Toyota [1]
*Buick, Cadillac, Chevro-
let, GMC, Hummer, Isuzu,
Oldsmobile, Pontiac, Saab,
Saturn
fuNCTION PaIRINg ChaRT - 1 Of 1
www.maestro.idatalink.comAutomotive Data Solutions Inc. © 2012
ADS-SW(SI)-ALL01-AS-IG-EN
PagE 5 Of 8
• 20120913
DOC.: #9729

>>
01
OFF
ACC ON
START
02
>>
03
04
[X]
05 [X]
06 [X]
>>
07
>>
08
09
10
[Y]
11 [Y]
12 [Y]
13
14
NOTE: [X], [Y] & [Z] are numerical variables
identifi ed in the FUNCTION PAIRING CHART.

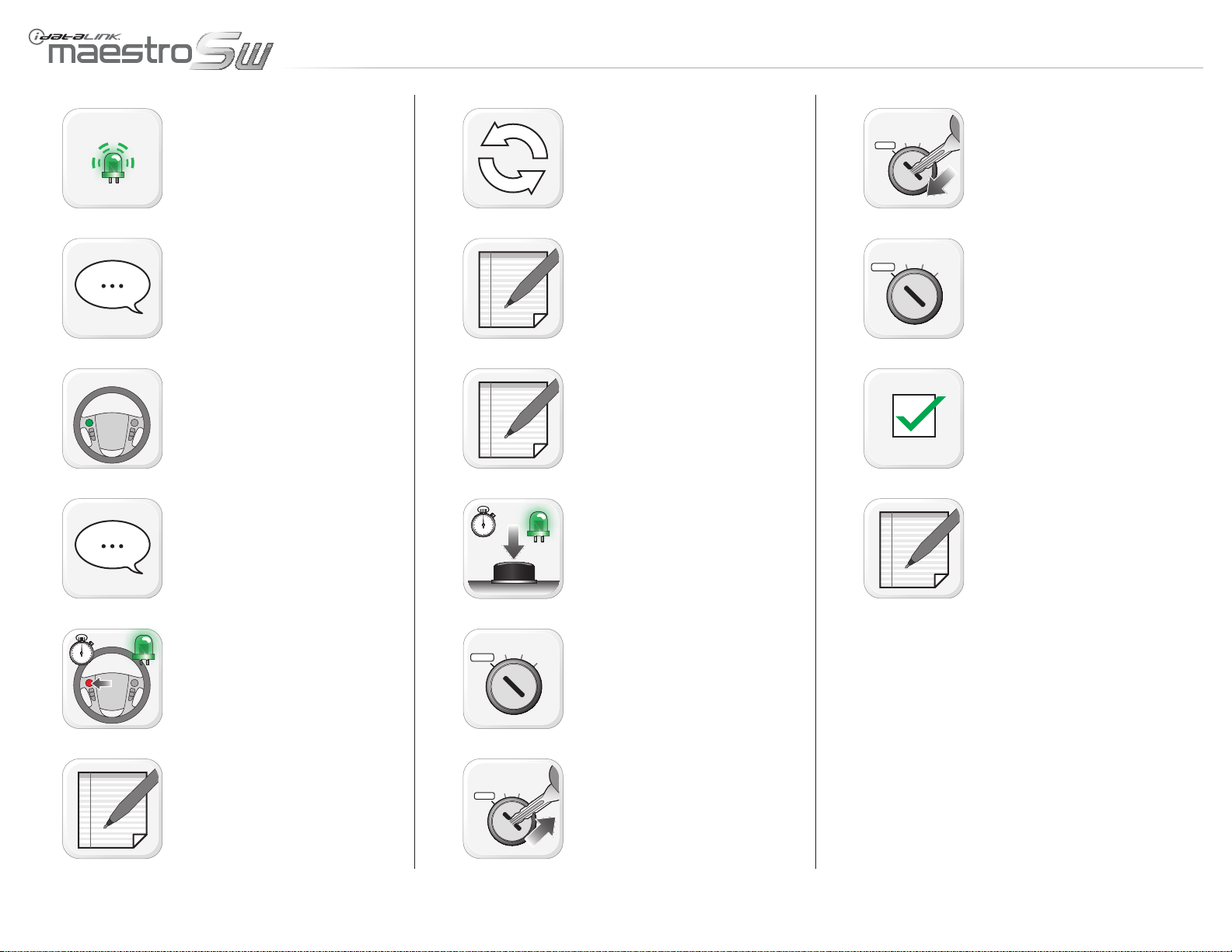

Turn key to ON position.
LED will turn solid GREEN.
NOTE: If LED fl ashes GREEN once [1x], the
module is already programmed. To repro-
gram the module, reset module and repeat
programming procedure.
Refer to FUNCTION PAIRING CHART.
Find the number associated to the vehicle
make: [X].
Press programming button [X] times.
LED will fl ash [X] times.
EXAMPLE: If the vehicle make number is 3,
the programming button must be pressed 3
times and the LED will fl ash 3 times.
Press and hold programming button until LED
turns solid RED to register selection.
NOTE: To go back to function 1, press pro-
gramming button repeatedly until function 1
is reached.
Wait, LED will fl ash GREEN 1 time.
Refer to FUNCTION PAIRING CHART.
Find the number associated to the radio
brand: [Y].
Press programming button [Y] times.
LED will fl ash [Y] times.
Press programming button until LED turns
solid RED to register selection.
Refer to FUNCTION PAIRING CHART.
fuNCTION PaIRINg PROCEDuRE - 1 Of 2
www.maestro.idatalink.comAutomotive Data Solutions Inc. © 2012
ADS-SW(SI)-ALL01-AS-IG-EN
PagE 6 Of 8
• 20120913
DOC.: #9729

15 [Z]
>>
_________________________________
16
>>
17
>>
_________________________________
18
>>
>>
19
20
OFF
ACC ON
START
21
OFF
ACC ON
START
22
OFF
ACC ON
START
23
OFF
ACC ON
START
24
>>
LED will fl ash GREEN [Z] times to match the
function [Z].
EXAMPLE: If LED fl ashes 3 times, the cor-
responding function is 3.
Choose a steering wheel button to pair with its
corresponding function.
EXAMPLE: The steering wheel “Volume Up”
button must be paired with the “Volume Up”
function.
Press and hold that steering wheel button un-
til LED turns solid GREEN to pair the function.
NOTE: Press programming button once [1x] to
skip a function.
Repeat steps 16 and 17 for every other
steering wheel button and its corresponding
function.
NOTE: LED will fl ash RED once [1x] for func-
tion 10.
NOTE: LED will fl ash RED once [1x] then will
fl ash GREEN once [1x] for function 11.
Press and hold programming button until
LED turns solid GREEN. LED will remain solid
green.
Turn key to OFF position.
Remove key. LED will turn OFF.
Insert key into ignition.
Turn key to ON position. LED will remain OFF.
Function pairing procedure completed.
NOTE: Test every steering wheel button, one
by one, to verify aftermarket radio control.
fuNCTION PaIRINg PROCEDuRE - 2 Of 2
www.maestro.idatalink.comAutomotive Data Solutions Inc. © 2012
ADS-SW(SI)-ALL01-AS-IG-EN
PagE 7 Of 8
• 20120913
DOC.: #9729

1
OFF
ACC ON
START
2
OFF
ACC ON
START
3
4
5
6
OFF
ACC ON
START
7
mODulE REsET PROCEDuRE - 1 Of 1
Turn key to OFF position.
Press and hold programming button and turn
key to ON position.
Wait, LED will fl ash RED rapidly. (This may
take up to 10 seconds.)
Release programming button.
Wait, LED will turn solid GREEN for 2 seconds.
Turn key to OFF position.
Module reset procedure completed.
www.maestro.idatalink.comAutomotive Data Solutions Inc. © 2012
ADS-SW(SI)-ALL01-AS-IG-EN
PagE 8 Of 8
• 20120913
DOC.: #9729

© Automotive Data Solutions Inc.
Automotive Data Solutions Inc. (“ADS”) warrants to the original purchaser that this
product shall be free of defects in material and workmanship under normal use
and circumstances, for the period of one (1) year as of the original date of purchase.
In the event of any product malfunction during the Warranty period, the original
purchaser must return to the Authorized Dealer where it was originally purchased
with the original proof of purchase. If a malfunction is detected, the Authorized
Dealer will elect to repair or replace the product at its discretion. Labor costs may
be applicable and are at the discretion of the Authorized Dealer.
ADS is not responsible for any damages whatsoever, including but not limited to
any consequential damages, incidental damages for loss of time, loss of earnings,
commercial loss of economic opportunity and the like that may or may not have
resulted from the installation or operation of an iDatalink Maestro product.
1 YEAR LIMITED WARRANTY
