iDataLink maestro Rr User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

2012-2015
Honda CiviC
witH nav
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
PROGRAMMED FIRMWARE
ADS-RR(SI)-HON01-AS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 2
Honda CiviC witH nav 2012-2015
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Wiring Diagram 3
Vehicle Wire Reference Chart 4
Troubleshooting Table 5
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 3
Honda CiviC witH nav 2012-2015
2
6 58 714 1316 15 2 14 3 10 911
18 1720 19212223
12
25 2427 262829303132
6 58 7
14 1316 15
214 3
10 912 11
MAESTRO RR MODULE
STEP 4
C- LOCATED AT BLUETOOTH UNIT
WIRES FROM
VEHICLE

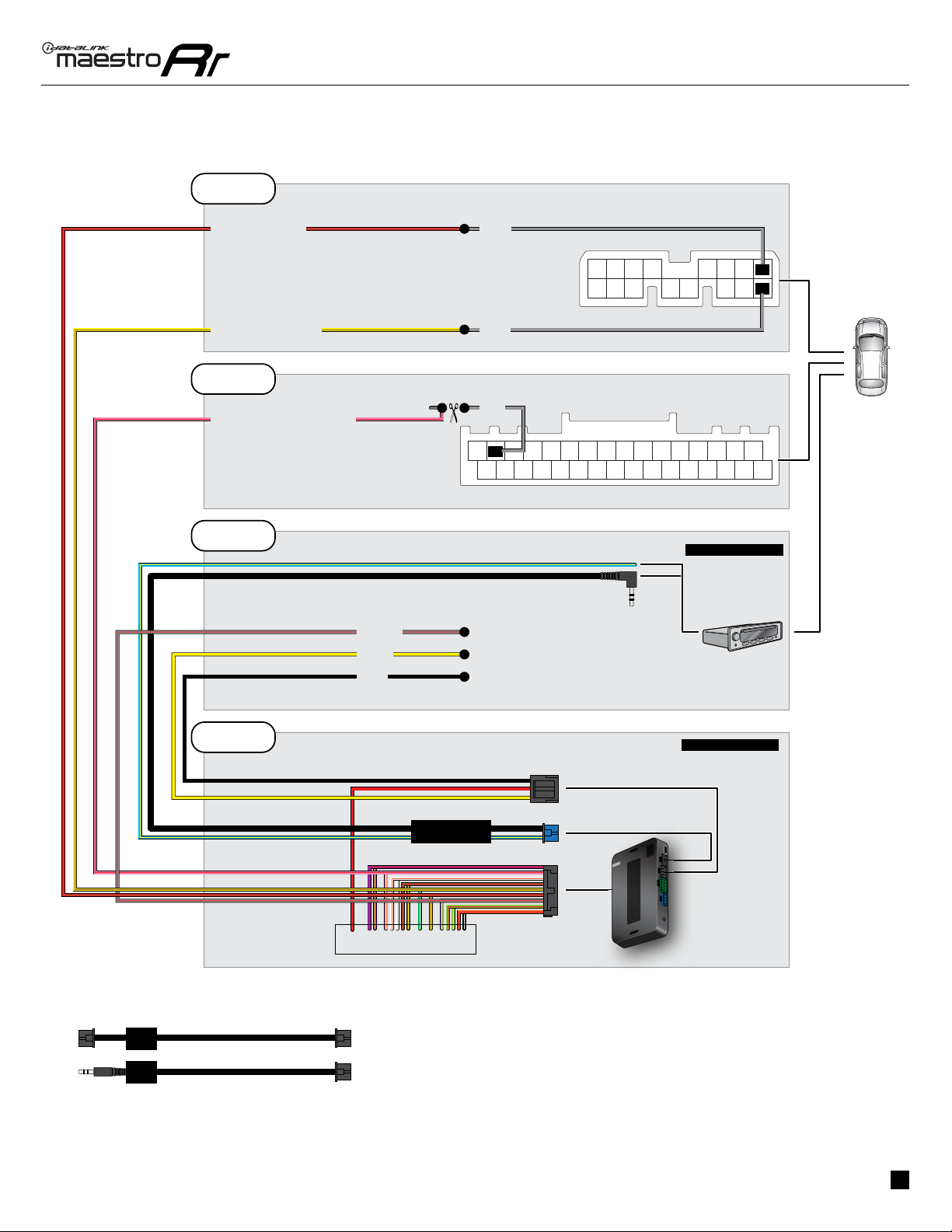

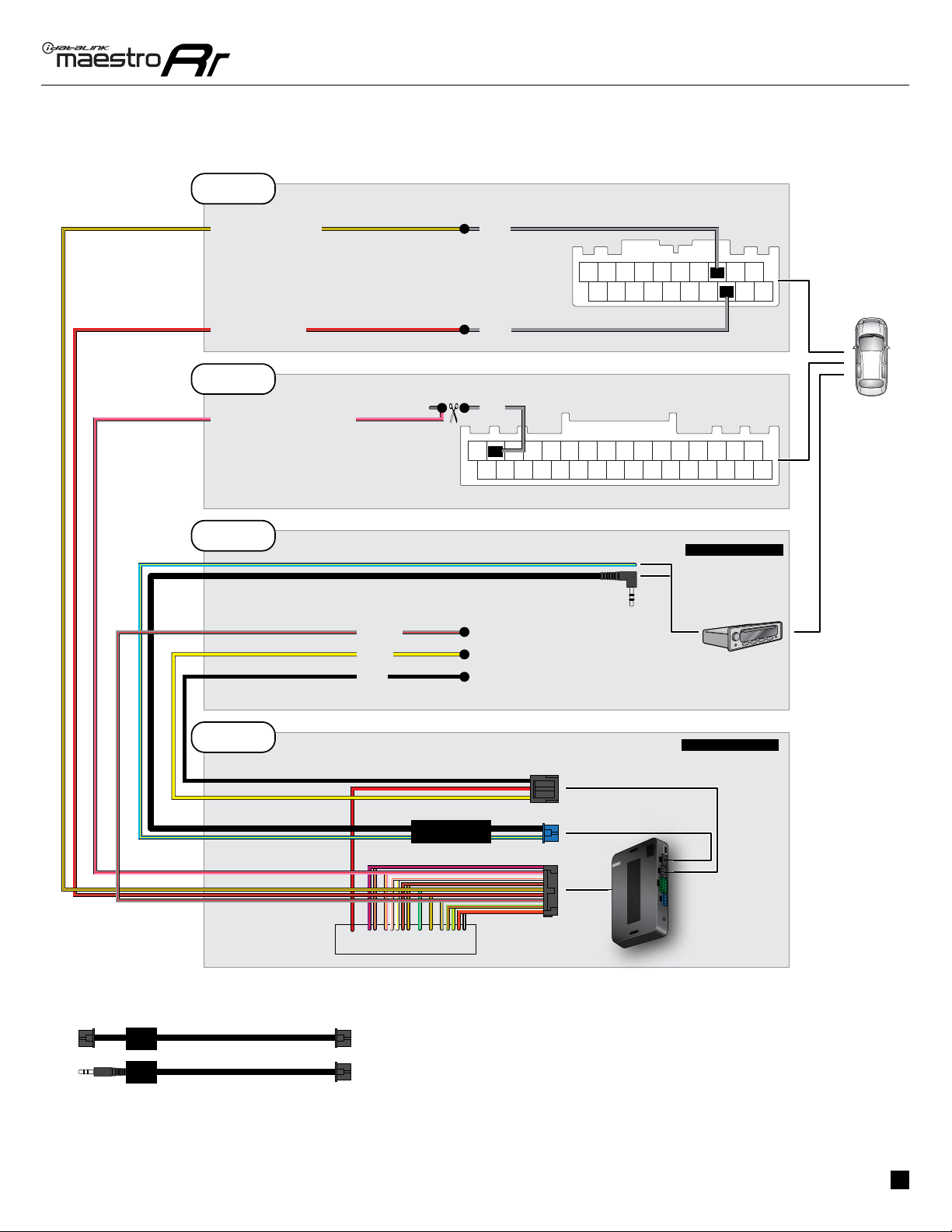

WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
CONNECT IF THE VEHICLE IS EQUIPPED WITH BLUETOOTH.
PINK/RED -
PINK/RED - SWI CIRCUIT 2 INPUT
SWI 2
SWI 2
B- LOCATED BEHIND RADIO
YELLOW/BROWN -
YELLOW/BROWN - CAN2L
CAN2H
CAN2HRED/BROWN - RED/BROWN - CAN2H
CAN2L
CAN2L
AUDIO
CABLE
DATA
CABLE
NOT REQUIRED
DO NOT CONNECT
AFTERMARKET RADIO
YELLOW
BLACK
GRAY/RED
RADIO BATTERY (+) WIRE
RADIO GROUND WIRE
RADIO ACCESSORY WIRE
STEERING WHEEL
CONTROL CABLE

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 4
Honda CiviC witH nav 2012-2015
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
Can2H B ~ 20 pin 01 Pink (DATA) Behind radio
Can2L B ~ 20 pin 09 Blue (DATA) Behind radio
SWI 2 C ~ 32 pin 15 Blue (DATA) Bluetooth unit, above glove box

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 5
Honda CiviC witH nav 2012-2015
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Maestro features/steering wheel controls stop working after a few seconds. Ensure the GRAY/RED wire on the 18 pin connector of the RR is connected to
accessory power.
When a button on the steering wheel is pressed, the light on the Maestro
module blinks but the radio does not respond.
Ensure the blue 4-pin steering wheel control cable is connected between the
maestro and the radio.
Refer to radio’s owners manual to verifie if the radio has this function:
Steering Wheel Control (ON/OFF) : choose ON.
or
Steering Wheel Control (Custom/Preset): choose Preset
The light on the Maestro is flashing RED once. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

2012-2015
Honda CiviC
witHout nav
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
PROGRAMMED FIRMWARE
ADS-RR(SI)-HON01-AS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 2
Honda CiviC witHout nav 2012-2015
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Wiring Diagram 3
Vehicle Wire Reference Chart 4
Troubleshooting Table 5
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 3
Honda CiviC witHout nav 2012-2015
8 7 6 5 110 9
17 16 15 14
432
13 12 111920 18
6 58 714 1316 15 2 14 3 10 911
18 1720 19212223
12
25 2427 262829303132
1
B- LOCATED BEHIND RADIO
C- LOCATED AT BLUETOOTH UNIT
YELLOW/BROWN -
YELLOW/BROWN - CAN2L
SWI 2
SWI 2
CAN2L
CAN2L
RED/BROWN -
RED/BROWN - CAN2H CAN2HCAN2H
WIRES FROM
VEHICLE
WIRING DIAGRAM
STEP 1
STEP 2
STEP 4
STEP 3
CONNECT IF THE VEHICLE IS EQUIPPED WITH BLUETOOTH.
PINK/RED -
PINK/RED - SWI CIRCUIT 2 INPUT
MAESTRO RR MODULE
STEERING WHEEL
CONTROL CABLE
AUDIO
CABLE
DATA
CABLE
NOT REQUIRED
DO NOT CONNECT
AFTERMARKET RADIO
YELLOW
BLACK
GRAY/RED
RADIO BATTERY (+) WIRE
RADIO GROUND WIRE
RADIO ACCESSORY WIRE

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 4
Honda CiviC witHout nav 2012-2015
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
Can2H B ~ 20 pin 13 Pink (DATA) Behind radio
Can2L B ~ 20 pin 03 Blue (DATA) Behind radio
SWI 2 C ~ 32 pin 15 Blue (DATA) Bluetooth unit, above glove box

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 5
Honda CiviC witHout nav 2012-2015
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Maestro features/steering wheel controls stop working after a few seconds. Ensure the GRAY/RED wire on the 18 pin connector of the RR is connected to
accessory power.
When a button on the steering wheel is pressed, the light on the Maestro
module blinks but the radio does not respond.
Ensure the blue 4-pin steering wheel control cable is connected between the
maestro and the radio.
Refer to radio’s owners manual to verifie if the radio has this function:
Steering Wheel Control (ON/OFF) : choose ON.
or
Steering Wheel Control (Custom/Preset): choose Preset
The light on the Maestro is flashing RED once. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

2012-2016
Honda CRv
witH nav
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
PROGRAMMED FIRMWARE
ADS-RR(SI)-HON01-AS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 2
Honda CRv witH nav 2012-2016
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Wiring Diagram 3
Vehicle Wire Reference Chart 4
Troubleshooting Table 5
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 3
Honda CRv witH nav 2012-2016
2
6 58 714 1316 15 2 14 3 10 911
18 1720 19212223
12
25 2427 262829303132
6 58 7
14 1316 15
214 3
10 912 11
MAESTRO RR MODULE
STEP 4
C- LOCATED AT BLUETOOTH UNIT
WIRES FROM
VEHICLE
WIRING DIAGRAM
STEP 1
STEP 2
STEP 3
CONNECT IF THE VEHICLE IS EQUIPPED WITH BLUETOOTH.
PINK/RED -
PINK/RED - SWI CIRCUIT 2 INPUT
SWI 2
SWI 2
B- LOCATED BEHIND RADIO
YELLOW/BROWN -
YELLOW/BROWN - CAN2L
CAN2H
CAN2HRED/BROWN - RED/BROWN - CAN2H
CAN2L
CAN2L
AUDIO
CABLE
DATA
CABLE
NOT REQUIRED
DO NOT CONNECT
AFTERMARKET RADIO
YELLOW
BLACK
GRAY/RED
RADIO BATTERY (+) WIRE
RADIO GROUND WIRE
RADIO ACCESSORY WIRE
STEERING WHEEL
CONTROL CABLE

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 4
Honda CRv witH nav 2012-2016
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
Can2H B ~ 20 pin 01 Pink (DATA) Behind radio
Can2L B ~ 20 pin 09 Blue (DATA) Behind radio
SWI 2 C ~ 32 pin 15 Yellow (DATA) Bluetooth unit, center dash in front of shifter

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 5
Honda CRv witH nav 2012-2016
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Maestro features/steering wheel controls stop working after a few seconds. Ensure the GRAY/RED wire on the 18 pin connector of the RR is connected to
accessory power.
When a button on the steering wheel is pressed, the light on the Maestro
module blinks but the radio does not respond.
Ensure the blue 4-pin steering wheel control cable is connected between the
maestro and the radio.
Refer to radio’s owners manual to verifie if the radio has this function:
Steering Wheel Control (ON/OFF) : choose ON.
or
Steering Wheel Control (Custom/Preset): choose Preset
The light on the Maestro is flashing RED once. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

2010-2011
Honda CRv
witH nav witH BluetootH
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
PROGRAMMED FIRMWARE
ADS-RR(SI)-HON01-AS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 2
Honda CRv witH nav witH BluetootH 2010-2011
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Wiring Diagram 3
Vehicle Wire Reference Chart 4
Troubleshooting Table 5
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 3
Honda CRv witH nav witH BluetootH 2010-2011
3
456
7 11
2
13
8 9 10 12
8765
1
10 9
17 16 15 14
432
13
11
1920 18
12
24 2223 21
3 4 5 61 2
17 18 19 20
7 8
21 22 15 16
11 12 13 149 10
23 24 25 26 27 28
MAESTRO RR MODULE
STEP 5
WIRES FROM
VEHICLE
WIRING DIAGRAM
STEP 4
SWI 3SWI 3
E- LOCATED AT NAVIGATION UNIT UNDER CENTER DASH
ORANGE/RED - SWI CIRCUIT 3 INPUT
B- LOCATED BEHIND RADIO
D- LOCATED AT BLUETOOTH UNIT UNDER CENTER DASH
PURPLE/RED -
PURPLE/RED - SWI CIRCUIT 1 INPUT
BLACK/WHITE -
BLACK/WHITE - SWI GROUND FEED (-) OUTPUT
SWI 1
SWI 1
SWI 2
SWI 2
SWI FEED
SWI FEED
PINK/RED -
PINK/RED - SWI CIRCUIT 2 INPUT
STEP 1
STEP 2
STEP 3
CONNECT IF THE VEHICLE IS EQUIPPED WITH BLUETOOTH.
CONNECT IF THE VEHICLE IS EQUIPPED WITH NAVIGATION.
AUDIO
CABLE
DATA
CABLE
NOT REQUIRED
DO NOT CONNECT
AFTERMARKET RADIO
YELLOW
BLACK
GRAY/RED
RADIO BATTERY (+) WIRE
RADIO GROUND WIRE
RADIO ACCESSORY WIRE
STEERING WHEEL
CONTROL CABLE

ADS-RR(SI)-HON01-AS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 4
Honda CRv witH nav witH BluetootH 2010-2011
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
SWI1 B ~ 24 pin 16 Pink (DATA) Behind radio
SWI 2 D ~ 28 pin 02 Blue (DATA) Bluetooth unit, center dash
SWI 3 E ~ 12 pin 01 Green (DATA) Navigation unit, center dash
SWI Feed B ~ 24 pin 05 Brown (DATA) Behind radio
