HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

ELECTRONICS
Click here for:
Radar Installation Guides
20112013
FORD EDGE
WITH MYFORD TOUCH
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, FACTORY AMPLIFIER, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro HRR-MFT1 Dash Kit
PROGRAMMED FIRMWARE
ADS-RR(SR)-FOR02C-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES
HEAD UNIT ADAPTER:
ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1
HEAD UNIT
ADAPTER READY
KIT

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20112013
Automotive Data Solutions Inc. © 2023 2
WELCOME
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 5
Radio Wire Reference Chart 6
Module Diagnostics 7
Troubleshooting Table 8
NEED HELP?
1 866 427-2999
[email protected]

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20112013
Automotive Data Solutions Inc. © 2023 3
Fig. 1.3 Fig. 1.4
Fig. 1.1 Fig. 1.2
DASH DISASSEMBLY
1. Unclip and remove the two (2) trim panels at the left and
right of the OEM radio. (Fig. 1.1)
2. Remove four (4) screw holding the shifter trim panel.
Unclip and remove the shifter trim panel. (Fig. 1.2)
3. Remove six (6) 7mm screws holding the radio and climate
control panel. (Fig. 1.3)
4. Use a panel removal tool to unclip and release the radio
and climate panel from the dash. (Fig. 1.3)
5. Remove four (4) 7mm screws holding the radio body.
Unplug and remove the OEM radio. (Fig. 1.3)
6. Remove four (4) 7mm screws holding the screen. Unplug
and remove the OEM screen. (Fig. 1.4 )
Keep screws and brackets for MFT1 dash kit assembly.
Unbox MFT1 dash kit and locate bracket set #1, discard
set #2.
1
INSTALLATION INSTRUCTIONS P1 /2

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20112013
Automotive Data Solutions Inc. © 2023 4
Fig. 2.0
A B C
DASH KIT ASSEMBLY
1. Attach the brackets supplied with the MFT1 to the
aftermarket radio (use set #1 or #2, see previous page).
2. Remove the mounting brackets from the OEM screen and
attach them to MFT1 brackets (Example: Fig. 2.0).
3. Clip MFT1 panel on to the front of MFT1 brackets.
Media port adapter
4. Remove OEM Media port and connect MFT1 media port
adapter to aftermarket radio. If OEM media port is larger
than MFT1 media port, insert the supplied adapter plate,
then install MFT1 media port.
(Side view)
A: MFT1 bracket
B: OEM radio bracket
C: Aftermarket radio
MAKE CONNECTIONS (refer to wiring diagram)
1. If using head unit adapter (sold separately), connect HRR-
MFT1 harness to adapter and skip to step 2.
• Unbox the aftermarket radio and locate its main harness.
• Cut and remove the black 20 pin connector from the
HRR-MFT1 T-harness and connect the wires, shown in the
wiring diagram, from aftermarket radio main harness to
the HRR-MI1 T-harness and match the wire functions.
Note: only connect purple/white wire to radio reverse input
or module damage will occur.
2. Determine if the vehicle has a factory amplifier.
If the vehicle DOES NOT have a factory amplifier:
• Plug the female 4-pin BLACK connector to the male BLACK
connector of your HRR-MFT1 T-harness.
• Plug the female 4-pin WHITE connector to the male WHITE
connector of your HRR-MFT1 T-harness.
If the vehicle DOES have a factory amplifier:
• Leave the 4-pin BLACK connector unplugged.
• Plug the Ccable to the 4-pin WHITE connector.
• Connect gray and white RCAs into the aftermarket radio.
3. Assemble HRR-MFT1 harness as shown in the wiring
diagram, using A, B and D harnesses.
• Connect the MFT1 T-harness to the factory radio harness.
4. Connect all harnesses to the Maestro RR module.
5. Plug the harnesses into the aftermarket radio.
• Plug the data cable to the data port of the aftermarket
radio.
• Insert the audio cable into the iDatalink 3.5mm audio jack
of the aftermarket radio (labeled iDatalink. If there is no
iDatalink audio input, connect to AUX).
• Plug the backup camera RCA into the aftermarket radio (if
applicable).
Note: When using a Pioneer radio, please ensure that there
is nothing plugged into the W/R port of the radio.
Insert the radio and MFT1 kit in the dash, then test your
installation.
1
INSTALLATION INSTRUCTIONS P2 /2

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20112013
Automotive Data Solutions Inc. © 2023 5
1
BACKUP CAMBACKUP CAM
AMP TURNONAMP TURNON NC
NC
NC
MICMIC
3
4 3
4
3
10
18
18
26
43
24
24
54
B
E
A
D
20
4
4
4
4
2
3
2
C
32
F
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
PINK - VEHICLE SPEED
WIRES FROM
VEHICLE
MAIN HARNESS
CONNECT TO
AFTERMARKET RADIO
HARNESS BEHIND RADIO
FACTORY RADIO HARNESS
RR-MFT1 T-HARNESS

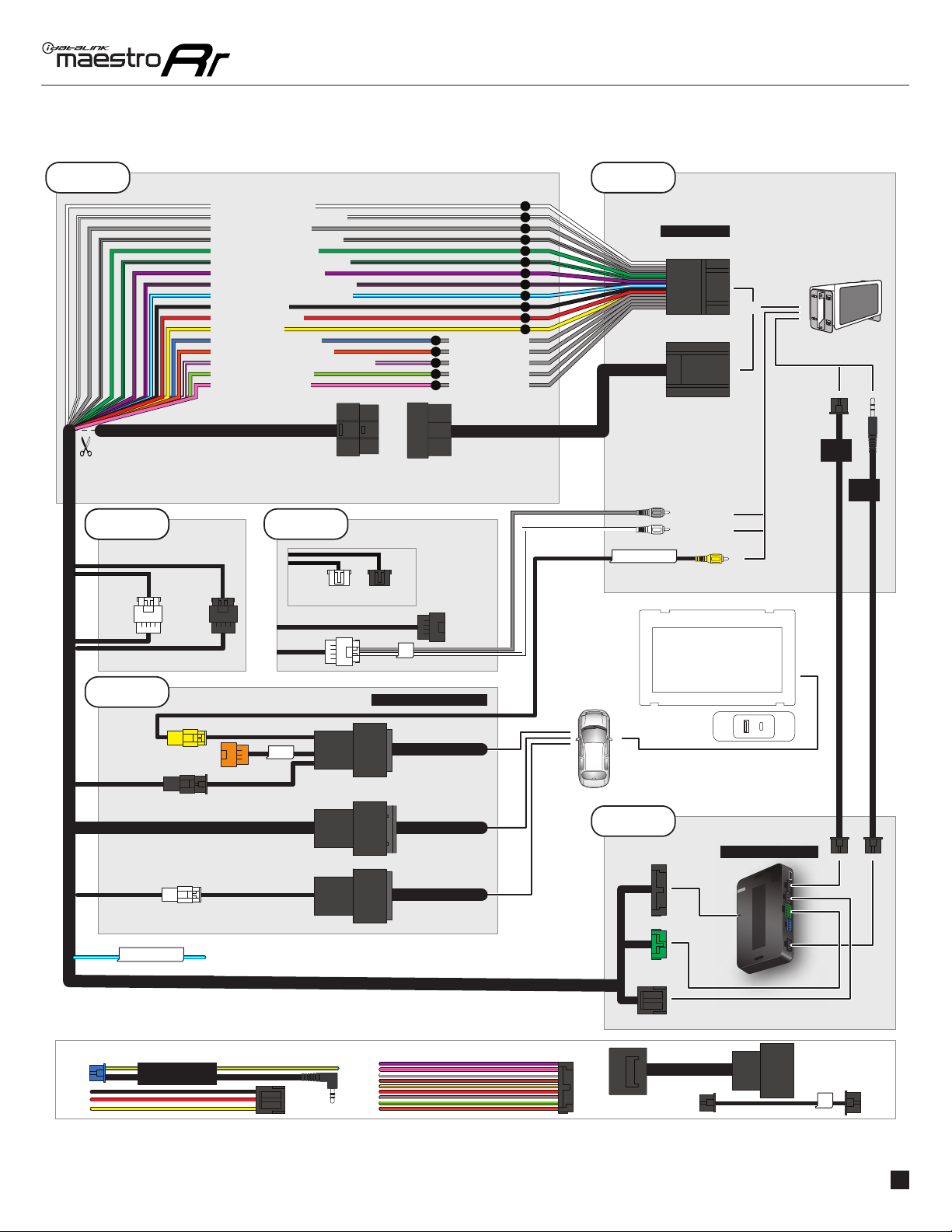

WIRING DIAGRAM
STEP 2
STEP 3
STEP 5
STEP 4
STEP 1
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE
COLORS
MAESTRO RR MODULE
DATA
CABLE
BLUE - POWER ANTENNABLUE - POWER ANTENNA
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
AUDIO
CABLE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
NOT REQUIRED
OR
HEAD UNIT ADAPTER
SOLD SEPARATELY
IF WIRES ARE PRESENT ON
ADAPTER: SEE RADIO
REFERENCE CHART
IF NOT USING A MAESTRO HEAD UNIT ADAPTER:
CUT AND DISCARD CONNECTOR
STEP 2 STEP 2
OR
WITHOUT OEM
AMPLIFIER
WITH OEM AMPLIFIER
UNPLUG
WHITE BLACK
WHITE
BLACK
LF OUT
CONNECT IF EQUIPPED *BRANCHER SI PRÉSENT*
RF OUT
*
IF PRESENT

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20112013
Automotive Data Solutions Inc. © 2023 6
RADIO WIRE REFERENCE CHART
MFT1 T-harness
Wire Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood/
JVC cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light* (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A
Power Antenna (+) Blue Blue Blue Blue/White Blue or Blue/White
ACC-HU-KEN2
Wire Description
Polarity Wire Color on Adapter Kenwood Radio
E-Brake (-) LtGreen LtGreen
Reverse Light* (+) Purple/White Purple/White
Steering Wheel Controls (DATA) Blue/Yellow n/a
ACC-HU-ALP1
Wire Description
Polarity Wire Color on Adapter Alpine Radio
VSS (vehicle speed sensor) (DATA) Green/White Green/White
ACC-HU-KEN1
Wire Description
Polarity Wire Color on Adapter Kenwood Radio
CAM (+) Green/Red Refer to camera/radio
manual
CAM (-) Green/White Refer to camera/radio
manual
Steering Wheel Controls (DATA) Blue/Yellow n/a
Head unit adapter wiring (optional accessory, sold separately)
* Reverse light wire: Only connect to radio or module damage will occur.

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20112013
Automotive Data Solutions Inc. © 2023 7
MODULE DIAGNOSTICS
VIDEO HELP Installation, product information, vehicle specific videos.
VERIFY FLASH Last flash information, steering control configuration, vehicle information.
WEBLINK Software to program module.
LED 1 LED 2
LED 1
PROGRAMMING BUTTON
LED 1
Module/Firmware
status
LED 2 (RR2)
Bluetooth activity
LED STATUS DIAGNOSTIC
• or •RED or GREEN
flashing
LED flashes 1 or more times, either red or green, when a steering wheel
button is pressed : normal operation.
•1 RED flash Module has no firmware.
Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE.
•2 RED flashes Problem detected. Consult troubleshooting table.
•1 GREEN flash After radio boots up : Normal operation.
•3 GREEN flashes Bluetooth is activated.
Turns off after one minute: Normal operation.
• • OFF Normal operation (inactive).

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20112013
Automotive Data Solutions Inc. © 2023 8
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
The radio is not turning on. Ensure the supplied 54-pin connector is plugged into the vehicle, and that
the 18-pin connector on the other end is connected to the Maestro module.
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure the supplied 54-pin connector is plugged into the vehicle, and that
the 18-pin connector on the other end is connected to the Maestro module.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

ELECTRONICS
Click here for:
Radar Installation Guides
20142019
FORD EDGE
WITH MYFORD TOUCH
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, FACTORY AMPLIFIER, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro HRR-MFT1 Dash Kit
PROGRAMMED FIRMWARE
ADS-RR(SR)-FOR02C-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES
HEAD UNIT ADAPTER:
ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1
HEAD UNIT
ADAPTER READY
KIT

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20142019
Automotive Data Solutions Inc. © 2023 2
WELCOME
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 5
Radio Wire Reference Chart 6
Module Diagnostics 7
Troubleshooting Table 8
NEED HELP?
1 866 427-2999
[email protected]

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20142019
Automotive Data Solutions Inc. © 2023 3
Fig. 1.7
Fig. 1.3
Fig. 1.5
Fig. 1.4
Fig. 1.6
Fig. 1.1
Fig. 1.2
DASH DISASSEMBLY
NOTE: Requires shallow mount radio. Requires trimming
in the dash.
1. Unclip and remove the two (2) trim panels at the left and
right of the center console. (Fig. 1.1)
2. Unclip and remove the center console trim panel (around
the shifter). Unplug the connectors. (Fig. 1.2)
3. Remove four (4) 5.5mm screws holding storage
compartment in front of the center console. Remove and
unplug it. (Fig. 1.3)
4. Remove five (5) 7mm screws holding the shifter housing.
Unclip and pull it backward. Do not remove it. (Fig. 1.4)
5. Remove two (2) 7mm screws at the bottom of the radio
and climate control panel. Carefully unclip and remove the
radio and climate control panel, starting from the bottom
(air vents are fragile). Unplug the connectors. (Fig. 1.5)
6. Remove four (4) 7mm screws holding the screen. Unplug
and remove the OEM screen. (Fig. 16)
7. Remove two (2) screws holding the radio. Unplug and
remove the OEM radio. (Fig. 1.6)
8. Cut and remove the plastic behind the screen. (Fig. 1.7 )
Keep screws and brackets fot MFT1 dash kit assembly.
Unbox MFT1 dash kit and locate bracket set #1, discard
set #2.
1
INSTALLATION INSTRUCTIONS P1 /2

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20142019
Automotive Data Solutions Inc. © 2023 4
Fig. 2.0
A B C
DASH KIT ASSEMBLY
1. Attach the brackets supplied with the MFT1 to the
aftermarket radio (use set #1 or #2, see previous page).
2. Remove the mounting brackets from the OEM screen and
attach them to MFT1 brackets (Example: Fig. 2.0).
3. Clip MFT1 panel on to the front of MFT1 brackets.
Media port adapter
4. Remove OEM Media port and connect MFT1 media port
adapter to aftermarket radio. If OEM media port is larger
than MFT1 media port, insert the supplied adapter plate,
then install MFT1 media port.
(Side view)
A: MFT1 bracket
B: OEM radio bracket
C: Aftermarket radio
MAKE CONNECTIONS (refer to wiring diagram)
1. If using head unit adapter (sold separately), connect HRR-
MFT1 harness to adapter and skip to step 2.
• Unbox the aftermarket radio and locate its main harness.
• Cut and remove the black 20 pin connector from the
HRR-MFT1 T-harness and connect the wires, shown in the
wiring diagram, from aftermarket radio main harness to
the HRR-MI1 T-harness and match the wire functions.
Note: only connect purple/white wire to radio reverse input
or module damage will occur.
2. Determine if the vehicle has a factory amplifier.
If the vehicle DOES NOT have a factory amplifier:
• Plug the female 4-pin BLACK connector to the male BLACK
connector of your HRR-MFT1 T-harness.
• Plug the female 4-pin WHITE connector to the male WHITE
connector of your HRR-MFT1 T-harness.
If the vehicle DOES have a factory amplifier:
• Leave the 4-pin BLACK connector unplugged.
• Plug the Ccable to the 4-pin WHITE connector.
• Connect gray and white RCAs into the aftermarket radio.
3. Assemble HRR-MFT1 harness as shown in the wiring
diagram, using A, B and D harnesses.
• Connect the MFT1 T-harness to the factory radio harness.
4. Connect all harnesses to the Maestro RR module.
5. Plug the harnesses into the aftermarket radio.
• Plug the data cable to the data port of the aftermarket
radio.
• Insert the audio cable into the iDatalink 3.5mm audio jack
of the aftermarket radio (labeled iDatalink. If there is no
iDatalink audio input, connect to AUX).
• Plug the backup camera RCA into the aftermarket radio (if
applicable).
Note: When using a Pioneer radio, please ensure that there
is nothing plugged into the W/R port of the radio.
Insert the radio and MFT1 kit in the dash, then test your
installation.
1
INSTALLATION INSTRUCTIONS P2 /2

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20142019
Automotive Data Solutions Inc. © 2023 5
1
BACKUP CAMBACKUP CAM
AMP TURNONAMP TURNON NC
NC
NC
MICMIC
3
4 3
4
3
10
18
18
26
43
24
24
54
B
E
A
D
20
4
4
4
4
2
3
2
C
32
F
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+) *
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
PINK - VEHICLE SPEED
WIRES FROM
VEHICLE
MAIN HARNESS
CONNECT TO
AFTERMARKET RADIO
HARNESS BEHIND RADIO
FACTORY RADIO HARNESS
RR-MFT1 T-HARNESS
WIRING DIAGRAM
STEP 2
STEP 3
STEP 5
STEP 4
STEP 1
SEE RADIO
WIRE REFERENCE
CHART FOR
RADIO WIRE
COLORS
MAESTRO RR MODULE
DATA
CABLE
BLUE - POWER ANTENNABLUE - POWER ANTENNA
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
AUDIO
CABLE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
* ONLY CONNECT TO RADIO REVERSE INPUT
OR MODULE DAMAGE WILL OCCUR
NOT REQUIRED
OR
HEAD UNIT ADAPTER
SOLD SEPARATELY
IF WIRES ARE PRESENT ON
ADAPTER: SEE RADIO
REFERENCE CHART
IF NOT USING A MAESTRO HEAD UNIT ADAPTER:
CUT AND DISCARD CONNECTOR
STEP 2 STEP 2
OR
WITHOUT OEM
AMPLIFIER
WITH OEM AMPLIFIER
UNPLUG
WHITE BLACK
WHITE
BLACK
LF OUT
CONNECT IF EQUIPPED *BRANCHER SI PRÉSENT*
RF OUT
*
IF PRESENT

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20142019
Automotive Data Solutions Inc. © 2023 6
RADIO WIRE REFERENCE CHART
MFT1 T-harness
Wire Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood/
JVC cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light* (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink N/A
Power Antenna (+) Blue Blue Blue Blue/White Blue or Blue/White
ACC-HU-KEN2
Wire Description
Polarity Wire Color on Adapter Kenwood Radio
E-Brake (-) LtGreen LtGreen
Reverse Light* (+) Purple/White Purple/White
Steering Wheel Controls (DATA) Blue/Yellow n/a
ACC-HU-ALP1
Wire Description
Polarity Wire Color on Adapter Alpine Radio
VSS (vehicle speed sensor) (DATA) Green/White Green/White
ACC-HU-KEN1
Wire Description
Polarity Wire Color on Adapter Kenwood Radio
CAM (+) Green/Red Refer to camera/radio
manual
CAM (-) Green/White Refer to camera/radio
manual
Steering Wheel Controls (DATA) Blue/Yellow n/a
Head unit adapter wiring (optional accessory, sold separately)
* Reverse light wire: Only connect to radio or module damage will occur.

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20142019
Automotive Data Solutions Inc. © 2023 7
MODULE DIAGNOSTICS
VIDEO HELP Installation, product information, vehicle specific videos.
VERIFY FLASH Last flash information, steering control configuration, vehicle information.
WEBLINK Software to program module.
LED 1 LED 2
LED 1
PROGRAMMING BUTTON
LED 1
Module/Firmware
status
LED 2 (RR2)
Bluetooth activity
LED STATUS DIAGNOSTIC
• or •RED or GREEN
flashing
LED flashes 1 or more times, either red or green, when a steering wheel
button is pressed : normal operation.
•1 RED flash Module has no firmware.
Flash module using Weblink Desktop and log in. Do NOT use DEMO MODE.
•2 RED flashes Problem detected. Consult troubleshooting table.
•1 GREEN flash After radio boots up : Normal operation.
•3 GREEN flashes Bluetooth is activated.
Turns off after one minute: Normal operation.
• • OFF Normal operation (inactive).

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD EDGE WITH MYFORD TOUCH 20142019
Automotive Data Solutions Inc. © 2023 8
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
The radio is not turning on. Ensure the supplied 54-pin connector is plugged into the vehicle, and that
the 18-pin connector on the other end is connected to the Maestro module.
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure the supplied 54-pin connector is plugged into the vehicle, and that
the 18-pin connector on the other end is connected to the Maestro module.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

ELECTRONICS
Click here for:
Radar Installation Guides
20132016
FORD ESCAPE
WITH MYFORD TOUCH WITH SONY AMP
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, FACTORY AMPLIFIER, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro HRR-MFT1 Dash Kit
PROGRAMMED FIRMWARE
ADS-RR(SR)-FOR02C-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES
HEAD UNIT ADAPTER:
ACC-HU-PIO1, SON1, KEN1, KEN2, ALP1
HEAD UNIT
ADAPTER READY
KIT

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD ESCAPE WITH MYFORD TOUCH WITH SONY AMP 20132016
Automotive Data Solutions Inc. © 2023 2
WELCOME
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 5
Radio Wire Reference Chart 6
Module Diagnostics 7
Troubleshooting Table 8
NEED HELP?
1 866 427-2999
[email protected]

ADS-HRR(SR)-MFT1-DS-IG-EN maestro.idatalink.com
FORD ESCAPE WITH MYFORD TOUCH WITH SONY AMP 20132016
Automotive Data Solutions Inc. © 2023 3
Fig. 1.7
Fig. 1.3
Fig. 1.5
Fig. 1.4
Fig. 1.6
Fig. 1.1 Fig. 1.2
DASH DISASSEMBLY
NOTE: If you are installing a standard sized double din
radio, trimming is required to make the radio fit.
1. Using a plastic pry tool, remove the upper trim by pulling
upward. (Fig. 1.1)
2. Remove the two (2) 7mm screws from the radio bezel. (Fig.
1.2)
3. Unclip and remove the radio bezel by prying with a plastic
panel too. Unplug the connector from the panel and set it
aside. (Fig. 1.3)
4. Remove four (4) 7mm screws securing the screen. Unplug
and remove the screen. (Fig. 1.4)
5. Remove two (2) 7 mm screws securing the radio module.
Unplug and remove the radio. (Fig. 1.5)
6. Remove (4) 7mm screws securing the radio mounting
hardware. (Fig. 1.6)
7. If you are installing a standard sized double din radio, trim
the plastic behind the screen to make the radio fit. (Fig. 1.7)
Keep screws and brackets for MFT1 dash kit assembly.
Unbox MFT1 dash kit and locate bracket set #1, discard
set #2.
2
INSTALLATION INSTRUCTIONS P1 /2
