IHP H5872 User manual

EPIC™ FIREBOX LINER KIT
CAT. NO. H5872
INSTALLATION INSTRUCTIONS FOR INSTALLING A FIREBOX LINER KIT
FOR USE WITH EPIC™ GAS STOVES
775264M
Rev. A, 11/2013
HEARTH PRODUCTS
KITS AND ACCESSORIES

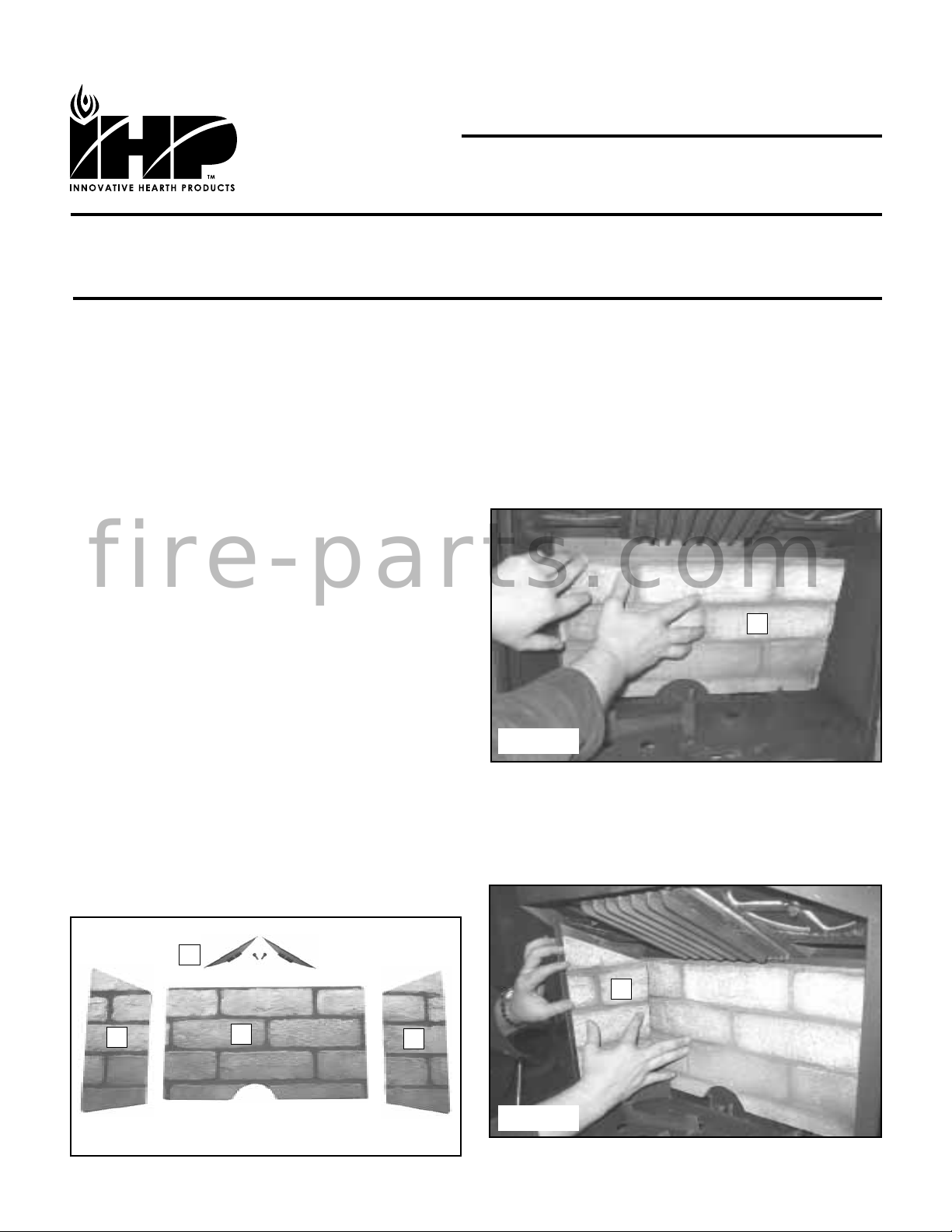

Figure 1 - Kit Contents
NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE
KIT CONTENTS (See Figure 1)
Please ensure that all these parts are in the packaging.
1 ea. Rear Brick Panel (A),
1 ea. Left Brick Panel (B),
1 ea. Right Brick Panel (C),
2 ea. Retaining Brackets (D) - In Flue Restrictor Bag
1 ea. Instruction Sheet
CAUTION: The brick panels are required for your appliance to
function correctly and safely.
TOOLS NEEDED
5/32” Allen Wrench
GENERAL INFORMATION
All of these parts may scratch and bend, great care should be used
in handling them.
If you encounter any problems, need clarification of these instructions
or are not qualified to properly install this kit, contact you local distribu-
tor or dealer.
Read this instruction sheet in its entirety before beginning the installa-
tion.
ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND
OPERATION MANUAL PROVIDED WITH THE APPLIANCE APPLY TO
THESE INSTRUCTIONS.
TURN OFF THE FIREPLACE AND ALLOW IT TO COMPLETELY COOL
BEFORE PROCEEDING.
Step 3. Install the left panel (B in Figure 3)bottom first and stand flush
against left wall of firebox. Repeat for right panel (C) against the
right wall of firebox.
Figure 2
Figure 3
INSTALLATION INSTRUCTIONS
Step 1. Remove the brick panels from the box and carefully unwrap them.
The panels are fragile, so handle them with care. Remove the
bag containing the brick retaining brackets (D) and flue restrictors
from the firebox.
Step 2. Install the rear brick panel (A) bottom first and stand it flush
against the rear of the firebox ensuring the pilot cutout is at the
bottom directly above the pilot. See Figure 2.
A
BC
D
A
B
fire-parts.com

Printed in U.S.A. © 2008 IHP LLC
P/N 775264M REV. A 11/2013
IHP reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor
for fireplace code information.
Innovative Hearth Products
1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210
4. Using the included screws, install the brick retaining brackets (D) above the left and right brick panels (B and C). See Figures 4, 5 and 6.
Figure 5 Figure 6
Figure 7
Figure 4
D
B
C
D
D
NOTE: DIAGRAMS AND ILLUSTRATIONS ARE NOT TO SCALE
