Impulse IF9325 User manual

ADJUSTABLE HI/LO PULLEY
OWNER'S MANUAL
IF9325
20V
CAUTION! Read all precautions and instructions in this manual before
using this equipment.

Table Of Contents
CAUTION!
Read all precautions and instructions in this manual before using this equipment.
Important Safety Instructions----------------------------------------------------------- 3
Instructions-------------------------------------------------------------------------------- 5
Exploded View and Parts List------------------------------------------------------------ 6
Measurement Guide--------------------------------------------------------------------- 16
Assembly Instructions------------------------------------------------------------------ 17
Assembly--------------------------------------------------------------------------------- 18
Adjust Instructions---------------------------------------------------------------------- 32
Exercise Instructions-------------------------------------------------------------------- 33
Maintenance Schedule------------------------------------------------------------------ 34
General Maintenance Information----------------------------------------------------- 35
Weight Training Tips-------------------------------------------------------------------- 36
Please assemble according to the actual Weights and Shroud you buy !

3
Important Safety Instructions
Before beginning any fitness program, you should obtain a complete physical
examination from your physician. When using exercise equipment, basic
precautions should always be taken, including the following:
1. Read all instructions before using the equipment.
These instructions are written to ensure your safety and to protect the unit.
2. Use the equipment only for its intended purpose as described in this guide.
Do not use accessory attachments that are not recommended by the
manufacturer: such attachments might cause injuries.
3. The product should only be used on a level surface and is with 0.6 meters
space around the product.
Do not use the equipment outdoors.
4. Do not allow children on or near the equipment. And children are not allowed
to use this equipment.
Teenagers should use this equipment with adult supervision.
5. Do not overexert yourself or work to exhaustion.
Do not attempt to lift more weight than you can control safely.
If you feel any pain or abnormal symptoms, stop your workout immediately
and consult your physician.
6. This equipment is not used as medical apparatus and instruments.
7. Never operate the unit when it has been dropped or damaged.
Never drop or insert anything into any opening in the equipment.
Always check the unit and its cables before each use. Make sure that all
fasteners and cables are secure and in good working condition.
Frayed or worn cables can be dangerous and may cause injury. Periodically
check these cables for any indication of wear.
Keep hands, limbs, loose clothing and long hair well out of the way of moving
parts.
8. Be careful when getting on or off the equipment.
9. Wear proper exercise clothing and shoes for your workout, no loose clothing.

Specifications
Class: S
Maximum Wt. Capacity: 134kg/ 295lbs
Maximum User Weight: 150kg/ 330lbs
Product Dimension: 1448.7*1258*2338.1mm
Product Total Surface: 1448.7*2260mm
Product Total Mass:

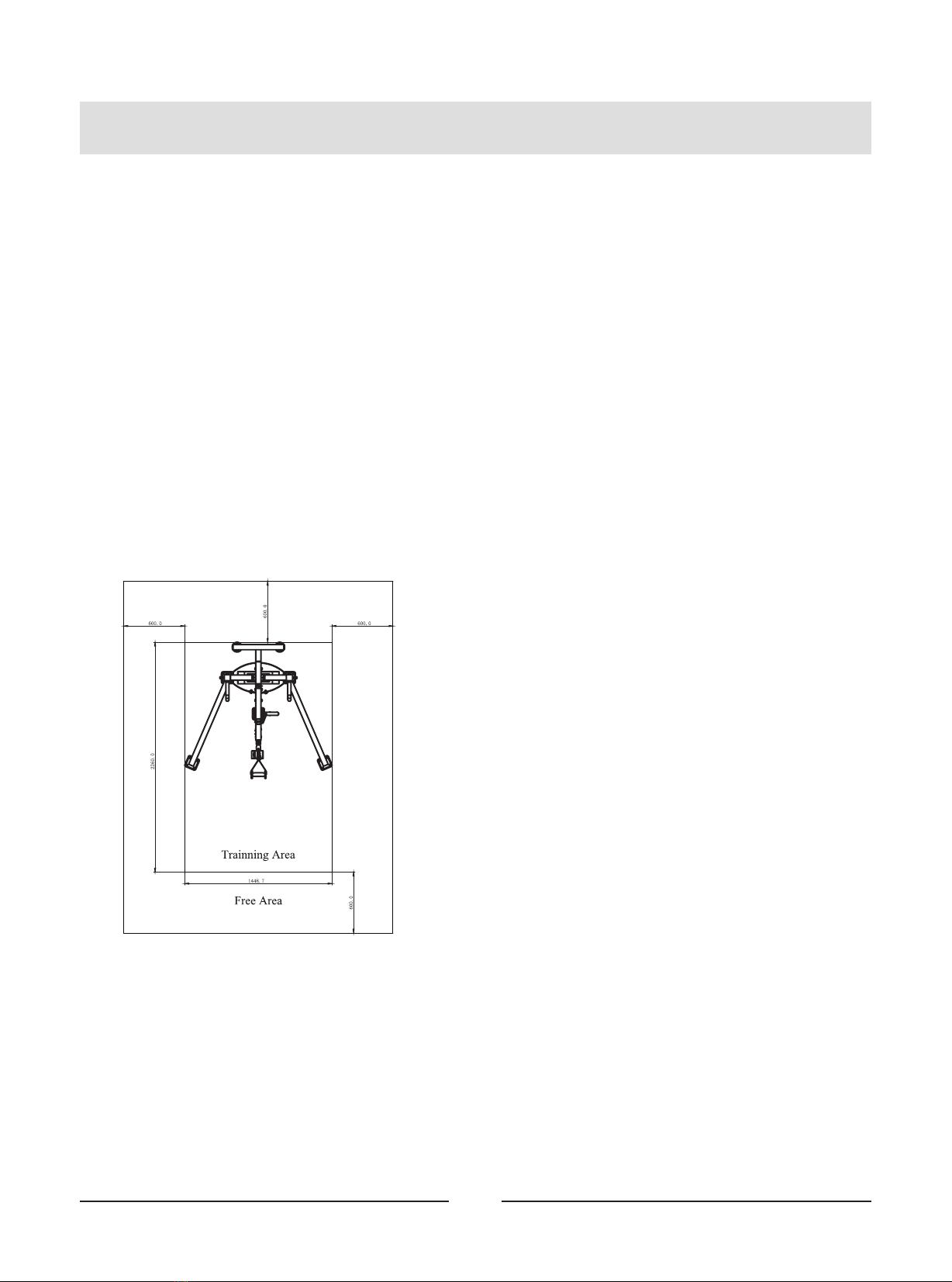

Training Area and Free Area
4
Important Safety Instructions
Personal Safety During Assembly
Read each step in the assembly instructions and follow the steps in sequence.
Do not skip ahead. If you skip ahead, you may learn later that you have to
disassemble components and that you may have damaged the equipment.
Assemble and operate the equipment on a solid, level surface. Locate the unit
a few feet from walls or furniture to provide easy access. The equipment is
designed for your enjoyment. By following these precautions and using
common sense, you will have many safe and pleasurable hours of healthful
exercise with the equipment.

5
Instructions
Tools Required
The equipment is designed to provide the smoothest, most effective exercise
motion possible. After assembly, you should check all functions to ensure correct
operation. If you experience problems, first recheck the assembly instructions to
locate any possible errors made during assembly. If you are unable to correct the
problem, call your authorized dealer. Be sure to have your serial number and this
manual when calling. When all parts have been accounted for, continue on.
Ratchet Wrench and Socket
Adjustable Wrench
Rubber Mallet
Hex Key Wrench Set
Phillips Screwdriver
Before beginning assembly please take the time to read instructions thoroughly.
Please use the various lists in this manual to make sure that all parts have been
included in your shipment. When ordering, use part number and description from
the lists. Use only our replacement part when servicing. Failure to do so will void
your warranty and could result in personal injury.

6
Exploded View and Parts List
Overall
ItemNo. Grade No. Part No. Description QTY
1 1 IF932501ASSY Main Frame ASSY 1
2 2 IF932502ASSY Bottom Cross Frame ASSY 1
3 3 IF932503ASSY Top Cross Frame ASSY 1
4 4 IF932504ASSY Right Front Cross Frame ASSY 1
5 5 IF932505ASSY Left Front Cross Frame ASSY 1
6 6 IT95014200 Top Plate 1
7 7 IT951550ASSY Pulley Frame ASSY 1
8 8 TS10001600V1 Guide Rod 2
9 9 IF932718ASSY Adjustment Column ASSY 1
10 10 IF932715ASSY Handdle Frame ASSY 2
11 11 IF93253300 Cabble ASSY 1
12 12 IT95255200 D-Strap 1
13 13 V310800 Leg EXT/Curl Strap 1
14 14 SG500110400V5 4.5" Pulley 2
15 15 M01004800V3 3.5" Pulley 3
16 16 IT80023000 Weight Rubber Bumper 2
17 17 IT95016100 Guide Rod Fixing Sleeve Φ25*Φ19*45 2
18 18 IT90012000V1 Selector Pin W/Coil 1
19 19 IT95274400 Hanger Column 2
20 20 HFOPT900-04A0602 Spring Φ15.5*Φ1.5*36 2
21 21 GB9510DS2 Flat Washer Φ11*Φ20*2 45
22 22 GB938DS12 Spring Washer Φ8 2
23 23 GB9310DS12 Spring Washer Φ10 1
24 24 GB5780M10*75DS20 Hex Head Bolt M10*75 6
25 25 GB5780M10*80DS20 Hex Head Bolt M10*80 8
26 26 GB5780M10*65DS20 Hex Head Bolt M10*65 5
27 27 GB5780M10*85DS20 Hex Head Bolt M10*85 4
28 28 NM10DS2 Nylon Lock Nut M10 22
29 29 IF93272100 Stop Rubber Bumper 2
30 30 HLG8N9 Gear Hook 1
31 31 LW200BS Wrench Φ6*117 1
32 32 NBS0.188DHS Hex KeyS=3/16" 1
33 33 YHY Lube 1

7
Exploded View and Parts List
Overall

8
Exploded View and Parts List
Main Frame ASSY
ItemNo. Grade No. Part No. Description QTY
1 1.1 IF93250100 Main Frame 1
2 1.2 IPB-XL0011900 Plug 2
3 1.3 IF93272000 Foot Plate 2
4 1.4 GB17880.5M8*16.5DCS17 Rivet Nut M8 2
5 1.5 GB17880.3M6*15DS17 Rivet Nut M6 24

9
Exploded View and Parts List
Bottom Cross Frame ASSY Top Cross Frame ASSY
ItemNo. Grade No. Part No. Description QTY
1 2.1 IF93250200 Bottom Cross Frame 1
2 2.2 KPSFID2800 Plug 2
3 2.3 IF93272000 Foot Plate 1
4 2.4 PE3000900 Adjustment Frame 2
5 2.5 PE3001200 Rubber Bumper 2
ItemNo. Grade No. Part No. Description QTY
1 3.1 IF93250300 Top Cross Frame 1
2 3.2 KPSFID2800 Plug 2
3 3.3 RSM625WS20000 Plug 4

10
Exploded View and Parts List
Right Front Frame ASSY Left Front Frame ASSY
ItemNo. Grade No. Part No. Description QTY
1 4.1 IF93250400 Right Front Frame 1
2 4.2 IF93272000 Foot Plate 1
ItemNo. Grade No. Part No. Description QTY
1 5.1 IF93250500 Left Front Frame 1
2 5.2 IF93272000 Foot Plate 1

11
Exploded View and Parts List
Pulley Frame ASSY
ItemNo. Grade No. Part No. Description QTY
1 7.1 IT95155000 Pulley Frame 1
2 7.2 SG500110400V5 4.5" Pulley 1
3 7.3 HF900-03A1002 Hex Flanged Nut 2
4 7.4 GB70BTM10DN18 Socket Head Cap Screw M10*50 1
5 7.5 NM10DN2 Nylon Lock Nut M10 1
6 7.6 GB9510DN2 Flat Washer Φ11*Φ25*2 2
7 7.7 PL90221500 Rubber Bumper 1
8 7.8 M02903100 Spacer Bush 1
9 7.9 GB70BTM10*20DN18 Socket Head Cap Screw M10*20 1

12
Exploded View and Parts List
Adjustment Column ASSY Handdle Frame ASSY
ItemNo. Grade No. Part No. Description QTY
1 9.1 IF93271800 Sliding Adjustment Column 1
2 9.2 ES70300800ASSY Sliding Carriage 1 ASSY 1
3 9.3 IT952520V1ASSY Double Pulley Bracket ASSY 1
4 9.4 GB5780M8*90DS20 Hex Head Cap Screw M8*90 1
5 9.5 GB958DS2 Flat Washer Φ9*Φ16*1.6 2
6 9.6 NM8DS2 Nylon Lock Nut M8 1
7 9.7 IF93272200ASSY Safety Pin ASSY 1
ItemNo. Grade No. Part No. Description QTY
1 10.1 IF93271500 Handdle Frame 1
2 10.2 BNH0573 Plug 1

13
Exploded View and Parts List
Sliding Carriage 1 ASSY
ItemNo. Grade No. Part No. Description QTY
1 9.2.1 ES70300800 Sliding Carriage 1 1
2 9.2.2 IT95251600 Adjustment Pin ASSY 1
3 9.2.3 KPSOB2100V1 Wear Sleeve 2
4 9.2.4 V39500 Collar Φ25.4,AL 1
5 9.2.5 C011PL2500 Grip 1
6 9.2.6 V39600 End Cap Φ25.4,AL 1
7 9.2.7 YZGB7710-32*3.2N19 Set Screw 10-32*3.2 4
8 9.2.8 IN-S10111200 Stop Spacer Φ17*10.5 2
9 9.2.9 GB70M8*20DS20 Socket Head Cap Screw M8*20 2
10 9.2.10 GB958DS2 Flat Washer Φ9*Φ16*1.6 2
11 9.2.11 NM8DS2 Nylon Lock Nut M8 2

14
Exploded View and Parts List
Double Pulley Frame ASSY Double Pulley Frame
Sub ASSY
ItemNo. Grade No. Part No. Description QTY
1 9.3.1 IT95252000ASSY Sub，Double Pulley Bracket ASSY 1
2 9.3.2 M01004800V3 3.5 " Pulley 2
3 9.3.3 GB9510DS2 Flat Washer Φ11*Φ20*2 4
4 9.3.4 NM10DS2 Nylon Lock Nut M10 2
5 9.3.5 GB5780M10*50DS20 Hex Head Cap Screw M10*50 2
ItemNo. Grade No. Part No. Description QTY
1 9.3.1.1 IT95252000 Double Pulley Bracket 1
2 9.3.1.2 IT95251800 Shaft Φ16*Φ8.5*62 1
3 9.3.1.3 L1-6800 Bushing Φ28*Φ22*Φ16*18 2

15
Exploded View and Parts List

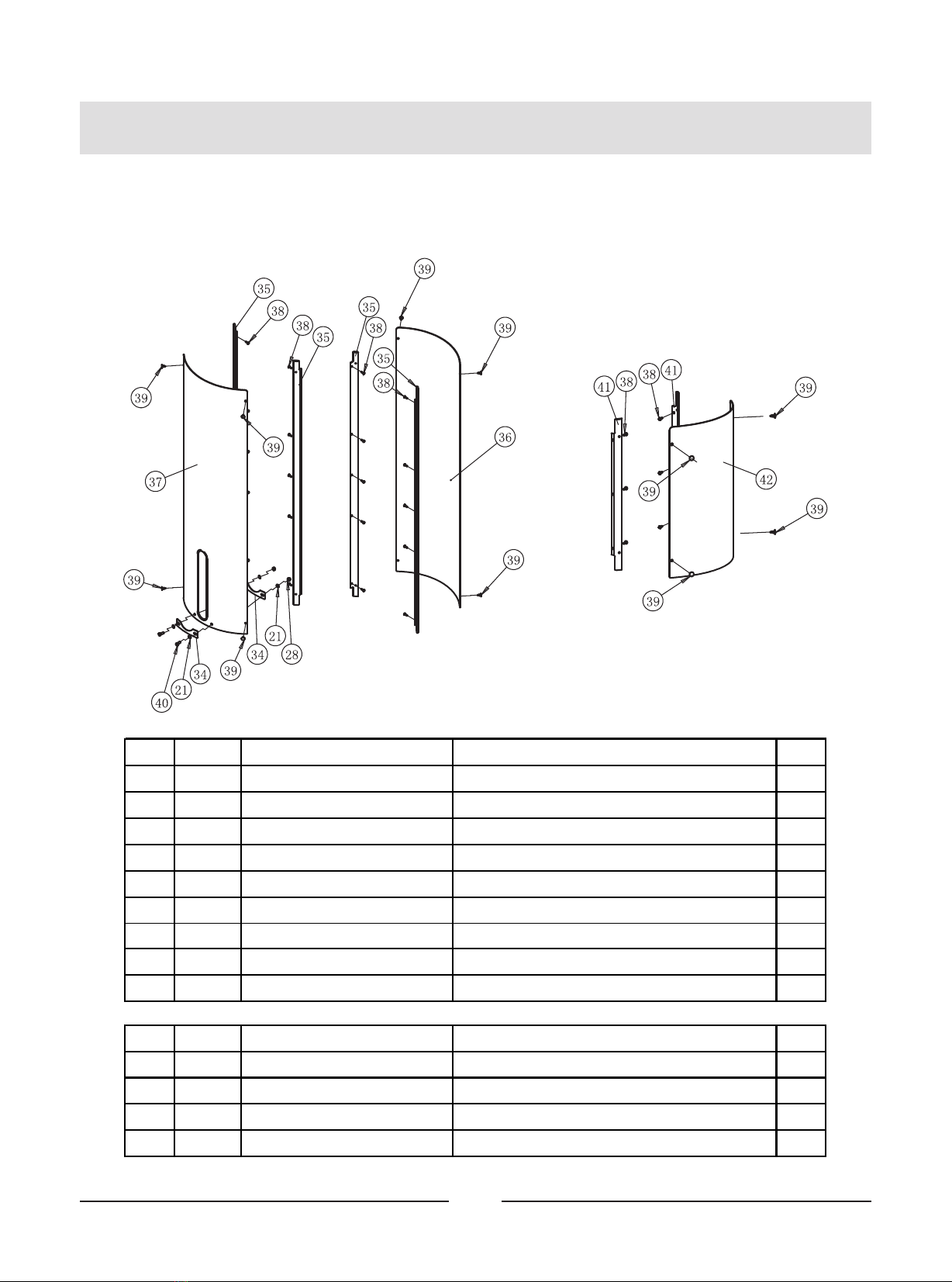

Full Shroud ASSY Short Shroud ASSY
ItemNo. Grade No. Part No. Description QTY
1 34 IT93153400 Curved Plate 2
2 35 IF93279100 Long Shroud Retainer Plate 4
3 36 IF93254000 Long Rear Shroud 1
4 37 IF932790ASSY Long Shroud ASSY 1
5 38 GB818M6*20DS2 Cross Disc Self Tapping Screw ST4.2*16 20
6 39 IT90014300 Button 8
7 21 GB9510DS2 Flat Washer Φ11*Φ20*2 4
8 40 GB5780M10*25DS20 Hex Head Bolt M10*25 2
9 28 NM10DS2 Nylon Lock Nut M10 2
ItemNo. Grade No. Part No. Description QTY
1 41 IF93279400 Short Shroud Retainer Plate 2
2 42 IF93279300 Short Shroud 1
3 38 GB818M6*20DS2 Cross Disc Self Tapping Screw ST4.2*16 6
4 39 IT90014300 Button 4

Inches
Millimeters
BHCS = Button Head Cap Screw
SHCS = Socket Head Cap Screw
FHCS = Flat Head Cap Screw
HHB = Hex Head Bolt
Measurement Guide
Diameter of bolt
(mm/inch) M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8")
Tightening
torque (N.m) 9~12 22~30 45~59 78~104 193~257
Operational
methods for
adult men
The strength of
the wrist
The strength of
the wrist and
forearm
The strength of
the entire arm
The strength of
the arm and
upper body
with all strength
16
CRPHS = Cross Recessed Pan
Head Screw

17
Assembly Instructions
Assembly of the equipment takes professional installers about 2 hours. If this
is the first time you have assembled this type of equipment, plan to spend
more time. It is strongly recommended to assemble the equipment by
professional installers. You may find it quicker, safer, easier to assemble this
equipment with the help of a friend, as some of components may be large,
heavy or awkward to handle alone. It is important that you assemble your
product in a clean, clear, uncluttered area. This will enable you to move around
the product while you are fitting components and reduce the possibility of
injury during assembly.
As with any assembled part, proper alignment and adjustment is critical. While
tightening the fasteners, be sure to leave room for adjustments. Do not fully
tighten the fasteners until instructed to do so. Be careful to assemble the
components in the sequence presented in this guide.
NOTE

STEP 1

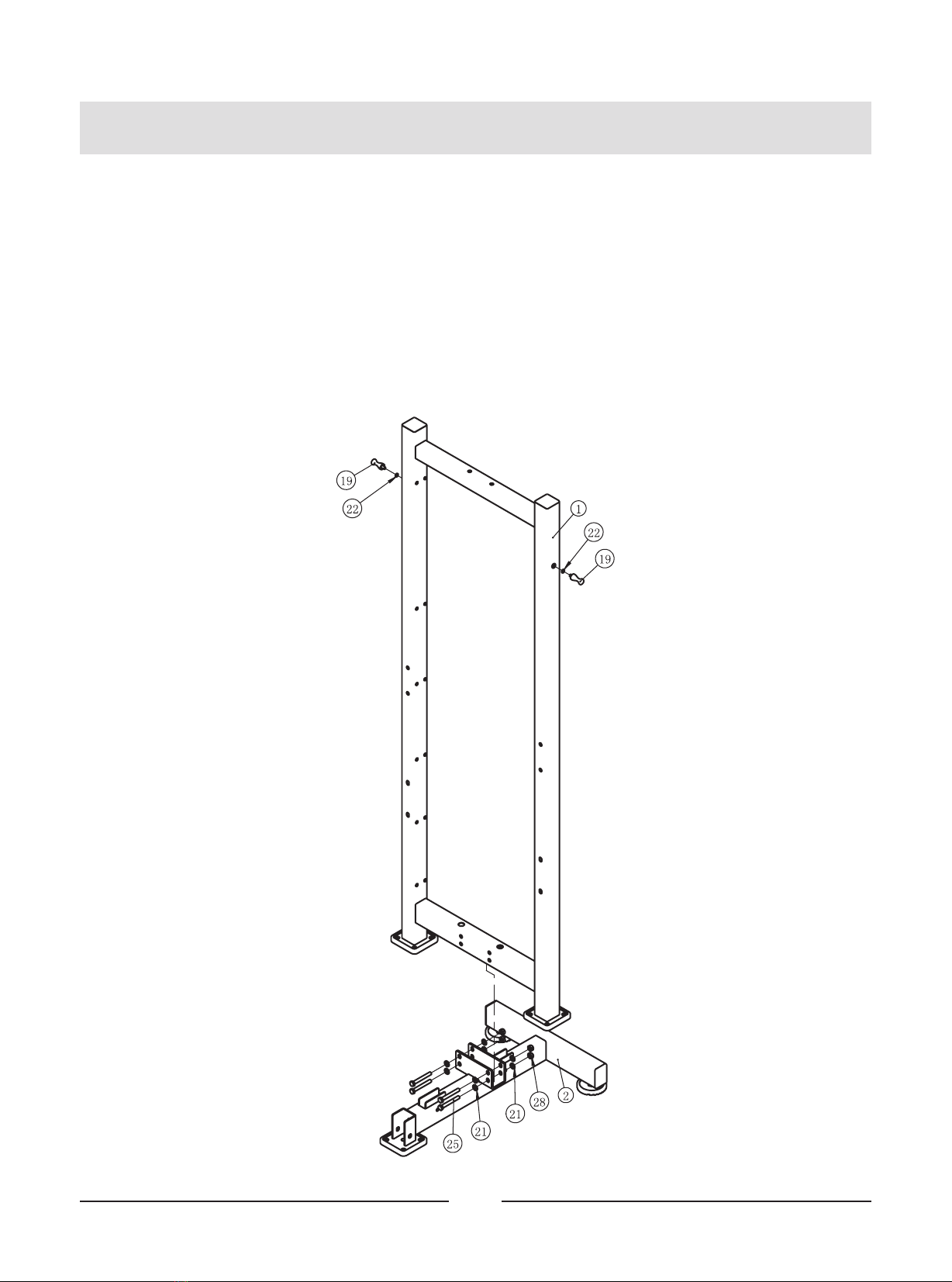

1. Attach the Bottom Cross Frame ASSY (#2) to the Main Frame ASSY (#1) using:
four M10*80 HHB (#25)
four M10 Nylon Lock Nut (#28)
eight Φ11*Φ20*2 Flat Washer (#21)
2. Attach two Hanger Column (#19) and two Spring Washer Φ8 (#22) to the Main Frame
ASSY (#1).
Note: Hand Tighten Bolts and Nylon Lock Nuts until Machine is Fully Assembled.
Assembly
18

Assembly
19
STEP 2
1. Attach the Right Front Frame ASSY (#4) and the Left Front Frame ASSY (#5) to the
Main Frame ASSY (#1) using:
four M10*85 HHB (#27) four M10 Nylon Lock Nut (#28)
eight Φ11*Φ20*2 Flat Washer (#21)
2. Attach two Handdle Frame ASSY (#10) to the Main Frame ASSY (#1) using:
four M10*80 HHB (#25) four M10 Nylon Lock Nut (#28)
eight Φ11*Φ20*2 Flat Washer (#21)
Note: Hand Tighten Bolts and Nylon Lock Nuts until Machine is Fully Assemble.

Assembly
20

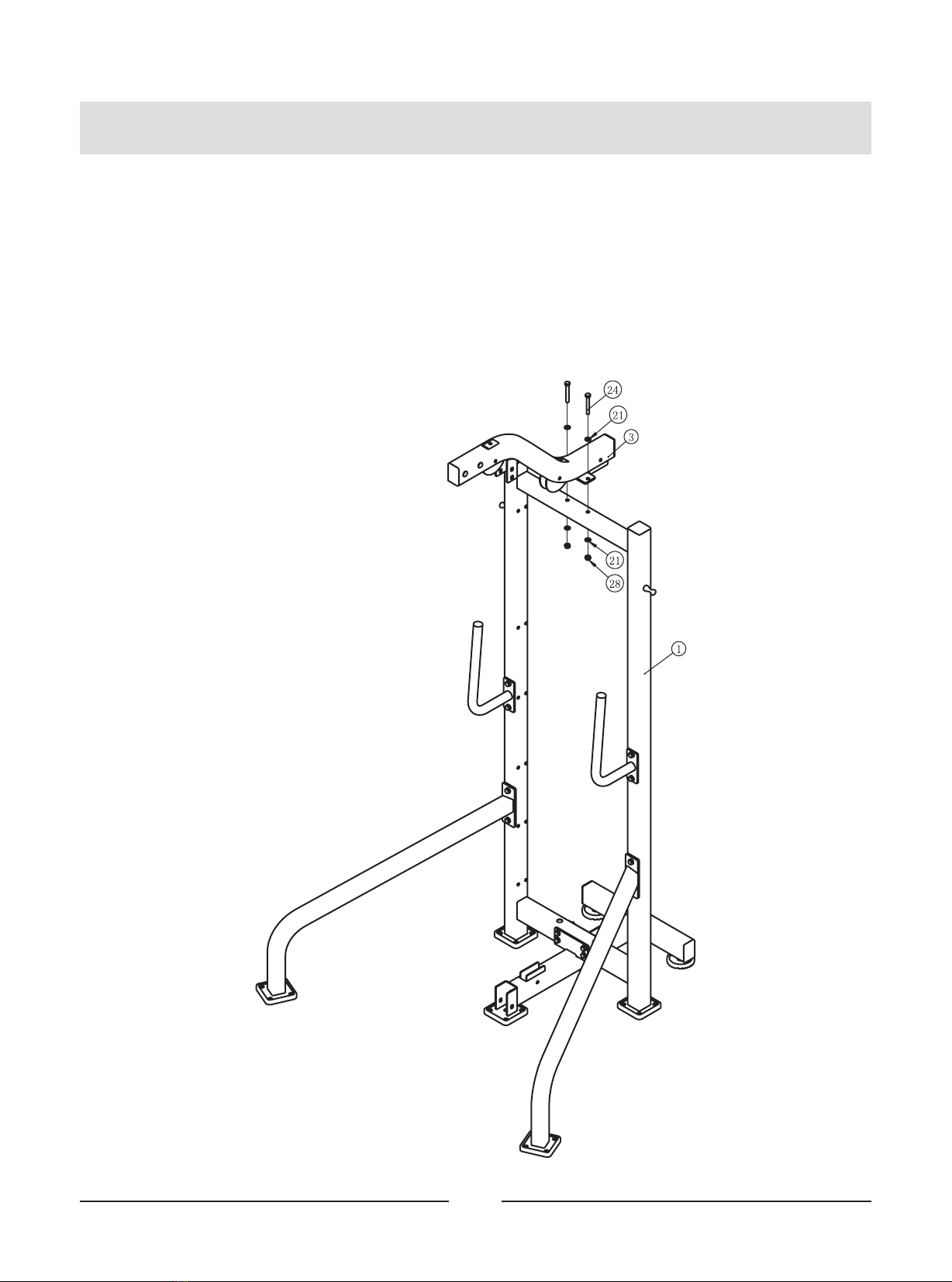

STEP 3
Attach the Top Cross Frame ASSY (#3) to the Main Frame ASSY (#1)) using:
two M10*75 HHB (#24)
two M10 Nylon Lock Nut (#28)
four Φ11*Φ20*2 Flat Washer (#21)
Note: Hand Tighten Bolts and Nylon Lock Nuts until Machine is Fully Assemble.
