HI-LOW FUNCTIONION TRAINEROWNER'S MANUALHSP-PRO00221NCAUTION! Read all precautions and instructions in this manual before using this equipment.

Table Of ContentsCAUTION!Read all precautions and instructions in this manual before using this equipment.Important Safety Instructions----------------------------------------------------------- 3Instructions-------------------------------------------------------------------------------- 5Exploded View and Parts List------------------------------------------------------------ 6Measurement Guide---------------------------------------------------------------------- 8Assembly Instructions-------------------------------------------------------------------- 9Assembly--------------------------------------------------------------------------------- 10Adjust Instructions and Exercise Instructions---------------------------------------- 17Maintenance Schedule------------------------------------------------------------------ 18Console Panel Functions---------------------------------------------------------------- 19

Important Safety InstructionsBefore beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following:1. Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit.2. Use the equipment only for its intended purpose as described in this guide. Do not use accessory attachments that are not recommended by the manufacturer: such attachments might cause injuries.3. The product should only be used on a level surface and is with 0.6 meters space around the product. Do not use the equipment outdoors.4. Do not allow children on or near the equipment. And children are not allowed to use this equipment. Teenagers should use this equipment with adult supervision.5. Do not overexert yourself or work to exhaustion. Do not attempt to lift more weight than you can control safely. If you feel any pain or abnormal symptoms, stop your workout immediately and consult your physician.6. This equipment is not used as medical apparatus and instruments.7. Never operate the unit when it has been dropped or damaged. Never drop or insert anything into any opening in the equipment. Always check the unit and its cables before each use. Make sure that all fasteners and cables are secure and in good working condition. Frayed or worn cables can be dangerous and may cause injury. Periodically check these cables for any indication of wear. Keep hands, limbs, loose clothing and long hair well out of the way of moving parts.8. Be careful when getting on or off the equipment.9. Wear proper exercise clothing and shoes for your workout, no loose clothing.3

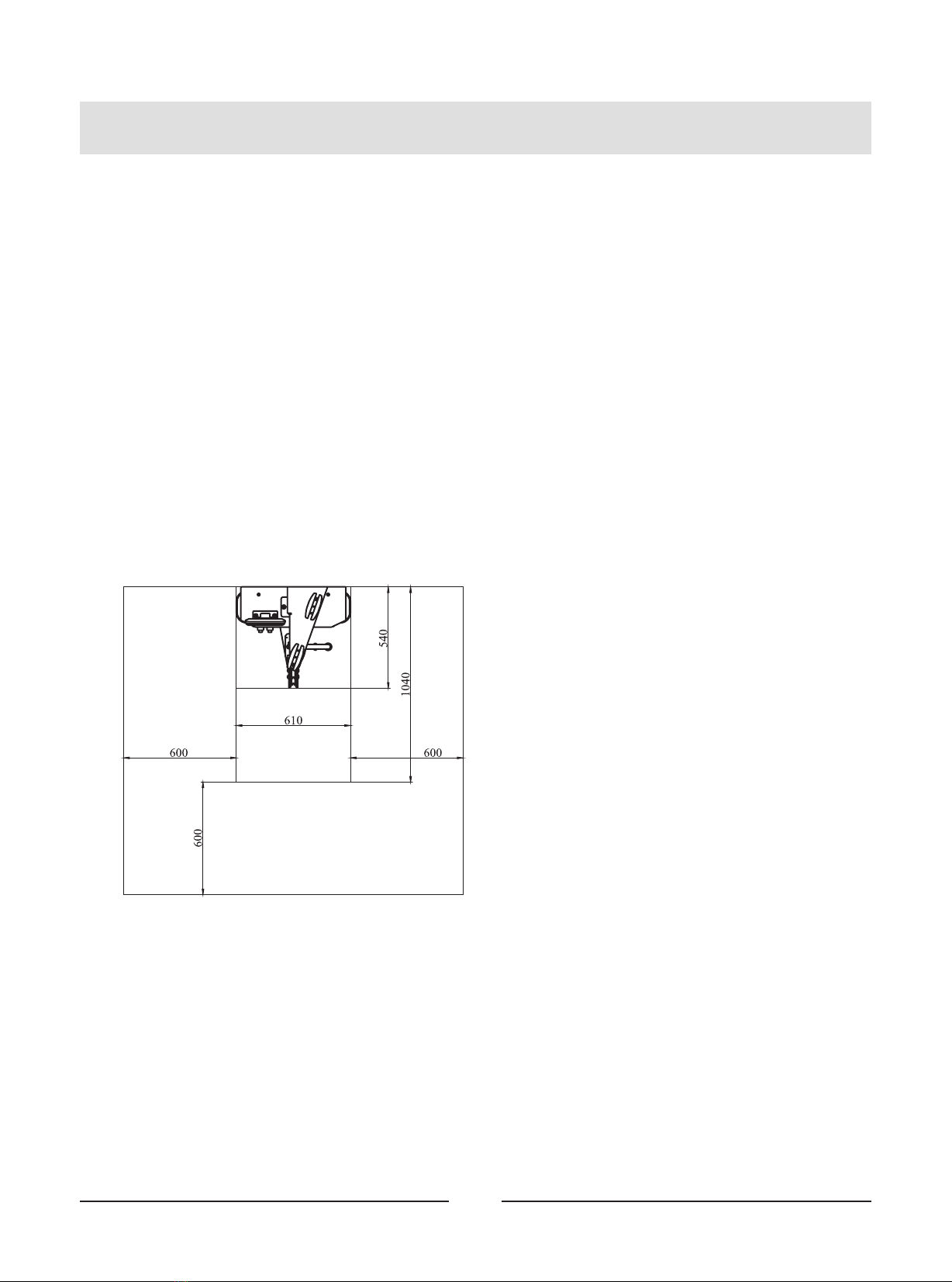

Training Area and Free Area4Important Safety InstructionsPersonal Safety During AssemblyRead each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment.Assemble and operate the equipment on a solid, level surface. Locate the unit a few feet from walls or furniture to provide easy access. The equipment is designed for your enjoyment. By following these precautions and using common sense, you will have many safe and pleasurable hours of healthful exercise with the equipment.SpecificationsClass: SMaximum Wt. Capacity: 37.5kg/ 83lbsProduct Dimension: 610*540*2340mmProduct Total Surface: 610*1040mmProduct Total Mass: 112.5kg/248lbsTraining AreaFree Area

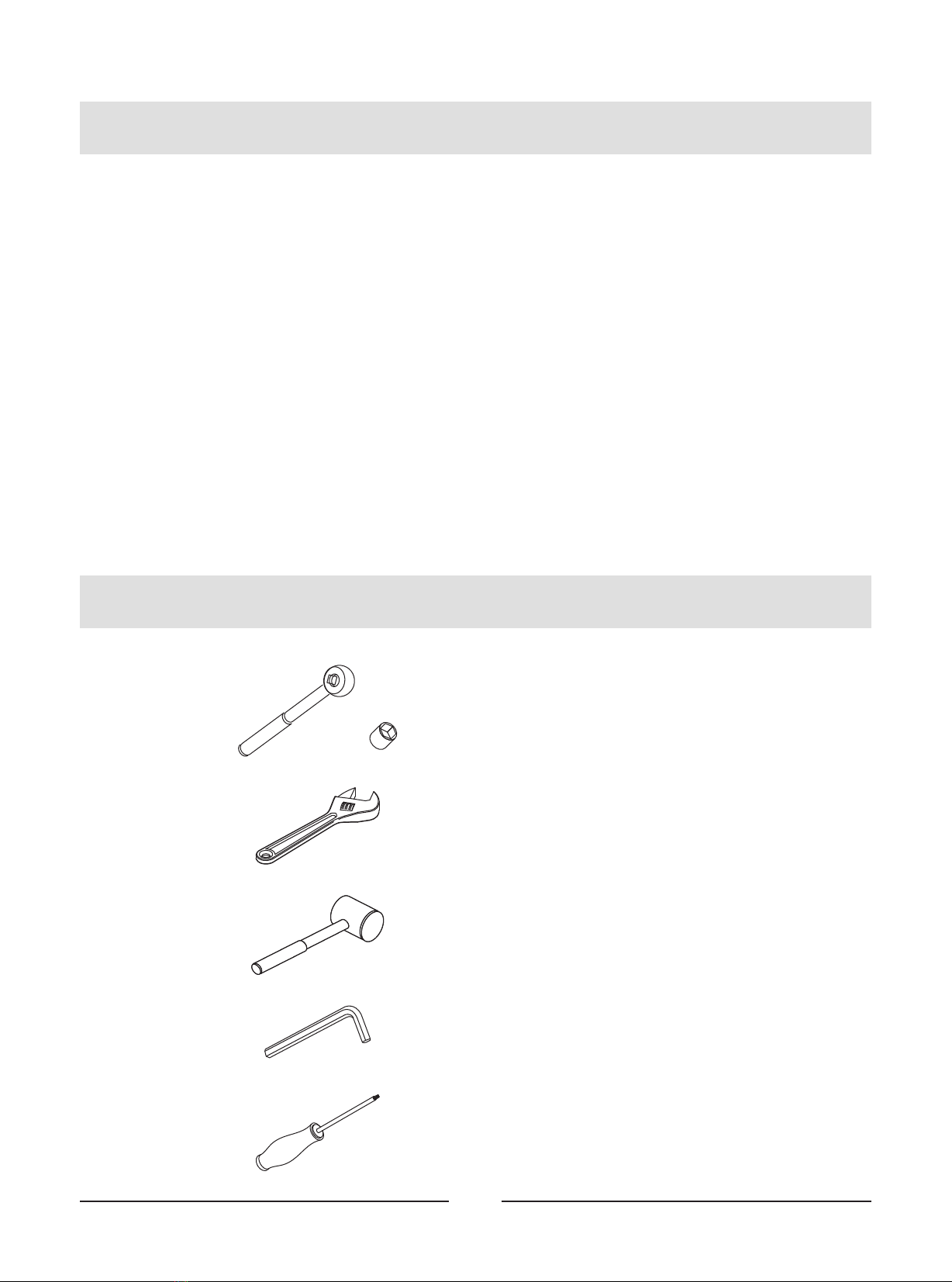

5InstructionsTools RequiredThe equipment is designed to provide the smoothest, most effective exercise motion possible. After assembly, you should check all functions to ensure correct operation. If you experience problems, first recheck the assembly instructions to locate any possible errors made during assembly. If you are unable to correct the problem, call your authorized dealer. Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on.Ratchet Wrench and SocketAdjustable WrenchRubber MalletHex Key Wrench Set Phillips ScrewdriverBefore beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. Use only our replacement part when servicing. Failure to do so will void your warranty and could result in personal injury.

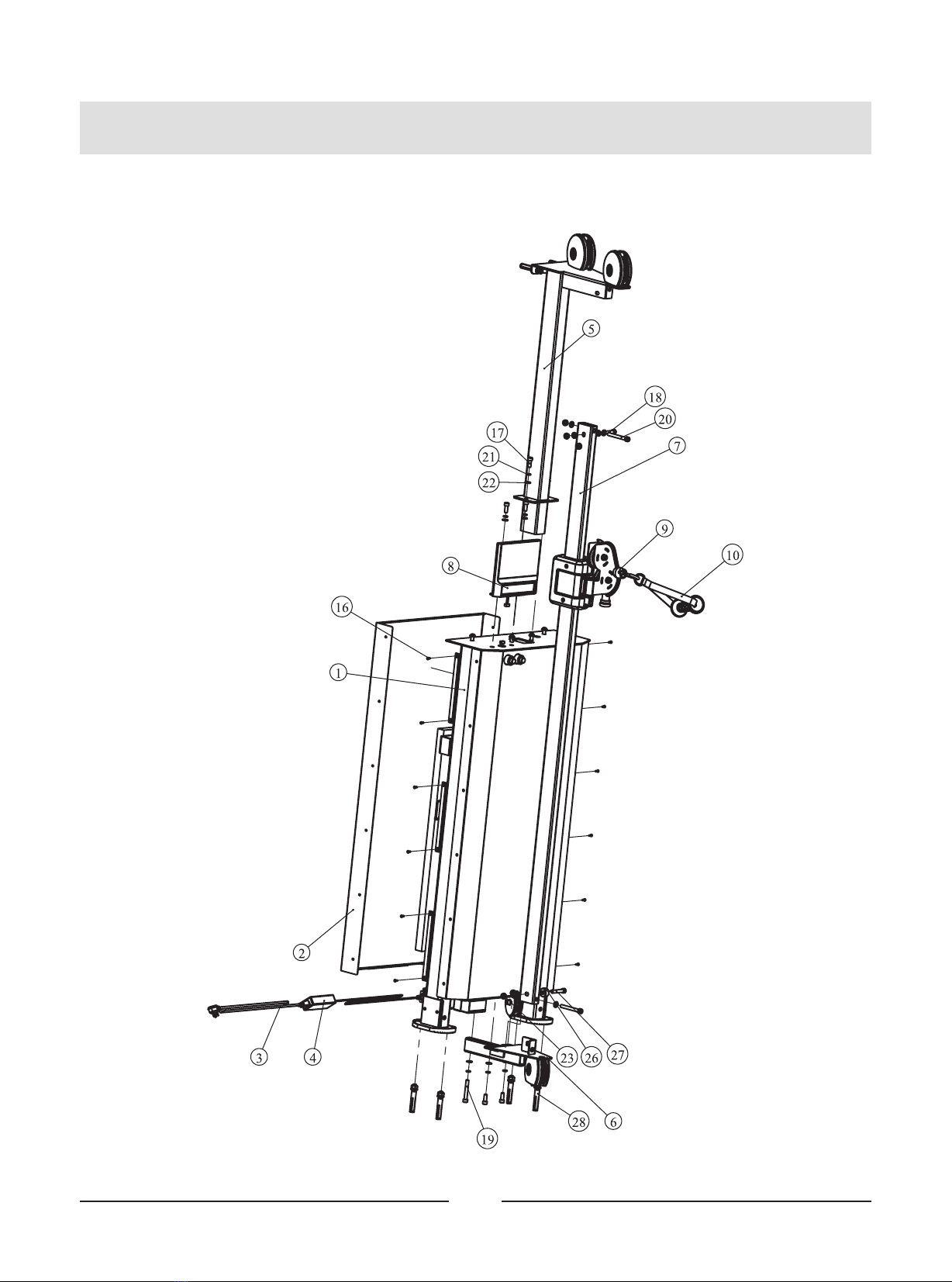

6Exploded View and Parts ListOverall

Item No. Part No.DescriptionQTY1HSP-PRO00201ASSYMain Assy12HSP-PRO0021700Back Cover13A09-5Power Cable14DQSPQ24V6AAdaptor15HSP-PRO00202ASSYUp Bracket Assy16HSP-PRO00203ASSYUnderframe Assy17HSP-PRO00204ASSYSlide Assy18HSP-PRO00205ASSYConsole Assy19HSP-PRO00229000ASSYRope Hook Assy110CG60006100V2Strap Handle116GB845ST4.2*13DHSPan Head Tapping Screws With Cross Recessed 4.2*131217GB70M10*25DS20Screw M10*25618GB70M10*50DS20Screw M10*50119GB70M10*70DS2Screw M10*70120GB70M10*90DS20Screw M10*90221GB9310DS12Spring Washer φ10722GB9510DS2Flat Washer φ101423NM10DS2Nut M10426IT95252200Nylon Bush127GB70M10*55DS20Screw M10*55128GB22795TGQM12*100DSExpansion Bolt6

7Exploded View and Parts ListOverall

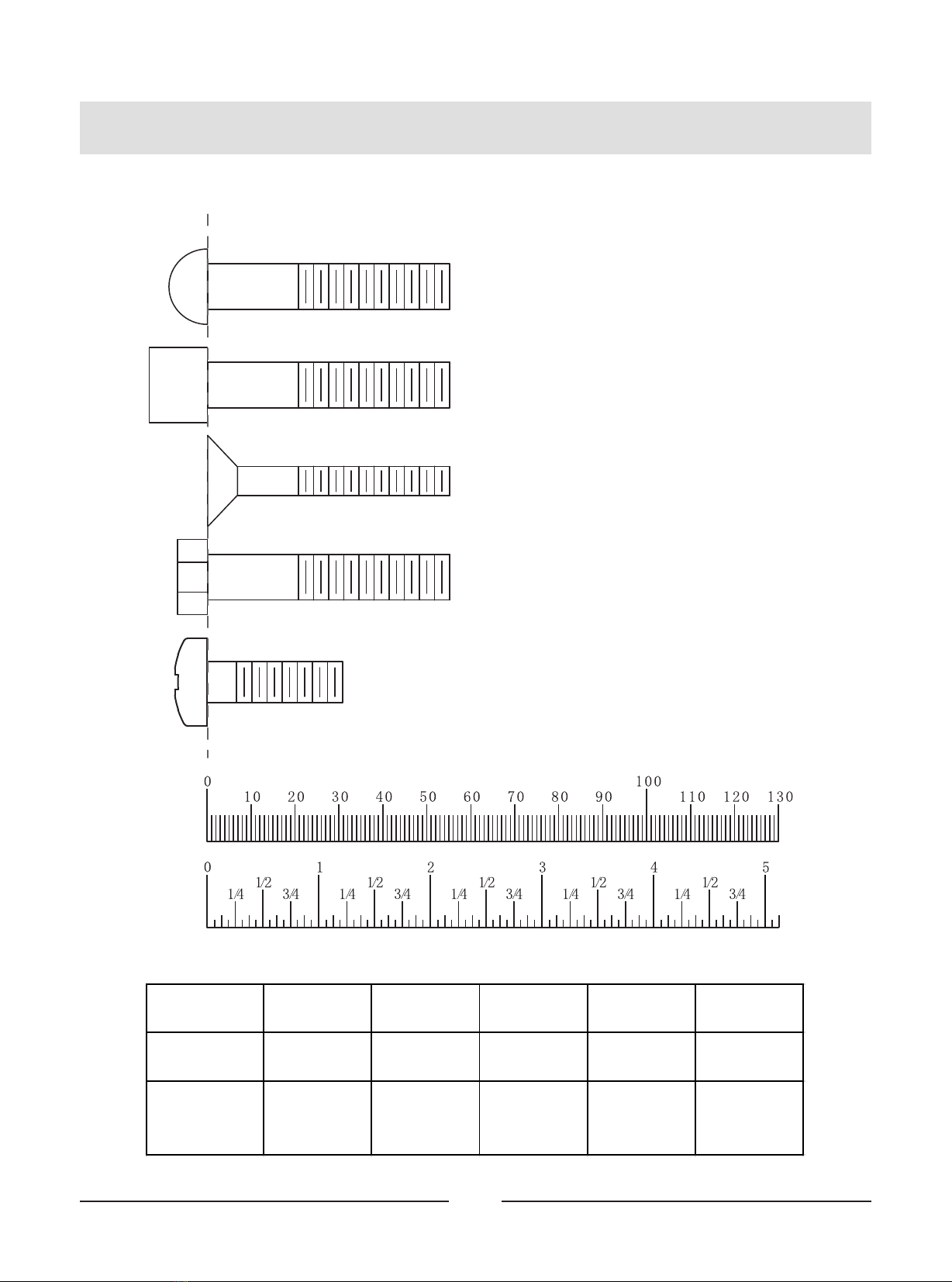

InchesMillimetersBHCS = Button Head Cap ScrewSHCS = Socket Head Cap ScrewFHCS = Flat Head Cap ScrewHHB = Hex Head BoltMeasurement Guide

Diameter of bolt(mm/inch)M6(1/4")M8(5/16")M10(3/8")M12(1/2")M16(5/8")Tighteningtorque (N.m)9~1222~3045~5978~104193~257Operationalmethods foradult menThe strength ofthe wristThe strength ofthe wrist andforearmThe strength ofthe entire armThe strength ofthe arm andupper bodywith all strength

8CRPHS = Cross Recessed Pan Head Screw

9Assembly InstructionsAssembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone. It is important that you assemble your product in a clean, clear, uncluttered area. This will enable you to move around the product while you are fitting components and reduce the possibility of injury during assembly.As with any assembled part, proper alignment and adjustment is critical. While tightening the fasteners, be sure to leave room for adjustments. Do not fully tighten the fasteners until instructed to do so. Be careful to assemble the components in the sequence presented in this guide.NOTE

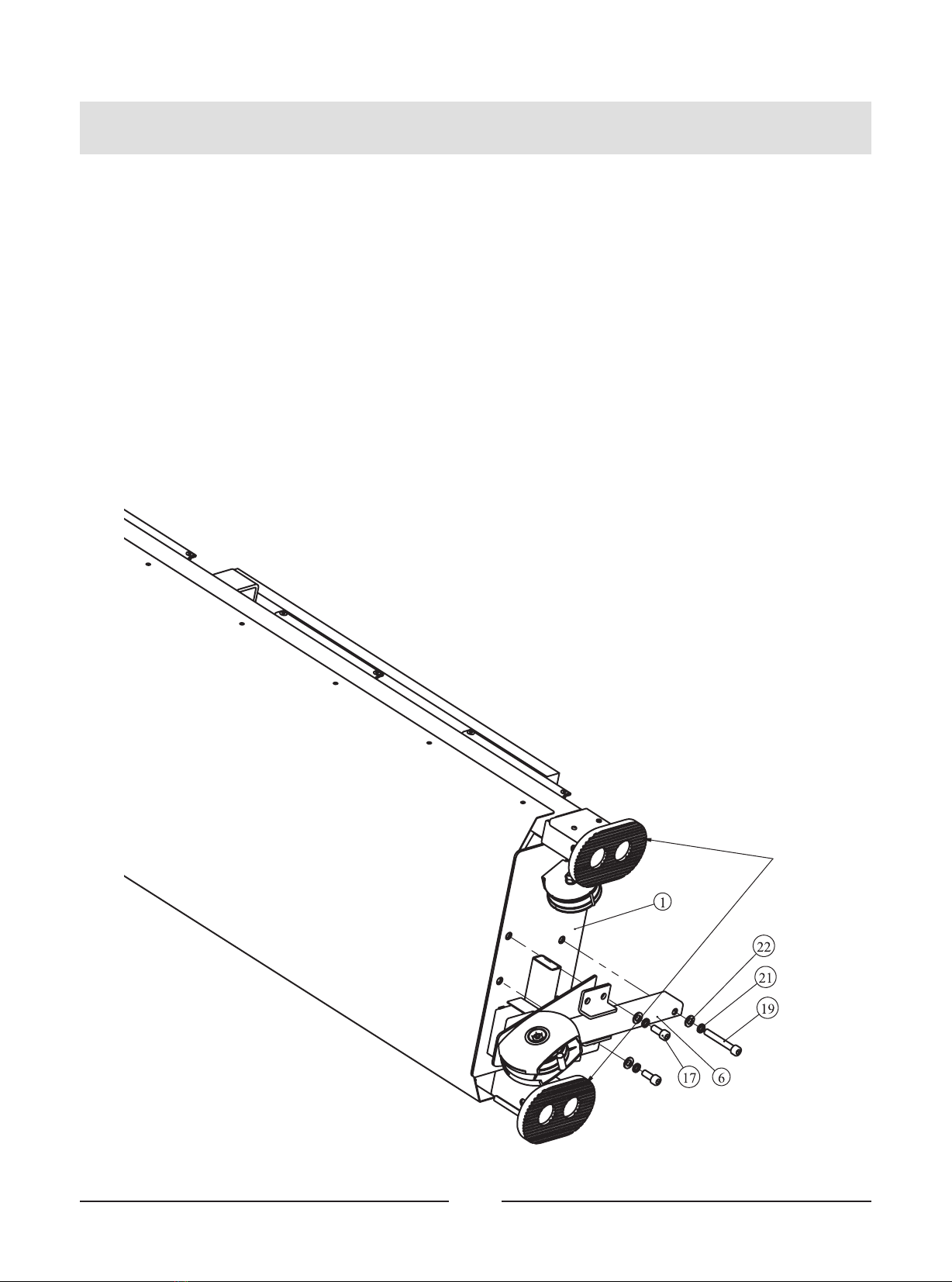

Floor MatSTEP 1Install the Main Assy (#1) and Underframe Assy (#6) together, Use the following parts: two Screw M10*25 (#17) one Screw M10*70 (#19) three Spring Washer Φ10 (#21) three Flat Washer Φ10 (#22) Tighten with a wrench S=8 (#24)Note: If expansion bolts are used, remove the 2 floor mat, as is shown in.Assembly10

STEP 2Install the Main Assy (#1) and Up Bracket Assy (#5) together, Use the following parts: two Screw M10*25 (#17) two Spring Washer Φ10 (#21) two Flat Washer Φ10 (#22)Note: Do not tighten the bolts.Assembly11

STEP 3Install the Main Assy (#1) and Console Assy (#8) together, Use the following parts: two Screw M10*25 (#17) two pring Washer Φ10 (#21) two Flat Washer Φ10 (#22) Tighten with a wrench S=8 (#24)Note: Insert the two connectors A and B before installation.Assembly12

STEP 4Install the Main Assy (#1) and Slide Assy (#7) together, Use the following parts: two Screw M10*90 (#20) one Screw M10*55 (#27) one Screw M10*50 (#18) one Nylon Bush (#26) seven Flat Washer Φ10 (#22) four Nut M10 (#23) Tighten with a wrench S=8 (#24)Note: Tighten the bolts of step 2.Assembly13

STEP 5Cut off the ties, as is shown in no 1-13.Note: Do not cut the cable, cut all the ties.Assembly14

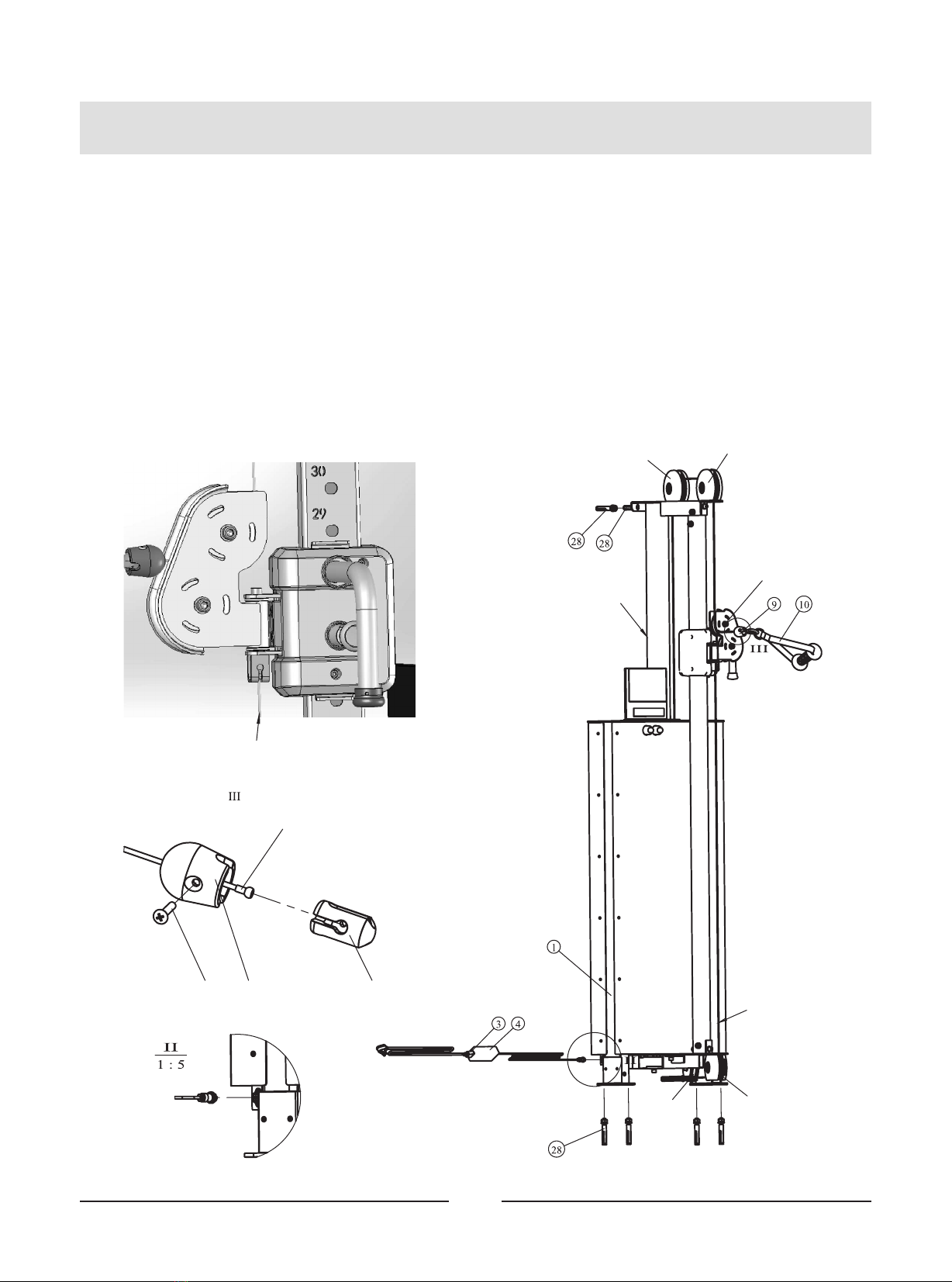

Pulley APulley BPulley CPulley DPulley EUpper CableUnder CableBoltCableInner SetOuter SetUnder Cable Assemble DiagramSTEP 61. Slip the upper cable from pulley A and pulley B in the Strap Handle (#10), remove the screws before putting them in, put the cable into the outer set and then into the inner set, tighten the bolts (Refer to the attached figure).2. Slip the under cable from pulley D and pulley E in the Swinging rack.3. Install the Power Cable (#3) and Adaptor (#4) then install the splice of Main Assy (#1).Note: Keep the cable away from the post.If you need to fix the equipment to the wall, please use expansion bolts (#28).Assembly15

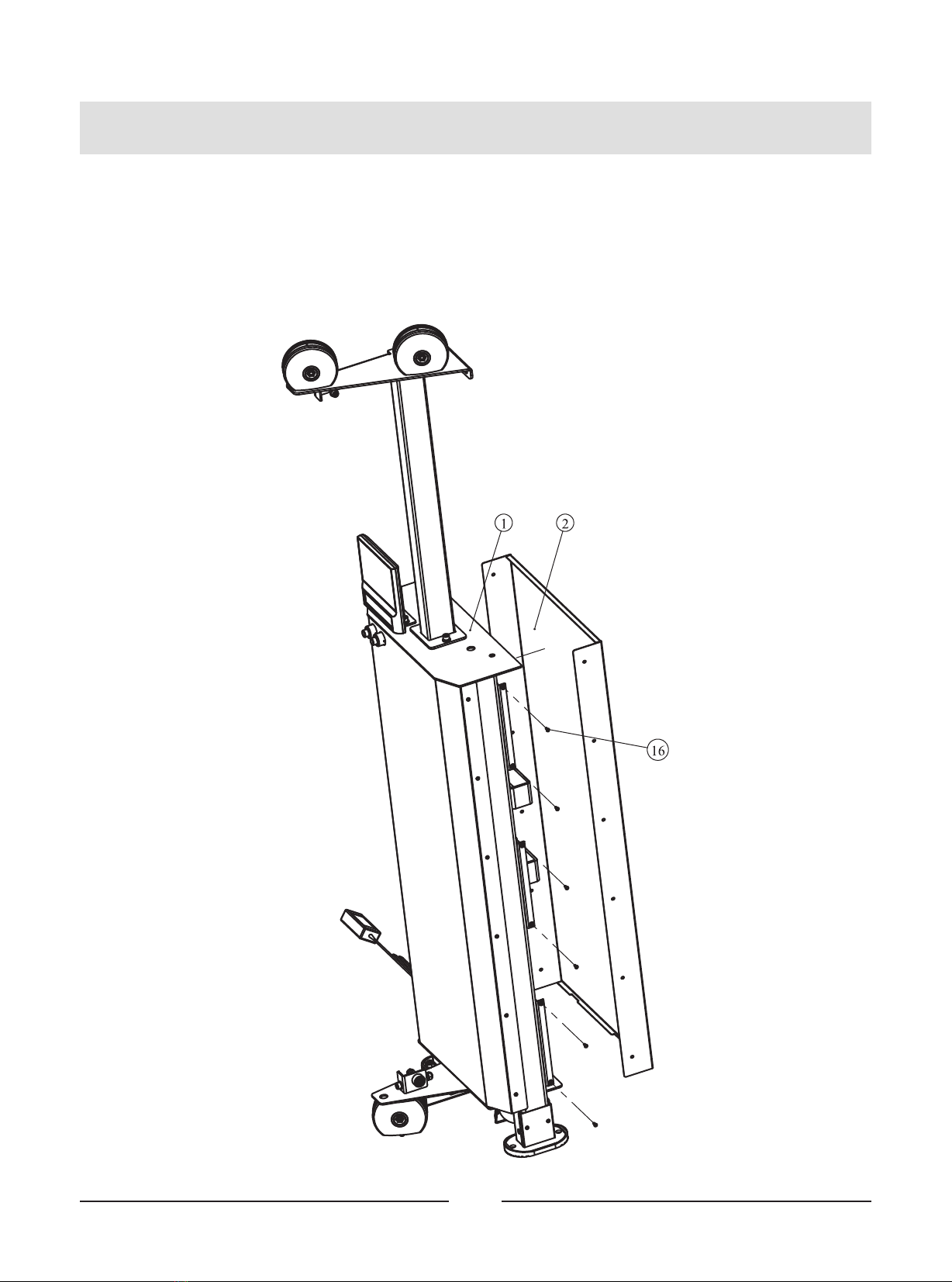

STEP 7Install the Main Assy (#1) and Back Cover (#2) together, Use the following parts: twelve Pan Head Tapping Screws With Cross Recessed 4.2*13 (#16)Assembly16

HandrailFixed Pin17Adjust Instructions and Exercise InstructionsAdjust the pulley frameHold the handrail, lift the bolt, adjust the pulley frame to the right position, loosen the bolt and insert the bolt into the hole.Note: Make sure the bolt has been inserted into the hole before use.Exercise Instructions

PlugBack CoverBottom Cover18Every 6 months (use frequrency can increase or decrease interval time), remove the bottom cover (there's one on each side) & back cover, then open the plug for draining the tank of water. Note: Please place the water container in advance, preventing the water from dripping into the equipment.Maintenance Schedule

1. Definition of LED display interface of electronic watch:Parameter display and function description1.1 RESISTANCE: The resistance window displays the resistance value set by the user. Minimum adjusted variable 0.1, "OFF" is displayed in standby mode.1.2 REPS (left/right): The left and right windows of single air resistance products are linked to display a set of values simultaneously. (The left and right times window of the double air resistance product respectively display the corresponding exercise times.)1.3 PEAKPOWER: Display the maximum power output value of a single user in all training times this time. When a new power peak (maximum) appears, it will replace the current value.1.4 PEAKPOWER%: Display the ratio of the user's latest power value to the peak power (percentage).1.5 Usage mode: someone uses, the screen lights up, and each window displays the corresponding content.
