Insignia GT6000 User manual

www.insigniarange.com Last Modied: 26/01/2017
INSTALLATION MANUAL
GT6000
ATTENTION INSTALLERS:
These instrucons must be
le with the customer
30 Day Technical Support: 01908 226545
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier’s details and your postcode to hand before calling)
Replacements Parts: inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts: outside of your warranty
contact 0844 800 3069
www.insigniarange.co.uk
WARRANTY REG NO: __________________________
To claim your full 5 year warranty, register your shower within 90 days of delivery at: www.insigniarange.co.uk/
warrantyreg.aspx. Standard 12 month warranty applies if outside this me period.
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!

www.insigniarange.com Last Modied: 26/01/2017
02
Contents
Introduction
Electrical Requirements
What’s In The Boxes?
Screw Pack Contents
Plumbing Requirements
Schematics
Starting The Installation
Electric Box Connections

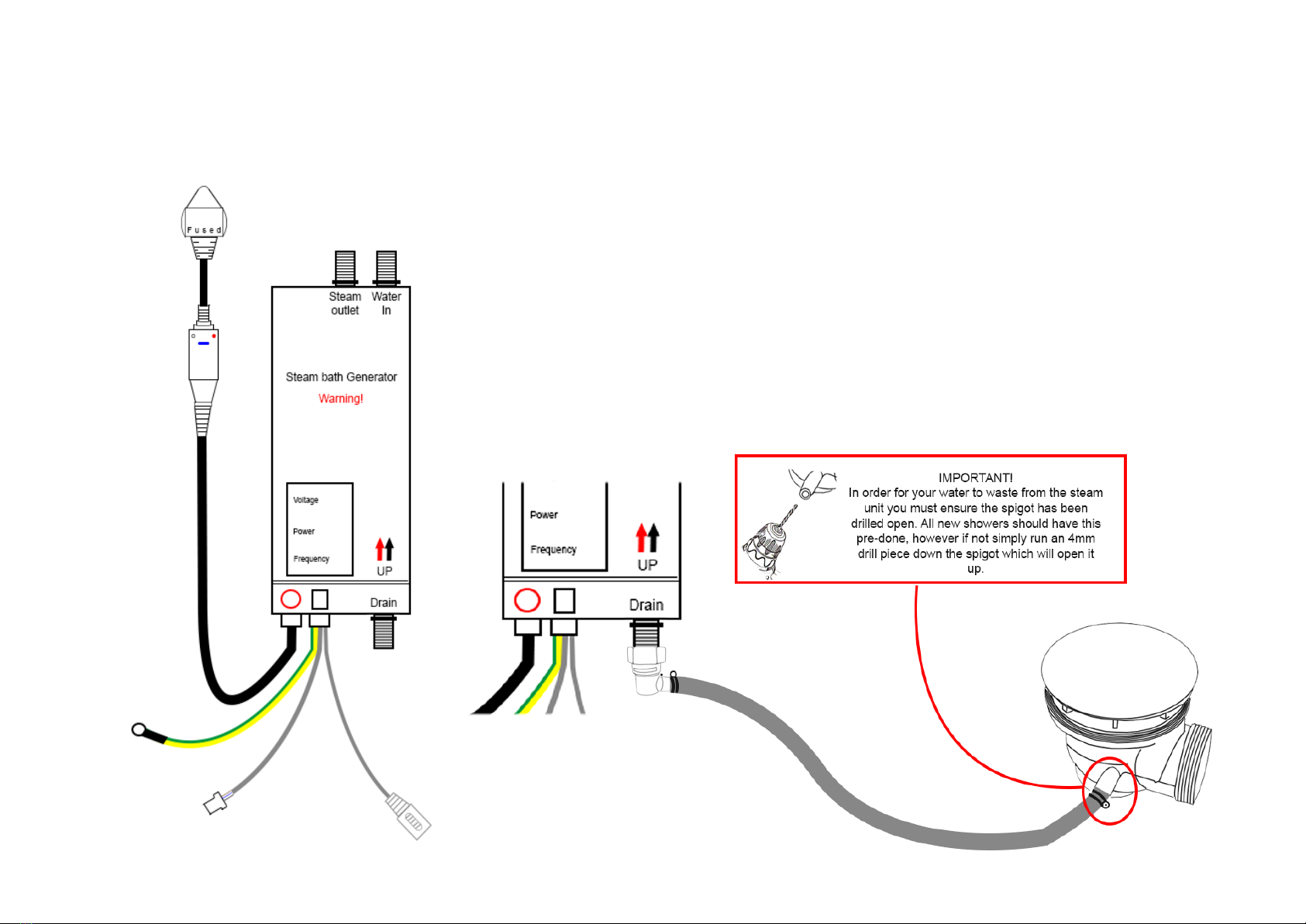

Steam Generator Connections
Sealing and Water Testing
MK117 Control Panel Instructions
Help Book Information
Parts List
3
5
7
8
9
10
11
18
19
20
21
22
23

www.insigniarange.com Last Modied: 26/01/2017
03
Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that
will last for many years to come!
Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of
your finish.
OUR BADGE RATING IN TERMS OF DIFFICULTY OF ASSEMBLY IS BASED ON CLIENT FEEDBACK
1 Badge = Very easy
2 Badges = Easy
3 Badges = Moderate
4 Badges = Harder than average
5 Badges = Professional skills required
This shower is rated 3 Badges

www.insigniarange.com Last Modied: 26/01/2017
04
ASSEMBLY AND PLUMBING
THIS PRODUCT BUILD IS RATED SUITABLE FOR DIY PURPOSES PROVIDING THE CUSTOMER IS OF ABOVE AVERAGE SKILL AND FEELS CONFIDENT IN
THEIR ABILITY. ONLY YOU THE CUSTOMER WILL KNOW THIS SO BEFORE ANY ATTEMPT IS MADE TO ASSEMBLE, READ THROUGH THE FOLLOWING
PAGES IN DETAIL THEN DECIDE. IF YOU HAVE ANY DOUBT USE THE SERVICES OF A PROFESSIONAL. IN PICKING SUCH, ALLOW THEM TO DECIDE IF
THEY ARE CAPABLE OF BUILD BY FIRST SHOWING THESE INSTRUCTIONS TO THEM. ALWAYS GET THREE QUOTES.
REMEMBER THE BEST IS NOT ALWAYS THE CHEAPEST!
REMEMBER PLUMBERS PLUMB! 90% OF THIS JOB IS NOT PLUMBING!
DUE TO THE NATURE OF THIS PRODUCT WE HIGHLY ADVISE THE PURCHASE AND FITTING OF A WATER SOFTENER
(PLEASE NOTE LIMESCALE BUILD UP MAY CAUSE DAMAGE TO YOUR SHOWER AND WILL NOT BE COVERED UNDER WARRANTY)
ELECTRICAL CONNECTION TO HOUSE MAINS
WHEN YOUR ITEM IS ASSEMBLED ALWAYS USE THE SERVICES OF A FULLY QUALIFIED ELECTRICAN COMPANY TO COMPLETE THE CONNECTION FROM
SHOWER TO THE HOUSE SUPPLY. LAWS DEMAND IN MANY CASES YOU DO THIS AND YOUR WARRANTY IS VOID IN REGARDS TO THE ELECTRICAL
ITEMS IF THIS IS NOT UNDERTAKEN.
YOURS AND OTHERS SAFETY IS PARAMOUNT. NEVER ATTEMPT THIS YOURSELF!
REMEMBER:
These showers are designed to be free standing and movable from their location should you have the need to replace anything. ALWAYS USE Flexible braided water
inlet pipes (not supplied) at least a metre long (not central heating plastic type!)
Always use a flexible waste pipe from your house supply to the shower .
NEVER FIX with rigid pipes, NEVER FIX the unit to the wall.
DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE.
If you are using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the RubberGum to fail and
will not adhere as intended.
ATTENTION
ALWAYS FIT EASY TO GET TO ISOLATION TAPS ON BOTH THE HOT AND COLD WATER SUPPLY (NOT SUPPLIED). JUST LIKE A
DISHWASHER OR WASHING MACHINE, THIS PRODUCT MUST BE ISOLATED WHEN NOT IN USE.
FLEXIBLE SUPPLY HOSES (NOT SUPPLIED) COUPLE HERE AS ORIGIN OF SUPPLY

www.insigniarange.com Last Modied: 26/01/2017
05
TOTAL ELECTRICAL REQUIREMENTS
Voltage Rating 220 -240AC
Frequency Rating 50HZ
Power Rating 2.8KW
Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation.
UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!!
Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way
due to continued additions to current regulations. As at October 2010 we offered two methods.
1) Connect within current laws and IP directives using plug and RCD provided with steam version or supply one for non steam version
2) (Preferred) Wire into isolated fused feed connecting directly to the house consumer/service box. Remove the fitted plug and ensure the
Consumer unit has capabilities to replace RCD feature if RCD is removed.
Always use protection against electrical surge. Your shower should be treated the same as a home computer. A surge protector should
eradicate the possibility of either the transformer or computer control being burnt out. Please note earth is required and found on chassis of
shower tray. A further earth is required from Steam Generator unit. Each earth must ground through power supply line.

www.insigniarange.com Last Modied: 26/01/2017
06

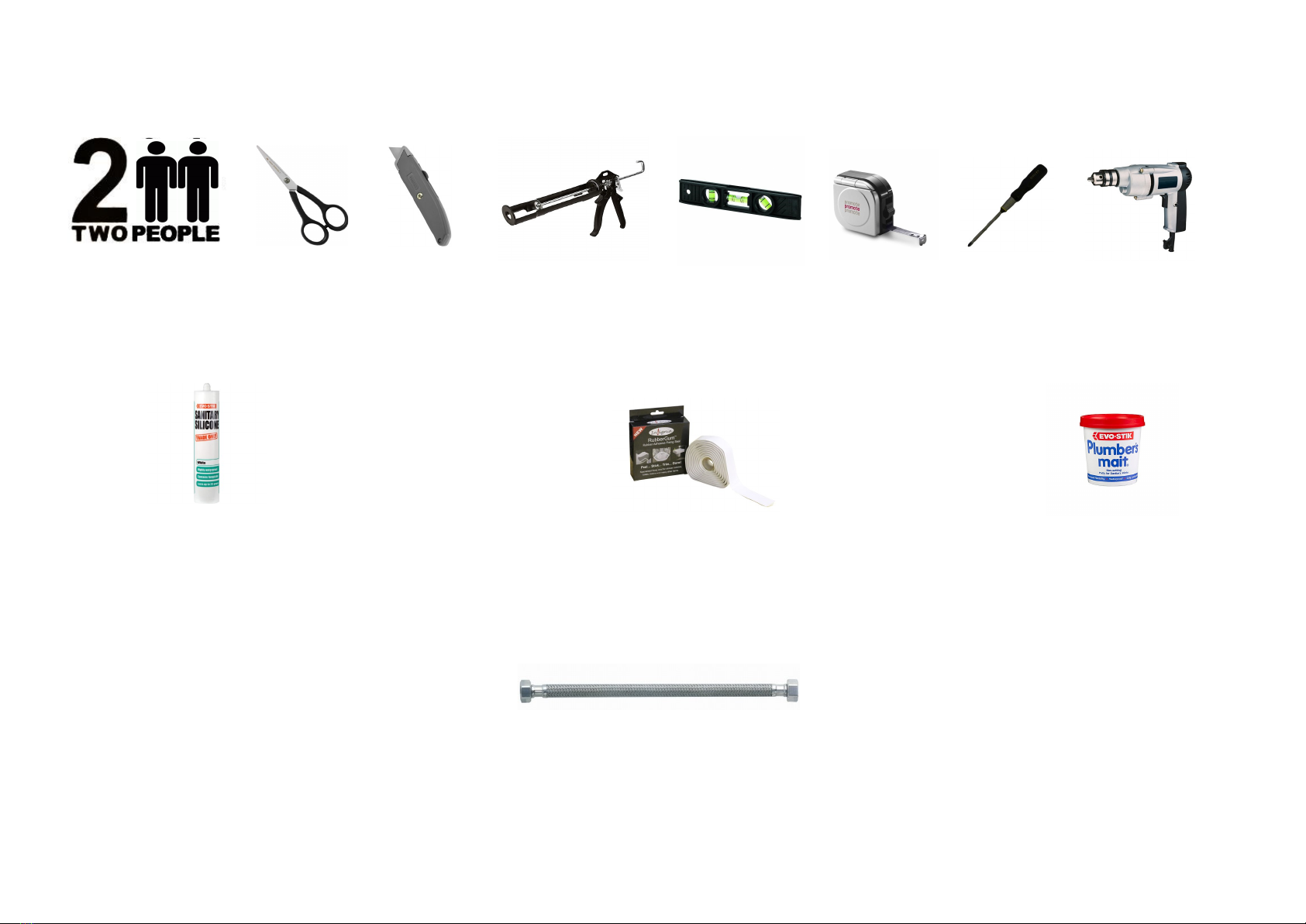

Tool Requirements
None Supplied
Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill
Adhesive Requirements
Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum Plumbers Mait (for waste joints)
Not Supplied Supplied Not Supplied
Hardware Requirements
A Steam Shower requires 3 x 1 Metre Braided Hose
Not Supplied

www.insigniarange.com Last Modied: 26/01/2017
07
Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice
is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word
“DRY RUN” this means you do not silicone anything, just simply construct the shower, align, drill and screw everything together. Once you are happy with the build take the
unit apart and carry out the final fix.
What’s In The Boxes?
Tray Box
1x Tray
1x Roof
2x Curved Rails
Glass Room
2x Door seals
2x Glass doors
2x fixed glass
Column
1x Complete Column
Backwalls
1x Left Panel Backwall
1x Right Panel Backwall
In addition to above you will have all the required internal accessories to complete the shower

www.insigniarange.com Last Modied: 26/01/2017
08
Insignia Screw Pack
VERY IMPORTANT
Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been
checked and is present. No replacement/missing parts can be obtained free of charge during or after the build. Any claims can only be within the timescale permitted (48
hours after delivery) and always BEFORE build.
Product Code Descripon Quanty
SP097 Door Handles 2
SP207 Twin Chrome Wheels - Push Buon 8
ST20 20mm Screws 20
ST35 35mm Screws 10
ST14 14mm Screws 6
ST25 25mm Screws 10
SW9 Small Washers 20
DB9 Drill Piece 1
Note: In some cases you may have more screws than needed, this is done so you have spares!

www.insigniarange.com Last Modied: 26/01/2017
09
Pressure Requirements from your house supply
We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type
installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump. We cannot advise on which type of pump is used, location or design because
all house plumbing layouts vary. This is a job for your installer/plumber. The end delivery however must fall within the scope above.
Important Note Do not exceed 3.4 BAR pressure under any circumstances. Warranty is void if so as damage will occur. If you have a combi sup ply, please use a
pressure reducing valve if required to lower the BAR pressure to the shower.
Please Remember that this product is free standing and is designed to be pulled away from the wall.
The waste hose must be of a flexible type (1m flexible waste supplied).
The water supply pipes need to be at least 1 metre in length and must be that of a flexible braided type (not supplied).
DO NOT OVERTIGHTEN THE BRAIDED HOSES AS IT CAN CAUSE THE CONNECTION TO POP AFTER A FEW WEEKS OF USE

www.insigniarange.com Last Modied: 26/01/2017

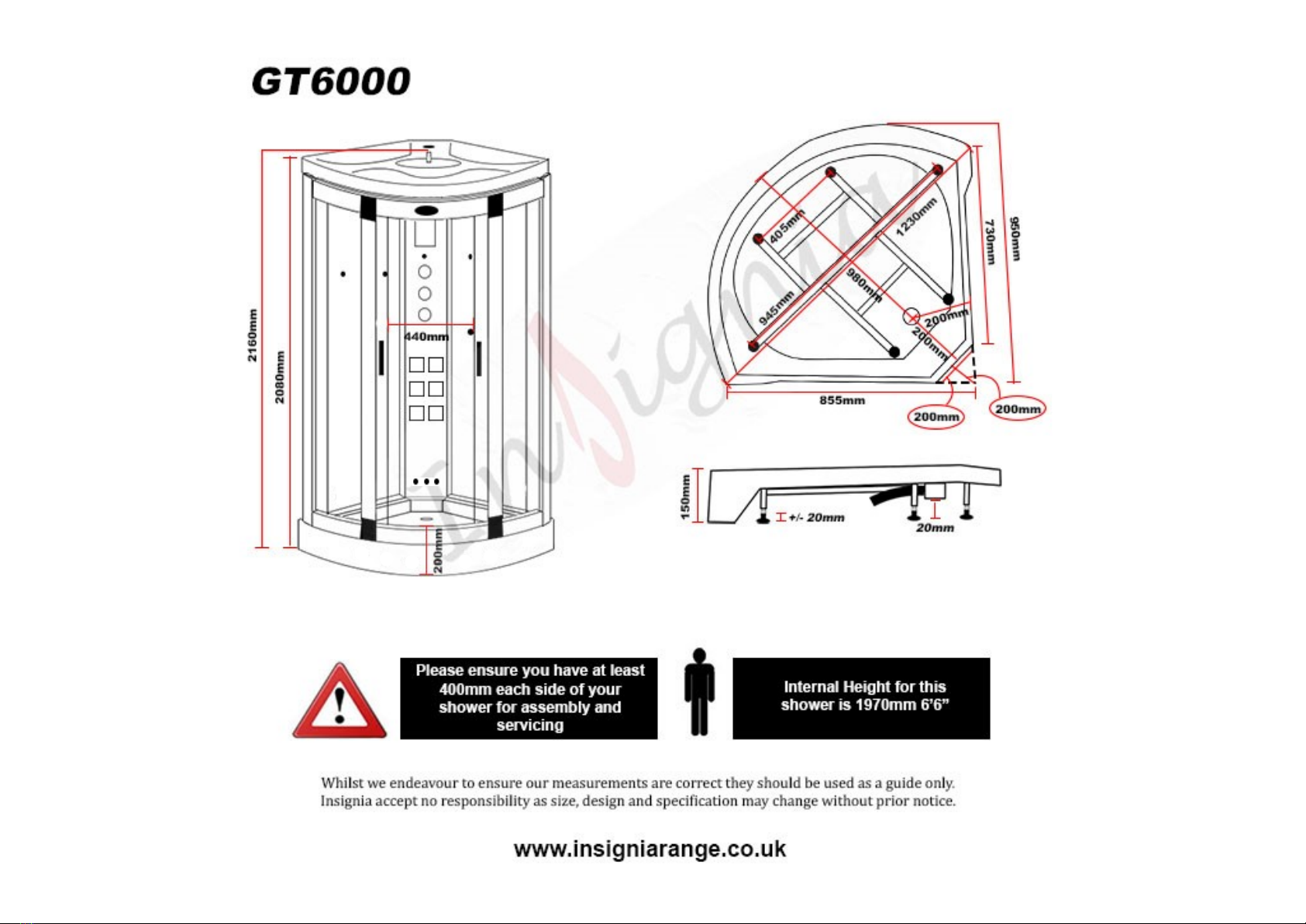

10

www.insigniarange.com Last Modied: 26/01/2017
11
TO START
Make sure you have a clear space, remember when finished and in place you need access to check your build and
able to pull the shower out for servicing or should you have the need to replace anything!
Take the shower tub and remove all the protective wrapping and fit the waste. In the side of the waste supplied in the
optional fitting kit you will notice a spigot not seen on an ordinary waste. In most cases this is blanked yet should you
have a steam version you need to gently drill this out as this item is for the steam generator drainage and will be con-
nected in the instructions later.

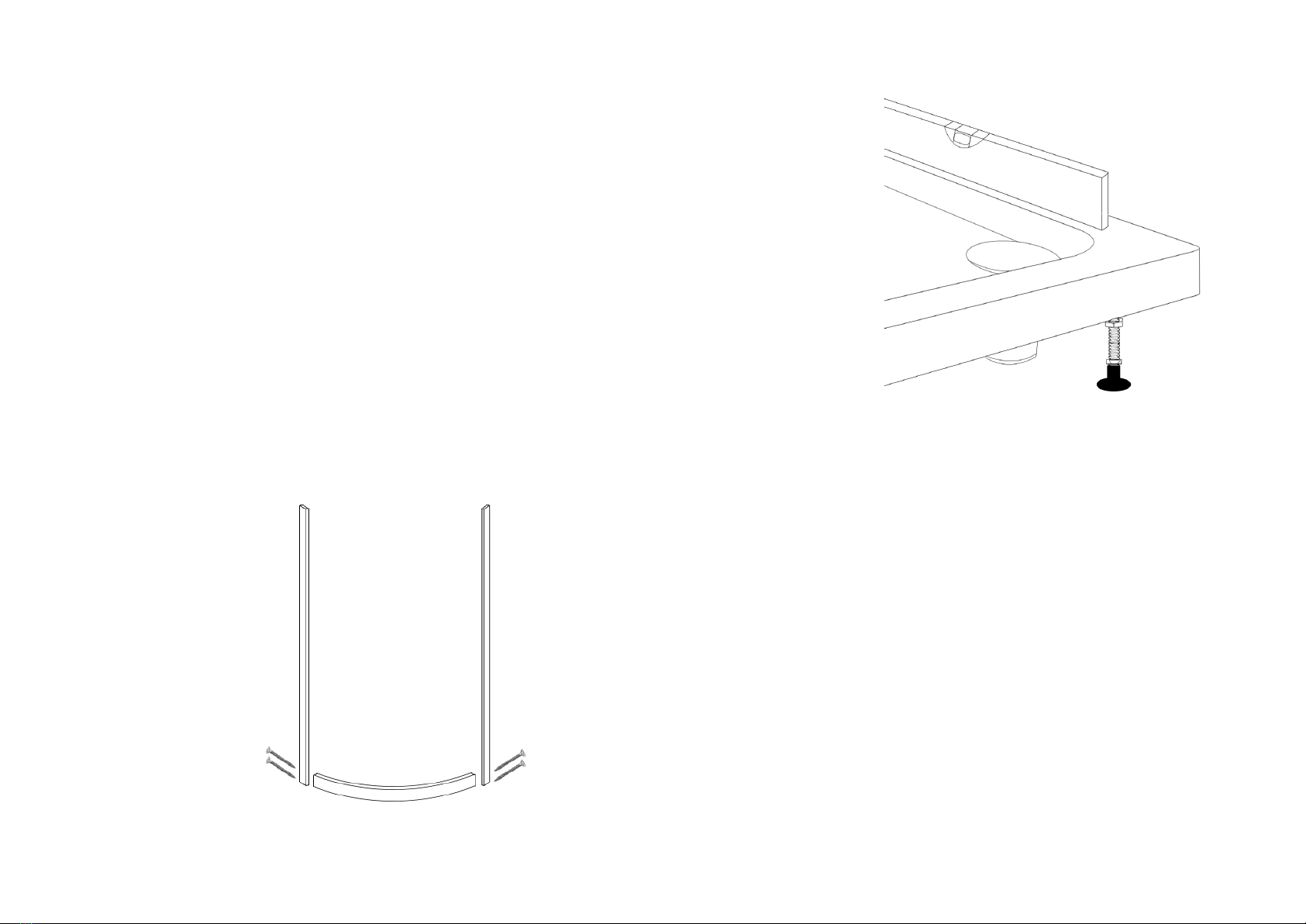

Now please level the tray by firstly placing the tray in its final location and then using a spirit level, adjust the tray feet
accordingly. Once you are happy with the levelling of the tray, you can pull it out to begin the main construction.

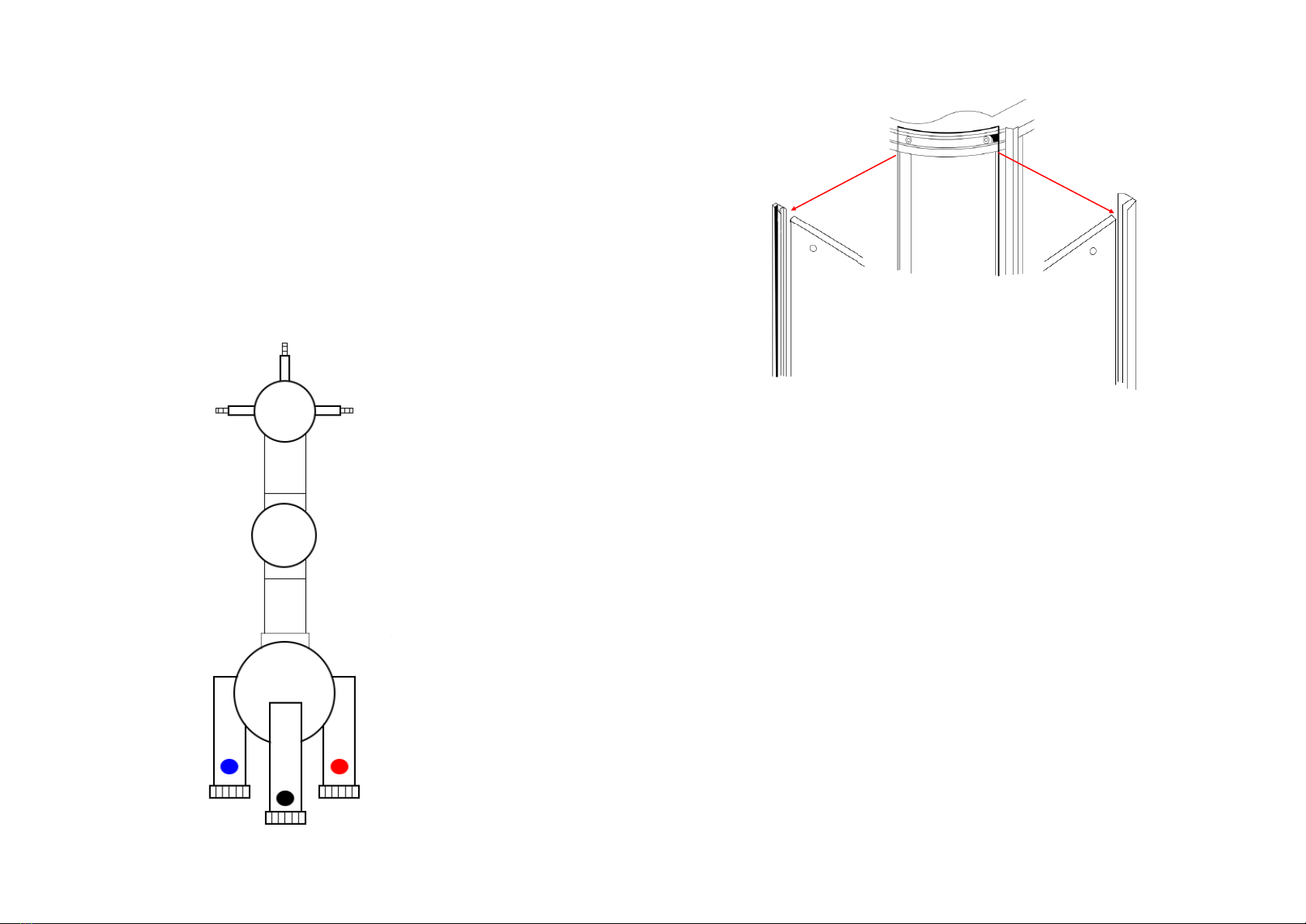

Step 1
Attach the uprights to the bottom curved rail using the ST35 screws
(Thinner rail without Insignia logo on)

www.insigniarange.com Last Modied: 26/01/2017
12
Step 2
Push the “U Shape” glass seal onto the glass panel prior to insertion into the frames.
Please ensure the thin seal is on the entrance side of the panels with the thicker to
the rear side.
The next step is to attach both front fixed glass panels. In order to do this take the
glass panel and offer it up to the upright as shown by the arrows.
Step 3
The next step is to attach both front uprights and the top rail. In order to
do this insert the front uprights over the glass seal as push on tightly as
directed by the arrows in the image. Now attach the top rail (wide rail
with logo) and then screw into place using the ST35 screws
Now place your completed front frame on the front of
the shower tray as per the image on the right
Once the top rail is in place, secure the front uprights to the top
and bottom rails (from inside the cabin) using ST14 screws

www.insigniarange.com Last Modied: 26/01/2017
13
Step 4
Now lock the back glass panel to the completed front frame in the position shown in
the image marked “1”
Once you have met the back panel inside the front upright as per the close up image
walk the panel around to the position shown in the image marked “2”
Now repeat for the other side
12
1
Step 5
Now you have locked the two back panels in position, align the back panels to the
central column. Once you are happy with the alignment, run a bead of silicone up the
edge of the column and Rubbergum along the bottom of the panels and screw all
parts together using the ST20 screws and SW9 Washers as per the image.
(please note, if your column has a rubber seal at the bottom , take the rubber
off and apply silicone inside the rubber and replace)
off and apply silicone inside the rubber and replace)

www.insigniarange.com Last Modied: 26/01/2017
14
Step 6
Align the roof with your shower walls and using the ST25 screws fix the back walls to
the roof by screwing upwards from the rear of the shower.
NOTE: Please start this procedure by rst screwing the ST25 screw at one of the front
corners (highlighted in the image with the numbers) and then pull the roof to the opposite
front corner and screw into posion. This will allow you to then simply use the remaining
ST25 screws as intended .
If a small gap exists silicone seal later
Step 7
Fit the adjustable wheels to the top and bottom of the glass doors and ensure the wheels
are at their lowest position and hang on the inner curved rails with the wheels facing the
outside of the glass.
Once all wheels are fitted and on the rails you can adjust the wheels by turning the plastic
bolt clockwise in which in turn will pull the wheels towards the track ensuring a secure a
tight fit.
Now grease the track to ensure a smooth and long lasting operation
(not supplied)
12

www.insigniarange.com Last Modied: 26/01/2017
15
Shelf
Fix the chrome floating shelf brackets to your glass back panel by using the provided screws. Now attach the chrome tubed bars to your glass shelf as illustrated in the
below image. Next slide the shelf into your shelf brackets and secure by tightening the grub screw situated on the bottom of the bracket.
Accessory Installation
Please Note
Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes
with a knife to provide an efficient smooth fitting and location of the accessories. We recommend using
a screwdriver on the smaller holes.
Please see your AMI system installaon guide for further details

www.insigniarange.com Last Modied: 26/01/2017
16
Hand Shower
Attach the chrome riser bar to the glass wall ensuring the water inlet is inserted
through the lower large hole and hand tightened from the rear side.
Now tighten the chrome shower holder ensuring that this will take the hand shower
itself without falling (please note over tightening will prevent the holder from sliding up
and down)
Thermostatic Probe
Insert the probe into the hole situated below the control panel roughly 6mm into the
cabin and run clear silicone around the rear side of the probe
Ozone (o3)
Unscrew the chrome pepper pot end and drop the white box upside down into the
rear hole as shown in the image. Now from the inside of the shower re-attach the
chrome pepper pot end and tighten.
Monsoon Head
Attach the grey hose from your valve to the inner black tube using PTFE tape
(please note this only needs to be hand tight. Over tightening will snap/damage the
inner black tube)
Handle
Ensuring that the inner thread is protruding out from the handle far enough, place
the handle on the outside of the door and secure by tightening the inner chrome
knob to the protruding inner thread.

www.insigniarange.com Last Modied: 26/01/2017
17
Door Seals
Magnetic Seal: Push the magnetic door seal on the handle side of the glass door ensuring this is
tightly fitted.
Rear Door Seal: Place the rear door seal on the opposite side to the magnetic strip ensuring the
flap is facing the fixed glass panel
Shower Valve
Device output may differ from the image. Please refer to your outer chrome faceplate
inside your Insignia shower as a reference point.
IF YOUR DIAL DOES NOT CORRESPOND TO THE APPROPRIATE DEVICE:
Turn on your water to the shower and note which output the water exits from then turn off
the water and swap over the relevant hose.
Alternatively remove the outer chrome knob by removing the chrome cap and loosening
the grub screw (please ensure not to unscrew fully as this will drop within the chrome
knob) this is found on the opposite side to the chrome pillar. Once you have succeeded in
loosening this you can now slide your faceplate to correspond to the device.
Monsoon Head
Jets Hand Shower
Cold Water Inlet Hot Water Inlet
Outlet for Steam

www.insigniarange.com Last Modied: 26/01/2017
18
Electric Box Connections
Speaker
Bluetooth
USB
Back Lights
Phone Connecon
This feature, if ed has now been disabled. Please do
not connect as it will not work.
Power Connecon

www.insigniarange.com Last Modied: 26/01/2017
19
The steam generator has 3 connections.
Steam Outlet: Connect the white insulated hose to the Tri-Jet system within your shower.
Make sure these are fitted in the correct position as they are only attached for transportation
reasons only.
Water Inlet: Connect a braided hose from the shower valve’s centre feed to this opening.
Drain: Connect the grey rubber hose from the steam generators drain opening to the nozzle
on the shower waste (as shown in the below image)
Steam Generator Connections

www.insigniarange.com Last Modied: 26/01/2017
20
Silicone Seal where shown in red on the inside of the shower
TESTING FOR WATER LEAKS
LEAVE THE SHOWER 24 HOURS AFTER BUILD TO ALLOW SEALENT TO CURE AND ENSURE THE SHOWER IS AWAY
FROM ITS FINAL POSITION TO ALLOW REAR VIEWING
Ensure all connections are tight and sealed including the waste, body jets and steam outlet (model dependent) on your shower.
Switch on the overhead shower NOT the massage jets, remember these will fire water out at you and are not suitable for
checking leaks as they would normally only operate when a person is in front of them. DO NOT AIM THE HAND SHOWER AT
THE JOINTS OF YOUR SHOWER AS THIS DOES NOT FALL UNDER “NORMAL EVERYDAY USE”. Adjust the feet to ensure
the direction of the water flows towards to the waste to prevent puddling.
Just use COLD water setting as hot will make cabin misty and condensate thus the inspection becomes very difficult. Now on
the OUTSIDE of the shower inspect each joint, factory seal, hose, clip and jet by walking from one side and going around to the
back and then to the other side finishing at the front. If you have a small leak (normally caused through insufficient sealer or air
bubble on assembly, dry the area thoroughly and reseal.
Please remember the location of the water may not be exactly where the leak is as it could have run around to a low point.
Never seal your inner fittings unless necessary, remember you will see this for the life of the shower! Again leave to cure and
check. Once you are happy check the shower functions i.e. jets for back massage, foot massage and finally hand shower
(model dependent) check your joints to these functions at the rear again. Never use the shower until all checks have been
made and the installer is 100% happy in the knowledge no leaks are present.
All good?
Now push your shower FROM THE BASE and NEVER THE GLASS OR FRAME into its final resting position.
Happy Showering!
Silicone the area highlighted in red
where the glass panel frame meets at
the bottom (next to the column)
Silicone fill the area highlighted in red at
the end of the bottom runner as
indicated in the image on the left.
