Insignia INS8058.1R User manual

insigniarange.com Last Modied: 10/10/2019
INSTALLATION MANUAL
INS8058.1R
ATTENTION INSTALLERS:
These instrucons must be
le with the customer
30 Day Technical Support: 01908 226545
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier’s details and your postcode to hand before calling)
Replacements Parts: inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts: outside of your warranty
contact 0844 800 3069
www.insigniarange.co.uk
WARRANTY REG NO: __________________________
To claim your full 5 year warranty, register your shower within 90 days of delivery at: www.insigniarange.co.uk/
warrantyreg.aspx. Standard 12 month warranty applies if outside this me period.
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!

insigniarange.com Last Modied: 10/10/2019
02
Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that
will last for many years to come!
OUR BADGE RATING IN TERMS OF DIFFICULTY OF ASSEMBLY IS BASED ON CLIENT FEEDBACK
1 Badge = Very easy
2 Badges = Easy
3 Badges = Moderate
4 Badges = Harder than average
5 Badges = Professional skills required
This shower is rated 5 Badges

insigniarange.com Last Modied: 10/10/2019
03
Contents
Introduction
Electrical Requirements
What’s In The Boxes?
Screw Pack Contents
Plumbing Requirements
Schematics
Starting The Installation
Electric Box Connections
Steam Generator Connections
Sealing and Water Testing
SUN Control Panel Instructions
Help Book Information
Parts list
Bathroom Electrical Zones
WEEE Compliance Statement
2
5
7
8
9
10
11
23
24
27
28
30
31
32
34

insigniarange.com Last Modied: 10/10/2019
04
ASSEMBLY AND PLUMBING
THIS PRODUCT BUILD IS RATED SUITABLE FOR DIY PURPOSES PROVIDING THE CUSTOMER IS OF ABOVE AVERAGE SKILL AND FEELS CONFIDENT IN
THEIR ABILITY. ONLY YOU THE CUSTOMER WILL KNOW THIS SO BEFORE ANY ATTEMPT IS MADE TO ASSEMBLE, READ THROUGH THE FOLLOWING
PAGES IN DETAIL THEN DECIDE. IF YOU HAVE ANY DOUBT USE THE SERVICES OF A PROFESSIONAL. IN PICKING SUCH, ALLOW THEM TO DECIDE IF
THEY ARE CAPABLE OF BUILD BY FIRST SHOWING THESE INSTRUCTIONS TO THEM. ALWAYS GET THREE QUOTES.
REMEMBER THE BEST IS NOT ALWAYS THE CHEAPEST!
REMEMBER PLUMBERS PLUMB! 90% OF THIS JOB IS NOT PLUMBING!
DUE TO THE NATURE OF THIS PRODUCT WE HIGHLY ADVISE THE PURCHASE AND FITTING OF A WATER SOFTENER
(PLEASE NOTE LIMESCALE BUILD UP MAY CAUSE DAMAGE TO YOUR SHOWER AND WILL NOT BE COVERED UNDER WARRANTY)
ELECTRICAL CONNECTION TO HOUSE MAINS
WHEN YOUR ITEM IS ASSEMBLED ALWAYS USE THE SERVICES OF A FULLY QUALIFIED ELECTRICAN COMPANY TO COMPLETE THE CONNECTION FROM
SHOWER TO THE HOUSE SUPPLY. LAWS DEMAND IN MANY CASES YOU DO THIS AND YOUR WARRANTY IS VOID IN REGARDS TO THE ELECTRICAL
ITEMS IF THIS IS NOT UNDERTAKEN.
YOURS AND OTHERS SAFETY IS PARAMOUNT. NEVER ATTEMPT THIS YOURSELF!
REMEMBER:
These showers are designed to be free standing and movable from their location should you have the need to replace anything. ALWAYS USE Flexible braided water
inlet pipes (not supplied) at least a metre long (not central heating plastic type!)
Always use a flexible waste pipe from your house supply to the shower .
NEVER FIX with rigid pipes, NEVER FIX the unit to the wall.
DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE.
If you are using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the RubberGum to fail and
will not adhere as intended.
ATTENTION
ALWAYS FIT EASY TO GET TO ISOLATION TAPS ON BOTH THE HOT AND COLD WATER SUPPLY (NOT SUPPLIED). JUST LIKE A
DISHWASHER OR WASHING MACHINE, THIS PRODUCT MUST BE ISOLATED WHEN NOT IN USE.
FLEXIBLE SUPPLY HOSES (NOT SUPPLIED) COUPLE HERE AS ORIGIN OF SUPPLY

insigniarange.com Last Modied: 10/10/2019
05
TOTAL ELECTRICAL REQUIREMENTS
Voltage Rating 220 -240AC
Frequency Rating 50HZ
Power Rating 2.8KW
Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation.
UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!!
Note for electrician. This product comes with 13 amp plug(s) fitted with an RCD unit. We leave it this way for you to connect this your own way
due to continued additions to current regulations.
1) Connect within current laws and IP directives.
2) (Preferred) Wire into isolated fused feed connecting directly to the house consumer/service box.
Always use protection against electrical surge. Your shower should be treated the same as a home computer. A surge protector should
eradicate the possibility of either the transformer or control panel being burnt out.

insigniarange.com Last Modied: 10/10/2019
06

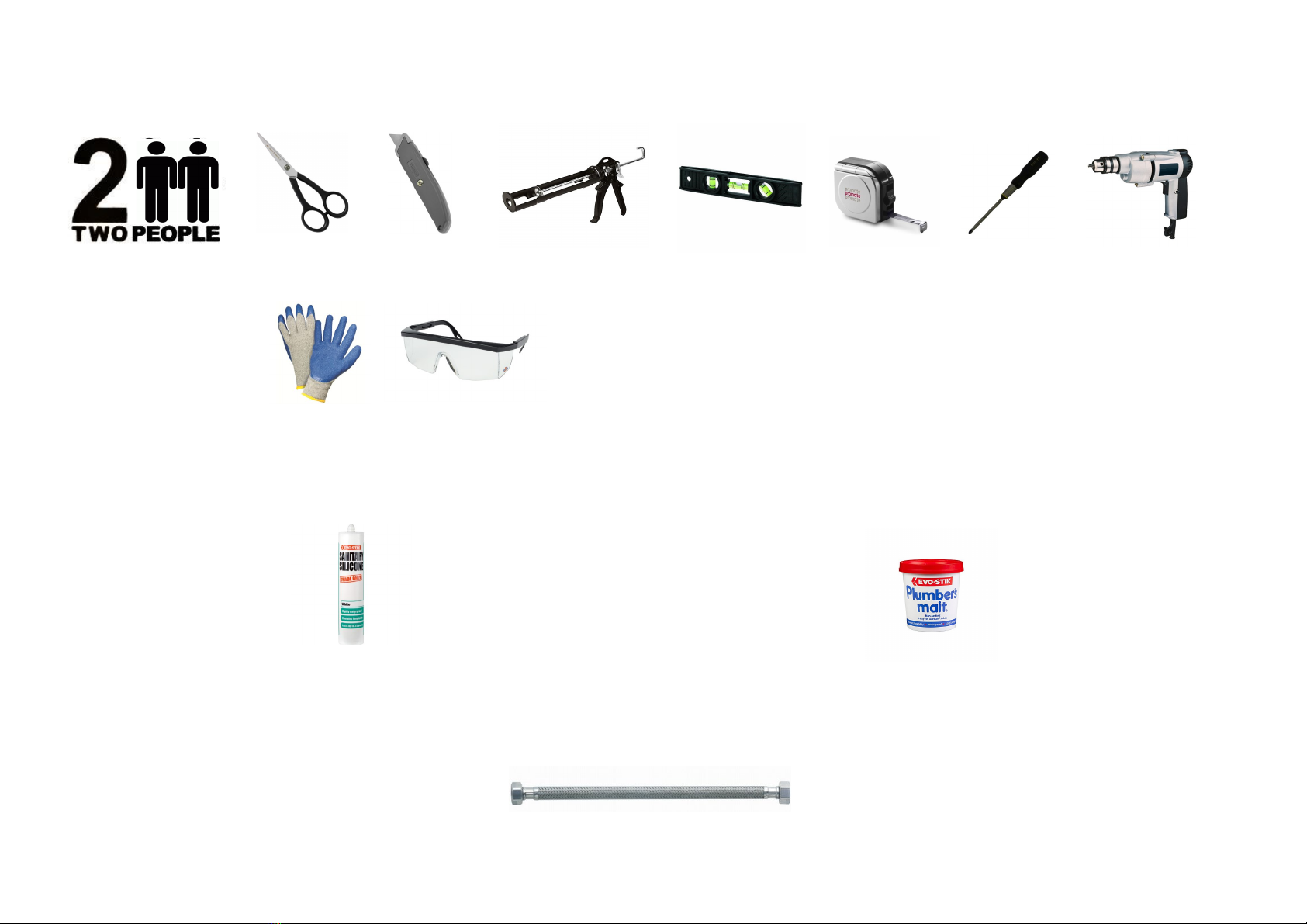

Tool Requirements
None Supplied
Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill
Adhesive Requirements
Bacteria Resistant Sanitary Silicone - (for vertical joints) Plumbers Mait (for waste joints)
Not Supplied Not Supplied
Hardware Requirements
A Steam Shower requires 3 x 1 Metre Braided Hose
Not Supplied
Safety Gloves Safety Glasses
PREVENT INJURIES!
This product may contain sharp edges. Assemble using gloves.
Use safety glasses when handling glass or drilling.

insigniarange.com Last Modied: 10/10/2019
07
Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice
is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word
“DRY RUN” this means you do not silicone anything, just simply construct the shower, align, drill and screw everything together. Once you are happy with the build take the
unit apart and carry out the final fix.
What’s In The Boxes?
Tray Box
1x Tray
1x Roof
2x Curved Rails
2x Accessories Box
Glass Room
1x Rear Door seals
1x Magnetic Door Seal
1x Glass door
2x fixed glass
Column
1x Complete Column
Backwalls
1x Angled Panel Backwall
1x Square Panel Backwall
Side Panel
Glass Side Panel
In addition to above you will have all the required internal accessories to complete the shower

insigniarange.com Last Modied: 10/10/2019
08
VERY IMPORTANT
Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been
checked and is present. No replacement/missing parts can be obtained free of charge during or after the build. Any claims can only be within the timescale permitted (48
hours after delivery) and always BEFORE build.
Insignia Screw Pack
VERY IMPORTANT
Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been
checked and is present. No replacement/missing parts can be obtained free of charge during or after the build. Any claims can only be within the timescale permitted (48
hours after delivery) and always BEFORE build.
Product Code Descripon Quanty
SP097 Door Handles 1
SP276
SP276A
Twin Door Wheels Non-Push
Twin Door Wheels Push Buon
2
2
ST20 20mm Screws 20
ST35 35mm Screws 10
ST14 14mm Screws 6
ST25/PCH13/CPC16/B22 Various 14 each
BAG Chrome Brackets 12
DB61 Drill Piece 1

insigniarange.com Last Modied: 10/10/2019
09
Pressure Requirements from your house supply
We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type
installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump. We cannot advise on which type of pump is used, location or design because
all house plumbing layouts vary. This is a job for your installer/plumber. The end delivery however must fall within the scope above.
Important Note Do not exceed 3.4 BAR pressure under any circumstances. Warranty is void if so as damage will occur. If you have a combi supply, please use a pressure
reducing valve if required to lower the BAR pressure to the shower.
Please Remember that this product is free standing and is designed to be pulled away from the wall.
The waste hose must be of a flexible type (1m flexible waste supplied).
The water supply pipes need to be at least 1 metre in length and must be that of a flexible braided type (not supplied).
DO NOT OVERTIGHTEN THE BRAIDED HOSES AS IT CAN CAUSE THE CONNECTION TO POP AFTER A FEW WEEKS OF USE

insigniarange.com Last Modied: 10/10/2019
10

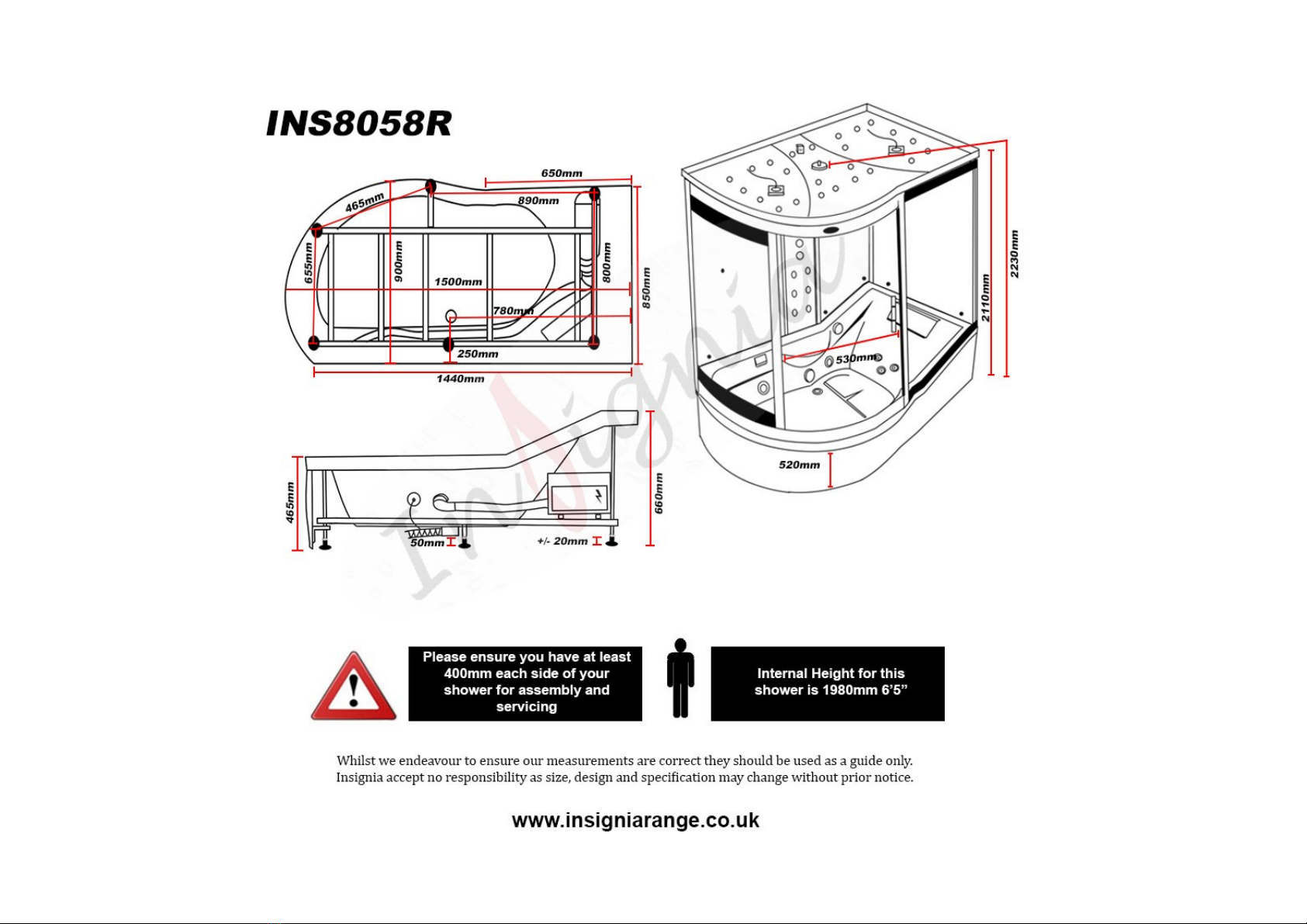

insigniarange.com Last Modied: 10/10/2019
11
TO START
Make sure you have a clear space, remember when finished and in place you need access
to check your build and able to pull the shower out for servicing or should you have the need
to replace anything!
Take the shower tub and remove all the protective wrapping and fit the waste. In the side of
the waste supplied in the optional fitting kit you will notice a spigot not seen on an ordinary
waste. In most cases this is blanked yet should you have a steam version you need to gently
drill this out as this item is for the steam generator drainage and will be connected in the
instructions later.

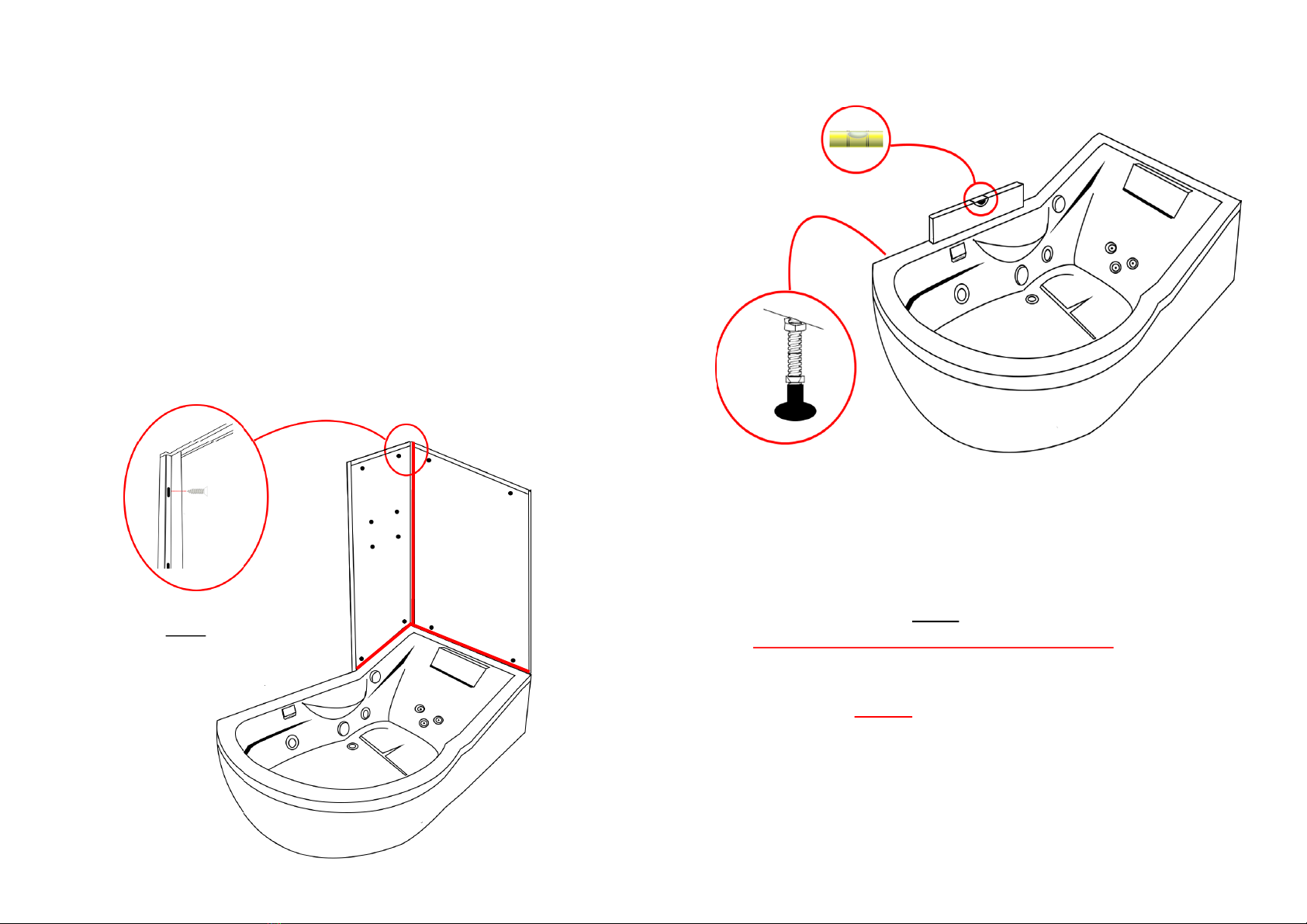

Now please level the tray by firstly placing the tray in its final location and then using a spirit
level, adjust the tray feet accordingly. Once you are happy with the levelling of the tray, you
can pull it out to begin the main construction.
Step 1
Once you have successfully completed a dry run,
Then continue to place the separate side panels onto the bath, screw together the
angled back piece and the side panel using the ST14 screws x4
We advise to run a bead of silicone along the vertical edge in-between the two
back panels and in-between.
Step 1

insigniarange.com Last Modied: 10/10/2019
12
Step 3

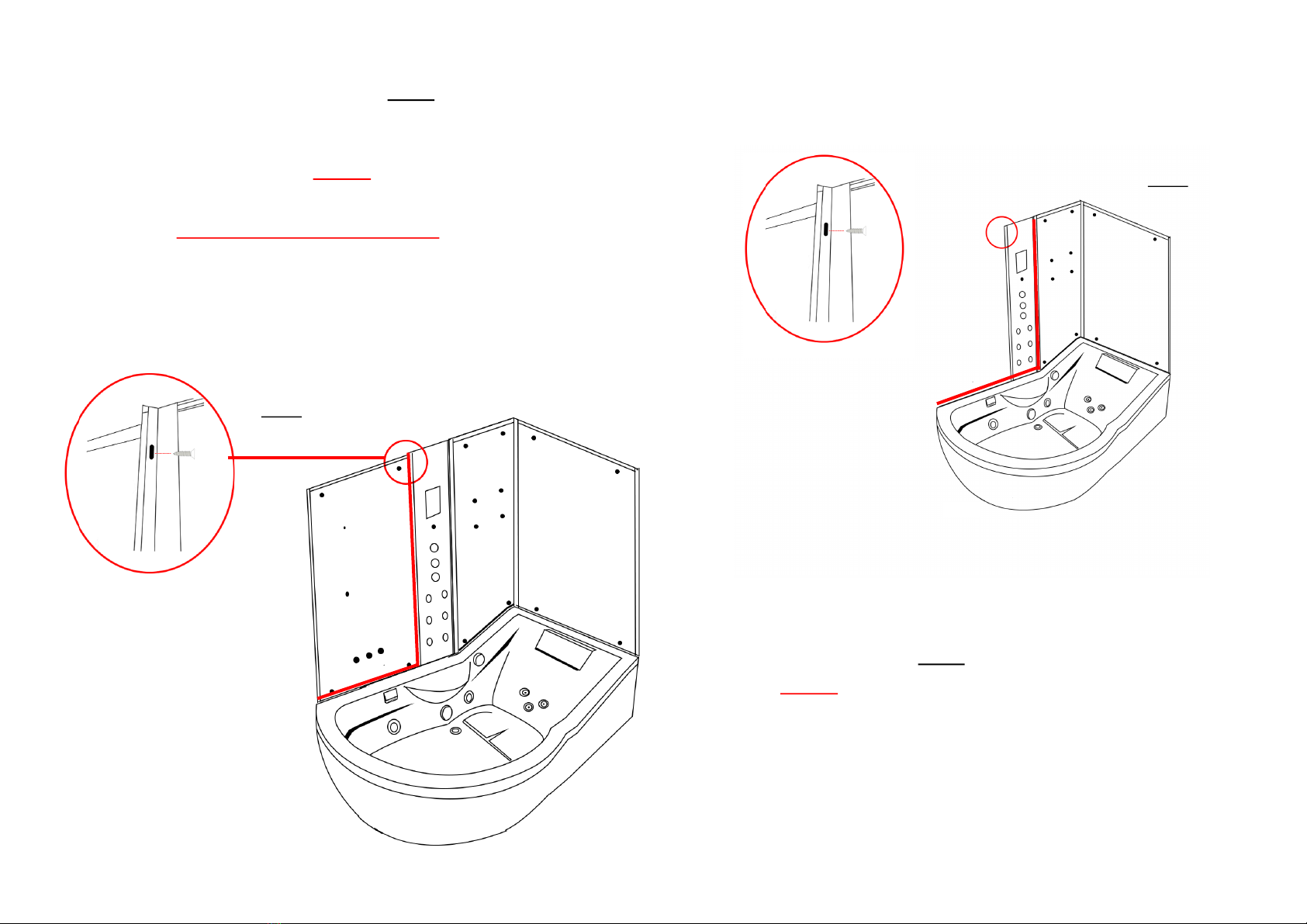

Apply silicone to the specified area’s as shown and now fix
together and screw the large back glass panel to the column using the ST20 screws.
Step 2
(please note, if your column has a rubber seal at the bottom , take the rubber off
and apply silicone inside the rubber and replace)
Again, Once you have completed a dry run and are happy, Then continue to ap-
ply the silicone to the specified area of the control column and place next to the an-
gled back glass panel and fix together using the ST20 screws.
Step 2
Step 3

insigniarange.com Last Modied: 10/10/2019
13
Step 5
Silicone specified as shown in diagram.
Next using the angled upright, place this to the rear squared glass panel by follow-
ing the position shown in the image marked “1”
Now move the angled upright in the direction as shown in image “1” until this is into
place as shown in image “2”
Once you are happy with the alignment then continue to screw the upright into
place at the top and bottom using ST14’s
Please note: These are not pilot holed and you will need to use the DB6
1
2
1
2
1
2
Step 4
Now lock the front angled glass panel to the side glass panel by following
the position shown in the image marked “1”
Once you have met the back panel inside the front upright as per the close
up image walk the panel around to the position shown in the image
marked “2”
NOTE: Do not apply silicone until Step 6
Step 4
Step 5

insigniarange.com Last Modied: 10/10/2019
14
Step 6

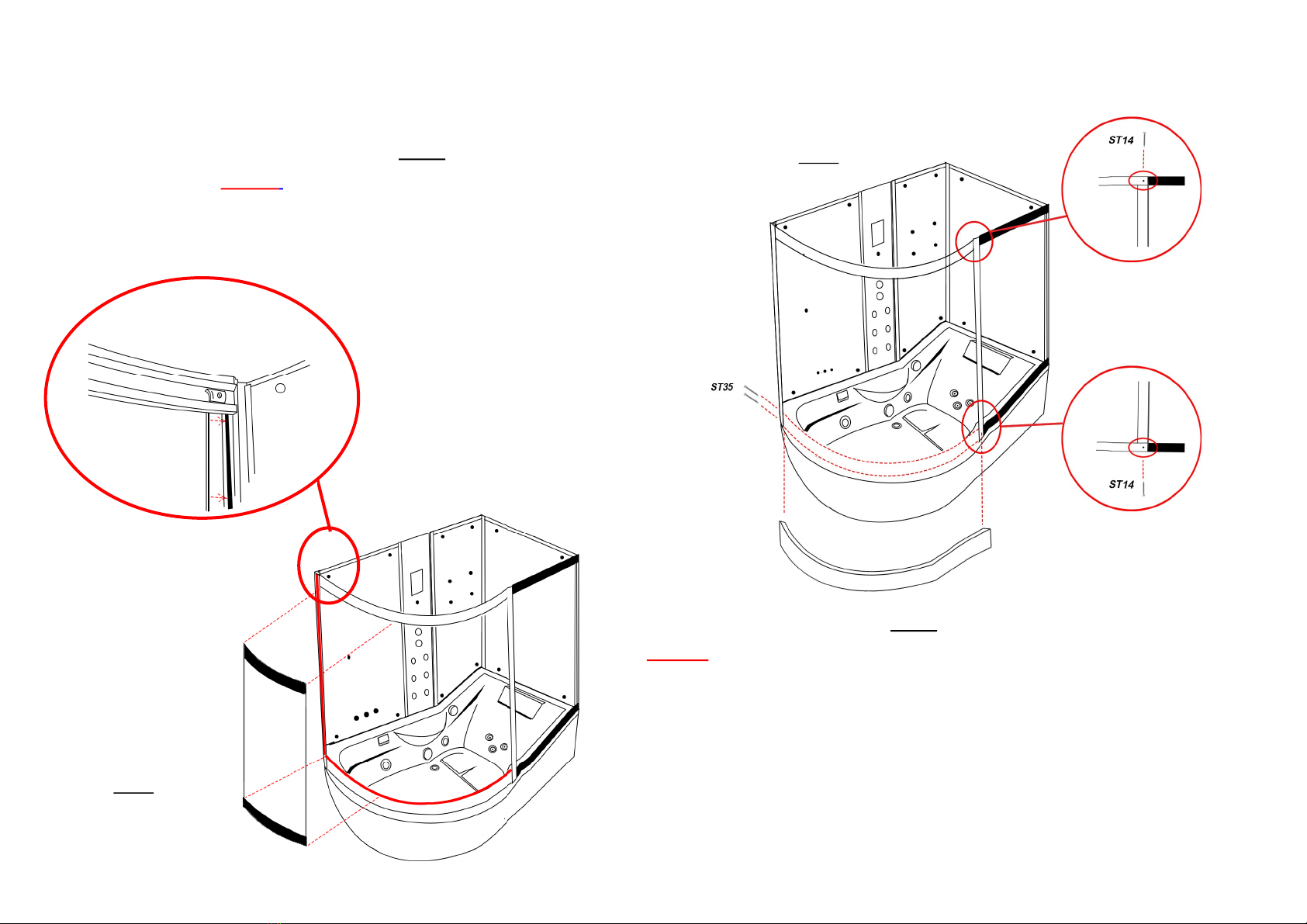

Lower the top curved rail into position and screw from the rear side as per the image
using the ST35 screws.
Fix the front of the top curved rail onto the upright of the front fixed angled glass. Please
note in order to do this you will need to slide up the front fixed panel roughly 3 inches to
expose the screw holes.
Step 7
.
Then using ST35 screws fix the top rail to the opposite upright as demonstrated in the
following diagram
Step 6
Step 7

insigniarange.com Last Modied: 10/10/2019
15
Step 8

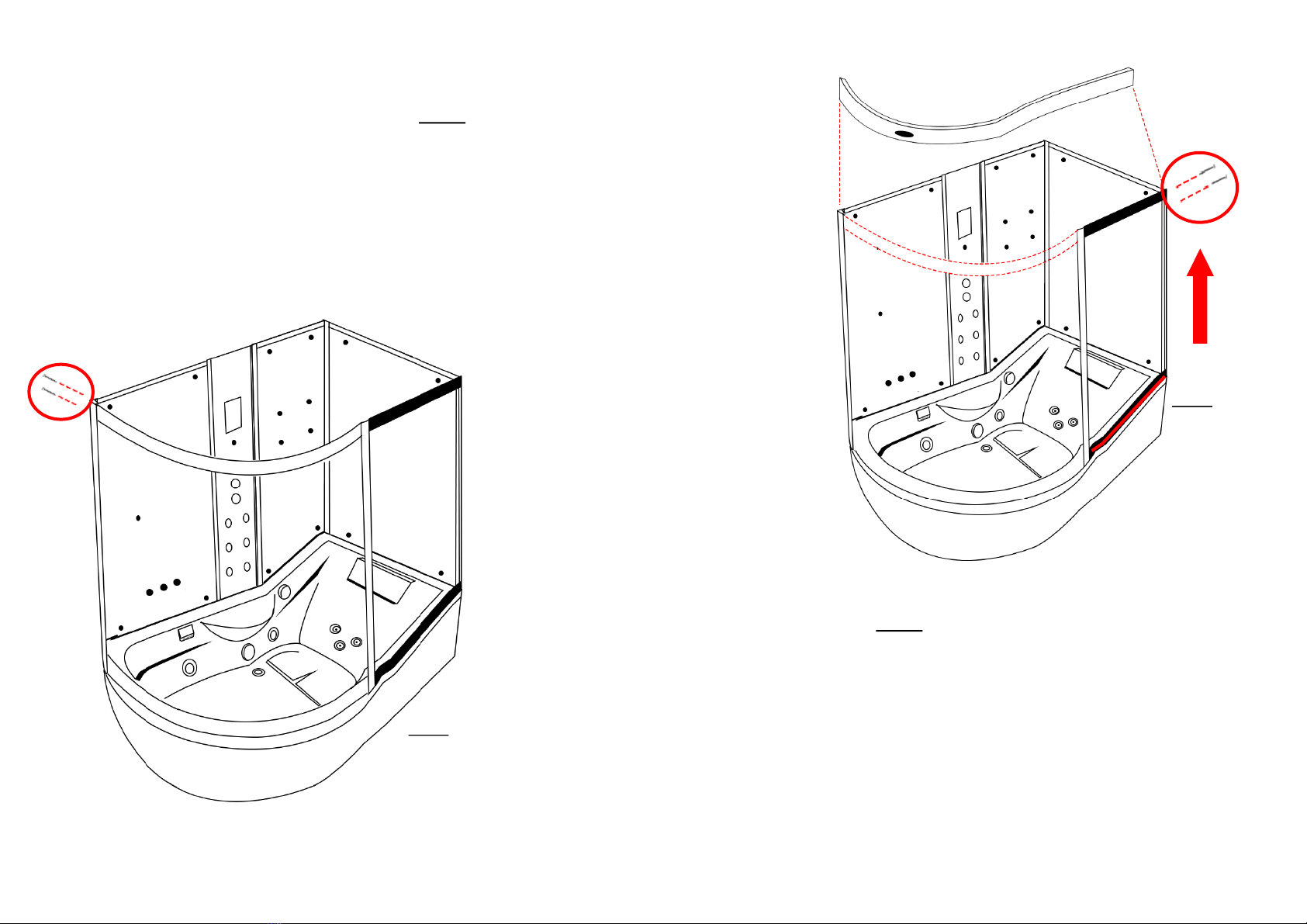

Now apply silicone to the bottom of the remaining curved rail and place into position as
shown in the diagram and fix this into place using the ST35 screws and ST14 screws
Please note that when drilling the holes to take the screws this is at a depth no deeper than
5mm.
Step 9
Apply silicone to specified area as shown on the diagram, then take the front curved glass
panel and insert into the upright. Then using the flat rubber seal insert in between the glass and
upright.
NOTE:
(It’s common that the curved glass once is position may not fit completely snug against the rail
due to alignment. This is normal and is rectified by the use of a silicone seal)
Step 8
Step 9

insigniarange.com Last Modied: 10/10/2019
16
Step 10
Insert remaining upright to the left of the curved glass panel. Drill and screw this
into position using the ST20 screws and once fixed slide the flat rubber glass seal into
this newly fitted upright on the inside (as of the green line in the image)
Please Note: ensure you drill no deeper than 5mm.
Step 11

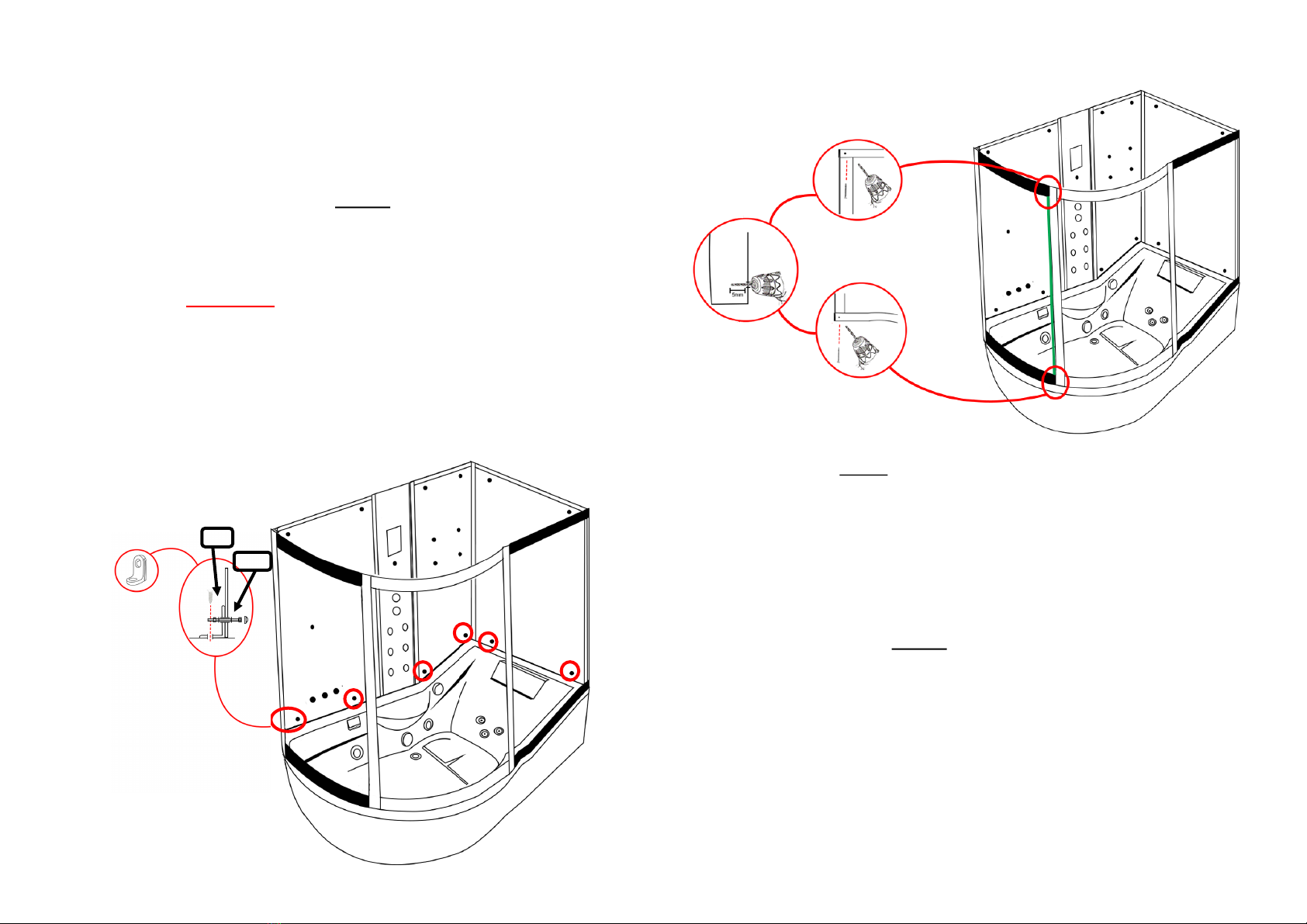

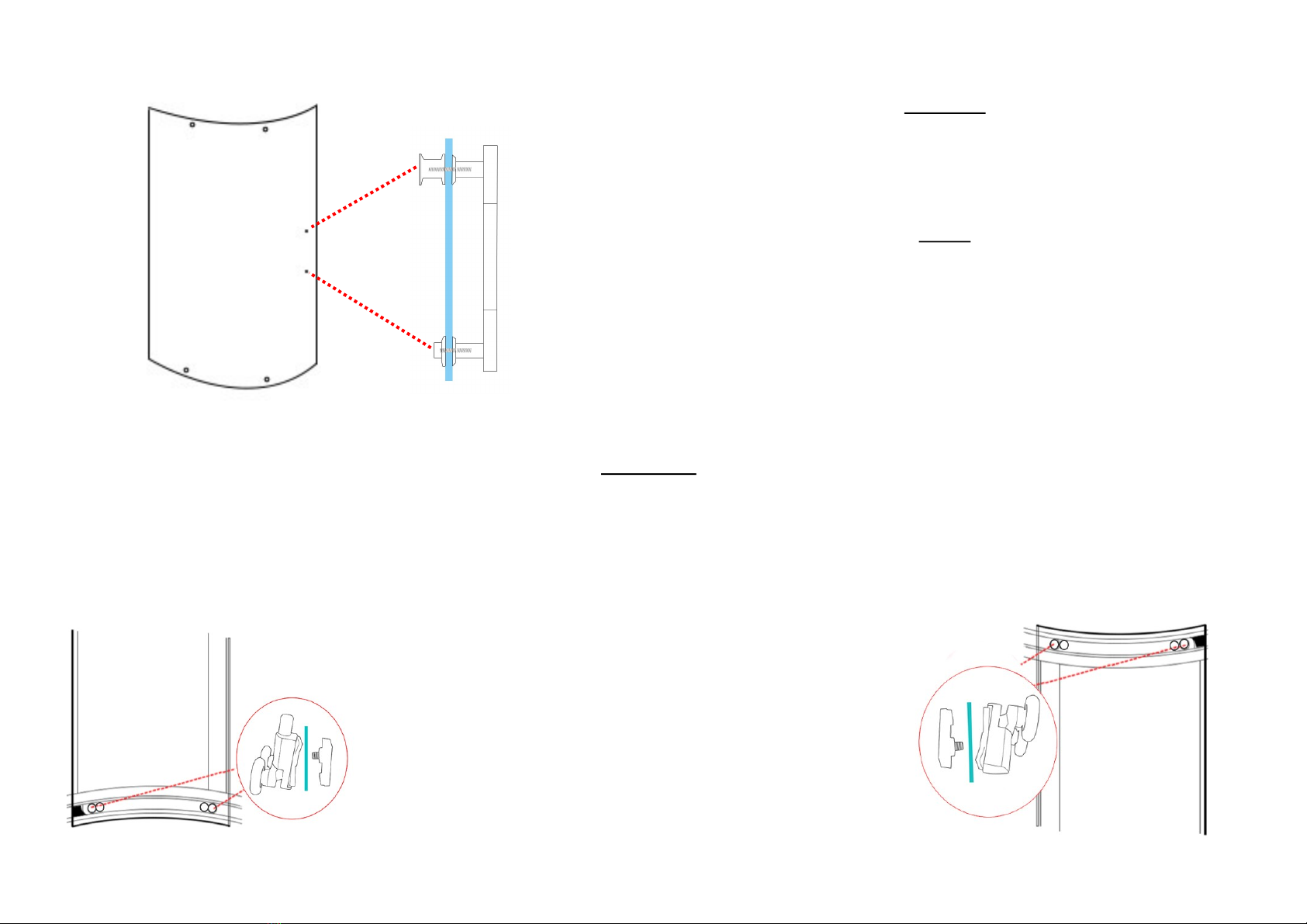

Pierce through the holes using a screwdriver to show pre-cut holes in the glass as
indicated in the image. Now using the chrome “L” brackets, fix these to the outside of the
glass panels using the provided nuts and bolts (B22) please ensure the bolt goes
through the plastic cover holder (PCH13) first
Align the shower panels until you are happy with the sitting of these and now using the
ST25 screws, screw the brackets to the tub
Now place the Chrome cover caps (CPC16) onto the cover holders (PCH13)
Step 10
Step 11
Back
Inside

insigniarange.com Last Modied: 10/10/2019
17
Step 12
Pierce through the holes using a screwdriver to show pre-cut holes in the glass as
indicated in the image. Now repeat the process from step 11 to secure the roof to the
glass panels
Step 13
Align the shower roof to your side panels and when you are happy with the
alignment of the roof, use the ST14 screws to screw this into place
Step 12
Step 13

insigniarange.com Last Modied: 10/10/2019
18
x2
Shelf
Fix the chrome floating shelf brackets to your glass back panel by using the provided screws. Now attach the chrome tubed bars to your glass shelf as illustrated in the
below image. Next slide the shelf into your shelf brackets and secure by tightening the grub screw situated on the bottom of the bracket.
Accessory Installation
Tri-Jet Steam System

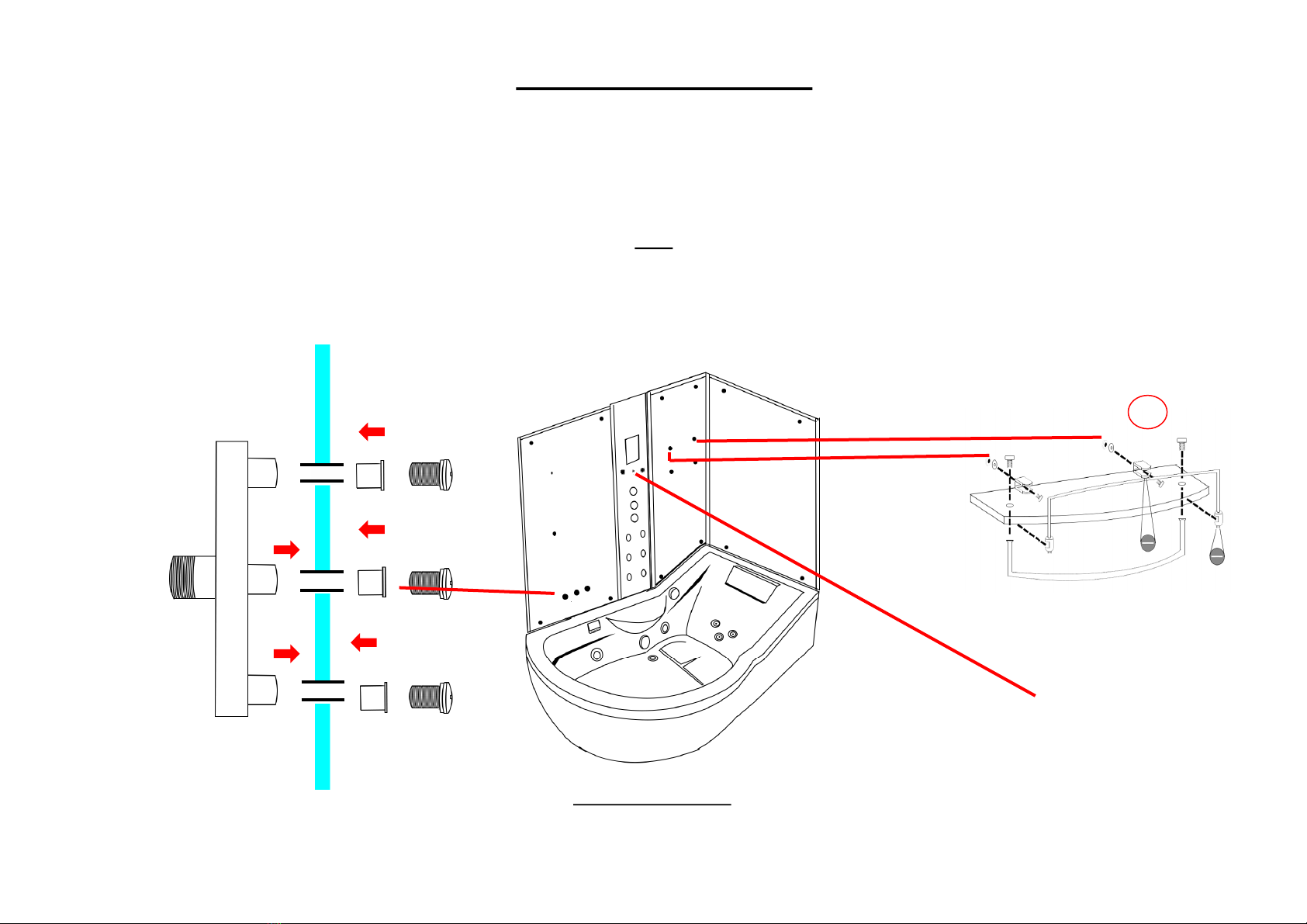

Locate the three holes in the glass panel. Put the Tri-Jet manifold (as shown) through and screw the three small outlets to it.
Please Note
Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes with a knife to provide an efficient smooth fitting and location of the
accessories. We recommend using a screwdriver on the smaller holes.
Please see your AMI system installaon guide for further details

insigniarange.com Last Modied: 10/10/2019
19
Hand Shower

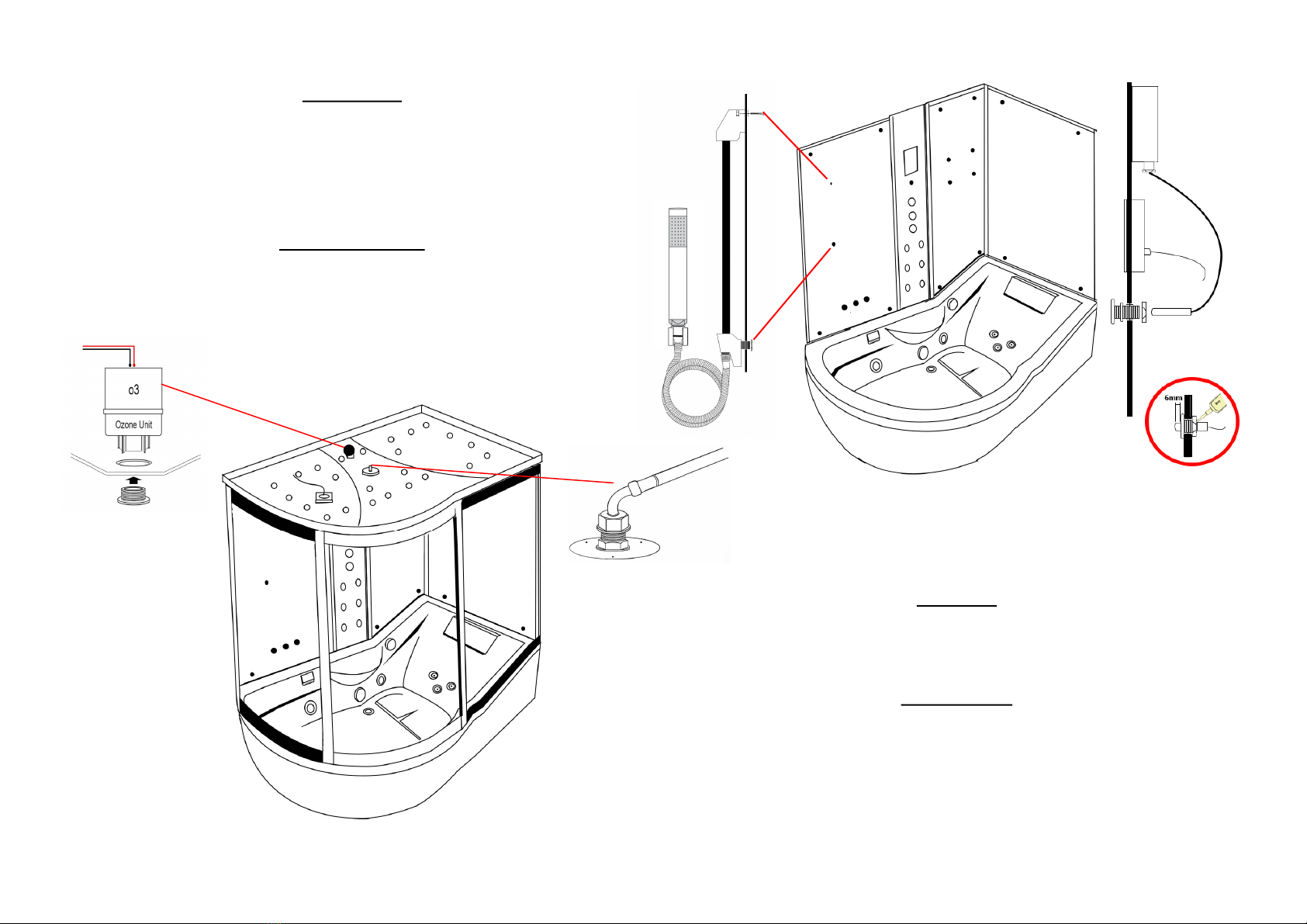

Attach the chrome riser bar to the glass wall ensuring the water inlet is inserted
through the lower large hole and hand tightened from the rear side.
Now tighten the chrome shower holder ensuring that this will take the hand
shower itself without falling (please note over tightening will prevent the holder
from sliding up and down)
Thermostatic Probe
Insert the probe into the hole situated below the control panel roughly 6mm into
the cabin and run clear silicone around the rear side of the probe
Ozone (o3)
Unscrew the chrome pepper pot end and drop the white box upside down into the
rear hole as shown in the image. Now from the inside of the shower re-attach the
chrome pepper pot end and tighten.
Monsoon Head
Attach the grey hose from your valve to the inner black tube using PTFE tape
(please note this only needs to be hand tight. Over tightening will snap/damage the
inner black tube)

insigniarange.com Last Modied: 10/10/2019
20
Door Seals
Magnetic Seal: Push the magnetic door seal on the handle side of the glass door
ensuring this is tightly fitted.
Rear Door Seal: Place the rear door seal on the opposite side to the magnetic
strip ensuring the flap is facing the fixed glass panel
Handle
Ensuring that the inner thread is protruding out from the handle far enough, place
the handle on the outside of the door and secure by tightening the inner chrome
knob to the protruding inner thread
Door Wheels
Fit the adjustable wheels to the top and bottom of the glass doors and ensure the wheels
are at their lowest position and hang on the inner curved rails with the wheels facing the
outside of the glass. Please note the push button wheels are for the bottom.
Once all wheels are fitted and on the rails, the wheels are adjusted by the metal screw
located on the underside of the TOP door wheels, which will pull the wheels towards the
track ensuring a secure tight fit.
Now grease the track to ensure a smooth and long lasting operation
(not supplied)
