J-DREAM II
Shower System
OWNER’SMANUAL
Assembly,Installation
& Operating Instructions
TM
WHIRLPOOL
BATH
R

IMPORTANT SAFETY INFORMATION
READ ALL INSTALLATION INSTRUCTIONS
Save These Instructions for Future Use.
Date Purchased
Purchased From
Installed By
Serial Number Model #
(See page 3 for location of serial number.)
Owner's Record
Jacuzzi Whirlpool Bath does not recommend prolonged periods of use of the steamer. Prolonged use of the steam
system can raise the internal human body temperature excessively and impair the body's ability to regulate its internal
temperature (resulting in hyperthermia). Consult your physician about your safety and comfort before using the steam
system; limit your use of steam to 10-15 minutes until you are certain of your body's reaction. A cooling shower spray
can be used simultaneously with the steam to assist in regulating your body temperature.
Alcohol, certain drugs or medications such as tranquilizers affect a person's ability to withstand high temperatures and
may produce dangerous side effects. Do not use alcohol or drugs when using the J-Dream II.
The elderly, the infirm, and children should not use the J-Dream II unattended. Pregnant women and people with heart
conditions should consult their physicians before using the steamer.
The wet surface of the J-Dream II can be slippery. Use care when entering and exiting.
When using the J-Dream II, basic safety precautions should always be followed:
This unit is to be connected to a Ground Fault Circuit Interrupter (GFCI). This is also known as an Earth Leakage Circuit
Breaker (ELCB). Check at least once a month to be sure this is operational. With the unit operating, push in the test
button. The unit should stop operating and the trip indicator should appear. Restore the power; push to OFF, then
turn ON. The unit should now operate normally. If the interrupter fails to operate in this manner, there is a fault in the
electrical system or the GFCI and you may not be protected from an electrical shock. Turn off the power and have
a qualified electrician check the circuit before using it again.
Do not use electrically connected devices such as television, radio, or stereo speakers, lights, hair dryers, or
telephones within 1.5 m (5 feet) of the J-Dream II while in use.
Read manufacturer's safety information with all optional equipment.

Part I Assembly & Installation
Specifications _______________________________________________________________________ 2
General Information __________________________________________________________________ 3-4
Packaging __________________________________________________________________________ 5
Hardware Identification ________________________________________________________________ 6
Rough-in ___________________________________________________________________________ 7
Base and Drain ______________________________________________________________________ 8-9
Installation of Panels __________________________________________________________________ 10-16
Door Frame _________________________________________________________________________ 17
Top Frame__________________________________________________________________________ 18
Hose and Electrical Connections ________________________________________________________ 19-21
Bonding ____________________________________________________________________________ 22
Final Plumbing ______________________________________________________________________ 23
Front Panels ________________________________________________________________________ 24
Cover______________________________________________________________________________ 25
Completing the Installation _____________________________________________________________ 26
Part II Operation and Maintenance _______________________________ 27-29
Contents
1
Inspection and Shipping Claim
Check for shipping damage upon receipt of the J-Dream II. Jacuzzi Whirlpool Bath is not responsible for damage to the
J-Dream II sustained during shipping. If damage is evident before unpacking, see instructions regarding shipping claims
on the outside of the carton and immediately file a claim with the carrier.
Once the J-Dream II has been removed from the carton and before it is permanently installed, check the parts completely
for damage resulting from shipping or handling. All Jacuzzi Whirlpool Bath products are factory tested for proper operation
and watertight connections prior to shipping. If problems are detected, immediately notify your Jacuzzi Whirlpool Bath dealer
or Authorized Service Agent, or call Jacuzzi Whirlpool Bath, [phone], for Warranty Service.
NOTE: Damage or defects which could have been discovered and repaired prior to installation and which are
claimed after final installation of the J-Dream II, are excluded from our warranty.

83"
(2108mm)
81"
(2057mm)
60"
(1524 mm)
WHIRLPOOL
BATH
R
J-Dream II Owner's Manual
When Jacuzzi introduced the first whirlpool bath in 1968,
it changed the bathtub forever. Now Jacuzzi is
revolutionizing yet another form of bathing - the shower.
The J-Dream II™, a fully-adjustable system massages,
soothes, steams and invigorates you into a state of
complete well-being.
A cascading waterfall, 32 hydrotherapeutic jets, a powerful
steam nozzle and two adjustable showerheads create a
personal bathing experience like no other. An easy-to-use
control panel lets you adjust the intensity and duration of
each function.
The J-Dream II's 32 hydrotherapy jets provide high power
hydromassage to invigorate and relax the body. Preset
the jets to pulsate in variuos configurations, adjusting both
the spray pattern for each jet and the rate at which you
want the jets to pulsate. Fast and invigorating or slow and
luxurious - the choice is yours.
Step into the J-Dream II and see how Jacuzzi has created
the ultimate shower experience. Because the J-Dream II
is made by Jacuzzi, everything about it - from innovative
design and technology to quality manufacturing - is simply
the best.
Rest on the specially molded seats and relax as a soothing,
cascading waterfall caresses your neck and shoulders.
The cascade shower is specially designed to release
tension from the entire upper spine area, and create a
feeling of well-being throughout your body.
The touch of a finger activates the electronically controlled
steam system to fill the J-Dream II with full-bodied steam.
In just minutes, you can enjoy all the cleansing benefits of
steam heat - without stepping outside the shower.
The hand-held shower heads offer a range of sprays from
fine mist to full-flood. Even the water temperature can be
preset, so you won’t have to adjust it each time. The hand-
held shower can also be adjusted vertically so even the
tallest adult and the smallest child can shower in complete
comfort.
FRONT
MODEL
J-Dream II
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
SPECIFICATIONS
2
60"
(1524mm)
11 5/8"
(295mm)
21 1/2"
(546mm)
42"
(1067mm)
SERIAL NUMBER LOCATION
(AT TOP) ON BACK OF
EQUIPMENT SEAT WALL
TOP
DIMENSIONS
60" (1524mm) L
42" (1067mm)W
83" (2108mm)H
MOTOR/PUMP
0.5 hp
(0.37kW)
240 VAC
3450 RPM
Single phase
60 Hz.
FLOOR
LOADING
Total Weight
833 lb
(379kg)
47.6lb/ft2
(233kg/m2)
REQUIRED
WATER SUPPLY
6 gpm (23liter/min)
@ 30-65 psi
(2.1-4.6 Bar)
SHIPPING
WEIGHT
849 lb
(386kg)
ELECTRICAL
REQUIREMENTS
240 VAC 60 Hz.
15Amp
(Must be GFCI
Protected)
PRODUCT
WEIGHT
525 lb
(339kg)

J-Dream II Owner's Manual
Read all instructions before beginning assembly and installation.
General Assembly Information
The J-Dream II shower unit is installed into a niche with the drain towards the left hand side of the unit as you face the shower door.
This manual details the assembly, installation and operation. After the drain, water supply stub-out, and electrical supply are provided,
the shower unit should be assembled freestanding away from the walls of the room. Next connect and static test the water supply
lines. The electrical connections should then be completed before the unit is moved into final position, drain fit is rechecked, and
assembly is completed before final testing.
Room Construction: Important
The room where the shower unit is to be located must be constructed of materials that can withstand excessive amounts of moisture
and condensation. Large amounts of steam can be released into the room when the shower door is opened. Providing natural or
forced ventilation of the room will help maintain comfort and minimize moisture damage to the building. Jacuzzi Whirlpool Bath is
not responsible for damages resulting from excess moisture or water spillage. Consult an architect or engineer for aid in designing
your interior structure. Do not install heat lamps directly above the shower unit. The clear top will deform from excess heat.
Water Supply Required
The water supply must be capable of delivering 6 gallons per minute minimum to the unit within a pressure range of 30-65 PSI (2.1-
4.6 BAR). Pressures in excess of 65 PSI (4.6 BAR) must be reduced with a regulator in the supply line. This is the amount of water
and pressure required to ensure adequate performance of the J-Dream II, it is not the water consumption rate.
NOTE: DO NOTprovide less than minimum flow specified. Negative pressure under certain conditions could cause a health hazard by
fouling of the house potable water supply.
Electrical Power Required
See Specifications for power required. Power supplied to the unit must be through a *GFCI protected, dedicated circuit with proper
bonding and grounding. The GFCI must be located in an area that will allow access for frequent testing.
* GFCI ( Ground Fault Circuit Interrupter) is also known as an ELCB ( Earth Leakage Circuit Breaker.) This device must be a type
approved by electrical codes and standards to protect users from potential electrical hazards.
3

Electrical requirements
Your J-Dream II, as it comes from the factory, requires a GFCI protected 220/240 VAC 15 AMP 3-wire circuit (2 conductor with ground)
for single (1) phase electrical service, and must be in a separate circuit having no other appliance connected in that circuit. If you
do not have this kind of circuit, a qualified electrician should be called in to install the necessary wiring. Inadequately sized wiring or
locating the unit too far from the main service panel may cause a voltage drop. A drop in voltage can cause the unit to malfunction
and bring about permanent damage to the shower's electrical system. The circuit ground wire must be provided to take advantage
of the designed-in safety features of the J-Dream II. Bond according to procedure described on page 23. Caution: Without proper
grounding and bonding, a system malfunction may cause fatal shock.
Electrical precautions
Lighting and electrical receptacles must be located at least 5 ft (1.5m) from the J-Dream II. Lighting located between 5 ft and 10
ft (1.5m and 3m) from the J-Dream II must be on a circuit protected by a GFCI. Do not use electrically connected devices, such as
television, radio, telephones, stereo speakers, lights or cooking devices within 5 feet of the J-Dream II while it is in use.
Ventilation
Water which drips on the floor during exit from the J-Dream II may cause a walking hazard and/or structural damage unless proper
waterproof building materials are used in the area surrounding the unit. Take into consideration, also, the high room humidity which
will exist due to use of the steamer. Providing natural or forced ventilation of the room will help maintain comfort and minimize moisture
damage to the building. Jacuzzi Whirlpool Bath is not responsible for damages resulting from excess moisture or water spillage.
Consult an architect or engineer for aid in designing your installation.
Maintenance
Cleaning the J-Dream II
To clean your J-Dream II, simply use a mild non-abrasive liquid detergent or commercially prepared bathtub cleaners. Do not use
abrasive cleaners. You can protect and restore the gloss to a dulled surface by applying a plastic polish specifically designed for
use on acrylic finishes (methylmethacrylate). If an acrylic polish is not available, an automotive paste wax will do.
Repairs to the surface
Minor scratches which do not penetrate the color finish (acrylic) can be removed with 600-grit wet/dry sandpaper. Restore the glossy
finish with an acrylic polish or a comparable automotive paste wax.
Major scratches or gouges which penetrate the acrylic surface will require refinishing. Ask your dealer for special instructions.
J-Dream II Owner's Manual
4

J-Dream II Packaging
6 cartons packed together on a wooden crate.
Contents of cartons:
• Wall Panels
• Door Frame
• Base/Cover (includes product accessory pack and owners manual)
• Back Wall
• Seat Wall
• Equipment/Seat Wall
5
J-Dream II Owner's Manual

J-Dream II Owner's Manual
FLAT WASHER 1/4"
PAN HEAD SCREW
#10-24 x 3/4"
LOCK NUT 10-24
EXTERNAL TOOTH
LOCK-WASHER 1/4
WASHERI
CWASHER
SCREW
B
NUT
D
FLAT HEAD SCREW
M4x10mm
SCREW
E
PAN HEAD SCREW
#12 x 1/2
SCREW
F
HEX BOLT 1/4-20 x 1.5"BOLTG
SELF-TAPPING
M6x50mm
BOLTH
U-CLIP
10-24
CLIPA
SIDE
BRACKET
L BRACKET
NUT
J1/4-20 LOCK NUT
SCREW CAP
COVER
FLAT WASHER #10
WASHER
K
PAN HEAD SCREW
#6-32 x .38
SCREW
L
M
LAG SCREW
CLAMP
DRAIN CLIP 1"
Circled letters A are used in the illustrations of the assenbly procedure.
6

7

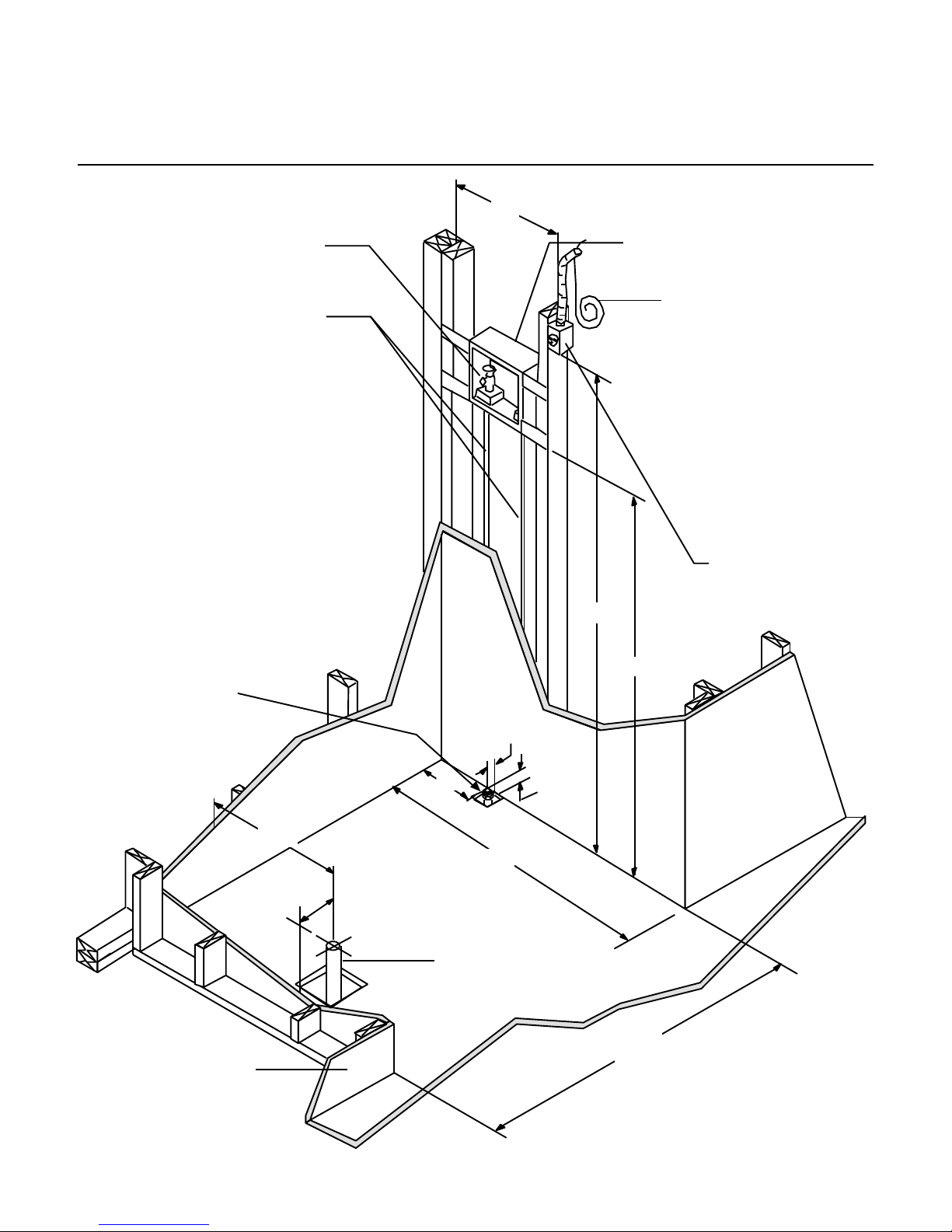

Rough-in
WASHING
MACHINE
OUTLET
BOX
CONNECT #8 GAUGE (10mm2)
MINIMUM SOLID COPPER BOND
WIRE TO THE HOUSE
ELECTRICAL PANEL OR
APPROVED LOCAL GROUND.
AN APPROVED GROUND MAY
BE AN 8 FOOT LONG GROUND
ROD (3 METER LONG EARTH
ROD), A PLATE ELECTRODE, OR
OTHER ACCEPTABLE BOND.
CHECK YOUR LOCAL BUILDING
CODE FOR REQUIREMENTS.
(SEE PAGE23 FOR BONDING
INSTRUCTIONS).
ELECTRICAL
OUTLET 240V
15A RATING TO
BE ON A GFCI
PROTECTED
CIRCUIT
HOSE
BIBB (2)
(2) 1/2 " HOT
& COLD
WATER
SUPPLY
LINES
16"
FINISHED
WALLS
2 " WASTE STUBOUT
21-1/2"
11-5/8"
FINISHED WALL
SURFACE
FINISHED FLOOR
MATERIAL
60"
FINISHED
MINIMUM
IMPORTANT: This is the installed position of
the waste stub-out when connected to the
shower drain. If the stub-out is installed before
the shower unit, leave enough flex in the waste
line to allow the end of the stub-out to be
blocked temporarily (see page 10) in a position
under flush to the floor surface. This will allow
the shower unit to slide across the floor into
position without having to lift it.
IMPORTANT: The shower drain is designed
to connect to a 2 inch (50mm) ABS or PVC (as
approved by local codes/standards) waste
stubout.
End of 2 inch (50 mm) waste stubout must be
located to these dimensions within 1/4 inch
(6mm).
40 "
55 "
FINISHED WALL
SURFACE
* Stub-out for steam tank drain
down line should be minimum
1/2" copper tubing. Provide
3/4" male pipe thread fitting on
end of copper drain line.
42"
3"
3"
13"
* This drain line must be
provided for the steam tank
drain to site drain as required
by local codes/standards.
J-Dream II Owner's Manual

8

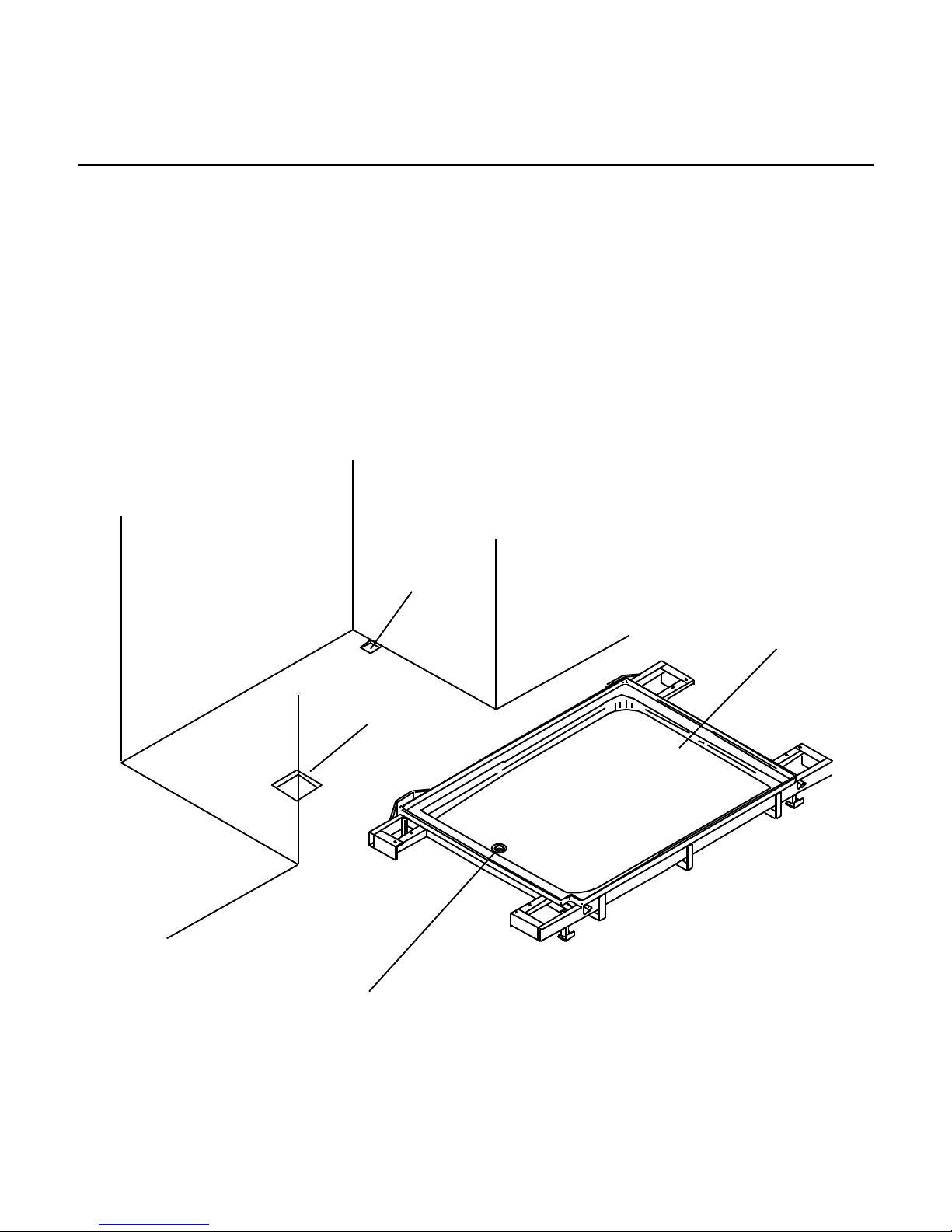

Locate Base to provide assembly access to all sides
Remove Base from carton labeled Base/Top. Place Clear Top in carton to prevent damage.
(The Clear Top will not be installed until the unit has been fully assembled and plumbed).
Position the J-Dream base on the floor so that you have work access to all four sides of the
unit during assembly. (Allow a minimum of 24" (600 mm) of access on each side of base.)
Before starting assembly, position the base pointing in the same direction as it will be in the
final installation position so no unnecessary turning of the unit is required.
Base
Drain Fitting
Floor cut-out
for drain pipe.
Notice Base is positioned in the
same direction as it will be in
the final installation position.
Niche where J-Dream II is
to be finally installed. Floor cut-out for
steam tank drain pipe.
J-Dream II Owner's Manual

9
Drain Fitting (provided with unit)
Leave enough flexibility in the waste line to allow the end of the stub-out to
be blocked temporarily in a position under flush with the floor surface. This
will allow the shower unit to slide across the floor into position without
having to lift the shower unit.
Remove the block and pull the drain assembly up to insert the stub into the drain.
The drain fitting is a non-caulk type (compression fitting) drain. Make certain that the
locking ring is loose to allow the drain stub to insert easily inside the rubber compression
sleeve. If necessary, lubricate the sleeve with a mild soap solution. The drain stub must
extend well into the rubber sleeve before the locking ring is tightened. Use a screwdriver
and the assembly tool provided to tighten the locking ring.
Studwall
Drain
Compression
Fitting
Temporary
Wood Block
Drain AssemblyFloor
Broken Line
Represents
Drain Stub
Assembly Tool
Locking
Ring
Rubber
Compression
Sleeve
Screwdriver
Tighten
Locking Ring
Clockwise
J-Dream II Owner's Manual

10
Attach Seat Walls to Base (J-Dream II with stereo shown)
Bolts (8)
Nuts (8)
G
J
Align four holes on seat wall frame
over base and insert bolts and
tighten nuts from underneath.
Washers (8)
I
Pan lip
Pan floor
Install clip over pan lip locating
it over cut-out in seat wall and
secure with foam tape (pre-
installed on clip). Reservoir
over flow drain hose will be fed
through the clip.
Clip (1) Drain line
Equipment
Seat Wall
Non-Equipment
Seat Wall
J-Dream II Owner's Manual

11
Attach Panel #2 to Seat Wall Frame
Slide in panel feeding between frame and
edge of seat wall. Align to frame and fasten
panel to frame. Important: do not caulk
panel to seat wall as the seat wall is hinged
and designed to swing open.
F
Screw (4)
C
Washer (4)
Top View
Move
Frame
Seat Wall
Seals
When Panel #2 is installed
and put in position the seals
will be as shown.
Panel #2 Remove
these 4
screws to
swing the
seat wall
open.
You may want to swing the
hinged seat wall open to
get better access to the
installation of the screws.
J-Dream II Owner's Manual

12
Attach Panel #3 to Seat Wall Frame
Slide in panel feeding between frame and
edge of seat wall. Align to frame and fasten
panel to frame. Important: do not caulk
panel to seat wall as the seat wall is hinged
and designed to swing open.
Top View
Move
Frame Seat Wall
C
Washer (4) F
Screw (4)
Seals
Panel #3
You may want to swing
the hinged seat wall open
to get better access to the
installation of the screws.
Remove
these 4
screws to
swing the
seat wall
open.
When Panel #3 is installed
and put in position the seals
will be as shown.
J-Dream II Owner's Manual

13

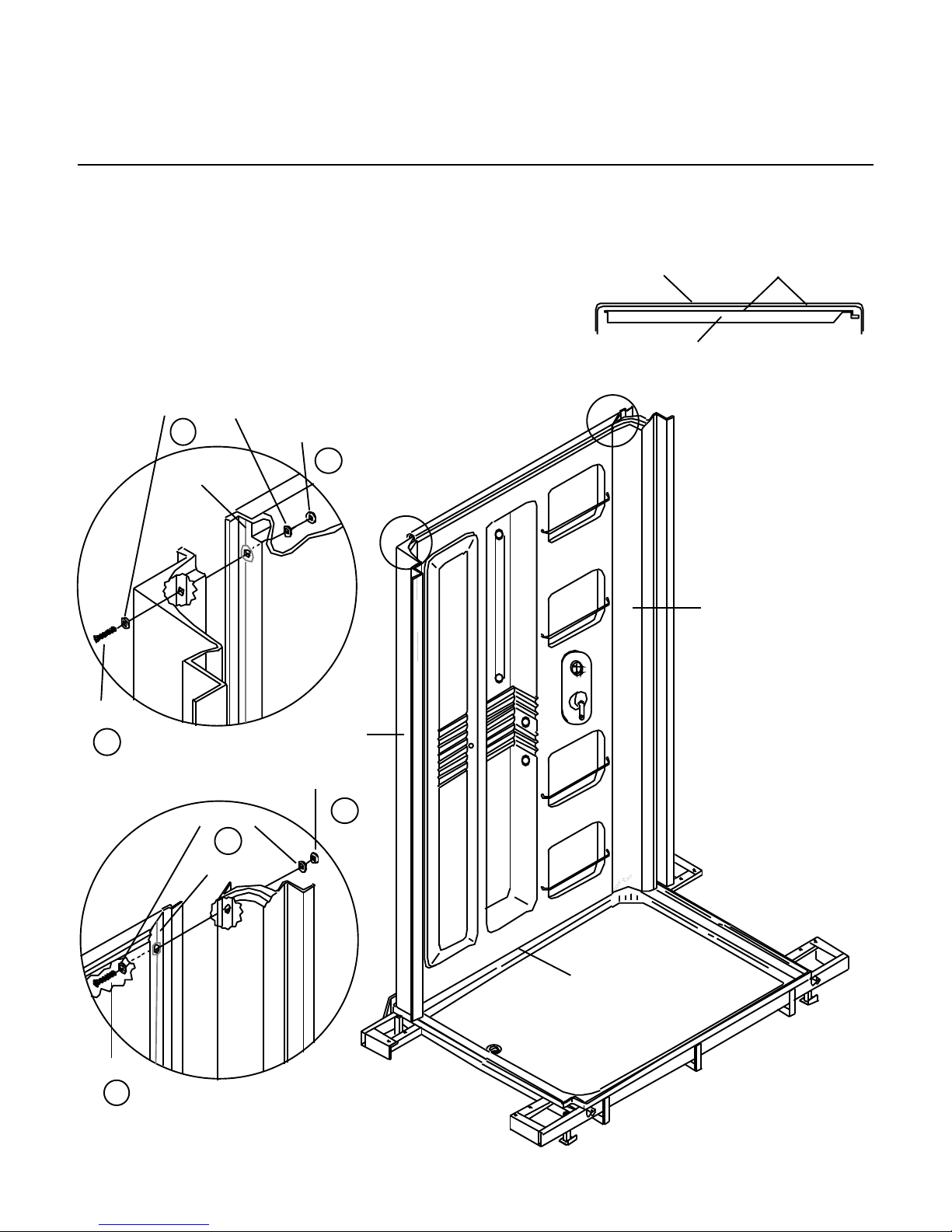

Install Back Wall
Caulk the bottom and sides of back wall where indicated
in the illustrations below. Install fasteners. Now align
the back wall parallel to the pan lip to center the back
wall between the seat walls.
Screw (4)
B
Washer (8)
CNut (4)
D
Caulk A
A
Screw (4)
BB
Caulk
Washer (8)
C
Nut (4)
D
B
Seat walls not
shown in this
illustration for
clarity.
Caulk
Panel #3
Panel #2
Back wall
Pan lip Parallel
J-Dream II Owner's Manual

B
A
A.
Caulk
Washer (10)
C
Nut (3)
D
Screw (3)
B
B
Reinstall bolts (4)
and washers (4)
removed from seat
wall and bracket
Seat wall attaches to
panel #1 and #4 in
three places.
Seat wall attaches to panel
#1 and #4 in two places.
Caulk
Narrow side of
panel faces
toward the
front
Panel #1
Panel #4
14
Attach Panels #1 and #4 to Seat Walls
Remove 4 bolts from seat walls to
attach panels # 1 and #4. Caulk
along surface of seat walls.
J-Dream II Owner's Manual

15
Attach Brackets to Seat Wall Frames
and L Bracket to left Angle Bracket
B
B
A
C
A
17"
58-3/8"
Screw (2)
Note: only the left side has this
L bracket installed.
Angle Bracket
with Velcro®
strips
K
Washer (2)
D
Nut (2) B
C
L Bracket
U-Clip
A
B
Screw (2)
Bolt (remove top bolt from seat wall
bracket and reinstall). See below
dimensions for bolt locations.
D
Nut (2)
Side
Bracket
B
Seat Wall
Panel #1
B
Screw (2)
Bolt (remove top bolt from seat wall
bracket and reinstall). See below
dimensions for bolt locations.
D
Nut (2)
Frame
Side
Bracket
A
Seat Wall
Panel #4
Frame
Panels #1 and #4
not shown in this
illustration for clarity.
J-Dream II Owner's Manual

Caulk
B
Screw (3)
C
Washer (3)
Nut (3)
D
Top View (right side)
Notch
Side View (right side)
B
Screw (3)
C
Washer (3)
Nut (3)
D
Top View (left side)
Side View (left side)
Notch
Caulk
16
Attach Painted Angle Brackets to Panels #1 and #4
Note that each angle bracket has a notch on the top and bottom. This
notch does not get screwed against the side panels but faces out as
shown in the side view for both left and right sides. Do not tighten the
screws at this time as the angle brackets will have to be aligned
with the door frame holes.
J-Dream II Owner's Manual

17

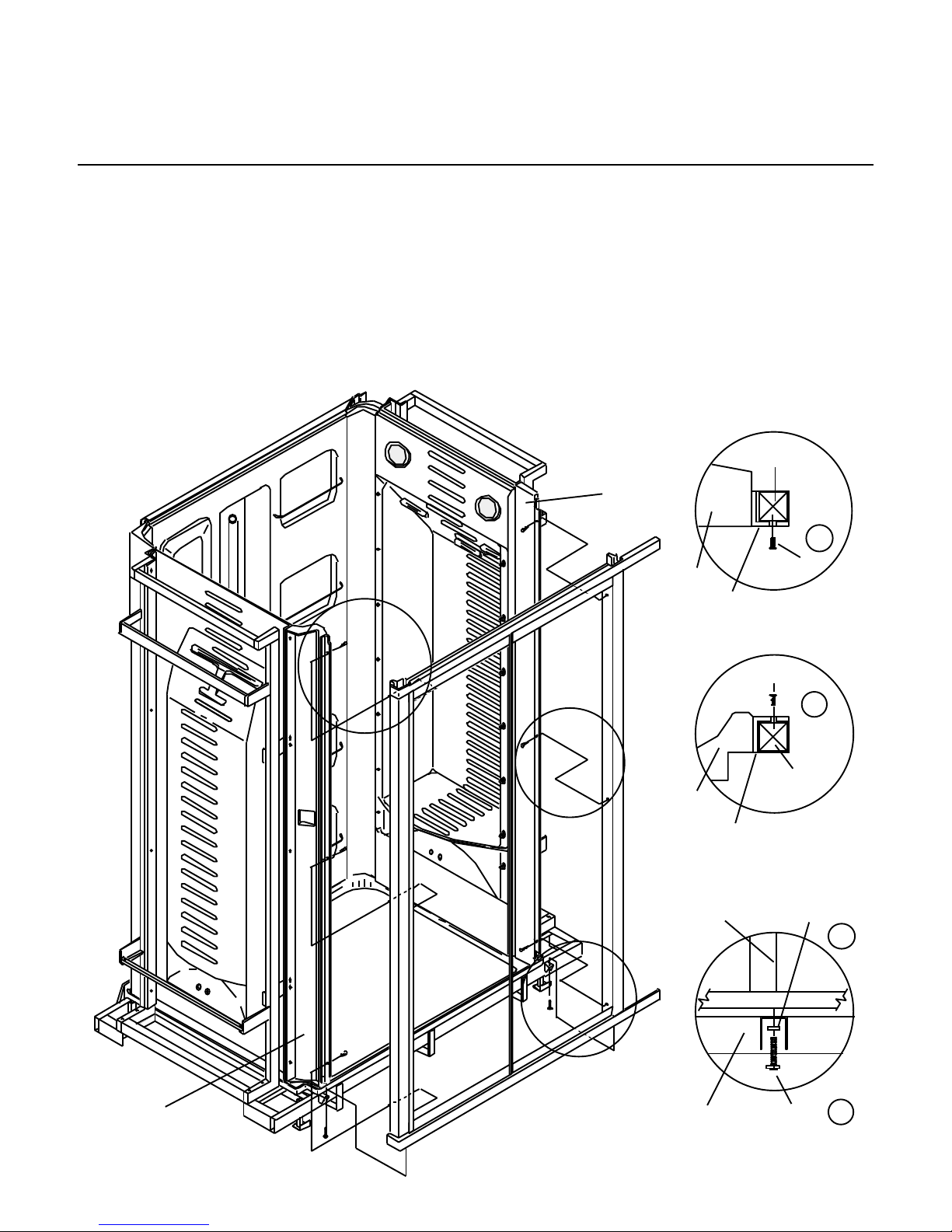

Attach Door Frame to Angle Brackets and Base Frame
Before proceeding, make sure the seat walls are closed and fastened. See detail Bon page 15.
Align door frame over tabs on base frame and pan lip. Pan lip is to fit into corner posts of door frame.
Align holes along sides of door frame with angle brackets and mark this position of the angle brack-
ets. Remove door frame and angle bracket screws. Apply the silicone caulk and reinstall the angle
brackets at the marked position. Insert screws and tighten. Reposition the door frame and install
screws through angle brackets into door frame post. Then install bolts (2) through frame tabs into
door frame. Do not over tighten. Do not silicone caulk angle brackets to door frame as they allow
service access to equipment.
Enclosure
Post
Panel #1
Angle Bracket
Screw (3)
E
Enclosure
Post
Panel #4
Angle Bracket
Screw (3)
E
Enclosure
Post
Base Frame Bolt (2) H
A
A
B
C
C
B
Washer (2)
I
Panel #1
Panel #4
J-Dream II Owner's Manual

18

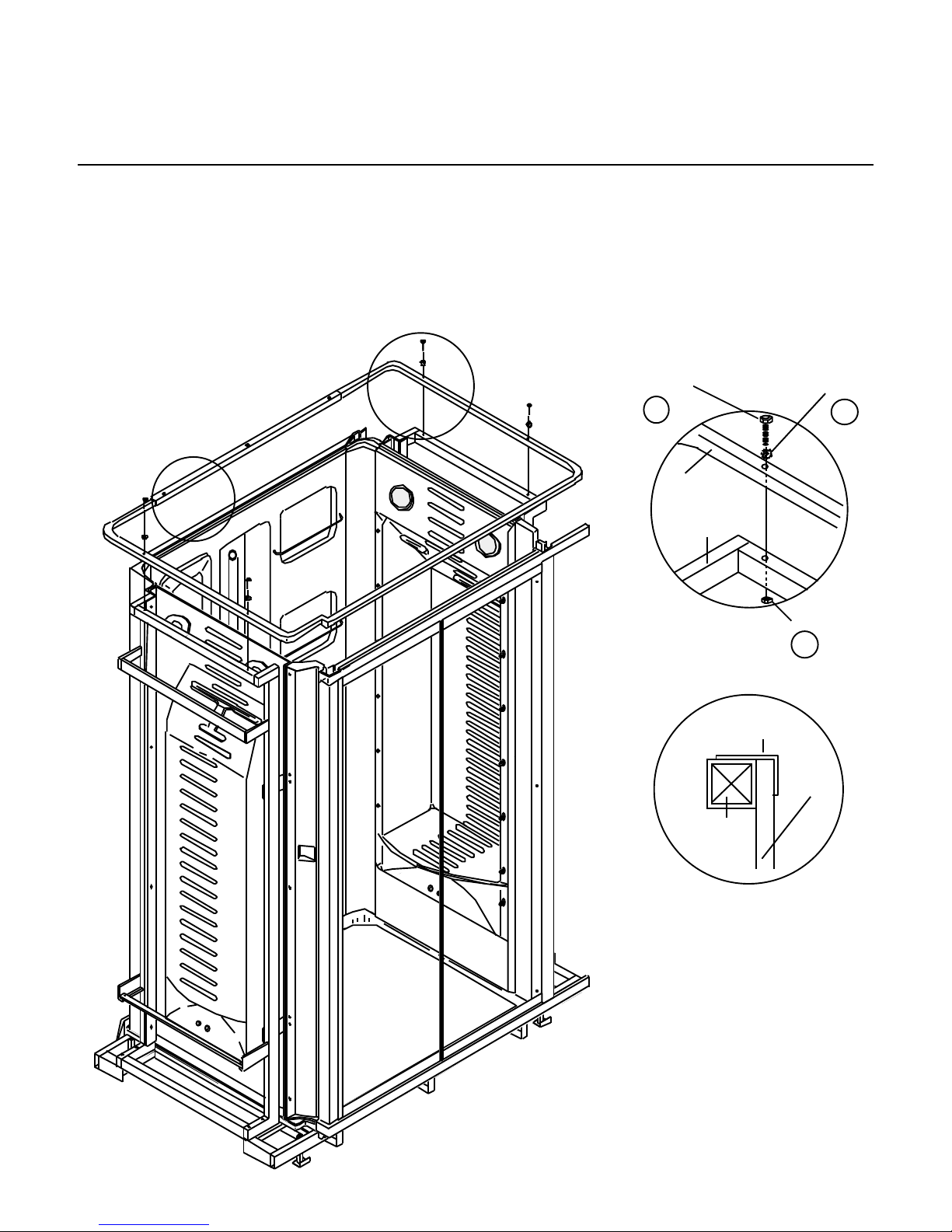

Attach Top Frame to Door Frame,
Back Wall and Seat Wall Frames
Press/tap top frame into door frame, aligning notch in door frame with corner of top of frame while
aligning with corners of enclosure. Frame snaps down into door frame and back snaps over back
wall. Install bolts (4) through top frame and into left and right seat wall frames.
Top
Frame
Seat Wall
Frame
Back
Wall
Bracket
(preinstalled)
Top
Frame
A
B
A
B
Washer (4)
Bolt (4)
GI
Nut (4)
J
J-Dream II Owner's Manual
