Jamara Fokker DVII User manual

General Information
Jamara e.K. is not liable for any damage caused to the product itself or through this, provided this
is due to improper operation or handling errors. The Customer alone bears the full responsibility for
the proper use and handling, including without limitation, the assembly, the charging process, the
use and choice of the operation area. Please refer to the operating and user instructions, it contains
important information and warnings.
Attention!
In some countries it is a legal requirement to carry third party indemnity insurance when operating
a radio controlled model. Please ask your local dealer, governing body or your insurance company
for details.
This model is not a toy!
Suitable for people over 14 year.
Warning: Not suitable for children under 36 months. RISK OF SUFFOCATION.
Contains small parts which can be swallowed. Keep away necessarily from children
No. 006143 Fokker DVII
GB - Instruction
Box contents:
• Modell • Wheels • Undercarriage • Accessories • Instructions/Planes
Functions:
• Aileron • Elevator • Vertical n • Throttle
Highlights:
• Fuselage made of balsa and plywood • Wings made of wood in rib construction
• Wooden construction kit • Ideal to have with you at all times • Laser cut kit
Recommended accessories
Electric motor A2820/6 No. 13 2820
Propeller AEJ 10 x 7 No. 34 0124
Servo High End 929 HMG No. 07 4420
Technical data:
• Wing span: ~ 1200 mm • Length: ~ 990 mm
• Wing area ~ 41 qdm • Weight: ~ 1400 g • Servos: 4 x 13,6 g
• Battery LiPo 14,8 V 2200 mAh • Motor 1000 KV 550 W
No responsibility is taken for the correctness of this information. Subject to change without prior
notice. Errors and omissions excepted

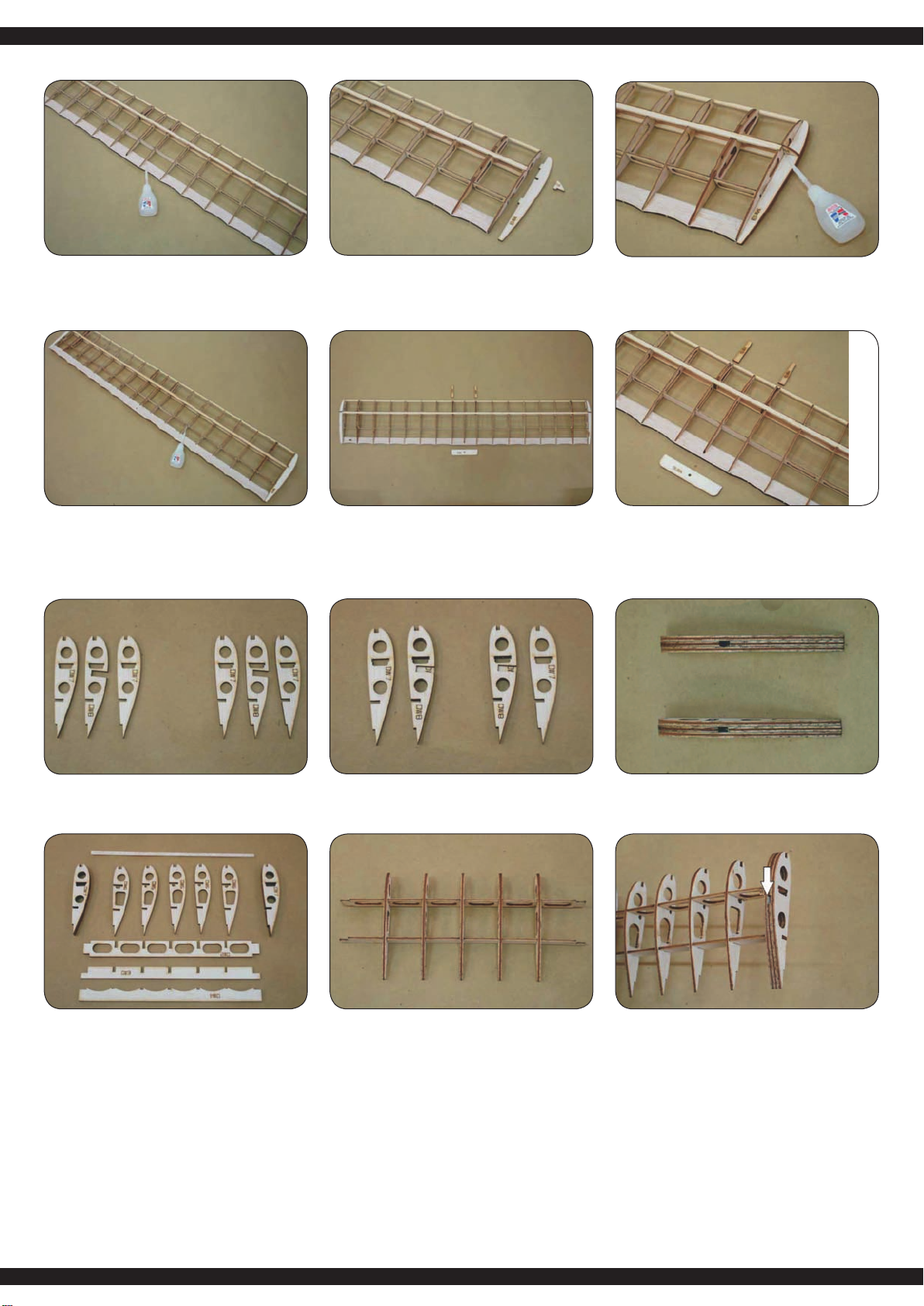

TOP MAIN WING ASSEMBLY
Recommendation: Try to nd a at surface planking (L:1200 mm; w:400mm) or glass as working table for the following steps.
Place the W3 and W2 on the working table and the slot part
upward. Try to place the 3mm wide of W3 on the bottom of the W2. Use triangle ruler when apply instant glue to secure the W3 on the
W2.
Close view after glue. The slot part must be upward. The angle
between W2 and W3 is 90 degree.
Try to nd the 2 pieces of W11 and one piece of W12 from the
laser-cutting parts bag and place them on the working table. Apply UHU glue to secure the W11 on both sides of W12. Use clip to hold them together until the glue is dried enough. Make
sure the combination remain aligned. Drop some instant glue on
the edges. Repeat the same steps for another combination.
Refer to the assemble drawing; try to t the W2 and W4. Don‘t
apply any glue on them. Try to t the W15 and drop very small
amount of instant glue on the joint place. Fit the rib W6 from
the center part. Fit other ribs W7, W8, W8, W7, W9, W10, W12,
W13, W14 in order.

2
Try to t the 5 mm dowel as the leading edge. Use triangle ruler
when drop instant glue to secure the dowel on the W5.
Try to t the W3 on the main wing as the middle edge.
TOP MAIN WING ASSEMBLY
When satisfy the location; place some heavy thing (1 KG) on
the middle edge. Place a long straight ruler on the leading edge.
Make sure the angle between the ribs and leading edge is 90
degree. Use instant glue to secure the joint places on the lea-
ding edge.
Press the W16R and makes the ribs t into the slots. Drop some
instant glue on the joint places.
Please check if there is any joint places need to be secured by
instant glue. Apply some glue on the joint places of leading edge
(dowel) and ribs. Wipe off the excess glue.
Try to t W5 on the main wing as the rear edge.
Place the W17, W18, W19 on the working table.
Place W20, W21 each 2 pieces on the working table. Please
note the direction. There is one small hole on the W20 and W21.
Place the side of the small hole face the center part of the main
wing.
Make sure the alignment of ribs on the W5. Drop instant glue to
secure them in place.
Try to t the W17 into the slots on the W15. Drop some instant
glue to secure the W17 in place. Try to t the W18 between the
middle edge the W17. Please note the angle must be 90 degree.
When satisfy the location; use some instant glue to secure the
W18 in place. Try to t the W19 into the W17 and use instant glue
to secure it in place.
Try to t the W16R as the front edge of aileron on the main wing.
Please note: there is W16R (for the right wing) and W16L (for the
left wing). The at surface must face downward; the thick part
must face the wing tip.
Use A piece of double-side adhesive tape to secure the sand
paper on planking; use it to trim the uneven surface or excess
glue.

3

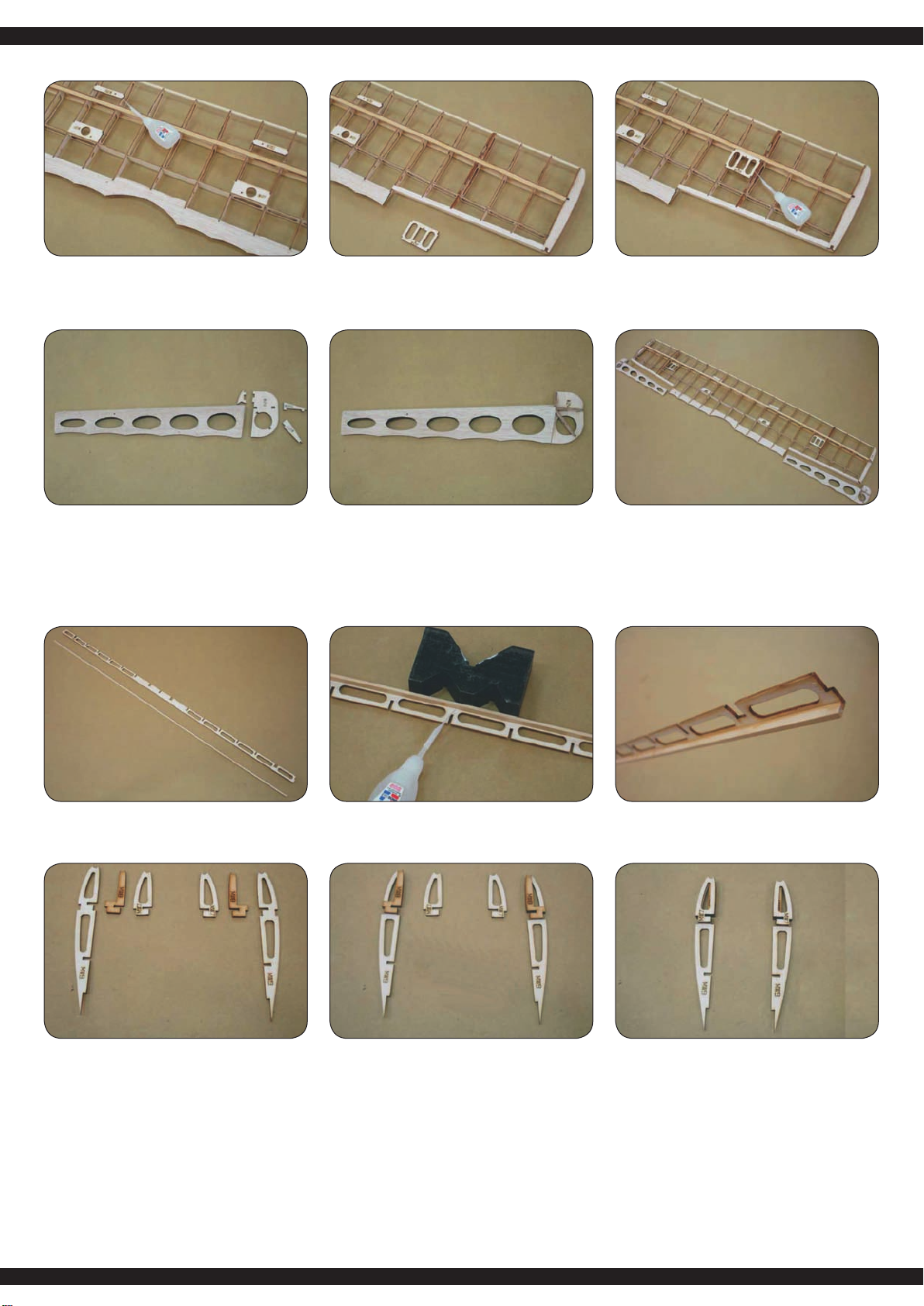

TOP MAIN WING ASSEMBLY
BOTTOM MAIN WING ASSEMBLY
Try to t the W22 on the main wing as servo tray. Press the W22
into the slots and drop some instant glue to secure it in place.
Try to place the 3mm wide of MW3 on the bottom of the MW2
(the side without any gaps). Use triangle rulerwhen apply instant
glue.
Place W23, W24, W25, W26, W27 as the picture indicated on
the working table.
Close view after gluing MW3 on MW2.
Try to t the W20 on the main wing (near the leading edge); and
t the W21 on the main wing near the rear edge. Press them into
the slots and drop some instant glue to secure them in place.
Apply some glue from inside for reinforcement.
Try to assemble W23, W24, W25, W26, W27 and press them into
its relative slots. Make sure the angle must be 90 degree. Drop
some instant glue to secure them in place. Use sand paper to
trim the uneven surface.
Place MW7 (2 pieces), MW8 (2 pieces) and MW9 (2 pieces) on
the working table like the picture shown.
Place W22 on working table.
The assembly of top main wing is completed and wait for apply
lm.
Place the MW3 and MW2 on the working table and the slot part
upward.Both parts must be very straight.
Apply glue to secure MW8 on MW9. Please refer to the pic-
ture. Spread some glue on the surface of MW8 and place MW7
on MW8. Use clip to hold them together until the glue is dried
enough. Make sure the MW9 combinations remain aligned. Drop
some instant glue on the edges.
These two MW9 combinations are for left and for the right.

4
Try to t the MW9 combinations onto the MW2 and MW4 like the
picture shown. Left MW9 combination must be on the left side.
Don‘t use any glue.
Top view of the left and right MW11 combinations.
Make sure the alignment of every rib and place some heavy thing
(1 KG) on themiddle edge. Place a long straight ruler on the lea-
ding edge. Make sure the angle between the ribs and leading
edge is 90 degree. Use instant glue to secure the every joint
place on ribs.
Place MW10 (4 pieces) and MW11 (2 pieces) on the working
table.
Refer to the assemble drawing when assemble the ribs to the
bottom main wing. Try to t the rib MW6 from the center part.
Fit other ribs MW9 (6 pieces), MW11, MW12 in order.Don‘t apply
any glue to the ribs. Fit MW2 and MW4 to the main wing and
drop small amount of instant glue to x them in place temporary.
Drop some instant glue to secure the MW12 on the main wing
as the wing tip.
Try to t MW5 on the main wing as the rear edge.
Use glue to secure the MW10 on both sides of MW11. Use clip
to hold them in place until the glue is dried enough. Drop some
instant glue on the edges.
Try to t MW3 to the main wing as the middle edge and press
every ribs into its relatives slots. Don‘t apply any glue to the ribs.
Completion of left MW11 and right MW11 combinations.
Try to t the 5mm dowel MW1 as the leading edge. Use triangle
ruler when drop instant glue to secure the dowel on the MW12.
Top view of both MW9 combinations. Place MW2, MW9 combinations and MW4 on the working table.
BOTTOM MAIN WING ASSEMBLY

5
Make sure the alignment of ribs on the W5; press the ribs into
its relative slots on the MW5. Drop instant glue to secure them
in place.
Please check if there is any joint places need to be secured by
instant glue. Apply some UHU glue on the joint places of leading
edge (dowel) and ribs. Wipe off the excess glue.
Use sanding paper to trim the uneven surface, wing tips and rear
edge; wait for apply lms.
Place MW15 and MW16 on the working table. MW16 will be ap-
plied lm on one side. MW15 won‘t need any lm. Don‘t glue
MW15 and MW16 to the bottom wing right now.
BOTTOM MAIN WING ASSEMBLY
Place the DW7 (4 pieces) and DW8 (2 pieces) on the working
table as the picture shown.
Use glue to secure DW7 on both sides of DW8. Make sure the
alignment of the edges and use clip to hold the combination tem-
porary until the glue is dried enough. Drop some instant glue on
the edges.
Top view of the DW7 combinations. There is one small hole on
the top.

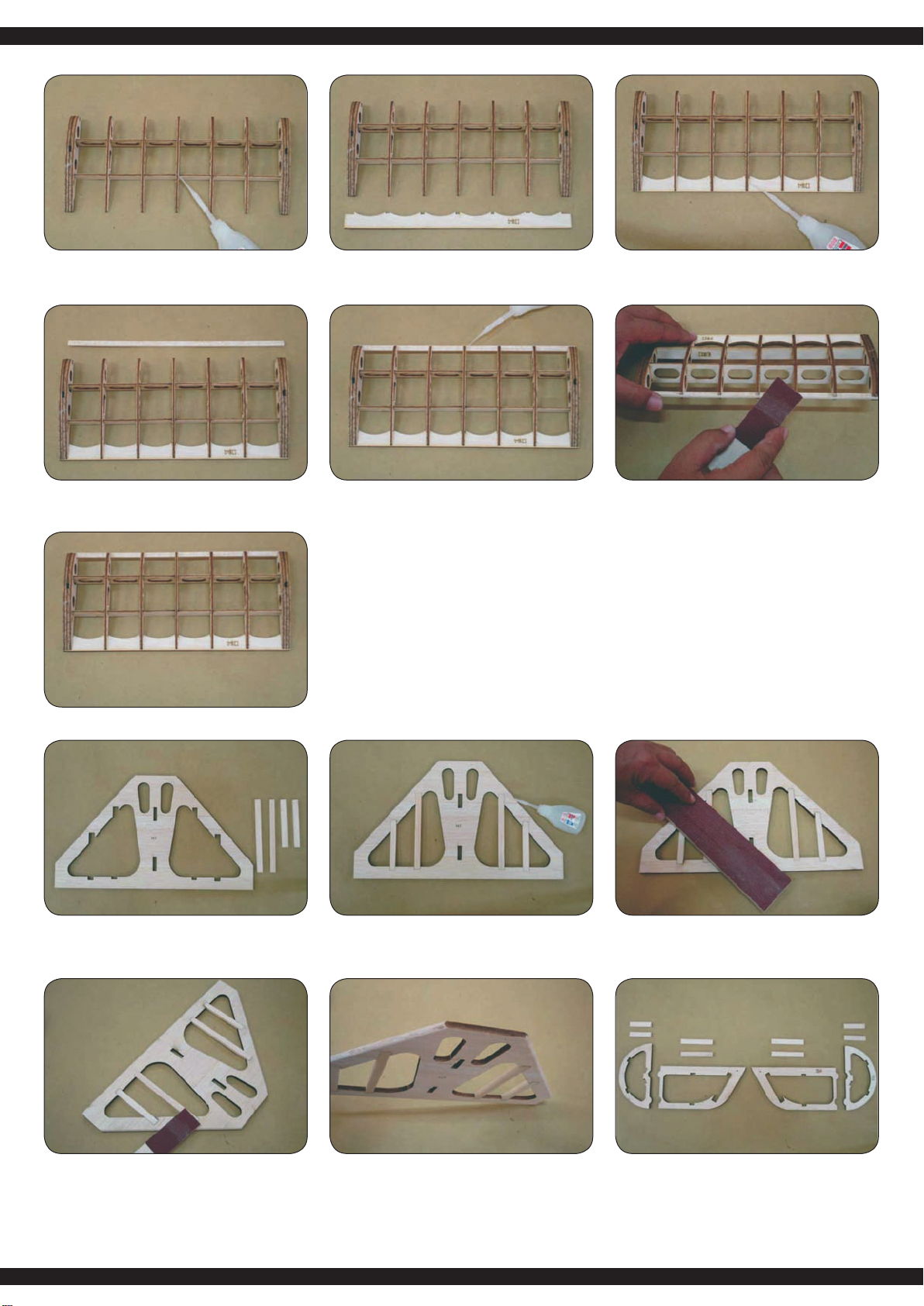

LANDING GEAR SUB WING ASSEMBLY
Place the following parts on the working table in order:
DW1 leading edge
DW7 (2 pieces)ribs
DW6 (2 pieces)ribs
DW5 (3 pieces)ribs
DW2. middle edge
DW3 secondary edge
DW4 rear edge
Try to t ribs to the DW2 and DW3.Don‘t use any glue now. Try to t 2 pieces of DW7 on both side of sub wing. Please note
the hole on DW7 must face the upward.
Place MW13 and MW14 on the working table. Fit the MW13 to the main wing as the wing tip. Fit the MW14 into
the slot on the middle edge between the main wing and MW13.
The angle between the MW14 and MW13 must be 90 degree.
Drop some instant glue to secure the MW14 in place.

6
Use sanding paper to trim the side edges into round edges (R5).
Try to t DW4 to the bottom of the sub wing as the rear edge.
Drop some instant glue to secure it in place.
Completion of the sub wing and wit for apply lms.
Close view of the round edges. It makes the horizontal looking
better and avoiding disturbed ow.
Place DW1 on the working table.
Place the H1 (horizontal), H4(2 pieces) and H5(2 pieces) on the
working table.
Place H2, H3, H6 and H7 on the working
table for assembling elevator.
Make sure the alignment of every ribs and every angle must be
90 degree; use instant glue to secure the joint places. Spread
some UHU glue on the joint places of DW7 with DW2 and DW3.
Try t o t the DW1 to the sub win g as the leading edge. Make
sure the alignment of every ribs and drop instant glue to secure
ribs on the DW1.
Try to t H4 and H5 into its relative slot on the H1. Make sure
the surface is at and drop instant glue to secure them in place.
Place DW4 on the working table.
Use sanding paper to trim the leadingedge and uneven surface,
chamfer the rear edge.
Use sanding paper (#150-200) to trim both sides of horizontal.
Don‘t trim too much; make sure the thickness is 5mm.
LANDING GEAR SUB WING ASSEMBLY
ELEVATOR ASSEMBLY

7
Use wooden planning tool to trim the tips into V shape on H2
(angle is around 30 degree on one side).
Use sandingpaper to trim the surface. Don‘t trim too much.
Try to t the hinges into the holes.
Close view of the V shape on the tip. It is also workable to use
sanding paper to trim the tips into V shape; but be careful, don‘t
trim too much.
Use sanding paper to trim the edges into round edges (R5).
Place V1 and H6 on the working table for assembling the vertical:
Place H2 and H3 combinations on the working table.
Close view of the round edges.
Try to t the H6 into V1 and use instant glue to secure the H6
in place.
Try to t the H6 into the slots on the H2; t H7 into the slots on
the H3. Drop some instant glue to secure the H6 and H7 in place.
Don‘t secure H2 to H3 right now.
Try to t the H2 into H3 and use instant glue to secure them
in place.
Please refer to the drawing on next step and mark the correct
locations for hinges on the elevator and horizontal. Use hobby
knife to cut the hole (width is around 0.5mm) for inserting the
hinge (0.35mm).
Use sanding paper to trim the surface:
ELEVATOR ASSEMBLY
RUDDER ASSEMBLY

8
Place V2, V3, V4, V5, H5 on the working table for assembling
elevator.
Try to t V4 into V2; t H5 and V5 into V3. Use instant glue to
secure V4, H5 and V5 in place.
RUDDER ASSEMBLY
Use sanding paper to trim the top edge into round edge. Close view of the round edge.
Use wooden planning tool to trim the leading edge of the V3 into
V shape (30 degree).
Use sanding paper to trim the outer edge of the rudder into round
edge (R5).
Remove the rudder from the fuselage. Use 2mm driller to drill
24mm depth hole on the marking position.
Close view of the V shape.
Close view of the round edge.
Use hobby knife to cut a V slot from the drilling holefor installing
tail gear.
Try to t the V2 into V3 and use instant glue to secure them in
place..
Use hobby knife to cut the hole on the rudder for inserting hinges.
The location for the hole is 10mm from the top and 35mm from
the bottom.
Try to t the tail gear into the V slot.
Use sanding paper to trim the surface of the rudder. The thick-
ness is 5mm; don‘t trim too much.
Try to t the rudder into the fuselage. Insert the tail gear to the tail
and use marker to mark the top of the wire on the rudder.

9
RUDDER ASSEMBLY
Try to t the V1 into the rudder for marking the hinge location
on V1. Use hobby knife to cut the hinge hole on V1. Wait for
applying lm.

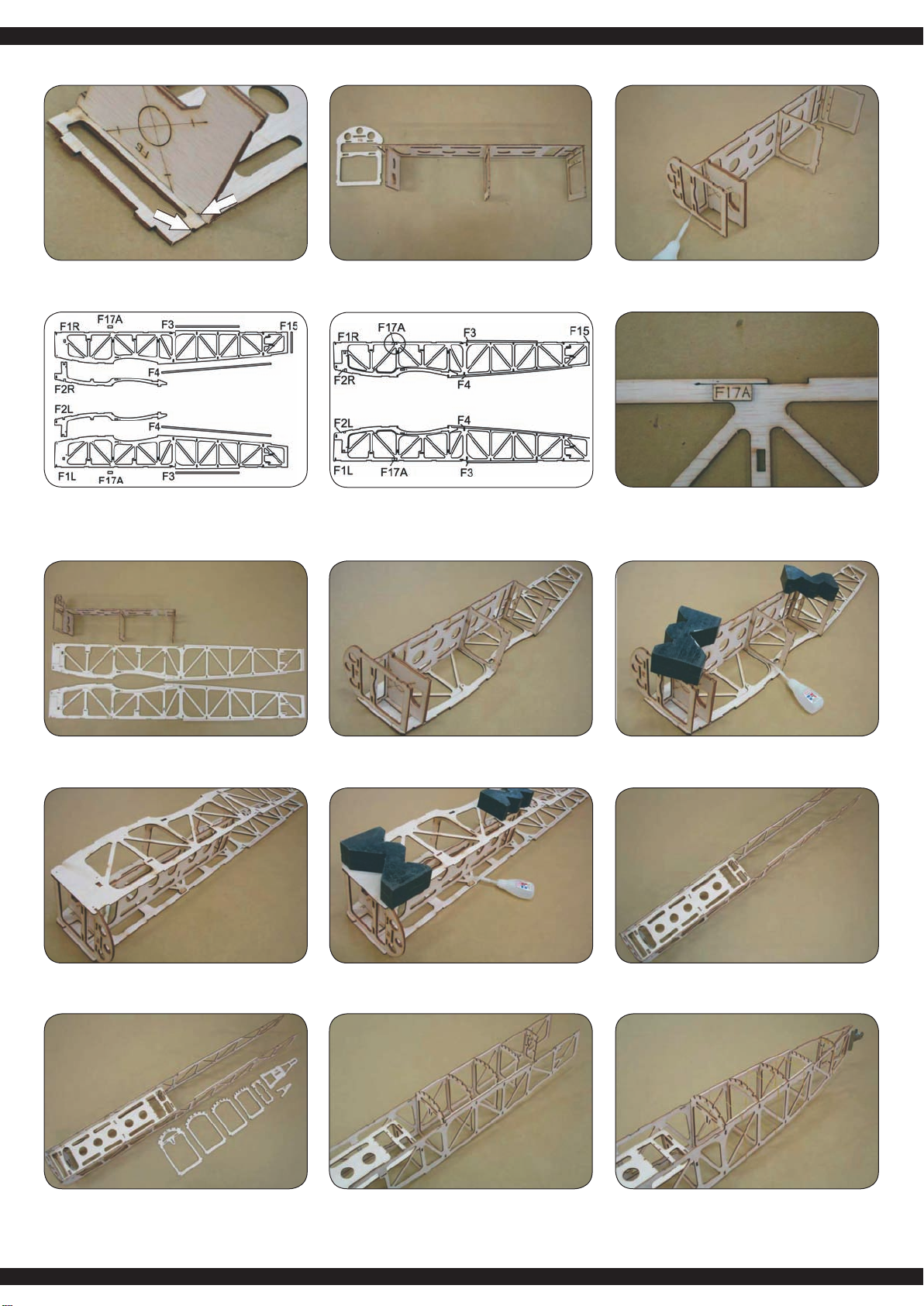

Place F6 and F7 on the working table. Use glue to secure the F6 and F7 together. Please note the small
recess on the top of the left sides and the alignment of every
side. Wipe off the excess glue.
Place F20 (2 pieces), F21 and F22 on the working table.
FUSELAGE ASSEMBLY
Place F27 (2 pieces) and one piece of M3 tee nut on the working
table. Use glue to secure both F27 together.
Hammer M3 Tee nut into F27. Drop some instant glue around
the nut.
Try to place the F21 on F20 and the second F20 on F22. Please
note the holes positions on planking. Use glue to secure them
in place.
Place 4 pieces of F40 on the working table. Use glue to secure 2 pieces of F40 together..
Place F6, F8, F9, F16 on the working table. Please note there is
a small recess on the right top of the F16.
Try t o t the F6, F8 and F9 in to the F16. Make sure the ang-
le between F8/F9 and F16 is 90 degree. The cross marking on
the F6 must face outside. The angle between F6 and F16 is 92
degree.
Please note the small recess marking on the F16 and F6 must
on the same side. Drop instant glue to secure F6, F8 and F9
in place.

10
Close view of the small recess marking on the F6 and F16.

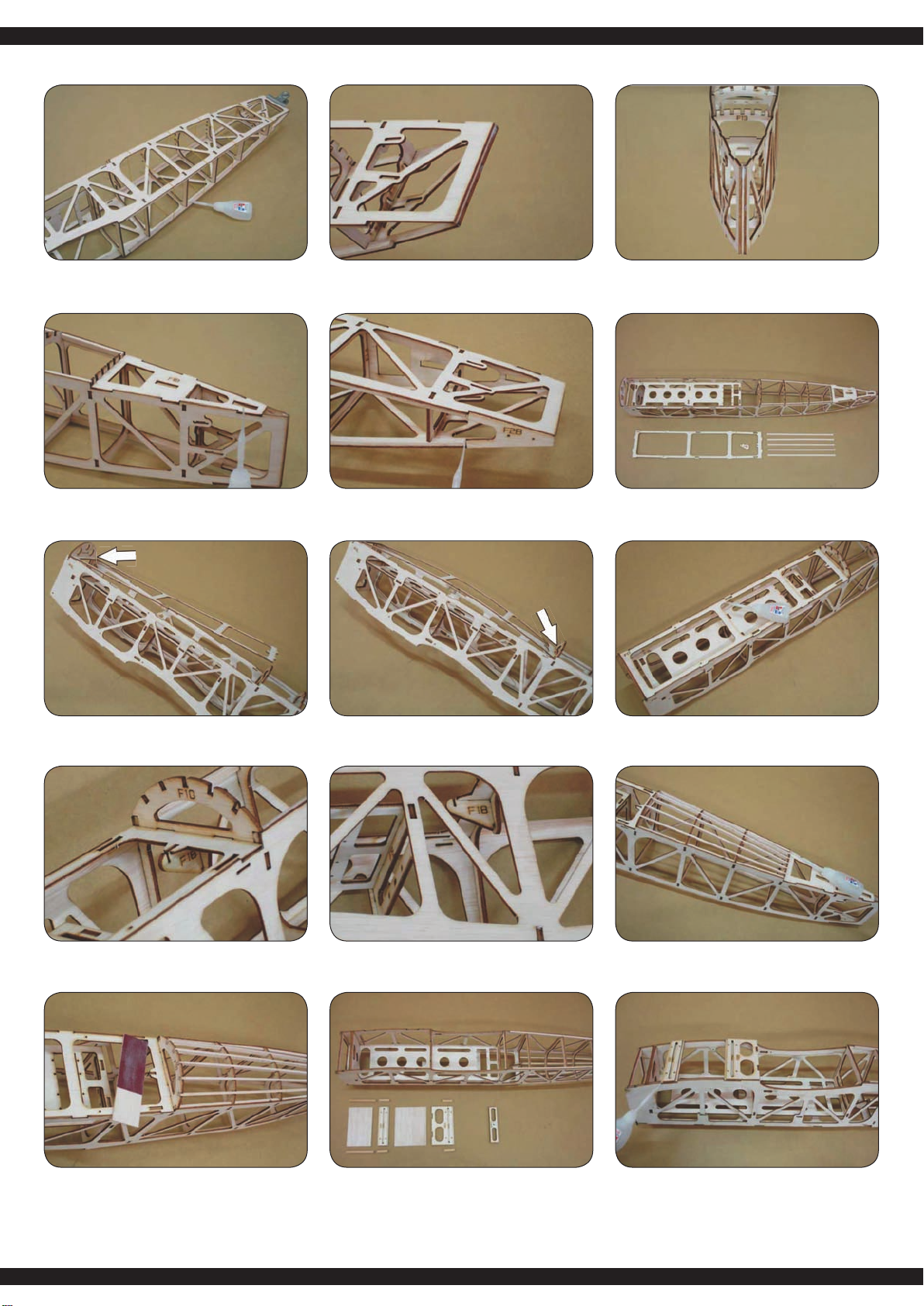

Use glue to secure the F1R on the F2R and secure F1L on the
F2L.
Place some heavy thing on the F1R and use instant glue to se-
cure the F1R on the F16 combination.
Place the F10, F11, F12, F13, F14, F19 and F28 on the working
table as the picture shown.
Try to t the F5 on the F16, before the F6. Make sure the angle
between F16 and F5 is 90 degree.
Place F17A o the side board; don‘t over the marking line on the
picture.
Try to t the F1L onto the F16. Make sure the angle between two
combinations is 90 degree.
Try to t the F10, F11, F12, F13 and F14 into the fuselage. Check
if planking can t into the right side of fuselage.
Use instant glue to secure the F5 in place.
Place F16, F1R and F1L combinations on the working table.
Place some heavy thing on the F1L and use instant glue to secu-
re the F1L on the F16 combination.
Make sure all the planking can t into the left side of fuselage.
Use rubber band to the hold the fuselage and use clip to secure
the tail in place for temporary. Make sure the front and rear part is
aligned and straight.
Place F1R, F1L, F2R, F2L, F15, F3 (2pieces) and F4 (2 pieces)
on the working table in order for assembling the side boards for
fuselage. Use instant glue to secure the F3 on the top of the side
board; secure F4 on the bottom of the side board and secure the
F15 on the tail.
Try to t the F1R onto the F16 combination. Make sure the angle
between two combinations is 90 degree.
Top view of the front fuselage.
FUSELAGE ASSEMBLY

11

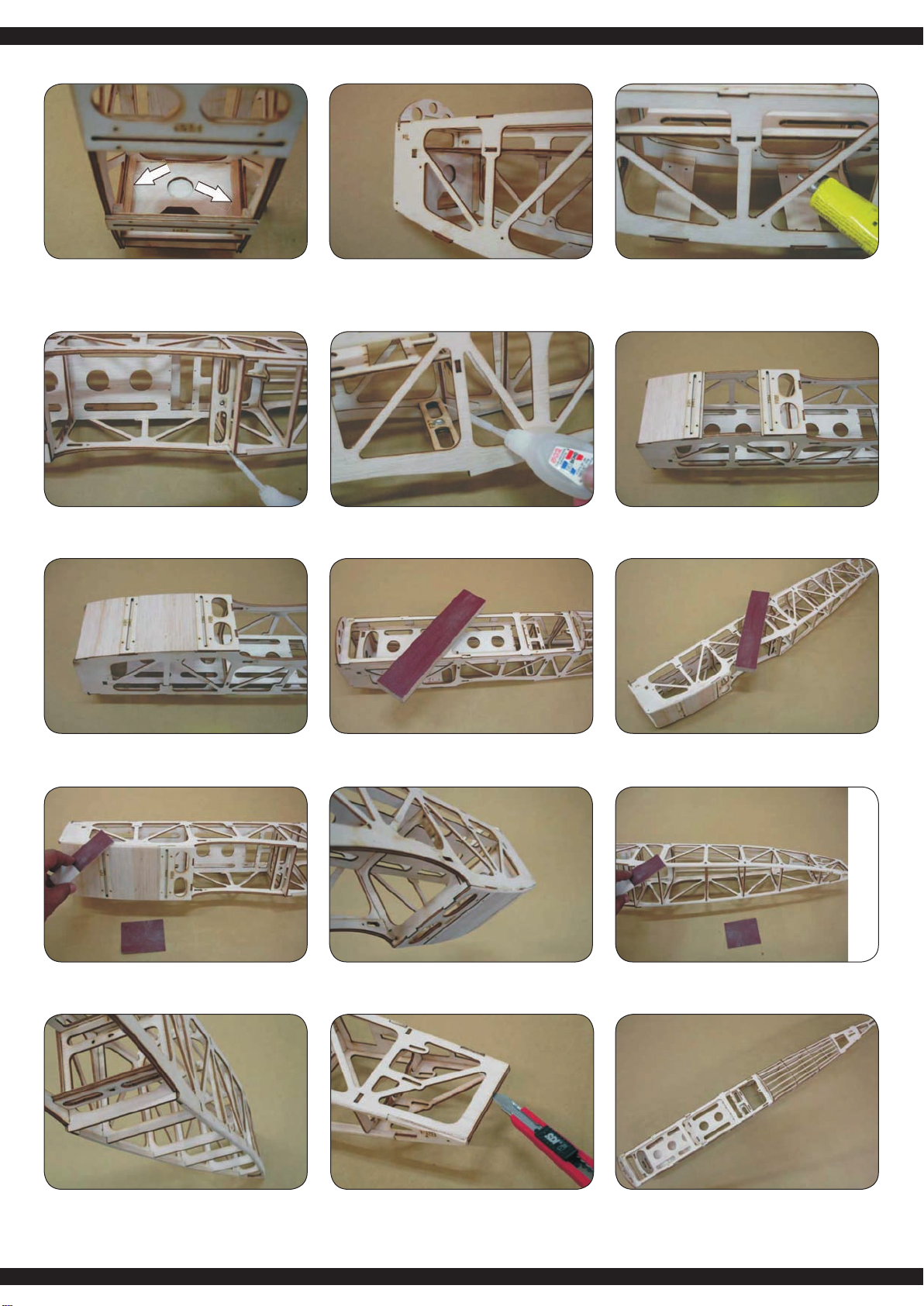

Use instant glue to secure the contacting places.
FUSELAGE ASSEMBLY
Make sure the alignment of both side boards on the tail.
Place F3, F17 and F18 on the working table.
Fit the F18 into the slot on F10.
Place F21, F22, F23, F24, F25, F26 and F27 on the working
table as picture shown.
Rear view of the tail fuselage; make sure it is bilateral symmetry.
Try to t the head of F17 into the slot on F5 (the front board on
the fuselage).
Make sure the top edge of F18 can t into the slot on F17. Use
instant glue to secure the F18 in place.
Try to t the F21 and F22 onto the fuselage. Use instant glue to
secure them in place.
Try to t the F19 onto the fuselage and drop some instant glue
to secure it in place.
Try to t the tail of F17 into the slot on F10.
Try to t 5 pieces of F3 on the top of the fuselage. Use instant
glue to secure the F3 in place.
Try to t the F28 onto the fuselage and drop some instant glue
to secure it in place.
Press F17, make sure it is at and use instant glue to secure
it in place.
Use sanding paper to trim the excess part of F3.

12
Use glue to secure the F26 on the center part of the gear mount.
Close view of the round edges R3.
Completion of the fuselage. Please note when hold the fuselage,
it is better to hold the sides avoiding the trips on the tail.
Use glue to secure the F24 inside for reinforcing the gear mount.
Use sanding paper to trim the parts on the top of head fuselage.
Use sanding paper to trim the edges into round edges on the
bottom of the tail fuselage..
Try to t the F27 inside the fuselage with the Tee nut face up-
ward. Use instant glue to secure the F27 in place.
Use sandingpaper to trim the sides of the fuselage.
Close view of the round edges (R3).
Drop some instant glue on two sides of F27 and spread some AB
glue on them for better securing.
Use sanding paper to trim the edges of the bottom into round
edges (R3); also trim the uneven parts on the gear mount and
bottom cover.
Use hobby knife to cut the hinge hole on the center of the tail.
Use and instant glue to secure the F25 on the bottom of the
head fuselage.
Use glue to secure F23 inside the F6 (rewall) for reinforcement. Move the F23 to the top and make sure the reinforcement is
strong enough. It is also workable to use AB glue for securing,
but it will add some weight and won‘t allow any mistake during
gluing.
FUSELAGE ASSEMBLY

13
The rudder rod tubing will go through the right hole on the F9.
Iron on the covering over the bottom of the fuselage.
After applying the covering on the top and sides of the fuselage;
insert the rod tubing (for elevator rod) through the fuselage and
exit from the preserving holes on the tail.
Place F29, F30, F31, F32, F33, F34, F35 and F36 on the working
table as the picture shown.
The elevator rod tubing will go through the center hole on the F9.
Try t o t the F30 on F29. Use the F33 as the triangle ruler and
drop instant glue to secure the F30 on F29. Remove F33.
Use hobby knife to cut hole on the right side of tail for exit the
rudder rod tubing.
Use F33 as the triangle ruler and try to t the F31 on the center
part of F29. Use instant glue to secure the F31 in place. Remove
F33.
FUSELAGE ASSEMBLY

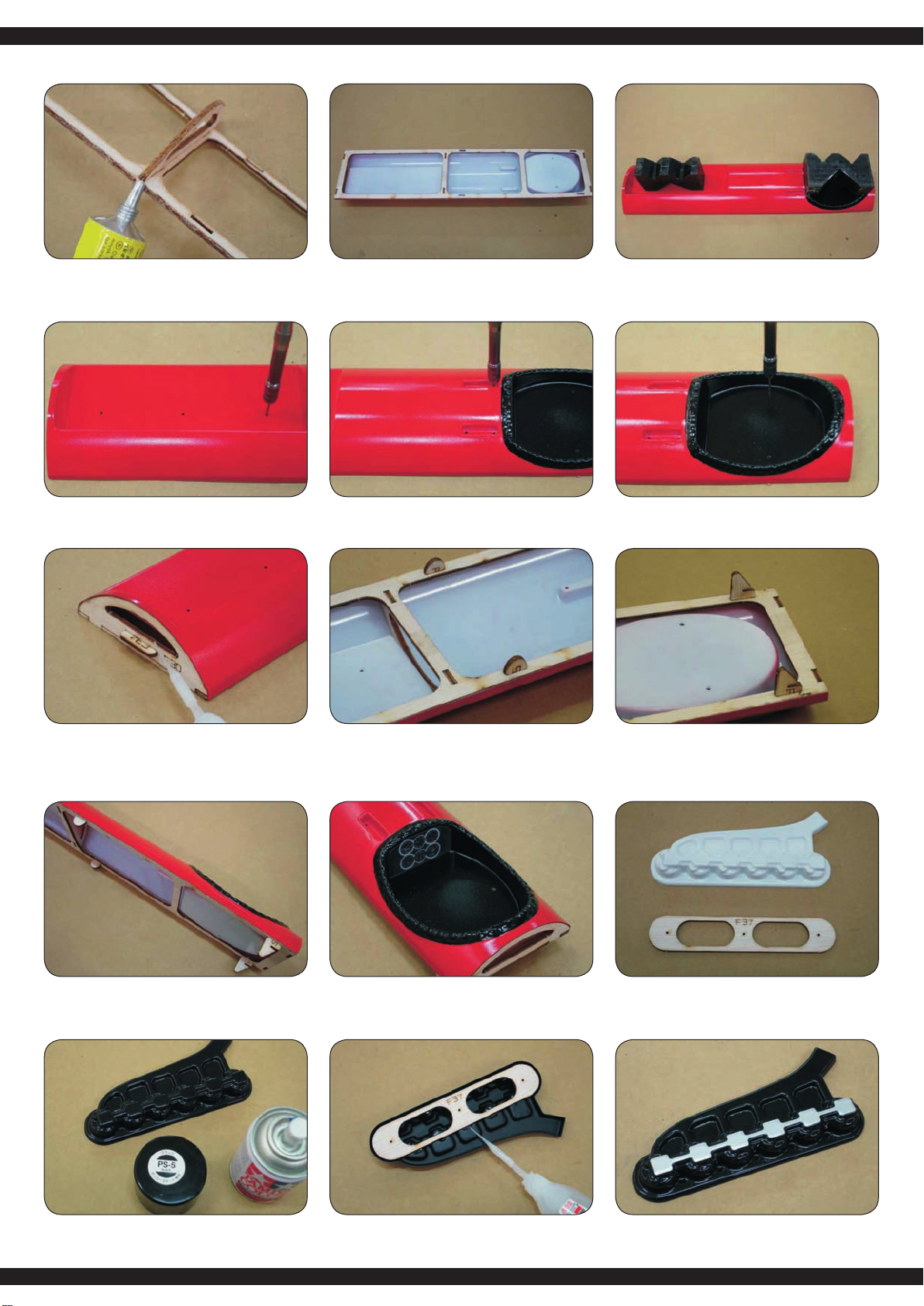

CANOPY ASSEMBLY
Use F33 as the triangle ruler and try to r the F32 on the tail of
F29. Use instant glue to secure the F32 in place. Remove F33
Completion of the main construction of the canopy. F33 is the
ruler, cannot be xed into the kit.
Spray the red color onto the white canopy. Wait for it dried
enough.
Apply the masking tape around the edge of the pilot seat. Place paper over other part on the canopy except the pilot seat.
Use the masking tape to secure the paper in place for temporary.
Spray the pilot seat into black. Wait for the spray dried enough.
Remove the masking tape and the paper. Place the canopy and
main construction (with F32 on the right side) on the working
table.

14
CANOPY ASSEMBLY
Make sure the alignment of the edges and place some heavy
thing on top of it. Wait for the glue dried enough
Spread glue on the main construction. Place the main construction onto the canopy.
Use instant glue to secure the F34 on the F30 as the latch-lock.
Apply the instrument sticker on the front side of the pilot seat
(under the machine gun slot).
Use instant glue to secure the F35 on the center position of the
canopy.
Place the F37 and vacuum formed engine on the working table.
Use instant glue to secure the F36 (with slot facing back) on the
canopy closed to F32.
Spray the vacuum formed engine into black. Wait for it dried
enough.
Side view of the canopy with the F36 slots facing back.
Spread some glue on the edges of F37 and secure it onto the va-
cuum formed engine. Drop some instant glue for better securing. Apply the decorative sticker on the vacuum formed engine.
Try to nd 3 pieces of preserving markings on the canopy. Use
2.6mm driller to drill holes on the markings.
There are 2 pieces of recess next to the pilot seat. Use 2mm
driller to drill holes on the right and left sides inside the recess. Try to nd 2 pieces of preserving markings inside the pilot seat. Use 2.6mm driller to drill holes on the markings.

15
CANOPY ASSEMBLY
Place the vacuum formed engine on the canopy and use 2.6 x
8mm tapping screws to secure it in place. Completion of the canopy. Place the machine gun decal, F38 plastic tube, F39 balsa barrel, and F40 combinations on the working table.

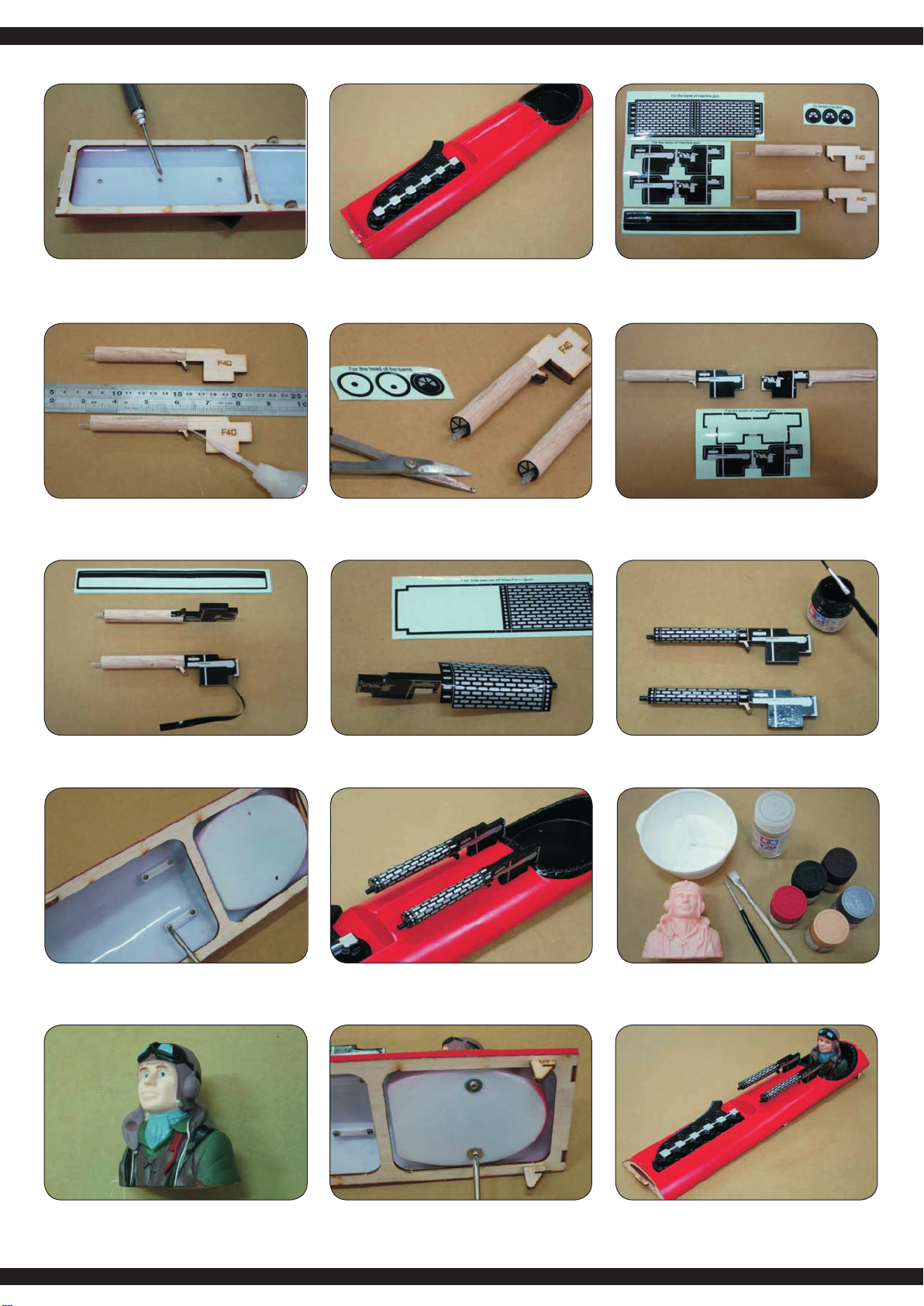

Insert the F38 into the F39 barrel. Use instant glue to secure the
F39 onto the F40. Place a straight rule on top of it; make sure the
top of the machine gun is straight.
Apply the decorative sticker on the barrel.
Color the pilot as the yer like.
Secure the F38 inside the barrel. Apply the decorative sticker on
the front of the barrel. Use scissors to remove the excess sticker.
Color the muzzle and trigger into black.
Colored pilot for reference. (It is available in the ARF version.)
Apply the decorative sticker on both sides of butt.
Place the machine guns inside the slots on the canopy and use
2.0x6mm tapping screw to secure them in place.
Place the pilot inside the pilot seat. Use 2.6x8mm tapping screws
and 3x10mm washers to secure the pilot in place.
Don‘t screw too tight.
Apply the black sicker around the butt.
The top view of the machine guns on the canopy.
Completion of the canopy.

16

17

18

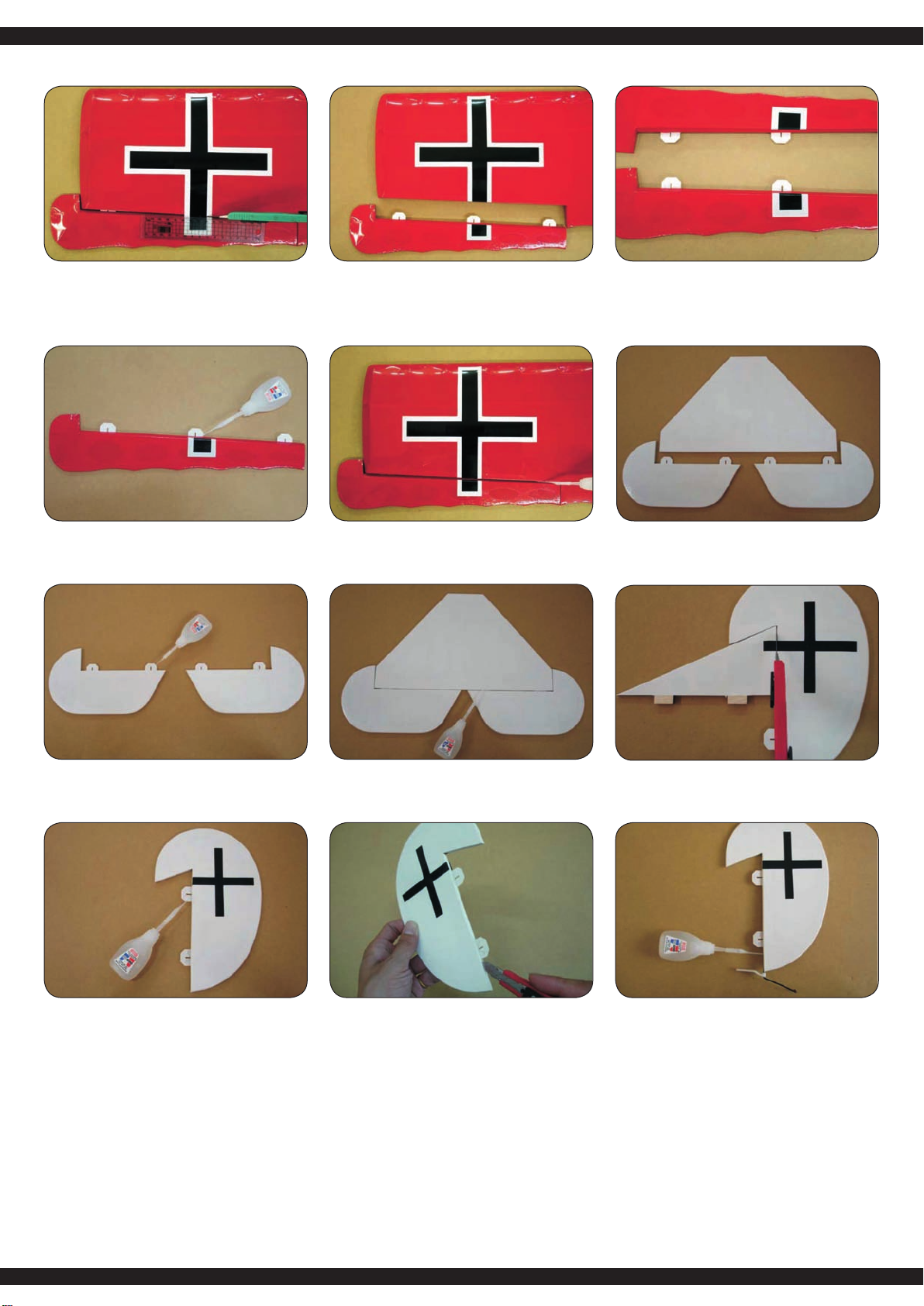

Place the ruler on the conjunction of the main wing and aileron.
Use hobby knife to cut the decal and makes the aileron separate
from the main wing.
Remove the aileron and insert the hinges into the slots. Press the edges of the decal toward the hinge and makes it at.
Insert the hinges as the picture shown. Spread UHU glue on the
surface of hinges and drop instant glue around the edges of hin-
ges for securing the hinges in place.
Install the aileron onto the main wing. Keep the gap between
main wing and aileron around 0.5mm and drop some instant glue
to secure the hinge into the main wing.
Place the horizontal on the working table. Remove the elevator
from it.
Drop some instant glue to secure the hinges into the elevator. Install the elevator to the horizontal. Keep the gap between ho-
rizontal and elevator around 0.5mm and drop some instant glue
to secure the hinges into the horizontal.
Place the vertical on the working table. Use hobby knife to sepa-
rate the rudder from vertical.
Drop some instant glue to secure the hinges into the rudder. There is pre-serving slot on the bottom of the rudder. Try to nd
this slot and use hobby knife to remove the covering over this
slot.
Try to nd the tail gear from the hardware bag and insert the gear
into the slot. If satisfy the installation, spread some instant glue
on the gear wire and secure it inside the slot.
Covering and complete the model

19
Try to nd the pre-serving holes on the main wing for servo, for
cable exit, for screw and for horn as the picture shown.
Use soldering to melt out the covering over these holes. Drop
small instant glue on screw holes for reinforcement. Place the bottom wing and wing reinforcement on the working table with the back facing upward.
Use soldering to melt out the covering over the screw holes. Spread glue on the wing reinforcement and secure it onto the
bottom wing. Make sure the alignment of the rear edges and
the screw holes.
Use clip to hold the wing reinforcement in place for temporary
until the glue dried enough.
Try to nd the pre-serving 8 holes for both sides of fuselage.
Please refer to the picture. (7 holes are for screw; 1 bigger hole
is for cable exit)
Use soldering to melt out the covering over these holes. Drop
some instant glue on the screw holes for reinforcement.
COVERING AND FINISHING THE MODEL
Place the front cover of the fuselage on the working table. Try to
nd the preserving 10 holes on it as the pictures shown.
Use soldering to melt out the covering over these holes. There are two holes on the tail of the fuselage for securing the
tail gear mount. Use soldering to melt out the covering over the holes.
There are two pre-serving holes on the top of sub wing. Please
refer to the picture. Use soldering to melt out the covering over the holes for instal- ling the gear. There are pre-serving slots on both sides of the sub wing.

20
Try to nd the hole on the side of rudder (below the second hin-
ge).
Use soldering to melt out the covering over the hole (2mm). Place the top main wing on the working table with the back facing
upward.Try to nd the pre-serving slots on the fourth rib. Use
hobby knife to cut off the covering over the slots.
Use ironer to trim the edges of the slots. Place the bottom main wing on the working table. Try to nd the
pre-serving slots on the second rib. Use hobby knife to cut off the covering over the slots. Use ironer
to trim the edges of the slots.
Place the bottom main wing on the working table. Try to nd 2
pre-serving slots around the center part. Use hobby knife to cut off the covering over the slots. Use ironer
to trim the edges. Place the fuselage on the working table with the bottom facing upward. Try to nd 2 pre-serving slots. Use hobby knife to remo-
ve the covering over the slots.
COVERING AND FINISHING THE MODEL
Use soldering to melt out the covering over the slots. Place the horizontal on the working table.Try to nd the holes on
the elevator as the picture shown. Use soldering to melt out the covering over the holes (2mm).
