J&M 750 User manual

Rev. 1.30.2020
GRAIN CART
OPERATOR’S MANUAL
MODEL
Manual
J&M Manufacturing Co, Inc
284 Railroad Street - P.O. Box 547 | Fort Recovery, OH 45846 | Ph: [phone] | Fax: [phone]
www.jm-inc.com

2

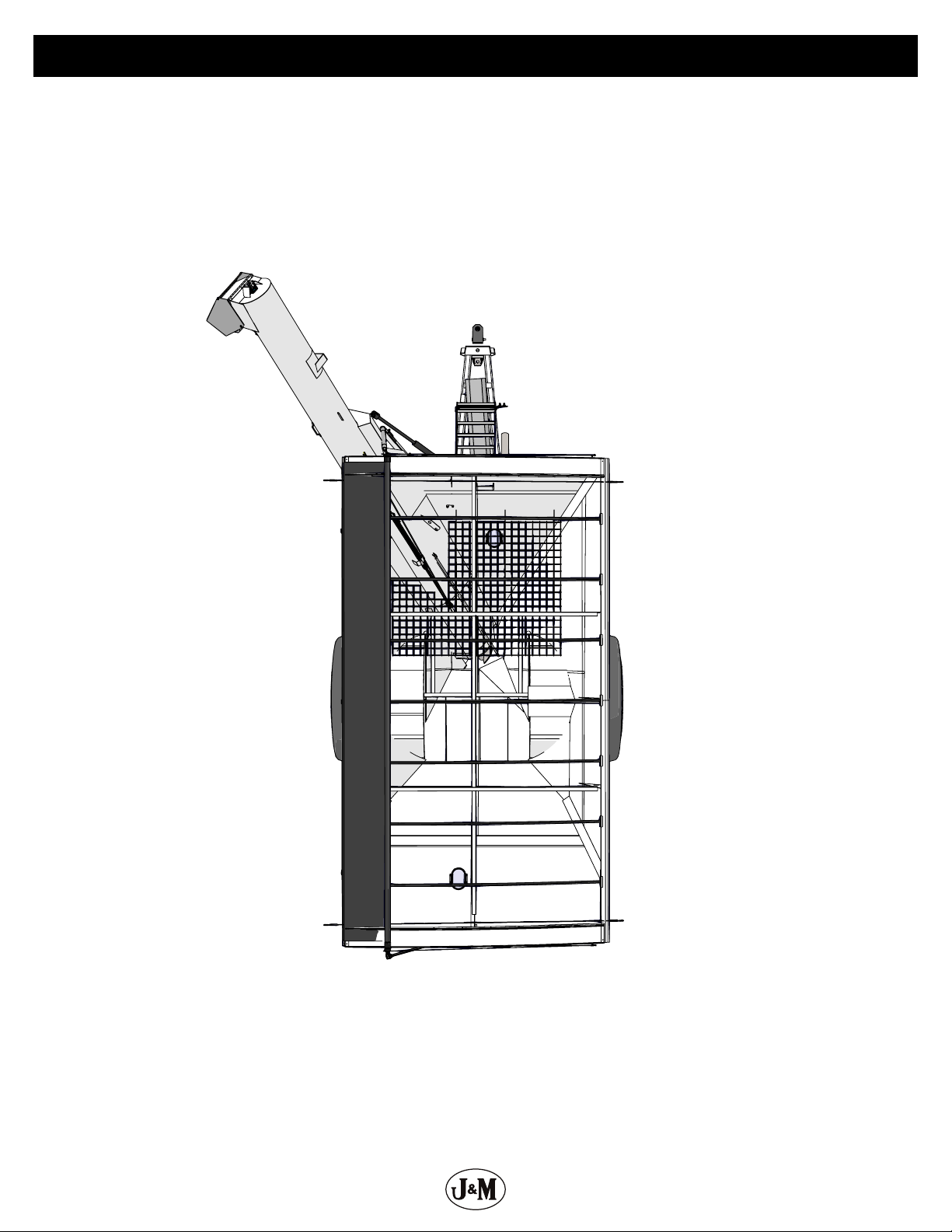

Stance
Rear
Opposite Auger SideAuger Side
Front

3
Table Of Contents
4..............................................................................................To the Dealer
5.......................................................................................General Information
5.............................................................................Specications and Dimensions
6.....................................................................................................Decals
8..........................................................................................Bolt Torque Chart
8..................................................................Stud and Wheel Nut Torque Specications
9............................................................................................... Safety Rules
10 ........................................................................ Initial Operation and Maintenance
11 ....................................................................................Operating Instructions
12 ..................................................................................Adjusting the Slip Clutch
13 ..............................................................................Lubrication Service Schedule
14 .....................................................................................Routine Maintenance
14 ..........................................................................................Troubleshooting
15 ..................................................................Adjusting the Lower and Upper Flighting
16 ..............................................Removing Dirt from the Restrictors on the Hydraulic Cylinder
16 .......................................................................................Storage Preparation
Repair Parts List and Diagrams
16 ..................................................................................... Wheel Rims and Tires
17 ....................................................................... Non-Scale Hub & Spindle Assembly
18 ............................................................. Power Take-O (PTO) Shaft Assembly - Comer
19 ..................................................................130 Degree Gearbox Assembly - Superior
20 ....................................................................................... Driveline Assembly
21 ..................................................................................Hitch and Jack Assembly
22 ....................................................................................Lower Auger Assembly
23 ........................................................................................Top Auger Linkage
23 ......................................................................................Top Auger Assembly
24 .......................................................................................Flow Control Spout
25 .........................................................................................Lights and Wiring
26 ...............................................................................Hydraulic Hoses & Cylinders
28 ........................................................Hydraulic Hoses & Cylinders for Auto-Gate Shut-O
30 .............................................................................Auto-Gate Shut-O Assembly
30 .....................................................................Auto-Gate Shut-O Wiring Schematic
31 ......................................................................................3-Point Scale System
32 .....................................................................................Fully Adjustable Axles
33 ......................................................................................... Ladder Assembly
34 ...............................................................................................Sideboards
35 .....................................................................................Door Wheel Assembly
35 ......................................................................................Inspection Windows
36 ........................................................................................Roll Tarp Assembly
38 ...................................................................................Spring Return Assembly

4
To the Dealer
Read manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists are completed
before releasing equipment to the owner.
The dealer must complete the Warranty Registration found on the Dealer Portal website located at dealer.jm-inc.com and return it to J&M
Mfg. Co., Inc. at the address indicated on the form. Warranty claims will be denied if the Warranty Registration has not been submitted.
EXPRESS WARRANTY:
J&M Mfg. Co., Inc. warrants against defects in construction or materials for a period of ONE year. We reserve the right to inspect and
decide whether material or construction was faulty or whether abuse or accident voids our guarantee.
Warranty service must be performed by a dealer or service center authorized by J&M Mfg. Co., Inc. to sell and/or service the type of
product involved, which will use only new or remanufactured parts or components furnished by J&M Mfg. Co., Inc. Warranty service will
be performed without charge to the purchaser for parts or labor based on the Warranty Labor Times schedule. Under no circumstance
will allowable labor times extend beyond the maximum hours indicated in the Warranty Labor Times schedule for each warranty
procedure. The purchaser will be responsible, however, for any service call and/or transportation of the product to and from the dealer
or service center’s place of business, for any premium charged for overtime labor requested by the purchaser, and for any service and/or
maintenance not directly related to any defect covered under the warranty. Costs associated with equipment rental, product down time,
or product disposal are not warrantable and will not be accepted under any circumstance.
Each Warranty term begins on the date of product delivery to the purchaser. Under no circumstance will warranty be approved unless (i)
the product warranty registration card has been properly completed and submitted to the equipment manufacturer, and (ii) a warranty
authorization number has been issued by the equipment manufacturer. This Warranty is eective only if the warranty registration card is
returned within 30 days of purchase.
This Warranty does not cover a component which fails, malfunctions or is damaged as a result of (i) improper modication or repair, (ii)
accident, abuse or improper use, (iii) improper or insucient maintenance, or (iv) normal wear or tear. This Warranty does not cover
products that are previously owned and extends solely to the original purchaser of the product. Should the original purchaser sell or
otherwise transfer this product to a third party, this Warranty does not transfer to the third party purchaser in any way. J&M Mfg. Co.,
Inc. makes no Warranty, express or implied, with respect to tires or other parts or accessories not manufactured by J&M Mfg. Co., Inc.
Warranties for these items, if any, are provided separately by their respective manufacturers.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE.
In no event shall J&M Mfg. Co., Inc. be liable for special, direct, incidental or consequential damages of any kind. The exclusive remedy
under this Warranty shall be repair or replacement of the defective component at J&M Mfg. Co., Inc’s. option. This is the entire agreement
between J&M Mfg. Co., Inc. and the Owner about warranty and no J&M Mfg. Co., Inc. employee or dealer is authorized to make any
additional warranty on behalf of J&M Mfg. Co., Inc.
The manufacturer reserves the right to make product design and material changes at any time without notice. They shall not incur any
obligation or liability to incorporate such changes and improvements in products previously sold to any customer, nor shall they be
obligated or liable for the replacement of previously sold products with products or parts incorporating such changes.
SERVICE:
The equipment you have purchased has been carefully manufactured to provide dependable and satisfactory use. Like all mechanical
products, it will require cleaning and maintenance. Lubricate the unit as specied. Observe all safety information in this manual and
safety signs on the equipment.
For service, your authorized J&M dealer has trained mechanics, genuine J&M service parts, and the necessary tools and equipment to
handle all your needs.
Use only genuine J&M service parts. Substitute parts may void warranty and may not meet standards required for safety and satisfactory
operation. Record the model number and serial number of your equipment in the spaces provided:
Model No: 750 Grain Cart Serial No: ________________________ Date of Purchase: ___________________
Purchased From: ________________________________________________________________________________
Provide this information to your dealer to obtain correct repair parts.

5
General Information
TO THE OWNER:
The purpose of this manual is to assist you in operating and maintaining your grain cart in a safe manner. Read it carefully. It furnishes
information and instructions that will help you achieve years of dependable performance and help maintain safe operating conditions. If
this machine is used by an employee or is loaned or rented, make certain that the operator(s), prior to operating:
1. Is instructed in safe and proper use.
2. Reviews and understands the manual(s) pertaining to this machine.
Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause damage to equipment. The terms
CAUTION, WARNING and DANGER are used in conjunction with the Safety-Alert Symbol (a triangle with an exclamation mark) to indicate
the degree of hazard for items of personal safety. When you see this symbol, carefully read the message that follows and be alert to the
possibility of personal injury or death.
DANGER
WARNING
CAUTION
This Safety-Alert symbol indicates a hazard and means
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury,
and includes hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury.
Indicates that failure to observe can cause damage to equipment.
Indicates helpful information.
IMPORTANT
NOTE

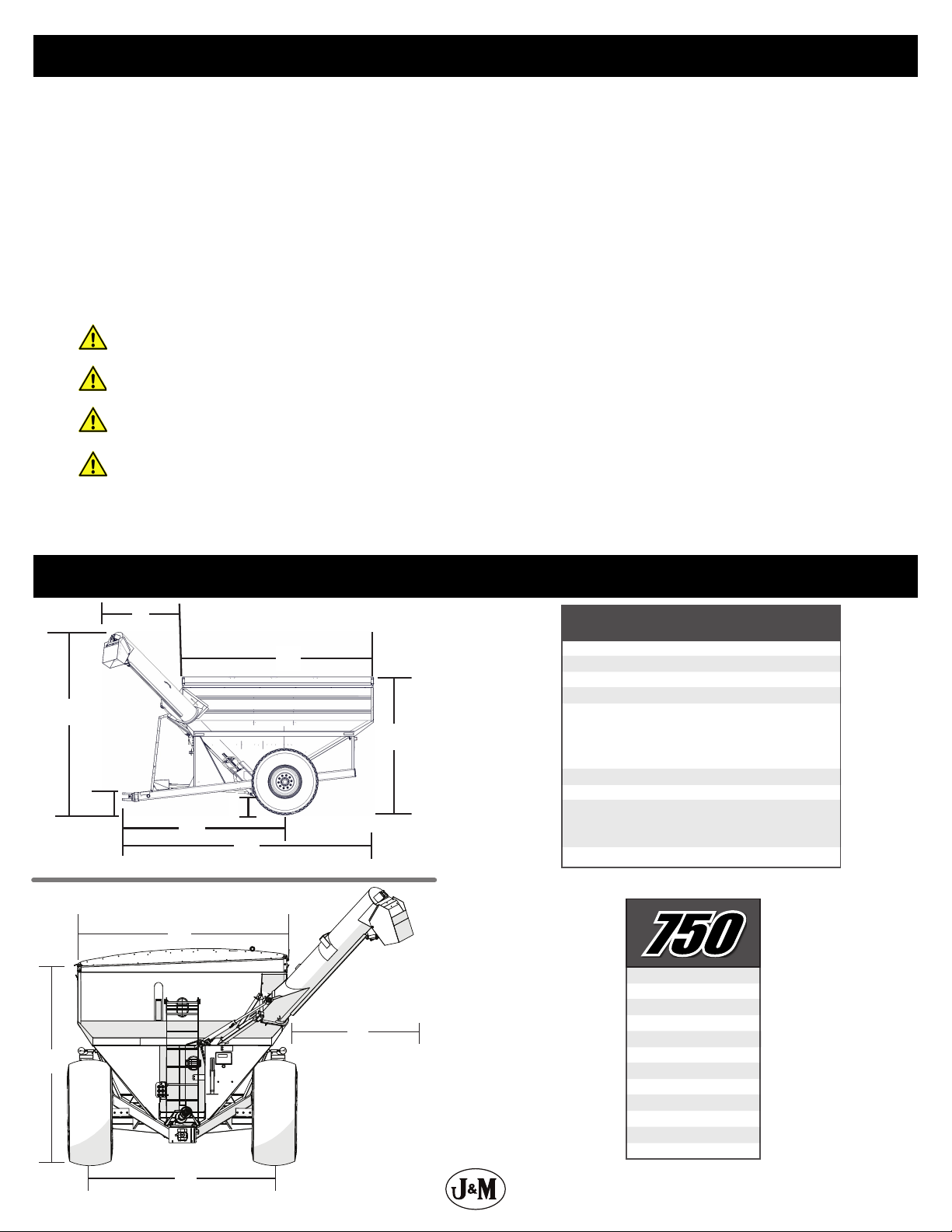

Specications and Dimensions
SPECIFICATIONS
Single Wheel Option
Capacity
Auger, One Vertical
Unload Time (minutes)
Wheels (2)
Tires (2)
Hubs (2)
Spindles (2)
Tongue Weight
Empty
Loaded
Total Weight (approx.)
750 Bushels
18”
2.1 Minutes
21x32, 27x32, or 18x42
24.5x32, 30.5x32,
IF520/85R42,
520/85R42, or
IF800/60R32
10 Bolt
4-1/2”Diameter
1,150 lbs.
2,850 lbs.
7,950 lbs.
C
D
F
A
I
H
E
B
A
B
C
D
E
F
G
H
I
J
K
L
1’-7”
12’-9”
6-5”
14’-0”
19’-1”
12’-6”
7’-0”
11’-8”
1’-5”
10’-0”/10’-4”/12’-0”
11’-9”
11’-4”
K
L
J
G

6

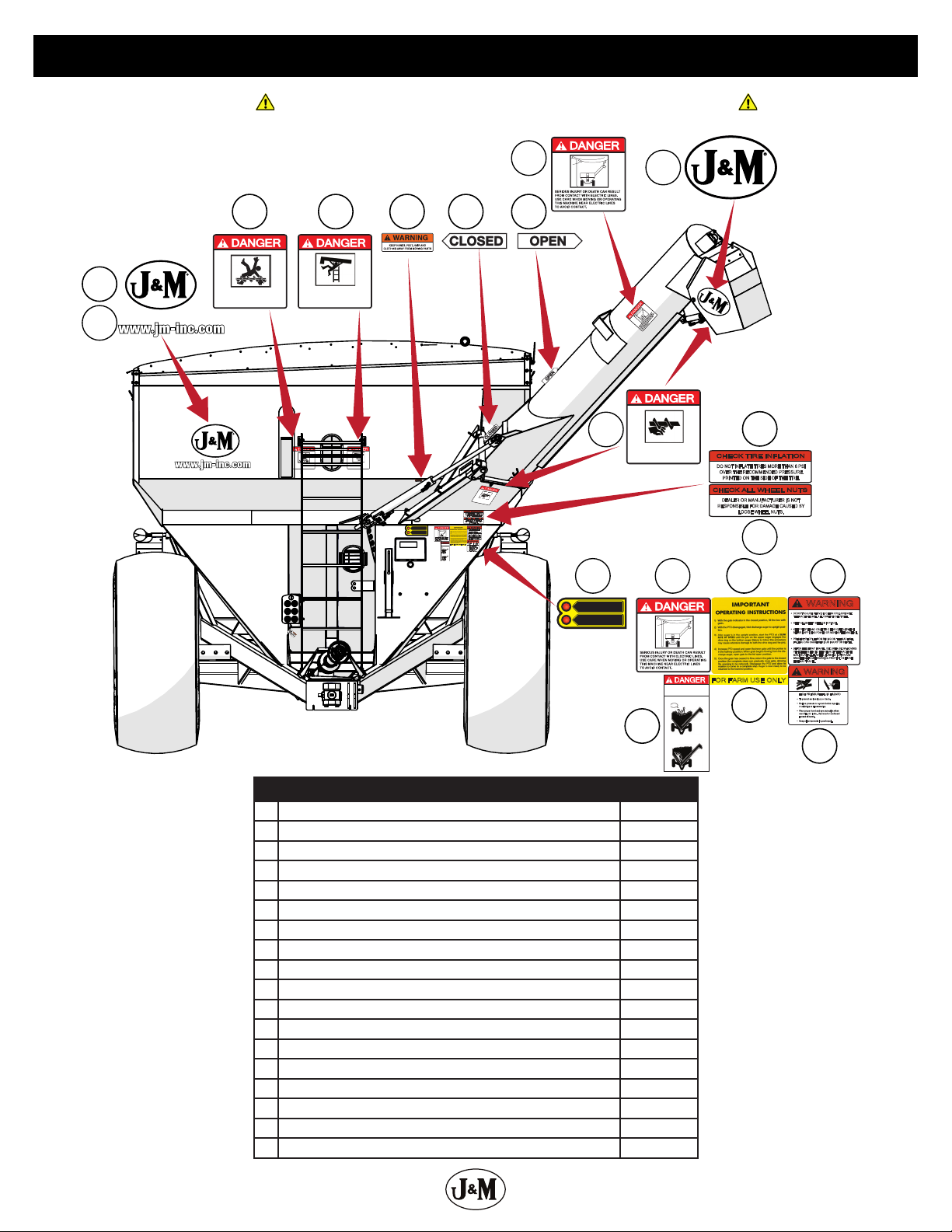

Decals
DO NOTENTER GRAIN TANK WHEN
AUGER IS RUNNING.
KEEPOFF THE LADDER WHILE
THEMACHINE IS OPERATING,
INTRANSPORT OR THE
UNLOADINGAUGER IS IN MOTION
2
3 4 5 6 7
89
11
12
13
16
Lock-n-Load
Active
12 Volt
Active
Close Gate ToFold Auger
10
FOR FARM USE ONLY
WARNING
HIGH PRESSURE FLUID HAZARD
To prevent serious injury or death:
Relieve pressure on system before repairing
or adjusting or disconnecting
Wear proper hand and eye protection when
searching for leaks. Use wood or cardboard
instead of hands.
Keep all components in good repair.
WARNING
DO NOT ADJUST, SERVICE, CLEAN OR LUBRICATE
THE MACHINE UNTIL ALL POWER IS SHUT OFF.
KEEP ALL SAFETY SHIELDS IN PLACE.
KEEP PEOPLE AND OBJECTS CLEAR OF EQUIPMENT
BEFORE APPLYING POWER OR MOVING THE MACHINE.
PREVENT PEOPLE FROM RIDING ON THE MACHINE.
FALLING CAN CAUSE SERIOUS INJURY OR DEATH.
BEFORE HIGHWAY TRAVEL, SECURE A SLOW-MOVING
VEHICLE EMBLEM TO THE REAR OF THE MACHINE.
MAKE SURE ALL FLASHER, TURN INDICATOR AND
BRAKE LIGHTS ARE WORKING PROPERLY BEFORE
HIGHWAY TRAVEL.
CHECK ALL WHEEL NUTS
DEALER OR MANUFACTURER IS NOT
RESPONSIBLE FOR DAMAGE CAUSED BY
LOOSE WHEEL NUTS.
CHECK TIRE INFLATION
DO NOT INFLATE TIRES MORE THAN 6 PSI
OVER THE RECOMMENDED PRESSURE
PRINTED ON THE SIDE OF THE TIRE.
DO NOT ENTER GRAIN TANK WHEN
AUGER IS RUNNING.
KEEP OFF THE LADDER WHILE
THE MACHINE IS OPERATING,
IN TRANSPORT OR THE
UNLOADING AUGER IS IN MOTION
KEEP HANDS AND CLOTHING AWAY
FROM MOVING PARTS
KEEPHANDS AND CLOTHINGAWAY
FROMMOVING PARTS
FLOWING GRAIN TRAPS
AND SUFFOCATES
VICTIMS IN SECONDS!
NEVER PLAY IN OR ON GRAIN CART
YOU CAN DIE IN SECONDS
IN FLOWING GRAIN!
HELP!
Lock-n-Load
Active
12 Volt
Active
CloseGateTo FoldAuger
FORFARM USE ONLY
CHECKALL WHEEL NUTS
DEALEROR MANUFACTURER IS NOT
RESPONSIBLEFOR DAMAGE CAUSED BY
LOOSEWHEEL NUTS.
CHECKTIRE INFLATION
DONOT INFLATE TIRES MORE THAN 6 PSI
OVERTHE RECOMMENDED PRESSURE
PRINTEDON THE SIDE OF THE TIRE.
1
14 15
17
8
18
WARNING
HIGHPRESSUREFLUID HAZARD
Topreventseriousinjury or death:
Relievepressureonsystem before repairing
oradjustingordisconnecting
Wearproperhandand eye protection when
searchingforleaks. Use wood or cardboard
insteadofhands.
Keepallcomponentsin good repair.
WARNING
DONOTADJUST, SERVICE, CLEAN OR LUBRICATE
THEMACHINEUNTIL ALL POWER IS SHUT OFF.
KEEPALLSAFETY SHIELDS IN PLACE.
KEEPPEOPLEAND OBJECTS CLEAR OF EQUIPMENT
BEFOREAPPLYINGPOWER OR MOVING THE MACHINE.
PREVENTPEOPLEFROM RIDING ON THE MACHINE.
FALLINGCANCAUSE SERIOUS INJURY OR DEATH.
BEFOREHIGHWAYTRAVEL, SECURE A SLOW-MOVING
VEHICLEEMBLEMTO THE REAR OF THE MACHINE.
MAKESUREALL FLASHER, TURN INDICATOR AND
BRAKELIGHTSARE WORKING PROPERLY BEFORE
HIGHWAYTRAVEL.
FLOWINGGRAINTRAPS
ANDSUFFOCATES
VICTIMSINSECONDS!
NEVERPLAYINOR ON GRAIN CART
YOUCANDIEIN SECONDS
INFLOWINGGRAIN!
HELP!
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Replace Immediately If Damaged or Missing
Description Part No.
1 J&M Oval Decal (Medium) 5-1/2” x 8-1/2” JM0010179
2 www.jm-inc.com Decal JM0019239
3 Danger, Do Not Enter Grain Tank Decal JM0018033
4 Danger, Keep O Ladder Decal JM0018034
5 Warning, Keep Hands Away Decal JM0018039
6 Closed Decal JM0025434
7 Open Decal JM0025433
8 Danger, Electric Lines Decal JM0015099
9 J&M Oval Decal (Large) 9-1/2” x 15” JM0015151
10 Danger, Keep Hands and Clothing Away Decal JM0018035
11 Check Tire Ination Decal JM0018041
12 Check All Wheel Nuts Decal JM0018043
13 Lock and Load Indicator Lights Decal JM0044289
14 Important Operating Instructions Yellow Grain Cart Decal JM0021245
15 Warning, Do Not Adjust Or Service Decal JM0014979
16 Warning, High Pressure Fluid Hazard Decal 4” x 4” JM0010163
17 For Farm Use Only Decal JM0018038
18 Danger, Flowing Grain Traps Grain Cart Decal JM0018037

7
Decals
10
19
22
22
12
21
8
9
20
CHECK ALL WHEEL NUTS
DEALER OR MANUFACTURER IS NOT
RESPONSIBLE FOR DAMAGE CAUSED BY
LOOSE WHEEL NUTS.
Ground
Rear Of Plug
Notes
Grain Cart Light Harness
Tail/RunningLights
+12V Output
Min.15A Fuse
Flow Control Spout/
Implement Lights
LeftTurn & Hazards
RightTurn & Hazards
N/A
The follow equipment will need the
+12VOutput to function properly.
• Lock-N-Load Flighting Protection
• Scale Equipment
• Electric Roll Tarp Charging System
To activate the Flow Control Spout
Light,turn on your clearance or
implementlights and fully extend
augerto the unloading position.
Pleaserefer to your tractors operators
manualfor specic instructions.
Lookfor these icons in your tractor
Hydraulic Hoses
Hydraulic Requirements:
• 9 - 12 GPM
• Auto Gate (if equipped): Set Gate to continuously close. Refer to your tractors
operatorsmanual for specic instructions.
Warning:
Hydraulic system parts and connections can contain high pressures which, if
suddenlyand unexpectedly released, can cause serious injury or death.
GateAuger Fold/UnfoldFlow ControlSpout
GCJM0041058
RED YELLOW GREEN
1
2
3
4
5
6
7
Ground
RearOfPlug
Notes
GrainCartLightHarness
Tail/RunningLights

+12VOutput
Min.15AFuse

FlowControlSpout/
ImplementLights
LeftTurn&Hazards
RightTurn&Hazards
N/A
Thefollowequipmentwillneedthe
+12VOutputtofunctionproperly.
•Lock-N-LoadFlightingProtection
•ScaleEquipment
•ElectricRollTarpCharging System
ToactivatetheFlowControlSpout
Light,turnonyourclearanceor
implementlightsandfullyextend
augertotheunloadingposition.
Pleaserefertoyourtractors operators
manualforspecicinstructions.
Lookfortheseiconsinyourtractor
HydraulicHoses
HydraulicRequirements:
•9-12GPM
•AutoGate(ifequipped):SetGate to continuously close. Refer to yourtractors
operatorsmanualforspecicinstructions.
Warning:
Hydraulicsystempartsandconnectionscancontain high pressures which, if
suddenlyandunexpectedlyreleased,cancauseserious injury or death.
Gate
AugerFold/Unfold
FlowControlSpout
GCJM0041058
RED YELLOW GREEN
1
2
3
4
5
6
7
2
1
23
Description Part No.
19 750 Opposite Auger Side Stripe Kit JM0025942
20 750 Auger Side Stripe Kit JM0025941
21 Check PTO Overlap Decal JM0025435
22 Danger, Rotating Driveline Decal JM0018036
23 Grain Cart Light Harness Decal (Standard Fold Carts) JM0041058

8
Bolt Torque Chart
TIGHTENING WHEEL NUTS: Standard 3/4” wheel studs and nuts should be tightened to torque 400 ft-lbs. During initial operation of
the grain cart and then checked for proper torque after every 10 hours of use. Failure to do so may damage wheel nut seats. Once seats
are damaged, it will become impossible to keep nuts tight.
Always tighten hardware to these values unless a dierent torque or tightening procedure is listed for specic application. Fasteners must
always be replaced with the same grade as specied in the manual parts list. Always use the proper tool for tightening hardware. Make
sure fastener threads are clean and you start thread engagement properly. Use these values when tightening all bolts and nuts with
the exception of wheel nuts.
Stud and Wheel Nut Torque Specications
Always tighten hardware to these values unless a dierent torque or tightening procedure is listed for specic application. Fasteners must
always be replaced with the same grade as specied in the manual parts list. Always use the proper tool for tightening hardware. Make
sure fastener threads are clean and you start thread engagement properly. Use these values when tightening all studs and wheel
nuts.
SAE Fasteners
Coarse Thread Series
Grade 5 Grade 8
Diameter and Pitch (Inches) Dry Oiled Dry Oiled
1/4”-20 8 ft-lbs 6 ft-lbs 12 ft-lbs 9 ft-lbs
5/16”-18 17 13 25 18
3/8”-16 30 23 45 35
7/16”-14 50 35 70 55
1/2”-13 75 55 110 80
9/16”-12 110 80 150 110
5/8”-11 150 110 220 170
3/4”-10 260 200 380 280
7/8”-9 430 320 600 460
1”-8 640 480 900 680
Fine Thread Series
Diameter and Pitch (Inches) Dry Oiled Dry Oiled
1/4”-28 10 ft-lbs 7 ft-lbs 14 ft-lbs 10 ft-lbs
5/16”-24 19 14 29 20
3/8”-24 35 25 50 40
7/16”-20 55 40 80 60
1/2”-20 90 65 120 90
9/16”-18 120 90 170 130
5/8”-18 180 130 240 180
3/4”-16 300 220 420 320
7/8”-14 470 360 660 500
Stud Tightening Torque
1/2”-20 120 ft-lbs
9/16”-18 170 ft-lbs
5/8”-18 300 ft-lbs
3/4”-16 400 ft-lbs
20mm 475 ft-lbs
22mm 640 ft-lbs

9
Safety Rules
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Safety is a primary concern in the design and manufacture of our products. Unfortunately, our eorts to provide safe equipment can
be erased by an operator’s single careless act. In addition, hazard control and accident prevention are dependent upon the awareness,
concern, judgment, and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
Make certain the operator(s), prior to operating, is instructed in safe and proper use and reviews and understands the manual(s)
pertaining to this machine. Also make certain the operator(s) reviews and understands the operator’s manual of the tractor prior to
hooking up or operating the grain cart.
Read this manual before you operate this machine. If you do not understand any part of this manual, or need more information, contact
J&M Mfg. Co., Inc. or your authorized dealer.
SAFETY
Understand that your safety and the safety of other persons is measured by how you service and operate this machine. Know the
positions and functions of all controls before you try to operate them. Make sure to check all controls in a safe area before starting your
work.
The safety information given in this manual does not replace safety codes, federal, state or local laws. Make certain your machine has the
proper equipment as designated by local laws and regulations.
A frequent cause of personal injury or death is from persons falling o equipment and being run over. Do not permit persons to ride on
this machine.
Travel speeds should be such that complete control and machine stability is maintained at all times. Where possible, avoid operating
near ditches, embankments and holes. Reduce speed when turning, crossing slopes and rough, slick or muddy surfaces.
Collision of high speed road trac and slow moving machines can cause personal injury or death. On roads, use asher lights according
to local laws. Keep slow-moving-vehicle emblem visible. Pull over to let faster trac pass.
Hydraulic oil leaking under pressure can penetrate skin and cause infection or other injury. To prevent personal injury,
• Relieve all pressure, before disconnecting uid lines,
• Before applying pressure, make sure all connections are tight and components are in good condition,
• Never use your hand to check for suspected leaks under pressure. Use a piece of cardboard or wood for this purpose.
• If injured by leaking uid, see your doctor immediately.
When transporting the grain cart, always keep the auger in the stow position.
Use care when moving of operating the grain cart near electric lines as serious injury or death can result from contact.
Never adjust, service, clean, or lubricate the grain cart until all power is shut o. Keep all safety shields in place. Keep hands, feet, hair
and clothing away from moving parts while the grain cart is in operation.
The service ladder is for service work only. If you must climb into the grain tank, be certain that all power is shut o and then use
extreme caution when climbing into the grain cart.
Make sure that everyone is clear of equipment before applying power or moving the machine.
Make sure the grain cart is fastened securely to the tractor using a high strength hitch pin, clip and safety chains. Make sure the grain
cart hitch properly matches the hitch type of the tractor. Use a single prong (spade) grain cart hitch with a double prong (clevis) tractor
hitch. Use a double prong (clevis) grain cart hitch with a single prong (spade) tractor hitch. Be sure the tractor pin is at least 1/4”smaller
in diameter than the pin hole in the grain cart hitch to ensure enough free movement when traversing through uneven terrain.
Before lling the grain cart, make certain no one is inside the grain tank. Never allow children, or anyone, in, near, or on the grain
cart during transport or during loading and unloading of grain. Be aware that moving grain is dangerous and can cause entrapment,
resulting in severe injury or death by suocation.
Never operate the auger system with anyone inside the grain tank. Hands, feet, hair and clothing can t through the openings in and
around the grate. Contact with the auger can cause severe injury or death. Ensure all power is shut o before service work is performed.
Before unhooking the grain cart from the tractor, be sure the jack stand is properly mounted and in place and the wheels are properly
blocked to prevent the cart from moving.

10

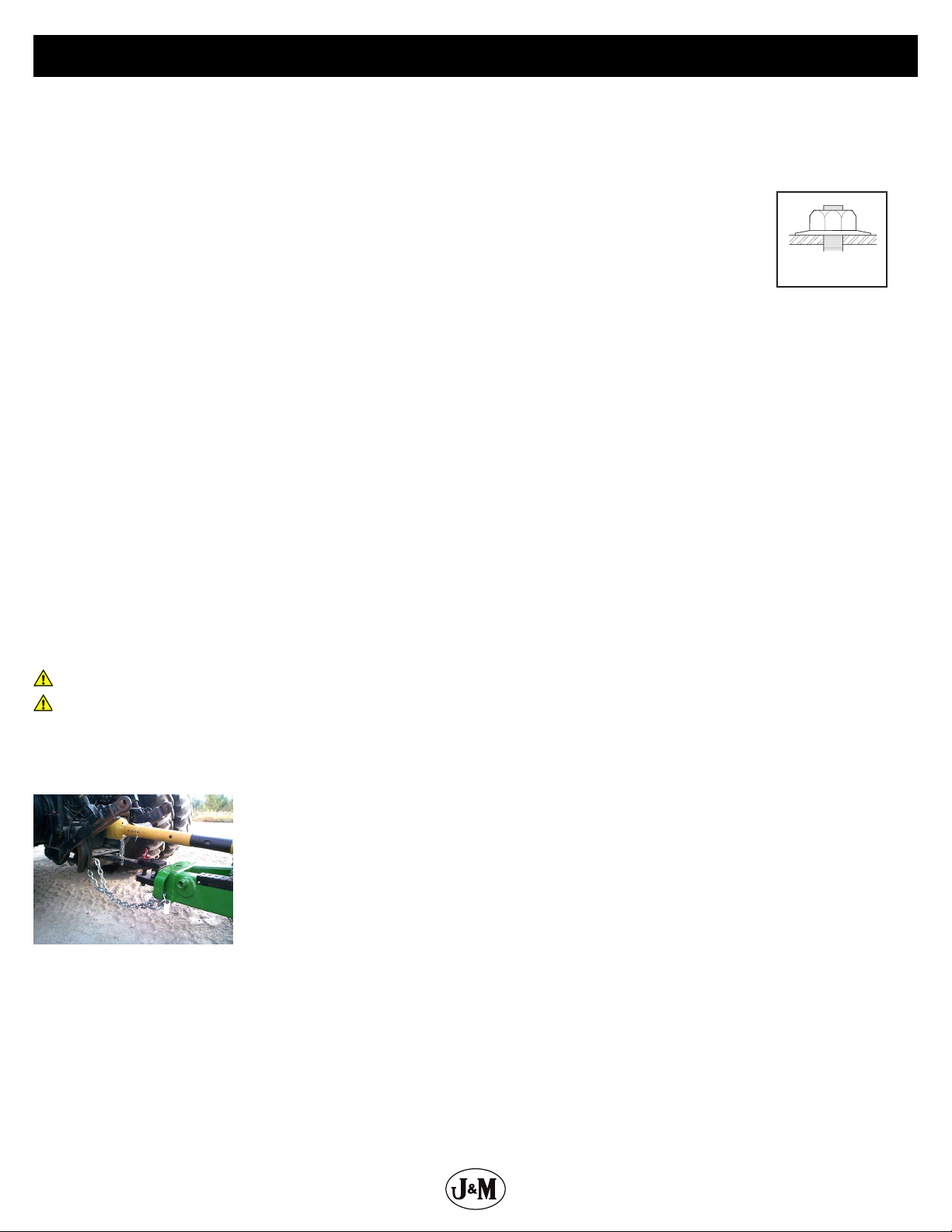

Initial Operation and Maintenance
WARNING
BE CERTAIN THAT ALL POWER IS SHUT OFF BEFORE SERVICING THE GRAIN CART.
Before the grain cart is put into service:
• Have the safety instructions been read and clearly understood by the operator(s) of this machine?
• Has the gearbox been properly lled with SAE 80W-90 gearbox lubricant?
• Have all nuts, bolts, bearings and braces been properly fastened?
• Has the PTO been checked for proper overlap?
IMPORTANT: Has the slip clutch on the PTO been serviced? If the slip clutch is left unchecked, damages to the power-take-o and drive
shaft may result. Before using the grain cart, loosen the bolts around the slip clutch. Make sure the friction plates turn free of each other
and are not corroded together. Re-tighten the tension bolts. Run the auger system EMPTY and check for proper engagement of the slip
clutch.
CHECK PTO OVERLAP LENGTH. Overlap length may vary depending on the tractor model and hitch setting. Try to obtain the greatest
possible overlap without bottoming out in the extreme operating conditions. Too much overlap may cause the PTO to bottom out and
damage the driveline. Not enough overlap may cause the PTO front and back halves to separate. From the fully compressed (shortest)
length the PTO should be telescoped (extended) between 10”and 22”. Dierent PTO lengths may need to be purchased to accommodate
your terrain. A 4”shorter or a 10”longer PTO can be ordered through your dealer from J&M Manufacturing.
GREASE BEARINGS: Are all bearings on the driveline properly greased? Are all set screws in the bearings and U-joints tight? Has the
PTO shaft been properly greased at all points including the cross bearings? Has the universal joint at the gearbox been greased? Have all
grease points at the auger hinge area, including the hanger bushing assembly been greased?
TIRE PRESSURE: Are the tires properly inated? The following is to be used as a general guide for tire ination for cyclic use. Figures
can vary depending on specic brand of tire used. It is important that tires are inspected before and after the unit is loaded. The
tire should stand up with no side wall buckling or distress as the tire rolls. Do not exceed the tire pressure indicated below:
Tire psi
24.5x32 Lug Tires-12 ply (Firestone) (for 21x32-10 Hole Wheels) 24
24.5x32 Diamond Tires-12 ply (Firestone) (for 21x32-10 Hole Wheels) 24
30.5x32 Lug Tires-14 Ply (Firestone) (for 27x32-10 Hole Wheels) (124” c/c) 28
30.5x32 Lug Tires-18 ply (Alliance) (for 27x32-10 Hole Wheels) (124” c/c) 36
IF520/85R42 Lug Tires (Firestone) (169 LI) (for 18x42-10 Hole Wheels) 44
520/85R42 Lug Tires (Alliance) (169 LI) (for 18x42-10 Hole Wheels) 50
IF800/60R32 Diamond Tires (Firestone) (181B) (for 27x32-10 Hole Wheels) 46
