IL4282
Thank you for purchasing this Balance wall light. Please read the instructions
carefully before use to ensure safe and satisfactory operations of this product.
Please keep this instruction for future reference.
Warnings!
For your safety, this product must be installed in accordance with local Building
Regulations.
If in any doubt, or where required by the law, consult a competent person who is
registered with an electrical self-certification scheme. Further information is
available online or phone your Local Authority.
To prevent electric shock, switch off the mains supply before installing or
maintaining this product. Ensure other persons cannot restore the electricity supply
without your knowledge.
Always use the correct bulb type with the correct wattage as indicated in the
specification table. This product is Class II = and should be fitted to a lighting
Supply protected by a 5 amp fuse or equivalent circuit breaker.
When changing the bulb, always switch off at the mains and allow the old bulb to
cool down before handling. Dispose of used bulbs carefully.
Caution! The bulb and surrounding parts can become hot during use.
For indoor use only.
Care instructions
We recommend cleaning with a soft dry cloth. Do not use abrasive materials as
these will damage the finish.
Replace bulb from John Lewis or established brand of the same type and
compatibility.

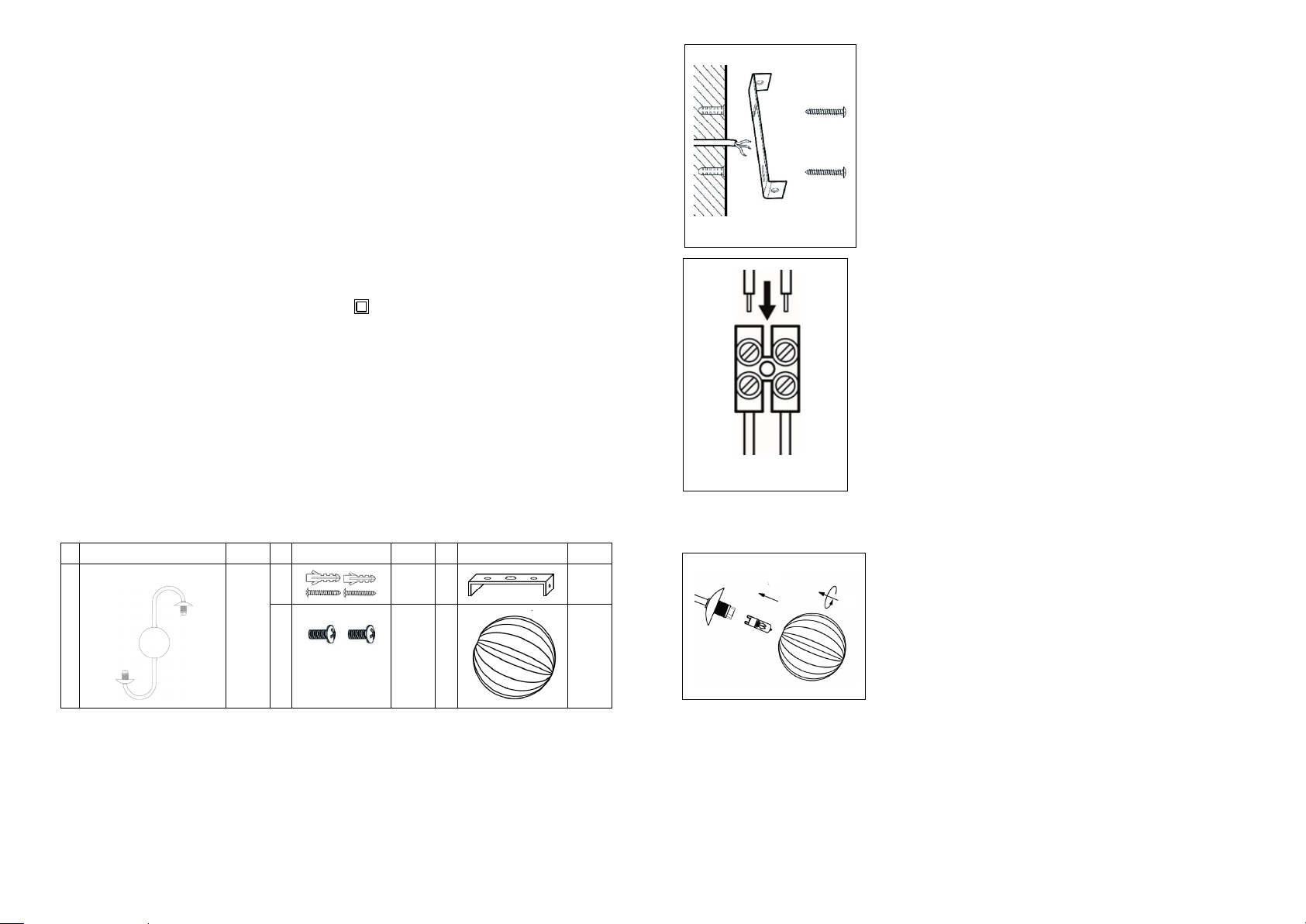

Parts list
Assembly
Never install your appliance on a wet, freshly painted or plastered surface. Ensure
the house electricity supply is switched off at the fuse box. If removing an existing
fitting, note down all wiring connections. Check the fixings will not touch any
existing wiring before drilling and attaching the light to the ceiling.
Ensure you thread the ceiling wires through the black insulating tube fixed to the
appliance.
Step 1
Remove mounting bracket from fitting by removing
the retaining screws and any washers, retain for later.
Using the mounting bracket as a template, mark and
then drill the fixing holes in the wall (ensure the screws
are firmly fixed into a solid or other suitable mounting
and not just the plasterboard.) Take care not to
damage wiring. Attach mounting bracket to the
mounting surface using suitable fixings. Do not attach
fitting to mounting bracket at this stage. Make sure
no wires are trapped in the process.
Step 2
Ensuring that the power has been isolated, connect
the electrical supply wires to the connector blocks
corresponding terminals. Make the electrical
connection as follows:
•Connect the supply live (normally brown or red) to
fitting live (marked “L”) on the terminal block housing.
•Connect the supply neutral (normally blue or black)
to fitting neutral (marked “N”) on the terminal block
housing.
NO EARTH must be connected to any part of this
fitting. Please note that residential wiring can vary, if
you are unsure about the correct polarity please
consult a qualified electrician. Ensure electrical
connections are tight and no loose strands of wire protrude from the terminal
block then close connector block cover by snapping back together.
Step 3
Excess cable must be carefully located inside the
ceiling cup or within the ceiling cavity itself.
Carefully offer fitting over mounting bracket then
secure in place with the screws and any washers
removed earlier.
Fit the bulb: type and wattage as indicated on the
fitting.
The wattage indicated must not be exceeded.
Fit the shades by placing the threaded hole in the shade over the lamp holder
section and rotating into place. If cross-threading occurs undo and start again.
Take care not to overtighten as this may cause damage to the fitting.
Once installation is complete, the house electricity may be restored at the fuse
box.
Step 1
