John Lewis Montserrat gold User manual

IL3951
Recommended bulb
1 x 2.5-6 Watt G9 energy efficient LED capsule
or
1 x 20 Watt G9 eco halogen capsule
Bulb not included
Specification
Max power: 20W
Voltage: 220~240V, 50/60Hz
IP20
Weight 0.8Kg
Please retain these instructions for future reference.
This symbol indicates that this product should not be treated as normal house-hold
waste and it should be recycled. John Lewis does not operate in store take back, but
as members of the Distributer Take Back scheme have funded the development and
upgrade of recycling facilities across the UK. Please take it to your nearest collection
facility or for further details contact your local council or visit www.recycle-more.co.uk.
We have taken great care to ensure that this product reaches you in perfect
condition. However, should any parts be damaged or missing please e-mail
[e-mail]
Trouble shooting:
Why is the light not working when switched on?
Check your power supply is switched on
Turn off light and check that the bulb is inserted correctly
Check the bulb is still in working order.
John Lewis partnership
171 Victoria Street
London SW1E 5NN
Johnlewis.com
Made in China
Issue 1 04/18
User manual
Montserrat gold
Wall bracket

IL3951
Thank you for purchasing this Montserrat wall bracket. Please read the instructions
carefully before use to ensure safe and satisfactory operations of this product.
Please keep this instruction for future reference.
Warnings!
For your safety, this product must be installed in accordance with local Building
Regulations.
If in any doubt, or where required by the law, consult a competent person who is
registered with an electrical self-certification scheme. Further information is
available online or phone your Local Authority.
To prevent electric shock, switch off the mains supply before installing or
maintaining this product. Ensure other persons cannot restore the electricity supply
without your knowledge.
Always use the correct bulb type with the correct wattage as indicated in the
specification table. This product is Class II = and should be fitted to a lighting
Supply protected by a 5 amp fuse or equivalent circuit breaker.
When changing the bulb, always switch off at the mains and allow the old bulb to
cool down before handling. Dispose of used bulbs carefully.
Caution! The bulb and surrounding parts can become hot during use.
For indoor use only.
Care instructions
We recommend cleaning with a soft dry cloth. Do not use abrasive materials as
these will damage the finish.
Replace bulb from John Lewis or established brand of the same type and
compatibility.

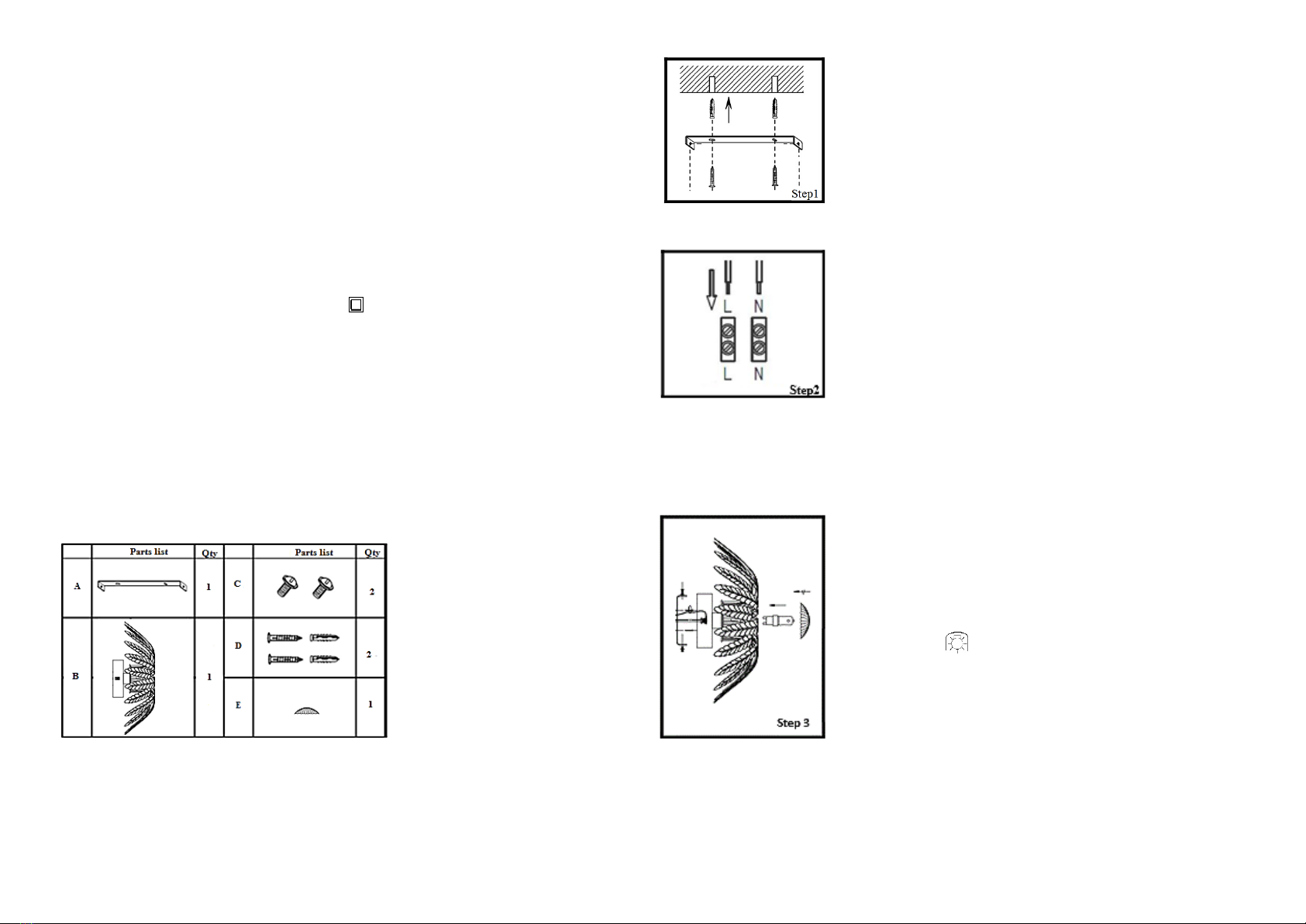

Parts list
Assembly
Never install your appliance on a wet, freshly painted or plastered surface. Ensure
the house electricity supply is switched off at the fuse box. If removing an existing
fitting, note down all wiring connections. Check the fixings will not touch any
existing wiring before drilling and attaching the light to the wall.
Ensure you thread the wall wires through the black insulating tube fixed to the
appliance.
Step 1
Remove mounting bracket from fitting by removing the
retaining screws and washers, retain for later. Using the
mounting bracket as a template, mark and then drill the
fixing holes in the wall (ensure the screws are firmly fixed
into a solid or other suitable mounting and not just the
plasterboard.). Take care not to damage wiring. Attach
mounting bracket to the mounting surface using suitable
fixings. Do not attach fitting to mounting bracket at this
stage. Make sure no wires are trapped in the process.
Step 2
•Ensuring that the power has been isolated, connect the
electrical supply wires to the connector blocks
corresponding terminals. Make the electrical
connections as follows:
•Connect the supply live (normally brown or red) to fitting
live (marked “L”) on the terminal block housing.
•Connect the supply neutral (normally blue or black) to
fitting neutral (marked “N”) on the terminal block
housing.
Ensure electrical connections are tight and no loose strands of wire protrude from
the terminal block then close connector block cover by snapping back together.
Please note that residential wiring can vary, if you are unsure about the correct
polarity please consult a qualified electrician.
Step 3
Excess cable must be carefully located inside the wall
cup or within the wall cavity itself. Carefully offer fitting
over mounting bracket then secure in place with the
screws and washers removed earlier.
Fit the bulb: type and wattage as indicated on the
fitting. If using tungsten halogen bulbs these must be self-
shielded bulbs. Do not touch halogen bulbs with bare
hands as this will shorten their life. The wattage indicated
must not be exceeded.
Attach the decorative front cover plate (E) by screwing it
into the threaded bridge section just above the bulb. Do
not over tighten as this may cause damage to the fitting.
Once installation is complete, the house electricity may
be restored at the fuse box.
