Kimball President Installation guide

Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
© 2008 Kimball International, Inc. T 800.482.1818 F 812.482.8300
President™and Senator™
Assembly Instructions
1998762 Revision B-13
Complete Series Master Packet

Casegoods Assembly Instructions
President/Senator
Printed in U.S.A. © 2002 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1567892 Revision A-02
Page 1 of 1
Bookcase Cornice Frame
Tools Required
■Level
■Tape Measure
■Power Screwdriver
■#2 Phillips Head Bit
Package Contents
■16 #8 x ⁵⁄₈" Panhead Screws
Installation
1. The cornice frame can be attached to one, two, or three
bookcase units. Position the lower storage in the desired
location. Level lower storage units. Position bookcase units
onto lower storage in the desired location. (Figure A).
2. Align the cornice above the bookcase units. Attach the
cornice to the bookcase units using the #8 x ⁵⁄₈" screws,
provided. (Figure B).

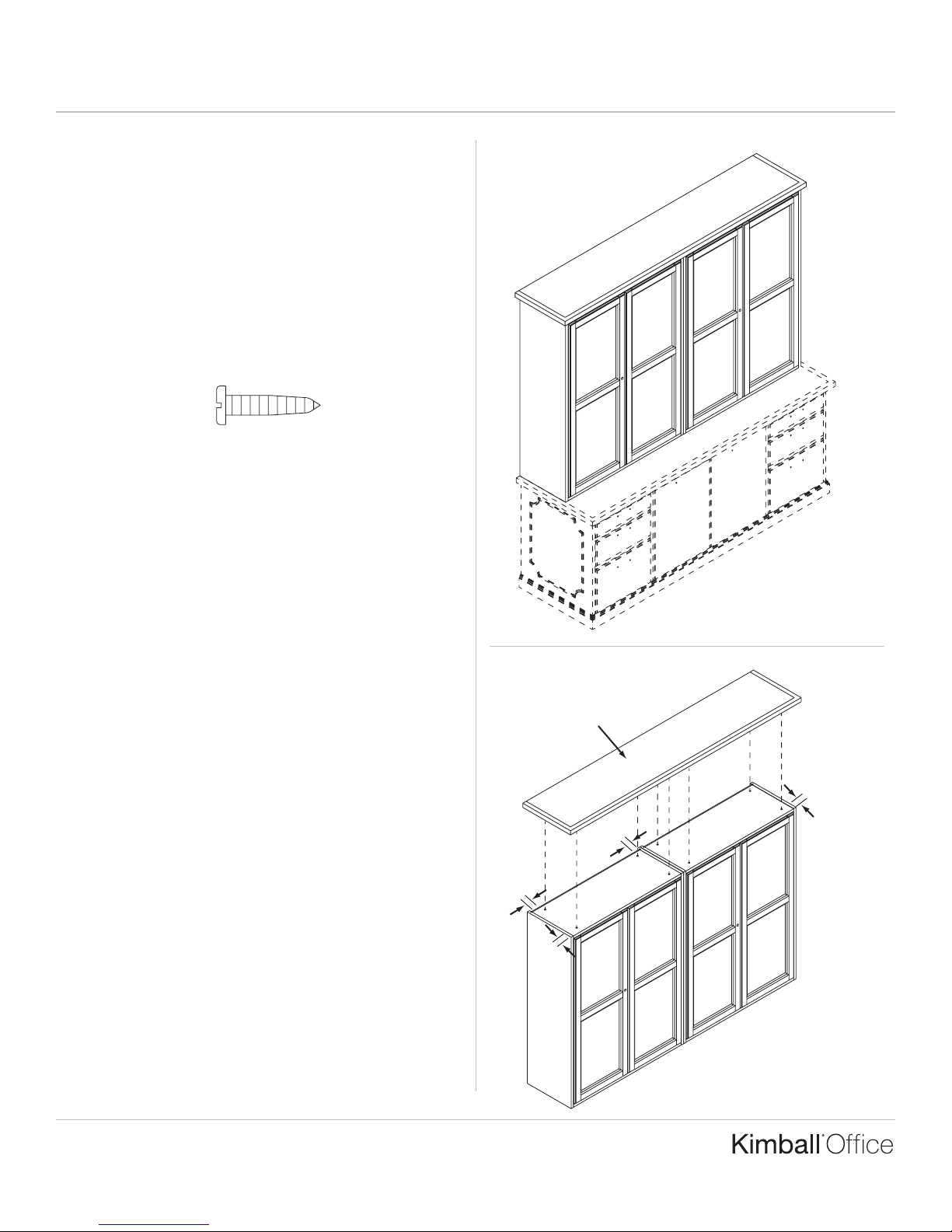

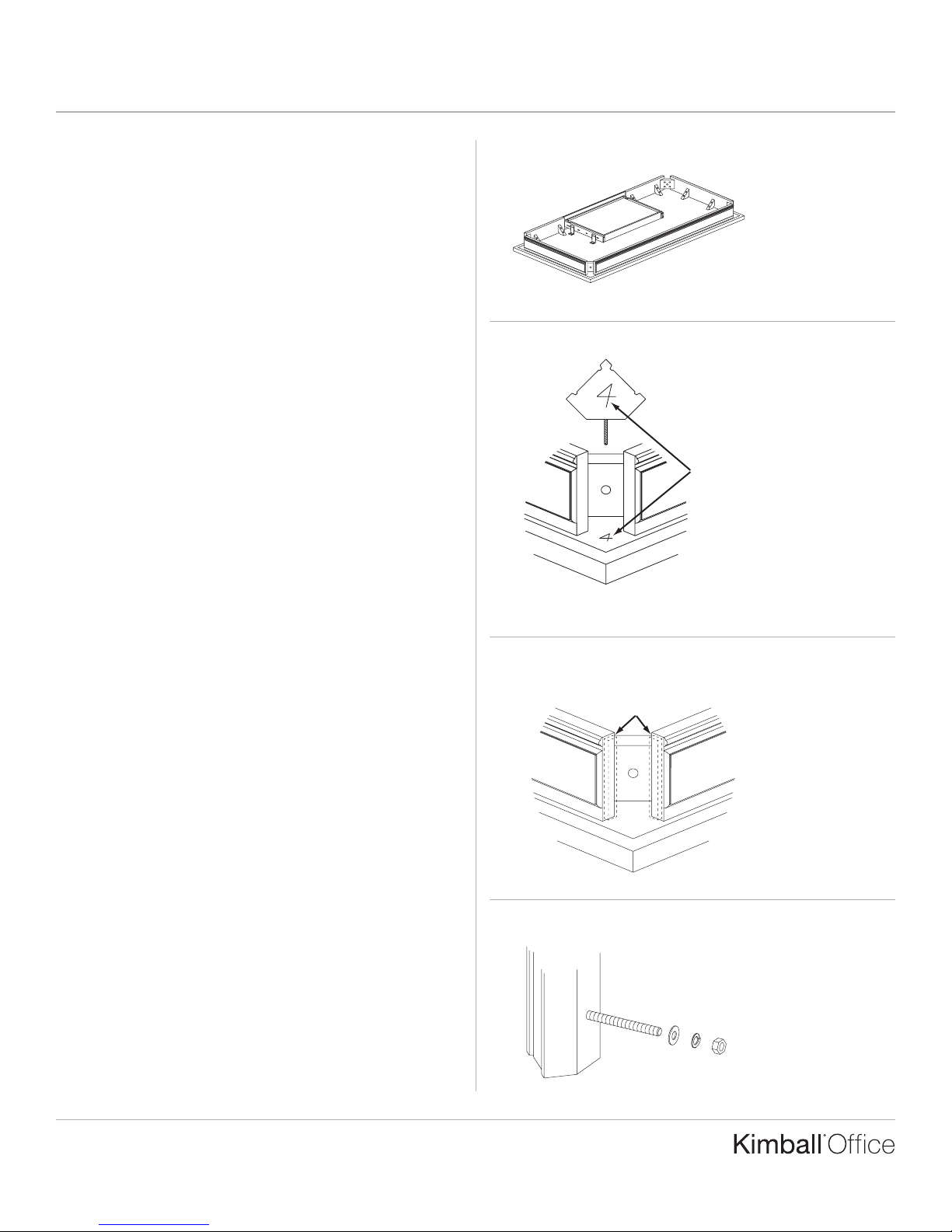

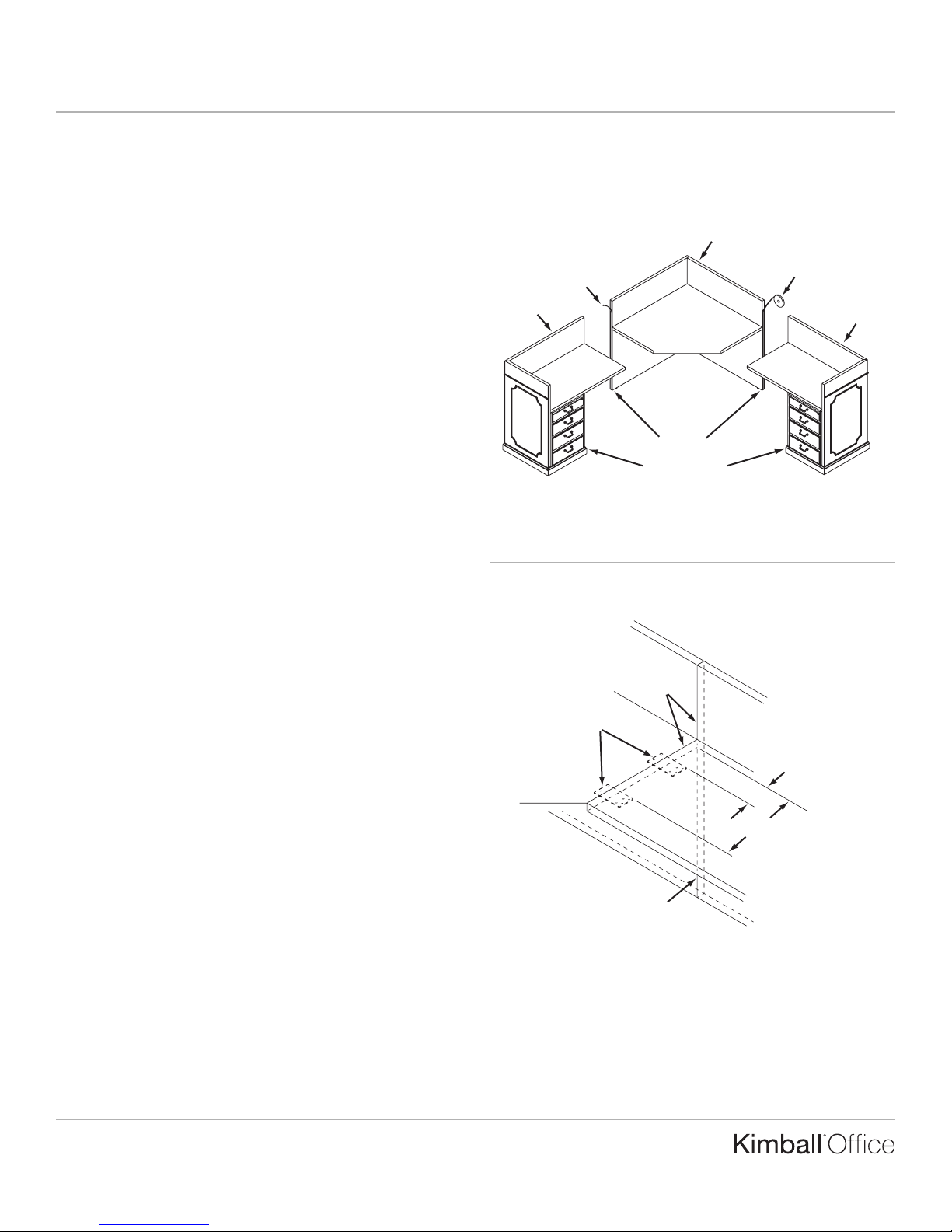

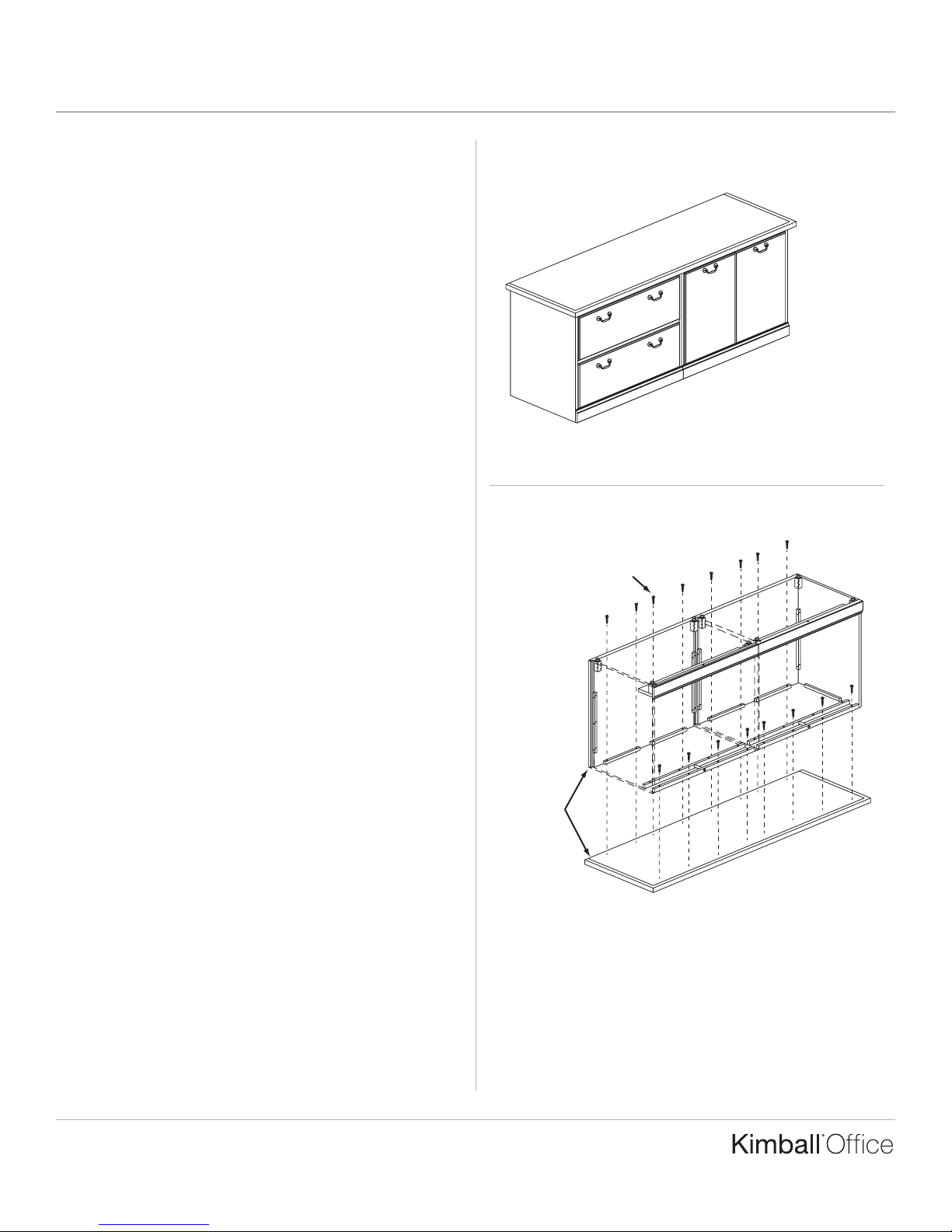

Figure A
Figure B
Cornice

Casegoods Assembly Instructions
President/Senator
Printed in U.S.A. © 2002 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1567893 Revision A-02
Page 1 of 1
Bookcase Top Panel
Tools Required
■Level
■Tape Measure
■Power Screwdriver
■#2 Phillips Head Bit
■³⁄₁₆" Drill Bit
Package Contents
■16 #8 x 1¹⁄₂" Screws
Installation
1. The top panel can be attached to one, two, or three
bookcase units. Position the lower storage in the desired
location. Level lower storage units. Position bookcase
units onto lower storage in the desired location. Level all
bookcase units. (Figure A).
2. Bore four ³⁄₁₆" diameter holes approximately 2" in from the
front, back and sides of each vertical storage unit. Position
the top panel in the desired position on the bookcase units
and attach from inside bookcase using provided
#8 x 1¹⁄₂" screws. (Figure B).
Top Panel
2"
2"
2"
2"
Figure B
Figure A

Casegoods Assembly Instructions
President/Senator/Innsbruck/Osterley Park
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741515 Revision A-04
Page 1 of 2
Table Desk
Tools Required
■Level ■³⁄₄" Socket
■Socket Wrench
Package Contents
■1 Table Desk ■4 Table Leg with Lag Bolt,
Washer, Lock Washer and Nut
Installation
Note: This instruction shows the President Table Desk
assembly as an example. This instruction can also be
applied to Senator and Innsbruck/Osterley Park Table
Desk assembly. For safety, and to avoid damage to the unit,
it is recommended that more than one person be used to
assemble and move the Table Desk.
1. The table desk will arrive unassembled with the legs
located on the underneath side of the worksurface.
Carefully un-carton and place worksurface face down on
a smooth, clean, soft surface. (Figure A).
2. Remove the table legs from the underside of the
worksurface and remove all foam packing. Legs are
numbered 1, 2, 3, and 4 on their top ends to correspond
with their appropriate corner location, which is numbered
on the underside of the worksurface. (Figure B).
3. During production, a wooden spacer is fastened to the
apron rail where the legs attach. Normally, they are removed
before shipment. However, if any spacers remain on the
apron rail please remove and discard all of them as they
will interfere with installation of the table legs. (Figure C).
4. Locate the table leg numbered “1” and remove the nut,
lock washer, and washer from the lag bolt. (Figure D).
Figure A
Figure B
Top of leg is numbered to
match with number on
underside of worksurface
Figure C
Figure D
Remove any and
all spacers from
apron rail
Remove all hardware
from lag bolt

Casegoods Assembly Instructions
President/Senator/Innsbruck/Osterley Park
Printed in U.S.A. © 2004 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741515 Revision A-04
Page 2 of 2
Installation (continued)
5. Insert the lag bolt through the hole in the corner block at
the corner numbered “1” on the worksurface. (Figure E).
6. Secure the leg to the table by installing the hardware in the
following order: washer, lock washer, nut – to the outside of
the corner block. Make sure the leg is perpendicular and
flush to the apron rails. Tighten the nut firmly by using the
³⁄₄" socket wrench, but do not over-tighten. (Figure F).
7. Refer to Steps 4, 5, and 6 to install legs “2”, “3”, and “4” to
their corresponding locations. (Figure G).
8. After all legs are installed, carefully turn table to the upright
position. If the table displays a swaying motion, then one or
more of the legs are not properly seated in their locations.
Turn the table back over on the soft surface and re-check all
legs to make sure they are perpendicular and flush to the
apron rails and that all fasteners are properly installed and
tightened. (Figure H).

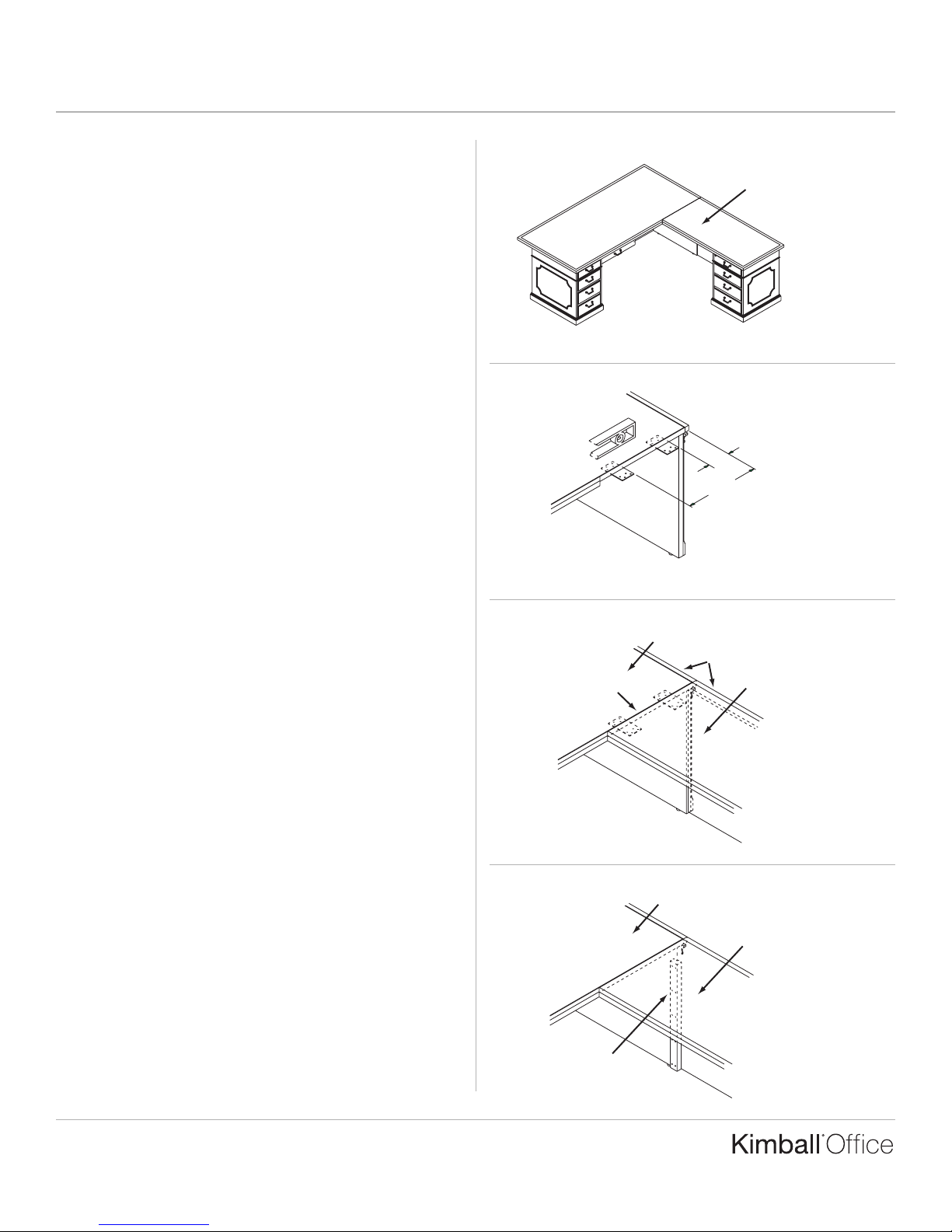

Figure E
Figure F
Figure G Figure H
Make sure number
on leg and on the
worksurface are
the same
Install hardware
in this order
Perpendicular
and flush against
apron rails
Insert Lag Bolt
through
Corner Block

Casegoods Assembly Instructions
President/Senator
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741516 Revision A-04
Page 1 of 2
Task/Reception Station
Tools Required
■Level ■#2 Phillips Head Bit
■Tape Measure ■³⁄₁₆" Drill Bit
■Cordless Drill
Package Contents
■2 Flat Brackets ■2 Flat Brackets
(attach worksurfaces) (attach modesty panels)
■32 #10 x 1" Panhead Screws ■32 #8 x ⁵⁄₈" Panhead Screws
(worksurfaces) (modesty panels)
■Foam tape (light blocker)
Installation
1. Task/Reception Stations are comprised of a Corner Unit,
one Left Return, and one Right Return. These units will not
stand alone, nor attach to other units in the series. Position
the units in their approximate desired location. (Figure A).
2. Unroll the foam tape and apply a single strip of tape, gray
side down, to the center of the exposed ends of the Corner
Unit. Remove the protective film from the exposed side of
each piece of tape. The foam tape is used as a light blocker
when panels are installed next to each other. (Figure A).
3. Level all units. Attach two flat brackets to the underside of
the worksurface on the Corner Unit on each side at the
locations shown in Figure B, using the provided #10 x 1"
Panhead Screws. Center the brackets with the edge of the
worksurface.
4. Position the Returns against the Corner Unit. Pull all Units
together so that the Corner and Return Unit worksurfaces
are flush and tight against each other with no gaps.
Note: The worksurfaces can be unscrewed from cleats
and adjusted to align, if necessary.
Align the Corner Unit Modesty Panels and the Return
Modesty Panels so they are flush and tight against each
other with no gaps. This can be done by adjusting the leg
levelers up/down on the Corner and Return Units.
(Figure B).
Figure A
Figure B
Apply Foam Tape
Flush with
no gaps
Peel off
Protective Film
Corner Unit
Right Return
Left Return
Center brackets on
edge of worksurface
Use Levelers
to adjust/align
4"
Flush with
no gaps
19"

Casegoods Assembly Instructions
President/Senator
Printed in U.S.A. © 2004 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741516 Revision A-04
Page 2 of 2
Installation (continued)
5. When all gaps are eliminated, attach the Corner Unit
Modesty Panels to the Return Unit Modesty Panels first
using two flat brackets on each side. Center the brackets
between each Modesty Panel and attach one flat bracket
towards the top of the Modesty Panels under the
worksurface and the other flat bracket towards the bottom
of the Modesty Panels using the provided #8 x ⁵⁄₈" Panhead
Screws. (Figure C). Fasten each Return worksurface to the
Corner Unit flat brackets using the provided #10 x 1"
Panhead Screws. (Figure C).
Note: The worksurface flat brackets are shipped on the
underside of the Return worksurface.
Figure C
Attach Returns
to Flat Brackets
Center Flat Bracket
between Modesty Panels.
Attach Flat Brackets to
Modesty Panels.

Casegoods Assembly Instructions
President/Senator
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741518 Revision B-04
Page 1 of 1
Printed in U.S.A. © 2004 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Transaction Shelf
Tools Required
■#2 Phillips Head Bit ■Cordless Drill
Package Contents
■1 Transaction Shelf ■9 #8 x ⁵⁄₈" Panhead Screws
■9 Brackets ■9 #8 x ³⁄₄" Flathead Screws
Installation
1. The transaction shelf can be used with the task/reception
station. The transaction shelf can be positioned on either
the left or right hand side of the station. The shelf rests
ON TOP of the 43" high panels (not inset). (Figure A).
2. The transaction shelf is fastened to the station using the
provided brackets and screws. The brackets mount flush
with the top edge of the 43" high panels. The front brackets
mount 10" off the inside edge of the station. The back
brackets should be spaced about every 12". Fasten the
brackets to the 43" high panels using the provided #8 x ⁵⁄₈"
panhead screws. (Figure B).
3. Place the transaction shelf on top of the 43" high end
panels. Position the shelf so that it overhangs all edges
equally. Fasten the shelf to the brackets using the provided
#8 x ³⁄₄" flathead screws. (Figure C).
Figure A
Figure C
Attach Brackets
using #8 x ⁵⁄₈"
Panhead Screws
Figure B
Overhang
all edges
equally
12"
10"
12"
Attach top
using #8 x ³⁄₄"
Flathead Screws

Casegoods Assembly Instructions
President/Senator
Printed in U.S.A. © 2005 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Oce Customer Service.
Part No. 1741527 Revision C
Page 1 of 1
Hinge Adjustment
and Shelf Adjustment
Tools Required
Phillips Screwdriver
Installation

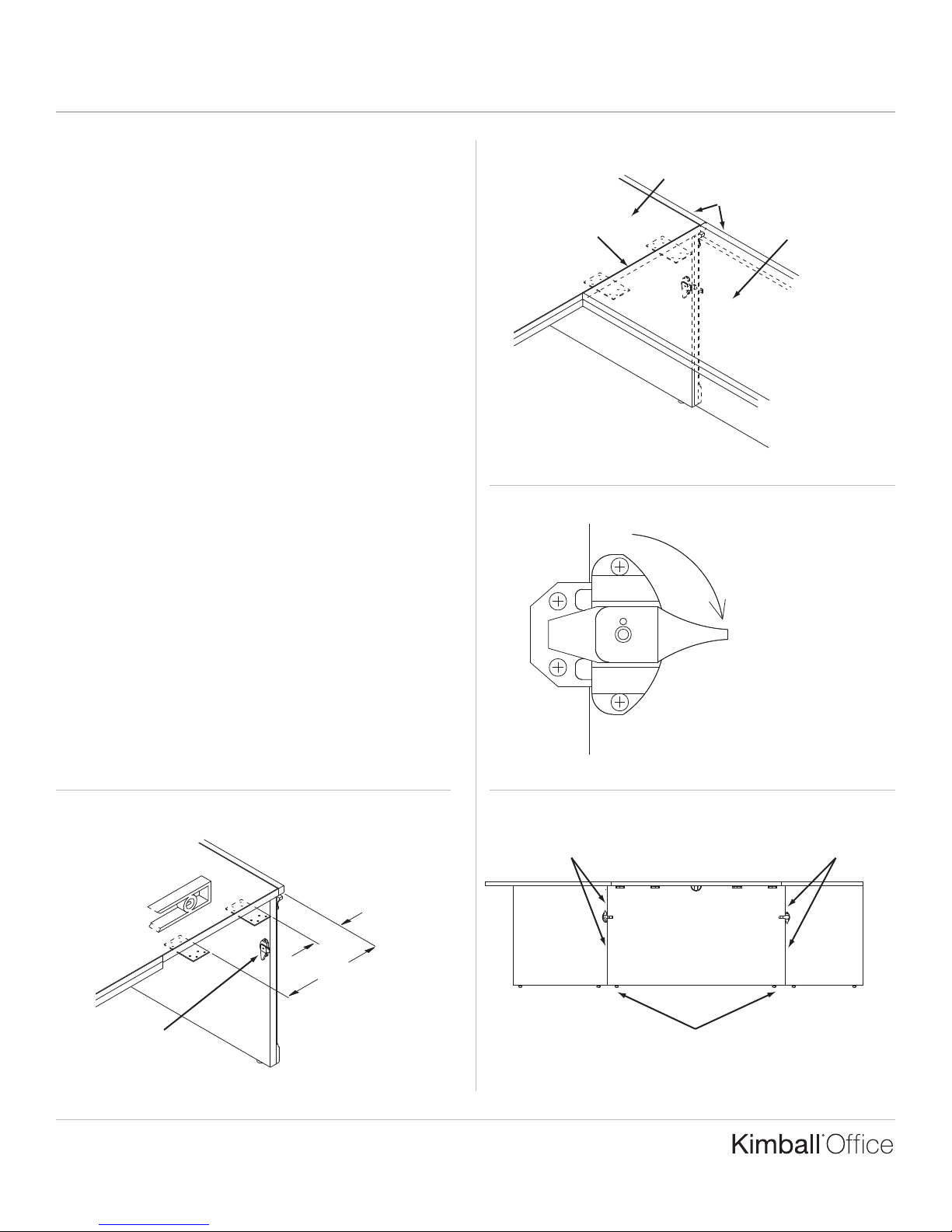

1. Side Adjustment:
Turn front screw clockwise to increase door overlay,
counterclockwise to decrease overlay. (Figure A).
2. Depth Adjustment:
Loosen back screw. Adjust door to desired position and
tighten screw. (Figure B).
3. Height Adjustment:
Loosen screw(s) on the mounting plate. Adjust door to
position and tighten screws. (Figure C).
4. Door Removal and Installation:
To remove, pull release lever back (Figure D). To re-install,
place the hinge on the mounting plate and push the rear of
the hinge with nger pressure. The snap sound conrms a
secure attachment.
5. Shelf Adjustment:
Remove screws in bottom of shelf brackets. Remove shelf.
Insert bracket at desired level. Replace shelf. (Figure E).
Note: Screws were used for shipping purposes.
For additonal security, adjustable shelves can be fastened
into position using original shipping screws.
Figure B
Figure C
Side Adjustment
Figure D
Figure E
Depth Adjustment
Height Adjustment
Removal
Figure A
Shipping
screw
Shelf
Shelf
Bracket

Casegoods Assembly Instructions
President/Senator
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741546 Revision A-05
Page 1 of 2
Drawer Removal, Adjustment,
and Unit Leveling
Tools Required
■7⁄32" Nutdriver ■Phillips Screwdriver
■Level ■Tape Measure or Ruler
Installation
1. For Desk, Credenza, Return, Bridge, Lateral File & Drawer
or Door Storage and Bookcases as applicable: Remove all
drawers as required to access leveling glide adjustment
holes.

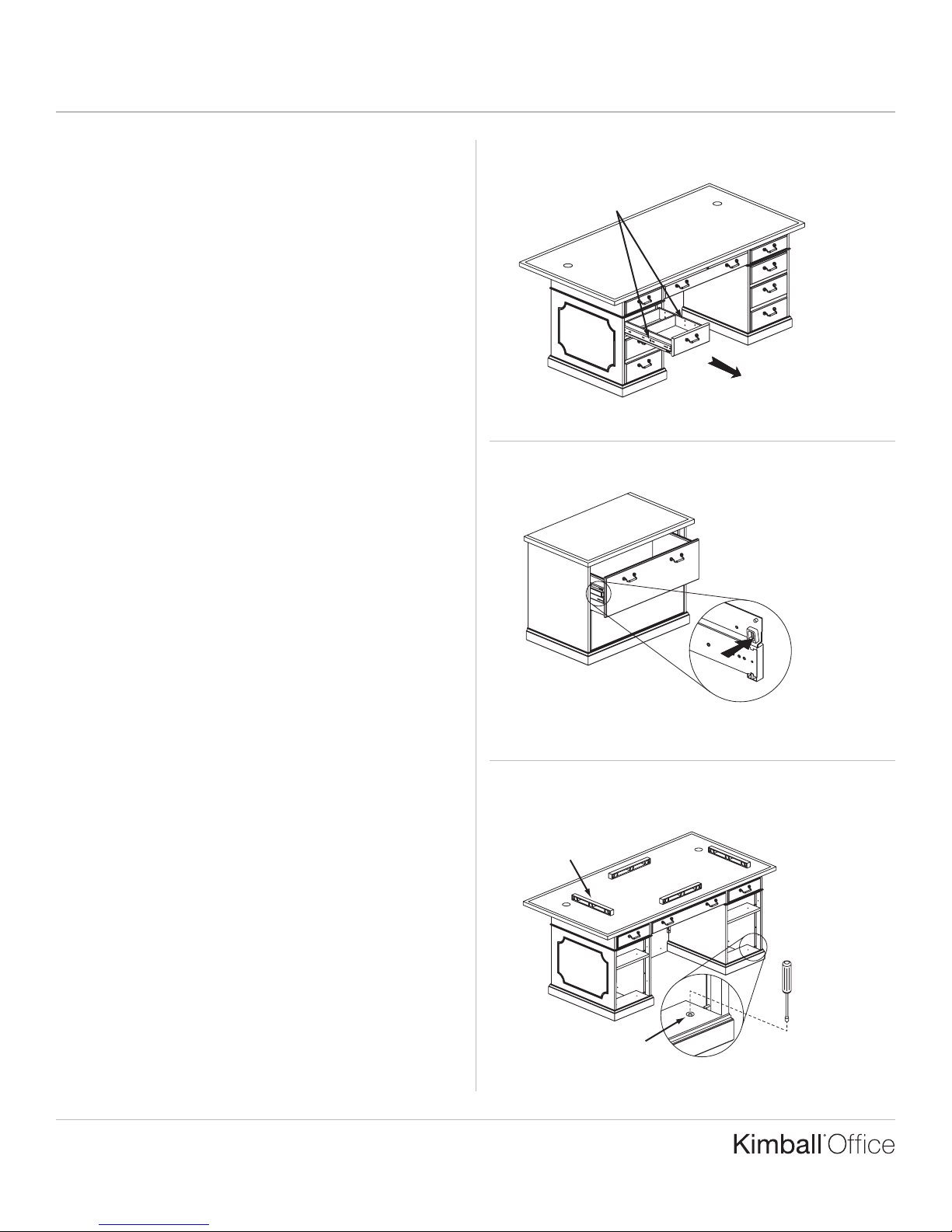

2. To remove drawers: Extend the box or file drawer to its
full extension. Locate the drawer slide release tab, in the
approximate location shown, on each side of the drawer
box. Press both tabs in and pull drawer straight out until
slide drawer members disengage from cabinet members.
(Figure A).
3. To remove lateral file drawers, extend the drawer forward.
(Figure B). Press the two quick-disconnect release tabs and
lift the drawer off the slide assembly. (Figure C).
Note: Shipping screws must be removed from drawer
suspensions before drawer can be removed.
4. Turn the leveling glides fully “in” (counterclockwise)
prior to leveling. Level the unit from front to back by
first extending the glides on the outside corners
(turn clockwise), then level the unit from side to side.
Check adjustments by placing the level at the four positions
shown. Adjust inside glides, if applicable, to help support
the unit. (Figure D).
5. Replace all drawers to their original locations. To re-install,
fully extend cabinet slide members, making sure the chrome
ball-bearing members are also forward. Carefully align
drawer slide members with cabinet slide members and
gently push drawer closed. Check for proper alignment by
inspecting drawer front margins for spacing and squareness.
Figure A
Figure B
Release
Tabs
Figure C
Figure D
Leveling Glide
Adjustment Hole
7⁄32"
Nut Driver
Level;
Check at four locations

Casegoods Assembly Instructions
President/Senator
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741546 Revision A-05
Page 2 of 2
Installation (continued)

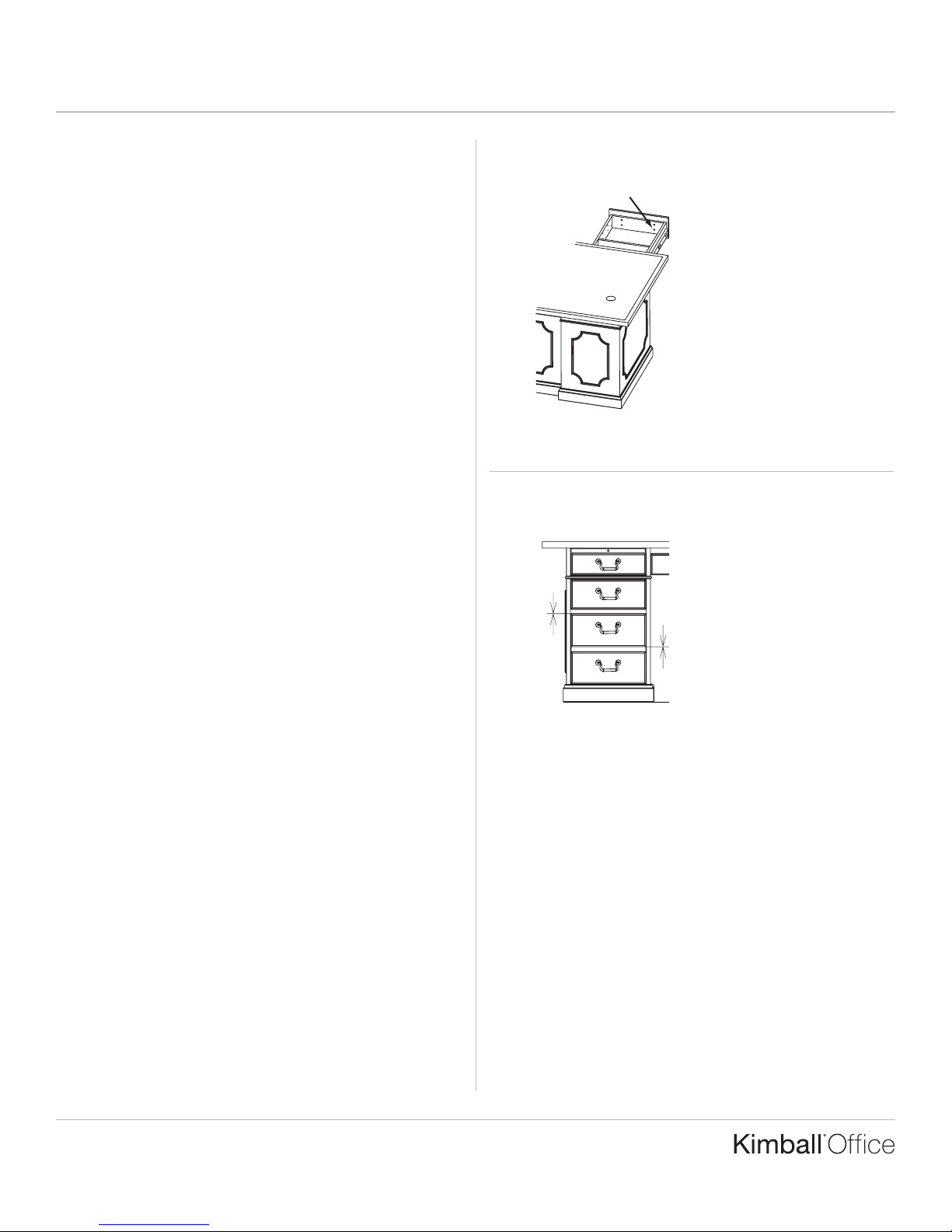

6. If drawer front needs adjustment, open drawer and locate
the four (4) Deerwood screws that attach the drawer front
to the drawer box. (Figure E).
Note: Lateral file drawer fronts use six (6) screws.
7. Slightly loosen Deerwood screws and adjust drawer front
to the approximate locations and gaps shown. (Figure F).
Re-tighten all Deerwood screws. Repeat Steps 6 and 7 to
adjust other drawers in unit.
Figure E
Figure F
3⁄16" gap
3⁄16" gap
Printed in U.S.A. © 2005 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Deerwood Screws (4)

Casegoods Assembly Instructions
President/Senator
Printed in U.S.A. © 2005 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741548 Revision A-05
Page 1 of 1
Shelf Removal and Adjustment
Tools Required
■None
Package Contents
■None
Installation
Note: Shelves are secured in unit with shipping screws.

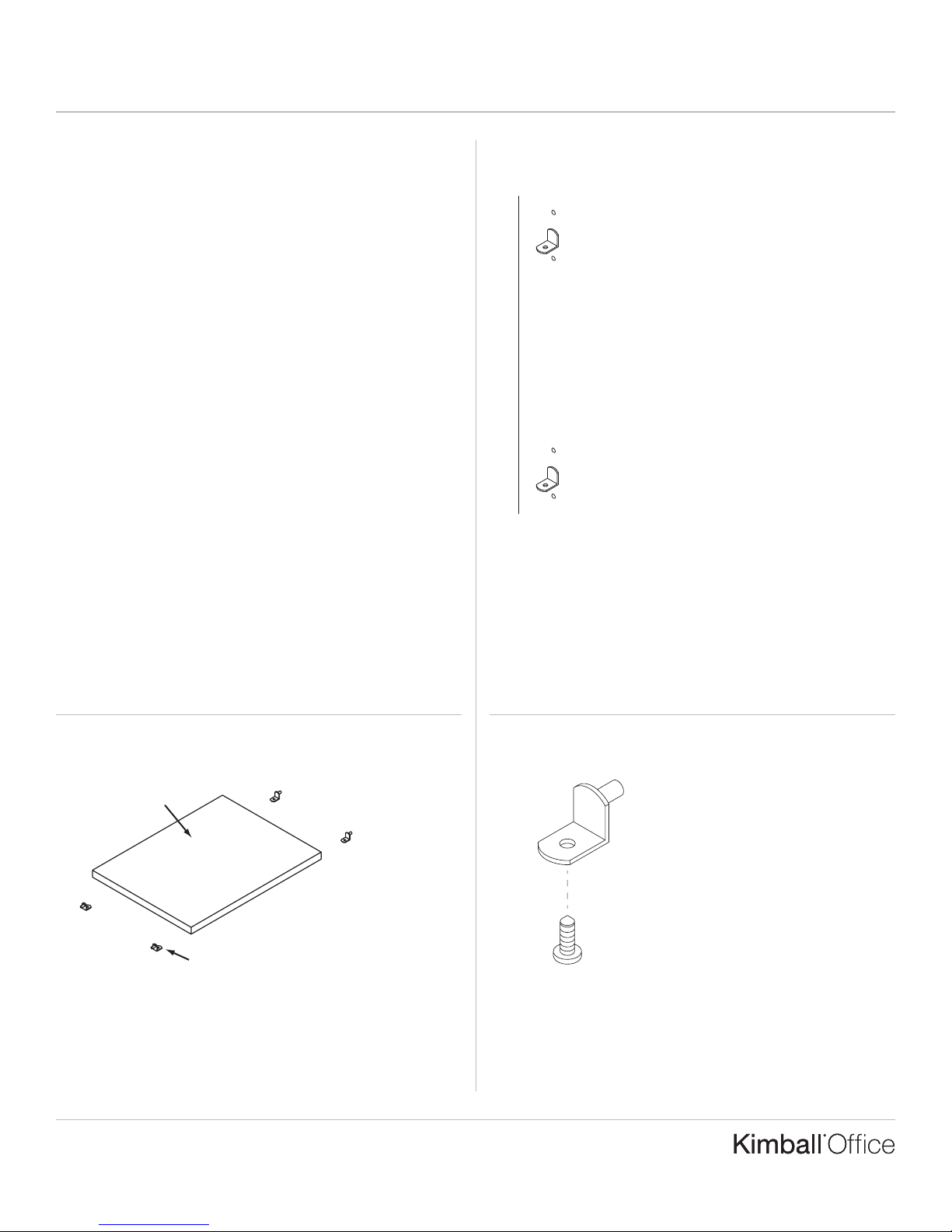

1. An adjustable shelf consists of a shelf and four (4) shelf
support brackets. (Figure A).
2. All cabinets feature pre-bored holes 11⁄4" apart.
Recommended spacing is #2 position as shipped, for proper
ring binder clearance. (Figure B).
3. For repositioning of shelves, the shipping screws must be
removed. (Figure C). Remove shelf and move shelf support
brackets to desired hole locations, making sure all brackets
are at the same level.
4. For additional security, adjustable shelves can be fastened
into position by reusing the #6 x 5⁄8" panhead shipping
screws.
Figure B
Figure C
Shelf
Shelf Support
Bracket
1
2
3
1
2
3
Figure A
Shelf Support
Bracket
#6 x 5⁄8" Panhead
Shipping Screw

Casegoods Assembly Instructions
President
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741555 Revision B-05
Page 1 of 1
Center Drawer
Tools Required
■Phillips Screwdriver ■Tape Measure or Ruler
Package Contents
■Center Drawer Assembly
Installation
1. Attach cam to lock by placing desk in the locked position
and sliding the cam over the lock tailpiece. (Figure A).
2. Turn key to unlocked position and secure cam to lock tail
piece by installing set screw.
3. Center the drawer (side to side) in kneespace. Locate the
drawer (front to back) 1⁄4" from lock mounting rail.
Note: Be sure that the drawer slides are in the fully closed
position when locating center drawer.
4. Install (1) #8 x 5⁄8" Phillips flathead screw into each rear
mounting pad. (Figure B).
5. Pull center drawer out until fully extended, and install
remaining screws into mounting pads.
Figure A
Figure B
(2) #8 x 5⁄8" Flathead screws
in each rear mounting pad
Printed in U.S.A. © 2005 Kimball International, Inc. T 800.482.1818 F 812.482.8300
(2) #8 x 5⁄8" Panhead screws
in each front flange
1⁄4"
Key
(unlocked position)
Cam
Set screw
Lock Tail
Lock
Mounting Rail

Casegoods Assembly Instructions
President
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741566 Revision C-05
Page 1 of 2
Component Lateral File,
Pedestals, and Storage Unit
Tools Required
■Tape Measure ■#2 Phillips Head Bit
■Power Screwdriver ■3⁄16" Drill Bit
■Level
Package Contents
For Base: For Top:
■2 #8 x 11⁄4" Panhead Screws ■8 #8 x 11⁄2" Panhead Screws
(per lateral file or pedestal) (per modular unit)
■2 #8 x 5⁄8" Panhead Screws
(per lateral file or pedestal)
■4 #8 x 11⁄4" Panhead Screws
(per storage unit)
Installation
1. The component assembly uses a combination of modular
storage components and a component top and base which is
ordered separately. (Figure A). Remove shipping screws that
secure drawers and discard. Remove drawers from pedestals
by untying the anti-tip interlock cord. Review cord
attachment before removing drawers as cord must be re-tied.
Note: When drawers are re-installed make sure they are
returned to the same locations.
2. Place worksurface upside down on a clean, soft surface.
Position pedestals upside down on underside of worksurface
so they are flush with the back of the top and equal distance

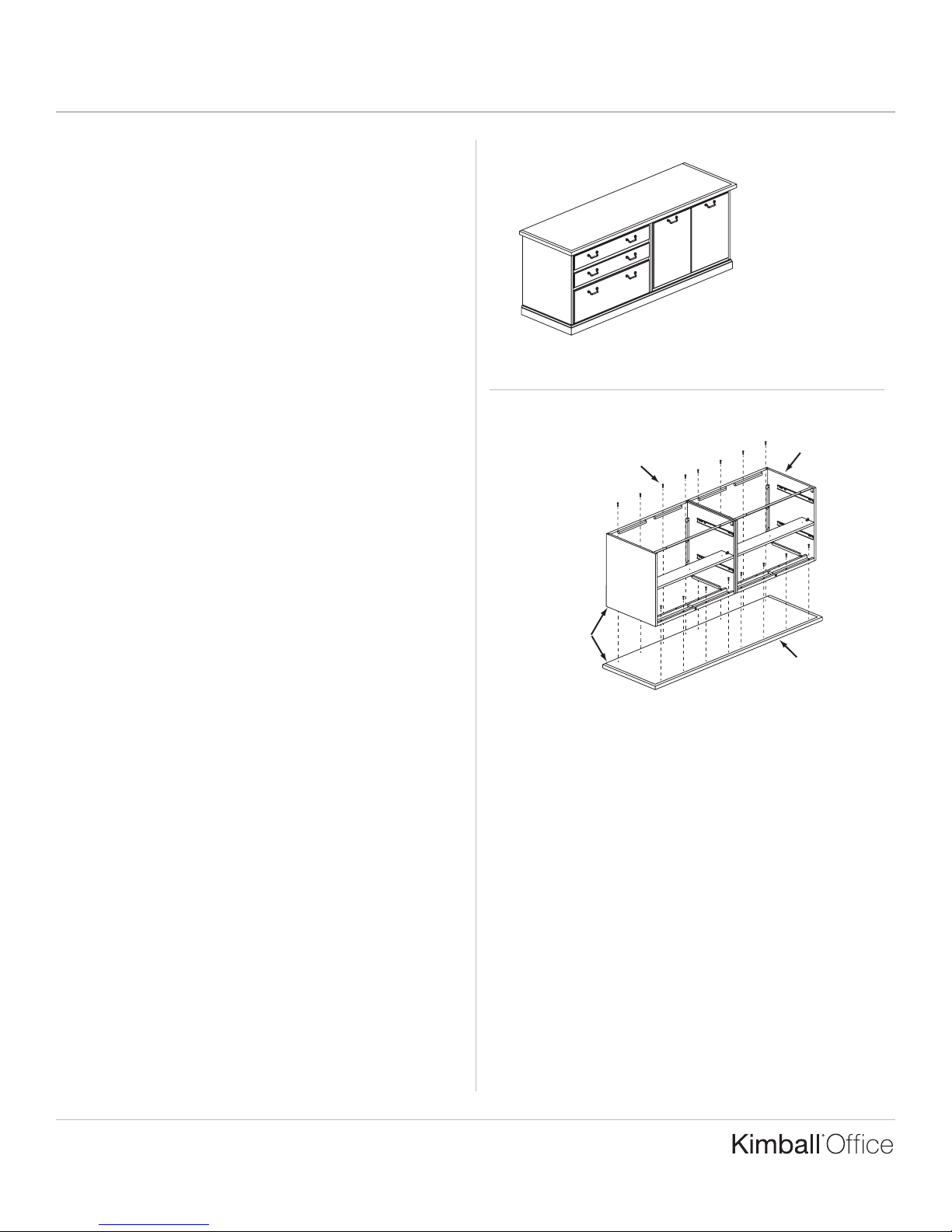

from side to side. (Figure B). If a kneespace credenza is being
created, insert pedestals 11⁄2" from each edge of the top.
3. Attach pedestal to underside of worksurface utilizing
pre-bored holes of cleats/stretcher rails and provided
#8 x 11⁄2" panhead screws. (Figure B).
Note: Special care should be taken not to over drive the
screws through the worksurface.
Note: If installing file pedestals only, proceed to Step 6.
4. If installing a combination of file and storage units, the base
will need to be installed to the storage units at this time,
before turning unit upright. The base attaches to the
underside of storage pedestals and inside of file pedestals.
Figure A
Figure B
Pedestals flush
with back, equal
distance from
each end
#8 x 11⁄2 "
Panhead Screw
Top
(upside down)
Pedestal
(upside down)

Casegoods Assembly Instructions
President
Printed in U.S.A. © 2004 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Form No. 1741566 Revision C-05
Page 2 of 2
Installation (continued)
5. Place base, upside down, on bottom of component units so
that it is flush with the backs and equal distance from side
to side.
Note: The base should extend beyond the pedestals
approximately 9⁄16 " on either end.
Fasten the credenza component base to the underside of the
storage components using the provided #8 x 11⁄4" panhead
screws, four per unit. (Figure C).
6. Carefully turn unit upright. If installing file pedestals only,
place them on the base so they are flush with the back of
the base and equal distance from each end.
Note: The base should extend beyond the pedestals
approximately ⁹⁄₁₆" on either end. (Figure D).
The file pedestals are attached to the base by inserting
provided screws through pre-drilled wooden cleats located
at the bottom rear of each unit, and by inserting provided
screws through a pre-drilled metal support bracket located
at the bottom front of each unit. (Figure E).
7. Use the #8 x 11⁄4" panhead screws to attach each pre-drilled
wooden cleat to the base (two screws per unit). Use the
#8 x 5⁄8" panhead screws to attach the pre-drilled metal
support rail to the base (two screws per unit). (Figure F).
8. Re-install drawers to original locations and re-tie anti-tip
cords. Level unit.
Caution: Failure to re-install anti-tip cords could result in
units tipping over, resulting in injury. Extra caution should be
given to the 4-high lateral unit.
Figure D
Figure C
Components flush
with back of base,
equal distance from
each end
Metal
Support Rail
#8 x ⁵⁄₈" panhead
screws inserted through
pre-drilled metal rail
(two per unit)
#8 x 11⁄4 " panhead screws inserted
through pre-drilled cleats (two per unit)
Cleat
Pre-drilled
Wooden cleats
Figure F
Metal Support Rail
Figure E
Base flush
with backs of
components
#8 x 11⁄4"
Panhead Screws
(four per component)
Base
(upside down)
Base
Base

Casegoods Assembly Instr ctions
President/ enator
Proper product installation, in accordance with these instructions, is the responsibilit of the installing agent.
If ou have an questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741567 Revisio F-09
Page 1 of 2
Bridge Unit
Tools Req ired
■Level ■crew Gun
■Tape Measure ■Drill Bits
■#2 Phillips Head Bit
Package Contents
■4 Flat Brackets ■44 #10 x 1" Panhead crews
■2 Align-n-lock Fasteners ■4 #8 x 5⁄8" Panhead crews
■4 Hinges
Installation
1. The hinged modesty/bridge unit arrives un-assembled in
a carton. Place the bridge face down on a smooth, hard

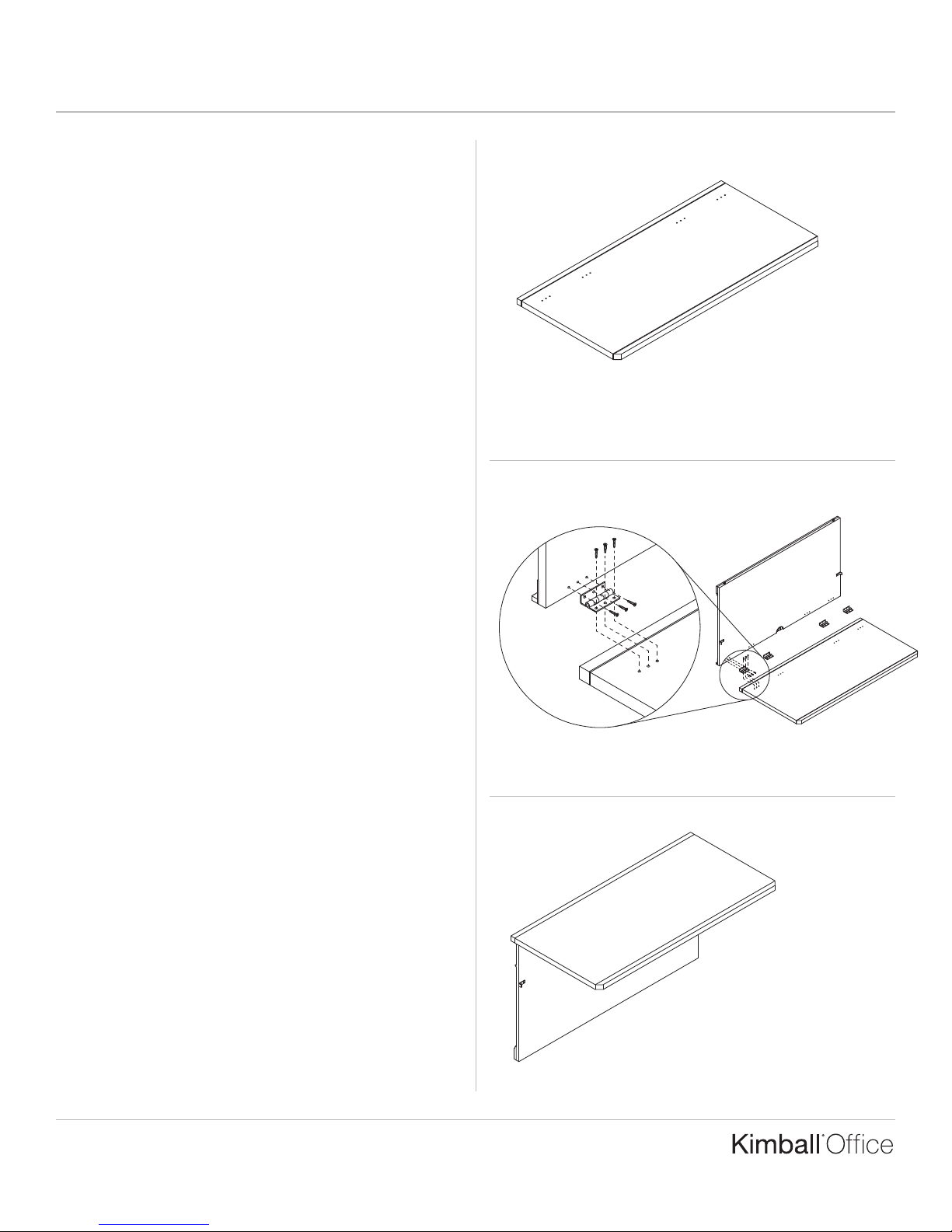

surface. Take care to not mar the worksurface. (Figure A).
2. The bridge and modesty panel have pre-drilled holes used
to attach the two units together with supplied hinges. Attach
the hinge to the modesty panel using three #10 x 1" panhead
screws in each hinge. Attach the modesty panel to the bridge
using three of the provided #10 x 1" panhead screws in each
hinge. (Figure B).
3. Turn the bridge assembly upright. The bridge assembly can
be mounted between a single pedestal desk and credenza.
(Figure C).
Fig re A
Fig re B
Fig re C

Casegoods Assembly Instr ctions
President/ enator
Pri ted i U.S.A. © 2009 Kimball I ter atio al, I c. T 800.482.1818 F 812.482.8300
Proper product installation, in accordance with these instructions, is the responsibilit of the installing agent.
If ou have an questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1741567 Revisio F-09
Page 2 of 2
Installation (contin ed)
4. Position the main units in the desired locations. Leave
enough space between the two units to allow for placement
of the bridge. Level main units. Install the flat brackets
to the undersides of the main units using the provided
#10 x 1" panhead screws. Locate the flat brackets using the
dimensions shown. Center the brackets with the edge of the
unit worksurfaces. (Figure D).
Note: Flat brackets are shipped on the underside of the
bridge top.
Use the pre-drilled holes in the desk end panel to mount
the quick align-n-lock fastener using the #8 x 5⁄8" panhead
screws. (Figure D). Fastener is shipped in the bridge
hardware bag.
5. Align the bridge worksurface to the main units. Position
the tops so the outer edges of the main units and bridge
worksurface are tight and flush against each other with no
gaps. Attach the bridge worksurface to the flat brackets
using the provided #10 x 1" panhead screws. (Figure E).
6. Level all units. Align all margins vertically between the
modesty panel and desk/credenza end panels. Eliminate all
gaps. Engage quick align-n-lock fasteners on lower portion
of modesty panel and rotate latch handles firmly. (Figure F).
Adjust levelers on modesty panel snug to floor.
Note: Do not over-tighten levelers, otherwise units will
become mis-aligned. (Figure G).
Fig re E
Fig re G
Fig re D
No gaps
No gaps
Do not over-tighten levelers
Flush with
no gaps Bridge
Align
Main unit
Fig re F
19"
4"
Mount Align-n-lock
fastener in pre-drilled
holes

Casegoods Assembly Instructions
Printed in U.S.A. © 2004 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Page 1 of 1
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741593 Revision A-04
Lock Core Installation
Tools Required
■None
Package Contents
■Lock Core/Key
(key may be either rectangular or round head)
Installation
1. The key is pre-inserted into the lock core. Do not remove
the key prior to lock core installation. (Figure A).
2. Prior to inserting the lock core/key be sure that the lock
tenon on the end of the lock core is aligned with the cutout
at the back of the drawer/door lock housing. (Figure B).
3. To install the lock core, angle the core slightly so that the
raised wafer (Figure B) can be inserted into the lock
housing. When the wafer is inside the housing, straighten
the core and push in firmly to fully seat the core in the lock
housing. (Figure C).
4. The lock core will only seat properly when the lock tenon
and housing cutout are correctly aligned. You will not be
able to remove the key if the core is not fully engaged and
properly seated in the housing. (Figure D).
Note: Future removal of lock cores require a yellow Change
Key, ordered separately.
Figure A
Figure B
Lock core with
pre-inserted key
Lock
Housing Drawer or
Door Front
Figure C Figure D
Raised Wafer
Align Tenon and cutout
prior to insertion
Angle to insert
Raised Wafer
Lock Tenon
Core fully seated
Lock Housing Straighten
and push in
Core not fully seated

Casegoods Assembly Instructions
President/Senator
Printed in U.S.A. © 2004 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Page 1 of 1
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741594 Revision C-04
Executive Return
Tools Required
■Level ■Screw Gun
■#2 Phillips Head Bit ■Drill Bits
■Tape Measure
Package Contents
■16 #10 x 1" Panhead Screws ■10 #8 x 1¹⁄₄" Panhead Screws
(for flat brackets) (for connecting rail)
■2 Flat Brackets
Installation
1. The executive return arrives assembled in a carton. It can be
attached to a single pedestal desk. (Figure A).
2. Place the desk and return in their desired location. Level
both units. Attach the flat brackets to the underside of the
main unit at the locations shown, using the provided
#10 x 1" panhead screws. Center the flat brackets with the
edge of the main unit. (Figure B).
Note: Flat brackets are shipped on the underneath side of the
return top.
3. Align the return to the main unit. Position the tops so the
outer edges of the main and return units are flush and pulled
tight against each other with no gaps. Fasten the return top
to the flat brackets using the provided #10 x 1" panhead
screws. (Figure C).
4. Align the main unit end panel and the return unit modesty
panel to eliminate any gap between them. This can be done
by adjusting the levelers up/down on the return or main
units. Once all gaps are eliminated, attach the main unit
to the return unit using the return connecting rail and
the provided #8 x 1¹⁄₄" panhead screws. Re-level units.
(Figure D).
Note: The connecting rail is shipped on the underneath side
of the return top.
Figure A
Figure B
Figure D
Executive
Return
19"
4"
Figure C
Flush with
no gaps
Main unit
Align
Return
Main unit
Return
Connecting
Rail
Return

Casegoods Assembly Instructions
Senator
Printed in U.S.A. © 2004 Kimball International, Inc. T 800.482.1818 F 812.482.8300
Page 1 of 1
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741599 Revision A-04
Component Lateral File,
Pedestals, and Storage Unit
Tools Required
■Level ■³⁄₁₆" Drill Bit
■Power Screwdriver ■Tape Measure
■#2 Phillips Head Bit
Package Contents
■16 #8 x 1¹⁄₂" Panhead Screws
Installation
1. The component assembly uses a combination of modular
storage components and a component top which is ordered
separately. (Figure A). Remove shipping screws that secure
drawers and discard. Remove drawers from pedestals by
untying the anti-tip interlock cord. Review cord attachment
before removing drawers as cord must be re-tied.
Note: When drawers are re-installed make sure they are
returned to the same locations.
2. Place worksurface upside down on a clean, soft surface.
Position pedestals upside down on underside of worksurface
so they are flush with the back of the top and equal distance
from side to side. (Figure B). If a kneespace credenza is
being created, hold 1¹⁄₂" from each end of the top.
3. Attach pedestal to underside of worksurface utilizing
pre-bored holes of cleats/stretcher rails and provided
#8 x 1¹⁄₂" panhead screws (eight screws per pedestal).
(Figure B).
4. Carefully turn unit upright. Re-install drawers to original
locations and re-tie anti-tip cords. Level unit.
Caution: Failure to re-install anti-tip cords could result in
units tipping over, resulting in injury. Extra caution should
be given to the 4-high lateral unit.
Figure A
Figure B
Pedestals
flush with
back of top
and equal
distance
from each
end
#8 x 1¹⁄₂"
Panhead Screw
