Kohler K-EX29936T-N-CP User manual

所有的资料是按最新出版的产品资料编写而成。
科勒公司保留任何时候不经通知即可改变产品特
性、包装或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，
请把这些资料交给用户阅读。
Avid Duo DM Sensor Faucet
安装之前
1. 一定要先彻底冲洗供水管以清除管道中的杂质,
使用水源为自来水或可供饮用水。
2. 请勿将强力及冲击施于产品，以免造成故障，
引起漏水。
3. 安装、清洁龙头时，切勿损伤感应窗口表面，
以免造成故障。
4. 如果是安装新的洗面盆，可将水龙头和排水组
件先安装到面盆上。
NOTES:
注意事项:
All information is based on the latest product information
available at the time of publication, Kohler Co. reserves the
right to make changes to product characteristics, packaging,
or availability at any time without notice. Please deliver these
instructions for the consumer. They contain important
installation, maintenance and cleaning information.
1. Flush the water supply pipes thoroughly to remove debris.
Faucet is designed for tap water or potable water.
2. Handle the faucet with care to avoid damaged.
3. Do not damage the surface of sensing window when
installing or cleaning the faucet.
4. For new installations, install the faucet and drain to the
lavatory before installing the lavatory.
BEFORE YOU BEGIN
科勒（中国）投资有限公司
中国上海市静安区江场三路158号 邮编：200436
制造商：上海科勒电子科技有限公司
中国上海市宝山区丰翔路1955号 邮编：200444
AVID
AVID DUO DM SENSOR FCT COLD-AC 0.5GPM
艾非皂液感应龙头-单冷，交流含电源，1.9升
K-EX29936T-N-CP
1383826-T01-A 1
8. Turn off the electrical source and shut down water
supply before servicing faucet.
6. For faucet with temperature mixer, please turn off valve
before connecting to hot water to avoid scalding.
7. Cover the sensing window with black tape when repairing
lavatories.
5. carefully follow the installation instructions provided.
Only provide to the electric power box after the installation
is conpleted.
5. 安装时务必按照说明书的要求正确连接导线，
龙头安装完毕后才可向电源盒供电。
6. 对于冷热混水龙头，先将连接热水的角阀关
闭，以免烫伤。
7. 修理面盆时，用黑色电工胶布粘住感应窗口。
8. 维修交流龙头时，必须断开交流电源并关闭
水源。

1383826-T01-A
使用说明 OPERATING INSTRUCTIONS
2
人靠近龙头，龙头上方显示屏将会
自动闪烁出水显示灯。
双手伸到出水口下方感应范围内，龙
头开始出水。同时龙头上方显示屏会
闪烁皂液灯，提示可以挥手取皂液。
计时器开始50秒倒计时，如连续感应
到有人时计时器计时到"00"后不再计
时；如感应到人离开计时器停止计时
并显示熄灭。
将手在龙头上方挥动，出皂倒计时(3
秒)内，伸手在龙头下方出水感应区
准备接皂。
皂液洁净双手后，重新将手伸到出水
口下方感应范围内，龙头开始出水。
双手洗净后离开，龙头将在0.5~1秒
后自动停止出水。
When approaching faucet, water LED on
screen above the faucet will auto flash.
Place both hands under the faucet within
the sensing range, water will outflow from
the faucet. Meanwhile, soap LED on the
screen above the faucet will light up
indicating waving hand for soap solution.
The timer starts the 50 s countdown, such
as continuously sensing that the timer is
no longer timed after "00";Such as
sensing the person leaving the timer to
stop the timing and display off. The
counter starts from 50s to 00s and stop if
people is in the sensing range. If people
goes away, the counter stops and display
off
Waving hand above the faucet, place
hands under faucet within sensing range
and prepare for soap solution dispensed
within 3s soap dispense countdown.
After cleaning both hands, place hands
under the faucet within the sensing range,
water will outflow from the faucet. The
faucet will auto stop water outflow after
0.5~1s after cleaning both hands and
leave away.

安装尺寸 ROUGH-IN DIMENSIONS
3
1383826-T01-A
注意：
请勿将龙头安装在台面上，同时搭配台上盆。
Note:
please do not install the faucet on the table
and match the washbasin
交流电/冷热混合型
AC, MIXOR
交流电/单冷型
AC, COLD
Drain
φ54
φ41.2
φ66.5
φ31.75
226
191
123 151 135
50.5
完成墙面
Finish the wall
开关
Switch
100
(建议尺寸)
Recommended Size
200
(建议尺寸)
Recommended Size
500
(建议尺寸)
Recommended Size
191
123 151 135
50.5
完成墙面
Finish the wall
开关
Switch
100
(建议尺寸)
Recommended Size
200
(建议尺寸)
Recommended Size
500
(建议尺寸)
Recommended Size

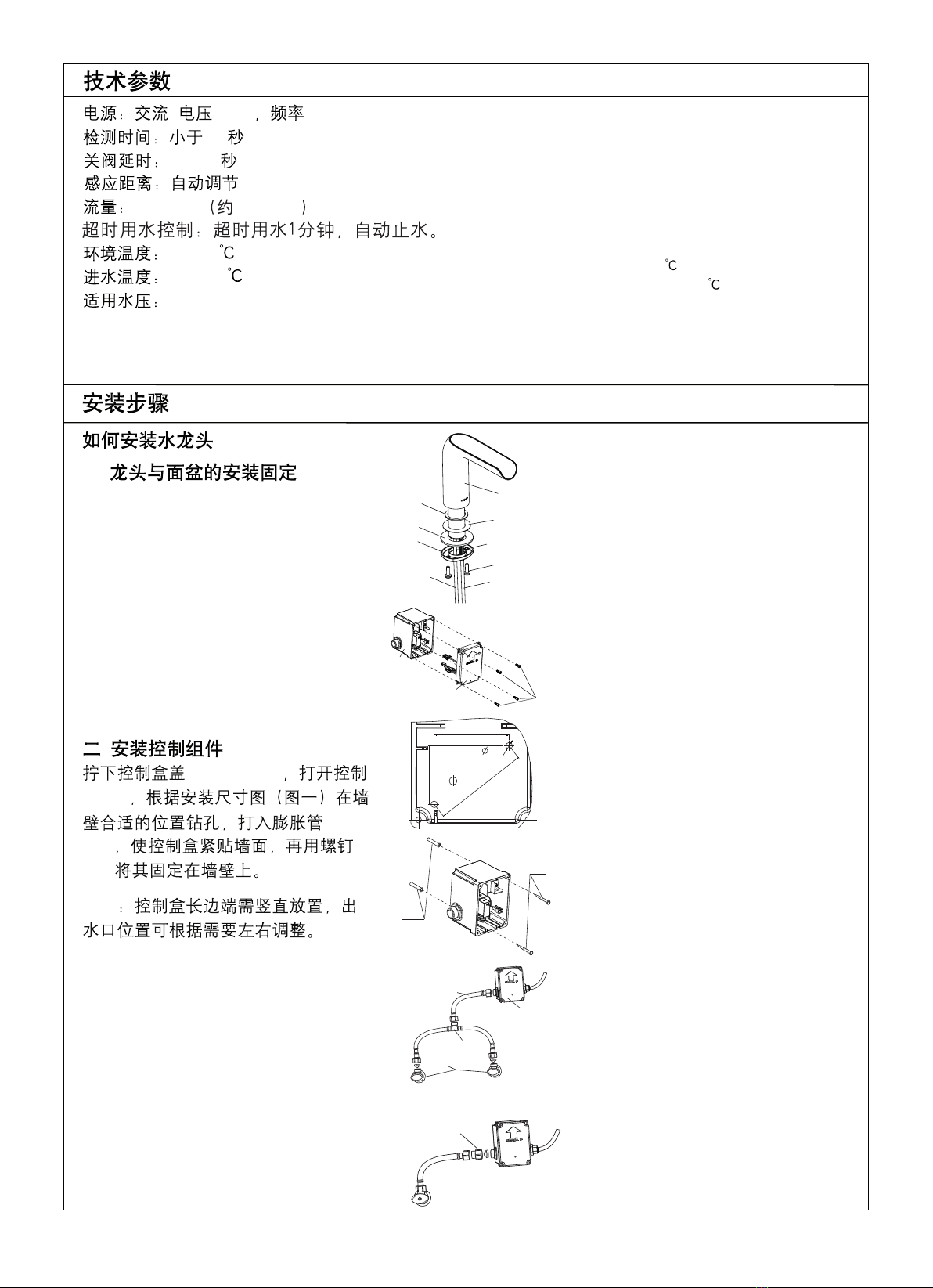

INSTALLATION
How to Install the Faucet
(11)螺钉(12)
盒(10)
(13)
(14)
注意
Secure faucet on lavatory
Unscrew valve cover screw (11) with a
screwdriver and open valve cover (10).
Determine proper mounting location per
rough –in (Fig 1), then punch expansion
tube (13) in. Place valve box against the
wall and then secure control valve
assembly on the wall by bolts (14).
Note: Place the long end of control box
upright, water outlet position shall be
adjusted left/right based on requirements.
For mixture faucet, connect hose (16) one
end to Tee inlet hose assembly (17), and
then another end to control assembly (15)
water inlet; connect water outlet marked
with “water outlet hose” faucet outlet hose
(8), Tee inlet hose assembly connect to
another two ends with angle valve (18).
For cold water faucet, connect hose (16)
one end to control assembly (15) filter
(19), another end connect to angle valve,
then connect control assembly outlet
marked with “water outlet hose” to faucet
outlet hose (8).
1383826-T01-A
4
对于单冷龙头，将软管(16)一端与控制
组件(15)的滤网(19)相连，另一端与角
阀连接，再将控制组件出水口与标有
“出水管”的龙头出水软管(8)连接。
对于冷热混水龙头，将软管(16)一端与
三通进水软管组件(17)连接，另一端与
控制组件(15)进水口连接，再将出水口
与标有“出水管”的龙头出水软管(8)
连接，三通进水软管组件另外两端与角
阀(18)连接。
1.
2. Install Control Assy
TECHNICAL SPECIFICATION
48
22-- 4.3
37.5
61
16
15
17
18
混水(Mixer)
19
单冷(Cold)
10
11 12
14
13
Insert faucet soap hose (9)/wire (8) and
inlet hose (7) through gasket (2), then seat
gasket (2) in the groove on the underside of
the faucet. Insert faucet soap hose (9)/wire
(8) and inlet hose (7) through lavatory
mounting hole, then insert gasket (3), tab
(4) retainer (5) through soap hose (9)/wire
(8), fasten retainer on stud as shown in the
directions, Last, fasten two screws (6) on
retainer, press tab (4) from the top of
screws to secure the faucet.
21
43
58
6
97
一
将龙头给皂软管(9)及线(8)和进水软管
(7)穿过橡胶垫片(2)，并将橡胶垫片(2)
嵌入龙头(1)底部的盘槽中，再将给皂
软管(9)及线(8)和进水软管(7)从面盆安
装孔穿过，从台盆下方依次将垫片(3)
压片(4)固定环(5)穿过给皂软管(9)及线
(8)和进水软管(7)，将固定环按照图示
方向拧在牙管上，用十字螺丝刀将两个
螺钉(6)紧固在固定环上，由螺钉端部
压紧压片(4)固定水龙头。
220V 50/60Hz
0.5GPM 1.9L/min
1～3000MPa·s
0.5
0.5～1
适用皂液粘度：
皂液瓶容量：约1500mL
1～40
0.5～71
0.05～
0.86MPa
出皂液量：约1.0mL
Power: AC 220V, 50/60Hz
Senser Duration: Less than 0.5s
Shut-off Delay: 0.5~1s
Sensing Distance: Automatic adjustment
Flow Rate: 0.5GPM (About 1.9L/min )
Overtime Flowing Control: Automatically stop flushing
when the faucet senses an object for more than 1 minute
continuously
Ambient Temperature: 1~40
Supply Water Temperature: 0.5~71
Supply Water Pressure: 0.05~0.86MPa
Liquid soap volume: about 1.0mL
Applicable liquid soap viscosity: 1～3000MPa s
·
Soap solution bottle capacity: about 1500mL

1383826-T01-A 5
(22)
(23)
三 安装皂液器
1. 在墙壁合适的位置钻孔，打入膨
胀管，再用螺钉将皂液器支架固定
在墙壁上（见图1）。
2. 将皂液泵连带皂液瓶扣紧在支架
上（见图2）。
3. 将龙头皂液软管连接到皂液泵上
（见图3）。
22
Apply plumbers putty 23
(22)
(24)
(25)(26)
25mm 55mm
(23)
(24)
注意：
注意： Note:
Ensure cylinder install on water inlet.
3. Install soap dispenser
1. Drill the mounting holes properly, place
expansion tube, and then mount the soap
dispenser on the wall by screws (Fig.1).
2. Mount soap dispenser pump and soap
bottle on the bracket (Fig.2).
3. Connect faucet soap hose to soap
dispenser pump (Fig.3).
4. How to Install the Drain
Unscrew the drain flange ( 22) from
drain assembly. Apply plumbers
putty around the bottom circle. Insert
drain body (23) into lavatory from the
underside.
Screw the drain flange ( 22) into drain
body (23). Tighten the locknut (24)
manually from the underside.
Note: Remove excessive putty. Note:
after tightening locknut (24), do not
adjust drain body position, otherwise
putty seal might be damaged.
Connect the tailpiece( 25) to the
trap(26). The tailpiece should ex tend
25mm to 55mm into the trap.
94.3
11.3x2
2-R2.15
Fig.1
图1
94.3
Fig.2
图2
Fig.3
图3

1383826-T01-A
6
五 连接电源和控制线
1. 将龙头电源线与控制盒对应接头
连接并插紧（见图4）。
2. 将皂液器电源线与控制盒对应接
头连接并插紧（见图5）。
3. 客户根据需要自备穿线管及连接
线，建议交流电源线采用带绝缘护
套层的电线，导体标称截面积
≥0.5mm 2。将图示从接线柱引出的
线与交流电源线相连接(见图6)。
4. 接线完毕后，应检查并确保所有
排、接线无误。盖上控制器盒盖，
打开交流电源，使龙头进入工作状
态。
六 添加皂液
1. 按下皂液瓶拆卸按钮，将皂液瓶
向下拉，从皂液泵上拆下（见图7）。
2. 向皂液瓶内添加适用的粘度
1～3000MPa·s液体皂液。
3. 把皂液吸管插入皂液瓶内，将皂
液瓶装复位并向上推，直到听到
“咔嗒”声（见图8）。
4. 初次添加皂液后，按住控制盒盖
上的按钮约2~3秒，直到皂液泵启
动；皂液泵将工作一段时间后自动
停止，将皂液瓶内的皂液抽取到龙
头内。如果皂液没有从龙头流出，
重复该步骤，直到皂液从龙头流出
（见图9）。
5. Connect power supply and control
wire
1. Connect and tighten faucet wire to
corresponding connector on control box
(Fig.4) .
2. Align soap dispenser wire to
corresponding connector on control box
and tighten properly (Fig.5).
3. Customer shall prepare proper wire hose
and connecting wire. It is suggested that
AC wire shall adopt insulated harness. The
nominal cross-sectional area of conductor is
≥0.5mm2. Connect wire from terminal to AC
power cord as shown. (Fig.6).
4. After wiring work is completed, check ad
ensure proper wiring and connection. Close
control box cover and turn on AC power
supply to activate faucet working status.
6. Replenish soap solution
1. Press soap dispenser dismantle button
and pull soap container down, and remove
from soap pump (Fig.7).
2. Refill applicable viscosity 1～3000MPa·s
soap solution into the bottle.
3. Insert soap solution tube into the bottle,
reset soap solution bottle and push forward
until one “click” is generated (Fig.8).
4. Press button on control box cover for
2~3s after initial soap replenishment until
soap pump activated; soap pump will auto
stop after a period of time and the soap will
be extracted to the faucet. If there’s no
soap flow out from the faucet, repeat this
step until soap flows out (Fig.9).
Fig.8
Fig.9
图9
Fig.6
图6
Fig.4
图4
Fig.5
图5
Fig.7
图7
图8
check valve
单向阀

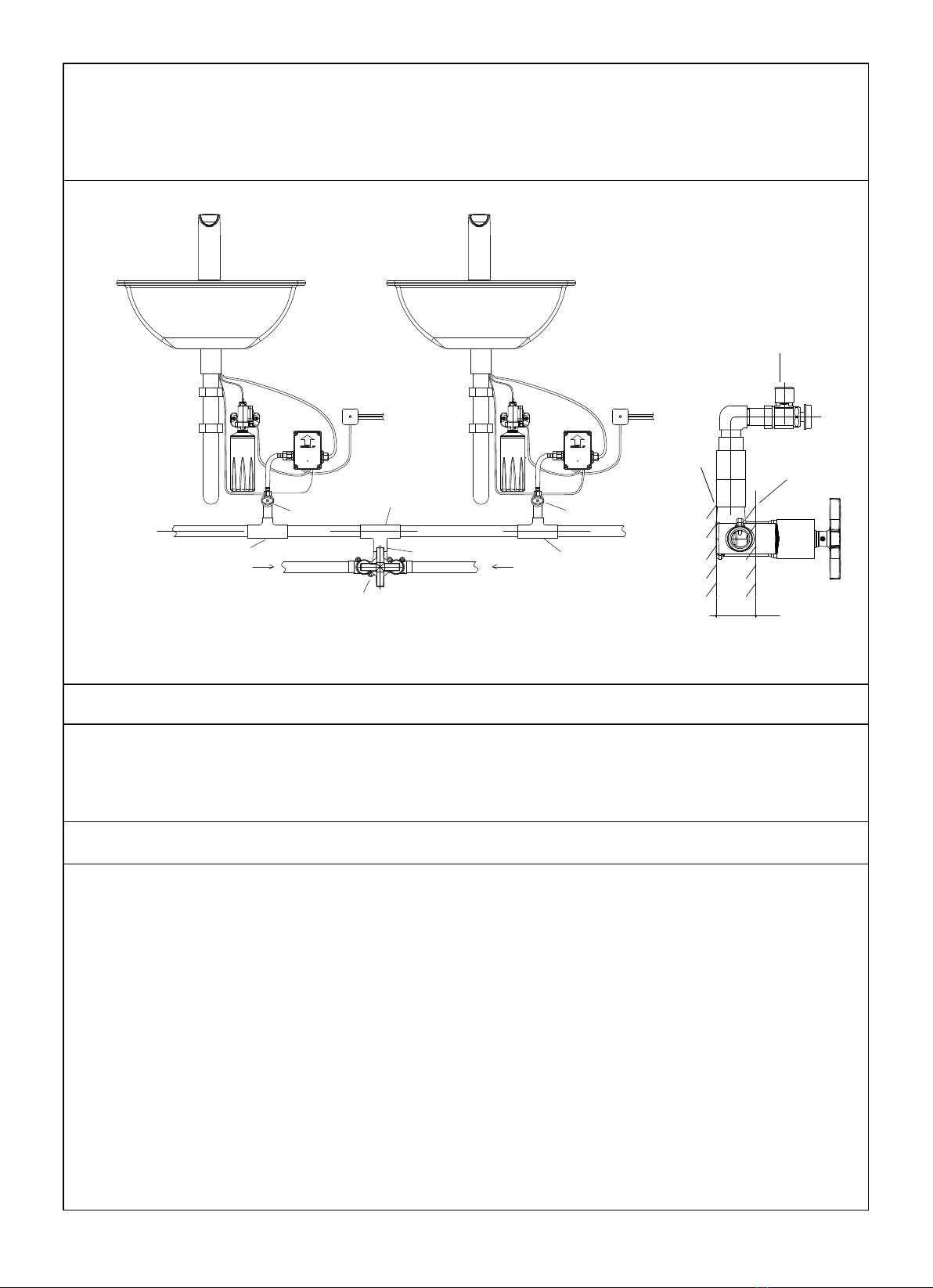

如何连接交流电源
HOW TO CONNECT AC
POWER SUPPLY
1383826-T01-A 7
一个交流电源供一个感应龙头
One AC Power supply one touchless faucet
接220V交流电
Connect AC 220V
Faucet
感应龙头
开关
Switch
Wire Tube
穿线管

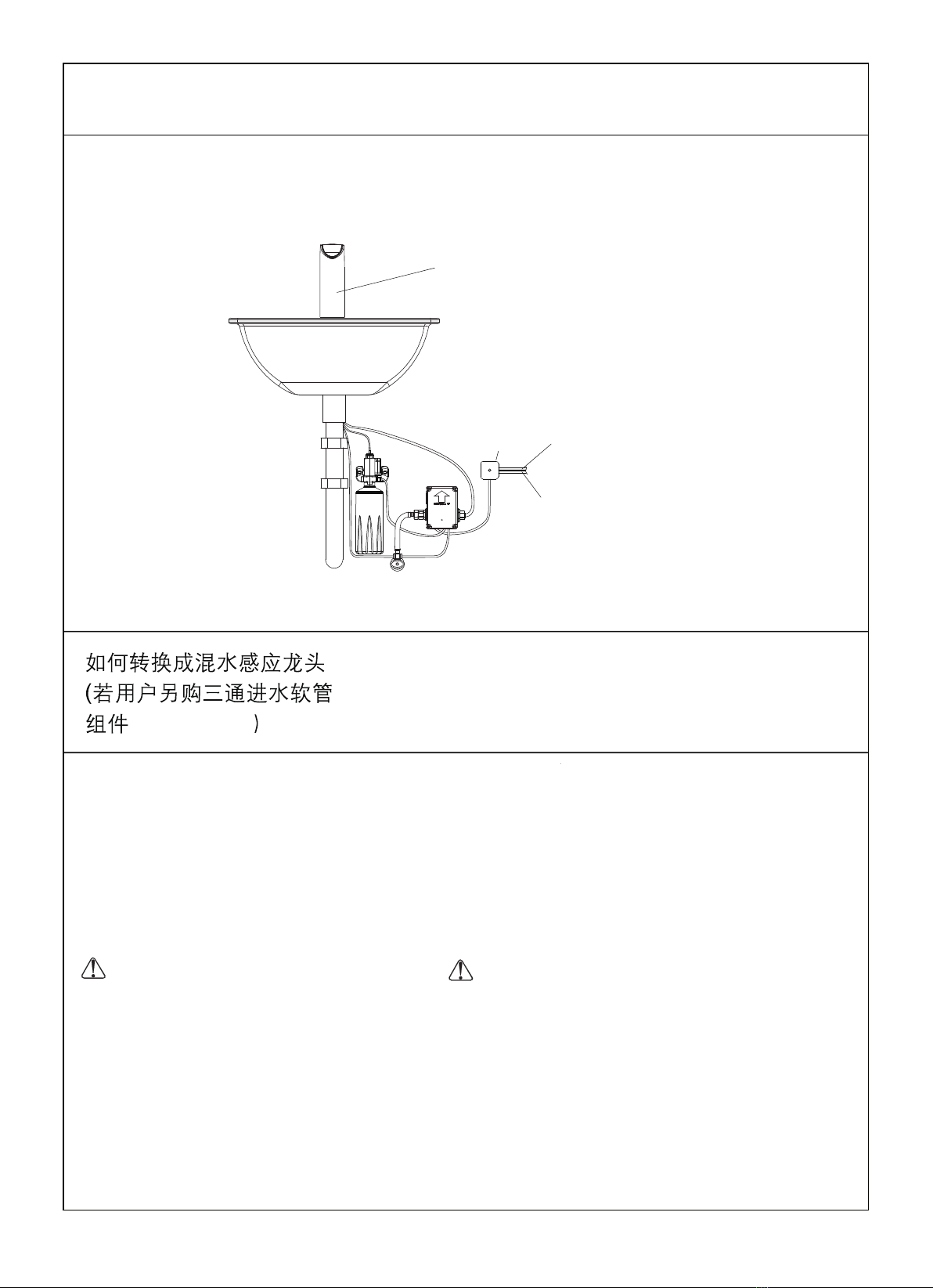

HOW TO CHANGE TO A MIXING
SENSOR FAUCET
(If customerpurchases tee inlet assy.
1298745-SP)
1298745-SP
冷热混水龙头水温调节：先关闭热水
角阀，再将冷水角阀旋至冷水最大状
态，再缓慢打开热水阀，以免烫伤。
如冷水水压大，打开全部热水角阀
后，仍无合适水温，请再缓慢减少冷
水出水量，直至水温使用舒适。
Adjust the water temp for faucet with temperature
mixture: turn off hot water valve first, and then turn on
the water and adjust to full cold, slowly turn on hot water
valve to avoid scalding. If cold water pressure is high
and unable to gain proper comfortable water temp even
hot water valve is fully open, turn down cold water
capacity slowly until water temp is comfortable for use.
建议使用科勒推荐的三通进水软管
组件，否则有冷热水互窜的风险。
It is recommended to use Kohler TEE inlet hose assembly,
otherwise there is a risk of cold and hot water mixing
problem.

如何转换成恒温阀感应龙头
(若用户另购 恒温阀16294T-3-CP,
具体安装详见其说明书 )
注：三通、角阀请用户自备。
清理说明
安装结果检查
检查并确保所有衔接处都已拧紧，打开排水系统
和主要供水源，检查并修理有漏水的接口。
INSTALLATION CHECKLIST
Check and ensure that all connections are tight. Open the
drain. Turn on main water supply and check for leaks.
Repair leakage when necessary.
CLEANING INSTRUCTIONS
Applicable for all finishes: clean faucet surface with a mild
soap, then wipe entire surface completely dry with a clean
soft cloth. Most cleaners may contain chemicals, such as
ammonia, chlorine, toilet cleaner etc. which could adversely
affect the surface and it is not recommended for cleaning.
Do not use abrasive cleaners or solvents on Kohler
faucets and fittings.
HOW TO CHANGE TO A THERMOSTATIC
SENSOR FAUCET (If users purchased the
thermostatic valve 16294T-3-CP, please refer to
the installation guide 16294T-3-CP)
Note: Please prepare the tee and stop valve accordingly.
81383826-T01-A
接感应龙头
Connect Sensor Faucet
恒温阀
thermostatic valve MIN 50mm
墙面
Wall 墙面
Wall
三通
Tee
角阀
Stop Valve
角阀
Stop Valve
三通
Tee
出水口
Outlet 三通
Tee
进热水
hot
进冷水
cold
适用于所有加工处理过的表面，以中性肥皂水清
洗龙头表面，再以干净的软布彻底擦干整个表
面。许多清洁剂，比如氨水，去污粉及洁厕灵
等，会对龙头表面造成伤害，切忌使用。
有腐蚀性的清洁剂或溶剂不可使用于科勒的水龙
头及其配件上。
不能使用百洁布、钢丝球等硬质清洁材料擦拭龙
头。或使用干的纸张擦拭，避免划伤龙头整体表
面。
Do not wipe faucet with hard cleaning materials such
as scrubbing pads, steel wool etc. or use dry paper to
wipe faucet so to avoid scratching the surface.

IMPORTANT CONSUMER INFORMATION
1.
连续在感应状态下使用约一分钟，龙头自动止
水。自动止水后，手或物体离开感应范围后，
再次进入感应范围内，龙头正常工作，否则
无反应。
2.清洗过滤系统
该感应龙头的控制组件内已包含了过
滤装置。如管内杂质过多或水质较
差，长期使用会引起出水情况不良。
请按以下步骤清洗过滤装置：
2. 将控制组件进水口处软管拧下，取
出滤网组件，用水冲洗完毕后，重新
装入。
When the faucet flows continuously for 1 minute, the
faucet will automatically stop.Objects must be removed
from the sensing range. Then the water will flow when
objects re-enter into the sensing range again.
Otherwise, the faucet will not work.
1. Timeout setting
1. 关闭角阀。
The touchless faucet control assembly include
filtration device. Poor water outflow shall be
caused by excessive impurities inside the hose
or poor water quality after long time use. Please
clean filtration device per following steps:
2. Clean the Filtration System
take filter screen assembly out. Reinstall screen
a fter clean by water.
1.Turn off stop valve.
2. Pull hose from control assembly water inlet,
3.自动清洗存水功能
感应龙头长期处于不使用状态时，每
间隔24小时自动冲水一段时间排出龙
头内的存水。
如果想禁用该功能，可打开控制盒，
将控制板上的跳线JMP1插在1-2位
置。
感应龙头长期处于不使用状态时，每
间隔24小时自动出一次皂液，以防止
皂液凝固堵塞皂液器。*
如果想禁用该功能，可打开控制盒，
将控制板上的跳线JMP2插在1-2位
置。
* 自动出皂后，自动出水冲洗面盆。
3.Self-Cleaning the stagnant water
When the faucet is no used for a long period of
time, it will automatically flush to discharge the
stagnant water inside the faucet every 24hrs.
If you want to disable this function, open the
control box and plug JMP1 to 1-2 position on
control board.
4.自动清洗皂液功能
If you want to disable this function, open the
control box and plug JMP2 to 1-2 position on
control board.
4.Auto liquid soap clean function
When sensor faucet is in idle for a long time,
the liquid soap will be dispensed every 24hrs to
prevent soap from solidification and cause the
dispenser clog issue. *
3 2 1
JMP1
JMP2
3 2 1
JMP1
3 2 1
JMP2
1383826-T01-A 9
滤网组件
混水(Mixer)
滤网组件
单冷(Cold)
Auto flush lavatory after auto liquid soap
dispensing.
*
在皂液用完前需及时向皂液瓶添加
皂液，皂液泵不可长时间在无皂液
情况下空转使用。
Refill soap solution before used up, soap solution
pump shall not run idle without soap solution for a
long time.

10 1383826-T01-A
常见问题排除
( )
Please contact with distributor or Kohler China Investment Co., Ltd., if the trouble remains after above-mentioned actions are taken.
拆下皂液器单向阀(见图8）。清洗后重新装回皂液器
长时间未添加和使用皂液或
皂液器管路堵塞
( )
擦干感应窗口的残留水滴
TROUBLE SHOOTING
Symptoms Probable Causes Corrective Action
No soap dispensed
(Display on panel) Soap used up Replenish soap solution
No soap solution filled into dispenser for a long
time or clogged soap solution tube Dismantle check valve on soap dispenser, clean
and reinstall back to the soap dispenser (Fig.8)
Clean soap dispenser pipeline
Activate auto clean soap solution function
Improper soap dispenser connection
No manual soap solution extraction
performed after initial installation
Inspect soap dispenser wiring and hose
Press button on control box and manually extract
soap solution according to installation steps
Deactivated
(No display on panel, no
water and soap flows)
No power supply or incorrect wire
connection (AC) Inspect general power and wiring condition
Other objects within sensing range
Dirty sensing window
Improper or wrong terminal connection engagement
Angle valve is closed
Filter device is blocked
Clogged foam soap cartridge
Remove objects
Clean window
Inspect terminal
Open valve
Clean filter
Clean foam cartridge
The stop valve is not open completely
The Aerator is blocked
The filter is blocked
The supply water pressure is low
Open the angle valve
Clean aerator
Clean filter
Check the water supply system
Low flow
Water runs for longer than
1 minute without switching
off
Object in sensing range Remove object
Clean residual water on
the induction window
No water flows
(Panel display)
(面板不点亮,不
出水和皂液）
约1分钟内
不止水

回收提示
本产品超过使用期限或经过维修无法正常使用后，不应随意丢弃，请交由有废弃电器电子产品处理资质的
企业处理，正确的处理方法请查阅国家或当地有关废旧电器电子产品处理的规定。
本产品的“环保使用期限”为10年，科勒公司根据产品设计特性指定该期限。只有在本产品
使用说明书所述的正常情况下使用本产品时，“环保使用期限”才有效。
产品中有害物质含量的说明
有害物质统计表
注：本表格提供的信息是基于供应商提供的数据及科勒公司的检测结果。本产品应用环保设计理念，在当
前技术水平下，所有有害物质或元素的使用已经控制到了最低程度，科勒公司会继续努力通过改善现有技
术来减少这些物质的使用。
有害物质名称
部件名称 铅(Pb） 汞（Hg）
外壳组件 × ○ ○ ○ ○ ○
阀体组件 × ○ ○ ○ ○ ○
控制盒组件 × ○ ○ ○ ○ ○
*电池盒组件 ○ ○ ○ ○ ○ ○
*电池 ○ ○ ○○ ○ ○
*交流电源盒 ○ ○ ○ ○ ○ ○
*进水组件 × ○ ○ ○ ○ ○
附件类 ○ ○ ○○ ○ ○
多溴联苯
（PBB）
多溴二苯醚
（PBDE）
镉（Cd） (Cr(VI)）
六价铬
○：表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572现行有效版本规定的限量要求以下。
：表示有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572现行有效版本规定的限量要求。
×
*：表示部分机型含有该部件。
10
1383826-T01-A 11

Description of Content of Hazardous Substances in Product
Reclaim Indication
When the product exceeds service life or is unable to use after repair, do not throw the product away in the normal trash.
Please dispose the waste electronic parts through a qualified reclamation enterprise. Make sure the product is handled
properly. Disposing of product must be done in accordance with the local or national government law.
Statistics of Contents of Toxic or Hazardous Substances or Elements
10
Note: the information provided is based on the supplier data and Kohler inspection results. The product is designed not to hurt
the environment. Under current technology, all hazardous materials have been used in the smallest amounts possible. Kohler
will strive to reduce the use of these hazardous materials used in this product.
The product “service life for environment protection” is 10 years; Kohler Company will specify product service
life based on product characteristics. The product “service life for environment protection” is only effective when
the product is used as described in the product specification.
Toxic or Hazardous Substance or Elements
Part name Lead
(Pb)
Mercury
(Hg)
Cover Assy.
Valve Assy. × ○ ○ ○ ○ ○
Control Box Assy. × ○ ○ ○ ○ ○
*Battery Box Assy. ○ ○ ○ ○ ○ ○
*Battery ○ ○ ○○ ○ ○
* AC Power Box ○ ○ ○ ○ ○ ○
* Water Inlet Assy. × ○ ○ ○ ○ ○
Accessories ○ ○ ○○ ○ ○
Polybrominated
biphenyls
（PBB）
Polybrominated
Diphenyl Ethers
（PBDE）
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI)）
× ○ ○ ○ ○ ○
○:Indicates that the substance in the material composition is below the high limits of the current requirements in GB/T26572.
:Indicates that at least one of the homogeneous substance in the material composition is below the high limits of the current
requirements in GB/T 26572.
:Indicate only partial product series contains this substance.
*
×
12 1383826-T01-A
