Kohler K-610 Assembly instructions

Homeowners Guide
Widespread Lavatory Faucet
K-610
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
086651-5-A

Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler faucet will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the Care and Cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Your Kohler Lavatory Faucet
Your new lavatory faucet blends elegant styling and beauty with
exceptional performance and reliability. Each faucet is precision
engineered and constructed of premium quality materials to provide
trouble-free operation even under the hardest water conditions.
Care and Cleaning
Like anything of lasting quality, Kohler faucets and fittings require a
certain amount of periodic care to preserve their lustrous finish. Clean
your new Kohler faucet and fittings with a mild soap, rinse thoroughly
with warm water and dry with a clean, soft cloth. The ideal cleaning
technique is to always blot dry any water from metal surfaces.
Allowing water to evaporate on metal will form water deposits. It is
important to use a dabbing action to dry metal, not an abrasive or
rubbing action.
Never use cleaners containing abrasive cleansers, ammonia, bleach,
acids, or chemicals that can damage the finish. By taking the time to
dry your faucet often, soap and water deposits can be prevented.
If your chrome or Vibrant
®
color/finish faucet gets excessively dirty,
consider using the following cleaners: Windex
®
Original, Fantastik
®
All Purpose, Spic and Span Pine Liquid, or Mr. Clean
®
Springtime
Fresh Scent. For solid color faucets and fittings, consider using these
cleaners: Fantastik
®
All Purpose, Spic and Span Pine Liquid, or Mr.
Clean
®
Springtime Fresh Scent.
Failure to comply with these cleaning instructions may void Kohler’s
warranty obligations.
086651-5-A 2 Kohler Co.

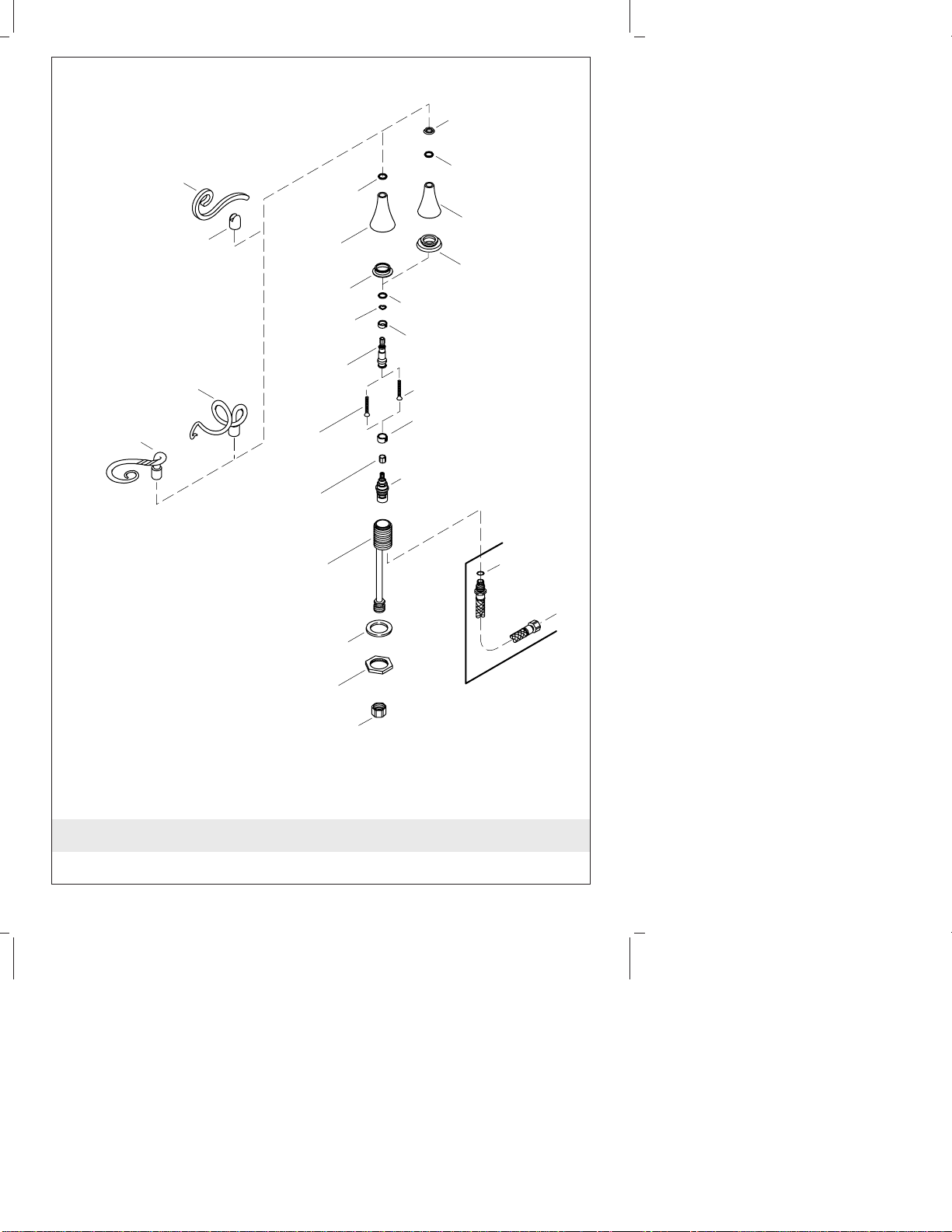

Service Parts
73151-A
Hose
40001
Washer
40005
Nut
32751
Coupling Nut
75367 (Clockwise Close)
75366 (CounterclockwiseClose)
Valve
75712** (Left)
75646** (Right)
Swirl Handle
75710** (Left)
75644** (Right)
KuduHandle
75635**
75927** (GoldCoined Accents)
ScrollHandle
75634**
Hub 75600**
Bonnet
75602**
59425
Nut
75603
Washer
75697
Washer 75605
Bearing
75604
Bearing
75603
Washer
75606**
Escutcheon
75601**
Bonnet
75603
Washer
75805**
Ring
75872 (Scroll)
Screw
78125
SplineAdapter
76044 (Kudu&Swirl)
Screw
74369
ValveBody 77950
O-Ring
Stem
Extension
**Finish/colorcode must be specifiedwhen ordering.
Kohler Co. 3 086651-5-A

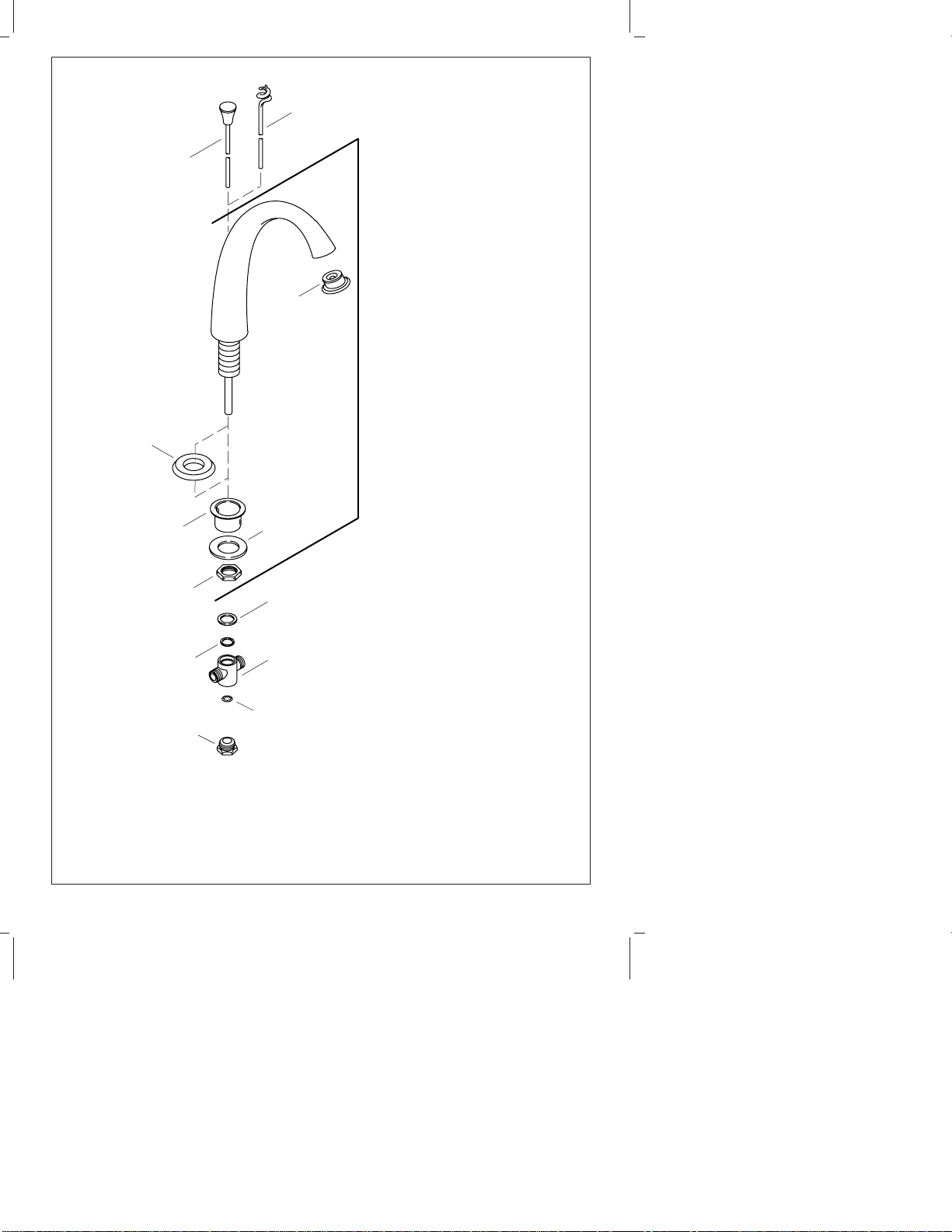

76061**
Lift Rod
73677
Washer
33505
Nut
73262
Washer
73261
Gasket
73231
Tee
20960
O-Ring
73233
Nut
76060**
LiftRod
79691**
Aerator
75615**
Escutcheon
34274
Washer
77363**(w/Escutcheon)
77351**(w/oEscutcheon)
Spout
**Finish/colorcode must be specifiedwhen ordering.
086651-5-A 4 Kohler Co.

**Finish/colorcode must be specifiedwhen ordering.
73382
Link 58155**
Stopper
38676
O-Ring
57408**(Gold & Colors)
74732**
Flange 57966
Gasket
40238
Washer
40076
Nut
74410**
Body
41640**
Tailpiece
34917
Gasket
38744
FrictionWasher
41312**
Lever & Ball
38745
Wave Washer
40228
SpringClip
57403**
Nut 38744
FrictionWasher
57422
Screw
Kohler Co. 5 086651-5-A

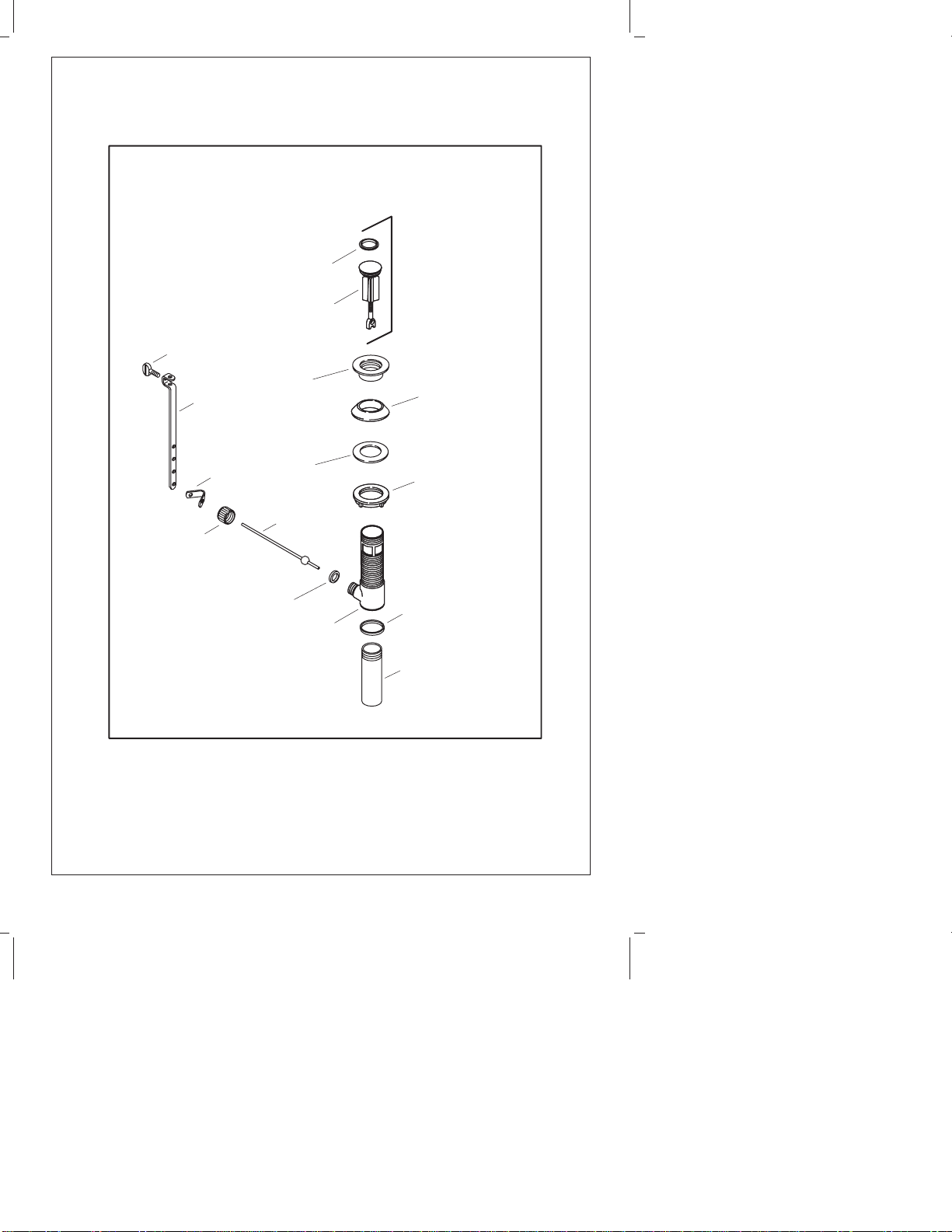

78172**
78084**
78176
78175
78177
78092**
78091**
78089
78086**
78058
78085**
78090**
78057
78087
78063
78072**
**Finish/color code must be specified when ordering.
Stopper
Flange
Screw
Link
Clip
Nut
Rod
Seal
Tailpiece
Washer
Body
Nut
Washer
Gasket
Seal
Drain
086651-5-A 6 Kohler Co.

**Finish/color code must be specified when ordering.
1037022**
1036932**
1037346
1035564
40228
1025645**
1037390
1025642
1036351**
1030925
1025639**
1035348**
1025678
1025650
1035350**
Stopper
Trim Ring
Screw
Link
Clip
Nut
Rod
Washer
Tailpiece
Washer
Body
Nut
Washer
Seal
Fin
(Metal stopper fins with overflow)
1037023** (Plastic stopper fins with overflow)
Drain
(Metal)
1037021** (Plastic)
1025656
O-Ring
Kohler Co. 7 086651-5-A

Lifetime Limited Warranty — USA and Canada
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
086651-5-A 8 Kohler Co.

Lifetime Limited Warranty — USA and Canada (cont.)
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty — Mexico
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
Kohler Co. 9 086651-5-A

One-Year Warranty — Mexico (cont.)
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
086651-5-A 10 Kohler Co.
