Kohler Aquifer K-22155-NA User manual

Installation Guide
Aquifer Reverse Osmosis
Water Filtration System
Français, page “Français-1”
Español, página “Español-1”
1395432-2-B

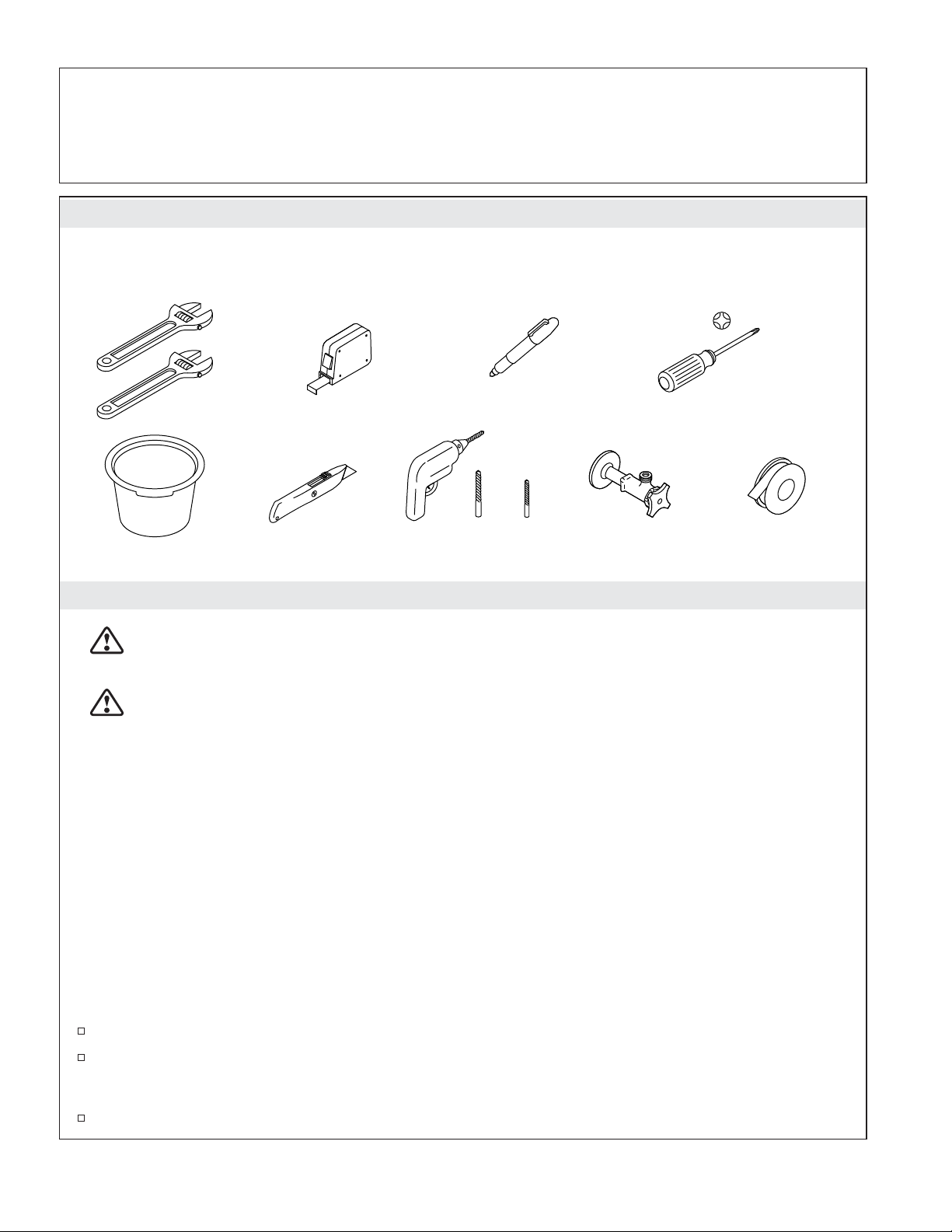

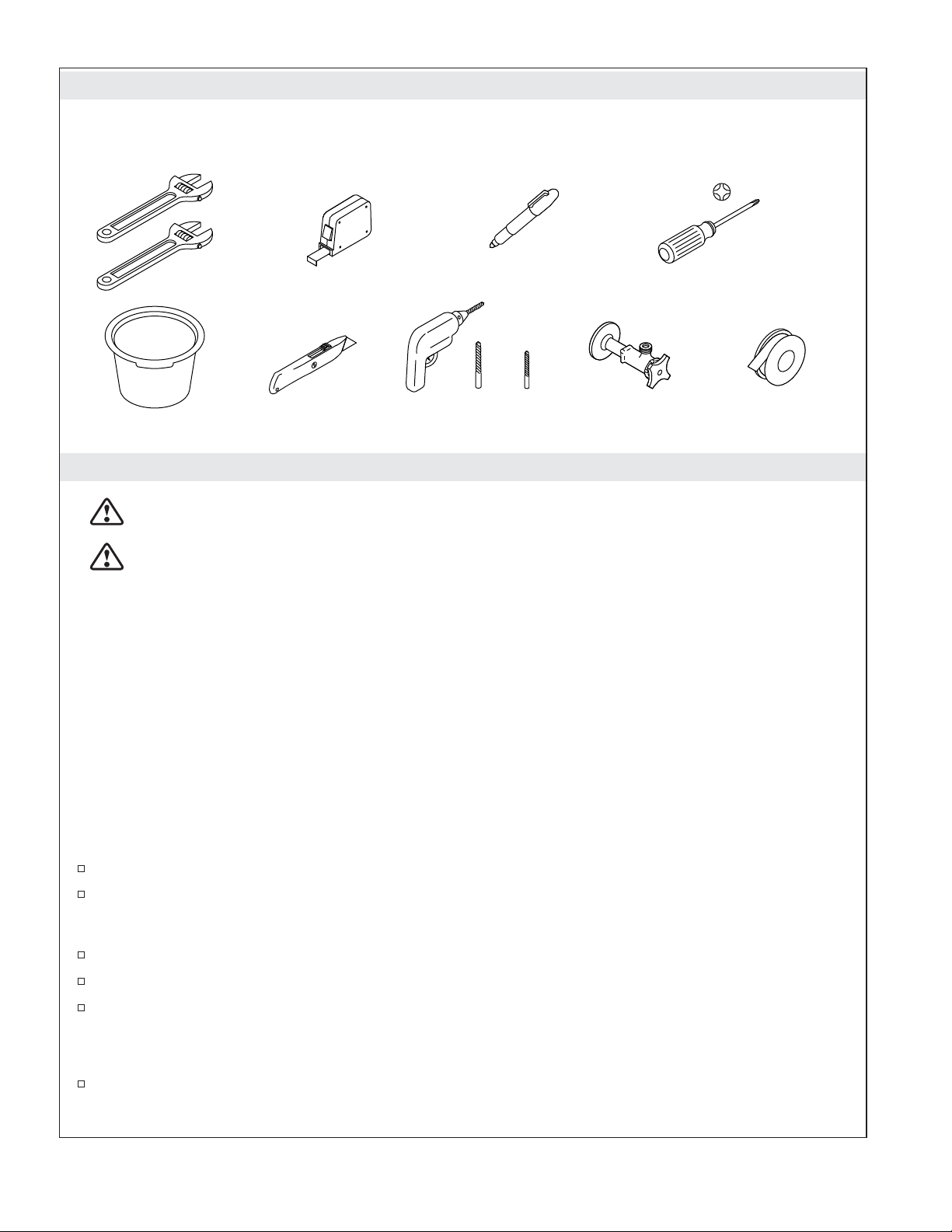

Tools and Materials
Before You Begin
WARNING: Risk of personal injury. Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.
CAUTION: Risk of property damage. Do not install the unit where the temperature may drop
below freezing, may be exposed to direct sunlight, or may be exposed to heat.
NOTICE: Read this entire manual thoroughly to prevent personal injury and property damage during
installation and use of this product.
NOTICE: Check with your local public works department for plumbing code requirements. Follow their
guidelines as you install this water filtration system.
NOTICE: This product has a limited service life. Keep a record of the date of installation and any other
performed maintenance. Because of the limited service life, and to prevent costly repairs or possible water
damage, replace the system every 10 years.
NOTICE: Turn off the water supply to the filter head, and remove the filter cartridge if it will be
unattended for an extended period of time (approximately 4 weeks or more). Store the filter cartridge in a
sealed bag in the refrigerator to maximize the remaining filter capacity.
NOTE: Make sure that the mounting location and fastening hardware will support the system when
installed and full of water.
Observe all state and local plumbing and building codes.
Contaminants or other substances removed or reduced by this filtration system may not be present
in your water. Refer to the Performance Data Sheet (included) for contaminants and reduction
performance.
System is not intended to convert wastewater or raw sewage into drinking water.
Inspect the plumbing and supplies for damage. Repair or replace as needed.
Install the water filtration system to a cold water supply only. Do not install the system to a hot
water supply.
NOTE: The overall filter height is 16″(406 mm).
The water filtration system is designed to be installed beneath a sink. Make sure that the bottom of
the filter cartridge is at least 2″(51 mm) above the floor of the cabinet, and will be accessible for
filter cartridge replacement after installation.
Sealant Tape
3/8"
1/8"1/4"
1395432-2-B 2 Kohler Co.

Before You Begin (cont.)
Replace the filter cartridges every 6 months and the membrane cartridge every 12 months, when the
capacity has been exceeded, or when a noticeable decrease in water flow is observed.
Flush the filter system thoroughly after prolonged periods of nonuse. Allow the water to flow for 5
or 6 minutes before use.
This system connects to a 3/8″(9/16″-24 UNEF-2A) compression connection. Special fittings may
need to be purchased to accommodate other connections.
Record your model number and installation date below. Also mark the installation date on the filter
head and filter cartridges. Model number: ____________ Replacement date: _____________
Keep this manual for future reference.
To learn more about other KOHLER water filtration systems, replacement cartridges, subscription services,
and recycling program visit kohler.com.
Kohler Co. 3 1395432-2-B

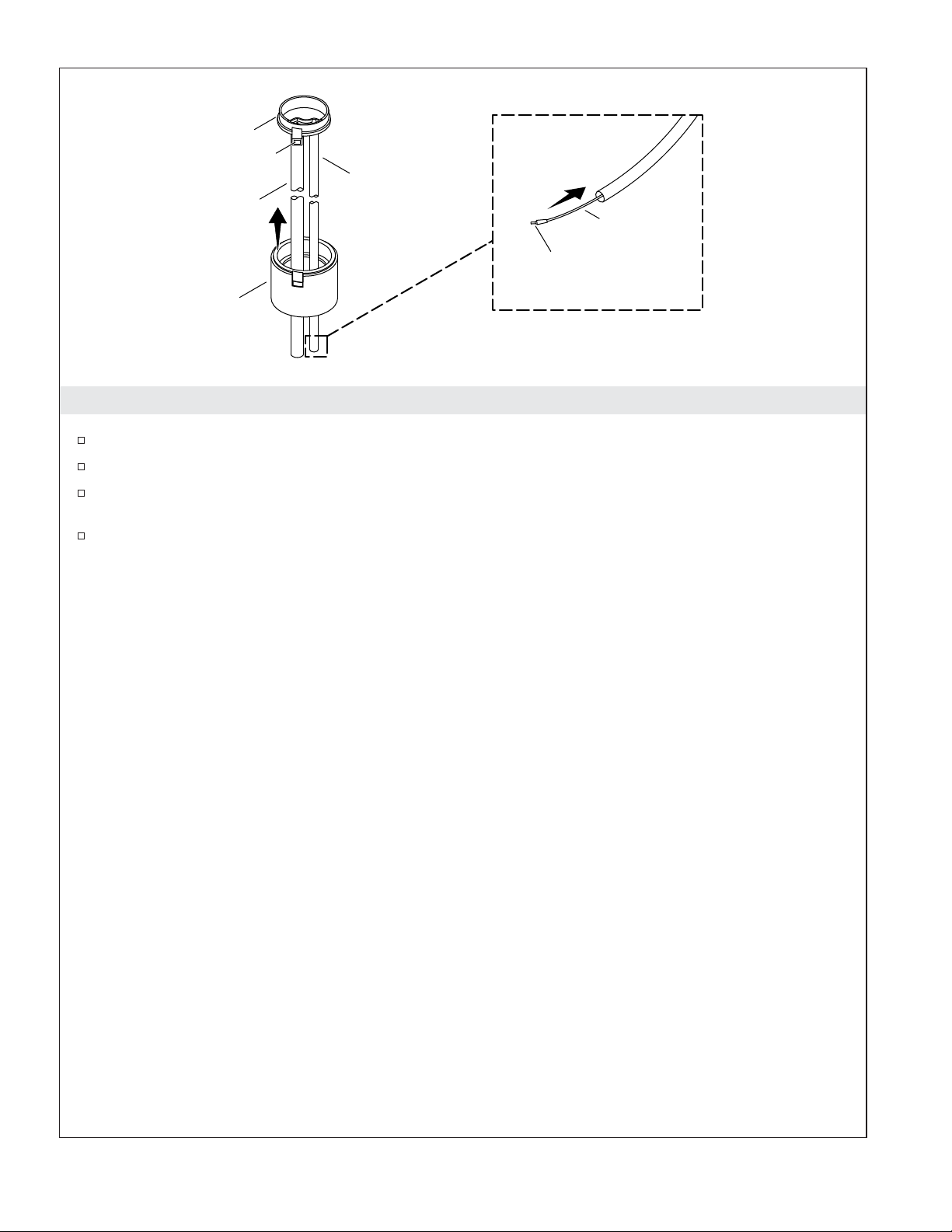

1. Assemble the Air Gap
Install the bonnet to the underside of the air gap ring.
Align the air gap with the bonnet window.
Determine the length needed to connect the 1/4″red tube to the membrane drain port. Cut any
excess tubing.
Install the flow restrictor into the red tube. The flow restrictor must extend 1/8″from the flange as
shown. The flange must be flush with the end of the red tube.
1/8"
Air Gap Ring
Air Gap
Bonnet
Flow
Restrictor
3/8" Black Tube
1/4" Red Tube
1395432-2-B 4 Kohler Co.

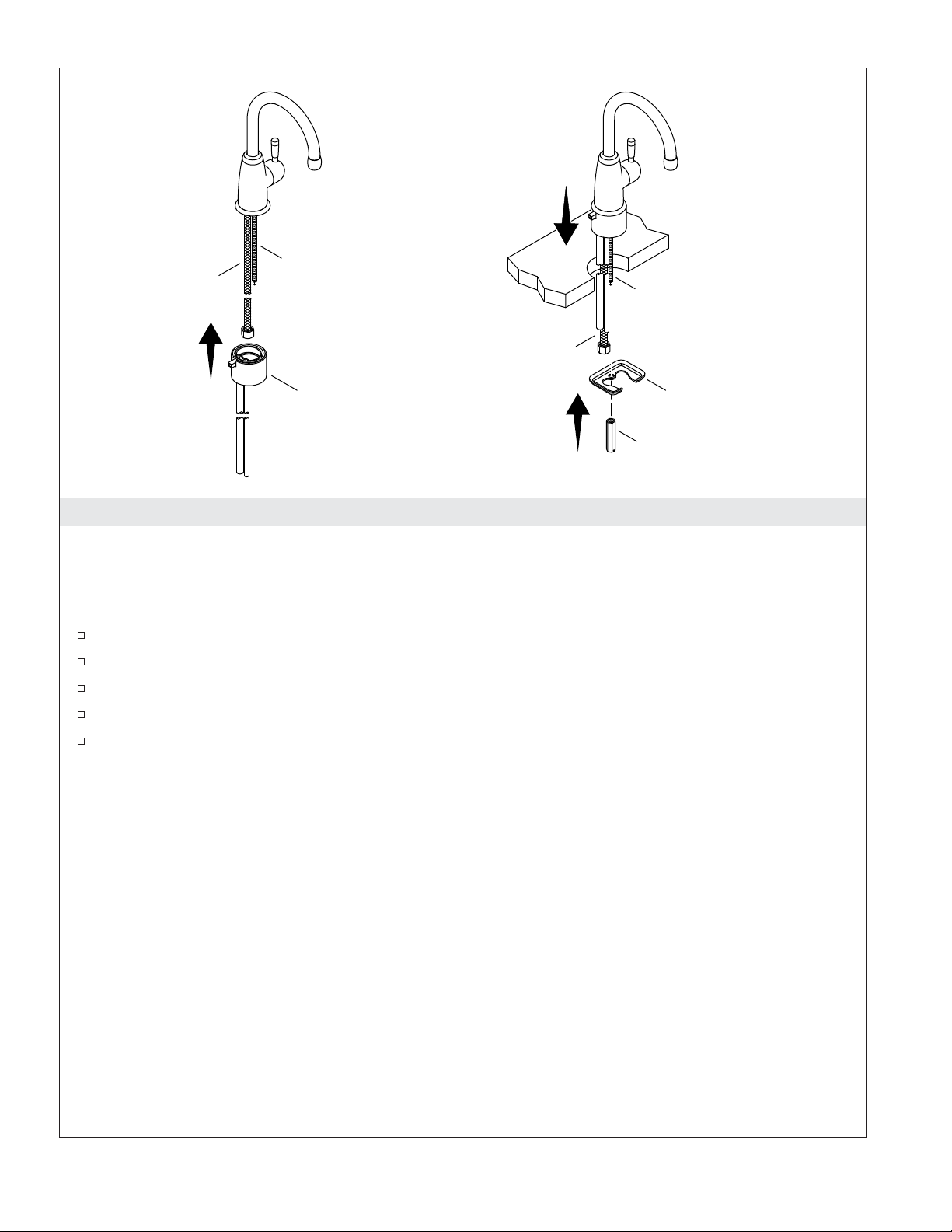

2. Install the Faucet
IMPORTANT! For existing installations: Turn off the cold water supply to the filtration system, and turn
on the faucet to relieve water pressure.
NOTE: For existing installations: The hose connected to the cold water supply will need to be
uninstalled.
Remove the O-ring from the base of the faucet body and discard.
Install the air gap assembly to the underside of the faucet.
Install the faucet to the sink.
From underneath the sink, slide the bracket over the stud.
Tighten the nut against the bracket to secure the faucet into place.
Hose Stud
Nut
Air Gap
Assembly
Bracket
Hose
Stud
Kohler Co. 5 1395432-2-B

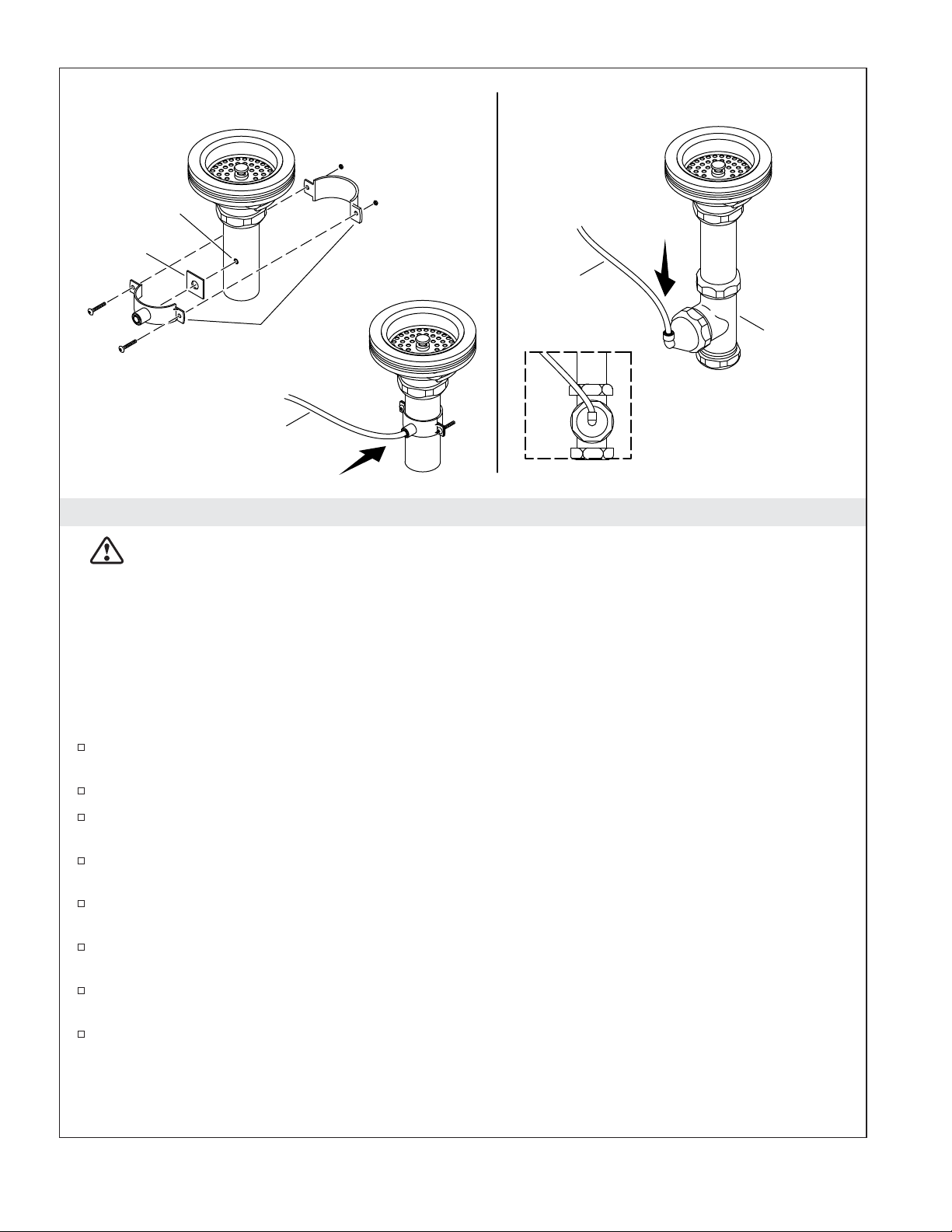

3. Connect to the Drain
CAUTION: Risk of Property Damage. Do not drill through the opposite side of the drain tailpiece.
NOTICE: Do not connect the drain line downstream of a disposer or in a horizontal pipe.
NOTE: If the system is being installed in a region governed by the UPC, a UPC-approved drain line
adapter should be used. Follow the ″Drain Line Adapter″instructions.
Saddle Connection
Punch out the center hole on the foam seal and use as a template to locate the drilling position
above the drain tap.
Mark the location with a pencil.
At the marked location, drill a 1/4″(32 mm) hole through the wall of the drain pipe.
Remove the film from the foam seal and attach to the inside of the front plate of the drain saddle,
aligning the holes.
Position the saddle on the drain tailpiece and securely tighten using the nuts and the screws
provided.
Route the 3/8″black tube from the faucet air gap to the connector on the saddle.
Cut the black tube as needed for a taut path to the connector. Do not kink the hose.
Insert the end of the black tube into the connector approximately 1″(25 mm) until it stops.
Drain Line Adapter
Install the drain line adapter (not provided) to the drain tailpiece with the connector facing up.
Route the 3/8″black tube from the faucet air gap to the connector on the adapter. The tube should
not drop below 45° from a vertical position.
Cut the black tube as needed for a taut path to the connector. Do not kink the hose.
Insert the end of the black tube into the adapter until firmly seated in the connector.
Black Tube
Drain
Saddle
Foam Seal
Ø 1/4"
(32 mm)
Drain Line
Adapter
Saddle Connection Drain Line Adapter
Black
Tube
45˚
1395432-2-B 6 Kohler Co.

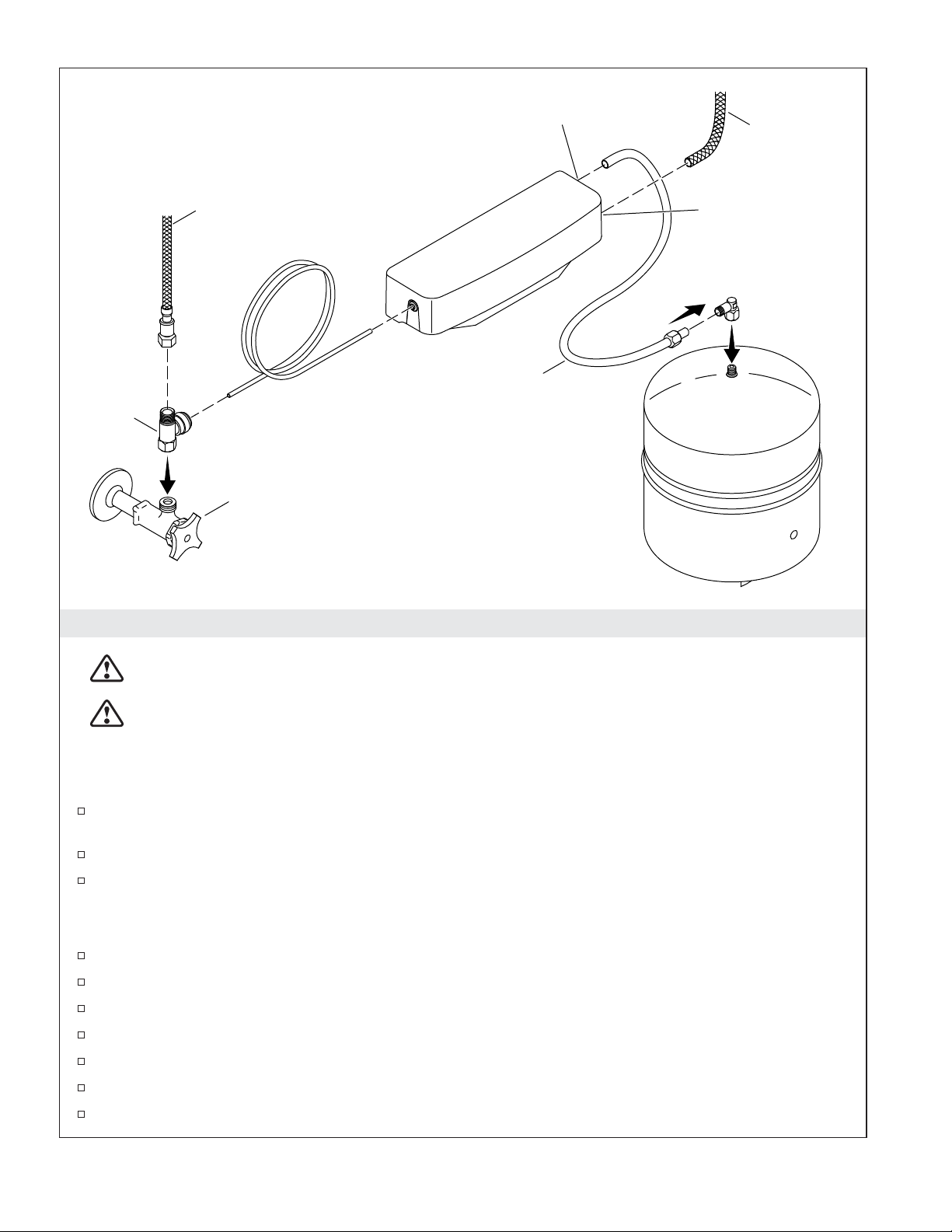

4. Plan the System Layout
CAUTION: Risk of property damage. Locate system components sufficiently within the hose
lengths to avoid leakage at the connection points.
CAUTION: Risk of property damage. Do not damage, kink, or crimp the tubing. Avoid cutting the
tubing. If it is necessary to cut the tubing, use a sharp utility knife to make a clean and square cut
to avoid water leakage.
Prepare the Water Supply
For existing installations: Turn off the cold water supply, and turn on the faucet to relieve water
pressure and drain water from the line.
Disconnect the cold water supply line from the cold water supply valve.
If both filtered and unfiltered water will be supplied, install the tee (provided) to the cold water
supply valve.
Install the Water Storage Tank
Apply sealant tape to the nipple located at the top of the tank.
Handtighten the tank connector onto the tank nipple. Do not overtighten.
Position the tank in the installation location using the mounting stand to secure it into place.
Cut any excess 3/8″blue tube.
Install the tank connector nut onto the 3/8″blue tube.
Push the 3/8″blue tube all the way into the tank connector.
Handtighten the tank connector nut. Do not overtighten.
Unfiltered Water
Faucet Supply
3/8" Cold
Water Supply
Tank
Faucet
3/8" Blue
Tube
Tee
Black Tube
Kohler Co. 7 1395432-2-B

5. Mount the Filtration System
IMPORTANT! This unit is designed for vertical installation.
IMPORTANT! The mounting location of the water filtration system is critical. Verify that the bottom of
the filter cartridge will be at least 2″(51 mm) from the floor of the cabinet. Ensure that the system will not
interfere with other items and will be easily accessible. Make sure that the tubing will not be under
tension when installed.
IMPORTANT! Only connect water from the supply line to the filter head inlet. Only connect water from
the filter head outlet to the tank and faucet. System performance and filter cartridge capacity will be
compromised if connected incorrectly. ″INLET,″″TANK,″and ″FAUCET″are molded into the filter head.
Align the mounting holes of the filter head at the determined mounting location.
Mark the mounting-hole locations with a permanent marker. Set the filter head aside.
Predrill the mounting holes.
Partially thread the fasteners (provided) into the cabinet wall, and slide the filter head over the
fasteners.
Secure the filter head in position by tightening the fasteners.
16"
(406 mm)
2"
(51 mm) Min
1395432-2-B 8 Kohler Co.

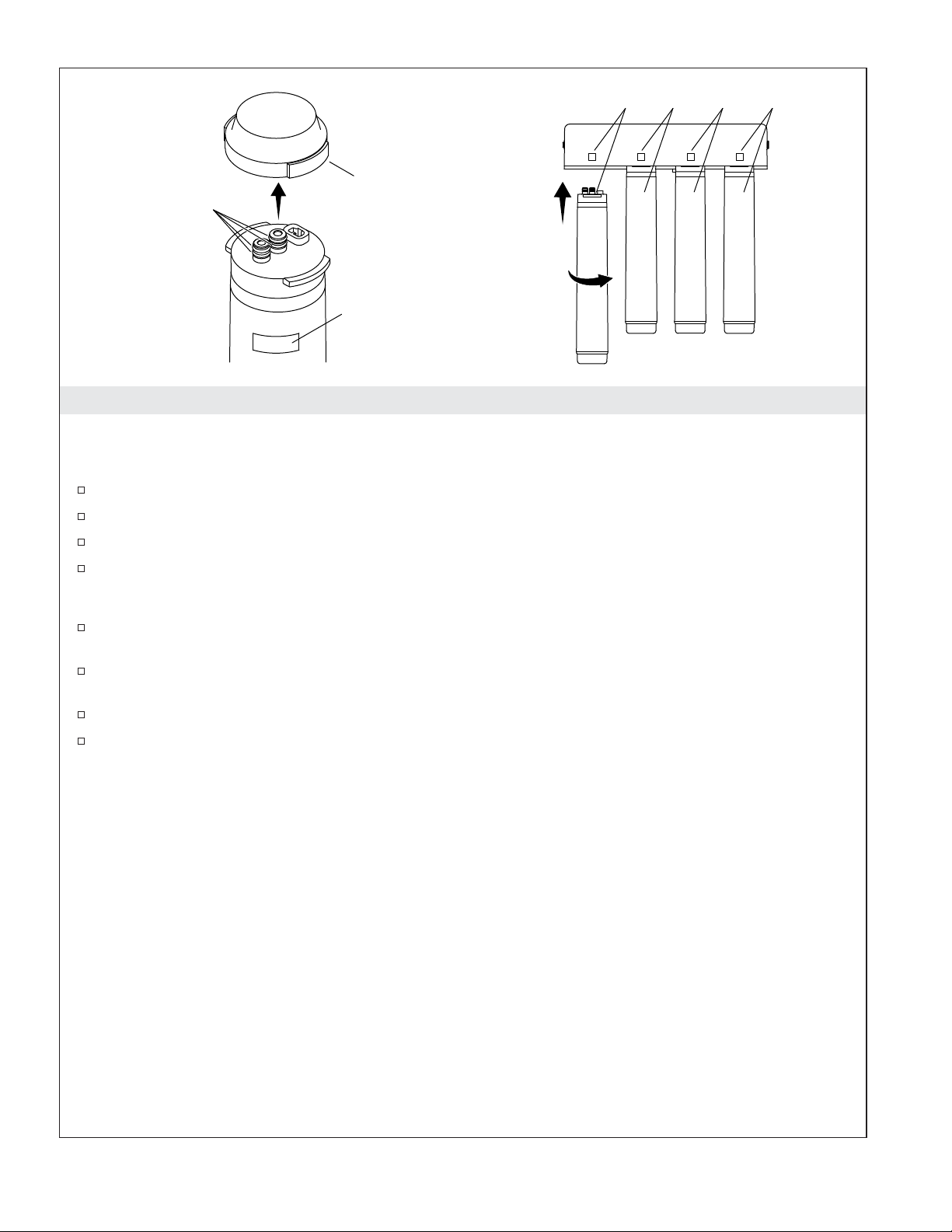

6. Install the Filter Cartridges
IMPORTANT! Replace all of the cartridges at the same time to maintain proper performance.
NOTE: See the ″System Maintenance″section for cartridge orientation and conditioning instructions.
Write the installation date on the new filter cartridge labels.
Remove and discard the cap from the filter cartridge.
Inspect the filter cartridges for damage.
Verify that both sets of O-rings are present and are positioned correctly in the grooves.
NOTE: The filter cartridges will only engage into the filter head one way. Do not force the components.
Align the filter cartridge so the label is to the left, and press upward so the filter cartridge key
engages into the filter head.
Use your hand to rotate the filter cartridge clockwise 90° until it stops and is securely engaged into
the filter head.
Turn on the cold water supply and check all connections for leaks.
Run water through the faucet for 10 minutes to remove any air and carbon particles from the
system.
Cap
Write the date
on the label.
O-Rings
BlueBlack Red Yellow
Kohler Co. 9 1395432-2-B

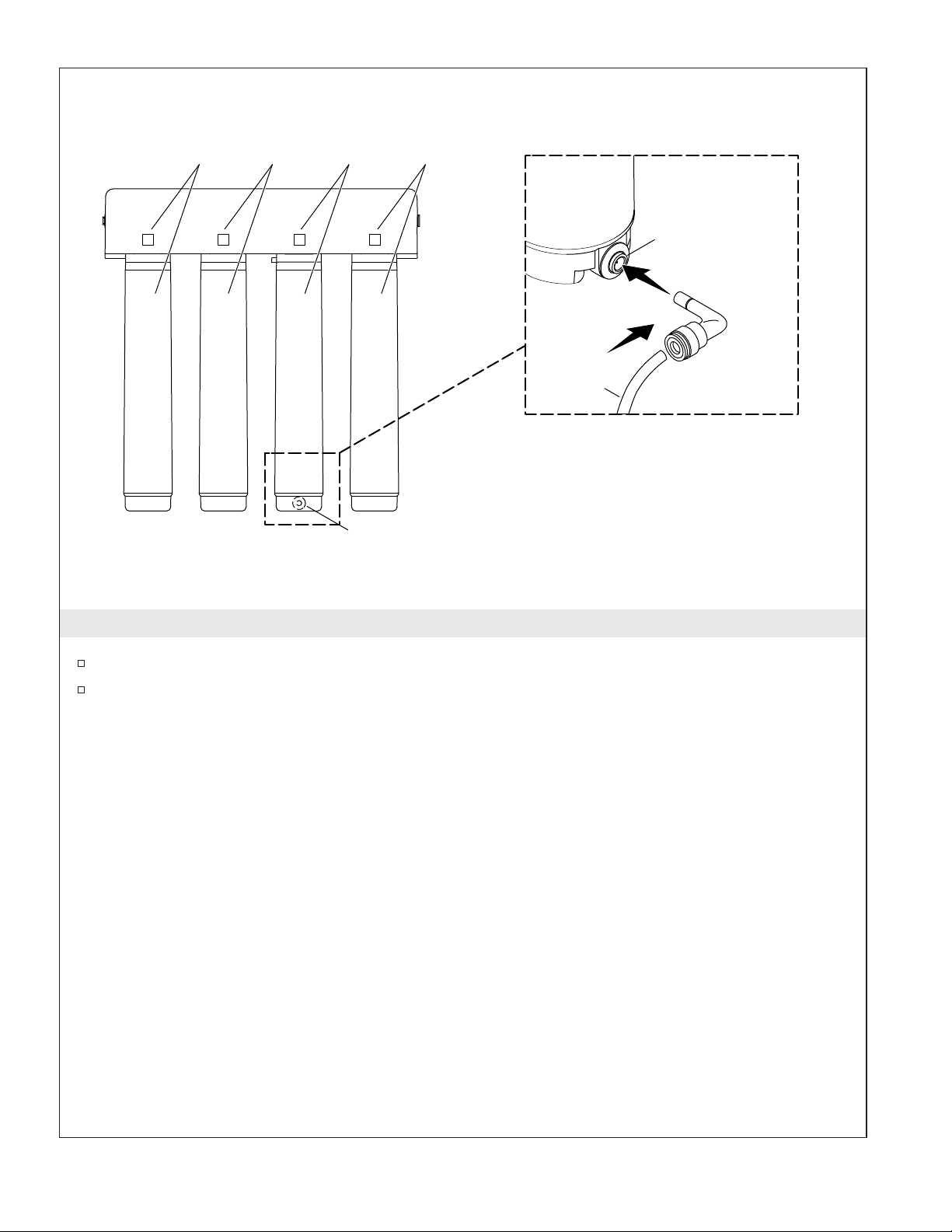

7. Connect the Filtration System
Insert the elbow into the drain port on the back of the membrane filter.
Insert the 1/4″red tube with the flow restrictor into the elbow. Verify that the connection is secure.
BlueBlack Red Yellow
Drain Port
(On Back)
1/4" Red
Tube
Drain Port
1395432-2-B 10 Kohler Co.

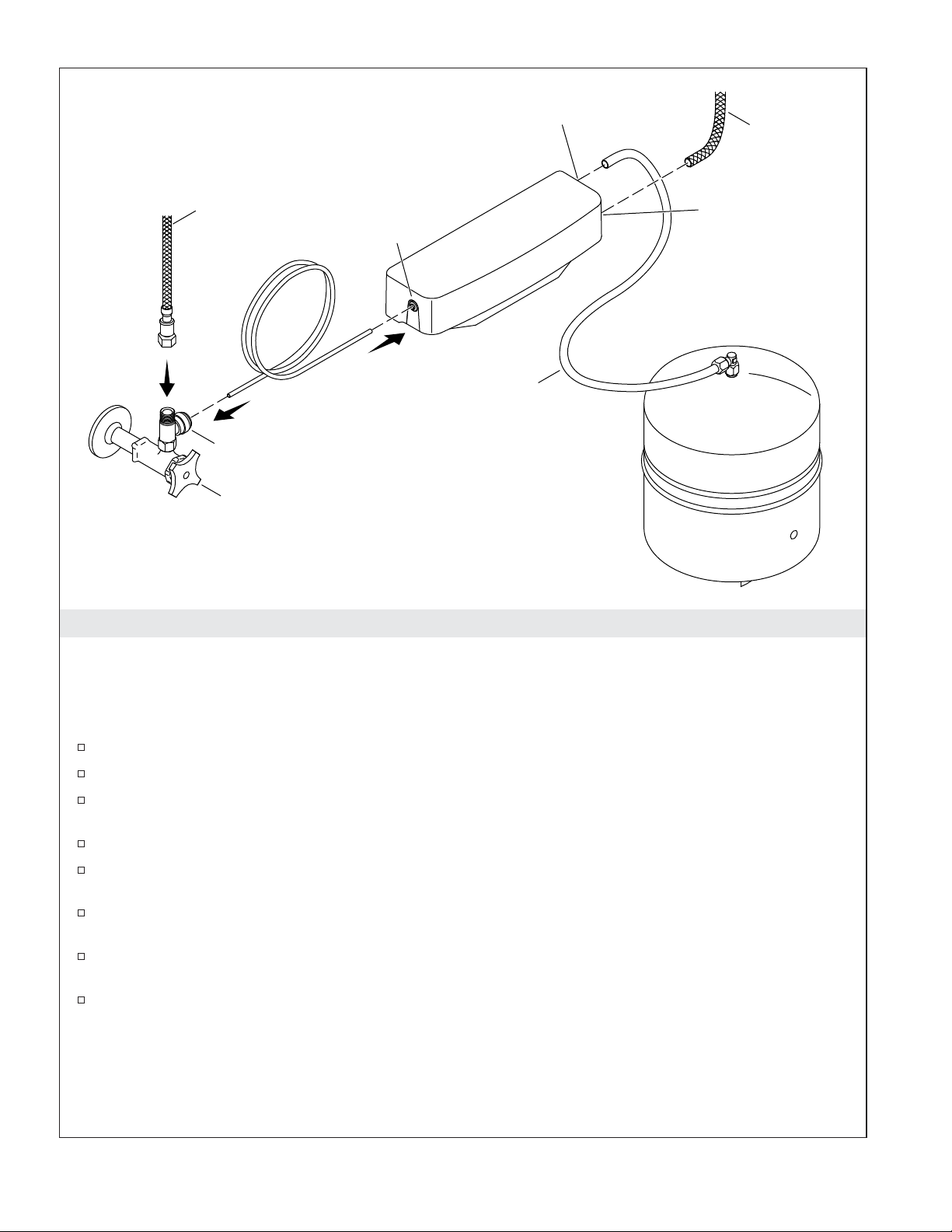

8. Connect the Hoses
IMPORTANT! Water from the supply line must be connected to the filter head inlet. Water from the tank
head outlet must be connected to the tank. Water from the faucet head outlet must be connected to the
faucet. System performance and filter capacity will be compromised if connected incorrectly.
NOTE: Connect the hoses as directed. Do not reverse the connections.
Press one end of the inlet tube firmly into the inlet port on the filter head.
Connect the other end of the tube to the cold water supply.
Insert the end of the 3/8″blue tube into the outlet of the manifold labeled “TANK” approximately
5/8″until it stops.
Locate the black tube already attached to the faucet stem.
Measure the length needed to connect to the filter head outlet labeled “FAUCET” on the water
filtration system.
If necessary, cut the black tube to the desired length. Verify there is enough tubing to freely
assemble and attach.
Insert the end of the black tube into the filter head outlet labeled “FAUCET.” Verify connection is
secure.
If used, connect the unfiltered water faucet inlet to the tee.
Unfiltered Water
Faucet Supply
3/8" Cold
Water Supply
Inlet
Tank
Faucet
3/8" Blue
Tube
Tee
Black Tube
Kohler Co. 11 1395432-2-B

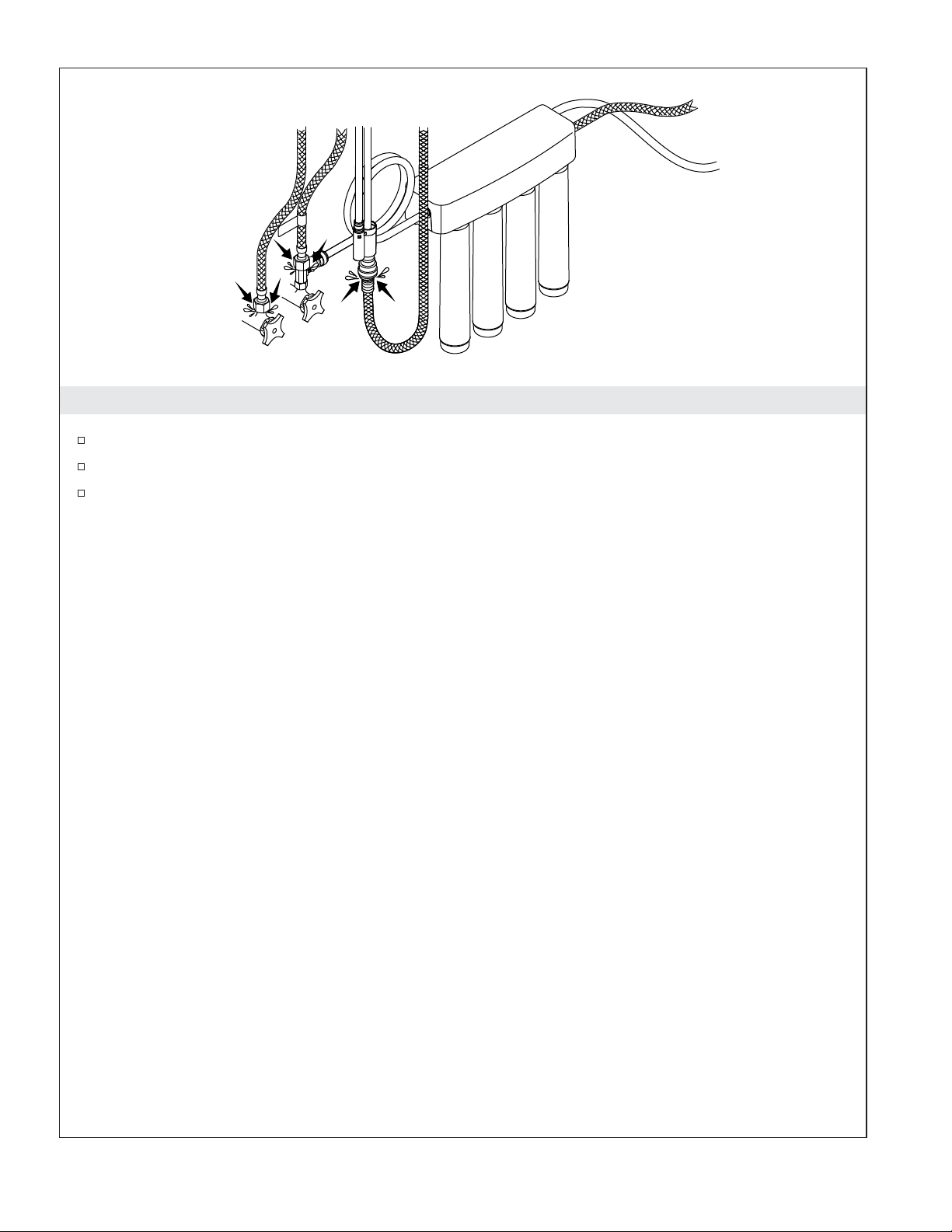

9. Installation Checkout
Turn on the cold water supply.
Check all connections for leaks. Repair as needed.
Run water through the faucet for at least 5 minutes to remove any air and carbon particles in the
system.
1395432-2-B 12 Kohler Co.

Cartridge Maintenance
NOTICE: This reverse osmosis system contains a replaceable component critical to the efficiency of the
system. Replacement of the reverse osmosis component should be with one of identical specifications, as
defined by the manufacturer, to ensure the same efficiency and contaminant reduction performance.
NOTE: Used filter cartridges can be recycled. In the U.S. only, follow the instructions on the envelope
provided. Drain as much water as possible from the used filter cartridge before shipping.
Replace the filter cartridges every 6 months and the membrane cartridge every 12 months, when the
capacity has been exceeded, or when a noticeable decrease in water flow is observed.
Position a bucket, pan, or rag under the filtration system to catch residual water.
Turn the filter cartridge 90° counter-clockwise, and pull-down gently to remove.
Discard or recycle the used filter cartridge.
Refer to the ″Install the Filter Cartridge″section to install the new filter cartridge.
Troubleshooting
This troubleshooting guide is for general aid only. For warranty service, contact your dealer or wholesale
distributor.
For service parts and replacement filter cartridges, visit your product page at kohler.com.
Symptoms Probable Causes Recommended Action
1. Water leaks between the
filter head and the filter
cartridge.
A. An O-ring is damaged, dirty, or
out of place. A. Turn off the water supply, and relieve water pressure. Remove the
filter cartridge and inspect the
O-rings for damage or debris, and
ensure that the O-rings are in place.
Reinstall the filter cartridge, turn
on the water supply, and check for
water leakage.
2. Water leaks at a tubing
connection. A. Tubing is not cut square, or is damaged or crimped. A. Turn off the water supply, and relieve water pressure. Press in the
collar around the fitting at the leak,
and pull the tubing to remove. Use
a sharp utility knife to cut 1/2″(13
mm) off the end of the tubing.
Reinsert the tubing into the fitting.
Turn on the water supply and
check for leakage.
Kohler Co. 13 1395432-2-B

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
3. Water leaks at a threaded
connection. A. The connection is damaged or dirty. A. Turn off the water supply, and relieve water pressure. Disconnect
the fitting, and inspect the seal for
damage or debris. Remove any
debris or replace the damaged
fitting. Securely reconnect the
fitting, but do not overtighten. Turn
on the water supply and check for
leakage.
1395432-2-B 14 Kohler Co.

Arsenic Fact Sheet
Arsenic (abbreviated As) is found naturally in some well water. Arsenic in water has no color, taste, or odor.
It must be measured by a laboratory test. Public water utilities must have their water tested for arsenic. You
can get the results from your water utility. If you have your own well, you can have the water tested. The
local health department or the state environmental health agency can provide a list of certified labs.
Information about arsenic in water can be found on the Internet at the US Environmental Protection Agency
website: www.epa.gov/safewater/arsenic.html.
There are two forms of arsenic: pentavalent arsenic (also called As(V), As(+5), and arsenate) and trivalent
arsenic (also called As(III), As(+3), and arsenite). In well water, arsenic may be pentavalent, trivalent, or a
combination of both. Special sampling procedures are needed for a lab to determine what type and how
much of each type of arsenic is in the water. Check with the labs in your area to see if they can provide this
type of service.
Reverse osmosis (RO) water treatment systems do not remove trivalent arsenic from water very well. RO
systems are very effective at removing pentavalent arsenic. A free chlorine residual will rapidly convert
trivalent arsenic to pentavalent arsenic. Other water treatment chemicals such as ozone and potassium
permanganate will also change trivalent arsenic to pentavalent arsenic. A combined chlorine residual (also
called chloramine) may not convert all the trivalent arsenic. If you get your water from a public water utility,
contact the utility to find out if free chlorine or combined chlorine is used in the water system.
The K-22155 system is designed to remove pentavalent arsenic. It will not convert trivalent arsenic to
pentavalent arsenic. The system was tested in a lab. Under testing conditions, the system reduced [0.30 mg/L
(ppm) or 0.050 mg/L (ppm)] pentavalent arsenic to 0.010 mg/L (ppm) (the US EPA Standard for drinking
water) or less. The performance of the system may be different at your installation. Have the treated water
tested for arsenic to check whether the system is working properly.
The RO component of the K-22155 system must be replaced annually to ensure that the system will continue
to remove pentavalent arsenic. The component identification and locations where you can purchase the
component are listed on kohler.com/filtration.
K-22155 system tested and certified by IAPMO R&T Lab and
IAPMO R&T against CSA B483.1, NSF/ANSI 42, 53, 58, 401,
and NSF Protocol P231 for specific performance claims as
verified and substantiated by test data. For more information,
refer to the Performance Data Sheet or visit kohler.com.
Kohler Co. 15 1395432-2-B

Guide d’installation
Osmose inverse Aquifer
Système de filtration d’eau
Outils et matériel
Avant de commencer
AVERTISSEMENT: Risque de blessures. Ne pas utiliser avec de l’eau qui n’est pas sûre au point
de vue microbiologique ou d’une qualité non connue sans désinfection adéquate avant ou après le
système.
ATTENTION: Risque de dommages matériels. Ne pas installer ce dispositif dans des endroits où
la température pourrait descendre au-dessous du niveau de congélation, où il pourrait être exposé à
la lumière directe du soleil, ou encore à la chaleur.
AVIS: Lire ce manuel au complet afin de prévenir des lésions corporelles et des dommages matériels au
cours de l’installation et de l’utilisation de ce produit.
AVIS: Vérifier les exigences de codes de plomberie auprès du département de travaux publics local.
Suivre leurs directives lors de l’installation de ce système de filtration d’eau.
AVIS: Ce produit a une durée de vie utile limitée. Conserver un dossier indiquant la date d’installation et
tout autre entretien exécuté. En raison de la durée de vie utile limitée, et pour empêcher des réparations
coûteuses ou des dégâts d’eau éventuels, remplacer le système tous les 10 ans.
AVIS: Couper l’alimentation en eau à la tête du filtre et retirer la cartouche du filtre si on ne s’en occupe
pas sur une période prolongée (4 semaines environ ou plus) Entreposer la cartouche du filtre dans un sac
scellé dans le réfrigérateur afin de porter au maximum la durée de vie restante du filtre.
REMARQUE: S’assurer que l’emplacement de montage et la visserie de fixation pourront supporter le
système lorsque celui-ci est installé et rempli d’eau.
Respecter tous les codes de plomberie et de bâtiment de l’État et locaux.
Les contaminants ou d’autres substances éliminés ou réduits par ce système de filtration pourraient
ne pas être présents dans votre eau. Consulter la fiche technique sur la performance (incluse) en ce
qui concerne les contaminants et la performance de réduction.
Ce système n’est pas destiné à convertir les eaux usées ou les eaux d’égout brutes en eau potable.
Ruban d'étanchéité
3/8 po
1/8 po1/4 po
Kohler Co. Français-1 1395432-2-B

Avant de commencer (cont.)
Inspecter la plomberie et les accessoires pour y rechercher des dommages éventuels. Réparer ou
remplacer selon les besoins.
Installer le système de filtration d’eau sur une alimentation en eau froide seulement. Ne pas installer
ce système sur une alimentation en eau chaude.
REMARQUE: La hauteur globale du filtre est de 16 po (406 mm).
Le système de filtration d’eau est destiné à être installé sous un lavabo. S’assurer que le fond de la
cartouche du filtre se trouveà2po(51mm)aumoins au-dessus du plancher du meuble et qu’il
sera accessible pour le remplacement de la cartouche du filtre après installation.
Remplacer les cartouches de filtre tous les 6 mois et la membrane de la cartouche tous les 12 mois,
lorsque la capacité a été dépassée, ou lorsque l’on observe une réduction perceptible dans le débit
d’eau.
Purger le système du filtre au complet après des périodes prolongées de non utilisation. Laisser
l’eau s’écouler pendant 5 ou 6 minutes avant utilisation.
Ce système se connecte à un connecteur de compression de 3/8 po (9/16 po-24 UNEF-2A). Il sera
peut-être nécessaire d’acheter des raccords spéciaux pour s’adapter à d’autres connexions.
Noter le numéro de modèle et la date d’installation ci-dessous. Marquer également la date
d’installation sur la tête du filtre et les cartouches du filtre. Numéro du modèle : ____________ Date
de remplacement : _____________
Conserver ce manuel pour référence future.
Pour en apprendre davantage sur les système de filtration d’eau, les cartouches de rechange, les services
d’abonnement, et le programme de recyclage, visiter le site kohler.com.
Kohler Co. Français-2 1395432-2-B

1. Assembler la coupure anti-retour
Installer le chapeau sur le dessous de l’anneau de la coupure anti-retour.
Aligner la coupure anti-retour sur la fenêtre du chapeau.
Déterminer quelle est la longueur nécessaire pour raccorder le tube rouge de 1/4 po au port
d’évacuation de la membrane. Couper toute tubulure en excès.
Installer le limiteur de débit dans le tube rouge. Le limiteur de débit doit se prolonger de 1/8 po à
partir de la bride, comme sur l’illustration. La bride doit être à ras avec l’extrémité du tube rouge.
1/8 po
Anneau de coupure
anti-retour Coupure
anti-retour
Chapeau
Limiteur
de débit
Tube noir de 3/8 po
Tube rouge
de 1/4 po
1395432-2-B Français-3 Kohler Co.

2. Installer le robinet
IMPORTANT! Pour les installations existantes : Couper l’alimentation en eau froide au système de
filtration et tourner le robinet pour soulager la pression d’eau.
REMARQUE: Pour les installations existantes : Le tuyau connecté à l’alimentation en eau froide doit être
désinstallé.
Retirer le joint torique de la base du corps du robinet et mettre au rebut.
Installer la coupure anti-retour sur le dessous du robinet.
Installer le robinet sur le lavabo.
À partir du dessous du lavabo, glisser le support par-dessus le goujon.
Serrer l’écrou contre le support pour fixer le robinet en place.
Tuyau Goujon
Écrou
Ensemble de
coupure anti-retour
Support
Tuyau
Goujon
Kohler Co. Français-4 1395432-2-B

3. Raccorder au drain
ATTENTION: Risque de dommages matériels. Ne pas percer à travers le côté opposé de l’embout
du drain.
AVIS: Ne pas connecter la conduite d’écoulement en aval d’un broyeur de déchets ou dans un tuyau
horizontal.
REMARQUE: Si le système est installé dans une région gouvernée par le CUP, il sera nécessaire d’utiliser
un adaptateur de conduite d’écoulement approuvée CUP. Suivre les instructions « Adaptateur de la
conduite d’écoulement ».
Connexion de sellette
Percer le trou central sur le joint d’étanchéité en mousse et utiliser comme modèle pour trouver la
position de perçage au-dessus du robinet de vidange.
Marquer l’emplacement avec un crayon.
À l’emplacement marqué, percer un trou de 1/4 po (32 mm) à travers la paroi du tuyau
d’évacuation.
Retirer le film du joint d’étanchéité en mousse et l’attacher sur l’intérieur de la plaque avant de la
sellette du drain, en alignant les trous.
Positionner la sellette sur l’embout du drain et serrer de manière sécuritaire en utilisant les écrous et
les vis fournis.
Acheminer le tube noir de 3/8 po entre la coupure anti-retour du robinet et le connecteur sur la
sellette.
Couper le tube noir au besoin pour un acheminement raide vers le connecteur. Ne pas entortiller le
tuyau.
Insérer l’extrémité du tube noir dans le connecteur sur 1 po (25 mm) environ, jusqu’à ce qu’elle
s’arrête.
Adaptateur de la conduite d’écoulement
Tube noir
Joint
d'étanchéité
en mousse
Tube
noir
Ø 1/4 po
(32 mm)
Connexion de sellette Adaptateur de la conduite d’écoulement
Adaptateur
de la conduite
d’écoulement
45˚
Sellette
de drain
1395432-2-B Français-5 Kohler Co.
