Kohler Aquifer Refine K-21371 Assembly instructions

1410821-5-B
Homeowners Guide
Record your model number:
Noter le numéro de modèle:
Anote su número de modelo:
Français, page 14
Español, página 25
Water Filtration System

Thank You for Choosing KOHLER
Need help? Contact our Customer Care Center.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Mexico: 001-800-456-4537
For service parts information, visit kohler.com/serviceparts.
For care and cleaning information, visit kohler.com/clean.
1410821-5-B2 Kohler Co.

Warranty
This product is covered under the KOHLER® One-Year Limited Warranty, found at
kohler.com/warranty.
For a hardcopy of warranty terms, contact the Customer Care Center.
Important Information
WARNING: When using electrical products, basic precautions should
always be followed, including the following:
WARNING: Risk of electric shock. Disconnect the power before servicing.
WARNING: Risk of personal injury. Do not use on water that is
microbiologically unsafe or of unknown quality without adequate disinfection
before or after this lter system. Systems certied for cyst reduction may be
used on disinfected waters that may contain lterable cysts.
CAUTION: Risk of product damage. This product contains sensitive
electronic components. Do not store open containers of chemical or cleaning
products near this product.
NOTICE: Read this entire manual thoroughly to prevent personal injury and
property damage during installation and use of this product.
NOTICE: Turn OFF the water supply to the lter head, and remove the lter
cartridge if it will be unaended for an extended period of time (approximately 4
weeks or more). Store the lter cartridge in a sealed bag in the refrigerator to
maximize the remaining lter capacity.
Contaminants or other substances removed or reduced by this ltration system may
not be present in your water. Refer to the Performance Data Sheet (included) for
contaminants and reduction performance.
System is not intended to convert wastewater or raw sewage into drinking water.
Flush the lter system thoroughly after prolonged periods of nonuse. Allow the
water to ow for 5 or 6 minutes before use.
Kohler Co. 3 1410821-5-B

For conditions of use and replacement cartridges, refer to this guide and the
Performance Data Sheet.
Record the installation date on the lter head, each lter cartridge, and in the space
below.
Installation date:______________
System Specifications
Model: K-21371 Aquifer® Rene
Flow Rate: 0.65 gpm (2.46 lpm)
Capacity: 792 gallons (3,000 L)
Operating Pressure: 40 psi (276 kPa) - 120 psi (827) kPa
Operating Temperature: 33°F (0.5°C) - 100° (37.8°C)
Replacement Cartridge Type
K-21372 Carbon Block CTO Filter
K-21373 Carbon Block VOC Filter
K-21374 Ultra Filter
See the Performance Data Sheet for individual contaminants and reductions
performance.
This system conforms to NSF/ANSI 42, 401, and NSF Protocol P231 for the specic
performance claims as certied and substantiated by test data.
The compounds certied under NSF/ANSI 401 have been deemed as emerging
contaminants.
Filter Cartridge Maintenance
Replace the lter cartridges every 6 months, when the capacity has been exceeded, or
when a noticeable decrease in water ow is observed.
1410821-5-B4 Kohler Co.

This system contains a Performance Indicator Device (PID) that monitors the life of
the lter cartridges. The lter's life runs out when it reaches its maximum lifespan or
has exceeded its capacity.
Filter Lifespan Capacity
Carbon Block CTO Filter 6 months 792 gallons (3,000 L)
Carbon Block VOC Filter 6 months 792 gallons (3,000 L)
Ultra Filter 12 months 792 gallons (3,000 L)
The PID features colored LED lights on the front panel that correspond to each lter.
•Yellow = 10% lter life remaining
•Red = 5% lter life remaining
Filter cartridge replacement will not require that the tubing is disconnected. If it is
necessary to disconnect the tubing, follow this procedure:
Turn OFF the cold water supply.
Turn ON the faucet to relieve pressure and drain water from the line.
Firmly press in the collar around the ing while using your hand to pull the
tubing free.
Inspect the tubing for damage or crimping.
Kohler Co. 5 1410821-5-B

1. Prepare the Cartridges
O-Rings
Cap
Lift up the ltration system access panel and tilt forward to remove.
Remove and discard the cap from the lter cartridge.
Inspect the lter cartridge for damage.
Verify that the three O-rings are present and positioned correctly in the grooves.
Repeat for the remaining lter cartridges.
1410821-5-B6 Kohler Co.

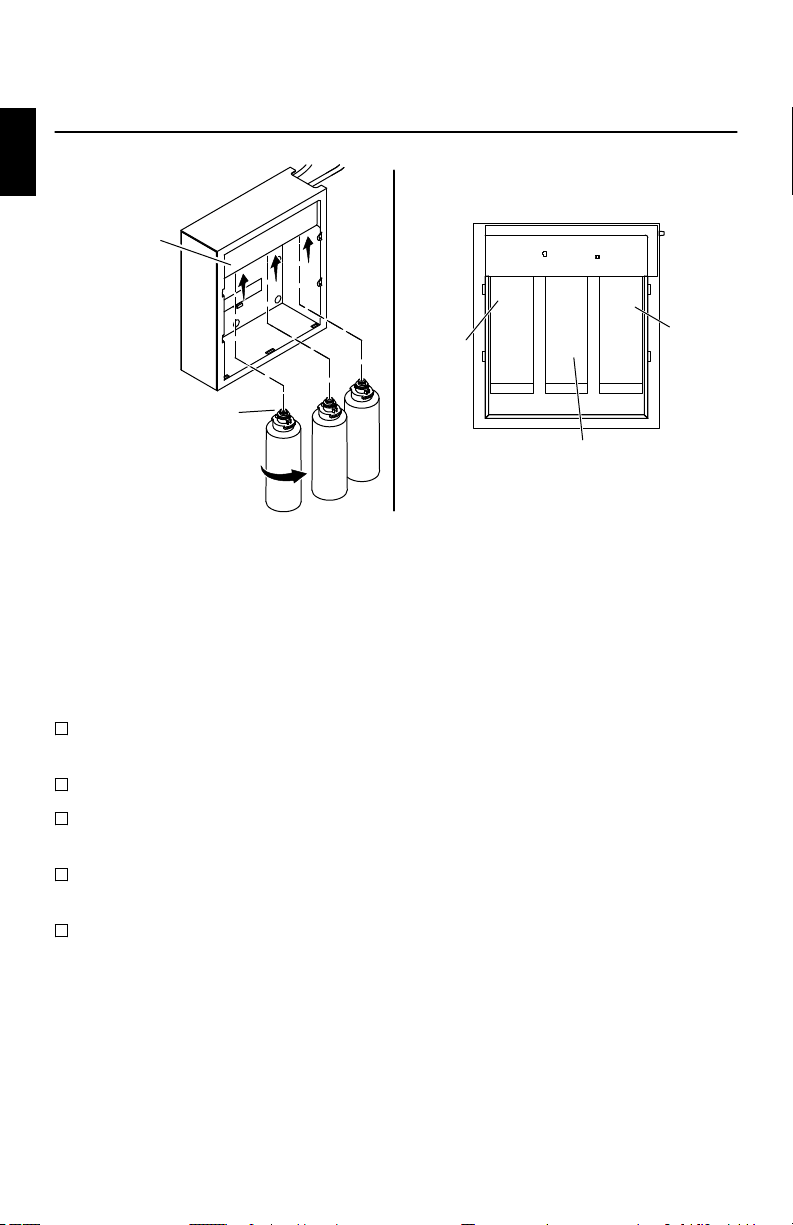

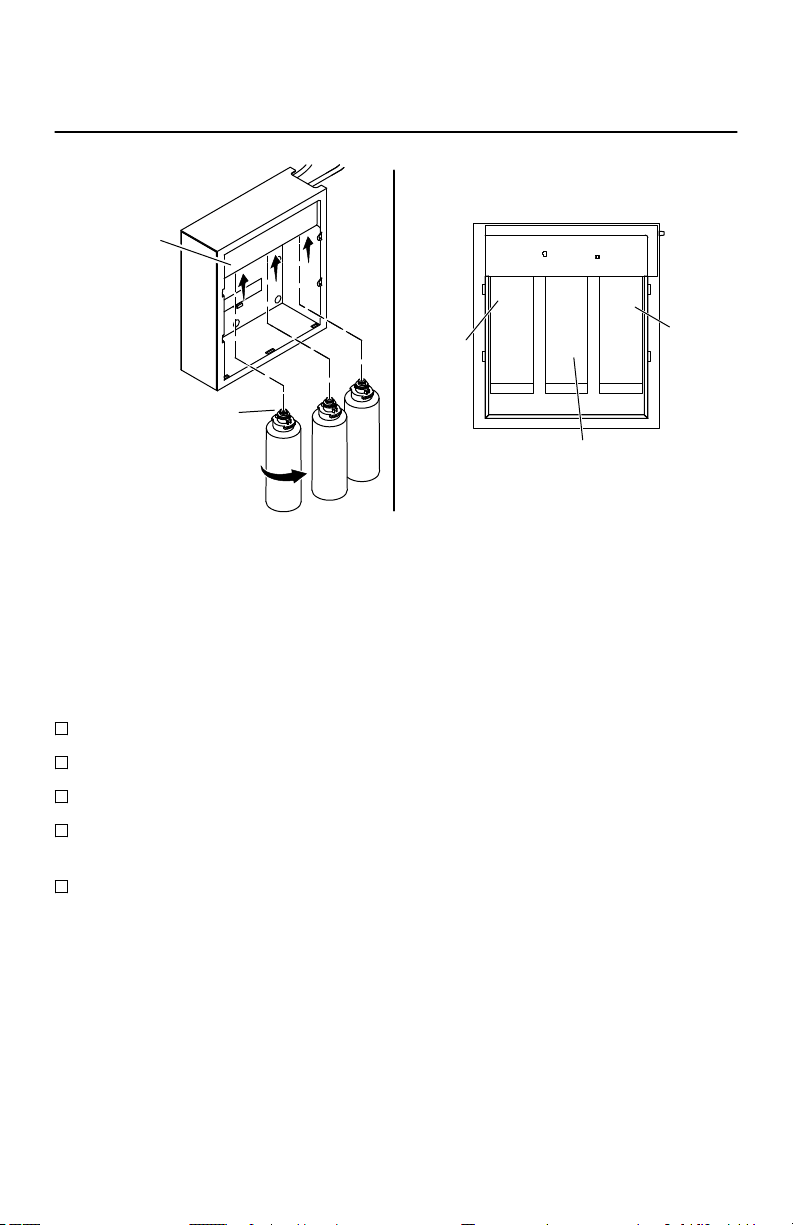

2. Install the Cartridges
Filter Cartridge
Key
Filter Head
Blue
Pink
Green
New Cartridge Conditioning
NOTE: The lter cartridges require conditioning prior to use to remove air and
carbon particles. The lter cartridges will be arranged dierently for cartridge
conditioning than when the cartridges are in use.
NOTE: The lter cartridges will only engage into the lter head one way. Do not
force the components.
Install the lter cartridges in the "New Cartridge Conditioning" arrangement.
Align the lter cartridge with the label to the left.
Press upward so the lter cartridge key engages into the lter head.
Rotate the lter cartridge counterclockwise 90° until it stops and is securely
engaged into the lter head.
Repeat for the remaining lter cartridges.
Kohler Co. 7 1410821-5-B

3. Condition the Cartridges
Check all connections for leaks.
Run water through the faucet for 10 minutes to remove any air and carbon
particles from the system.
Leave the faucet partially open to allow excess water to ow during cartridge
removal.
NOTE: During cartridge removal, dripping or spray may occur as pressure is
released from the system.
Place a towel under the lter heads to catch any dripping water.
Remove the cartridge on the left rst, then remove the middle cartridge. Do not
remove the cartridge on the right.
1410821-5-B8 Kohler Co.

4. Install the Cartridges for Use
Green
Blue
Pink
Cartridges In Use
Reinstall the lter cartridges in the "Cartridges In Use" arrangement, as shown.
Slide the access panel into the three notches at the boom of the ltration unit.
Push the access panel forward to reinstall it to the ltration system.
Kohler Co. 9 1410821-5-B

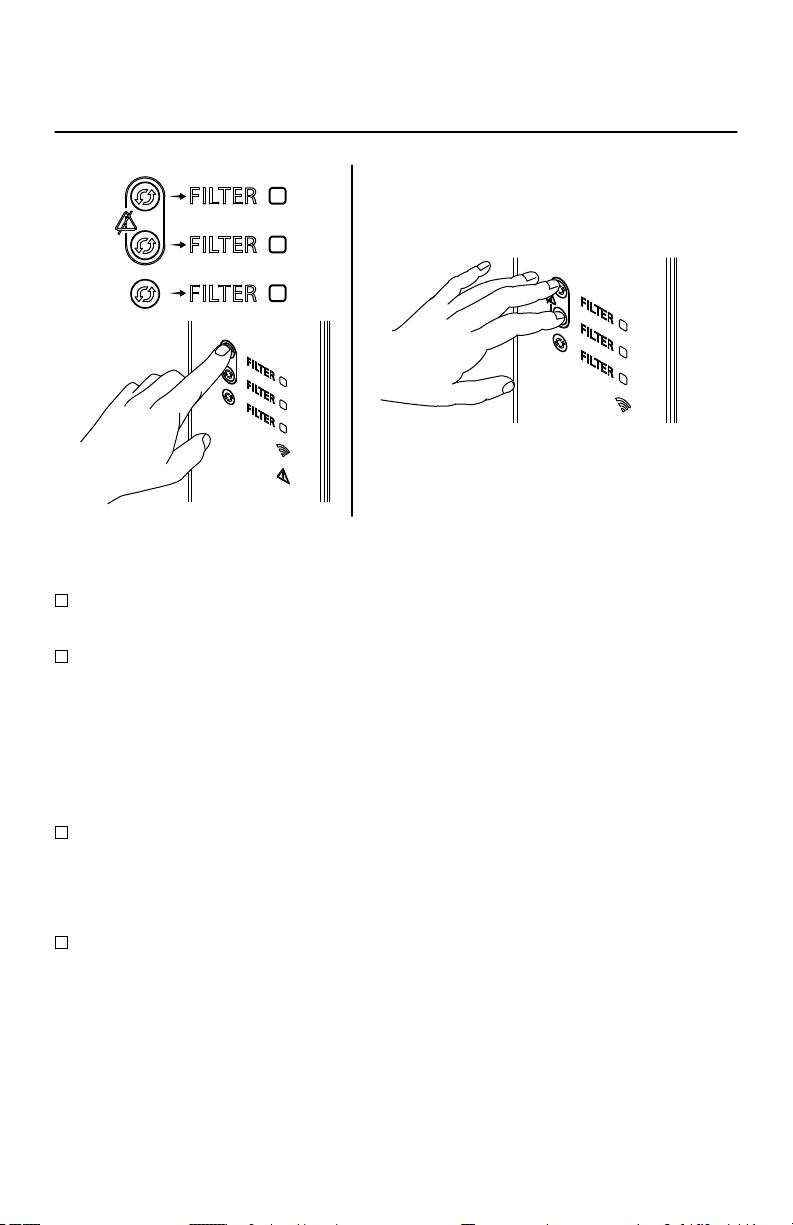

System Setup
Reset the Filter Cycle
Press and hold the buon for each corresponding lter for 3 seconds to initiate the
new lter cycle.
The lter cycle is reset when the LED light turns green.
Leak Detection
NOTE: The ltration system comes equipped with a leak detection alarm.
NOTE: The leak detection alarm can be disabled for 5 minute intervals. The water
must be cleaned from under the ltration system in order for the alarm not to sound
again.
To disable the alarm, press and hold the top and middle buon simultaneously
for 5 seconds.
KOHLER Konnect
Refer to the Quick Reference Guide provided with the ltration system to use the
KOHLER Konnect features.
1410821-5-B10 Kohler Co.

Troubleshooting
This troubleshooting guide is for general aid only. For warranty service, contact your
dealer, wholesale distributor, or call 1-800-4KOHLER.
Symptoms Probable Cause Recommended Action
1. Water leaks
between the
lter head and
the lter
cartridge.
A. The O-rings are
damaged, dirty,
or out of place.
A. Turn o the water supply, and
relieve water pressure. Remove the
lter cartridge and inspect the O-
rings for damage or debris, and
ensure that the O-rings are in place.
Reinstall the lter cartridge, turn on
the water supply, and check for
water leakage.
2. Water leaks at
a tubing
connection.
A. Tubing is not cut
square, or is
damaged or
crimped.
A. Turn o the water supply, and
relieve water pressure. Press in the
collar around the ing at the leak,
and pull the tubing to remove. Use a
sharp utility knife to cut 1/2" (13
mm) o the end of the tubing.
Reinsert the tubing into the ing.
Turn on the water supply and check
for leakage.
3. Water leaks at
a threaded
connection.
A. The connection
is damaged or
dirty.
A. Turn o the water supply, and
relieve water pressure. Disconnect
the ing, and inspect the seal for
damage or debris. Remove any
debris or replace the damaged
ing. Securely reconnect the ing,
but do not overtighten. Turn on the
water supply and check for leakage.
Kohler Co. 111410821-5-B

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Warning
This transmier with its antenna complies with FCC’s RF exposure limits for general
population/uncontrolled exposure. This device must not be co-located or operated in
conjunction with any other antenna or transmier. This device should be operated
with a minimum distance of 7-7/8″ (200 mm) between the radiator and your body.
CONTAINS IC: 451I-CC3235MOD
This device contains license-exempt transmier(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s license-exempt RSS(s).
Operation is subject to the following two conditions:
1410821-5-B12 Kohler Co.
Product Compliance
CONTAINS FCC ID: Z64-CC3235MOD

This transmier with its antenna complies with Industry Canada RF Exposure Limits
for General Population/Uncontrolled Exposure.
This Class B digital apparatus complies with Canadian ICES-003.
Kohler Co. 13 1410821-5-B
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause
undesired operation of the device.

Guía del usuario
Système de filtration d’eau
1410821-5-B14 Kohler Co.
F
R

Merci d'avoir choisi KOHLER
Besoin d'aide? Appeler notre centre de services à la clientèle.
USA/Canada : 1-800-4KOHLER (1-800-456-4537)
Mexique : 001-800-456-4537
Pour tout renseignement sur les pièces de rechange, visiter le site kohler.com/
serviceparts.
Pour des renseignements sur l'entretien et le neoyage, visiter le site kohler.com/
clean.
Kohler Co. 15 1410821-5-B
F
R

Garantie
Ce produit est couvert sous la Garantie limitée d'un an KOHLER®, fournie sur le
site kohler.com/warranty.
Pour obtenir une copie imprimée des termes de la garantie, s'adresser au centre de
service à la clientèle.
Informations Importantes
AVERTISSEMENT: Lors de l'utilisation de produits électriques, toujours
observer les précautions de base, notamment :
AVERTISSEMENT: Risque d'électrocution. Déconnecter l'alimentation
électrique avant d`eectuer un entretien ou une réparation.
AVERTISSEMENT: Risk of personal injury. Do not use on water that is
microbiologically unsafe or of unknown quality without adequate disinfection
before or after this lter system. Systems certied for cyst reduction may be
used on disinfected waters that may contain lterable cysts.
ATTENTION: Risque d'endommagement du produit. Ce produit contient
des composants électroniques sensibles. Ne pas entreposer des récipients de
produits chimiques ou de neoyage ouverts près de ce produit.
AVIS: Read this entire manual thoroughly to prevent personal injury and property
damage during installation and use of this product.
AVIS: Turn OFF the water supply to the lter head, and remove the lter cartridge if
it will be unaended for an extended period of time (approximately 4 weeks or
more). Store the lter cartridge in a sealed bag in the refrigerator to maximize the
remaining lter capacity.
Les contaminants ou d'autres substances éliminés ou réduits par ce système de
ltration pourraient ne pas être présents dans votre eau. Consulter la che technique
sur la performance (incluse) en ce qui concerne les contaminants et la performance de
réduction.
Ce système n'est pas destiné à convertir les eaux usées ou les eaux d'égout brutes en
eau potable.
1410821-5-B16 Kohler Co.
F
R

Purger le système du ltre au complet après des périodes prolongées de non
utilisation. Laisser l'eau s'écouler pendant 5 ou 6 minutes avant utilisation.
Pour les conditions d'utilisation et les pièces de rechange, consulter ce guide ainsi que
la che technique sur la performance.
Enregistrer la date d'installation sur la tête du ltre, chaque cartouche de ltre, et
dans l’espace ci-dessous.
Date d'installation :______________
Spécifications du système
Modèle : K-21371 Aquifer® Rene
Débit : 0,65 gpm (2,46 lpm)
Capacité : 792 gallons (3 000 L)
Pression de fonctionnement : 40 psi (276 kPa) - 120 psi (827) kPa
Température de fonctionnement : 33°F (0,5°C) - 100° (37,8°C)
Cartouche de rechange Type
K-21372 Filtre bloc au charbon CTO
K-21373 Filtre bloc au charbon COV
K-21374 Ultraltre
Consulter la che technique sur la performance en ce qui concerne les contaminants
individuels et la performance de réduction.
Ce système est conforme aux normes NSF/ANSI 42, 401, et au protocole NSF P231
pour les allégations de performance spéciques tel que certié et corroboré par les
données de test.
Les composés certiés sous la norme NSF/ANSI 401 ont été présumés être des
contaminants émergents.
Kohler Co. 17 1410821-5-B
F
R

Entretien des cartouches de filtre
Remplacer les cartouches de ltre tous les 6 mois, lorsque la capacité a été dépassée,
ou lorsque l'on observe une réduction perceptible dans le débit d'eau.
Ce système comprend un dispositif d’indication de la performance (PID) qui surveille
la durée de vie des cartouches de ltre. La durée de vie du ltre arrive à sa n lorsque
celui-ci aeint sa durabilité ou a dépassé sa capacité.
Filtre Durabilité Capacité
Filtre bloc au charbon CTO 6 mois 792 gallons (3 000 L)
Filtre bloc au charbon COV 6 mois 792 gallons (3 000 L)
Ultraltre 12 mois 792 gallons (3 000 L)
Des voyants DEL correspondant à chaque ltre sont situés sur le panneau du
dispositif d’indication de la performance.
•Jaune = 10% de durée de vie du ltre restant
•Rouge = 5% de durée de vie du ltre restant
Il ne sera pas nécessaire de déconnecter la tubulure pour remplacer la cartouche du
ltre. Suivre la procédure ci-dessous s’il est nécessaire de déconnecter la tubulure :
Couper l'alimentation en eau froide.
Ouvrir le robinet pour alléger la pression et vider l’eau de la conduite.
Enfoncer fermement le collier autour du raccord tout en utilisant la main pour
libérer la tubulure.
Inspecter la tubulure pour y rechercher des dommages ou des pincements
éventuels.
1410821-5-B18 Kohler Co.
F
R

1. Préparer les cartouches
Joints
toriques
Capuchon
Soulever le panneau d'accès du système de ltration et le basculer vers l'avant
pour le retirer.
Retirer et jeter le capuchon de la cartouche du ltre.
Inspecter la cartouche du ltre pour y déceler des dommages éventuels.
Vérier que les joints toriques sont présents et qu'ils sont positionnés
correctement dans la rainure.
Répéter pour les autres cartouches de ltre.
Kohler Co. 19 1410821-5-B
F
R

2. Installer les cartouches
Clavette de
cartouche de filtre
Tête
de filtre
Bleu
Rose
Vert
Conditionnement de
cartouche neuve
REMARQUE: The lter cartridges require conditioning prior to use to remove air
and carbon particles. The lter cartridges will be arranged dierently for cartridge
conditioning than when the cartridges are in use.
REMARQUE: The lter cartridges will only engage into the lter head one way. Do
not force the components.
Installer les cartouches de ltre selon la disposition « Conditionnement des
cartouches ».
Aligner la cartouche de ltre avec l’étiquee à gauche.
Appuyer vers le haut de manière à ce que la clavee de cartouche de ltre soit
engagée dans la tête du ltre.
Tourner la cartouche du ltre de 90 degrés dans le sens antihoraire, jusqu'à ce
qu'elle s'arrête et soit engagée en toute sécurité dans la tête du ltre.
Répéter pour les autres cartouches de ltre.
1410821-5-B20 Kohler Co.
F
R
