Kohler K-32435T-KP040-01R User manual

Installation Guide
1461397-T01-B
Kitchen Water Filtration RO System
科勒厨房反渗透净饮机
K-32435T-KP040-01R
K-32435T-KP060-01R
科勒牌RO400-B型反渗透净水机
科勒牌RO600-B型反渗透净水机
* 使用产品前请仔细阅读本说明书并且严格按照说明书操作，并请妥善保管以备需要 *
© Copyright Kohler China Investment Co., Ltd.
©
FREE SERVICE HOT LINE: 800 820 2628 MOBILE:[phone] (China area only)
免费服务热线：800 820 2628 手机用户：400 820 2628（仅限中国地区）
KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD,
158 200436

-1-

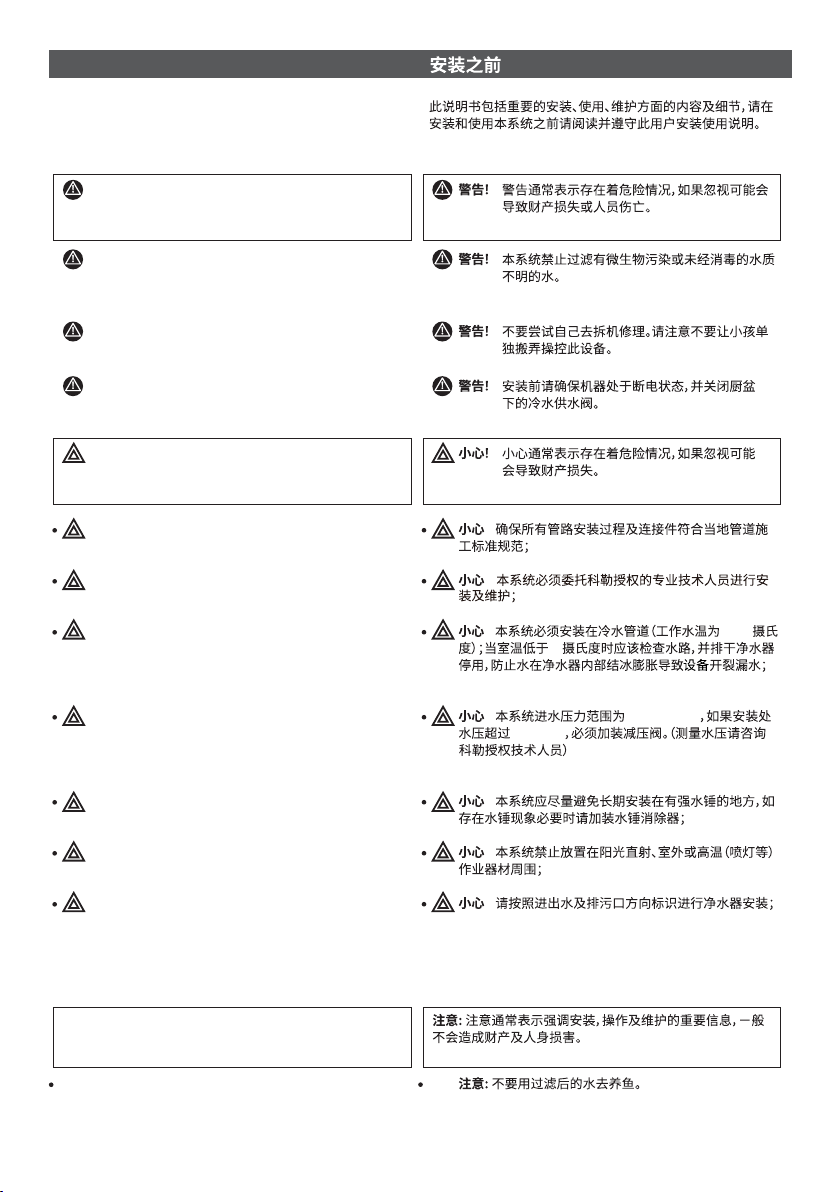

BEFORE YOU BEGIN
This document contains important information and details
concerning product installation, operation and maintenance.
Please read it carefully prior to installation and obey all the
instructions during operation.
WARNING! Warning is used to indicate a hazard
which could cause injury or death if
ignored.
WARNING! Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection
before or after the system.
WARNING! Do not repair, disassemble, or modify.
Children should be supervised to ensure
that they do not play with the appliance.
WARNING! Unplug the unit before your installation,
make sure cold water valve is turned off
under the sink.
CAUTION! Caution is used when failure to follow
directions could result in damage to
equipment or property.
CAUTION! Make certain that installation and
connectors must comply with all state and local
plumbing codes.
CAUTION! Installation and maintenance must be done
by qualified plumbing professionals designated by
dealers authorized by Kohler.
CAUTION! For cold water use only (Temperature
Range: 5-38°C); This filter must be protected from
freezing, which can cause cracking of the filter and
water leakage. Drain filter when room temperature
drops below 5°C.
CAUTION! Inlet Pressure Range: 100-400 kPa, If water
pressure exceeds 400kPa, please install pressure
limiting valve. (Please consult plumbing professionals or
dealers authorized by Kohler for water pressure
measurement).
CAUTION! Do not install where water hammer
conditions may occur. If water hammer conditions exist
you must install a water hammer arrester.
CAUTION! Do not install in direct sunlight, outdoors or
where blowtorch or other high temperature sources are
nearby.
CAUTION! The filter must be installed with the inlet,
outlet and drain ports as labeled. Make sure not to
reverse connections.
Note: Note is used to emphasize installation, operation or
maintenance information which is important, but does not
present any hazard.
Note: Do not use filtered water for the water exchange
of an aquarium or a fishbowl.
!
!
! 5-38
5
! 0.1-0.4MPa
0.4MPa
!
!
!
1461397-T01-B

-2-
ROUGHING-IN
WATERWAY FIGURE
UNIT: mmReference Value
Kohler reserves the right to change marked dimensions without prior notice
Refer to Service Parts Page for
the Exploded Diagram
Front View
393
Top View Side View
376
1461397-T01-B
135
Water Supply
Inlet Solenoid Valve
Composite Actived
Carbon Filter
Pump
Reverse Osmosis Filter
Pure Water
Drain Solenoid Valve
Drain Water
Water Filtration Faucet
High Pressure Switch
Check Valve
RO PPC
增
压
泵
Welcome To Your New World Of Elegant Living With KOHLER Kitchen And Bath Water System.
System function information: this reverse osmosis system use composite polypropylene & activated carbon
block and reverse osmosis membrane as purification unit to remove Turbidity, Organic matters, Dissolved
heavy metals and microorganisms from municipal tap water, That will help you to improve drinking water quality.

-3-

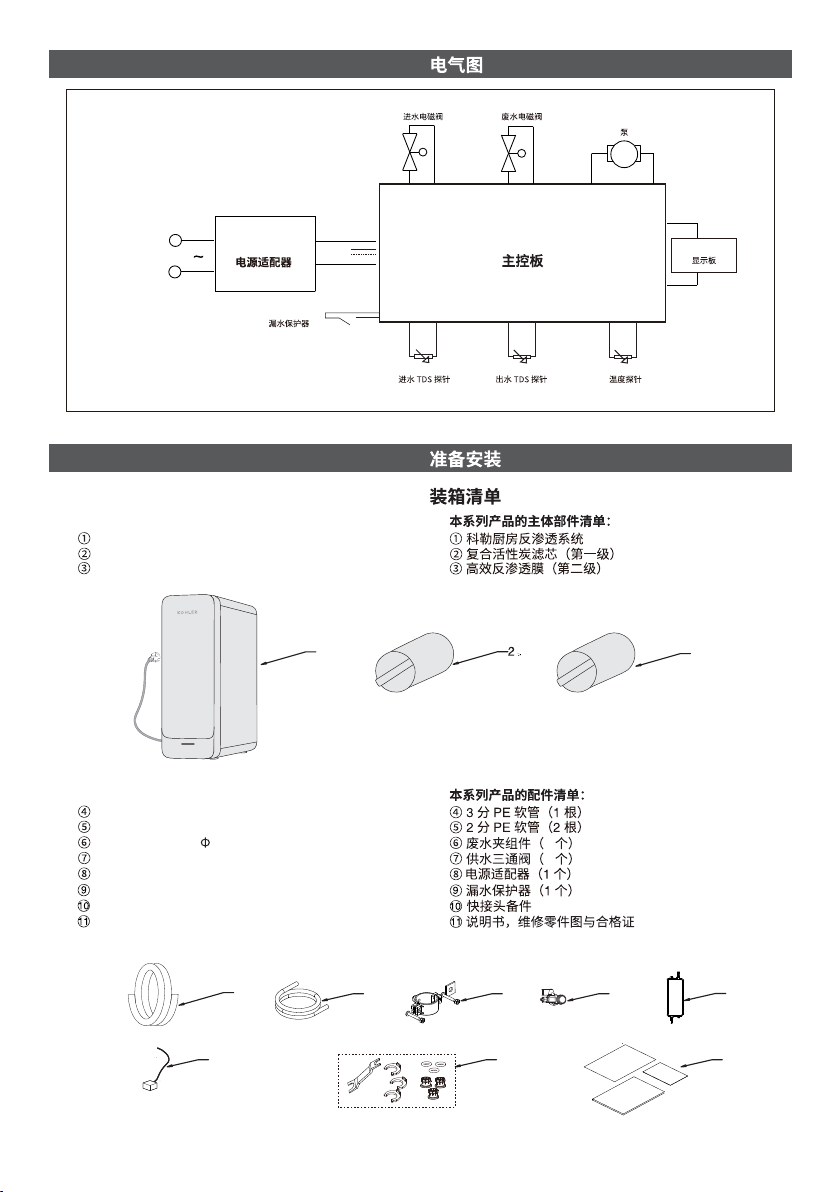

ELECTRICAL DIAGRAM
GETTING STARTED
PACKAGING LIST
Main Parts Included:
PPC Filter
High Efficacy RO Membrane
1461397-T01-B
Pump
Drain Solenoid Valve
Outlet TDS
PCBA Display Board
Inlet Solenoid Valve
220VAC/50HZ 24VDC
Power Adapter
65 7 8
109
Inlet TDS Temperature Sensor
Leakage Detection
1
Installation Parts Included:
1/4" PE Tubing（2 pcs)
Drain Saddle 1/4"- 50mm (1 pcs)
Spare Parts for Connector
Installation Guide&Service Parts Page&Compliance
Certification
Water Supply T - Valve (1 pcs)
Power Adapter (1 pcs)
3
4
3/8" PE Tubing（1 pcs)
I
I
II
II
11
1
1
Leakage Detector (1 pcs)
Kitchen Water Filtration RO system

-4-
Assorted
Screwdrivers
Adjustable
Wrench
Utility Knife or
Tube Cutter
Thread
Sealant Tape Pencil Towels Measure Tape Drill
Tools & Materials required (not included)
INSTALLATION
Figure 1
1
1461397-T01-B
Step 1: Pre-install Supply Water Connection
off.
of tap faucet.
1.
1. Make sure cold water supply line under the sink is turned
2. Disconnect cold water line from threaded stub on bottom
3. Screw the water supply adapter - female threaded stub to
the cold water supply valve male threads as shown.
Hand it tighten and snug with wrench. Screw the female
threaded tap faucet stub to the water supply adapter.
(Figure 1)
2.
3.
1
Step 2: Pre-install Water Filtrattion Faucet
Note: Please pre-install Water filtration faucet of Kohler brand
or other brands on the sink. (Refer to Water filtration Faucet
Installation Manual for tools and detailed installation steps of
water filtration faucet. For water filtration faucet other than
Kohler brand, please make sure the inlet with a 1/4" adapter).
(Figure 2)
2 2
Figure 2
2

-5-
Connections to undersink plumbing
can be made with a saddle clamp
designed to accept the drain tubing from
the RO system. Kohler offers a saddle kit,
PN 1396876, designed for φ50mm undersink
drain plumbing (Figure 4).
Be sure to check and follow local plumbing
codes prior to installation.
Step 3: Making connections
Note: Cut tubing straight with a utility knife, make sure there
are no cuts, nicks, flat spots or sharp edges as figure 4, If any
of these are present, cut the tubing again; Do not kink tubing.
(Figure 4)
4
Note: It may be difficult to release the tubing due to water
pressure when replacing service parts. In this case, please
shut off the cold water supply valve, turn on the Water
filtration faucet to depressurize and then try to release the
tubing again. (Figure 5)
5
Figure 5
5
Correct Cut Incorrect Cut
Figure 4
4
123123
Push tubing in as
far as it can go
Insert the locking clip Pull out locking clip Push in collect to release tubing.
With collect held, pull tubing straight out.
Tubing must be inserted
past O-ring and hit
backstop
To Attach Tubing To Release Tubing
1461397-T01-B
RO
PE
1396876
50mm
40mm
1275904
电源
漏水保护器
Power Cord
Inlet Port
Pure Water
Outlet Port
Leakage Detector
Inlet Water
Tubing
Pure Water Tubing
Drain Water
Tubing
Power Cord
Insert the 3/8" PE tubing in to the system inlet port and the
water supply T-valve for inletwater; Insert the another 1/4"
PE tubing into the system pure water outlet port and the
end of the Water filtration faucet , Then insert the third 1/4”
PE tubing in to the Drain port of RO system and the Drain
line under the sink. (Figure 3)
Figure 3
3
Drain Port
Kitchen Water
Filtration RO System
Leakage Detector

-6-
Step 5: System Start-up
CAUTION! Do not touch the power plug with a wet
hands.
CAUTION! Do not connect and pull out the power plug
repeatedly.
CAUTION! If our product produces a strange noise
or odd smell, immediately unplug from
the electrical outlet and call our Service
Center.
CAUTION! If the power cord from the transformer to
the unit looks or becomes damaged, the
cord and transformer should be replaced
by a Kohler Service Agent or similarly
qualified person in order to avoid a hazard.
1. Connect the system to the Power. 1.
2. New system flush
First step: Force Flush-,the system will do Auto Flush 5
minutes.(Figure 6)
Note: Please confirm supply water inlet pipe & drain pipe
is already connected , the system will automatically start
washing.
Note: The initial product water can't be used as drinking or
cooking water.
1461397-T01-B
Second step: After the brand new /RO-filter replaced
&reset 5 minutes force flush, the system will do Clean flush
with displaying ‘ ’& ‘ ’, and blinking with 10 seconds
Interval repeat short beep till water production started. Open
the water filtration faucet to run pure water at least 30 minutes
and Observe the pure water until it is clear. (Figure 7)
Figure 6
6
Figure 7
7
Note: In order to ensure the drinking water safety,Please
run the system follow this method during initial steps after
the brand new unit installed / RO-filter replaced:
After 35 minutes new system flush, you still need
run pure water 20 minutes and drain out after every 3 hours
stand by, please repeat those procedure 7 times. then you
can use the product water for drinking.
If only replace the PPC filter ,run the pure water 30 minutes.
注意：为了保证RO膜的性能，RO膜出厂时含有保湿剂，为保证
用户的饮水安全，请按照如下方法进行使用操作：
新机器安装或更换新的RO膜后，按机器提示打开净水龙头冲洗
35分钟后，每停机3个小时及以上，打开净水龙头放水冲洗20分
钟为一个循环，重复7个循环及以上。在完成7个循环前，放出的
水可以用于家庭清洗，不建议饮用。
更换非RO滤芯，打开净水龙头冲洗30分钟。
Step 4: Installing Filter Cartridge
Please refer to the following section - REPLACING FILTER
CARTRIDGE.

-7-
Step 6: System Test
Turn off the water production, Keep the cold water
supply valve turned on. Check all fittings and tubings for
leaks. If it leaks, see Troubleshooting.
Complete the installation and cleanup.
1461397-T01-B
当系统脱盐率低于设定标准，在每次制水
30 秒后两级滤芯指示灯会同时闪烁橙色，
如果持续低于标准，两级滤芯指示灯会
持续闪烁橙色并在制水 60 秒后 3 声蜂鸣
提示。
• When the TDS reduction below standard,
the filter life indicator will repeat blink
orange after 30 s running water, if it
continuously below standard, it will repeat
blink orange with 3 beeps after 60 s
running water.
•
• Please call service after 120 s
continuously below standard.
Membrane TDS reduction malfuction
30 S
30秒
30 S
30秒
3 BEEPS
三声短鸣
持续 120s 脱盐率低于标准，请联系售后
人员。
•
• Short press button ‘ ’, unit gives a
beep after release.
，
• Units goes to flush for 30 s .
• After 10 minutes water production, units
goes to flush for 15s.
• After plug in, units goes to flush for 30s.
Short Press
PERFORMANCE INDICATOR
Plug IC self-test Status:
Diagnosis Succeeded when the
user plug power into the
device,the IC self-test will be
automatically conducted.When it
is processing the self-test,the
LED displays looped “single
dash” with one short beep.
IC
Plug in Flush
Flush symbol blinking
• Filter status, the filter life indicator
will repeat blink orange during the unit
water producing after it’s life run
out, it comes with 3 short beeps.
•
• Filter status, the filter life indicator
change to orange on production
when filter life are running low.
•
Filter life expiring Filter life expired
Filter indicator light on
• Open the water filtration faucet,
unit goes to water production.
• No display on the interface when
system standby.
• The Filter indicator light on white when
the filters life are normal.
Standby 待机
Water Production

• Filter status, the filter life indicator
will repeat blink orange during the unit
water producing after it’s life run
out, it comes with 3 short beeps.
•
• Filter status, the filter life indicator
change to orange on production
when filter life are running low.
•
Filter life expiring Filter life expired
-8-1461397-T01-B
Error - Pump Overused
•
Filter ‘I’ Reset
• Long press button ‘ ’>5s , after
releasing the button with a beep
sound, then the Filter ‘ ’ indicator
turn to white, system goes to 5 mins
Force Flush.
Filter ‘II’ Reset
• Long press button ‘ ’>5s , after
releasing the button with a beep
sound, then the Filter ‘ ’ indicator
turn to white, system goes to 5 mins
Force Flush.
Filter ‘I’ Force Flush
• After reset filter I, after the system will do
Auto Flush 5 minutes with Flush symbol
blinking.
Filter ‘II’ Force Flush 第二级滤芯强制冲洗
第一级滤芯强制冲洗
Open Faucet
打开龙头
30分钟
Auto flush
5 minutes
连续制水 35 分钟
Producing more than 35 mins
连续制水 40 分钟
Producing more than 40 mins
Error - Leaking Issue
-
Error - Unusual Pump Start
When the leakiage detector
activates, the leaking issue may
occurs, system will shut down,
the unit will display “ ”
orange and blinking on the interface,
it comes with continue repeating beeps.
please eliminate the leaking issue
follow the Troubleshooting.
当界面三个按键 都显示橙
色并伴随三声鸣叫，按键 将间隔一
秒的重复闪烁，它意味着水泵在短时
间内发生多次高频率的反复启停，机器
将自动停机保护。消除故障方法见常见
问题及故障处理。
the unit will display three buttons
“ ” orange and “ ”
blinking on the interface,it comes
with 3 repeating beeps.it means
the pump high frequency on/off in
short time, the unit goes to forced
shutdown protection. please eliminate
the issue follow the Troubleshooting.
After the uint producing water more than
35 minutes,The ‘ ’ will blink with 10
seconds Interval repeat long beep to
remind you to stop, if not ,it will goes to
overused Protected mode after producing
water more than 40 minutes, all the lights
go to orange and ‘ ’ blink,unit was forced
stop.

- 9 -
INFLUENT WATER CHARACTERISTIC
1461397-T01-B
Total Dissolved Solids <1000 mg/L
6.5 - 8.5
0 - 1 mg/L
0 - 5 NTU
0 - 0.5 mg/L
PH
Chlorine
Turbidity
Hardness Limits of local standard of drinking water quality
Iron
Important Information in Using the System:
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
the system.
• A period of time after the system shutoff, the product
water TDS value will be higher in short time, this is a
normal condition, just to discharge a small amount of
product water;
• Before prolonged periods of non-use (such as during a
vacation) it is recommended that the cold water supply
valve be turned off. If it is more than one week, please
flushthe filter thoroughly for at least 5 minutes before
reusing it;
• If leaks occur and persist on system, please first turn off
the water supply valve. Call Kohler-Free Technical
Support line directly or your local distributor authorized by
Kohler;
• Please replace filter when prompted by the indicator.
OPERATION INSTRUCTIONS
:
• TDS
•
1 5
•
•
Error Reset
Long Press 5 s
长按5秒
Back to normal
• If you need do a error reset after a
trouble remedy, Long press any
button>5s until a beep sound, the
unit goes to power on animation,
then Auto flush 30s.
,
5s,
30s

-10-
REPLACING FILTER CARTRIDGES
Note: Before changing the filter, please make sure the cold
water valve is turned off.
01
Open the Top Cover;
02
Rotate the filter counterclockwise from “ ” to the
another “ ”,then take away the old filter;
03
Aim at the “ ” dot,push the filter into the system,then
rotate clockwise until the filter icon aligned the “ ” to
fix.
04
Follow the filter reset description,reset the filter.
1461397-T01-B
第一级
First stage
第二级
Second stage
Please replace filter when prompted by the indicator
Note: Filtration performance varies depending on local
water quality.
打开机器前盖；
I
II
I
II
I
I
II
I
II
System Model
First Stage
Second Stage
K-32439T-R1-01R
K-32439T-R2-01R
K-32435T-KP040-01R
K-32439T-R1-01R
K-32440T-R2-01R
K-32435T-KP060-01R
High Efficacy Reverse Osmosis Membrane
PPC filter

-11
-
PERFORMANCE DATA SHEET
SKU K-32435T-KP040-01R
Product Name
Model RO400-B 型
Production Rate1
1 1.05 L/min
0.1~0.4 MPa / 5~38 C
5000 L
lnlet Water Requirement Municipal Tap Water
Outlet Water Requirement
In line with the requirements of the
"Sanitary Standard for Hygienic Safety and Function
Evaluation on Treatment Devices of Drinking Water -
Reverse Osmosis Devices" 2001
(2001)
Water Treatment Process Raw Water Composite Polypropylene & Carbon Block Filter
Reverse Osmosis Filter Purified Water
Electrical Requirements/
Electrical Power Consumption
/ /
220V~,50Hz, 58W
Zhejiang Aibote Environmental Protection Technolog Co.,Ltd
Product Standard Q31/0106000060C001
Key Component
PPC Filter
80*255mm，
Membrane Material: Polyamide,1 pcs
107*315mm,2
The others
Filter Element Capacity
Recommendation: about 6-12 months2
Particulate, Chlorine, VOC Reduction)
6-12
Osmosis Membrane
Recommendation: about 2 years2Heavy metal
&Microbes Reduction)
2
1 Production Rating at 40 psi, 25 , 250 mg/L Nacl solution in influent.
2 The Filter performance varies depending on local water quality and product water Consumption.
1 40PSI, 25 250 mg/L Nacl
2
No. 99,Zheng Tong Rd,Kan Dun industial District, Ci Xi, City,
Reverse Osmosis Membrane
Filter Housing Polypropylene， 107*315mm，2 pcs
1461397-T01-B
K-32435T-KP060-01R
RO600-B 型
1.56 L/min
5000 L
220V~,50Hz, 72W
Actual Production Factory & Address
Company Name & Address Kohler China Investment Co.,Ltd
No.158, Jiang Chang San Road, Jingan District, ShangHai, PRC
科勒（中国）投资有限公司 / 上海市静安区市北工业园区江场三路158号
2
2
80*255mm，1 pcs
Inlet Pressure/Operation Temperature
进水压力/工作温度
PPC Filter
PE 塑料软管： TU-2, 4米
集成水路板： 1块
电磁阀：DV24V, 2
净水龙头:铜，1个
PE Tubing: TU-2, 4m
PCB: 1 pcs
Solenoid Valve: DV24V, 2 pcs
Water filtration faucet:Copper,1 pcs

-12-
TROUBLESHOOTING GUIDE
Note: Should service, adjustment or trouble-shooting information be needed which is not covered in the Use Guide, contact
Kohler service and dealer.
WARNING! Electrical shock hazard! Unplug the unit before maintaining.
Problem Possible Cause Remedy
Leakage
Tubing not fully seated in fitting. Check all fittings for tightness.
Tubing abraded in seal area. Recut tubing and redo connection.
System inside leakage. Contact Kohler service.
Filter LEDs will change to
ange with beeps Filter life is running low or out. Replace filter element.
Unit fails to initiate No power supply. Plug in again.
Main PCB failure. Contact Kohler service.
Low pure water flow Filter blockage caused by poor water quality.
Pump or Solenoid Valve failure.
Check and Replace filter.
Contact Kohler service.
1461397-T01-B
Pump Overused > 40 Mins. Do the error reset, or repeat unplug and plug once.Pump Overused .

-13-
DESCRIPTION OF CONTENT OF HAZARDOUS SUBSTANCES IN PRODUCT
The product "service life for environment protection" is 10 years; Kohler Company will specify product service
life based on product characteristics. The product "service life for environment protection" is only effective
when the product is used as described in the product specifications.
10
(Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE)
O O O O
XOOOOO
XOOOOO
OOO OO
SJ/T 11364
O : GB/T 26572
X : GB/T 26572
Reclaim Indication:
When the product exceeds service life or is unable to be used after repair, do not throw the product away in the normal trash. Please
dispose the waste electronic par rprise. Make sure the product is handled properly.
Disposing of product must be done in accordance with the local or national government law.
Part name
Toxic or Hazardous Substance or Elements
Lead (Pb) Mercury (Hg) Cadmium (Cd)
Hexavalent
Chromium
(Cr6+)
Polybrominated
Biphenyls (PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Plastic parts O O O O
PCB X O O O O O
Wire X O O O O O
Package O O O O O
According to SJ/T 11364.
O : Indicates that the substance in the material composition is below the high limits of the current requirements in GB/T 26572.
X : Indicates that at least one of the homogeneous substance in the material composition is below the high limits of the current
requirements in GB/T 26572.
O O
O
O
OO
1461397-T01-B
