Kohler K-78433T-KH200-AF User manual

1301936-T01-A
English page 1-13
14-28
* Cup is not included.
*
KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD,
JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436
( ) 158 200436
Installation Guide
KohlerKitchen WaterFiltering&
HeatingSystem STANCE Series
K-78433T-KH100-CP/K-78433T-KH200-AF
®
©
©
Copyright Kohler China Investment Co., Ltd. 2017
2017

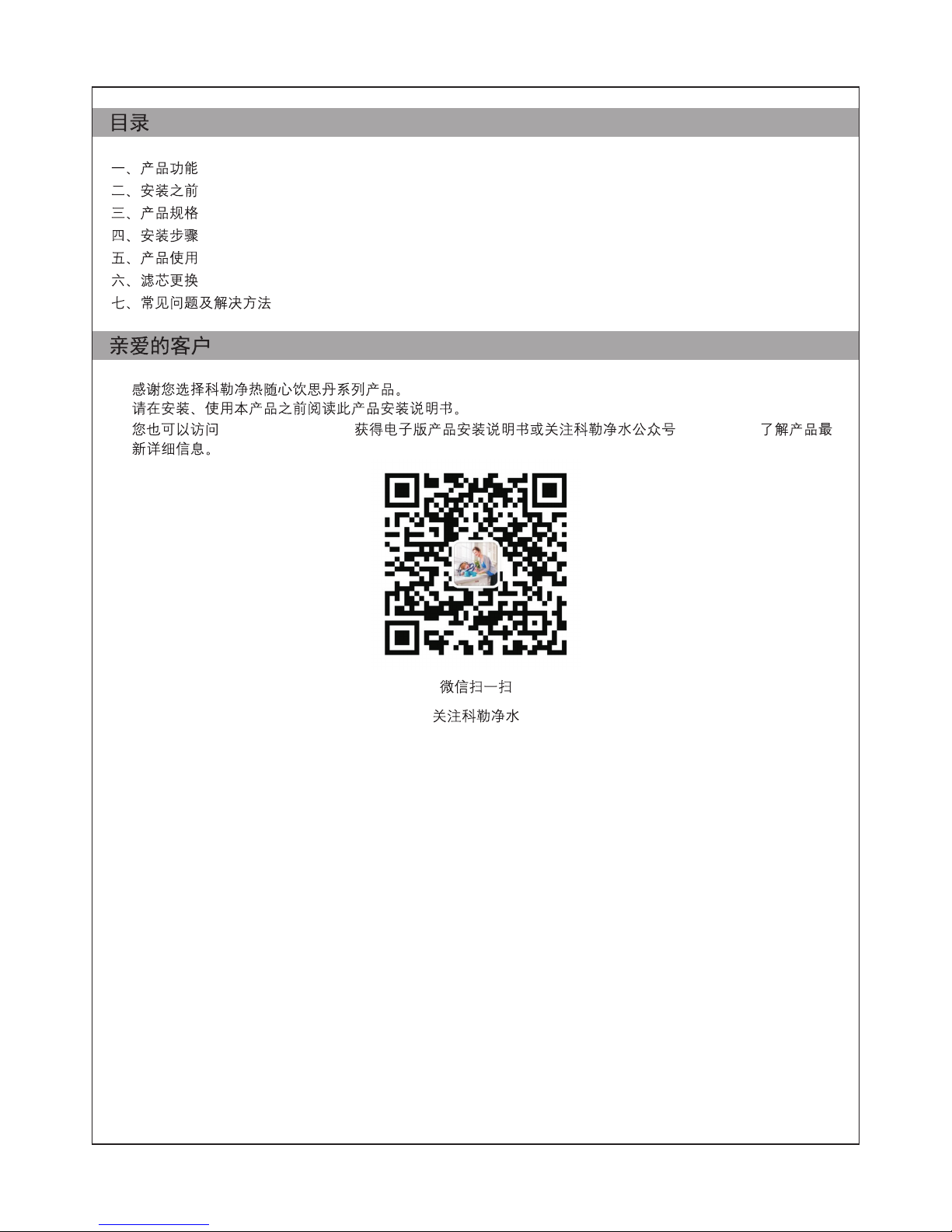

Table ofContents
1. PRODUCT FUNCTION........................................................................................................................................2
2. INTENDED USE ..................................................................................................................................................2
3. PRODUCT SPECIFICATION...............................................................................................................................4
4. INSTALLATION ...................................................................................................................................................5
5. OPERATION INSTRUCTIONS............................................................................................................................8
6. FILTER CARTRIDGE REPLACEMENT ............................................................................................................11
7. TROUBLESHOOTING GUIDE ..........................................................................................................................12
DearCustomer
1
1
1
Thank you for choosing the Kohler Drinking Water Filtration System STANCE Series.
Please read this Installation Guide carefully prior to installation and operation of this system.
You can also visit www.kohler.com.cn for an electronic copy of the Installation Guide or obtain the latest
product information by following the official Kohler Water Filtration wechat account: kohlerwater.
Scan the QR code with WeChat
Follow Kohler Water Filtration
11301936-T01-A

2
1. PRODUCT FUNCTION
1
1
1
1
1
Reverse osmosis water purification
Providing clean and healthy drinking water using reverse osmosis and ultra violet sterilization.
Ultrafast heating
The leading electric heating technology is used to instantly heating the water to the desired temperature
when hot water is needed so as to avoid boiling water several times.
Minimalist design
The minimalist design saves the most possible space of kitchen.
Numerous temperature control and volume modes
The 4 different temperatures and 4 different volume choices satisfy various individual needs such as drinking
water, preparing baby formula, tea, coffee, etc.
Smart indicator, one-key operation
The filter status is indicated by time, volume of flow and TDS 3-D smart indicator.
Filter replacement, child safety lock and memory mode can all be selected with just one touch.
2. INTENDED USE
DANGER!
DANGER is used to indicate a hazardwhich could cause injury ordeathifignored.
This productshould not beoperated by children;people with physical disabilities,sensory
disabilities orintellectual disabilities;orpeople without therelevant experienceorknowledge,unless
asupervisoris present to ensuresafe usageoftheproduct;
Do not use this producttofilterwaterthat is microbiologicallyunsafeorofunknownqualitywithout
adequate disinfection;
Do not touch theplugorthe electricallych
arged partofthis devicewithwet hands;
Unplugtheproduct and makesurethewatersupplyline is turned off priorto installation,inspection
orrepair;
Do not install theproduct nearaheat source;
Do not touch the outlet and drain tubing. Waterat high temperatures hasariskofcausingsevere
burns;
Because the lengthofthedrain tubing, there is a delayafterpressingthe stopbutton,so please
removethecuponlyafterthe outlet watertubingis completelydrained,so as to avoid burns.
Please call theKohlerHotline (800 820 2628 / 400 820 2628) formaintenance and repair. Do not
disassemble theproductyourself.
1
1
1
1
1
1
1
1
"Continuous"purification provides freshand
tastywaterthrough thorough purification
Quick rotary control knobcontrols temperature
and volume to satisfy various needs forwater
Combination ofmultiple kitchen tools
to savecounterspaceinthekitchen
1301936-T01-A

3
CAUTION!
Caution is used when failuretofollowdirections could result in damagetoequipment orproperty.
Makecertain that installation ofthepipes and connectorscomplywithall state and local plumbing
codes.
Installation and maintenanceofthis productmust be done by qualified plumbingprofessionals
designated by dealers authorized by Kohler.
This systemmust be installed in thecold waterpipe line (5-38 ) and thefilteras well as waterpipes
must beprotected fromfreezing, which can cause crackingofthefilterand waterleakage.The
systemmust bedrained and turned off when roomtemperaturedropsbelow5 .
The inlet pressurerangeofthis systemis 0.1 MPa-0.4 MPa.Ifwaterpressureexceeds 0.4 MPa,
installation ofapressurelimitingvalveisrequired.(Please consult plumbingprofessionals ordealers
authorized by Kohlerforwaterpressuremeasurement);
Do not install wherewaterhammerconditions mayoccur. Ifwaterhammerconditions exist,
installation ofawaterhammerarresteris required;
Please install theproductby followingthe instructions on the inlet and drainagepipes.
Turnoff thewatersupplyline and unplugtheproductforprolonged periods ofnon-use;
Ifthe unit producesastrange noise orodd smell,immediatelyunplugthesystemfromthe electrical
outlet and call theKohlerServiceCenter.
Priorto movingthe unit,besuretoturnoff thewatersupplyline and drain thesystem, so as to
prevent waterspillinginto the innercomponents ofthe electronics.
1
1
1
1
1
1
1
1
1
Note
Note is used to emphasize installation,operation ormaintenanceinformation which is important,but
does not present anyhazard.
Please install theproductonaleveled platform;
Do not use filtered waterforthewaterexchangeofan aquariumorafishbowl;
This systemmust onlyb
eoperated indoors,beplaced in a dry and well-ventilated place,and be
protected fromdirect sunlight.
This machine has been washed and cleaned beforeshipping. It is recommended that usersshould
clean thesystemagain before usage,and do not drinkthefirst 2Loffiltered water; When dispensing
water, do not movetheproduct.
1
1
1
1
1301936-T01-A

4
3. PRODUCT SPECIFICATION
SKU K-78433T-KH100-CP K-78433T-KH200-AF
Product Name Kohler Drinking Water Filtration System
STANCE 100- Silver
Kohler Drinking Water Filtration System
STANCE 200- Gold
Product Model Number Kohler KH100 Reverse Osmosis
Drinking Water System
Kohler KH200 Reverse Osmosis
Drinking Water System
Mode of Purification Composite Activated Carbon Filter--Reverse Osmosis Filter--
Odor-Free Carbon Filter--Double Ultraviolet Sterilization Device
Rated Voltage/Frequency 220V~/50HZ
Power consumption 2200 W
Type of Protection against
Electric Shock Type I
Volume of Water Tank 1.5 L
Product Dimensions 188 X 418 X 430 mm (W*D*H)
Net Weight/Total Weight 10kg /12kg
Requirements for
Inlet Pressure 0.1~0.4 MPa (14.5 psi~ 60 psi)
Working Pressure 0.4~0.7 MPa (60 psi~ 101 psi)
Working Temperature 5~38 (41-100 )
Requirements for
inlet water source Municipal Water Supply
Rated Flow Rate 0.13 L/min 1
Daily Production Rate
Hot Water Production Rate
50 gpd (about 190 L/day)
8L/h (>85 )
Rated Capacity 3000 L
Recovery Rate 1:2 2
Grade I Composite
Activated Carbon Filter
Changing the filter every 9 months or after processing 4000 L
(chlorine reduction) of water is recommended 3
High Efficacy Reverse
Osmosis Filter Changing the filter every 2 years is recommended 3
Odor-Free Carbon Filter Changing the filter every 12 months or after processing 2000 L
(chlorine reduction) of water is recommended 3
Responsible Provider KOHLER CHINA INVESTMENT CO., LTD
Product Implementation
Standard Number Q31/0108000050C001
Health Certificate
Document Number Min Wei Shuei Zi (2016) No. 0114
Note:The aforementioned data are collected under standard laboratory test conditions.
1. Decreased water pressure or decreased temperature would reduce water production (flow rate of water
production) .
Test conditions, with a pressure at 40 psi, 25 , 250 mg/L NaCl solution influent;
2. The recovery rate may vary with pressure or temperature;
3. The filter performance varies depending on local water quality and water consumption.
1301936-T01-A

5
4. INSTALLATION

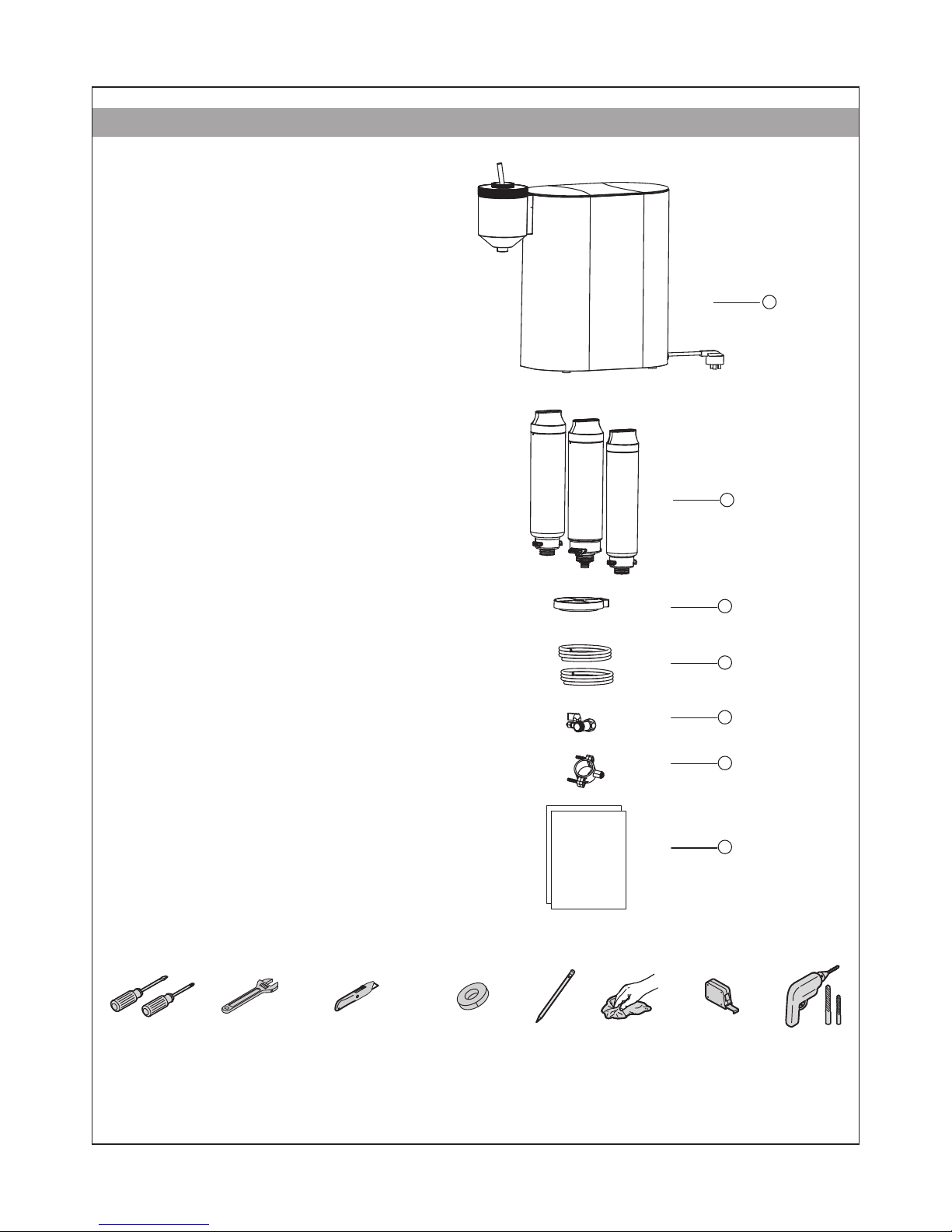

PackagingList
1. Main Body: Main Body, Cover 2. 3 filters per set
3. Drip Tray
4. Inlet tubing, outlet tubing (1/4")
5. Inlet water supply adapter
6. Drain Saddle Clamp Kit
7. Installation Guide & Service Parts Page &
Compliance Certification
Required Tools &Materials (not included)
Assorted
Screwdrivers
Adjustable
Wrench
Utility Knife or
Tube cutter
Thread
Sealant Tape
Pencil Towels Measure Tape Drill
2
3
4
5
6
7
1
1301936-T01-A

6

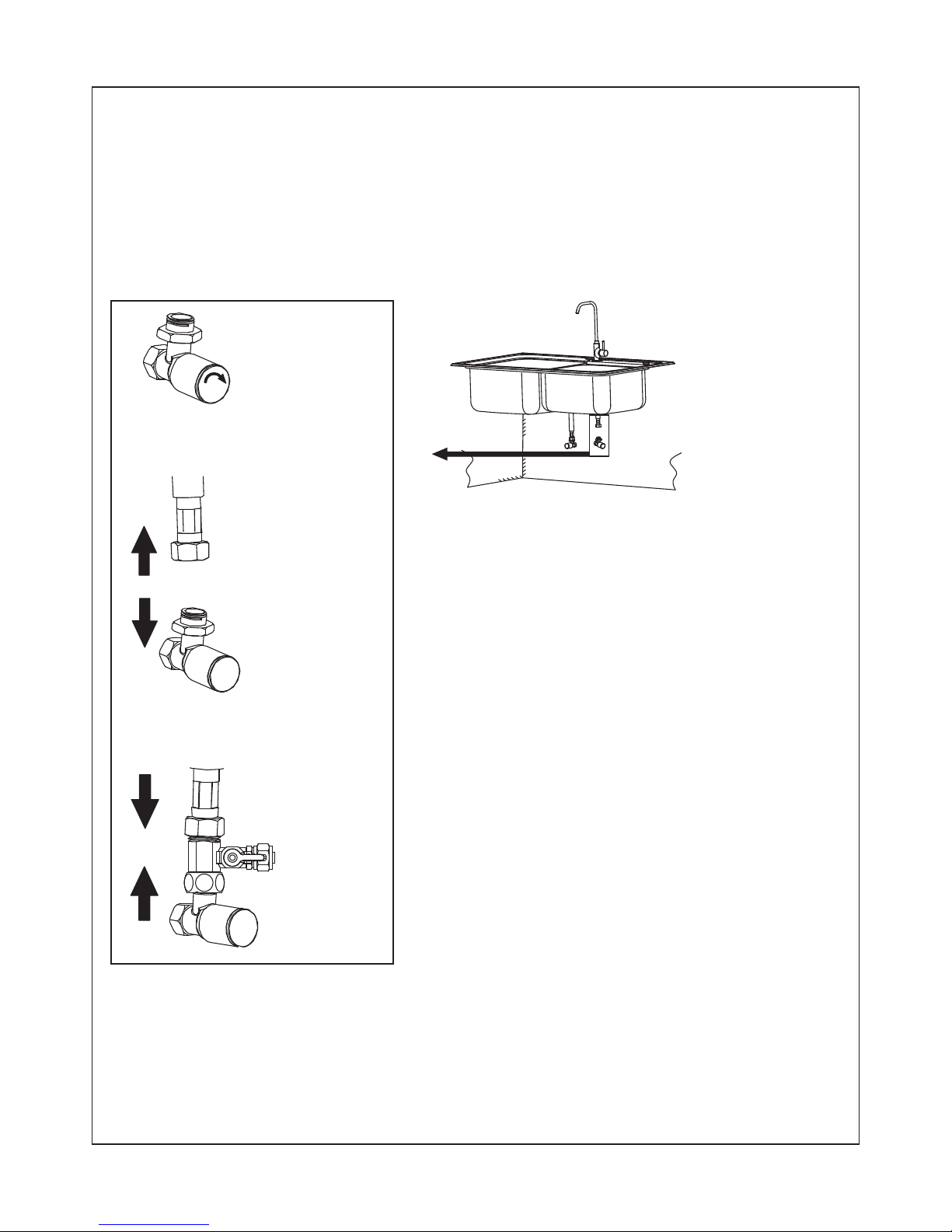

Step1:Makinginlet connections
1. Turn off the cold water supply valve and drain the water inside the faucet as much as possible; (Figure 1)
2. Disconnect the cold water line from the threaded stub on the bottom of the tap faucet; (Figure 2)
3. Screw the water supply adapter - female threaded stub to the cold water supply valve's male threads. Tighten
it with a wrench. Screw the female threaded tap faucet stub to the water supply adapter with a wrench. (Figure
3)
4. Connect one end of the 1/4" plastic tubing to the inlet water supply adapter, and connect the other end of the
1/4" plastic tubing to the filter inlet port.
Cold Water Supply Valve
Cold Water Supply Valve
Fig.#1
Fig.#2
Fig.#3
Stub of Tap Faucet
Stub of Tap Faucet
Water Supply Adapter
1301936-T01-A

Step2:Makingdrain connections
1. Affix a saddle clamp onto the drain tubing and insert the 1/4" drain tubing. (Figure 4)
2. Connect the other end of the 1/4" drain tubing to the drain port.
Step3:Installingfiltercartridges
1. Remove and discard the packaging and take off the dustproof cap.
2. Place the filter into the filter bucket according to the corresponding steps, rotate the filter by 90 degrees, and
make sure the filter is rotated to the correct position by matching the marks on the Top.
Note:
1
1
Before installing or replacing filters, please make sure the cold water supply valve and power are turned off.
A bump to the touch indicates the filter is in place. Confirm the filter rubber indicator is in a vertical position.
If it is not installed properly, the filter may leak water.
7
Tap faucet
1/4" Drain Plastic Tubing
1/4" Inlet Plastic Tubing
Cold Water Supply Valve
Hot water supply valve
Fig.#4
1301936-T01-A

Step4:Start-upand operation
1. Open the cold water supply valve and check if the tubing is leaking. If not, proceed to the next step;
2. Turn on the power;
3. When the system is turned on for the first time or after filter replacement, it will automatically start washout
and tubing cleaning procedures, which will last about 30 minutes.
4. After the washout procedure is completed, produce about 1 of purified water each in the normal temperature
and high temperature modes, to determine whether the system is operating normally.
5. If the system work normally, simply attach the water collection disc to the water collection site (with the built-in
magnet) on the front of the unit to complete installation.
8
DANGER!
1
1
Do not touch theplugorthe electricallycharged partofthis devicewithwet hands.
Ifthe unit producesastrange noise orodd smell,immediatelyunplugthesystemfromthe electrical
outlet and call theKohlerServiceCenter.
Note:
1
1
Thesystemwill not beoperable immediatelyafterstartingup, because it is performingthe self-
cleaningprocedure.Please bepatient.
The unit is washed beforeshippingand thewaterproduced initially(approximately1liter) cannot be
used fordrinking.
5. OPERATION INSTRUCTIONS
Product operation is divided into two parts:
1 Primary controls,
2 Inner control panel.
1301936-T01-A

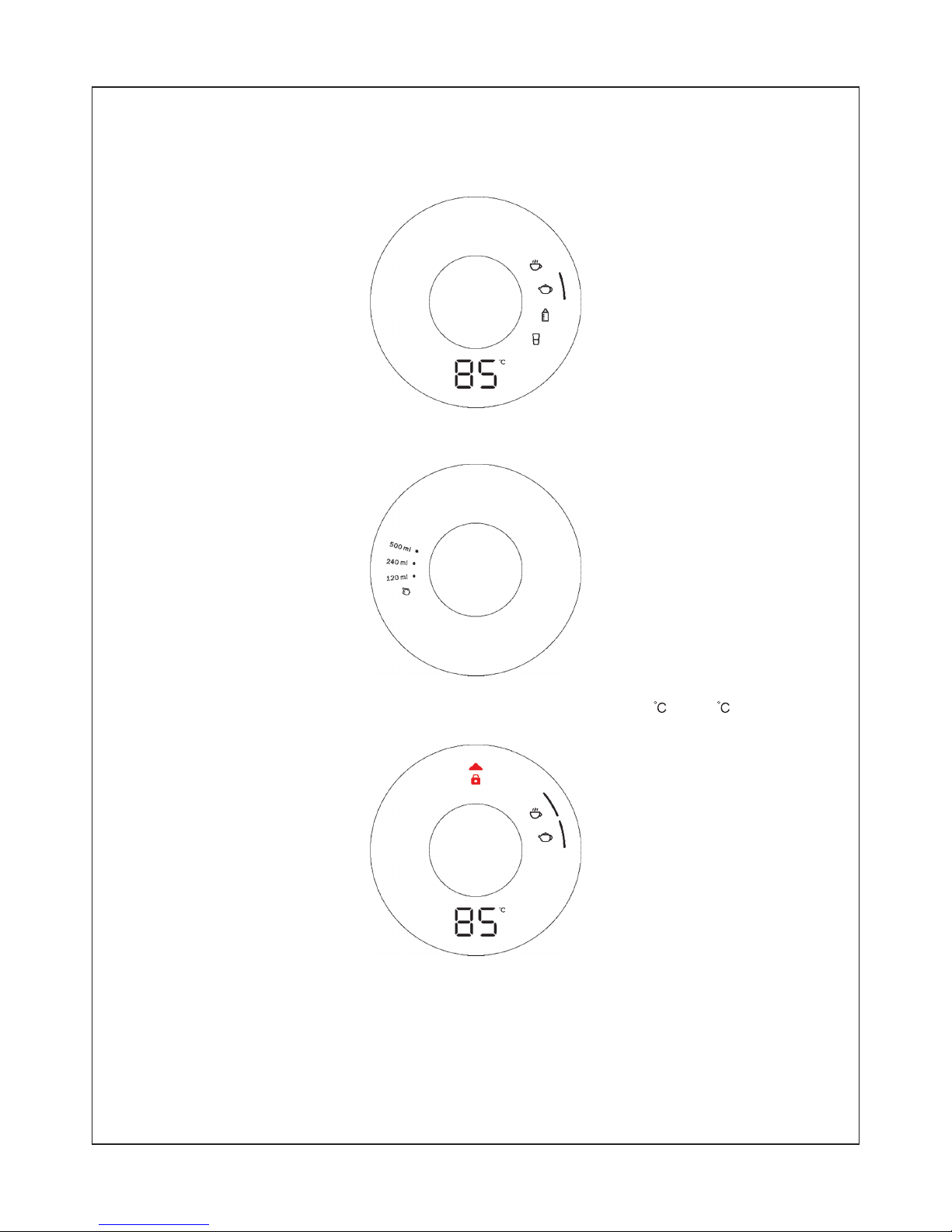

a. When selecting temperature modes, the display panel will show the pre-set
temperature of each mode.
When dispensing water, the display panel will show the actual temperature of the water.
(Note: There will be slight deviations between the displayed water temperature and the pre-set temperature)
Temperature indicator:
b. See the light indicator of the water volume knob.Watervolume indicator:
c. When selecting hot water (hot water refers to the 85 and 95 levels), the child
safety lock will blink with two short beeps if the lock is not turned off.
Child safetylock indicator:
91301936-T01-A

d. The filter is indicated by a red light
Alert: The red light of the filter indicator stays on
Expiration: The red light of the filter indicator is blinking
Filterindicator:
e. The system will display a rough estimate of the remaining time for
washout when in the self-cleaning state.
Filter washout usually takes: 20 minutes
The time for water tank cleaning is usually: 12 minutes
Self-cleaningcountdownreminder:
F. The reminder indicates the water tank contains insufficient
water, so please wait for the system to produce more water. Water will be filled during the 99-second
countdown.
Watertankinsufficient waterfeed reminder:
g. The child safety lock mode is on when the light is on, and the child safety
lock mode is off when the light is off.
h. The memory mode is on when the light is on, and the memory mode is off when
the light is off.
Child safetylock mode reminder:
Memory mode reminder:
10
1301936-T01-A

Please carefullyread and understand thefollowingsupplementary information on theproduct
1. Start-up
The system will proceed to the three-stage filter washout and water production after turning on the machine
for the first time. Please be patient and wait for about 30 minutes. (The waiting period varies depending on
locations and temperatures)
2. Water tank washout function
Within 5 seconds after the unit is turned on, pull the stick back to cancel or activate the washout function after
each start-up.
(The preset mode of this system is draining the water tank followed by washout and water feeding)
3. 36 hours washout
This system will drain the water tank and perform washout & water feeding if it remains in a non-operation
mode for 36 hours.
4. 72 hours standby
This system will automatically enter sleep mode if it remains in a non-operation mode for 72 hours. Press any
button to activate the system.
Note: Activating the system at this point will start the self-cleaning procedure. Please wait for the self-cleaning
countdown.
5. Ultraviolet Indicator
When the ultraviolet indicator light is on, it means the UV light is in the working state.
The UV light will be turned on every 4 hours for sterilization.
Please replace filters periodically when prompted by the indicator.
The corresponding filter model numbers are as follows:
6. FILTER CARTRIDGE REPLACEMENT
System Model K-78433T-KH100-CP K-78433T-KH200-AF Expected replacement Cycle
First Stage
Stance-Composite
Activated Carbon Filter
9 month or
4000L
24 month
12 month or
2000L
Second Stage Filter
Stance-High Efficacy
Reverse Osmosis Filter
Third Stage Filter
Stance-Odor-Free
Carbon Filter
K-78435T-R1-01R
K-78435T-R2-01R
K-78435T-R3-01R
11 1301936-T01-A

Stepstoreplacefilterareasfollows:
1. Turn off the water supply and power;
2. Rotate the filter by 90 degrees and remove the old filter;
3. Remove the filter packaging and take off the dustproof cap.
Place the filter into the filter bucket according to the corresponding steps, rotate the filter by 90 degrees, and
make sure the filter is rotated to the correct position.
4. Turn on the water supply and power;
5. Press the Reset Button corresponding to the specific filter for 5 seconds;
6. The system will enter the self-cleaning mode- the white light that corresponds to filter replacement will blink.
Wait for about 20 minutes for filter washout;
7. Wait until the filter light becomes steady white before using the system.
7. TROUBLESHOOTINGGUIDE
1
2
3
4
Unit noise.
The unit will produce noise in non-operation
mode.
The unit is not in the operation mode and the
display shows a countdown timer.
The display shows a red filter indicator.
No display on the unit.
This is normal.
While in non-operation mode, the unit will
produce purified water to fill the water tank when
the inner water tank is not full.
In addition, the unit will automatically wash the
water tank, produce water and fill the tank if
remains in the non-operation mode for 36 hours.
1. When there is insufficient water in the water
tank of the unit, then it is necessary to wait for
the unit to take in more water (about 99
seconds).
2. Filter washout countdown
(about 20 minutes)
3. Water tank cleaning countdown
(about 12 minutes)
This is a reminder for filter change.
Please replace filters when prompted by the
indicator.
The unit will enter sleep mode if it remains in the
non-operation mode for 72 hours. Press any key
to activate the system.
Note: Activating the system at this point will start
the self-cleaning procedure. Please wait for the
self-cleaning countdown.
Attention:Thefollowingconditions are not productmalfunctions.
No. QUESTION EXPLAIN
12
1301936-T01-A

Definition of
malfunction
Displayofthe
malfunction code Possible cause Possible Solution
E01
E02
E3
E4
E5
E6
E7
E8
E9
EA
Insufficient water
feed
Leaking issue
Inlet water
temperature
malfunction
Unusual start of the low pressure switch
Short circuit/open circuit of the water outlet
temperature sensor
Short circuit/open circuit of the water inlet
temperature sensor
Short circuit/open circuit of the over-
temperature protection sensor
Heating element failure
Connection failure
Liquid level sensor failure
Insufficient feed water
pressure.
Detection of leaks by the
leaking sensor.
If the inlet water
temperature is lower than
5 or higher than 40 ,
then there will be heating.
The water inlet
electromagnetic valve
(always-open type) will be
turned off and an alarm
will be sounded.
Check and make sure the household water
supply is turned on.
Check if the household water pressure
meets the requirement of >0.1MPa
Shut off the electrical power.
Check if the unit is leaking, Check the
surroundings and bottom of the machine
for water marks.
Wipe dry the water marks and water on the
leaking sensor located at the bottom of the
unit.
Heating will be automatically restored when
the water temperature returns to the
normal range between 5 and 40 .
Call the Kohler Service Center to solve the
issue.
TroubleshootingGuide
DANGER!
Electricshock hazard!Unplugthe unit beforeperformingserviceormaintenance.
13 1301936-T01-A

.........................................................................................................................................................15
.........................................................................................................................................................15
.........................................................................................................................................................17
.........................................................................................................................................................20
.........................................................................................................................................................23
.........................................................................................................................................................26
.......................................................................................................................................27
1
1
1www.kohler.com.cn [kohlerwater]
14
1301936-T01-A

1
1
1
1
1
UV
44
TDS
1
1
1
1
1
1
1
1
1
1(800 820 2628 / 400 820 2628)
15 1301936-T01-A

16
1301936-T01-A
!
1
1
1
1
1
1
1
1
1
(5~38 ) 5
0.1MPa~0.4MPa 0.4MPa (
)
1
1
1
1
1
1
2L

17 1301936-T01-A
SKU K-78433T-KH100-CP K-78433T-KH200-AF
100- 200-
KH100 KH200
/220V~/50HZ
2200 W
I
1.5 L
188X418X430 ( X X )
/10kg /12kg
0.1~0.4 MPa (14.5 psi~ 60 psi)
0.4~0.7 MPa (60 psi~ 101 psi)
5~38 (41-100 )
--
(2001)
0.13 L/min 1
50 gpd ( 190 / )
8L/h (>85 )
3000 L
1:2 2
9 4000L 3
23
12 2000L 3
()
302-302 307-308
Q31/0108000050C001
(2016) 0114
1 25 40psi 250mg/L Nacl
RO
2
3

18
1301936-T01-A
*
188
418
430
360
TDS
RO
RO
U
V
U
V
N
T
C
TDS
M
M

19 1301936-T01-A
220VAC
/50HZ
B
C
TDS
NTC
UV
A
T
D
S
RO
UV
