Kohler K-24210T-KT300-01R User manual

Installation Guide
产品安装使用说明书
KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD,
JINGAN DISTRICT, SHANGHAI, PRC POST CODE: 200436
科勒（中国）投资有限公司 上海市静安区江场三路158号邮编：200436
1400467-T01-C
Aquifer Water Filtration System
科勒厨房净饮机奥珂芬系列
K-24210T-KT300-01R/K-24210T-KT310-01R
* 使用产品前请仔细阅读本说明书并且严格按照说明书操作，并请妥善保管以备需要 *
FREE SERVICE HOT LINE: 800 820 2628 MOBILE:[phone] (China area only)
免费服务热线：800 820 2628 手机用户：400 820 2628（仅限中国地区）

BEFORE YOU BEGIN 安装之前

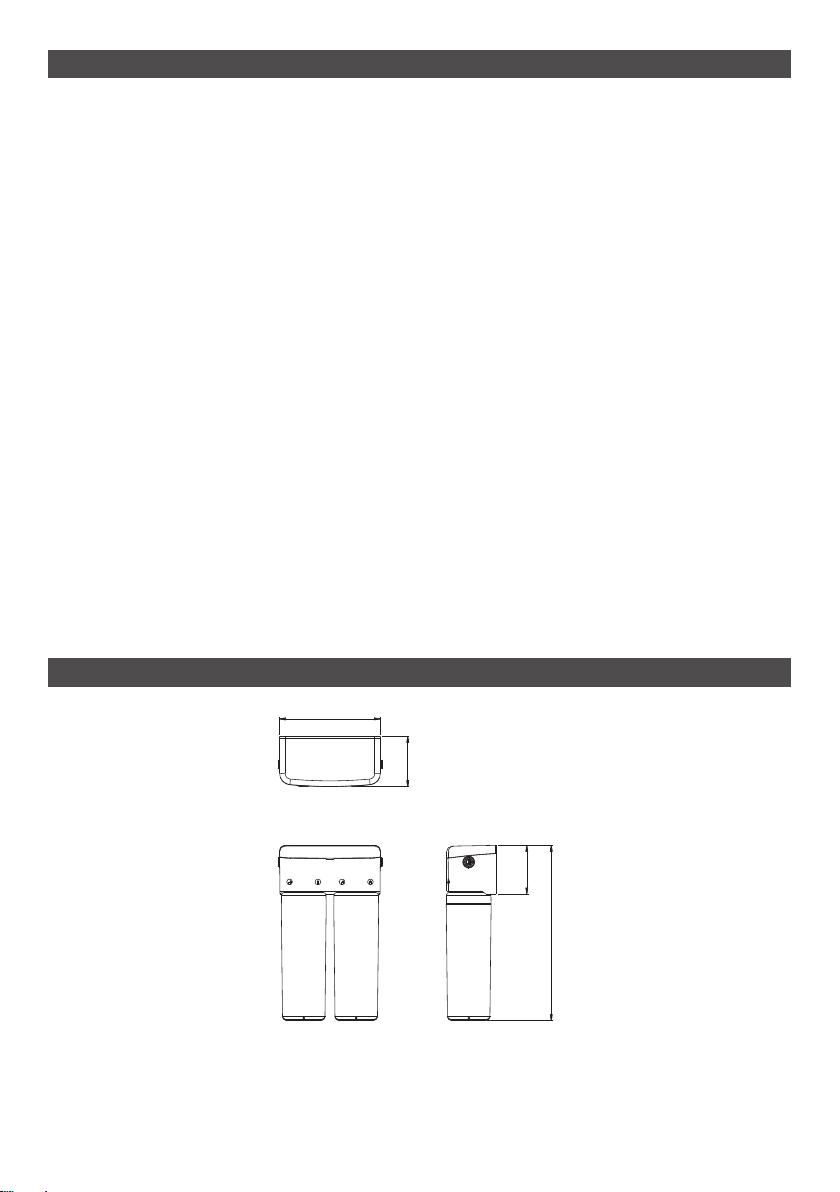

ROUGHING-IN 尺寸图
This document contains important information and details
concerning product installation, operation and maintenance.
Please read it carefully prior to installation and obey all the
instructions during operation.
•Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system.
•Make certain that installation and connectors must
comply with local plumbing codes.
•Installation and maintenance must be done by qualified
plumbing professionals authorized by Kohler.
•For cold water use only (Temperature Range: 5-38℃);
This filter must be protected from freezing, which can
cause cracking of the filter and water leakage. Drain
filter when room temperature drops below 5℃.
•Pressure Range: 100-400 kPa, If water pressure
exceeds 400 kPa, please install pressure limiting valve.
Otherwise, the ultrafiltration membrane may not achieve
best filtration effect due to long time overpressure.
(Please consult plumbing professionals authorized by
Kohler for water pressure measurement).
• Do not install where water hammer conditions may
occur. If water hammer conditions exist you must install
a water hammer arrester.
• Do not install in direct sunlight outdoors or where
blowtorch or other high temperature sources are nearby.
• The filter must be installed with the inlet, outlet and self-
cleaning ports as labeled. Make sure not to reverse
connections.
• Before your installation make sure cold water valve is
turned off under the sink.
• Water filtration faucet is not supplied with the product.
you will need to purchase a water filtration faucet with a
3/8" adapter.
UNIT: mm
单位：毫米
Reference Value
参考值
89
178
85
309
Kohler reserves the right to change marked dimensions without prior notice.
科勒公司保留随时变更图中标示尺寸的权利，无需另行通知。
-1-
1400467-T01-C
Refer to Service Parts Page
for the Exploded Diagram.
结构示意请参见维修零件图。
© Copyright Kohler China Investment Co., Ltd.
© 版权为科勒（中国）投资有限公司所有
此说明书包括重要的安装、使用、维护方面的内容及细节，请
在安装和使用本系统之前请阅读并遵守此用户安装使用说明。
•本系统禁止过滤有微生物污染或未经消毒的水质不明的水。
•确保所有管路安装过程及连接件符合当地管道施工标准规
范。
•本系统必须委托科勒授权的专业的水管安装维护人员进行
安装及维护。
•本系统必须安装在冷水管道（工作水温为 5~38 ℃）；当室
温低于 5℃时应该检查水路，并排干净水器停用，防止水
在净水器内部结冰膨胀。
•本系统最佳过滤效果工作水压为 0.1~0.4MPa，如果安装处
水压超过 0.4MPa，必须加装减压阀咦防止净水器超滤膜
滤芯长时间受压过大而过滤效果下降；（测量水压请咨询科
勒授权专业水管维护人员。
•本系统应尽量避免长期安装在有强水锤的地方，如存在水
锤现象必要时请加装水锤消除器。
•本系统禁止放置在阳光直射、室外或高温（喷灯等）作业
器材周围。
•请按照进出水及自清洗口方向标识进行净水器安装。
•安装前请确保关闭橱盆下的冷水供水阀。
•本系统无专配净水龙头，请消费者自行选购净水龙头，并
保证净水龙头进水口连接尺寸为 3分管快接接头。

-2-
1400467-T01-C
GETTING STARTED 准备安装

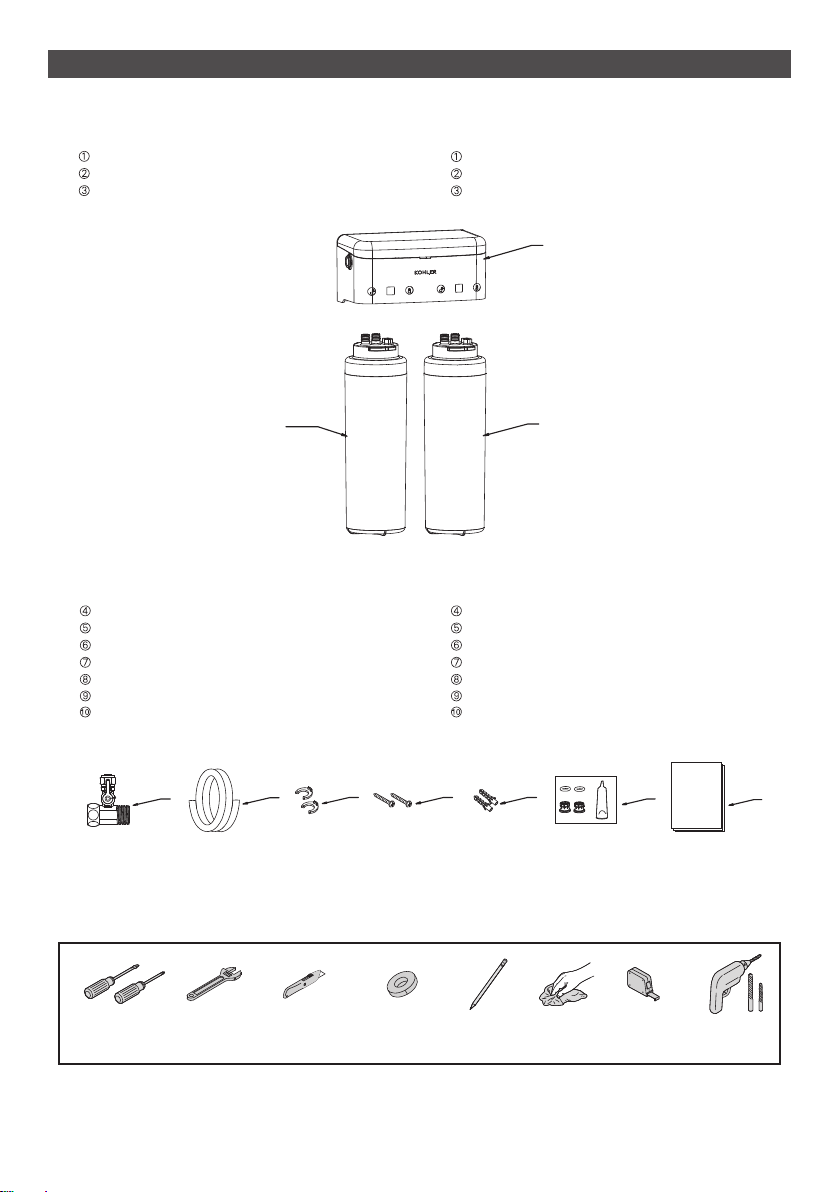

Main Base
Filter Cartridge Level1
Filter Cartridge Level2
Packaging List
Main Parts Included:
装箱清单
本系列产品的主体部件清单：
所备工具及物料（自备）
主体基座
第一级滤芯
第二级滤芯
Other Parts Included:
Water SupplyT-Valve (1 pcs)
3/8" PE Tubing (2 pcs)
Pipe Clip (2 pcs)
Screw (2 pcs)
Plastic Expand Wall Plug (2 pcs)
Spare Connector Acessories (1 bag)
Installation Guide & Service Parts Page
&Compliance Certification
本系列产品的配件清单：
供水三通阀（1个）
3分PE 软管（2根）
快接管插片（2个）
螺丝（2个）
入墙膨胀管（2个）
备用接头配件包（1袋）
说明书，维修零件图与合格证
Tools &materiel required (not included)
Assorted
Screwdrivers
各式螺丝刀
UtilityKnifeor
Tubecutter
美工刀或切管器
Thread
Sealant Tape
食品级生胶带
Towels
擦布
Pencil
铅笔
Adjustable
Wrench
活动扳钳
Measure Tape
卷尺
Drill
电钻
23
1
4 7 85 6 9 10

-3-
1400467-T01-C
INSTALLATION 安装步骤
Step 1 Pre-install Water Filtrattion Faucet
Note: Please pre-install Water filtration faucet of Kohler brand
or other brands on the sink. (Refer to Water filtration Faucet
Installation Manual for tools and detailed installation steps of
water filtration faucet. For water filtration faucet other than
Kohler brand, please make sure the inlet with a 3/8" adapter).
(Figure 1)
1. Make sure cold water supply line under the sink is turned
off.
2. Disconnect cold water line from threaded stub on bottom
of tap faucet.
3. Screw the water supply adapter - female threaded stub to
the cold water supply valve male threads as shown.
Hand it tighten and snug with wrench. Screw the female
threaded tap faucet stub to the water supply adapter.
(Figure 2)
1. 关闭原有的冷水供水阀并确认。
2. 已将已连接的自来水龙头进水管螺纹端口从冷水供水阀上
拆开。
3. 将三通转接内螺纹端口接到冷水供水阀外螺纹上，用活动
扳手拧紧；再将自来水龙头进水管内螺纹接头接到三通转
接外螺纹接口，用活动扳手拧紧。（图 2）
步骤一：选配净水龙头及接头安装
注意：请使用者确保在橱盆台面上安装固定号科勒牌或者自
行选配的净水龙头；（净水龙头安装所需工具及步骤请参照净
水龙头安装使用说明书，如非科勒牌的净水龙头，请确保净
水龙头连接口为 3分管快接接头。）（图 1）
Figure 1
图 1
Figure 2
图 2

-4-
1400467-T01-C
Step 2 Mount the Filtration System
•Align the mounting holes of the filter head at the
determined mounting loaction (Filter bottom from
ground should be more than 51mm), mark it with a
permanent marker ; predrill the mounting holes,
partially thread the Screws into the cabinet wall,
and slide the filter head over the Screws, then
tighten it to secure. (Figure 3)
步骤二：把机器挂墙
•先确定机头的固定位置（按整机底部距离地面至
少51mm），用记号笔标记打孔位置，预先在位
置上钻孔，将螺丝部分旋入橱柜门，挂上机头，
并把螺丝旋紧固定。（图 3）
Step 3 Making connections
•Insert the 3/8" PE tubing in to the system inlet port
and the water supply T-valve for inletwater; Insert
the another 3/8" PE tubing into the filter outlet port
and the end of the Water filtration faucet. (Figure 4)
步骤三：管路连接
•用 PE 软管连接进水球阀和设备进水口，另一根
PE 软管连接设备出水口和净水龙头接头端。
（图 4）
Note: Cut tubing straight with a utility knife, make sure
there are no cuts, nicks, flat spots or sharp edges as
figure 4, If any of these are present, cut the tubing
again; Do not kink tubing. (Figure5)
注意：用切割器切软管时切口应垂直管轴无毛刺，如
管口粗糙不平请重新切割；不要弯折软管。（图5）
Note: It may be difficult to release the tubing due to
water pressure when replacing service parts. In this
case, please shut off the cold water supply valve, turn
on the Water filtration faucet to depressurize and then
try to release the tubing again. (Figure 6)
注意：在更换配件需拔出软管时，系统通水后因水
压原因拔管比较困难，可以把冷水阀门关闭，净水
龙头打开泄压在拔出软管。（图6）
(> 51 mm)
Figure 3
图 3
Figure 4
图 4
Figure 6
图 6
Figure 5
图 5
Correct Cut
正确切管 Incorrect Cut
不正确切管
To Release Tubing
拔出软管
2
Insert the clip
插入管夹
Pull out clip
拔出管夹
3
1
123
To Attach Tubing
插管
Push tubing in as far
as it can go
插入软管一直到底
Tubing must be inserted past
O-ring and hit backstop
确保软管通过O型圈，插到底
Push in collect to release tubing.
With collect held, pull tubing straight out.
按压卡环同时向外拔出软管
进水管
Inlet Tubing
冷水供水阀
Cold Water Supply valve
净水龙头
Water Filtration Faucet
供水三通阀
Water Supply T-valve
净水管
Pure water Tubing

-5-
1400467-T01-C
Figure 7
图 7

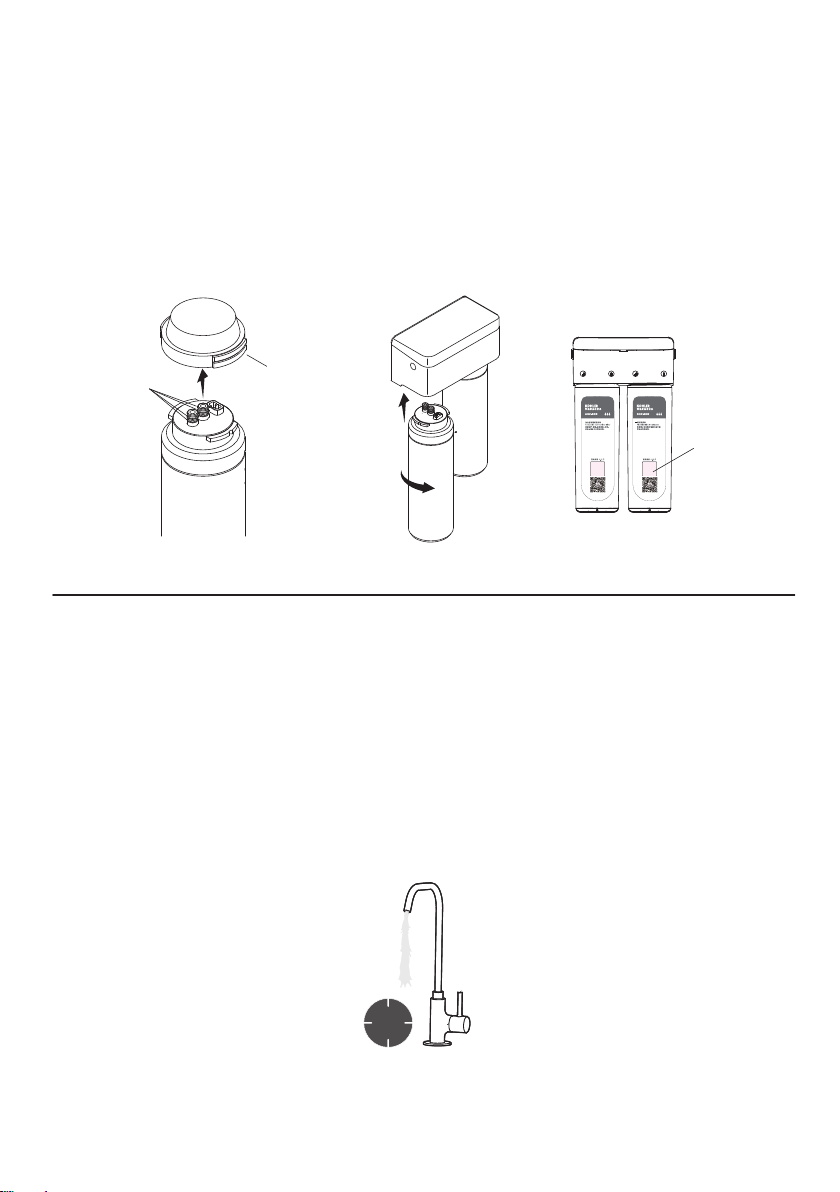

Step 4 Installing or Replacing Filter Cartridge
NOTE: Before changing the filter, please make sure the cold
water valve is turned off.
•Remove and discard the dustproof cap (sanitary
protective cap) from the cartridge;
•Verify both O-Rings are present and positioned correctly
in the grooves;
•Push the filter cartridge Leve1 (Align the Color matching
icon) into the filter base on the left side and the filter
cartridge Leve2 (Align the Color matching icon) on the
right side, then turn cartridge clockwise until it fully
installed. (Figure 7)
步骤四：安装更换两级滤芯
注意：每次更换滤芯之前，请关闭冷水进水阀。
•去掉滤芯头部的防尘盖。
•检查所有涉水部件的 O型圈无缺失脱落且在原有位置。
•把第一级和第二级滤根据本体上的颜色分别装入其左侧和
右侧，顺时针旋转直到到位。（图 7）
Step 5 Test System
•Turn on the water filtration faucet.
•Slowly turn on the cold water supply valve, Run water to
flush trapped air.
NOTE: It is normal for there to be Residual air in the
System causing bubbles (temporary cloudiness) in the
water.
•Turn on the cold water supply valve and the water
filtration faucet, run water for a minimum of 10 minutes to
flush, The system installation is now complete and ready
to serve filtered water.
•Turn off the water filtration faucet, Keep the cold water
supply valve turned on for 15 minutes. Check all fittings
and tubings for leaks. If it leaks, see Troubleshooting.
• Complete the installation and cleanup.
步骤五：系统测试
• 打开净水龙头。
• 缓慢开启冷水进水阀门，排出空气。
注意：出水中有一些气泡引起的（暂时的暗色）是由于管
路中的残余空气引起的正常现象。
• 打开净水龙头，持续冲水 30 分钟后，本系统安装完成可
正常使用。
• 关闭净水龙头后，保持冷水阀门打开，等待15分钟，管擦
所有连接部件及管件有没有漏水情况，如有漏水情况，查
看常见故障排除表。
• 完成安装并清理现场。
Cap
防尘帽
O-Rings
O型圈
Write the date
on the label.
更换滤芯后请在
此处写上更换日期
30min
Flush
冲洗

-6-
1400467-T01-C
TROUBLE SHOOTING GUIDE
常见问题及处理
No. Symptom
1
2
Probable Cause Solution
Leaks at quick connect fittings.
Tubing is not pushed to the backstop.
Tubing is not straight and smooth.
Reinsert tubing into push-in fitting as
far as it will go.
Recut tubing.
4
5
6
7
No water flow from the water
filtration faucet.
Water flow from the water filtration
faucet becomes small.
Filtered water tastes strange or like
chlorine bleach.
The main water line valve is closed.
The tubing is crimped or sharp
bended.
The filtration cartridge is blocked.
Service life of carbon block cartridge
runs out.
Check and open it.
Keep the tubing straight.
Replace the cartridge.
Replace the cartridge.
3Leaks at quick tubing. Tubing is cracke or scratched Simply cut that portion away and
reinsert tubing into push-in fitting.
1
2
4
5
6
7
3
序号 故障现象 故障原因 解决办法
把软管重新插到底。
把裂开部分切掉重新插入快速接头。
更换滤芯。
更换滤芯。
把软管放直。
打开进水阀。
重新切平。
软管未插紧。
管子端口有毛刺或未切平。
软管有刮伤或裂痕。
进水阀关闭。
软管被弯折。
滤芯长时间堵塞。
活性炭滤芯失效。
快速接头漏水。
软管漏水。
净水龙头不出水。
净水龙头出水变很细小。
经过滤后的水有氯味或者口感有异味。
OPERATION INSTRUCTIONS 使用说明
Important Information in Using the System:
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after
thesystem.
•Before prolonged periods of non-use (suchasduringa
vacation) it is recommended that the cold water supply
valve be turned off. If it is more than one week, please
flushthe filter thoroughly for at least 5 minutes before
reusing it;
•If leaks occur and persist on system, please first turn off
the water supply valve. Call Kohler-Free Technical
Support line directly or your local distributor authorized by
Kohler;
•Please replace filter when prompted by the indicator.
系统使用注意事项：
本系统禁止过滤有微生物危害或没有经过消毒的不明水质的
水。
•如中途长时间（如假期外出）下使用，建议尽量关闭进水
阀门；超过 1周未使用，再次使用时请防水冲洗至少 5分
钟后再次使用。
•如发现系统漏水，请第一时间关闭进水总阀门，并联系科
勒公司或当地授权经销商上门。
•当提示器寿命警示，请更换一下对应型号滤芯。
K-24210T-KT310-01R
K-24211T-01R (1399052 +1399054 )
K-24210T-KT300-01R
K-24212T-01R (1399053 + 1399055 )
Replace cycle (6-12 months)
滤芯建议更换寿命（6-12 个月）
System Model
整机型号
Filter Cartridge
更换滤芯组
NOTE: Filtration performance varies depending on local
water quality.
注意： 本产品各级滤芯实际可使用寿命根据各地水质优劣会
有变化。

-7-
1400467-T01-C
PERFORMANCE DATA SHEET
In line with the requirements of the ""Sanitary Standard for Hygienc Safety and Function Evaluation on Treatment
Devices of Drinking water --General Device""2001
符合《生活饮用水水质处理器卫生安全与功能评价规范 --一般水质处理器》（2001）的要求
Raw Water →Composite Carbon Fiber Filter →Ultrafiltration Filter →Purified Water
市政原水 →碳纤维折纸复合滤芯→超滤滤芯→ 净水
Aquifer Water Filtration System
厨房净饮机奥珂芬系列
Aquifer Water Filtration System
厨房净饮机奥珂芬系列
3.8L/min4.0L/min
2800 L3000 L
KT310KT300
生产企业名称：中山方诺环保技术有限公司
生产企业地址：中山市南朗镇大车工业园南岐路
东桠路段（中山市联骏机械制造有限公司厂房）第一幢
卫生许可批准文号：粤卫水字[2019] -12-第S0086号
科勒（中国）投资有限公司
科勒牌 KT310型厨房净饮机科勒牌 KT300型厨房净饮机
K-24210T-KT310-01RK-24210T-KT300-01RSKU
产品性能参数表
Key Component
主要成分或部件
Composite Carbon Fiber Filter
科勒牌碳纤维折纸复合滤芯
规格尺寸（ Dimension）：Φ79*256mm
数量（Amount）：1
Foldable Polypropylene Fiber
聚丙烯折纸
折高（Folding Height）： 7mm
幅度（Width）： 170mm
折高（Folding Height）： 7mm
幅度（Width）： 155mm
Ultrafiltration Membranes
科勒牌聚砜超滤膜滤芯
规格尺寸（Dimension）：Φ79*256mm
数量（Amount）：1
Polysulfone Ultrafiltration Membrane
聚砜超滤膜
Carbon Fiber
活性炭纤维
Φ62*196mmΦ46*155mm
KT310
Φ62*211mmΦ46*170mm
KT300
型号
Description
产品描述
Name
产品名称
Model
产品型号
MOH Certificated System Capacity
额定总净水量
MOH Certificated Flow Rate
净水流量
Inlet Pressure/Operation Temperature
进水压力/工作温度
Inlet Water Requirement
进水水质要求
Outlet Water Quality
出水水质要求
Company Name
产品责任单位
Water Treatment Process
水处理工艺
Actual Production Factory & Address
实际生产企业及地址
Product Standard
产品执行标准号
Official Certification, No
卫生许可批件文号
0.1~0.7MPa/5~38℃
上海市静安区市北工业园区江场三路158号
Q31/0106000060C001-科勒牌家用和类似用途饮用水过滤产品
Municipal Tap Water
市政自来水（符合GB5749)
产品功能信息：此超滤系统以碳纤维折纸复合滤芯、超滤膜滤芯为净化单位，对市政自来水有机物 、浊度、微生物进行去除，
从而改善饮水水质。
System function information:this ultrafitration system use composite carbon Fiber Filter and ultrafiltration membrane as
purification unit to remove Turbidity, Organic matters, and microorganisms from municipal tap water, That will help you to
improve drinking water quality.
