KStrong AFA930101 Operator's manual

THESE INSTRUCTIONS APPLY TO THE FOLLOWING MODEL:
EDGE PARAPET ANCHOR
USER INSTRUCTION MANUAL
AFA930101
EN 795:2012 Type B

Please read and understand the manufacturer's instructions for each component or part of the complete system. Manufacturer's instructions
must be followed for proper use, care, and maintenance of this product. These instructions must be retained and be kept available for the user's
reference at all times. Alterations or misuse of this product, or failure to follow instructions, may result in serious injury or death.
Note: The user is advised to keep this user instructions document for the life of the product.
1. INTRODUCTION: Directive
EU2016/425 and have been shown to comply with this Directive through the Harmonized European Standard EN 795:2012 Type B.
This Anchor is designed to minimize the risk of/provide protection against the danger of falling from heights. However, always remember that
no item of PPE can provide full protection and care must always be taken while carrying out the risk related activity.
2. PERFORMANCE AND LIMITATIONS OF USE: The Anchor has been tested in accordance with EN 795 : 2012 Type B and has achieved the
following performance levels:
The is classed as a Personal Protective Equipment (PPE) by the European PPEEdge Parapet Anchor
EN 795:2012 Type B test Result/Comment
General Requirements (PASS)
for Anchor devices
(Clause 4.2)
No sharp edges (PASS).
Static Strength Sustained a force of 12 kN for 3 minutes (PASS).
(Clause 4.4.2.3)
Dynamic Strength & Integrity Test When tested with rigid steel mass of 100 kg, the test mass held after test with the
(Clause 4.4.2.2) device remaining stable throughout. (PASS).
Anchor Holds an increased load of 300kg for 3 min following dynamic test.
Corrosion Resistance No corrosion evident after 48 hours of salt spray testing. (PASS)
(Clause 4.7)
(EN 364:1992)
3. APPLICATION: The Edge Parapet
Anchor is a mobile anchorage
connector designed for Parapets and
Facades. It has been developed to be
used in locations where a low parapet
wall provides an anchor point. Suitable
for installing on parapets ranging from
60mm to 360mm in width.
This anchor provides a safe anchorage
point on Parapets and facades for use
on various structures.
4. INSPECTION : Visually inspect the
system before each use to enusre that it
is in a serviceable condition and is
operating correctly. If during inspection,
doubts are raised about the safety of
the system or a component, these
should be replaced either by the
manufacturer or a competent person.
02

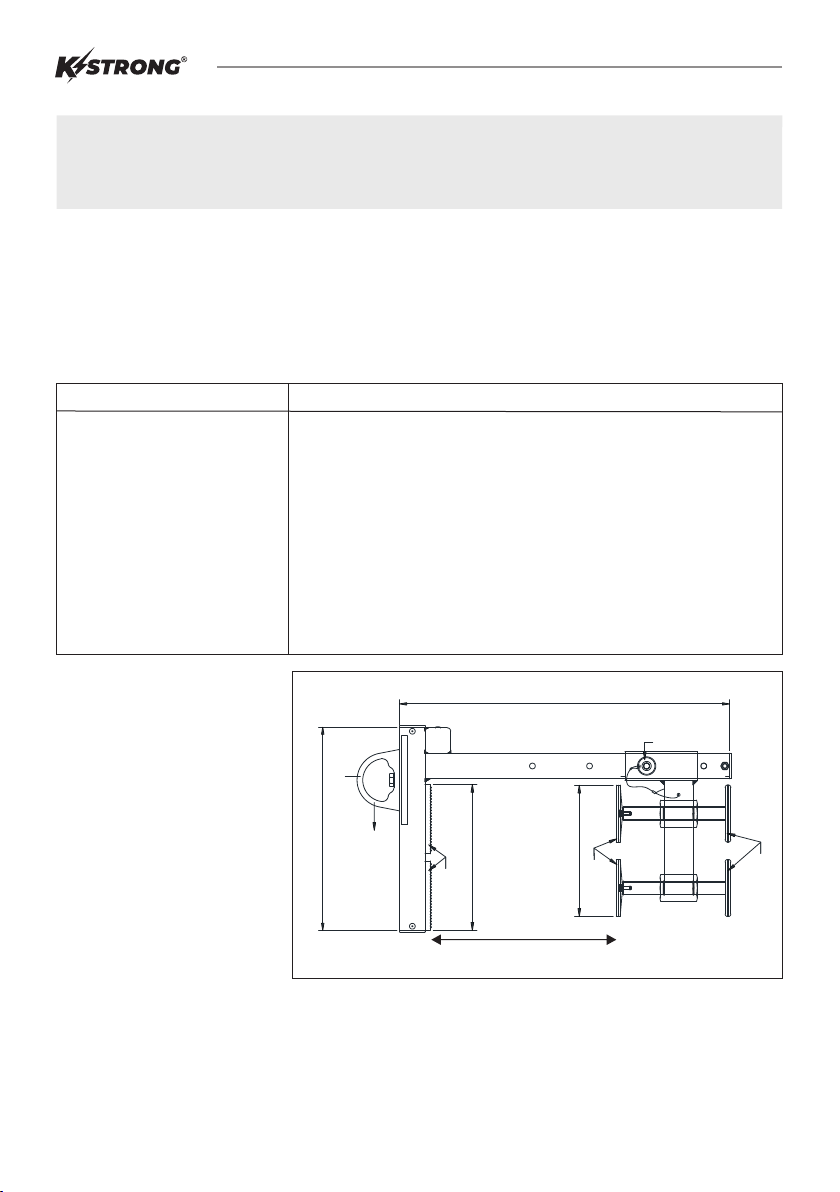

Anchorage
Connector
Locking Pin
Griping disk.
Rubber Grips
Tightening Handles
229.0(9.01")
Direction of
use.
577.5(22.73")
265.0(10.43")
361.0(14.21")
60mm – 360mm wide opening

6. INSTALLATION:
Unscrew the 2 clamping screws at the maximum and withdraw the
locking pin.
Tighten the 2 clamping screws on the wall, the pressure should be
firm but not excessive, a hand tightening is sufficient.
Check the stability of the whole and make a pressure in the sense in
which the strength will be applied during the use to check that the
system is properly fixed.
Install the parapet anchorage point on the wall, slide the clamping
screws into the wall and insert the locking pin in the available hole
closest to the wall.
STEP 4
STEP 3
STEP 2
Note: It is recommended that the installation of this anchor point be supervised by a qualified person.
03
5. PRECAUTIONS:
ŸThe is a piece of personal protection equipment, it should be allocated to a single user (it can only be used by one
person at a time). It is a temporary and transportable anchorage point; it is aimed to be used in places where a low wall is a proper
anchoring structure. It has to be installed on a wall whose minimum thickness is 6 cm and maximum is 36 cm. Walls must have a
resistance which can be able to support static loads applied in the direction of use of 22kN for a user.
ŸEnsure the Medical condition of the user does not affect his safety in normal and emergency use.
ŸThe equipment shall only be used by a person trained and competent in its safe use.
ŸA rescue plan shall be in place to deal with any emergencies that could arise during the work.
ŸEnsure that the anchor is installed directly above the user's head.
ŸEnsure that the equipment is compatible with other items when assembled into a system.
ŸIt is essential to verify free space required beneath the user at work place before each occasion of use so that in case of a fall there will be
no collision with ground or other obstacle in the fall path.
Edge Parapet Anchor
STEP 1
Sliding
Clamp
Clamping
Screws
Locking
Pin

DIRECTION OF LOAD
Direction
Load Application
of
Tested in
Directions
7. ANCHORAGE STRENGTH: Ensure that the structure on to which the anchor is fitted is strong enough to withstand a load of 12 kN.
ŸIt should be the Personal property of its user.
Ÿit should not be used in highly acidic or basic environments.
ŸThe anchor has been tested to EN 795 : 2012 Type B and is appropriate only for single person use with an energy absorber as per
EN 355:2002.
ŸEnsure that the Anchor is installed directly above the user’s head.
ŸEnsure that the equipment is compatible with other items when assembled into a system.
ŸIt is essential to verify the free space required beneath the user at work place before each occasion of use so that in case of a fall there will
be no collision with ground or other obstacle in the fall path.
ŸIt is essential for the safety of user that if the product is resold outside the original country of destination, the reseller shall provided
instruction for use, for maintenance, for periodic examination and for repair in the language of the country in which product in to be used.
8. LIMITATIONS:
14. WARNING:
ŸDo not make any alterations or additions to the equipment without the manufacturer’s prior written consent and that any repair shall only
be carried out by personnel trained by the manufacturer & duly authorized by him.
ŸThe equipment shall not be used out side its limitation, or for any purpose other than that for which it is intended.
9. COMPATIBILITY: To optimise protection, in some instance it may be necessary to use the anchor with suitable ppe such as boots/ gloves/ helmet/
ear defenders. In this case, before carrying out the risk-related activity, consult your supplier to ensure that all your protective products are
compatible and suitable for your application.
10. REPAIR: If the product becomes damaged, it will NOT provide the optimum level of protection, and therefore should be immediately removed
from service. Never use the damaged product. Repair is permitted, provided that it is either done by the manufacturer or a competent repair
centre or individual approved by the manufacturer.
11. WITHDRAWAL FROM USE: If the system has been used to arrest a fall, it should be removed from service and returned to the manufacturer or
a competent repair centre for servicing and re test.
12. CLEANING: In case of minor soiling, wipe the anchor with cotton cloth or a soft brush. Do not use any abrasive material. For intensive cleaning
0 0
wash the anchor in water at a temperature between 30 C to 60 C by using a neutral detergent (pH 7). The washing temperature should not
0
exceed 60 C. Do not use acid or basic detergents.
13. STORAGE AND TRANSPORT: When not in use, store the anchor in a well-ventilated area away from heavily acidic or basic environment.
Never place heavy items on top of it. Also ensure that it is stored away from chemically hazardous environment preferably storage should be in
dry environment.
04
NO NO NO
NO
NO
OK
OK
INSTALLATION OF PARAPET ANCHOR

The Anchor is marked with:
(i) The CE mark showing that the product meets the requirements of the PPE Directive EU2016/425
(ii) Identification of the manufacturer
(iii) Type or product code
(iv)
(v) UID for traceability
(vi) Norm Reference
(vii) Minimum breaking strength
Date of manufacturing
(viii) Read the instruction before Use
MARKING
AFA930101
QRCODE
MBS : 23kN
UID: XXXXXXXXXXXX
Date of mfg.: MM/YYYY
EN 795:2012 Type B
KStrong Inc. 150 N. Radnor Chester Road
Suite F200 Radnor, Pennsylvania 19087 United States
MAX
1
KStrong.com
Made In India
(i)
(iv)
(v)
(vi)
(vii)
(viii)
(iii)(iii)
(ii)
05
Edge Parapet Anchor

LIFESPAN: The estimated product Lifespan is 10 years from the date of manufacture. The following factors can reduce the Lifespan of the
product: intense use, contact with chemical substances, specially aggressive environments, extreme temperature exposure, UV exposure,
abrasions, cuts, violent impacts, bad use or maintenance.
DISCLAIMER: Prior to use, the end user must read and understand the manufacturer's instructions supplied with this product at the time of
shipment and seek training from their employer's trained personnel on the proper usage of the product. Manufacturer is not liable or responsible
for any loss, damage or injury caused or incurred by any person on grounds of improper usage or installation of this product.
Periodic examination
next due date
Product
Model & type/Identification
Trade Name
Address
Identification number
Manufacturer
Tel, email into use
Year of manufacture
Purchase Date
Date first put into use
Other relevant information (eg. document number)
PERIODIC EXAMINATION AND REPAIR HISTORY
Date Name and signature
of competent person
Reason for entry
(periodic examination
or repair)
Defects noted, repairs
relevant information
carried out and other
EQUIPMENT RECORD
06

07

Certification Body :
SATRA Technology Europe Ltd, Bracetown Business Park, Clonee, Dublin D15 YN2P Ireland (Notified Body 2777)
Ongoing Assessment Body:
SGS Fimko Oy, Takomotie 8, FI-00380 Helsinki, Finland (Notified Body 0598)
For EU Declaration, please visit https://kstrong.com/asia/eu-declaration-form/
www.kstrong.com
USA South America ASIA
KStrong Inc.
150 N. Radnor Chester Road Suite F200
Radnor, Pennsylvania 19087 United States
Contact number : 1-833-KSTRONG
AKS/AFA930101/130221/V1
