KUHN GMD4410 User manual

Original instructions
KN045MGB G
Read carefully before starting the machine
OPERATOR'S MANUAL
Disc mower
M0001 > M9999
GMD4410
KN045MGB G
- English - 03-2016
*KC072ARO_B*

1. - Dear Owner
GMD4410
1
KN045MGB G
Disc mower
1. Dear Owner
In buying a Kuhn machine you have chosen wisely. Into it have gone years of thought, research and
improvement. You will find, as have thousands of owners all over the world, that you have the best that
engineering skill and actual field testing can produce. You have purchased a dependable machine, but only
through proper care and operation can you expect to receive the performance and long service built into it.
This manual contains all the necessary information for you to receive full efficiency from your machine. The
performance you get from this machine is largely dependent on how well you read and understand this
manual and apply this knowledge. Please DO NOT ASSUME YOU KNOW HOW TO OPERATE AND
MAINTAIN YOUR MACHINE before reading this manual carefully. KEEP THIS MANUAL AVAILABLE FOR
REFERENCE. Pass it on to the next owner if you re-sell the machine.
Your KUHN dealer can offer a complete line of genuine KUHN service parts. These parts are manufactured
and carefully inspected in the same factory that builds the machine to assure high quality and accurate
fitting of any necessary replacements.
About improvements
We are continually striving to improve our products. We therefore reserve the right to make improvements
or changes when it becomes practical to do so, without incurring any obligations to make changes or
additions to the equipment sold previously.
Wear parts
Wearing parts fitted on our machines have been tested in very different situations to optimize their service
life. Nevertheless, the service life depends highly on theconditions of use (products to handle, soil, weather
conditions, etc...).
Designated use of the machine
The GMD4410 mower must only be used for the purpose for which it was manufactured: mowing on the
ground of hay fields, grass silage fields and improved pastures for the purpose of harvesting fodder for
feeding livestock.
Document illustrations
The illustrations in this manual may be based on one type of machine only. However, all instructions apply
to all machines covered in this manual.
Copyright 2016 KUHN

GMD4410
22. - Contents
KN045MGB G
Disc mower
2. Contents
1. Dear Owner .....................................................................................................................1
2. Contents..........................................................................................................................2
3. Identification of the machine.........................................................................................5
3.1 Front view ........................................................................................................................................ 5
3.2 Rear view......................................................................................................................................... 5
3.3 Model identification plate .................................................................................................................6
3.4 Optional equipment.......................................................................................................................... 7
4. Safety...............................................................................................................................8
4.1 Description of symbols used in this document.................................................................................8
4.2 Safety instructions ...........................................................................................................................9
4.2.1 Introduction......................................................................................................................... 9
4.2.2 Read and follow the safety instructions..............................................................................9
4.2.3 Precautions to be taken before carrying out any operations on the machine................... 10
4.2.4 Precautions to take before using the machine ................................................................. 10
4.2.5 Precautions when driving ..................................................................................................11
4.2.6 Precautions when driving on public roads........................................................................12
4.2.7 Maximum speed...............................................................................................................16
4.2.8 Precautions when coupling...............................................................................................16
4.2.9 Hydraulic circuit................................................................................................................17
4.2.10 PTO shaft..........................................................................................................................18
4.2.11 Precautions during manoeuvres....................................................................................... 20
4.2.12 Remote controlled components........................................................................................20
4.2.13 Safety decals.................................................................................................................... 20
4.2.14 Waste disposal .................................................................................................................20
4.2.15 Hydro-pneumatic accumulator.......................................................................................... 21
4.2.16 Precautions for maintenance and repair work.................................................................. 22
4.2.17 Projection of stones and foreign objects........................................................................... 23
4.2.18 Precautions for machine use............................................................................................ 24
4.3 Location and description of safety decals on the machine ............................................................ 25
4.3.1 Location of safety decals..................................................................................................25
4.3.2 Description of safety decals.............................................................................................. 26
4.4 Road safety equipment and recommendations ............................................................................. 29
4.4.1 Instructions specific to France.......................................................................................... 30

2. - Contents
GMD4410
3
KN045MGB G
Disc mower
5. Machine specifications................................................................................................ 31
5.1 Description and glossary ............................................................................................................... 31
5.2 Technical specifications................................................................................................................. 32
5.3 Required equipment...................................................................................................................... 33
5.3.1 Cutter bar ......................................................................................................................... 33
5.4 Sound levels.................................................................................................................................. 34
6. Putting into service...................................................................................................... 35
6.1 Description of control elements ..................................................................................................... 35
6.2 Coupling and uncoupling............................................................................................................... 36
6.2.1 Description of coupling elements ..................................................................................... 36
6.2.2 Preparing the tractor......................................................................................................... 36
6.2.3 Preparing the machine..................................................................................................... 37
6.2.4 Coupling the machine.......................................................................................................39
6.2.5 Hydraulic connections......................................................................................................41
6.2.6 Electrical connections....................................................................................................... 41
6.2.7 Primary PTO shaft............................................................................................................ 42
6.2.8 Intermediate PTO shaft .................................................................................................... 44
6.2.9 Adjusting the machine......................................................................................................46
6.2.10 Uncoupling the machine................................................................................................... 49
7. Instructions for transport............................................................................................ 50
7.1 Putting the machine into transport position ................................................................................... 50
7.2 Conformity with the road regulations............................................................................................. 51
8. Instructions for work................................................................................................... 52
8.1 Putting the machine into work position.......................................................................................... 52
8.2 Adjustments in working position .................................................................................................... 54
8.2.1 Cutting height................................................................................................................... 54
8.2.2 Ground pressure .............................................................................................................. 55
8.2.3 Transport stabilizing pressure .......................................................................................... 58
8.2.4 Swathing system.............................................................................................................. 60
8.3 Machine use .................................................................................................................................. 61
8.3.1 Front guard release.......................................................................................................... 62
8.3.2 Drive speed...................................................................................................................... 62
9. Optional equipment..................................................................................................... 63
9.1 Side deflector kit............................................................................................................................ 63
9.2 Raised skid shoes ......................................................................................................................... 63
9.3 Chain stroke limiter........................................................................................................................ 64
9.3.1 Adjusting the machine......................................................................................................64
9.4 Fast locking 1 3/8’’ - 6 spline yoke................................................................................................. 65
9.5 Lateral signalling equipment (for France)...................................................................................... 66

GMD4410
42. - Contents
KN045MGB G
Disc mower
10. Maintenance and storage ............................................................................................68
10.1 Frequency chart............................................................................................................................. 68
10.2 Lubrication .....................................................................................................................................69
10.2.1 PTO shaft..........................................................................................................................70
10.2.2 Oil.....................................................................................................................................71
10.2.3 Grease.............................................................................................................................. 71
10.2.4 Oil change ........................................................................................................................ 72
10.3 Maintenance .................................................................................................................................. 76
10.3.1 Hydro-pneumatic accumulator..........................................................................................76
10.3.2 The side gearbox drive system......................................................................................... 79
10.3.3 Transport stop................................................................................................................... 79
10.3.4 Work/transport cylinder..................................................................................................... 80
10.3.5 Mowing unit locking cylinder............................................................................................. 81
10.3.6 Inspection of knives and securing elements.....................................................................82
10.3.7 Outer and inner cones....................................................................................................101
10.4 Storage ........................................................................................................................................102
10.4.1 At the end of each season.............................................................................................. 102
10.4.2 At the start of each season............................................................................................. 102
11. Troubleshooting guide...............................................................................................103
12. Appendix.....................................................................................................................105

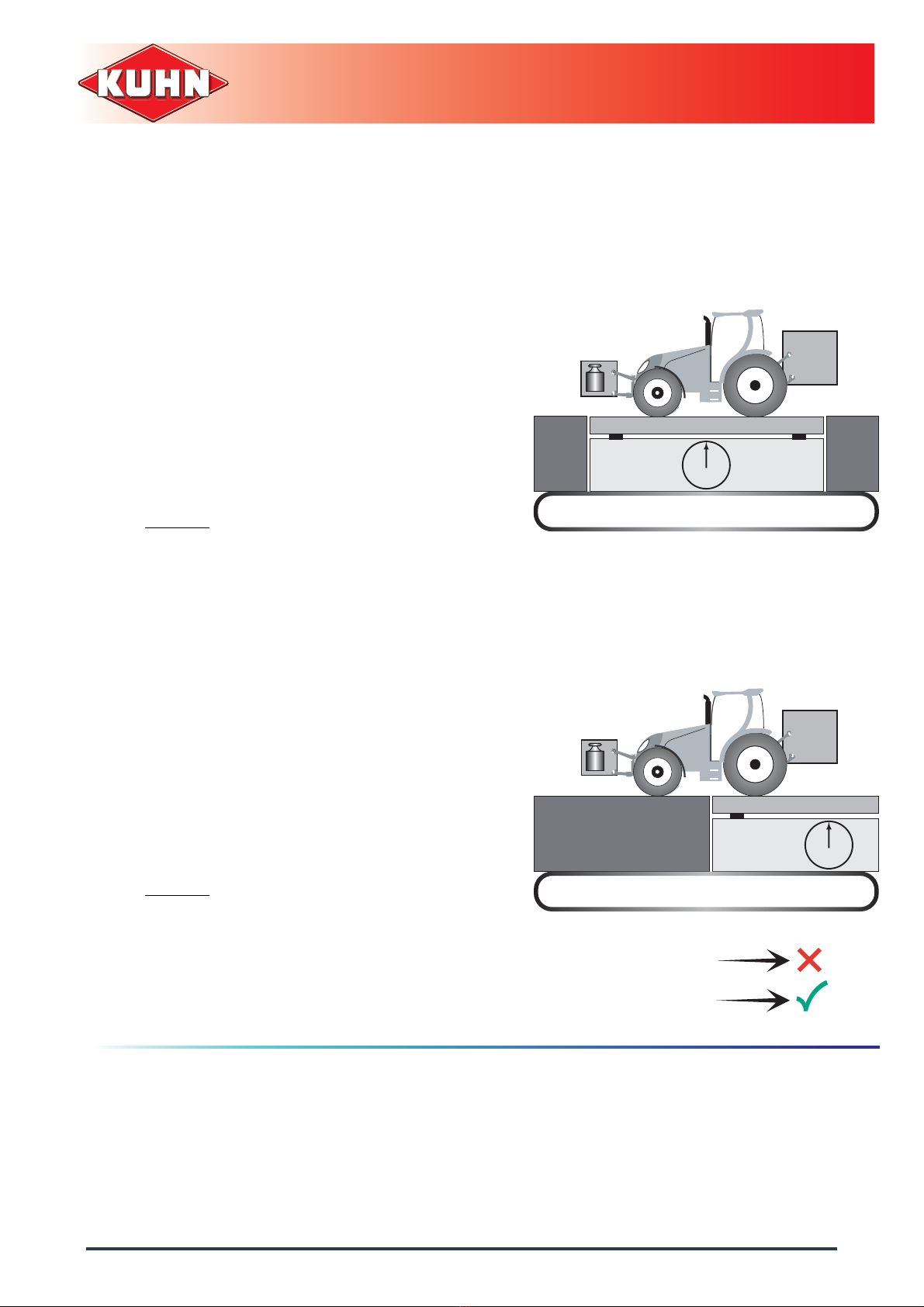

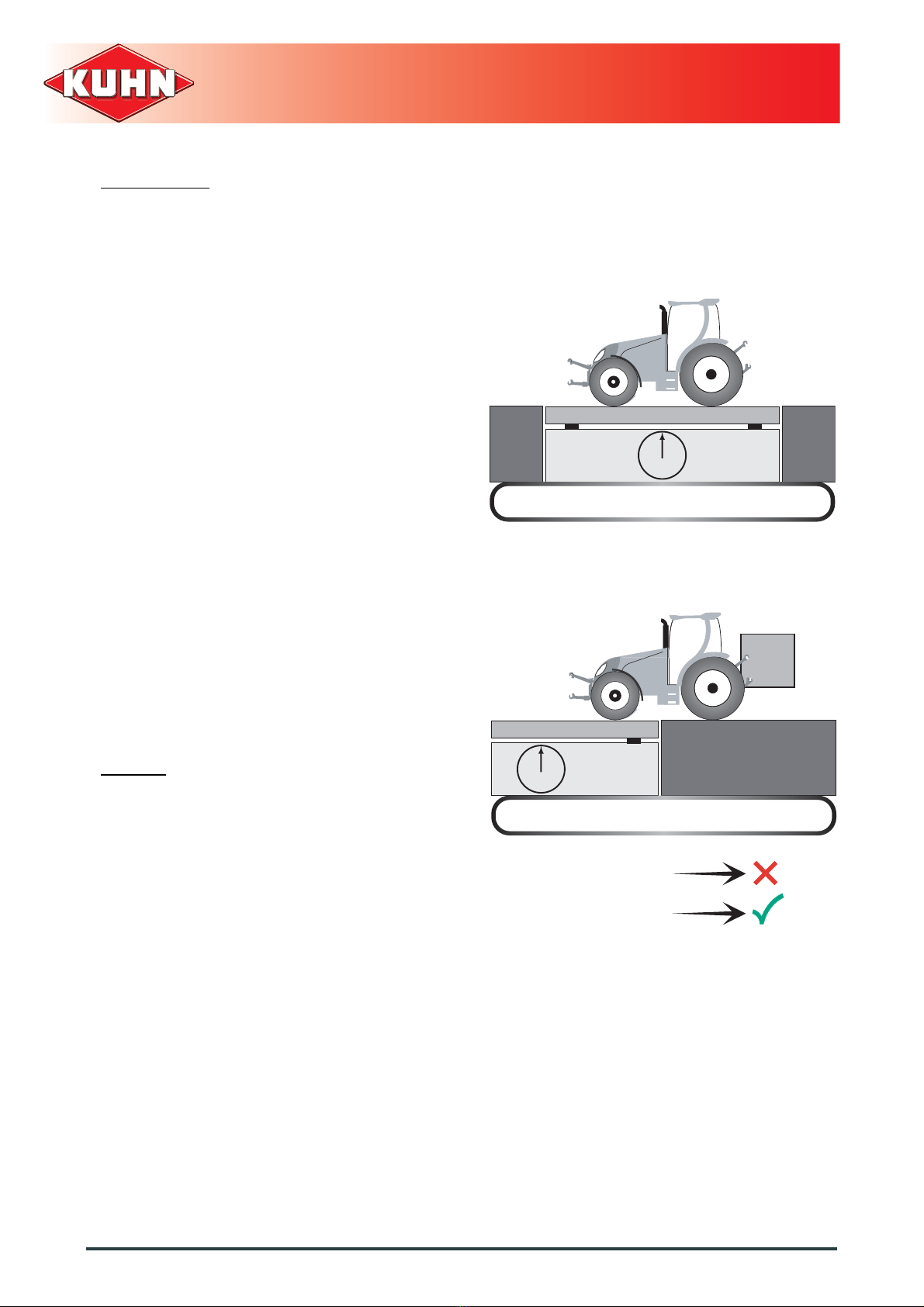

12.1 Calculating the load on an axle.................................................................................................... 105
13. Limited Warranty ........................................................................................................113

3. - Identification of the machine
GMD4410
5
KN045MGB G
Disc mower
3. Identification of the machine
3.1 Front view
3.2 Rear view

GMD4410
63. - Identification of the machine
KN045MGB G
Disc mower

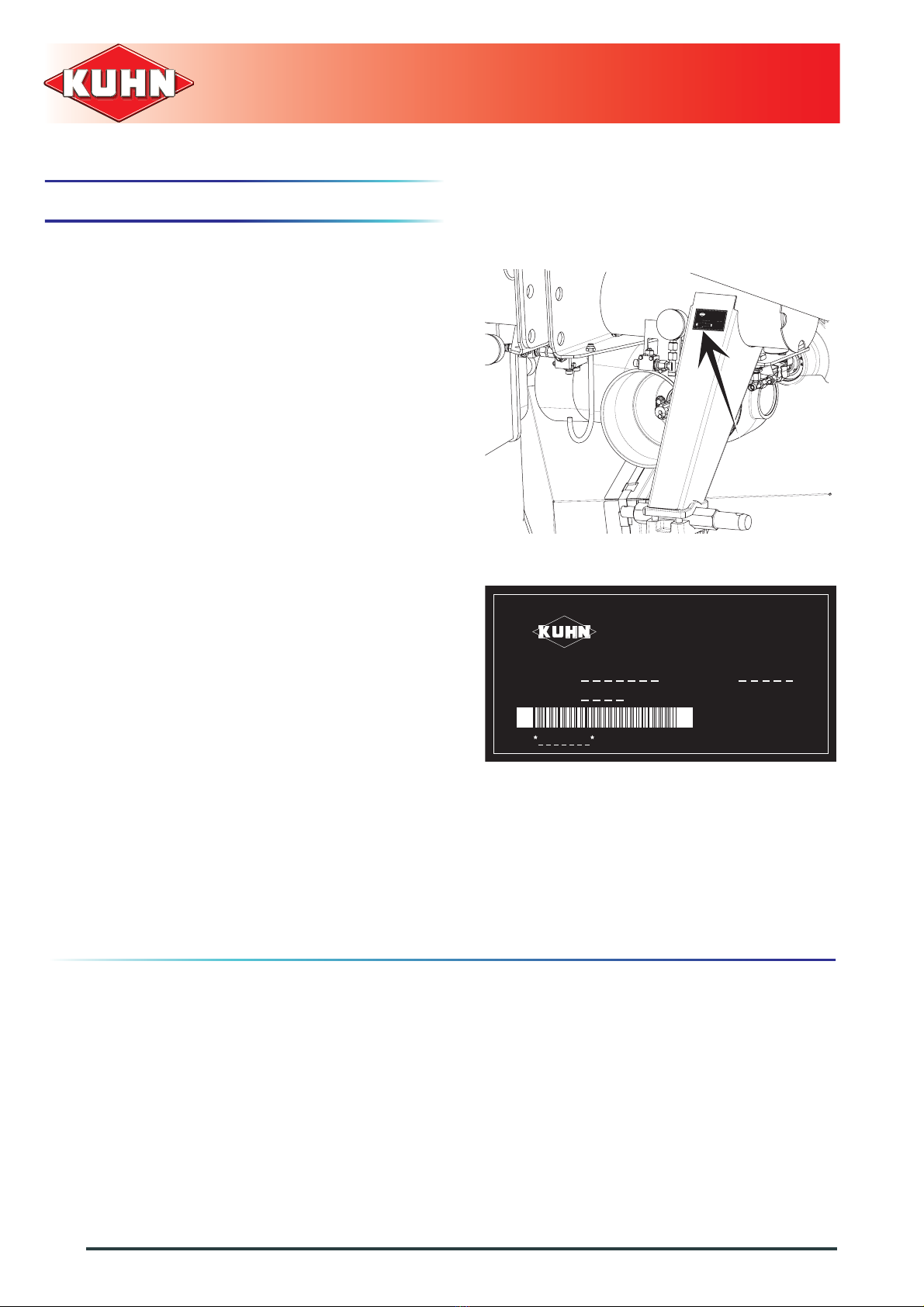

3.3 Model identification plate
Please write below the type and serial number of the
machine. This information is to be given to the Kuhn
authorized dealer for any spare parts order or
warranty claim.
TYPE
MASSEkg
KUHN S.A.
67700SAVERNE- FRANCE
N°
MADEINFRANCE
Type: GMD4410
Serial no.:
TYPE
MASSE kg
KUHN S.A.
67700 SAVERNE - FRANCE
N°
MADE IN FRANCE

3. - Identification of the machine
GMD4410
7
KN045MGB G
Disc mower
3.4 Optional equipment
Tick box corresponding to the equipment fitted on
your machine:
Side deflector kit.
Raised skid shoes.
Chain stroke limiter.
Fast locking 1 3/8’’ - 6 spline yoke.
Lateral signalling equipment (for France).
Swath divider

GMD4410
84. - Safety
KN045MGB G
Disc mower
4. Safety
4.1 Description of symbols used in
this document
This symbol indicates a potentially hazardous
situation that if not avoided, could result in serious
bodily injury.
This symbol is used to identify special instructions or
procedures which, if not followed strictly, could result
in machinery damage.
This symbol is used to communicate technical
information of particular interest.

4. - Safety
GMD4410
9
KN045MGB G
Disc mower
4.2 Safety instructions
4.2.2 Read and follow the safety instructions
4.2.1 Introduction
The machine must only be operated, maintained and repaired by competent persons who are familiar with
machines' specifications and operation and aware of safety regulations for preventing accidents.
The operator must imperatively respect safety instructions in this manual and in the warnings posted on the
machine. The operator is also obliged to respect current legislation concerning accident prevention, work
safety and public traffic circulation.
Designated use of the machine also means following operation, maintenance and repair recommendations
given by the manufacturer, and using only genuine spare parts, equipment and accessories, as
recommended by the manufacturer.
The manufacturer is not held liable for any damage resulting from machine applications other than those
specified by the manufacturer. Any use other than the designated operation is at the risk and responsibility
of the operator.
The manufacturer is not held liablefor any damage or accident resulting from machine modifications carried
out by the operator himself or by a third party without previous written agreement from the manufacturer.

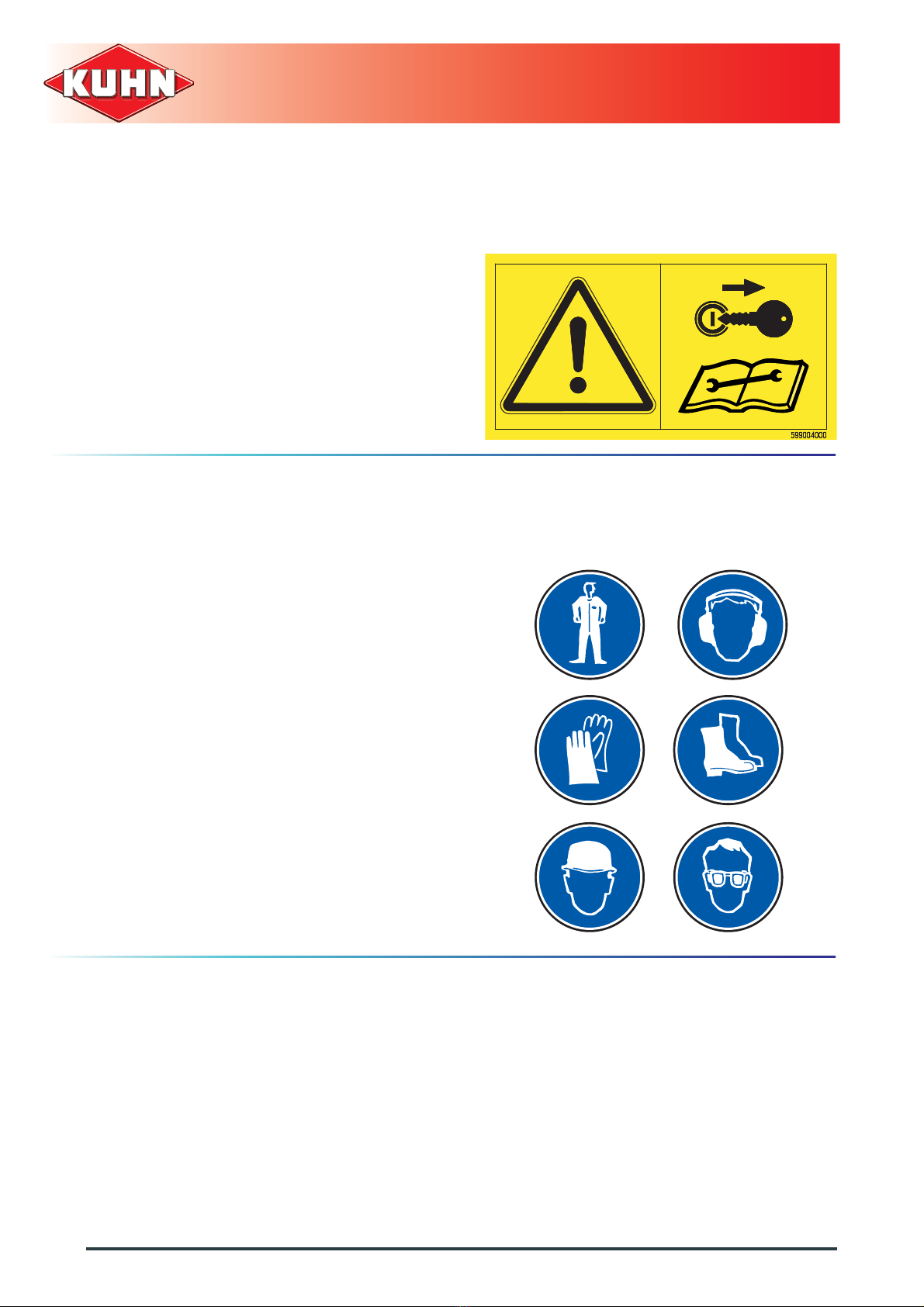

Before using the machine, carefully read all the
safety instructions in this manual and the warnings
placed on the machine.
Before starting work, the operator must be familiar
with all machine controls, handling devices and their
functions. It is too late to learn once work has been
started!
Never let anyone operate the machine who is not
trained to do so.
Should you have any difficulties in understanding
any parts of this manual, please contact your KUHN
dealer.

GMD4410
10 4. - Safety
KN045MGB G
Disc mower
4.2.3 Precautions to be taken before carrying
out any operations on the machine
4.2.4 Precautions to take before using the
machine
Before leaving the tractor or before adjusting,
maintaining or repairing the machine, disengage the
PTO drive, turn off the engine, remove ignition key
and wait until all moving parts have come to a
complete stop and apply park brake.
Do not wear loose clothing which could become
caught up in moving parts.
Wear the appropriate protective clothing for the work
in hand (gloves, shoes, goggles, helmet, ear
defenders, etc.).
Ensure that all operating controls (ropes, cables,
rods, etc) are placed so as they cannot be operated
unintentionally and cause damage or injury.
Before operating the machine, check tightness of
nuts and bolts, particularly on fixing elements (tines,
forks, blades, knives, etc). Retighten if necessary.
Before operating the machine, ensure that all the
safety guards are firmly in place and in good
condition. Immediately replace any worn or
damaged guard.

4. - Safety
GMD4410
11
KN045MGB G
Disc mower
4.2.5 Precautions when driving
Tractor handling, stability, performance and braking
efficiency are all affected by weight distribution,
trailed or mounted implements, additional ballast
and driving conditions. It is therefore of great
importance that the operator exercises caution in
every given situation.
Groundspeed must be adapted to ground conditions
as well as to roads and paths. Always avoid abrupt
changes of direction.
Be particularly cautious when turning corners,
paying attention to machine overhang, length, height
and weight.

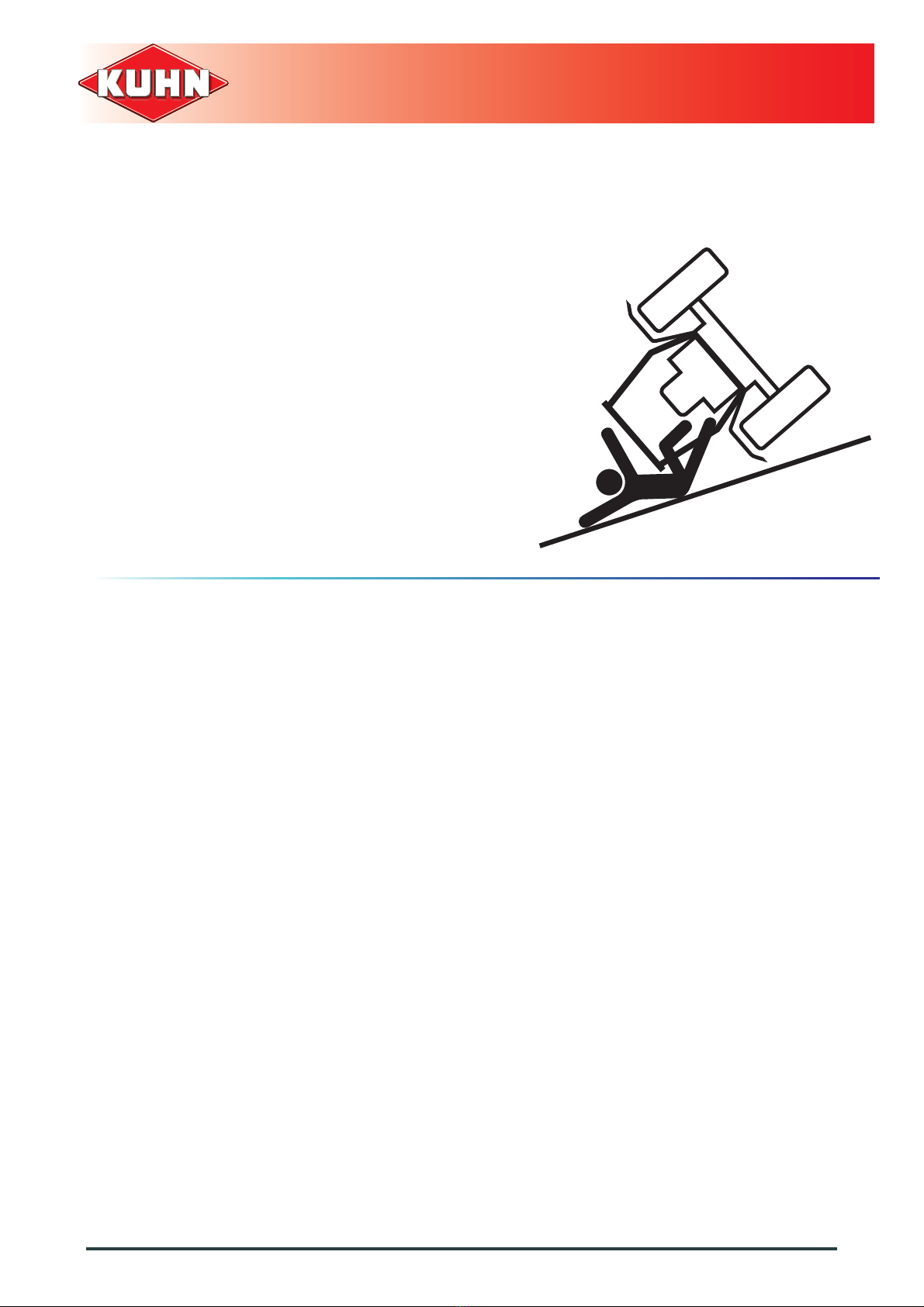

Never use a narrow track tractor on very uneven or
steeply sloping ground.
Never leave the tractor seat while the machine is
operating.

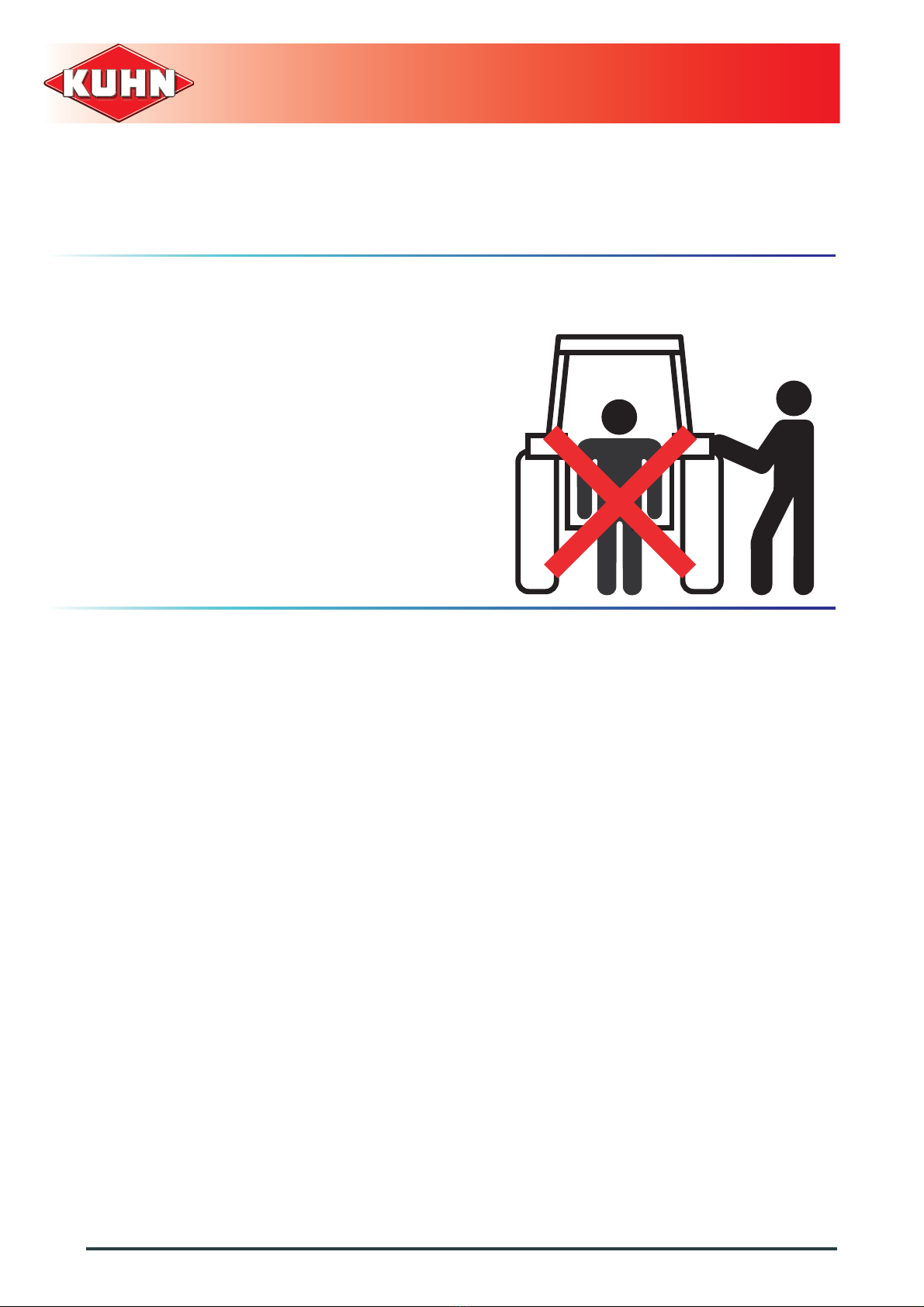

Carrying people or animals on the machine when
working or in transport is strictly forbidden.

GMD4410
12 4. - Safety
KN045MGB G
Disc mower
4.2.6 Precautions when driving on public
roads
Dimensions
Depending on the dimensions of the machine,
contact the relevant authorities to ensure that it can
be legally transported on public roads.
If the machine is over the maximum legal size,
follow the local regulations forspecial transportation
of oversize equipment.
Transport position
Before transporting the machine on public roads,
place the machine into its transport position,
according to the instructions in this manual.
Lights and indicators
Before transporting the machine on public roads,
ensure that all legally required lightings and
signallings are in place.
Ensure that lightings and signallings are clean and in
good working order. Replace any missing or broken
equipment.
Always obey current regulations for driving
on roads.

4. - Safety
GMD4410
13
KN045MGB G
Disc mower
Gross weight and weight per axle
Description of symbols
The drawings are not legally binding, their only aim is to illustrate the method to use.
Prior to driving on public roads, check that all criteria are met to be in conformity with the
countrie's regulations:
- When coupling a tool to the front and/or rear 3-point lift linkage, the maximum authorized
payload must not be exceeded.
- When coupling tools to the front and/or rear 3-point lift linkages, the maximum load on
tractor's tires must not be exceeded.
- The load on the tractor front axle must always represent 20 % of the tractor unladen
weight.
For machines with hoppers or tanks:
- If the total unit weight exceeds the tractor Gross Combined Weight Rating in accordance with
the countrie's legislation, empty the hopper to travel on public roads.
- In any case, we recommend to travel on public roads with empty hoppers and tanks.
Description Units Description
T kg Tractor unladen weight
PTAC kg Gross Combined Weight Rating
T1 kg Unladen load on tractor front axle
T2 kg Empty load on tractor rear axle
t kg Axle loads (Tractor + machine)
t1 kg Load on front axle (Tractor + machine)
t2 kg Load on rear axle (Tractor + machine)
t1 max kg Maximum load authorized on the tractor front axle according to the tires
t2 max kg Maximum load authorized on the tractor rear axle according to the tires
M1 kg Total weight of front tool or front ballast

GMD4410
14 4. - Safety
KN045MGB G
Disc mower
How to proceed:
Stage 1:
Stage 2:
To measure:
- Tractor tare (T).
T = _____kg
- Couple the machine to the tractor.
To measure:
- Load on front axle (t1):
• Tractor + machine (transport position).
To do:
- If the front axle load (t1) is below 20% of the tractor
tare (T), add ballast weights (M1) to exceed the
minimum load on the front axle.
Example:
• (T) = 7500 kg (16535 lb)
• The front axle load must be of minimum 1500 kg
(3300 lb).(20% of T)
• (t1) = 700 kg (1545 lb).
• 700 kg (1545 lb) < 1500 kg (3300 lb).
• Add ballast weights until the minimum front axle
load is exceeded.
• Repeat checking procedure.
t1 = _____kg
t1 < 20% T
t1 < 20% T
t1
t1 ≥
20% T
20% T

4. - Safety
GMD4410
15
KN045MGB G
Disc mower
Stage 3:
Stage 4:
To measure:
- Total weight (t):
• Tractor + machine (transport position).
• Ballast weights.
Checking:
- To go to the next stage:
• Check in the tractor's operator's manual that the
value measured is below the tractor's Gross
Combined Weight Rating.
To do:
- If t < PTAC go to the next stage.
- If the total unit weight exceeds the tractor Gross
Combined Weight Rating in accordance with the
countrie's legislation, empty the hopper to travel on
public roads.
Example:
• (t) = 10000 kg (24250 lb)
• PTAC = 13000 kg .
• t < PTAC : Go to the next stage.
kgkg
t = _____kg
To measure:
- Load on rear axle (t2):
• Tractor + machine (transport position).
• Ballast weights.
Checking:
- Check in the tractor's operator's manual that the
value measured is below the maximum allowed
tractor rear axle load.
- Check that tyre and rim specifiations are in
conformity with the requirements of the tractor
manufacturer.
Example:
• Load on rear axle (t2) = 8500 kg (18740 lb)
• Check in the tractor's operator's manual that the
value measured is below the maximum allowed
tractor rear axle load.
• Check that tyre and rim specifiations are in
conformity with the requirements of the tractor
manufacturer.
kgkg
t2 = _____kg
t2 > t2 max
t2 > t2 max
t2
t2 ≤
t2 max
t2 max

GMD4410
16 4. - Safety
KN045MGB G
Disc mower
4.2.7 Maximum speed
- Always keep to the legal speed limit for driving a
tractor-machine assembly on public roads.
4.2.8 Precautions when coupling
Before attaching the machine, make sure that it
cannot accidentally start moving (chock the wheels)
and that the parking stand is in the right position.
The machine must only be attached to the hitch
points provided for this purpose.
Never stand between the tractor and the machine
when operating the three point linkage.
Do not stand between the tractor and the machine
without ensuring that the parking brake is applied.

4. - Safety
GMD4410
17
KN045MGB G
Disc mower
4.2.9 Hydraulic circuit
Caution!Thehydrauliccircuitisunder highpressure.
Maximum pressure at work: 200 bar (2900 psi).
Before connecting hoses to the tractor hydraulics,
ensure that tractor and machine circuits are not
under pressure. Before disconnecting a hose,
depressurize the hydraulic circuit.
To avoid making incorrect connections, mark
hydraulic couplers and corresponding hoses with
colors. WARNING! Functions could be reversed (for
example: lift/lower) and cause accidents.
Regularly check the hydraulic hoses. In case of
normal wear, replace the hydraulic hoses every
5 years. Damaged or worn hoses must immediately
be replaced. When replacing the hydraulic hoses,
only use hoses with the specification recommended
by the manufacturer of the machine.
To locate a leak, use appropriate means. Protect
body and hands from liquid under pressure.
Any liquid under pressure (particularly oil from
hydraulics) can penetrate the skin and cause severe
injury. If injured, see a doctor immediately, there
could be danger of infection.
Before any adjustments, maintenance or repairs are
carried out, lower the machine to the ground,
depressurize the hydraulics, turn off the engine,
remove ignition key and wait until all moving parts
have come to a complete stop.

GMD4410
18 4. - Safety
KN045MGB G
Disc mower
4.2.10 PTO shaft
Use only PTO shafts supplied with the machine or
recommended by the machine manufacturer.
The protective shield of the tractor PTO stub, the
PTO shaft guards and the protective shield of the
machine input shaft must always be in place and in
good condition.
Make sure that the PTO shaft guards are secured
with the safety chains provided. Check that the PTO
shaft guard can turn freely a full rotation
independent of the shaft.
Any worn or damaged guards must be replaced
immediately. A worn guard or an unprotected PTO
shaft can cause a serious or even a lethal accident.
Before attaching or removing a PTO shaft, or before
doing any work on the machine, disengage the PTO
drive, turn off the engine, remove ignition key and
wait for all moving parts to come to a complete stop.
If the primary PTO shaft is equipped with a torque
limiter or a free wheel, these must be fitted on the
machine side.
Ensure that the PTO shaft is always correctly fitted
and locked into place.
Before connecting the PTO shaft, ensure that the
PTO speed (rotational frequency) and direction of
rotation are in line with the machine manufacturer's
recommendations.
Do not wear loose clothing that could be caught in
the rotating PTO shaft.
