Preamble
Congratulations on your purchase of one of the most powerful hand-held scanner for decoding direct marked
2D-Codes. This document is intended for information about the handling and use of the HS 6508 from Leuze
electronic.
The most important information that is needed for operation is explained. Furthermore, even explains the
main types of connections and presented the programming using the codes.
You can find more in the document Users Guide, which you can find on our home page www.leuze.com.
Content
QUICK START GUIDE ................................................................................................................................................1
PREAMBLE ...................................................................................................................................................................2
CONTENT ...................................................................................................................................................................... 2
DELIVERY HS 6508 XX...............................................................................................................................................4
PARTS.............................................................................................................................................................................4
INSTALLATION............................................................................................................................................................5
CONNECT THE HAND-HELD SCANNER ............................................................................................................................5
Switching off the computer ....................................................................................................................................... 5
Connect the cable from HS 6508.............................................................................................................................. 5
How to scan? ............................................................................................................................................................ 6
TESTING THE SCANNER ................................................................................................................................................. 6
TECHNICAL DATA...................................................................................................................................................... 7
PINNING OF THE CABLES................................................................................................................................................7
KB 232-1 HS65x8 Part-No. 50120436 ................................................................................................................... 7
KB 232-2 HS65x8 Part-No. 50120434 ................................................................................................................... 7
KB PS2-1 HS65x8 Part-No. 50120438................................................................................................................... 8
KB USB-1 HS 65x8 Part-No. 50120432................................................................................................................. 8
READING DISTANCES.....................................................................................................................................................8
RESET THE HS 6508 TO FACTORY SETTINGS....................................................................................................9
PARAMETERIZATION...............................................................................................................................................9
HS 6508 ON THE PC SERIAL PORT ............................................................................................................................... 10

Quick Start Guide HS 6508 Page 3
With KB 232-2 HS65x8 Part-No. 50120434......................................................................................................... 10
Parameterization for Leuze-Standard-Protocol ..................................................................................................... 10
HS 6508 AT MA 200I.................................................................................................................................................. 11
Initial Operation..................................................................................................................................................... 11
HS 6508 AT MA 21..................................................................................................................................................... 12
HS 6508 AT PS2-INTERFACE....................................................................................................................................... 13
Initial Operation..................................................................................................................................................... 13
HS 6508 AT USB-INTERFACE (KEYBOARD-EMULATION) ........................................................................................... 14
Initial Operation..................................................................................................................................................... 14
HS 6508 AT USB-INTERFACE (COM-PORT-EMULATION)........................................................................................... 15
Initial Operation..................................................................................................................................................... 15
CODE 2/5 INTERLEAVED.............................................................................................................................................. 16
DATA TRANSMISSION WITH SUFFIX ENTER.................................................................................................................. 17
MORE INFORMATION TO PARAMETERIZATION YOU WILL FIND IN:............................................................................... 18
TROUBLESHOOTING..................................................................................................................................................... 18
OVERVIEW TYPES AND ACCESSORIES............................................................................................................. 19
CONNECTION TO LEUZE MULTINET PLUS .................................................................................................................... 20
CONNECTION TO FIELDBUSES WITH MA200I.............................................................................................................. 20

Quick Start Guide HS 6508 Page 4
Delivery HS 6508 xx
Handheldscanner HS 6508 DPM
Leaflet for Quick Start
Parts
The model designation is on the Top panel
References to standards are located on the bottom side
Connection for cable

Quick Start Guide HS 6508 Page 5
Installation
Connect the hand-held scanner
Switching off the computer
Information on switching off and shut down the connected computer - what ever before to connect peripheral
devices such as a scanner is - please refer to the instruction manual of your computer.
Connect the cable from HS 6508
The following illustrations show the steps required to install the cable on the scanner are shown, which are
described below.
To connect the interface cable to the scanner, proceed as follows:
Loosen the strain relief on the scanner by removing the 2 Phillips screws.
Fold the 2 halves of the cable clamp to the side. Plug the RJ 41 connector into the
socket on the underside of the hand scanner, until the cable snapped.
Fold the 2 halves of the strain relief back.
Attach the strain relief on the scanner, by tightening the 2 Phillips screws.
Further steps:
Connect the interface cable to the appropriate socket on the computer.
You may need a power supply to the power supply, or you can use a cable in which
the tension of the computer system is used. Use the pin assignments (see page 7),
you can select the appropriate cable for your application
Connect the AC adapter to the AC outlet (not required for power supply from the
computer).
Check the operational readiness of the scanner by pointing the scanning surface
against a flat surface and pulling the trigger. A green target line and the red light should now be visible. Now
scan a sample label. The scanner confirmed by an acoustic signal, which is decoded, where appropriate, the
data are transmitted to the computer.

Quick Start Guide HS 6508 Page 6
How to scan?

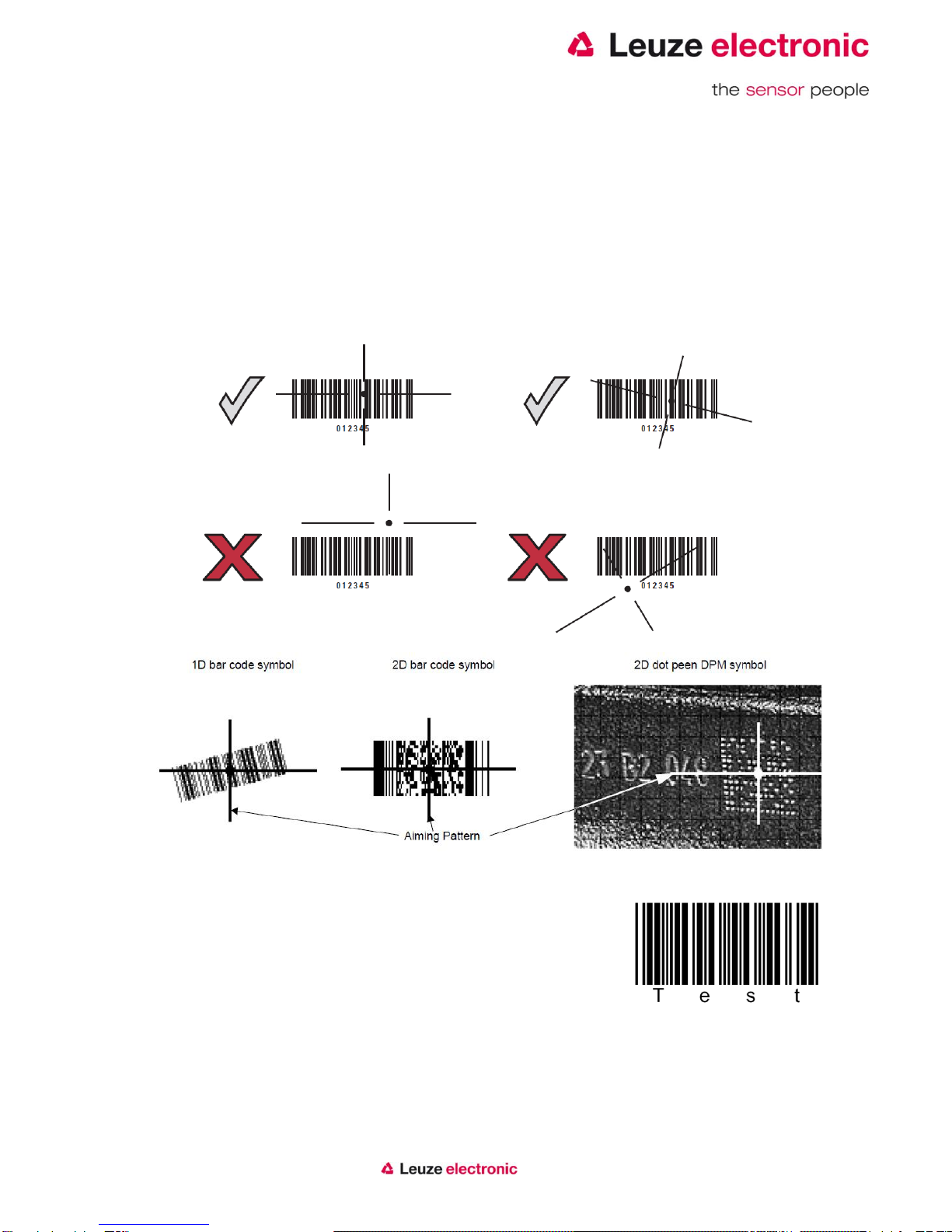

Here are some notes on how to get the best scan performance (see Fig.)
The scanner must be kept at a slight angle to the bar code. (Hold the scanner perpendicular to the barcode.)
Cross the red line should be addressed as an aiming aid centered on the code. So that the camera is aligned
with the center of the code. (The scanner cannot recognize the label correctly if it is not completely covered by
the camera and recorded).
Cross the red line is smaller and narrower when the scanner is closer to the code. Smaller codes should be
read with a smaller reading distance, with larger codes, the distance chosen such that the camera can be fully
grasp it.
Testing the Scanner
The adjacent bar code (code 39) is for testing the scanner,
The module size is 0.5 mm (20 mil)

Quick Start Guide HS 6508 Page 7
Technical Data
For the technical Data please refer the data sheet of the HS 6508.
Pinning of the cables
KB 232-1 HS65x8 Part-No. 50120436
Coiled cable with a length of 2.8 meters (Stretched).
Pinning 9 pin D-sub connector (female) for cable CBA-R36-C09ZAR
PIN-Number
Signal
Description
1
nc
Not connected
2
TX
Transmit Data
3
RX
Recieve Data
4
nc
Not connected
5
GND
Signal Ground
6
DTR
Data set ready (Output with +5 Volt)
7
CTS
Clear to send
8
RTS
Request to send
9
VCC IN
4,75 –5,25 Volt DC
KB 232-2 HS65x8 Part-No. 50120434
Coiled cable with a length of 2.8 meters (Stretched).
Pinning 9 pin D-sub connector (female) for cable CBA-R02-C09PAR
PIN-Number
Signal
Description
1
nc
Not connected
2
TX
Transmit Data
3
RX
Recieve Data
4
nc
Not connected
5
GND
Signal Ground
6
DTR
Data set ready (Output with +5 Volt)
7
CTS
Clear to send
8
RTS
Request to send
9
nc
Not connected
PIN Power supply
Signal
Description
Inner
VCC IN
5 Volt DC
Outer
GND
Ground
The right power supply for the HS 6508 (100-230V/50-60Hz) is the article no. 50120428.

Quick Start Guide HS 6508 Page 8
KB PS2-1 HS65x8 Part-No. 50120438
Coiled cable with a length of 2.8 meters (Stretched).
Pinning PS2 female and male connector of cable CBA-K02-C09PAR
PIN PS2 male
PIN PS2 female
Signal
Description
1
-
PC Data
Data PC
2
2
NC
Not connected
3
3
GND
Signal Ground
4
4
VCC IN
5 Volt DC
5
-
PC Clock
Clock PC
6
6
NC
Not connected
-
1
KB Data
Data Keyboard
-
2
KB Clock
Clock Keyboard
KB USB-1 HS 65x8 Part-No. 50120432
Coiled cable with a length of 2.8 meters (Stretched).
Pinning USB Type A connector of cable CBA-U12-C09ZAR
USB-Type A-Connector
Signal
Description
1
VCC IN
5 Volt DC
2
Data -
Data -
3
Data -
Data +
4
GND
Signal Ground
Reading distances
Codetype
Modul size
Modul size
from (mm)
to (mm)
Code 39
3 mil
0,076 mm
27,9
40,6
Code 39
5 mil
0,127 mm
0
88,9
Code 39
7,5 mil
0,19 mm
0
137,2
Code 39
20 mil
0,508 mm
27,9
233,7
UPC / EAN 13
100 %
0,33 mm
20,3
157,5
PDF 417
6,67 mil
0,169 mm
0
94,0
PDF 417
10 mil
0,254 mm
0
114,3
PDF 417
15 mil
0,381 mm
0
142,2
Data Matrix Code
4 mil
0,102 mm
25,4
53,3
Data Matrix Code
5 mil
0,127 mm
10,2
68,6
Data Matrix Code
7,5 mil
0,19 mm
0
88,9
Data Matrix Code
10 mil
0,254 mm
0
111,8
QR Code
4 mil
0,102 mm
27,9
35,6
QR Code
5 mil
0,127 mm
12,7
55,9
QR Code
7,5 mil
0,19 mm
0
83,8
QR Code
10 mil
0,254 mm
0
101,6
Note:
Note that the real reading distances are still influenced by factors such as labeling, quality printing, scanning angle, printing contrast etc.
and therefore may differ from those given here reading distances.

Quick Start Guide HS 6508 Page 9

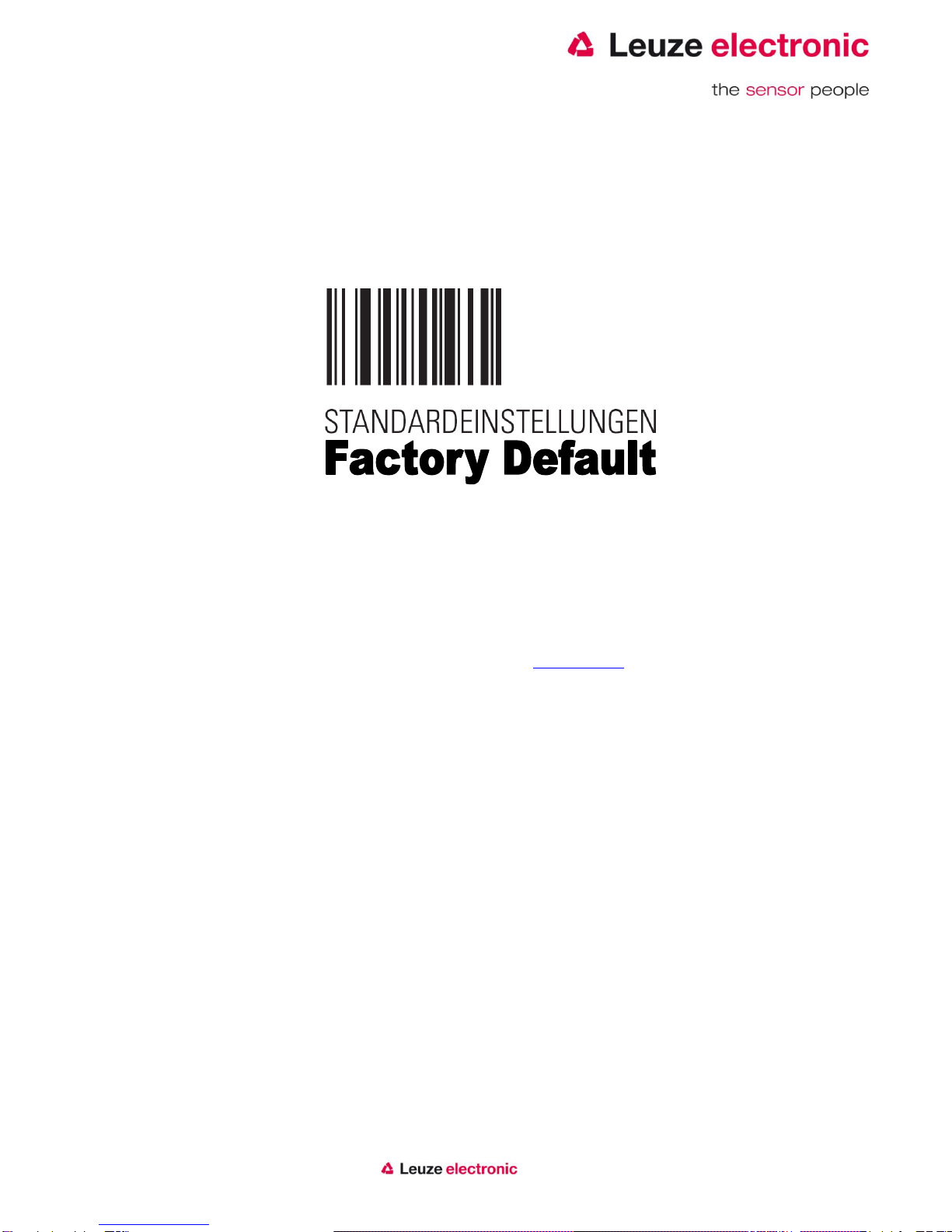

Reset the HS 6508 to factory settings
To reset all parameters to the factory setting you have to scan the code below..
Attention all settings will lose!
Parameterization
Basically, the hand-held scanner is configured via barcodes. This, first select the bar code is in the manual,
and then press the trigger button to read the code. The configuration is then immediately active.
A second option is to configure the hand scanner with USB and RS232 interface using the PC program ESP.
This program lets you download and install from our website www.leuze.de. With the program settings can be
made and transmitted to the hand-held scanner. The configuration can also be stored, so that later it can be
reused.
For more information see also in the User’s Guide to HS 6508.
In the following are some of the most important configurations.

Quick Start Guide HS 6508 Page 10
HS 6508 on the PC serial port
With KB 232-2 HS65x8 Part-No. 50120434
Required Parts:
1x 50120442 HS 6508 DPM
1x 50120434 KB 232-2 HS65x8
1x 50120428 NT HS6508
Coiled cable CBA-R02-C09PAR has a length of 2.8 meters (Stretched).
The pin assignment of the 9 pin D-sub connector (female) can be found on page 7

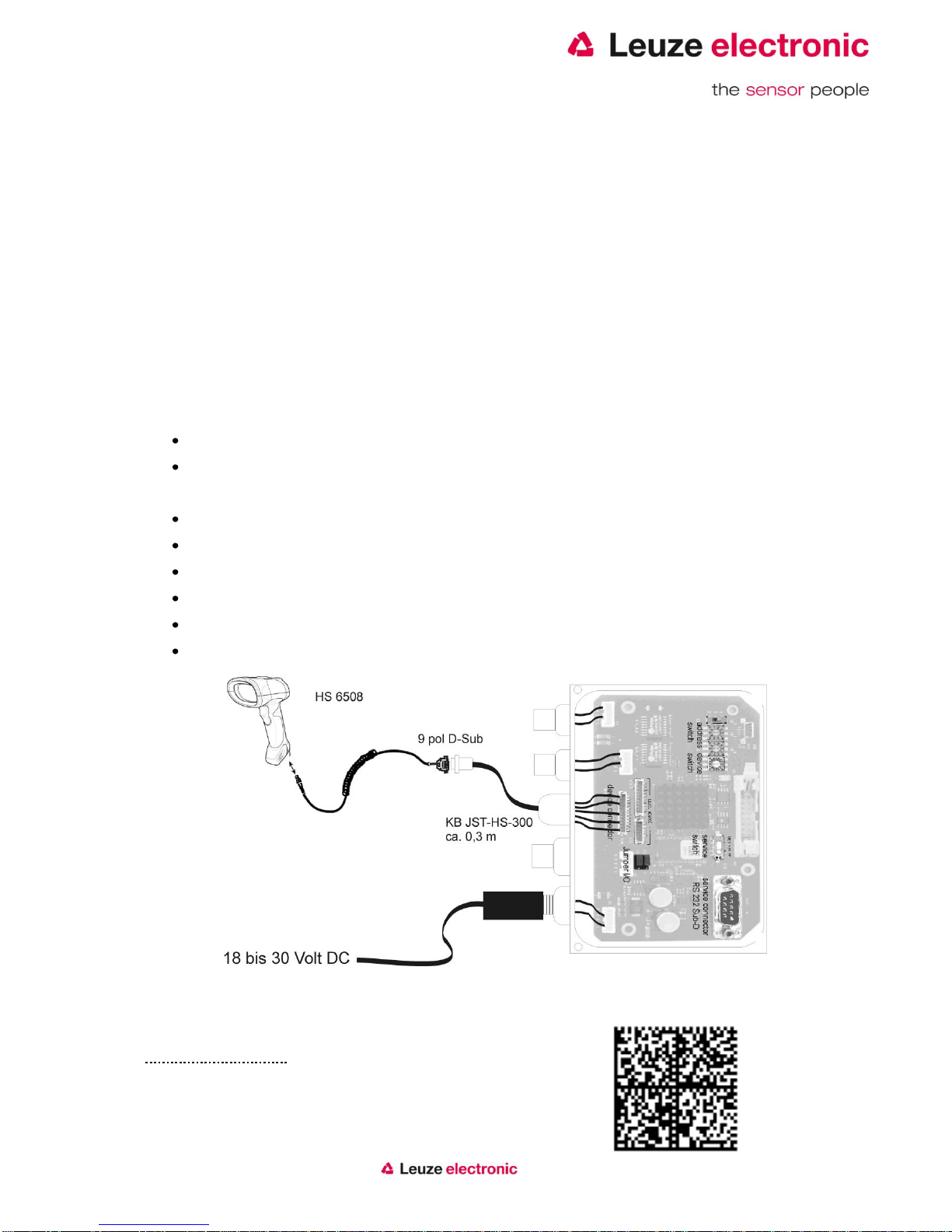

Please connect the HS 6508 in
accordance with the illustration.
RS 232 with 9600 Baud, 8 Data bit, 1 Stopbit, No Parity, no Prefix and Postfix
Parameterization for Leuze-Standard-Protocol
Leuze Standard-Protocol:
RS 232 with 9600 Baud, 8 Data bit, 1 Stopbit, No Parity, Prefix STX and
Postfixes CR/LF; Code 2/5 Interleaved with 10 digits.
Connection cable
RS232-Interface
Connection for power supply
