Leuze BCL34 Parts list manual

BCL34
Barcode reader
GB 05-10/08 50038851
TECHNICAL DESCRIPTION

Nortécnica S. R. L.
Tel. Int. + 54 1147 57-3129
Fax Int. + 54 1147 57-1088
Tel. Int. + 43 732 76460
Fax Int. + 43 732 785036
Balluff-Leuze Pty. Ltd.
Tel. Int. + 61 3 9720 4100
Fax Int. + 61 3 9738 2677
Leuze electronic nv/ sa
Tel. Int. + 32 2253 16-00
Fax Int. + 32 2253 15-36
ATICS
Tel. Int. + 359 2 847 6244
Fax Int. + 359 2 847 6244
Leuze electronic Ltda.
Tel. Int. + 55 11 5180-6130
Fax Int. + 55 11 5181-3597
Leuze electronic AG
Tel. Int. + 41 44 834 02-04
Fax Int. + 41 44 833 26-26
Imp. Tec. Vignola S.A.I.C.
Tel. Int. + 56 3235 11-11
Fax Int. + 56 3235 11-28
Leuze electronic Trading
(Shenzhen) Co. Ltd.
Tel. Int. + 86 755 862 64909
Fax Int. + 86 755 862 64901
Componentes Electronicas Ltda.
Tel. Int. + 57 4 3511049
Fax Int. + 57 4 3511019
Schmachtl CZ s.r.o.
Tel. Int. + 420 244 0015-00
Fax Int. + 420 244 9107-00
Desim Elektronik APS
Tel. Int. + 45 7022 00-66
Fax Int. + 45 7022 22-20
SKS-automaatio Oy
Tel. Int. + 358 20 764-61
Fax Int. + 358 20 764-6820
Leuze electronic sarl.
Tel. Int. + 33 160 0512-20
Fax Int. + 33 160 0503-65
Leuze Mayser electronic Ltd.
Tel. Int. + 44 14 8040 85-00
Fax Int. + 44 14 8040 38-08
UTECO A.B.E.E.
Tel. Int. + 30 211 1206 900
Fax Int. + 30 211 1206 999
Sensortech Company
Tel. Int. + 852 26510188
Fax Int. + 852 26510388
Leuze electronic OOO
Tel. Int. + 7 495 933
75 05
Fax Int. + 7 495 933
75 05
Leuze electronic AB
Tel. + 46 8 7315190
Fax + 46 8 7315105
Ingermark (M) SDN.BHD
Tel. Int. + 60 360 3427-88
Fax Int. + 60 360 3421-88
Leuze Lumiflex México, S.A. de C.V.
Tel. Int. + 52 8183 7186-16
Fax Int. + 52 8183 7185-88
Leuze electronic BV
Tel. Int. + 31 418 65 35-44
Fax Int. + 31 418 65 38-08
LA2P, Lda.
Tel. Int. + 351 214 447070
Fax Int. + 351 214 447075
Balluff Sp. z o. o.
Tel. Int. + 48 71 338 49 29
Fax Int. + 48 71 338 49 30
O`BOYLE s.r.l
Tel. Int. + 40 2 56201346
Fax Int. + 40 2 56221036
Elteco A/S
Tel. Int. + 47 35 56 20-70
Fax Int. + 47 35 56 20-99
Great Cofue Technology Co., Ltd.
Tel. Int. + 886 2 29 83 80-77
Fax Int. + 886 2 29 85 33-73
Countapulse Controls (PTY.) Ltd.
07/2008
Tel. Int. + 27 116 1575-56
Fax Int. + 27 116 1575-13
Schmachtl SK s.r.o.
Tel. Int. + 421 2 58275600
Fax Int. + 421 2 58275601
Tipteh d.o.o.
Tel. Int. + 386 1200 51-50
Fax Int. + 386 1200 51-51
Industrial Electrical Co. Ltd.
Tel. Int. + 66 2 6426700
Fax Int. + 66 2 6424249
Leuze electronic San.ve.Tic.Ltd.Sti.
Tel. Int. + 90 216 456 6704
Fax Int. + 90 216 456 3650
Balluff Asia pte Ltd
Tel. Int. + 65 6252 43-84
Fax Int. + 65 6252 90-60
Leuze electronic, Inc.
Tel. Int. + 1 248 486-4466
Fax Int. + 1 248 486-6699
SV Altera OOO
Tel. Int. + 38 044 4961888
Fax Int. + 38 044 4961818
C. illies & Co., Ltd.
Tel. Int. + 81 3 3443 4143
Fax Int. + 81 3 3443 4118
Profa-Tech Ltd.
Tel. Int. + 254 20 828095/6
Fax Int. + 254 20 828129
Leuze electronic Co., Ltd.
Tel. Int. + 82 31 3828228
Fax Int. + 82 31 3828522
KazPromAutomatics Ltd.
Tel. Int. + 7 7212 50 11 50
Fax Int. + 7 7212 50 11 50
Leuze electronic S.A.
Tel. Int. + 34 93 4097900
Fax Int. + 34 93 4903515
Logoprom ODO
Tel. Int. + 375 017 235 2641
Fax Int. + 375 017 230 8614
Schmachtl GmbH
SABROW HI-TECH E. & A. LTD.
Tel. Int. + 234 80333 86366
Fax Int. + 234 80333 84463518
Tipteh d.o.o. Beograd
Tel. Int. + 381 11 3131 057
Fax Int. + 381 11 3018 326
Leuze electronic S.r.l.
Tel. Int. + 39 02 26 1106-43
Fax Int. + 39 02 26 1106-40
Kvalix Automatika Kft.
Tel. Int. + 36 272 2242
Fax Int. + 36 272 2244
P.T. Yabestindo Mitra Utama
Tel. Int. + 62 21 92861859
Fax Int. + 62 21 6451044
Galoz electronics Ltd.
Tel. Int. + 972 3 9023456
Fax Int. + 972 3 9021990
Global-Tech (India) Pvt. Ltd.
Tel. Int. + 91 20 24470085
Fax Int. + 91 20 24470086
Tavan Ressan Co. Ltd.
Tel. Int. + 98 21 2606766
Fax Int. + 98 21 2002883
Tipteh Zagreb d.o.o.
Tel. Int. + 385 1 381 6574
Fax Int. + 385 1 381 6577
Tipteh d.o.o. Skopje
Tel. Int. + 389 70 399 474
Fax Int. + 389 23 174 197
Leuze electronic GmbH + Co. KG
P.O. Box 1111, D- 73277 Owen /Teck
Tel. [phone],
Fax [phone]
[e-mail] • www.leuze.com
Sales Region East
Phone [phone]
Fax [phone]
Postal code areas
01000-19999
39000-39999
98000-99999
Sales Region North
Phone [phone]
Fax [phone]
Postal code areas
20000-38999
40000-65999
97000-97999
Sales Region South
Phone [phone]
Fax [phone]
Postal code areas
66000-96999
Sales and Service
Worldwide
AT (Austria)
AR (Argentina)
AU + NZ (Australia + New Zealand)
BE (Belgium)
BG (Republic of Bulgaria)
BR (Brasil)
CH (Switzerland)
CO (Colombia)
CZ (Czech Republic)
CL (Chile)
CN (People’s Republic of China)
DK (Denmark)
FI (Finland)
GB (United Kingdom)
GR (Greece)
HK (Hong Kong)
IT (Italy)
HU (Hungary)
ID (Indonesia)
IL (Israel)
IN (India)
IR (Iran)
FR (France)
RU (Russian Federation)
SE (Sweden)
MY (Malaysia)
MX (Mexico)
NL (Netherlands)
PT (Portugal)
PL (Poland)
RO (Romania)
NO (Norway)
TW (Taiwan)
ZA (South Africa)
SK (Slowakia)
SI (Slovenia)
TH (Thailand)
TR (Turkey)
SG + PH (Singapore +
Philippines)
US + CA (United States +
Canada)
UA (Ukraine)
JP (Japan)
KR (South Korea)
KZ (Republic of Kazakhstan)
ES (Spain)
BY (Republic of Belarus)
Germany
KE (Kenia)
NG (Nigeria)
RS (Republic of Serbia)
HR (Croatia)
MK (Macedonia)
© All rights reserved, especially the right of reproduction, distribution and translation. Copying or
reproductions in any form require the written consent of the manufacturer.
Changes reflecting technical improvements may be made.

Table of contents
Leuze electronic BCL 34 1
TNT 35/7-24V
1 General Information........................................................................................................... 5
1.1 Explanation of Symbols .......................................................................................................5
1.2 Declaration of conformity..................................................................................................... 5
2 Safety Notices .................................................................................................................... 6
2.1 Safety Standards ................................................................................................................. 6
2.2 Intended use ........................................................................................................................ 6
2.3 Working Safely ..................................................................................................................... 7
3 Commissioning steps at a glance .................................................................................... 9
4 Description ....................................................................................................................... 13
4.1 On the barcode readers BCL 34........................................................................................ 13

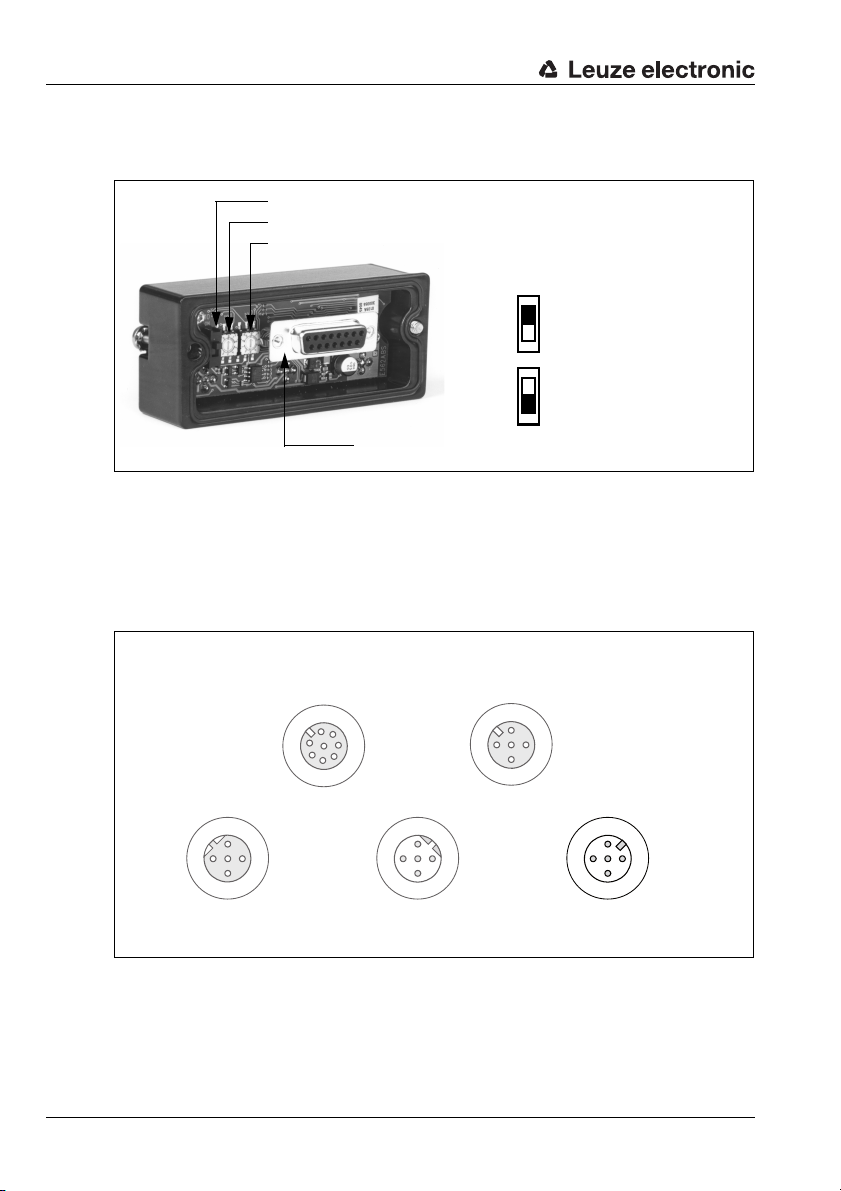

4.2 Modular hoods with integrated connectors MS 34 103/MS 34 105.................................. 14

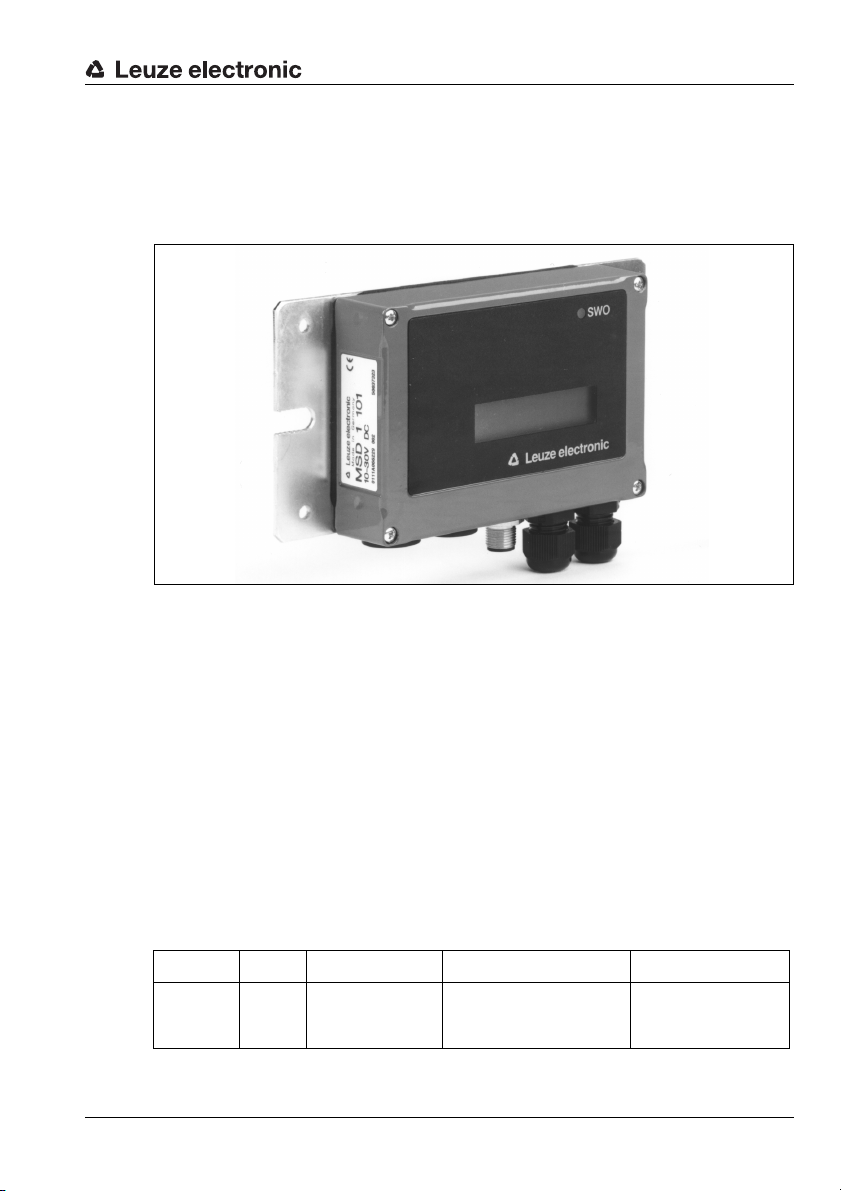

4.3 Modular Service Display MSD 1 101 ................................................................................. 15
5 Specifications................................................................................................................... 17
5.1 General specifications of the BCL 34 ................................................................................ 17
5.2 LED indicators.................................................................................................................... 18
5.3 Device Construction and Components.............................................................................. 19
5.3.1 Dimensioned and Connection Drawings ..................................................................................... 19
5.4 Optical data ....................................................................................................................... 21
5.4.1 Type overview.............................................................................................................................. 21
5.4.2 Raster aperture............................................................................................................................ 22
5.4.3 Optics variants and reading fields ............................................................................................... 22
5.5 Automatic reflector activation "AutoReflAct"..................................................................... 27
6 Accessories / Order Designation ................................................................................... 29
6.1 Accessories........................................................................................................................ 29
6.1.1 Modular Service Display MSD 1 101...........................................................................................30
6.1.2 Fastening Accessories................................................................................................................. 32
6.1.3 Connection cable KB 034 2000................................................................................................... 32
7 Installation ........................................................................................................................ 33
7.1 Storage, Transportation ..................................................................................................... 33
7.2 Mounting............................................................................................................................ 34
7.2.1 Arrangement of devices............................................................................................................... 35
7.3 Address setting.................................................................................................................. 37
7.4 Connection......................................................................................................................... 37
7.4.1 ConnectionBCL 34 ...................................................................................................................... 38
7.4.2 Ready-made PROFIBUS connection cable................................................................................. 40
7.4.3 User-configurable PROFIBUS connectors .................................................................................. 42
7.4.4 Connection of switching inputs and outputs............................................................................... 43
7.5 Disassembling, packing, disposing ................................................................................... 43

Table of contents
2 BCL 34 Leuze electronic
8 PROFIBUS ........................................................................................................................ 44
8.1 General Information ........................................................................................................... 44
8.1.1 GSD File .......................................................................................................................................45
8.1.2 Permanently defined parameters (device parameters) ................................................................45
8.2 Structure of the project modules ....................................................................................... 47
8.2.1 Overview of the project modules .................................................................................................47
8.3 Description of the individual project modules ................................................................... 49
8.3.1 Code table extension: Modules 1-4.............................................................................................50
8.3.2 Multilabel: Module 5.....................................................................................................................50
8.3.3 Reading Gate Control: Module 6 .................................................................................................52
8.3.4 Check Digit: Module 7..................................................................................................................53
8.3.5 EAN designator: Module 8 ...........................................................................................................54
8.3.6 Laser control: Module 9 ...............................................................................................................55
8.3.7 Pharmacode Properties: Module 10 ............................................................................................56
8.3.8 Code Type Properties: Module 11...............................................................................................57
8.3.9 Data Formatting: Module 12 ........................................................................................................58
8.3.10 Switching input: Module 13 .........................................................................................................59
8.3.11 Switching output: Module 14 .......................................................................................................60
8.3.12 AutoReflAct (automatic reflector activation) Module 15: ............................................................62
8.3.13 AutoControl: Module 16...............................................................................................................63
8.3.14 Reference Code Comparison: Module 17 ...................................................................................64
8.3.15 Activations: Module 18 ................................................................................................................69
8.3.16 Activations with ACK: Module 19.................................................................................................70
8.3.17 Decoding state: Module 20..........................................................................................................71
8.3.18 Decoding Result: Modules 21 to 27.............................................................................................71
8.3.19 Interlinked read result: Module 33 ...............................................................................................73
8.3.20 Fragmented Reading Result: Module 34 .....................................................................................74
8.3.21 Reading Gate Activations: Module 35 .........................................................................................75
8.3.22 Reading gate number: Module 36................................................................................................76
8.3.23 Number of scans per reading gate: Module 37 ...........................................................................76
8.3.24 Code Position: Module 38............................................................................................................77
8.3.25 Reading Security (Equal Scans): Module 39................................................................................78
8.3.26 Scans per barcode: Module 40....................................................................................................78
8.3.27 Scans With Information: Module 41.............................................................................................79
8.3.28 Decoding quality: Module 42 .......................................................................................................79
8.3.29 Code Direction: Module 43 ..........................................................................................................80
8.3.30 Number Of Digits: Module 44 ......................................................................................................80
8.3.31 Code type: Module 45 .................................................................................................................81
8.3.32 Alignment mode 1: Module 46.....................................................................................................82
8.3.33 Service: Module 47 ......................................................................................................................83
8.3.34 Alignment mode 2: Module 48.....................................................................................................84
8.3.35 Switching output expansion: Module 49 .....................................................................................85
8.3.36 RS 232: Module 50 ......................................................................................................................87

Table of contents
Leuze electronic BCL 34 3
TNT 35/7-24V
9 Example configurations................................................................................................... 88
9.1 Indirect Activation via the PLC........................................................................................... 88
9.1.1 Task ............................................................................................................................................. 88
9.1.2 Procedure .................................................................................................................................... 88
9.2 Direct Activation via the Switching Input ........................................................................... 90
9.2.1 Task ............................................................................................................................................. 90
9.2.2 Procedure .................................................................................................................................... 90
9.3 Direct Activation via the Switching Input ........................................................................... 92
9.3.1 Task ............................................................................................................................................. 92
9.3.2 Procedure .................................................................................................................................... 92
10 Commissioning ................................................................................................................ 94
10.1 Measures to be performed prior to the initial commissioning ........................................... 94
10.2 Function Test ..................................................................................................................... 94
10.2.1 Service Operating Mode.............................................................................................................. 95
11 Maintenance..................................................................................................................... 95
11.1 General Maintenance Information...................................................................................... 95
11.2 Repairs, servicing .............................................................................................................. 95
12 Appendix ........................................................................................................................... 96
12.1 EU Declaration of Conformity ............................................................................................ 96

Figures and tables
4 BCL 34 Leuze electronic
Figure 2.1: Attachment of the sticky labels with warning notices at the BCL 34.....................................................8
Figure 3.1: Beam exit and device arrangement of the BCL 34 ...............................................................................9
Figure 3.2: View of the inside of the MS 34 .........................................................................................................10
Figure 3.3: BCL 34 with MS 34 103/MS 34 105 - Connection PWR .....................................................................10

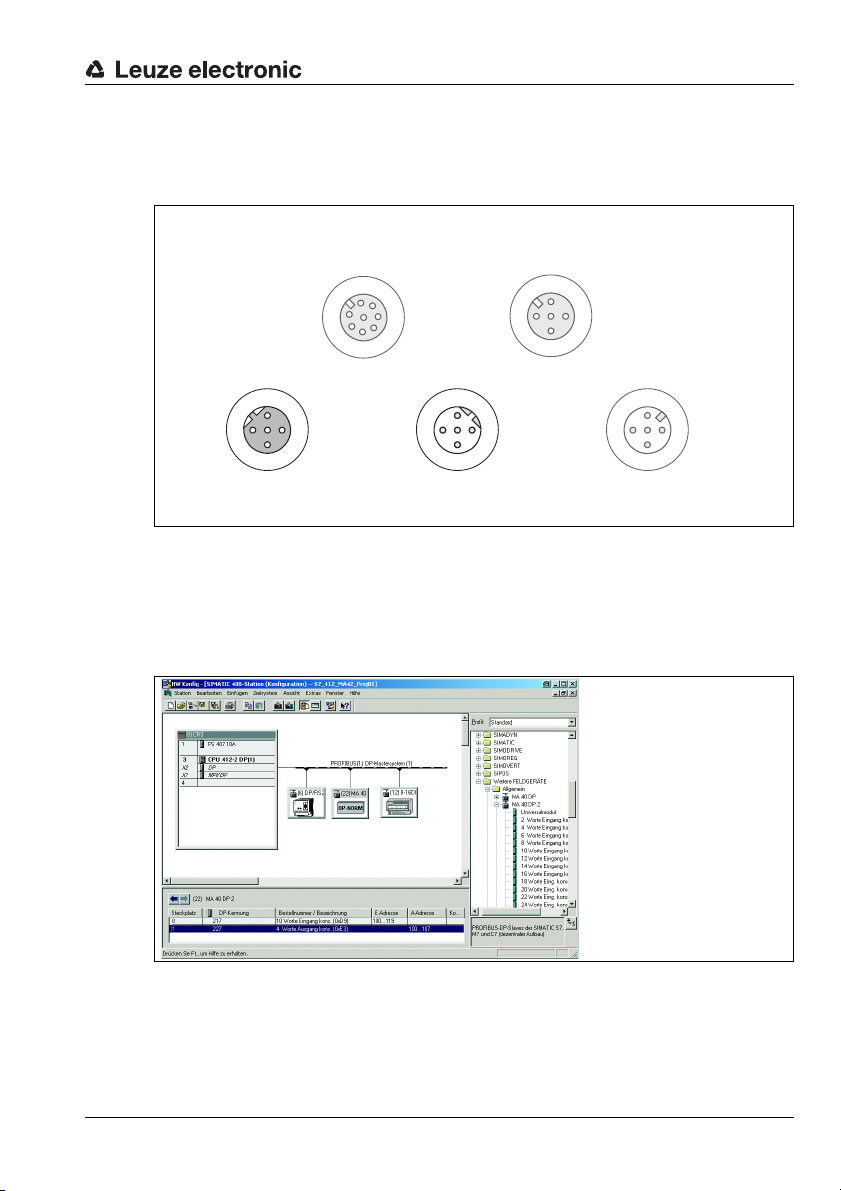

Figure 3.4: BCL 34 with MS 34 103/MS 34 105 - Connection HOST/BUS IN and BUS OUT...................................11
Figure 3.5: Example PROFIBUS manager.............................................................................................................11

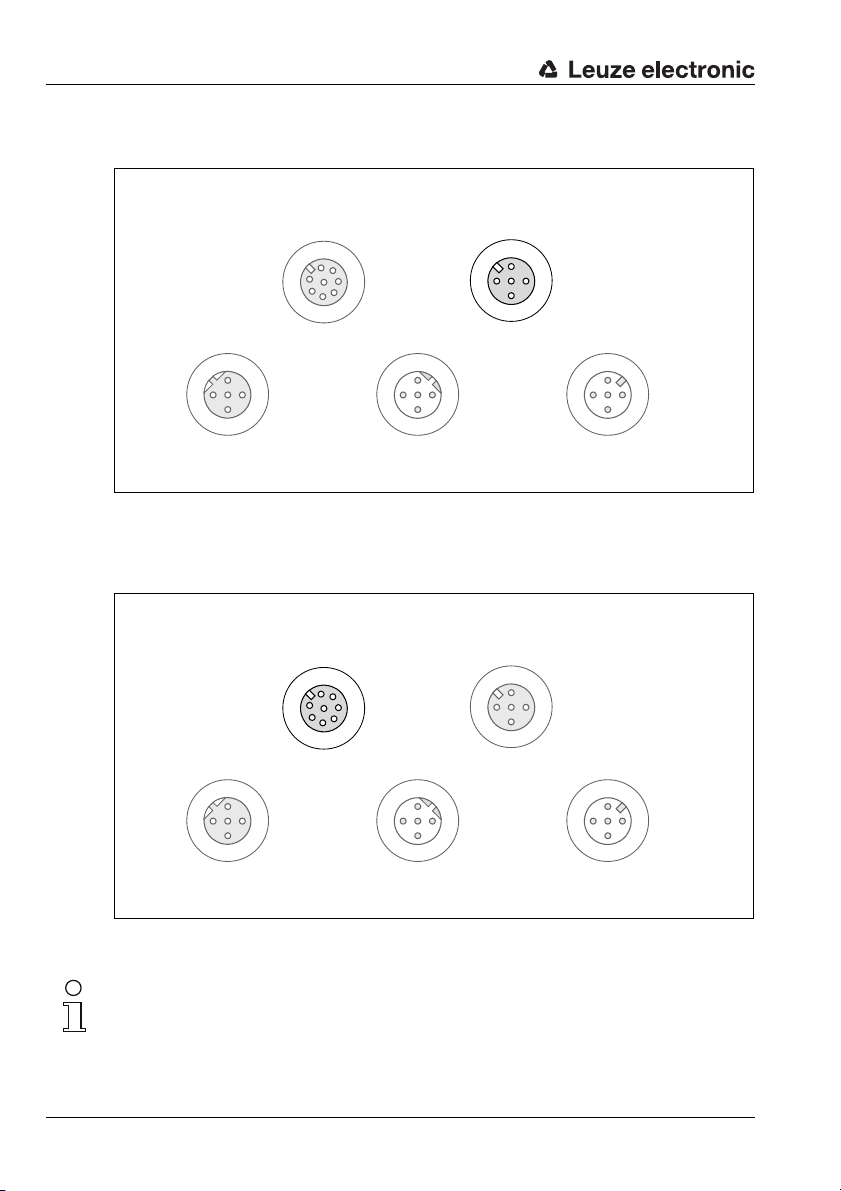

Figure 3.6: BCL 34 with MS 34 103/MS 34 105 - Connection SW IN/OUT............................................................12
Figure 3.7: BCL 34 with MS 34 103/MS 34 105 - Connection SERVICE ...............................................................12

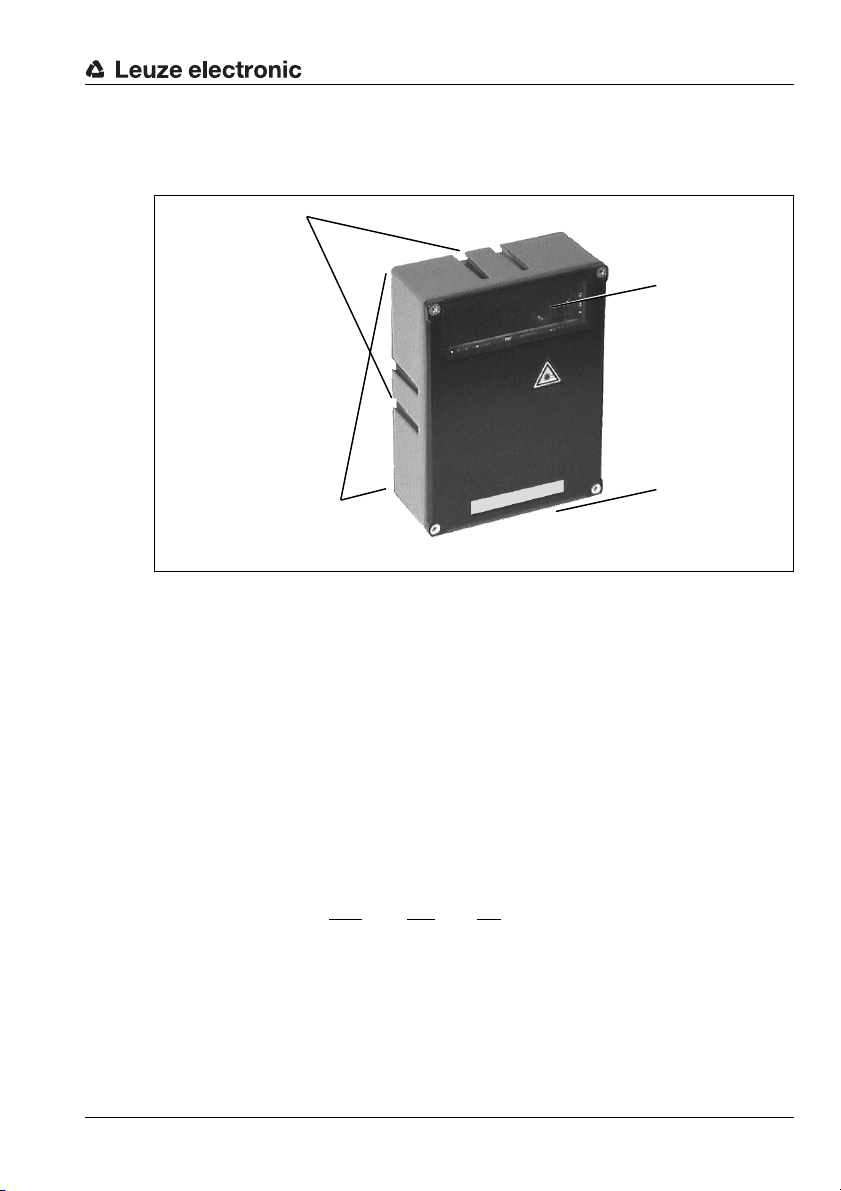

Figure 4.1: BCL 34 device construction ...............................................................................................................13
Figure 4.2: MS 34 103 ........................................................................................................................................14
Figure 4.3: MS 34 103 ........................................................................................................................................14
Figure 4.4: MSD 1 101........................................................................................................................................15
Table 5.1: General Specifications.......................................................................................................................18
Table 5.2: LED states MS 34 103 / MS 34 105...................................................................................................18
Figure 5.1: BCL 34 with MS 34 105 ....................................................................................................................19
Figure 5.2: Dimensioned drawing of the BCL 34..................................................................................................19
Figure 5.3: Dimensioned drawing MS 34 103 / MS 34 105 .................................................................................20
Table 5.3: Type overview BCL 34 without integrated heating .............................................................................21
Table 5.4: Type overview BCL 34 Devices with integrated heating .....................................................................21
Figure 5.4: BCL 34 … 100: Reading field, M optics (medium density, normal distance) ......................................22
Figure 5.5: BCL 34 … 100: Reading field, F optics (low density, normal distance)...............................................23
Figure 5.6: BCL 34 … 100: Reading field, L optics (low density, long distance)...................................................23
Figure 5.7: BCL 34 … 100: Reading field, J optics (for ink-jet applications) ........................................................24
Figure 5.8: BCL 34 … 100 H: Reading field, M optics (medium density, normal distance) ...................................25
Figure 5.9: BCL 34 … 100 H: Reading field, F optics (low density, normal distance) ...........................................25
Figure 5.10: BCL 34 … 100 H: Reading field, L optics (low density, long distance) ...............................................26
Figure 5.11: BCL 34…100 H: Reading field, J optics (for ink-jet applications) .......................................................27
Table 5.5: Examples of reflectors which may be used ........................................................................................28
Figure 5.12: Reflector arrangement for autoReflAct...............................................................................................28
Table 6.1: Accessories / Order Designation........................................................................................................30
Figure 6.1: Modular Service Display MSD 1 101..................................................................................................31
Figure 6.2: Mounting device BT 56......................................................................................................................32
Figure 7.1: Device name plate BCL 34 ................................................................................................................33
Figure 7.2: Mounting example BCL 34 ................................................................................................................34
Figure 7.3: Beam exit on BCL 34.........................................................................................................................35
Figure 7.4: Application example "conveyor chain" ..............................................................................................36
Figure 7.5: View of the inside of the MS 34 .........................................................................................................37
Figure 7.6: Pin assignment BCL 34 with MS 34 103 / MS 34 105........................................................................38
Table 7.1: Pin assignments - PWR .....................................................................................................................39
Table 7.2: Pin assignment SW IN/OUT................................................................................................................39
Table 7.3: Pin assignment HOST/BUS IN / BUS OUT ...........................................................................................40
Table 7.4: Accessories / Order Designation........................................................................................................41
Figure 7.7: Cable structure of PROFIBUS connection cable ..................................................................................41
Figure 7.8: Connection diagram switching inputs and outputs BCL 34.................................................................43
Table 8.1: "Common" Parameters .....................................................................................................................46
Table 8.2: Code type and code length, Tables 1-4..............................................................................................46
Table 8.3: Overview of the project modules .......................................................................................................47
Figure 8.1: Specifying switch-on and switch-off positions of the laser.................................................................55
Figure 8.2: Relative position of the barcode in the scanner beam. .......................................................................77
Table 9.1: Device parameters for example configuration 2.................................................................................90
Table 9.2: Device parameters for example configuration 3.................................................................................93
Table 9.3: Module parameters for example configuration 3................................................................................93

General Information
Leuze electronic BCL 34 5
TNT 35/7-24V
1 General Information
1.1 Explanation of Symbols
The symbols used in this operating manual are explained below.
Attention!
Pay attention to passages marked with this symbol. Failure to heed this information can lead
to injuries to personnel or damage to the equipment.
Attention Laser!
This symbol warns of possible danger through hazardous laser radiation.
Notice!
This symbol indicates text passages containing important information.
1.2 Declaration of conformity
The barcode reader BCL 34, the modular hoods with integrated connectors MS 34 103/
MS 34 105, and the optional modular service display MSD 1 101 have been developed and
manufactured under observation of the applicable European standards and directives.
The barcode reader models BCL 34 … 100 without integrated heating also fulfil the UL
requirements (Underwriters Laboratory Inc.) for the USA and Canada.
Notice!
You can find the corresponding declaration of conformity in the appendix of the manual.
The manufacturer of the product, Leuze electronic GmbH & Co KG in D-73277 Owen/Teck,
possesses a certified quality assurance system in accordance with ISO 9001.
UL
US
C
LISTED

Safety Notices
6 BCL 34 Leuze electronic
2 Safety Notices
2.1 Safety Standards
The barcode reader BCL 34, the modular hoods with integrated connectors MS 34 103/
MS 34 105, and the optional modular service display MSD 1 101 have been developed,
produced and tested subject to the applicable safety standards. They correspond to the
state of the art.
2.2 Intended use
Attention!
The protection of personnel and the device cannot be guaranteed if the device is operated
in a manner not corresponding to its intended use.
Bar code readers of the type BCL 34 are conceived as stationary, high-speed scanners
with integrated decoders for all current bar codes used for automatic object recognition.
The modular hoods with integrated connectors MS 34 103/MS 34 105 are intended for the
easy connection of barcode readers of type BCL 34 in a PROFIBUS system and for the
setting of the respective PROFIBUS address (see chapter 7.3 "Address setting").
The modular service display MSD 1 101, which is optionally available, displays operational
data of the BCL 34 and is used as a simple means of access to the service interface.
In particular, unauthorised uses include:
• rooms with explosive atmospheres
• operation for medical purposes
Areas of application
The barcode reader BCL 34 is intended especially for the following areas of application:
• labelling and packaging machines
• space-critical barcode reading tasks
• storage and conveying engineering, in particular for object identification on fast-
moving conveyor belts
• pharmaceutical industry

Safety Notices
Leuze electronic BCL 34 7
TNT 35/7-24V
2.3 Working Safely
Attention!
Access to or changes on the device, except where expressly described in this operating
manual, is not authorised.
Safety regulations
Observe the locally applicable legal regulations and the rules of the employer's liability
insurance association.
Qualified personnel
Mounting, commissioning and maintenance of the device must only be carried out by
qualified personnel.
Electrical work must be carried out by a certified electrician.
Attention, laser radiation!
WARNING: The barcode reader BCL 34 operates with a red light laser of class 2 acc.
to EN 60825-1. If you look into the beam path over a longer time period, the retina of
your eye may be damaged!
Never look directly into the beam path!
Do not point the laser beam of the BCL 34 at persons!
When mounting and aligning the BCL 34, take care to avoid reflections of the laser
beam off reflective surfaces!
Heed the laser safety regulations according to DIN EN 60825-1 in their most current
version! The output power of the laser beam at the reading window is at most 1.8mW
acc. to EN 60825-1.
The BCL 34 uses a laser diode with low power in the visible red light range with an
emitted wavelength of 650 … 690nm.
CAUTION - the use of operating and adjusting devices other than those specified
here or carrying out of differing procedures may lead to dangerous exposure to radi-
ation!

Safety Notices
8 BCL 34 Leuze electronic
The housing of the bar code reader BCL 34 is labelled on the side, below the scanner
window and on the rear with the following logotypes:
Figure 2.1: Attachment of the sticky labels with warning notices at the BCL 34
A
B
D
E
C
ADanger warning symbol
BWarning laser discharge
CWarning unlocked protective housing
DWarning and certification sign
EName plate

Commissioning steps at a glance
Leuze electronic BCL 34 9
TNT 35/7-24V
3 Commissioning steps at a glance
Notice!
Below you will find a short description for the initial commissioning BCL 34of the bar-
code reader. Detailed explanations for all listed points can be found throughout the manual.
Mechanical design
Mounting the device BCL 34
There are two different types of mounting arrangements for the BCL 34:
1. Using 4 M4x6 screws on the rear of the device.
2. Using a mounting device (BT 56) on the dovetail fastening grooves.
Notice!
The installation dimensions listed in the following figure must absolutely be adhered to.
Optically, it must be ensured that the scanner has an unobstructed view of the barcode at
all times. The scanning beam's angle of incidence on the label of at least 10° must be ad-
hered to.
Figure 3.1: Beam exit and device arrangement of the BCL 34
Notice!
During installation, the working range of the reading field curve must be taken into account.

103 ± 2
10°
Read distance
Beam exit
all dimensions
in mm
Scanning beam(s)

Commissioning steps at a glance
10 BCL 34 Leuze electronic
Setting the PROFIBUS address
The PROFIBUS address must be set in the MS 34 10x connector plug hood.
Figure 3.2: View of the inside of the MS 34
Connecting the voltage supply and PROFIBUS
The BCL 34, in combination with an MS 34 103 or MS 34 105, is connected via M12
connectors.
Connecting the voltage supply
The voltage supply is connected via the PWR M12 connection.
Figure 3.3: BCL 34 with MS 34 103/MS 34 105 - Connection PWR

Slide switch for the hundreds (marked with 102)
Rotary switch for the tens (marked with 101)
Rotary switch for the single digits (marked with 100)
Connector to the BCL 34
Position of the slide
switch:
Top address
100 - 126
Bottom address
1 - 99

Socket connector
(A coded)
Socket connector
(A coded)
Socket connector
(B coded)
Plug connector
(B coded)
Plug connector
(A coded)
SWIN
SWOUT
3
2
1
4
GND VIN
FE
SW IN/OUT
BUS OUT HOST/BUS IN PWR
1
2
3
4
VOUT
FE
SWIN
SWOUT
GND
GND 3
2
1
4
FE
A (N)
B (P)
VCC
VCC 1
2
3
4
A (N)
B (P)
GND
FE
1
23
4
SERVICE
5
6
7
/SERV
VIN TXD
RXD
SCL
SDA
GND
/INT

Commissioning steps at a glance
Leuze electronic BCL 34 11
TNT 35/7-24V
Connecting the PROFIBUS
The PROFIBUS is connected via HOST/BUS IN or, in the case of a continuing network, via
BUS OUT. If BUS OUT is not used, the PROFIBUS must be terminated at this point with
an M12 terminator plug (see "Accessories" on page 29.).
Figure 3.4: BCL 34 with MS 34 103/MS 34 105 - Connection HOST/BUS IN and BUS OUT
Configuration via the PROFIBUS hardware manager
PROFIBUS manager
Install the GSE file associated with the BCL 34 in the PROFIBUS manager of your control.
Activate the required modules, including at least one of the modules 20 … 27.
Figure 3.5: Example PROFIBUS manager
Store the slave address for the BCL 34 in the PROFIBUS manager. Ensure that the address
is the same as the address configured in the device. As soon as the BCL 34 is addressed
and configured correctly and the PROFIBUS functions, the status LED at the MS 34 104 or
MS 34 105 lights up in green.
Socket connector
(A coded)
Socket connector
(A coded)
Socket connector
(B coded)
Plug connector
(B coded)
Plug connector
(A coded)
1
23
4
5
6
7
/SERV
VIN TXD
RXD
SCL
SDA
GND
/INT
SWIN
SWOUT
3
2
1
4
GND VIN
FE
1
2
3
4
VOUT
FE
SWIN
SWOUT
GND
GND 3
2
1
4
FE
A (N)
B (P)
VCC
VCC 1
2
3
4
A (N)
B (P)
GND
FE
SW IN/OUT
BUS OUT HOST/BUS IN PWR
SERVICE


Commissioning steps at a glance
12 BCL 34 Leuze electronic
Connecting the switching input/switching output at the BCL 34
The switching input/switching output is connected via SW IN/OUT.
Figure 3.6: BCL 34 with MS 34 103/MS 34 105 - Connection SW IN/OUT
Connecting the Modular Service Display MSD 1 101
The MSD 1 101 is connected via cable KB 034-2000 (M12 connection on SERVICE and
M12 connection on MSD 1 101, see "Connection cable KB 034 2000" on page 32. on ).
Figure 3.7: BCL 34 with MS 34 103/MS 34 105 - Connection SERVICE
The BCL 34 can be accessed via the MSD 1 101 using the service interface.
Notice!
Changes which were made via the service interface on the BCL 34 are lost following initial-
isation on the PROFIBUS.

Socket connector
(A coded)
Socket connector
(A coded)
Socket connector
(B coded)
Plug connector
(B coded)
Plug connector
(A coded)
1
2
3
4
VOUT
FE
SWIN
SWOUT
GND
SWIN
SWOUT
3
2
1
4
GND VIN
FE
GND 3
2
1
4
FE
A (N)
B (P)
VCC
VCC 1
2
3
4
A (N)
B (P)
GND
FE
1
23
4
5
6
7
/SERV
VIN TXD
RXD
SCL
SDA
GND
/INT
SW IN/OUT
BUS OUT HOST/BUS IN PWR
SERVICE

Socket connector
(A coded)
Socket connector
(A coded)
Socket connector
(B coded)
Plug connector
(B coded)
Plug connector
(A coded)
1
23
4
5
6
7
/SERV
VIN TXD
RXD
SCL
SDA
GND
/INT
SWIN
SWOUT
3
2
1
4
GND VIN
FE
1
2
3
4
VOUT
FE
SWIN
SWOUT
GND
GND 3
2
1
4
FE
A (N)
B (P)
VCC
VCC 1
2
3
4
A (N)
B (P)
GND
FE
SW IN/OUT
BUS OUT HOST/BUS IN PWR
SERVICE

Description
Leuze electronic BCL 34 13
TNT 35/7-24V
4 Description
BCL 34 device construction
Figure 4.1: BCL 34 device construction
4.1 On the barcode readers BCL 34
The bar code readers BCL 34 are high-speed scanners with integrated decoder for all bar
codes currently in use, e.g. 2/5 Interleaved, EAN etc.
The many possible configurations of the device via PROFIBUS modules permit its adapta-
tion to a multitude of reading tasks. Due to the small dimensions of the unit and the short
minimum reading distance, the BCL 34 may also be used in highly constrained spaces.
A special barcode reader with optics version J is available for all ink jet applications. This
reader has been optimised for low contrast barcodes that generally feature gaps. Further-
more, device variants with integrated heating are available.
Information on technical data and characteristics can be found in chapter 5.
AutoReflAct
AutoReflAct stands for Automatic Reflector Activation and permits an activation without
additional sensors. This is achieved by directing the scanner with reduced scanning beam
towards a reflector mounted behind the conveyor path. As long as the scanner is targeted
at the reflector, the read gate remains closed. If, however, the reflector is blocked by an
object such as a container with a barcode label, the scanner activates the read procedure,
and the label on the container is read. When the path from the scanner to the reflector has
cleared, the read procedure has completed and the scanning beam is reduced and again
directed onto the reflector. The reading gate is closed.
Reading
window
4 fastening threads M4 x 6 on
the rear of the device
15-pin sub D con-
nector on the un-
derside of the unit
Dovetail fastening
grooves

Description
14 BCL 34 Leuze electronic
4.2 Modular hoods with integrated connectors MS 34 103/MS 34 105
The modular hoods with integrated connectors are necessary accessories for connecting
a BCL 34 in a PROFIBUS system. They are used to feed through the PROFIBUS connec-
tions, set the PROFIBUS address, and supply voltage to the BCL 34.
MS 34 103
The MS 34 103 offers the following interfaces:
• PROFIBUS In (HOST/BUS IN)
•PROFIBUSOut(BUSOUT)
• Voltage supply (PWR) and 1 switching input and output each (SW IN/OUT)
Figure 4.2: MS 34 103
MS 34 105
In addition, the MS 34 105 offers the following interfaces:
• Service interface (SERVICE)
• 1 further switching input and output each (SW IN/OUT)
Figure 4.3: MS 34 103
Further information on the modular hoods with integrated connectors may be found in the
following chapters.

Description
Leuze electronic BCL 34 15
TNT 35/7-24V
4.3 Modular Service Display MSD 1 101
The modular service display is used to display the reading and operational data on the one
hand, and as simple access to the service interface on the other. The RS 232 service inter-
face of the BCL 34is tapped in this case and is made available at the 9-pin sub D connector
of the MSD (for further information see page 30).
Figure 4.4: MSD 1 101
To connect to the MS 34 105, an 8-pin cable (M12) with a length of 2m is used (see
chapter 6 "Accessories / Order Designation").
The MSD can be operated in different display modes which are stored in the parameter set
of the BCL. The required parameter for setting up the display mode can be altered via the
service interface. The LCD display contains two lines with 16 characters each. There are
3 display modes:
1. Single line:
a result is output in one line. If the information is longer than 16 characters, the char-
acters > 16 are cut off. This means that two results may be output on the LCD dis-
play.
2. Double line:
a result is displayed over both lines. Thus, only one result is visible in the display.
3. Depending on the size:
if a result is > 16 characters, both lines are used
if a result is < 16 characters, one line is used and two results are displayed
Address Size Designation Value Range Standard
161 Byte lcd_output_format
1: single line (two results)
2: double line (one result)
0: depending on the size
2: double line
(one result visible)

Description
16 BCL 34 Leuze electronic
The input can be specified as a PT commentary or in the BCL Config parameter list, e.g.,
PT0001610x.
Using the maintenance display, new settings for the BCL can be tried quickly and easily,
without having to project these settings via the PROFIBUS. If these settings are to be
accepted for standard operation, these must be configured via PLC.
Notice!
With very few exceptions, the BCL 34 is configured via the PROFIBUS connection
group.Parameters which were set via the service interface are, therefore, overwritten in
PROFIBUS operation by the parameters stored in the project. If parameters in the project
were not explicitly changed, the corresponding default parameters are transferred.
In the BCLConfig configuration software, the parameter input fields which can be overwrit-
ten by the PROFIBUS are displayed with a blue background. Parameter input fields which
are not overwritten by the PROFIBUS are displayed with a white background.
If these parameters were changed, they are stored in one of the available parameter mem-
ories in the MS 34. They are, thus, safely stored even if a BCL 34 is replaced.

Specifications
Leuze electronic BCL 34 17
TNT 35/7-24V
5 Specifications
5.1 General specifications of the BCL 34
Optical data
Light source laser diode 650nm
Scanning rate BCL with M optics: 1000scans/s
BCL with F optics: 800scans/s
BCL with L optics: 800scans/s
BCL with J optics: 1000scans/s
Resolution BCL 3x xM 100: m = 0.2mm … 0.5mm
BCL 3x xF 100: m = 0.3mm … 0.8mm
BCL 3x xL 100: m = 0.35mm … 0.8mm
BCL 3x xJ 100: application-dependent
Reading distance see reading curve
Laser class 2 acc. to EN 60825-1,
II acc. to CDRH
Code types all common code types
Software features selectable output format, autoControl, autoReflAct, reference
code comparison, adjustment mode, diagnosis, reading gate
control, control of switching inputs and switching outputs, etc.
Electrical data
Interface type PROFIBUS DP
Service interface only in combination with MS 34 105: RS232 with fixed data
format,
8 data bits, no parity, 1 stop bit,
9.6kBd
Ports 1 switching output, 1 switching input
Operating voltage without heating: 10 … 30VDC
with heating: 22 … 26VDC
Power consumption without heating: 5W
with heating: max. 30W (of which window heating
accounts for: 1.5W)
Indicators
LED see chapter 5.2 "LED indicators"
Mechanical data
Protection class IP 65
BCL 34 MS 34
Weight without heating: 405g
with heating: 480g
160g
Dimensions (W x H x D) without heating: 120 x 90 x 43mm
with heating: 120 x 90 x 52mm
38 x 90 x 39mm
Housing diecast aluminium diecast zinc

Specifications
18 BCL 34 Leuze electronic
Table 5.1: General Specifications
Notice!
The warm-up time before devices with integrated heating are ready for operation is
approx. 30min. (depending on the environmental conditions).
5.2 LED indicators
MS 34 103 / MS 34 105
On top of the modular hood with integrated connectors a red/green status LED is located
between the M12 connectors HOST/BUS IN and BUS Out. It indicates the state of the
PROFIBUS connection.
Environmental data
Ambient temp. (operation/
storage)
without heating: 0°C … +40°C/-20°C … +60°C
with heating: -35°C … +30°C/-20°C … +60°C
Air humidity max. 90% rel. humidity, non-condensing
Vibration IEC 60068-2-6, test FC
Shock IEC 60068-2-27, test Ea
Electromagnetic
compatibility
EN 61326-1,
IEC 61000-4-2, -3, -4 and -6,
Additional Functions
autoReflAct automatic reading activation via reflector
State Meaning
off voltage off or device not yet recognised 1) by the PROFIBUS
1) Note: The LED remains off until the BCL 34 is recognised by the PROFIBUS. Only after
the PROFIBUS has addressed the BCL 34 for the first time do the following status
descriptions apply.
green flashing initialisation of the device, establishment of the PROFIBUS communication
green, continuous
light data operation
red, flashing error on the PROFIBUS, error can be resolved by a reset
red, continuous light error on the PROFIBUS, error cannot be resolved by a reset
orange, continuous
light SERVICE operation active
Table 5.2: LED states MS 34 103 / MS 34 105
